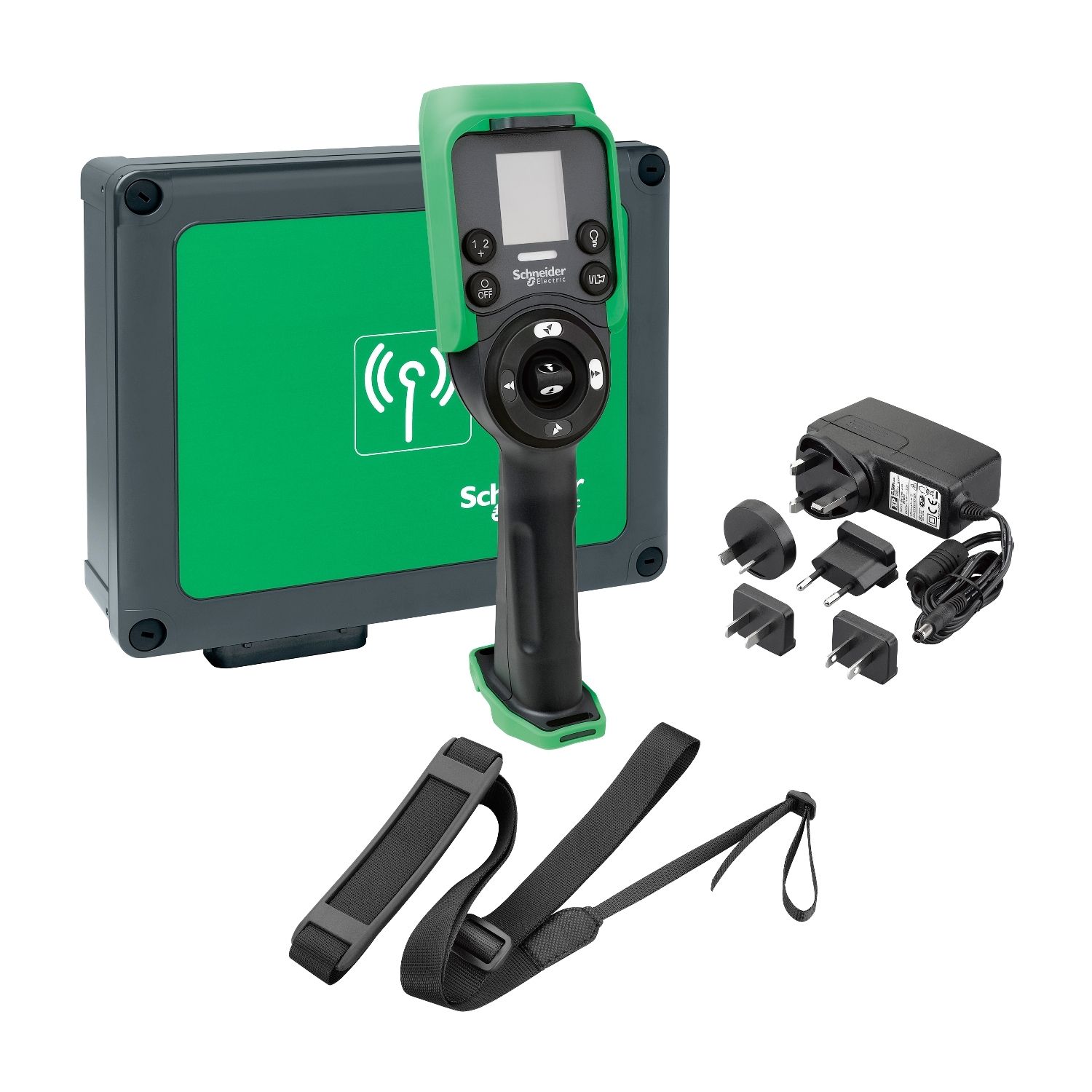

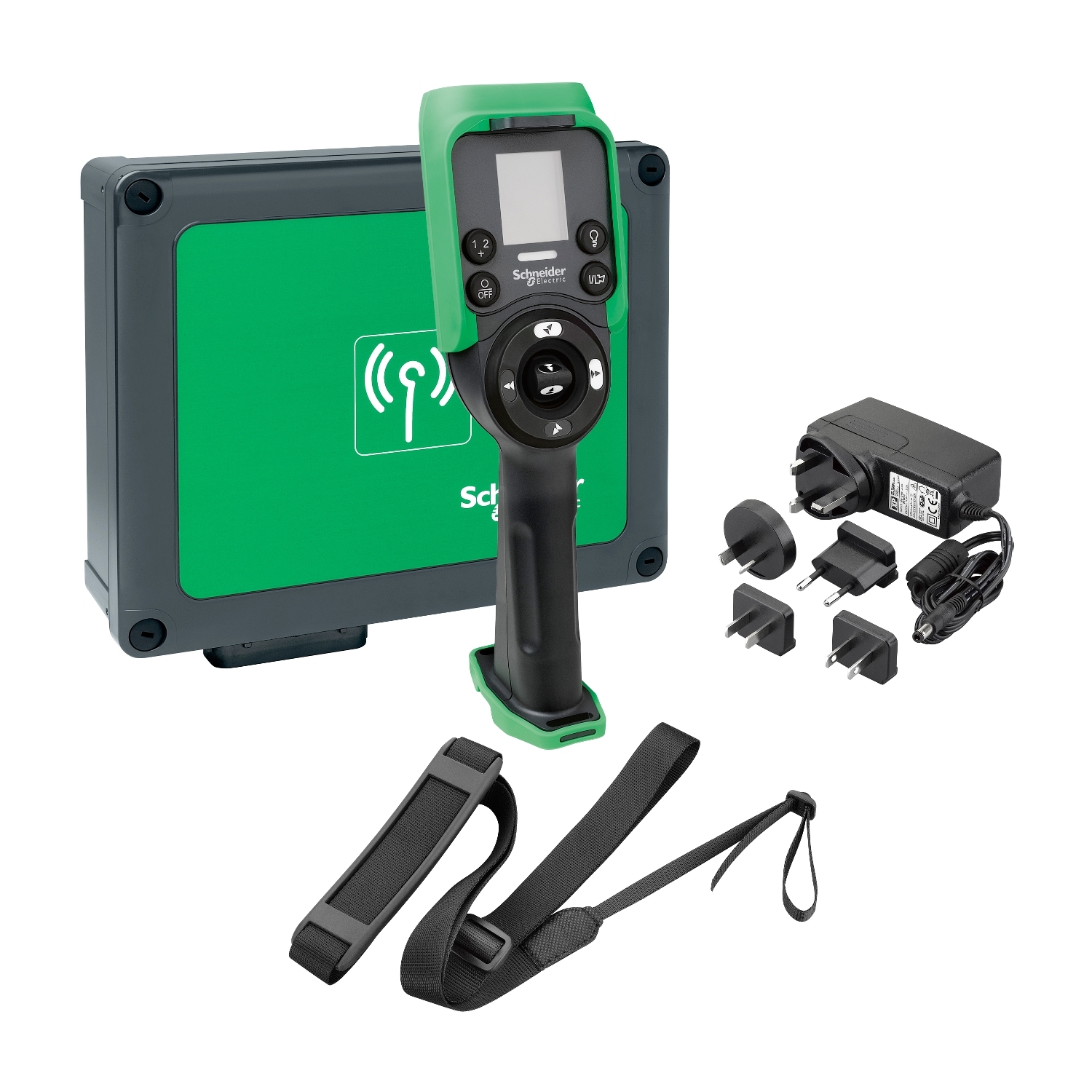

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART8D + ZARB18H), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XARS |
| Control station application | limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/IEC 62061 |
| Product specific application | hoisting applications, material handling |
| Number of channels | 50 |
| Control station type | wireless |
| Product or component type | control station |
| Range of product | Harmony eXLhoist |
| Complementary | |
| Kit composition | remote control, configuration software, shoulder belt, cable, base station |
| Cable entry | cable gland |
| Operating distance | 100 m in free air |
| Connector type | industrial socket |
| Communication network type | wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Environment | |
| Relative humidity | 0-95 % at -20-45 °C storage |
| Standards | EN 15011 hoisting applications, EN 12077-2 hoisting applications, EN 13557 hoisting applications, EN/IEC 60204-32 hoisting applications, EN/ISO 13850 safety, EN/IEC 61508 safety, EN/IEC 62061 safety, ARIB STD-T81 radio, EN/ISO 13849-1 safety, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, EN 14492 hoisting applications, EN 14439 hoisting applications, EN/IEC 60204-1 safety |
| Radio agreement | ICASA, SRRC, ANATEL, FCC, RSS, ARIB |
| Electromagnetic compatibility | resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 |
| Product certifications | EAC, KC, JIS, C-Tick, CSA, UL, CE |
