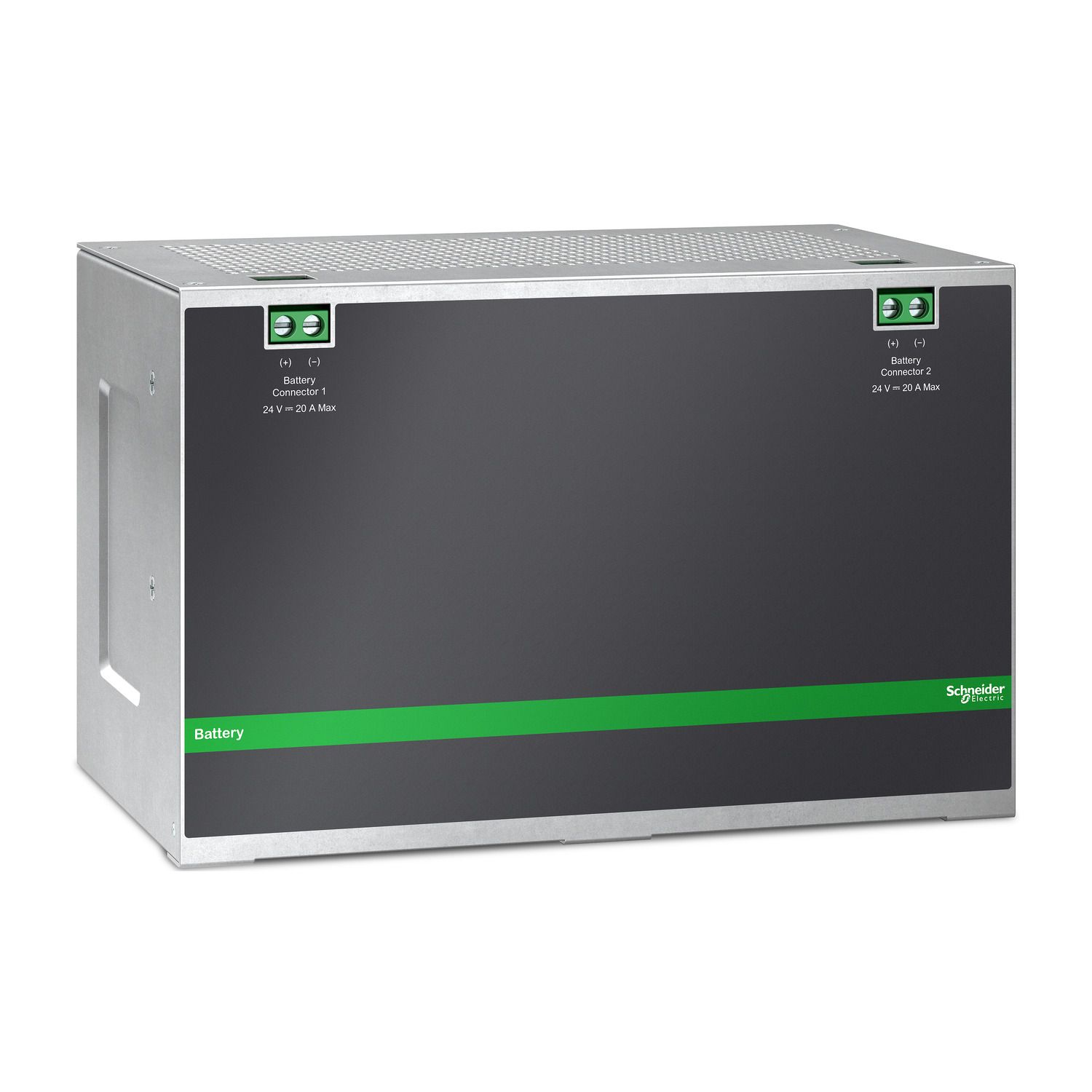

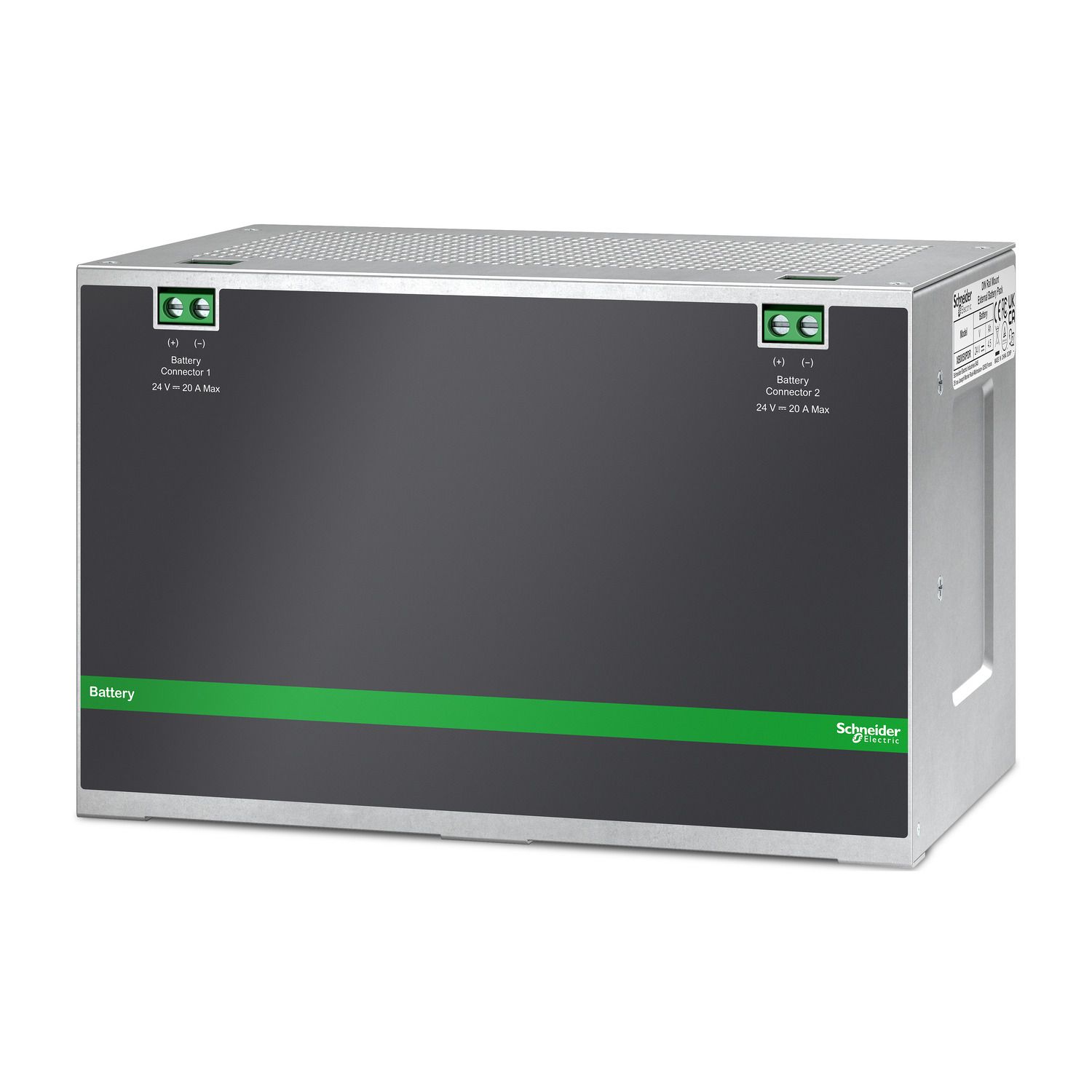

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load. It comes with a 2-year standard warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Provided equipment | user manual |
| Battery type | VRLA |
| Main Input Voltage | 24 V DC |
| Output voltage | 24 V DC |
| Mounting preference | no preference |
| Battery location | battery cabinet |
| Redundant | No |
| Show note OP temperature | No |
| Environmental | |
| Operating altitude | 0...3000 m |
| Relative humidity | 0-95 % |
| Ambient air temperature for storage | -15-70 °C |
| Storage altitude | 0-3000 m |
| Ambient air temperature for operation | -15-50 °C |
| Storage Relative Humidity | 0-95 % |
| Physical | |
| Depth | 119 mm |
| Width | 192 mm |
| Colour | metal grey |
| Net weight | 4.5 kg |
| USB compatible | No |
| Height | 129 mm |
| Output | |
| Battery capacity | 4.5 Ah |
| Conformance | |
| Standards | IEC 62368-1 |
| Product certifications | TÜV, CE |
| Batteries & Runtime | |
| Battery voltage | 24 V |
| Device mounting | DIN rail |
