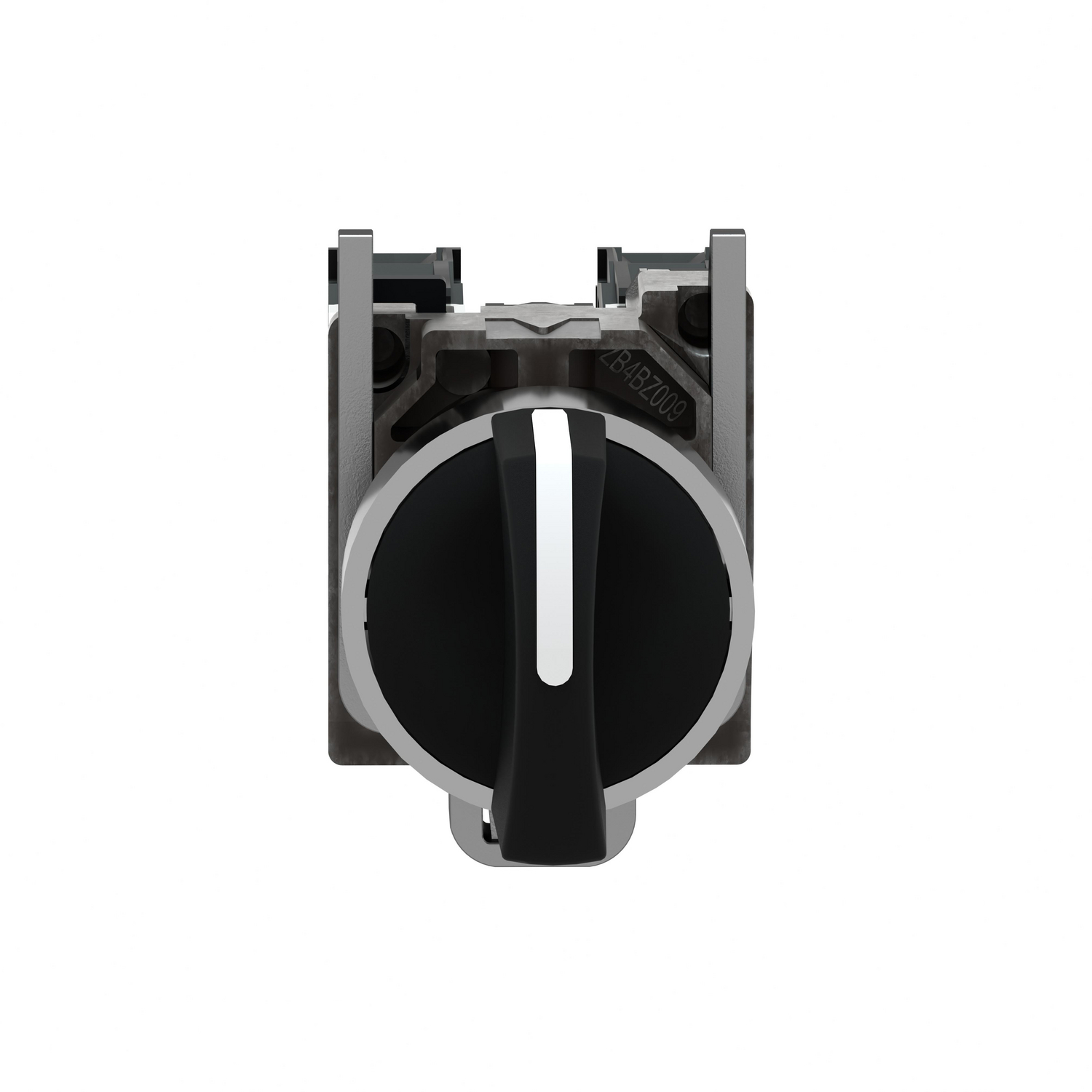

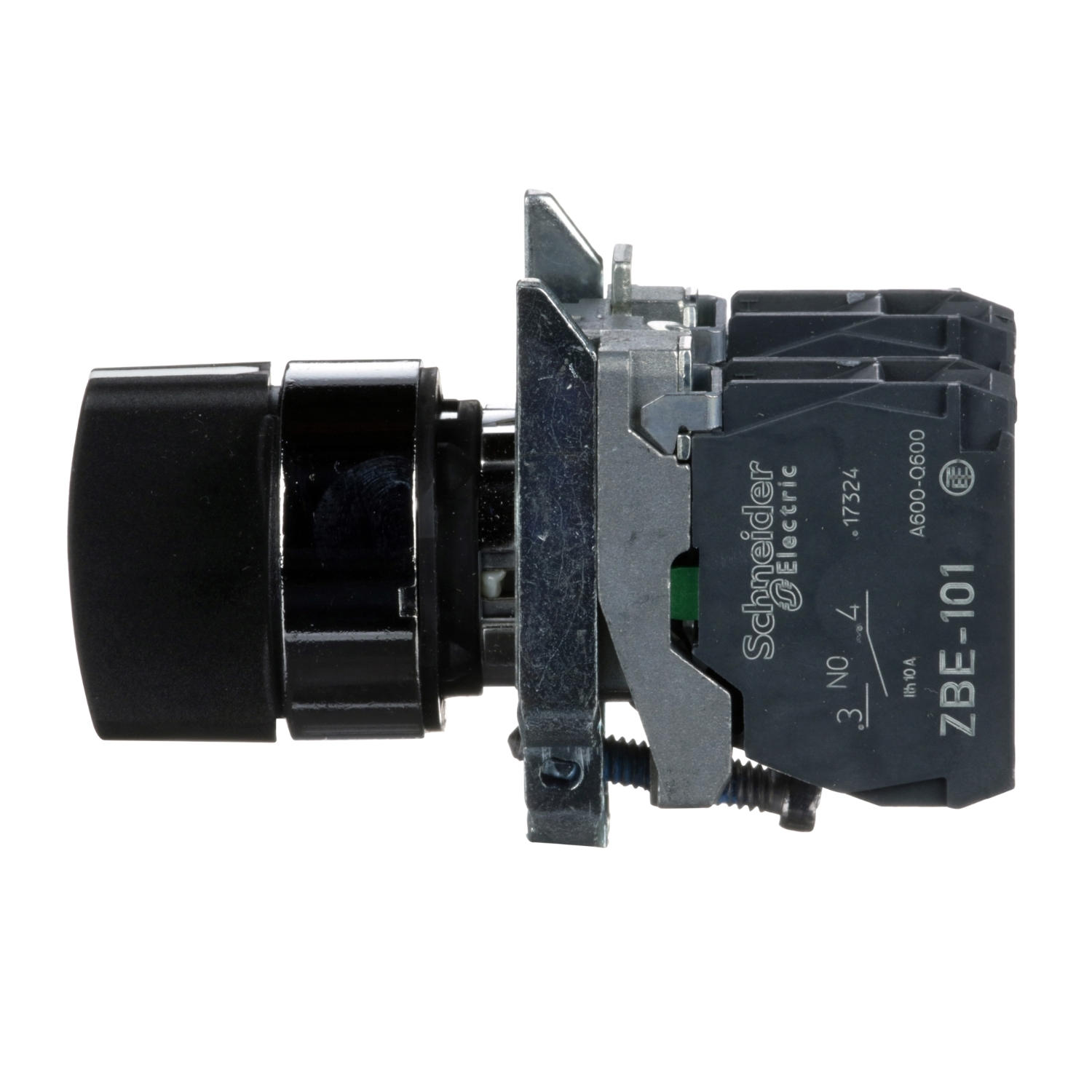

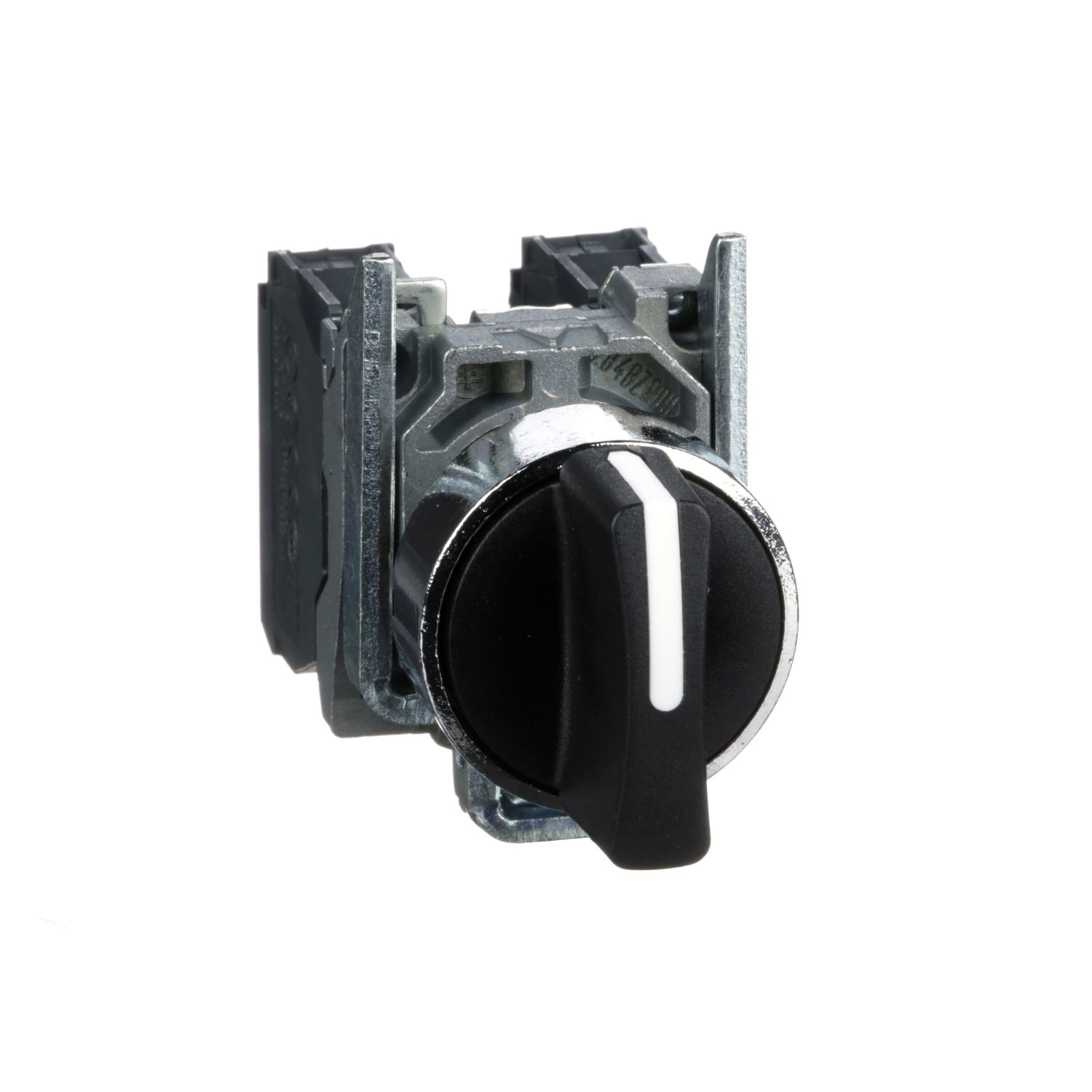

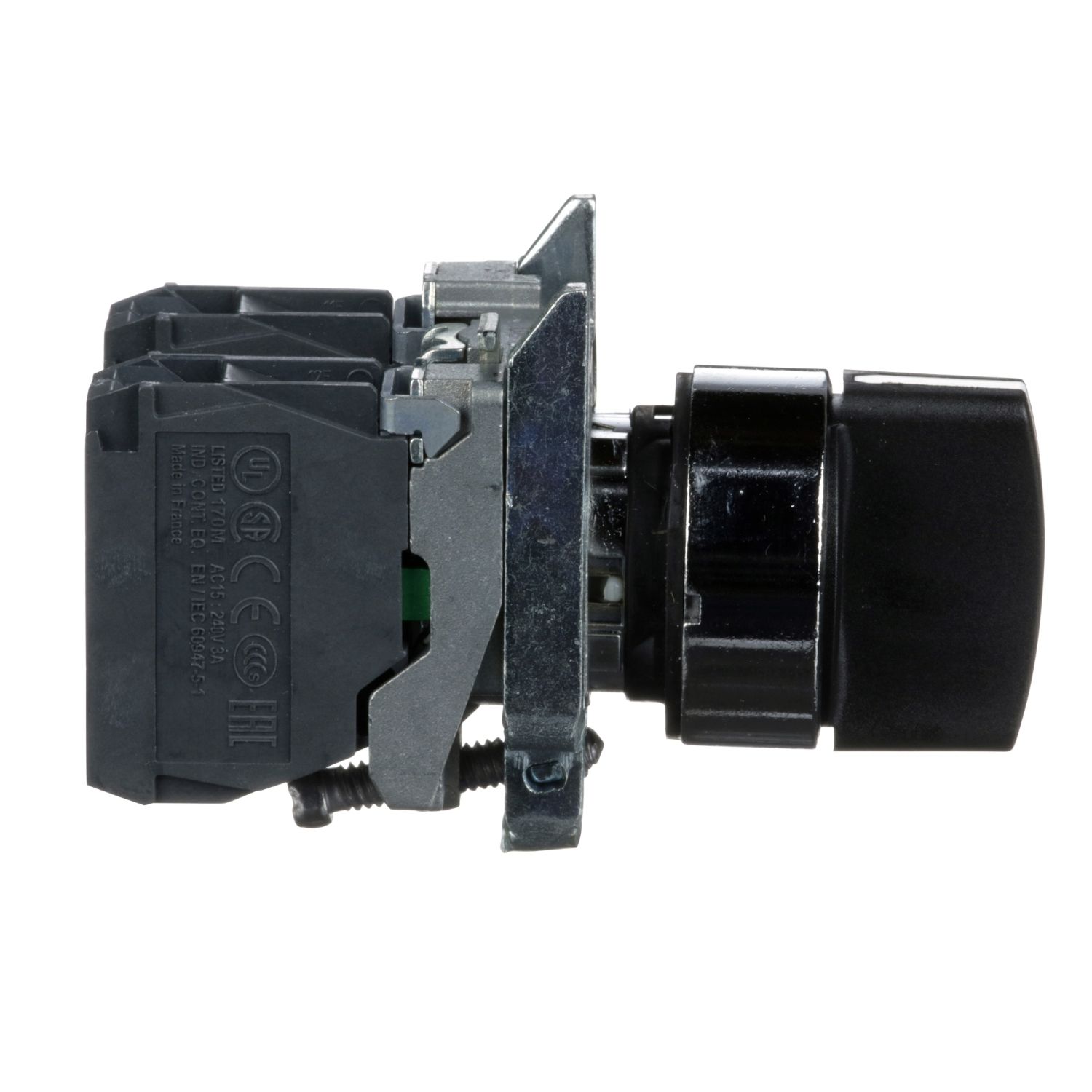

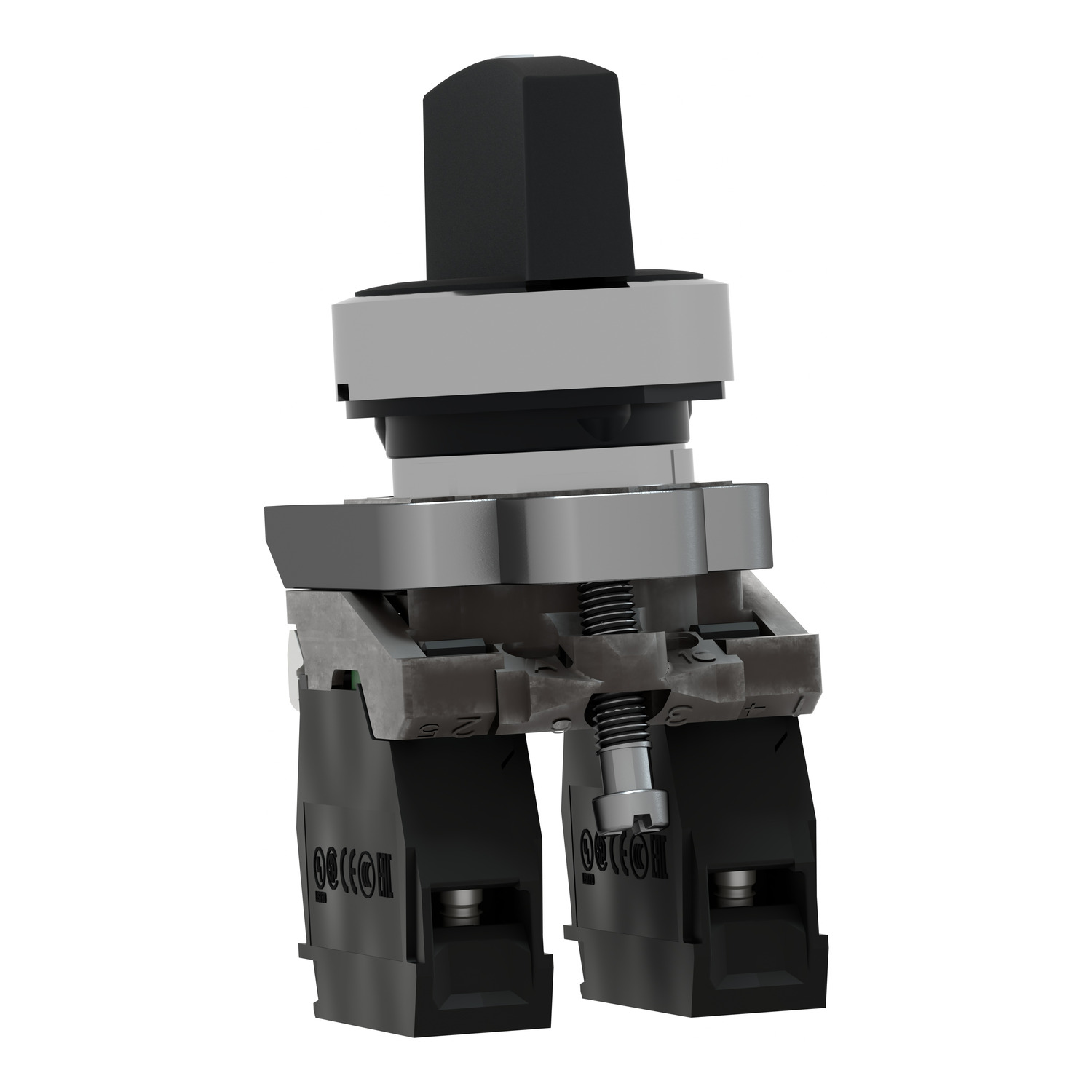

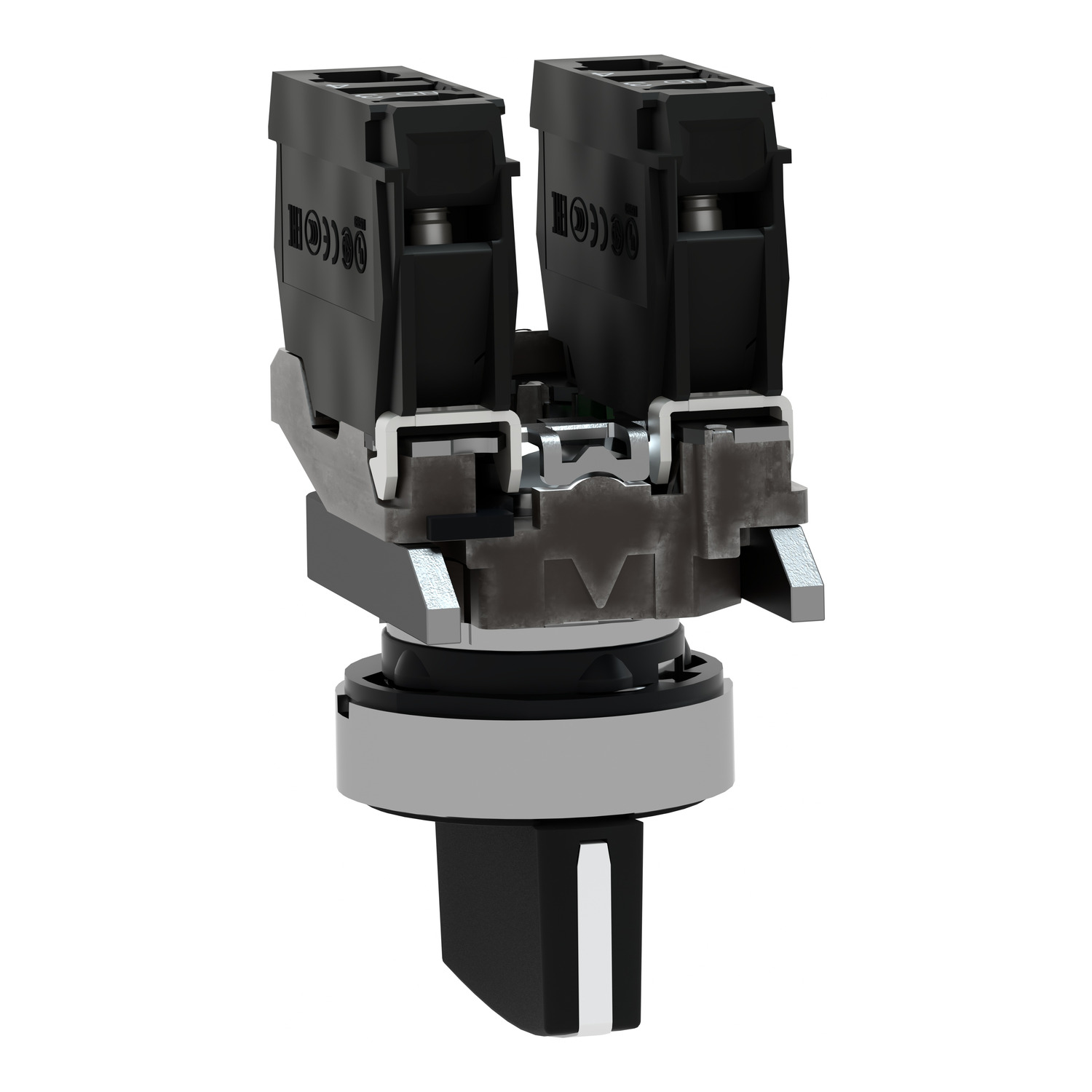

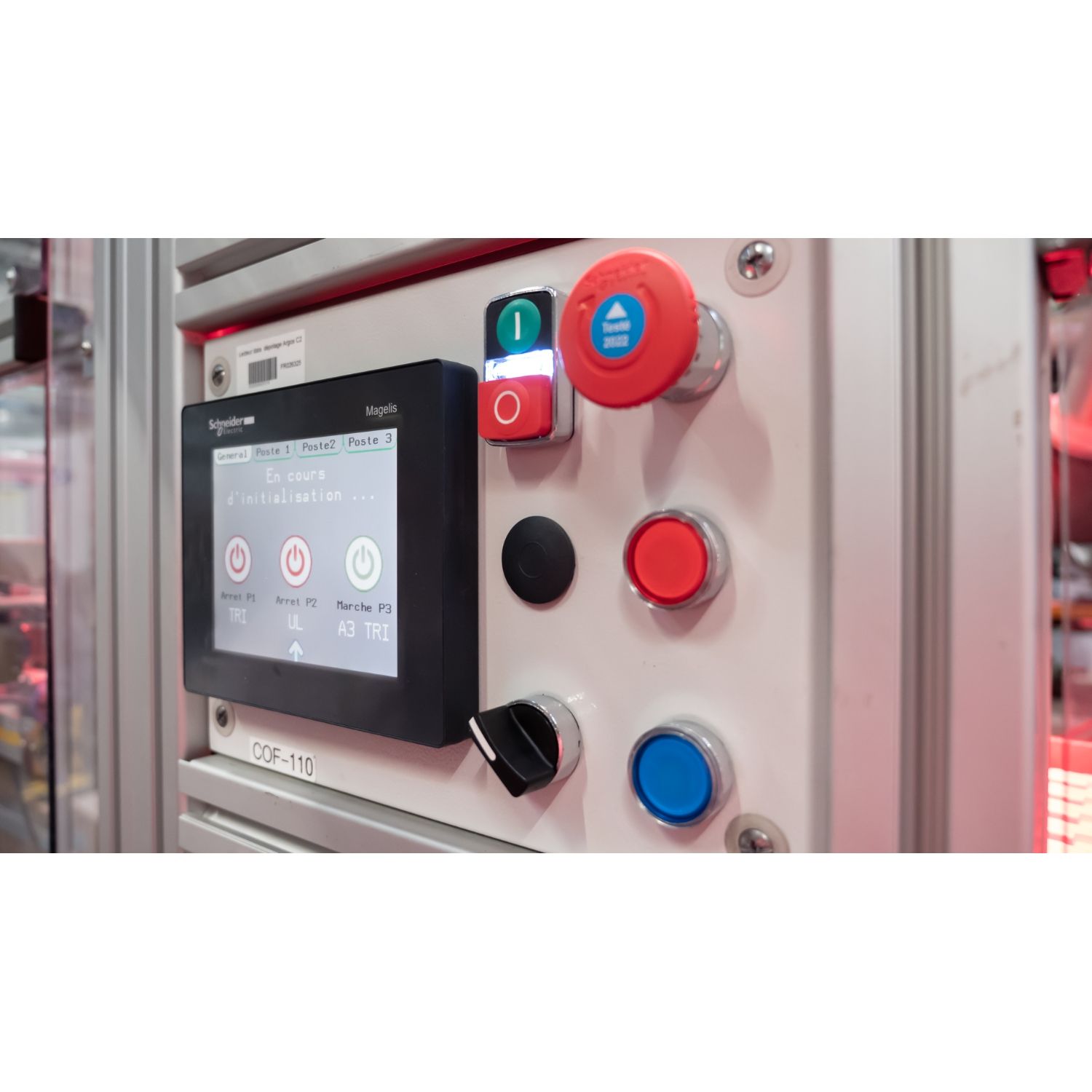

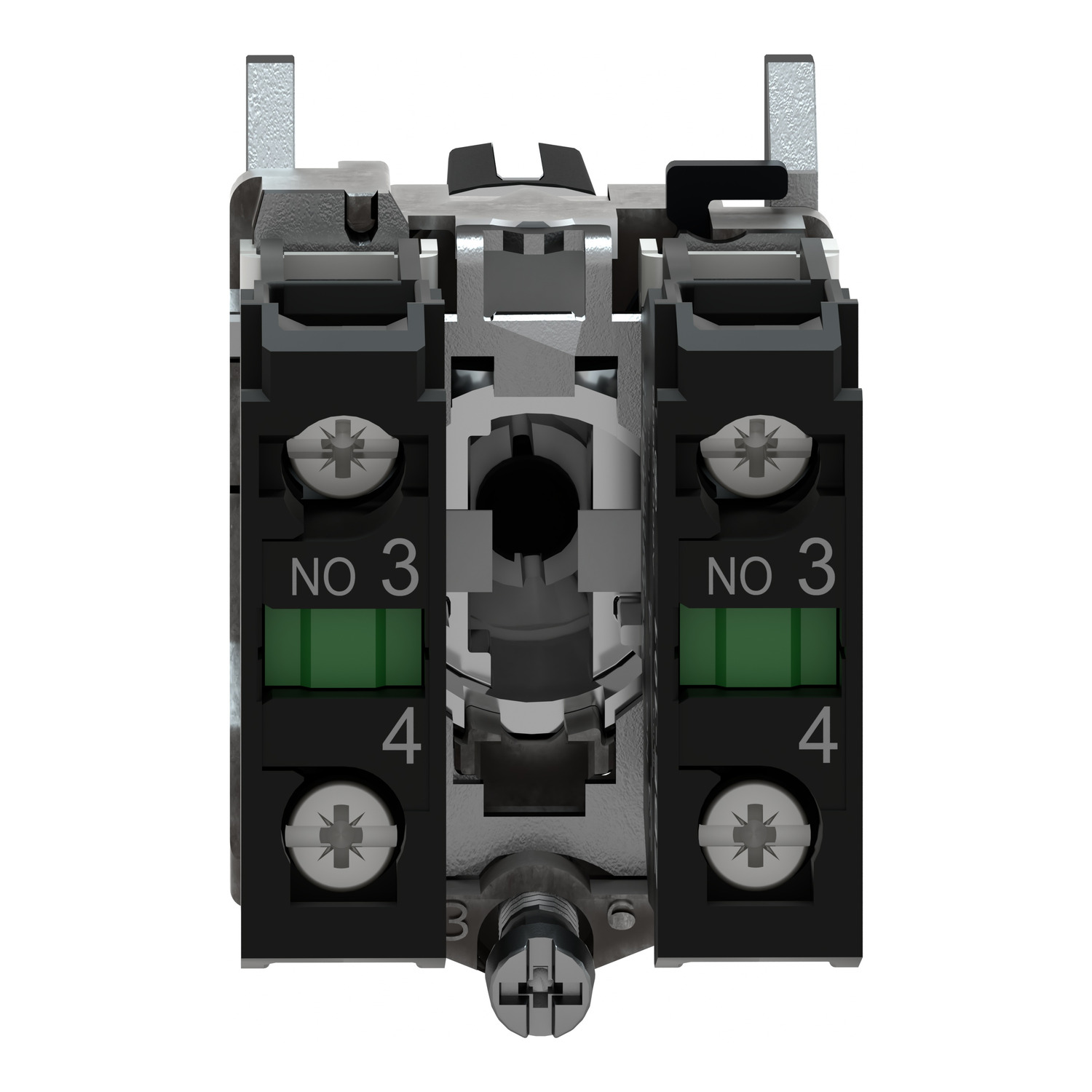

This Harmony XB4 modular black selector switch has 3 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Contact operation | slow-break |
| Sale per indivisible quantity | 1 |
| Fixing collar material | zamak |
| Type of operator | stay put |
| Operator position information | 3 positions +/- 45° |
| Contacts type and composition | 2 NO |
| Connections - terminals | screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Device short name | XB4 |
| Head type | standard |
| Range of product | Harmony XB4 |
| Operator profile | black standard handle |
| Bezel material | chromium plated metal |
| Shape of signaling unit head | round |
| Product or component type | selector switch |
| Mounting diameter | 22 mm |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Electrical reliability | λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | XB4 |
| [Ie] rated operational current | 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C |
| Device presentation | complete product |
| Customizable | 0, no |
| Cap/operator or lens colour | black |
| Height | 47 mm |
| [Us] rated supply voltage | 600 V |
| Torque value | 0.14 N.m NO changing electrical state |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.105 kg |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | without |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Mechanical durability | 1000000 cycles |
| Contacts material | silver alloy (Ag/Ni) |
| Depth | 68 mm |
| Width | 30 mm |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Terminals description ISO n°1 | (13-14)NO, (23-24)NO |
| Contacts usage | standard contacts |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Product certifications | DNV, BV, CSA, LROS (Lloyds register of shipping), UL, GL |
| Protective treatment | TH |
| IP degree of protection | IP67 conforming to IEC 60529, IP69K, IP69 |
| Ambient air temperature for operation | -40-70 °C |
| Overvoltage category | class I conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-5, IEC 60947-5-1, UL 508, IEC 60947-5-4 |
