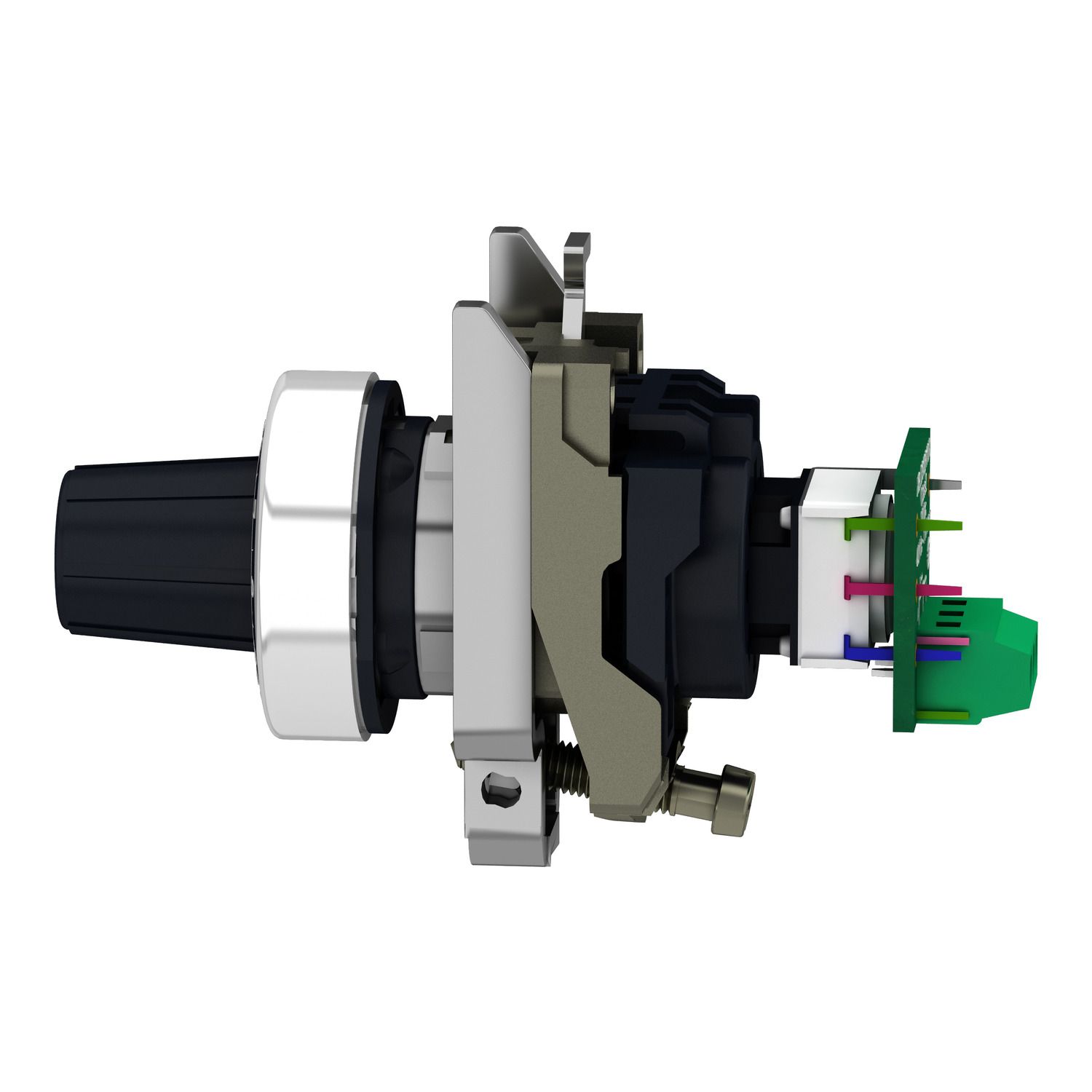

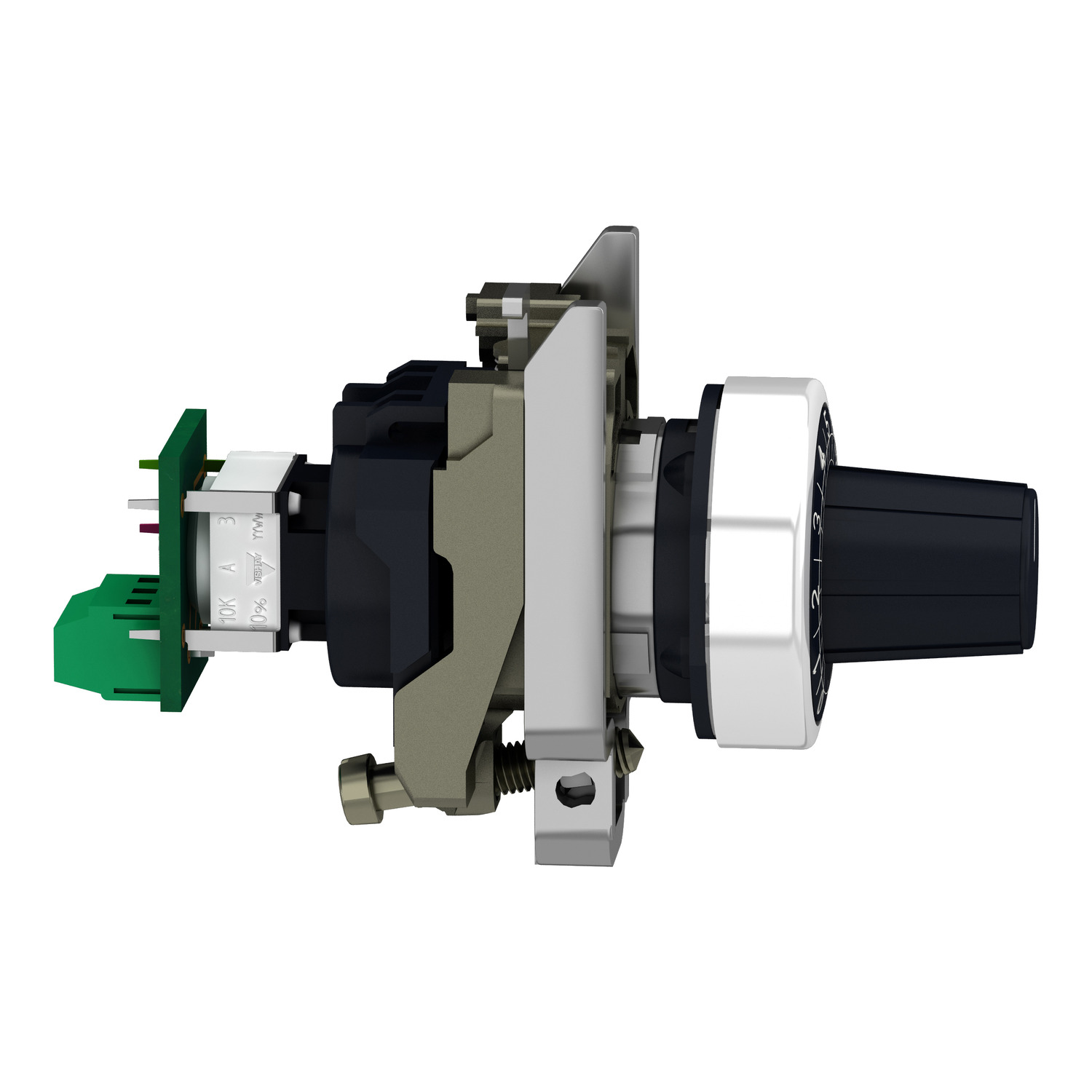

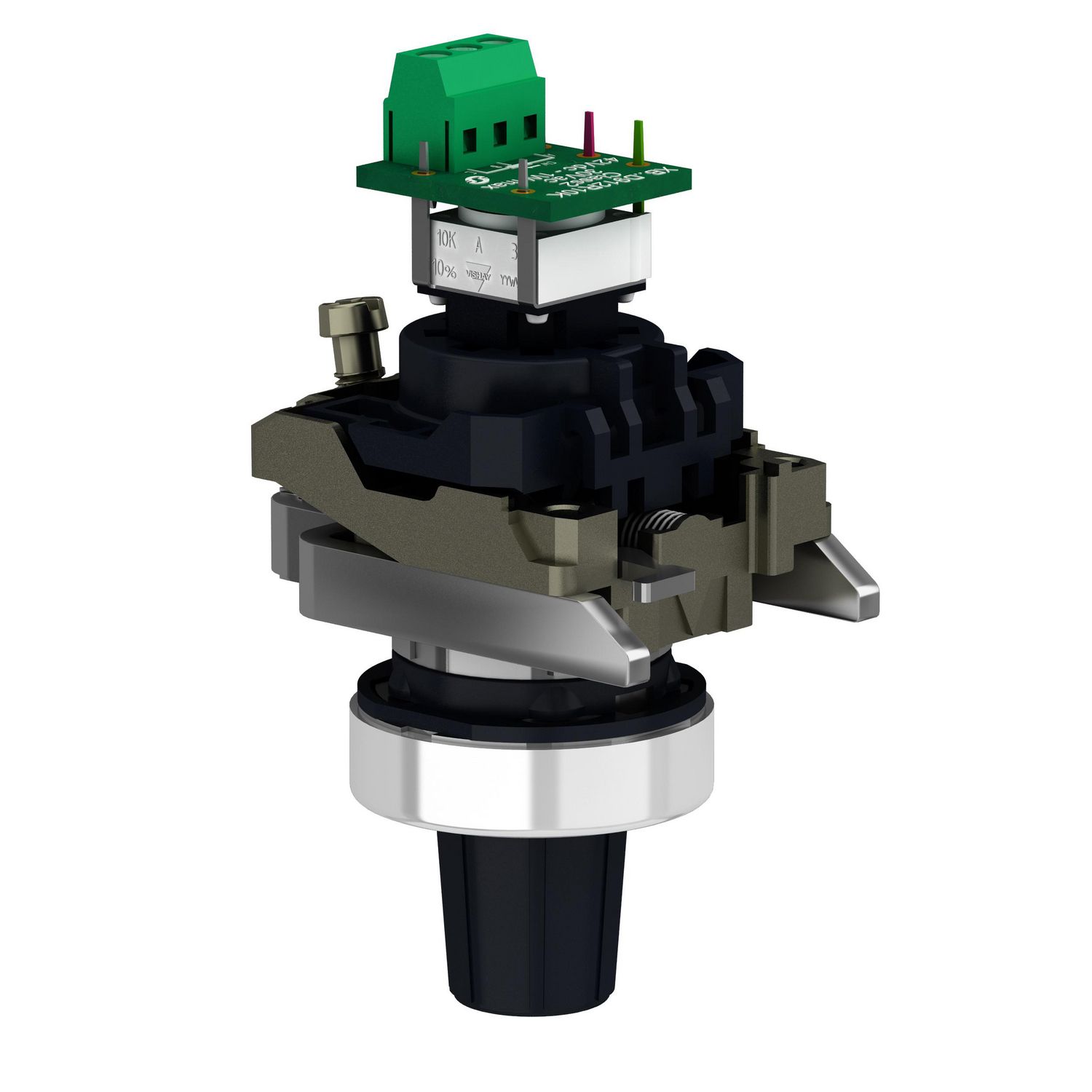

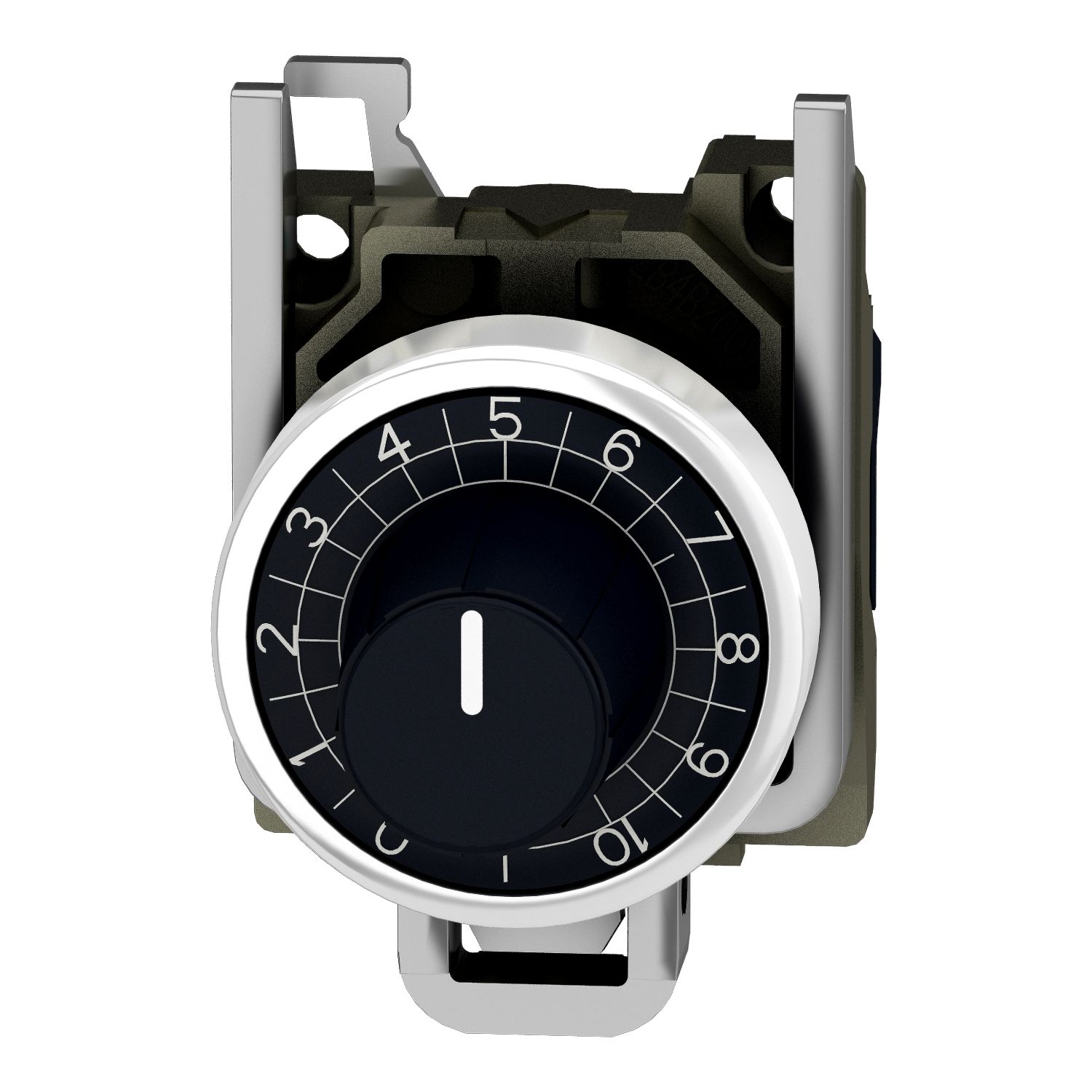

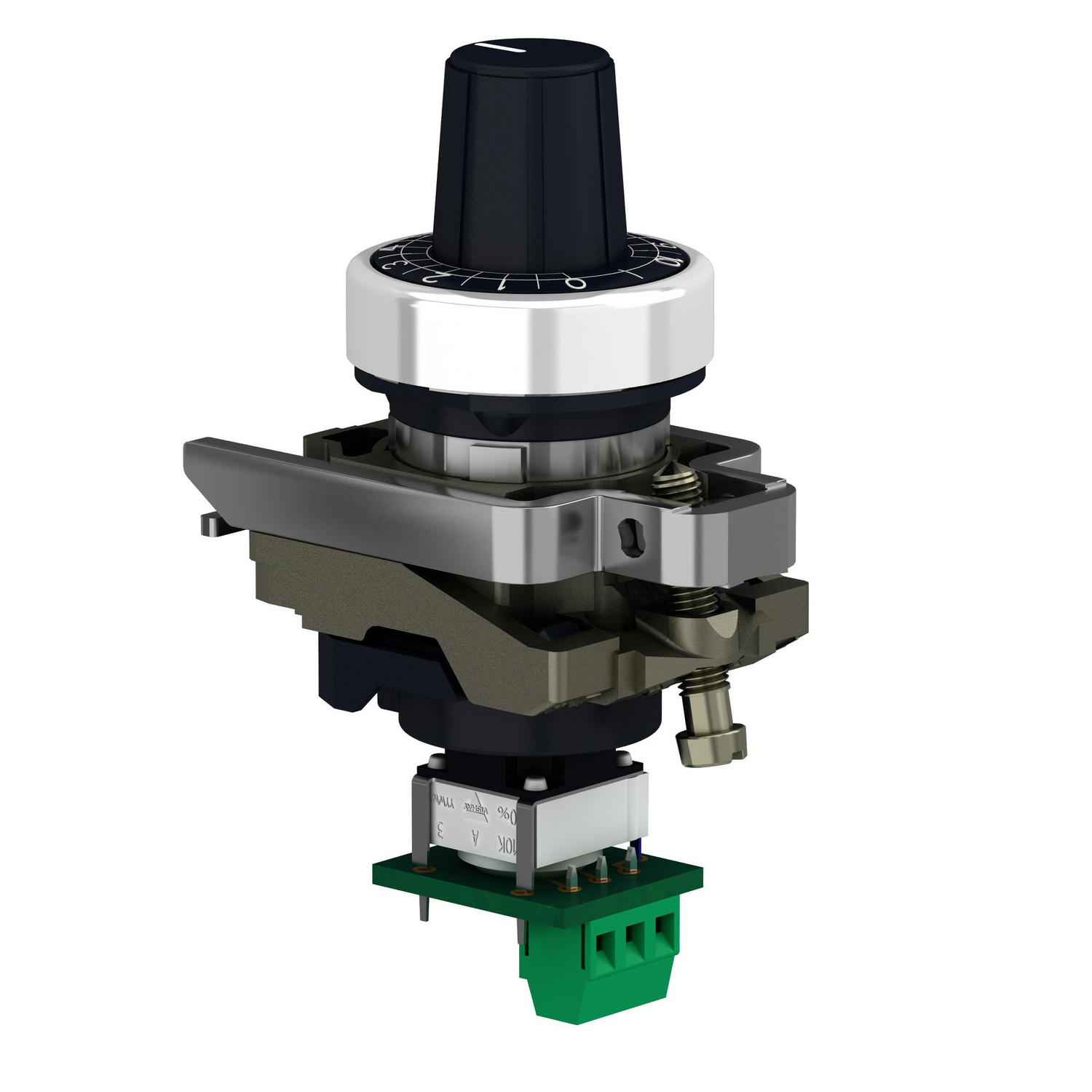

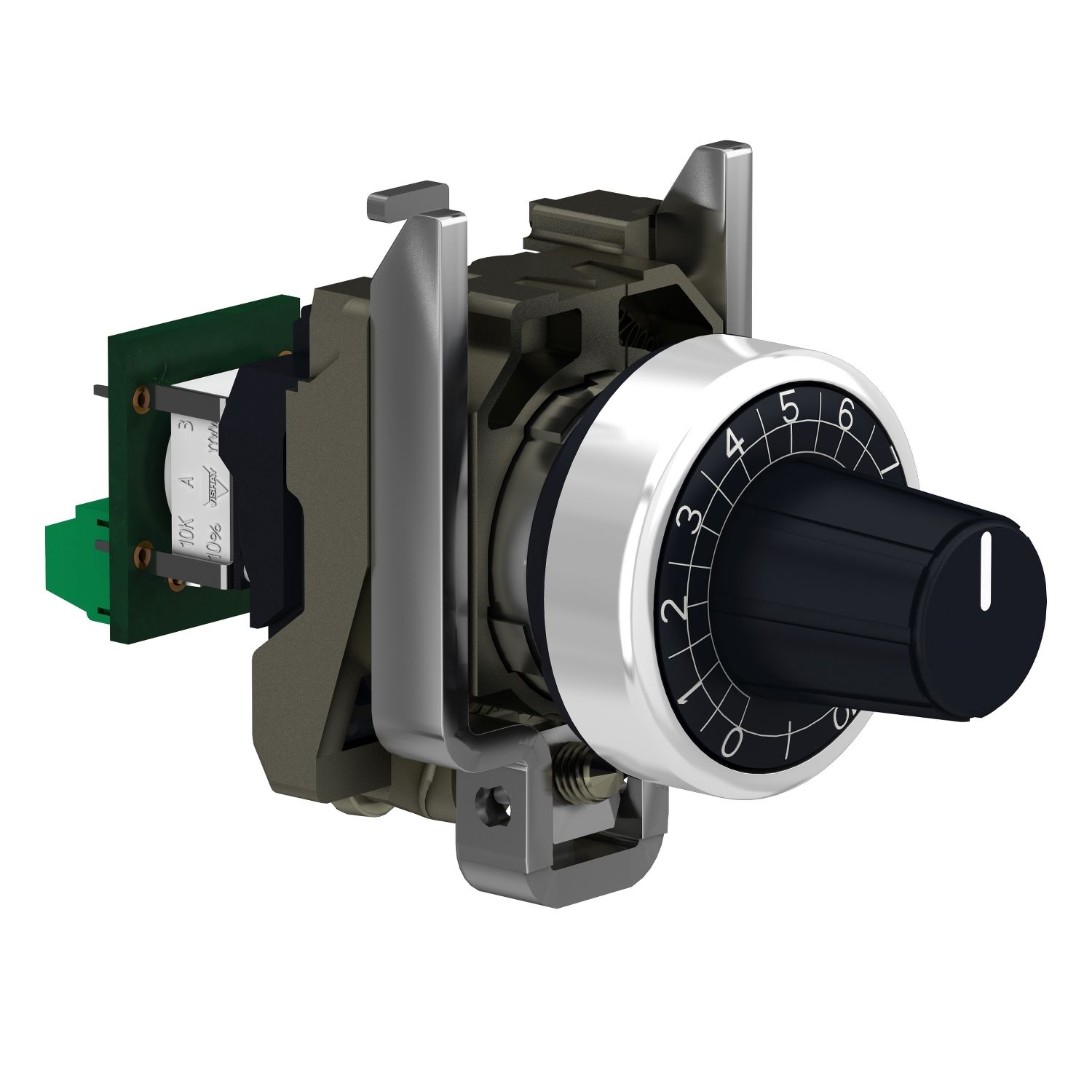

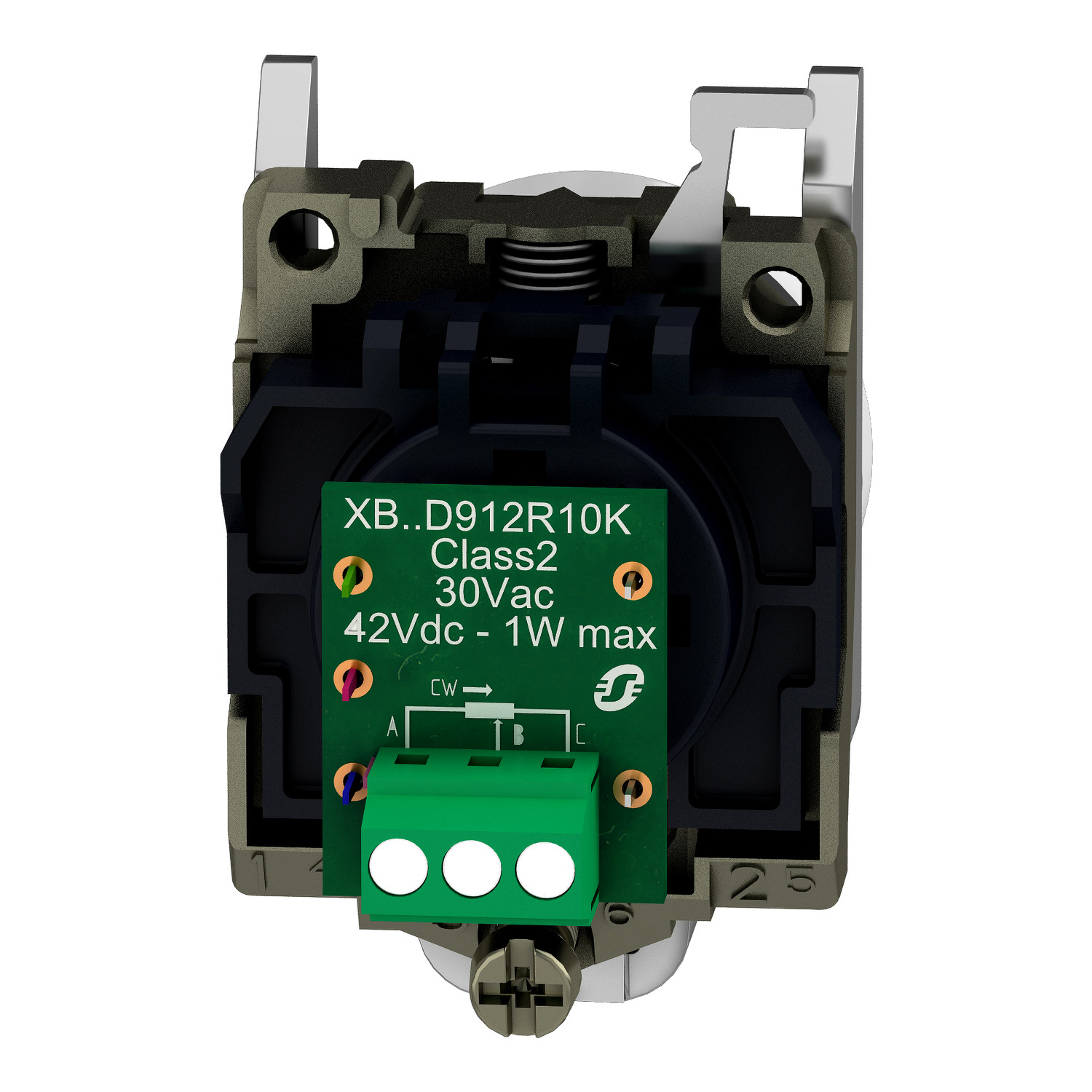

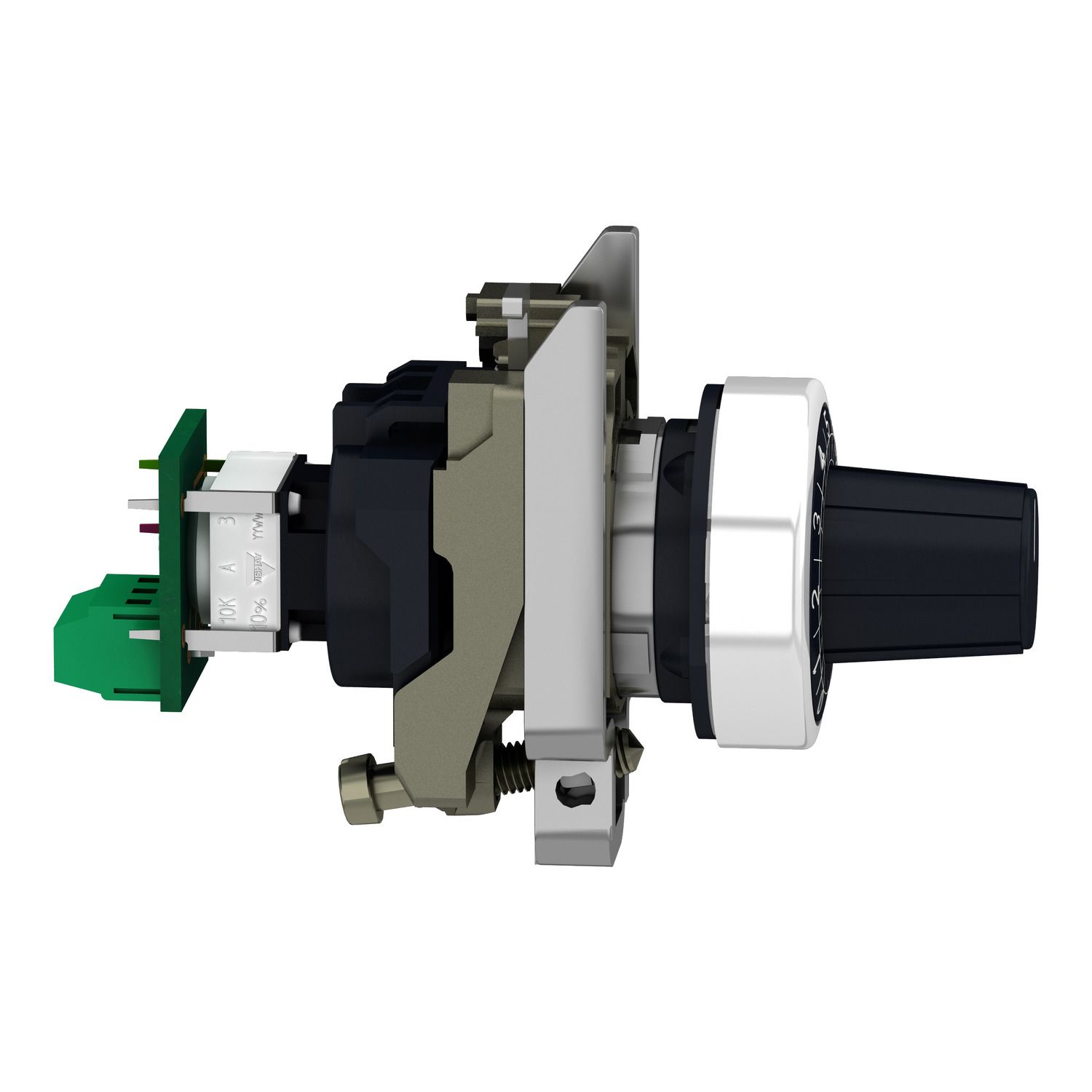

This Harmony XB4 potentiometer has a resistance of 10kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB4 |
| Device presentation | complete product |
| Head type | standard |
| Range of product | Harmony XB4 |
| Product or component type | potentiometer |
| Complementary | |
| Group of product | potentiometer knurled knob |
| Protective treatment | TH |
| Product compatibility | Ø 6 mm shaft |
| Compatibility code | XB4 |
| Mechanical durability | 50000 cycles |
| Ambient air temperature for storage | -40-70 °C |
| Sale per indivisible quantity | 1 |
| [Us] rated supply voltage | <= 42 V DC, <= 30 V AC |
| IP degree of protection | IP69K conforming to IEC 60529, IP69 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Potentiometer characteristic | linear |
| CAD overall height | 47 mm |
| Customizable | 0, no |
| Colour of marking | white |
| Main group | potentiometer |
| Ambient air temperature for operation | -40-70 °C |
| Ohmic value | 10000 Ohm |
| IK degree of protection | IK06 conforming to IEC 50102 |
| CAD overall depth | 82 mm |
| CAD overall width | 30 mm |
| Electrical shock protection class | class II conforming to IEC 60536 |
| Operator profile | knurled knob, with (white) |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Bezel material | chromium plated metal |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.095 kg |
| Material | cermet |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shape of signaling unit head | round |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Mounting diameter | 22 mm |
| Precision of internal conversion resistor | +-10% |
| Standards | CSA C22.2 No 14, EN/IEC 60947-1, UL 508 |
| Rated power in W | 1 W at 70 °C |
| Product certifications | UL listed, BV, CSA |
