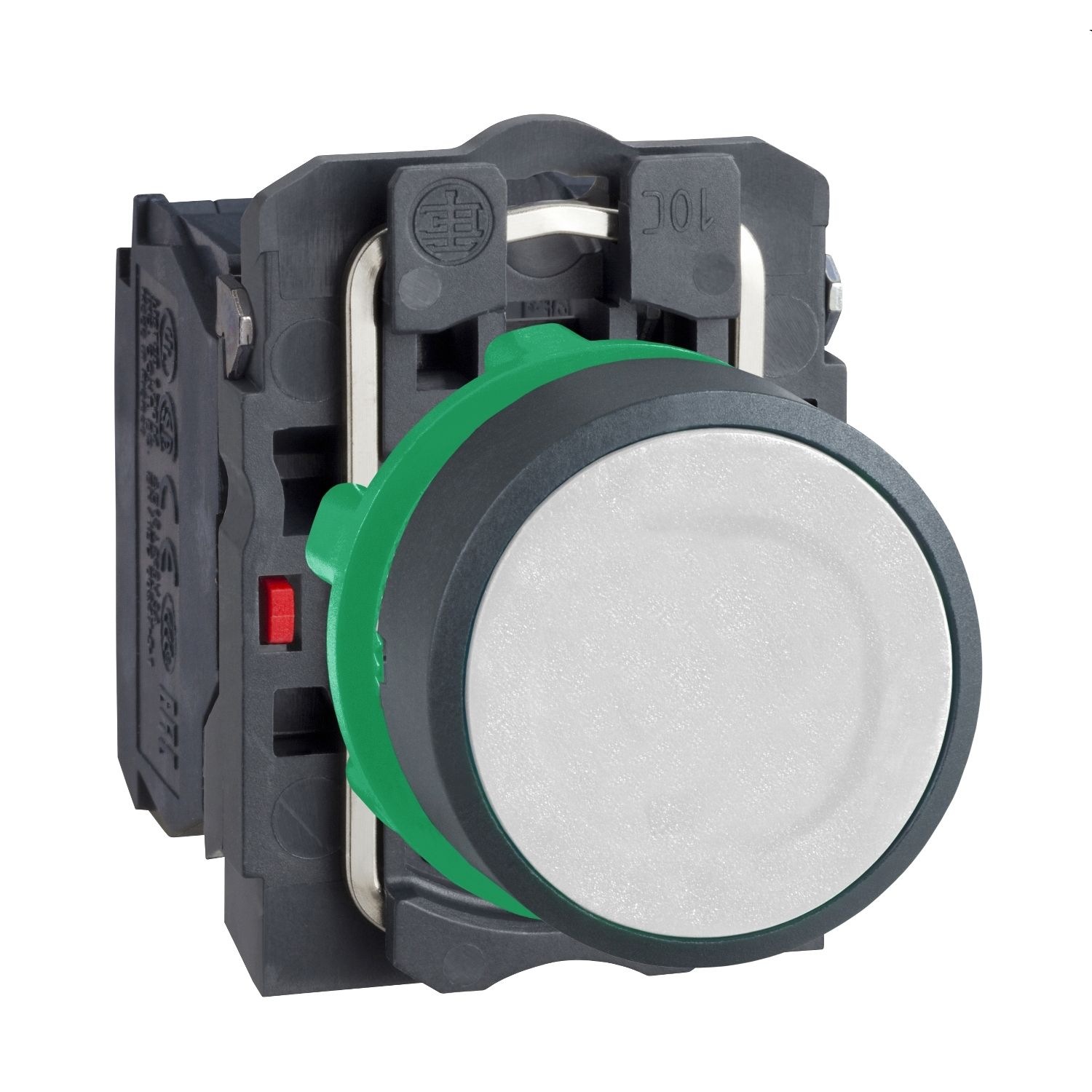

This Harmony XB5, flush modular white push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Operator profile | white flush, unmarked |
| Contact operation | slow-break |
| Bezel material | dark grey plastic, plastic |
| Sale per indivisible quantity | 1 |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Head type | standard |
| Fixing collar material | plastic |
| Shape of signaling unit head | round |
| Product or component type | push-button |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Depth | 52 mm |
| Width | 30 mm |
| Electrical reliability | λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Customizable | no, 1 |
| Compatibility code | XB5 |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 1000000 cycles DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C, 1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C |
| [Ie] rated operational current | 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| GCR BRIDGE | XB5AACUST04 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | complete product |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Cap/operator or lens colour | white |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state) |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Operating force | 3.8 N NO changing electrical state, 3.5 N NC changing electrical state |
| Terminals description ISO n°1 | (13-14)NO, (21-22)NC |
| Height | 42 mm |
| Contacts usage | standard contacts |
| Environment | |
| Protective treatment | TH |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, UL 508 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | RINA, CSA, UL listed, GL, LROS (Lloyds register of shipping), DNV, BV |
