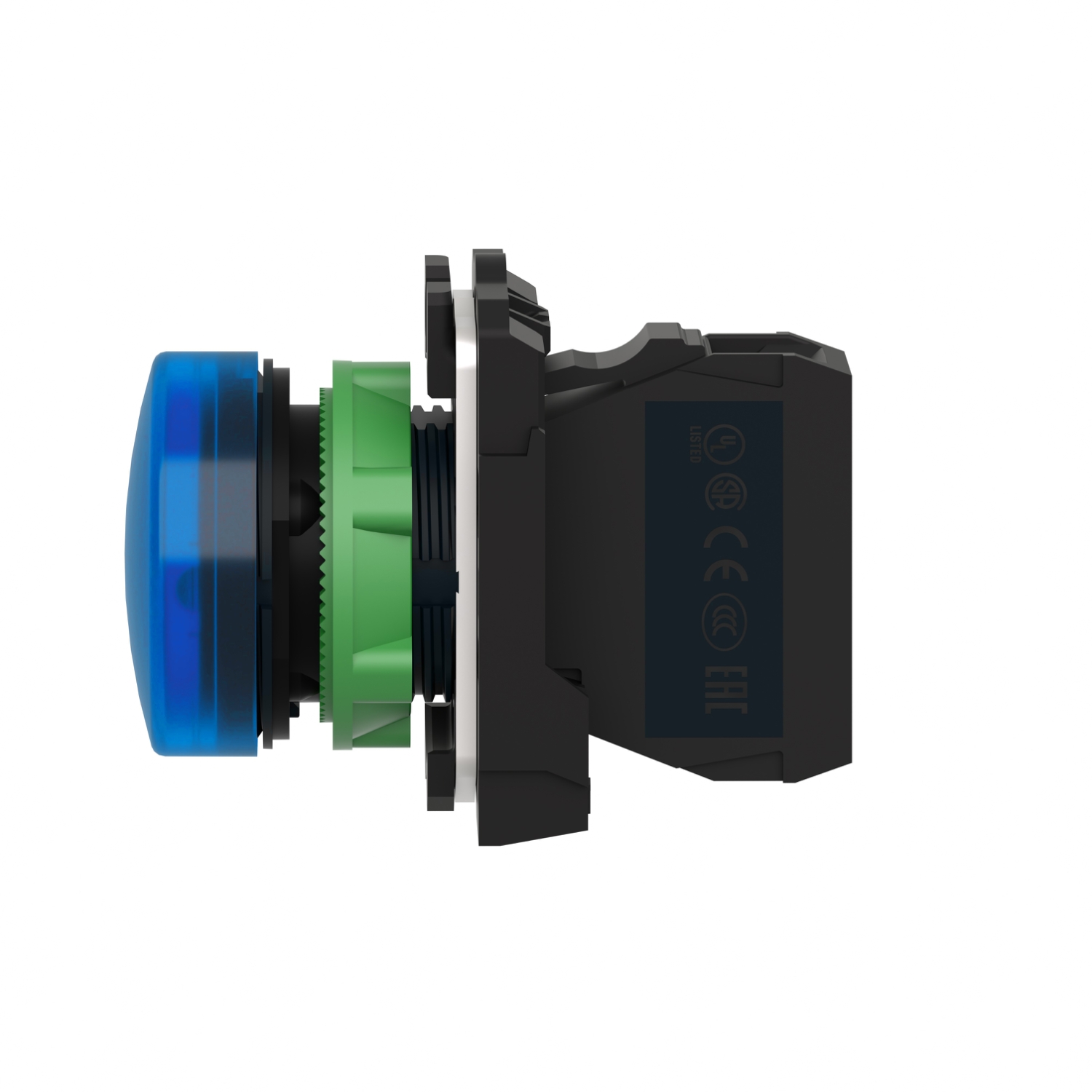

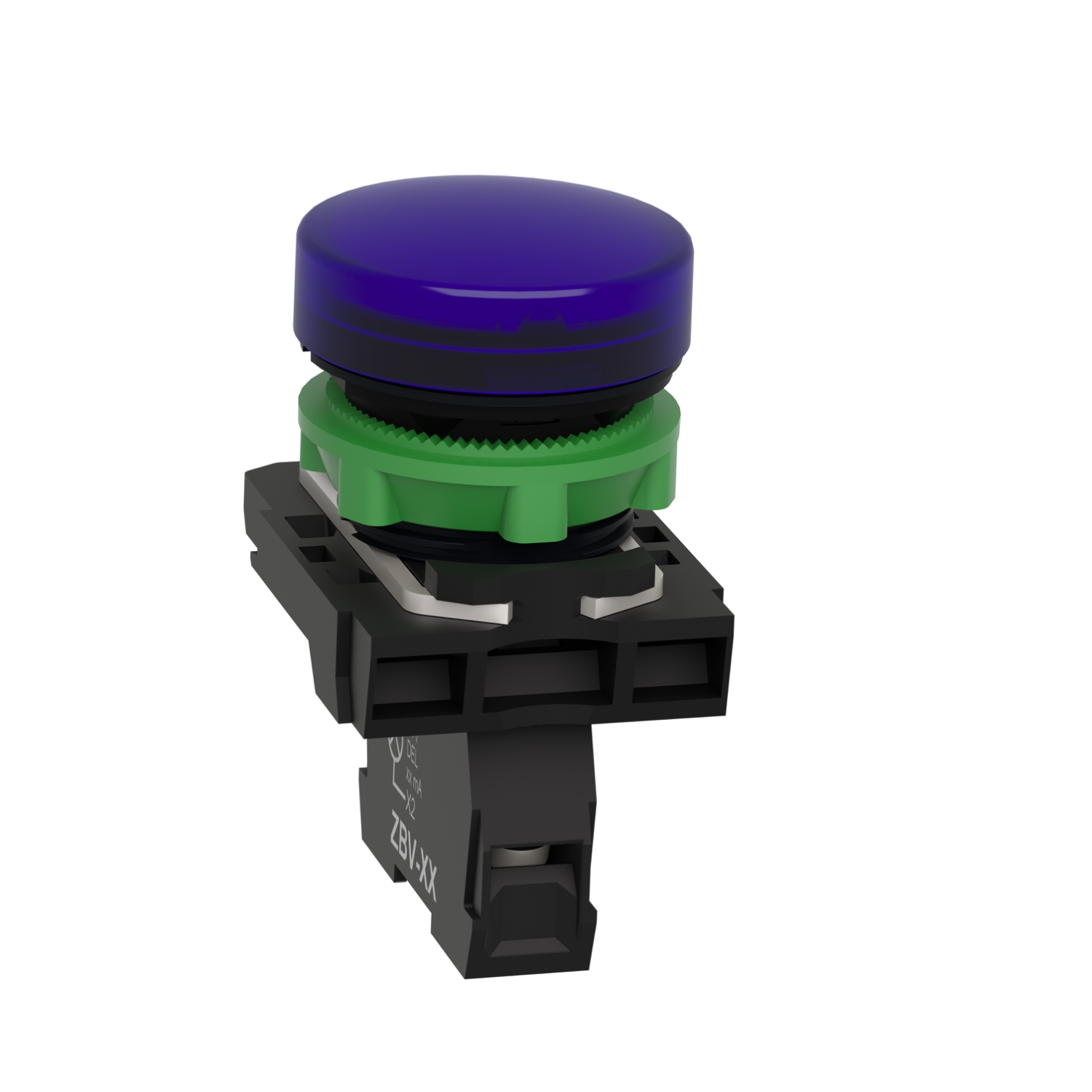

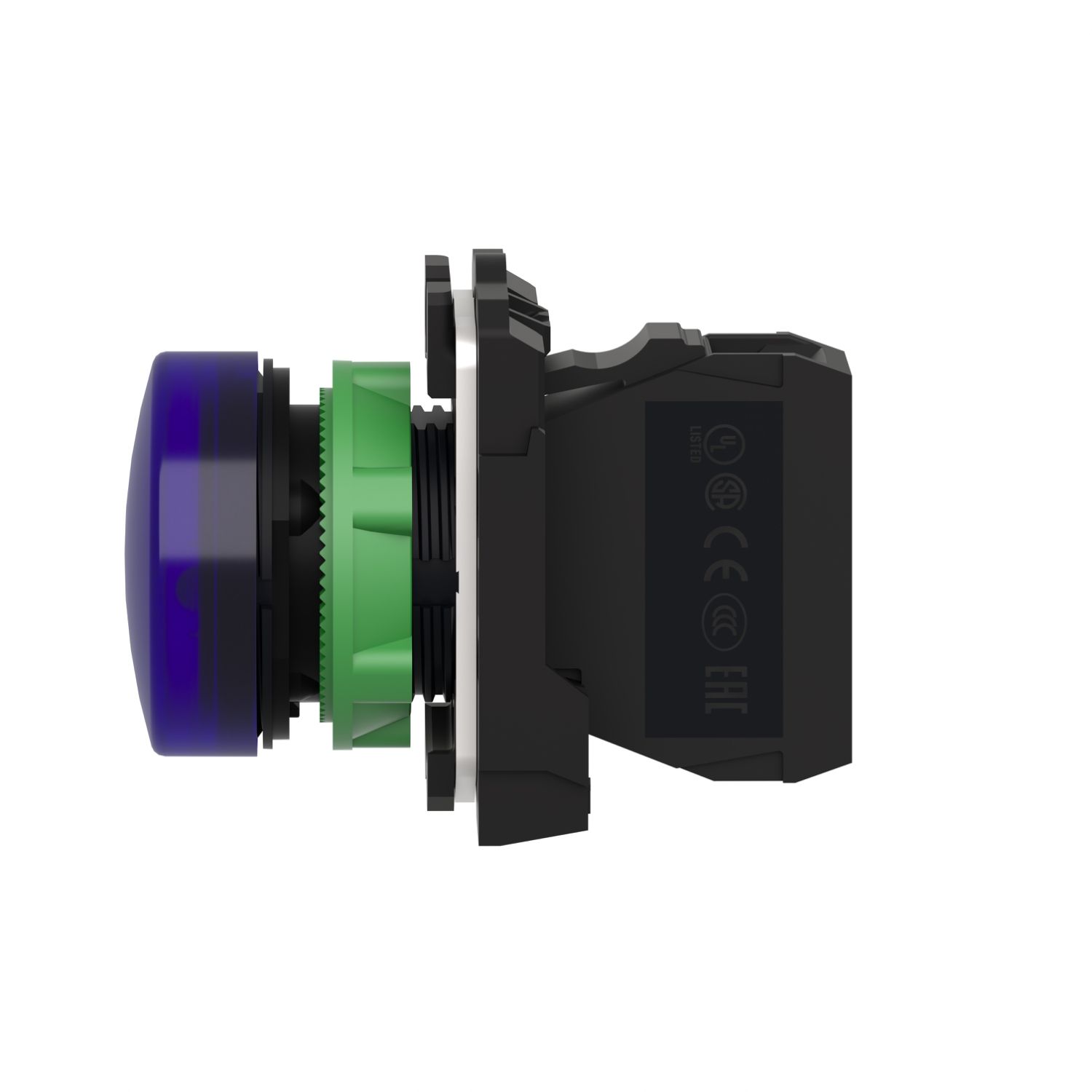

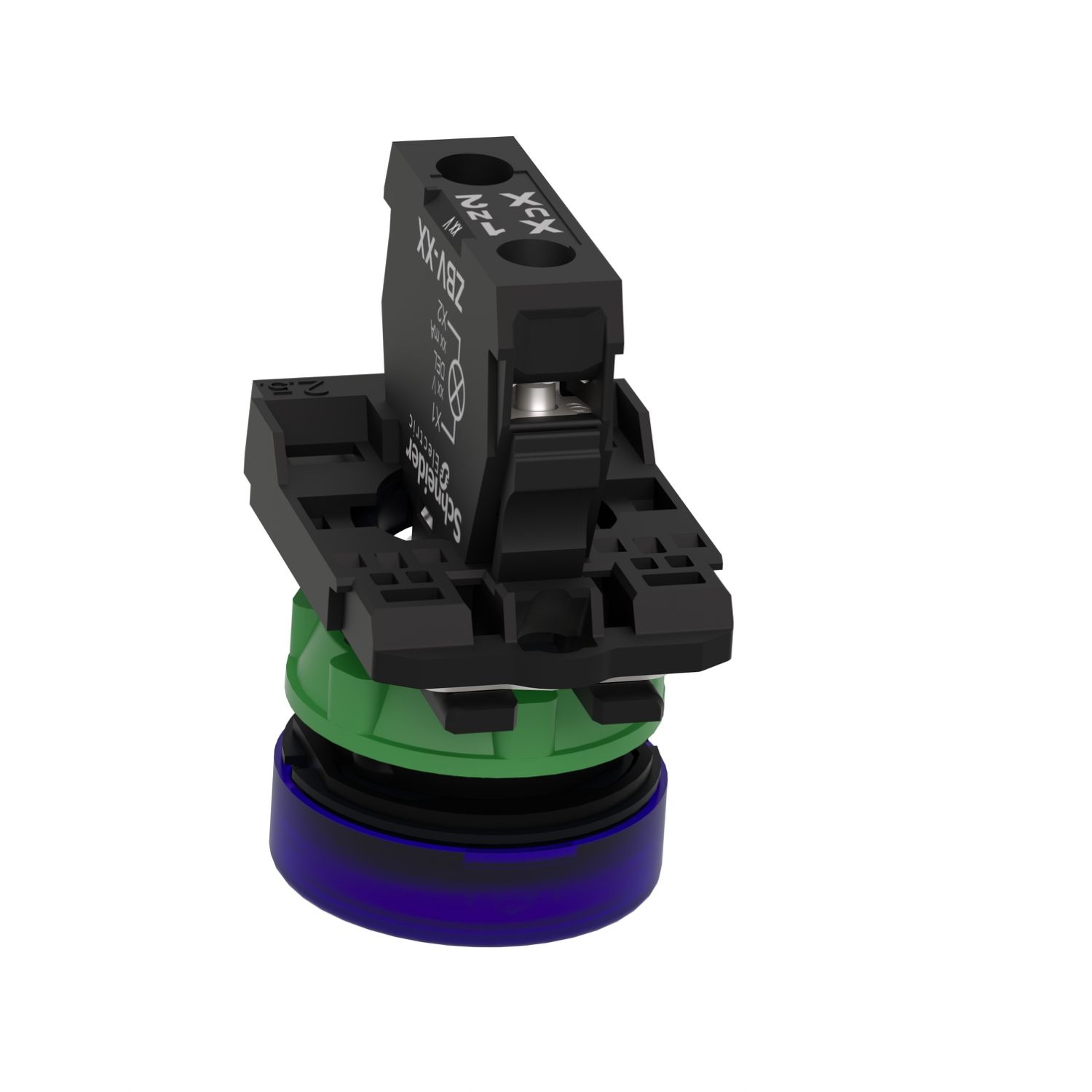

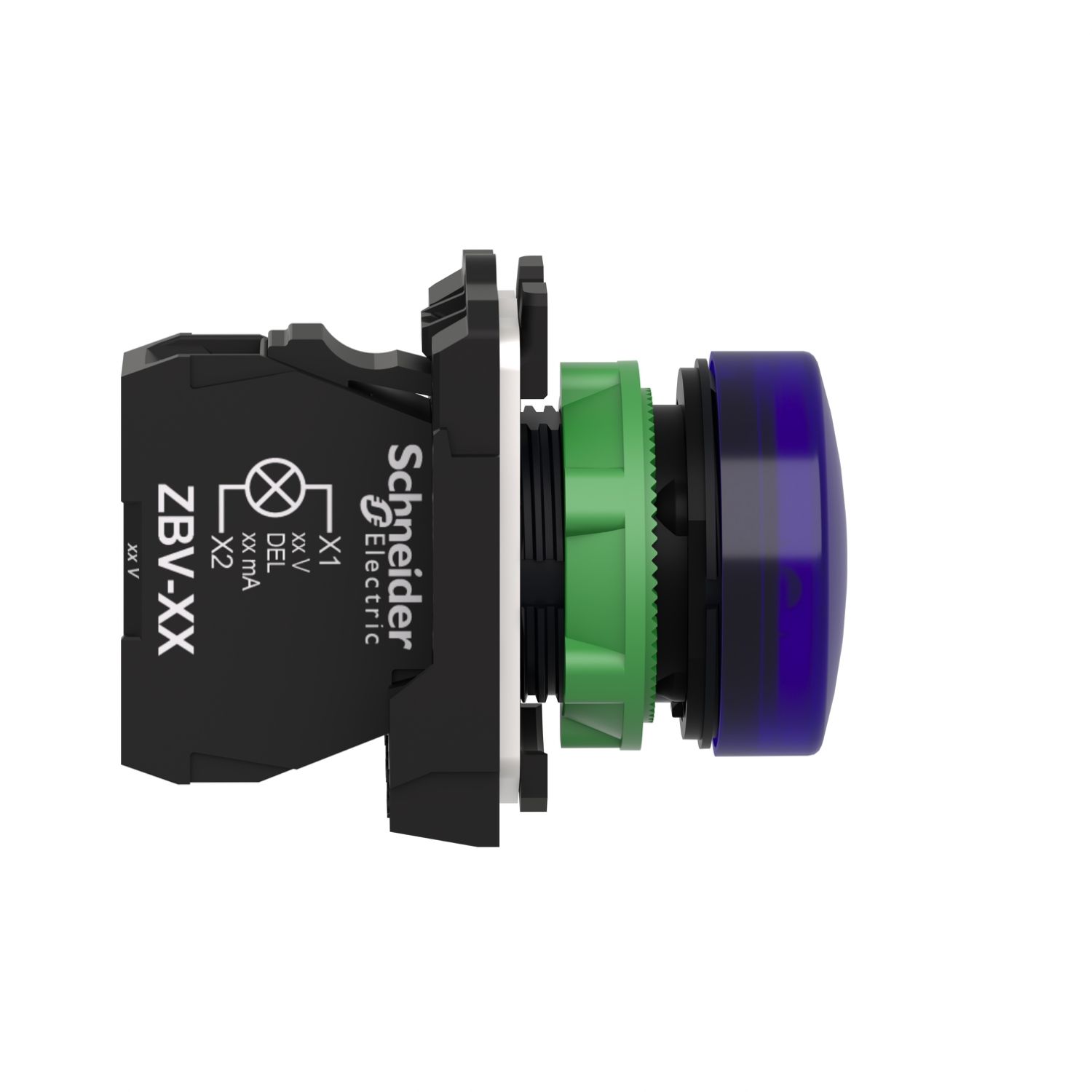

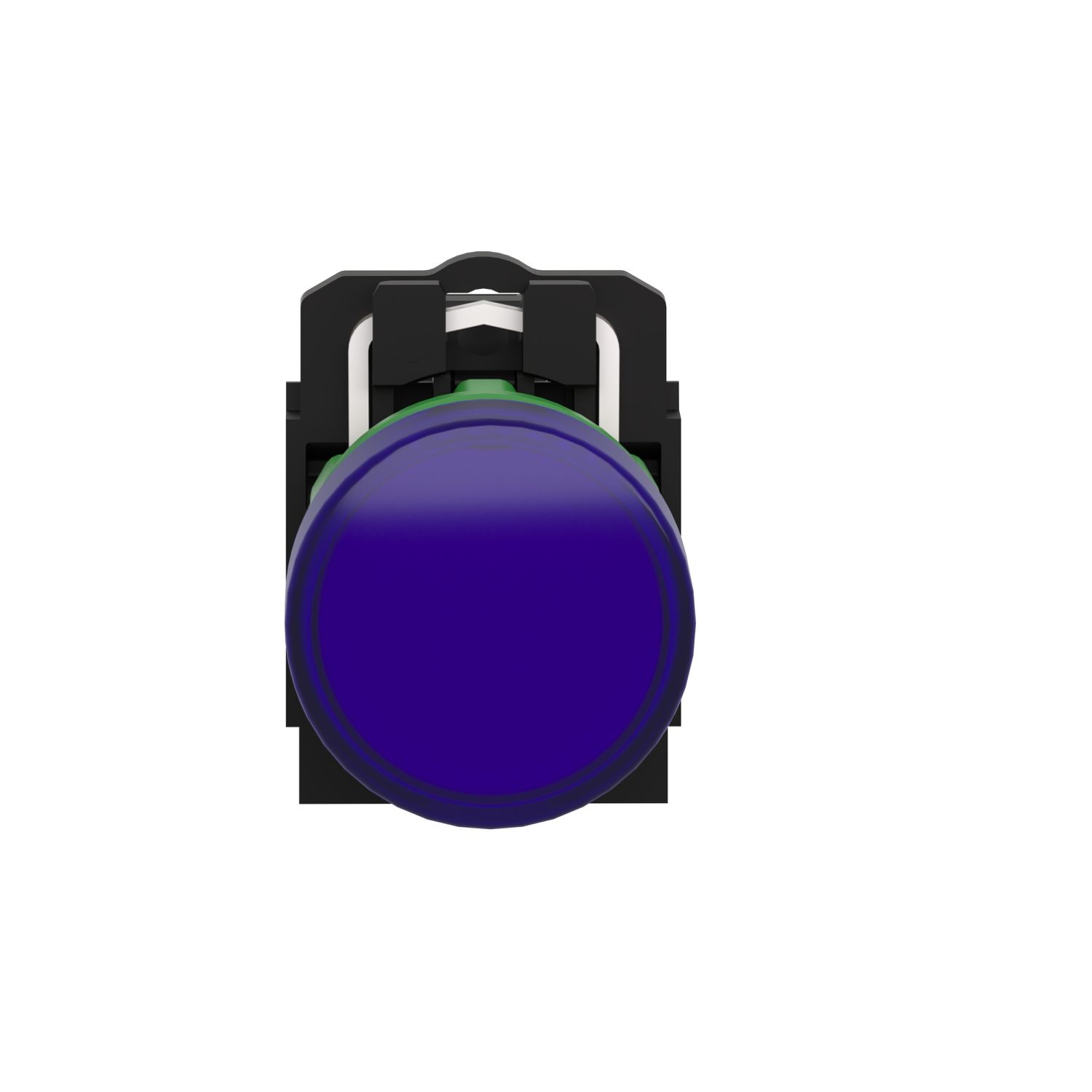

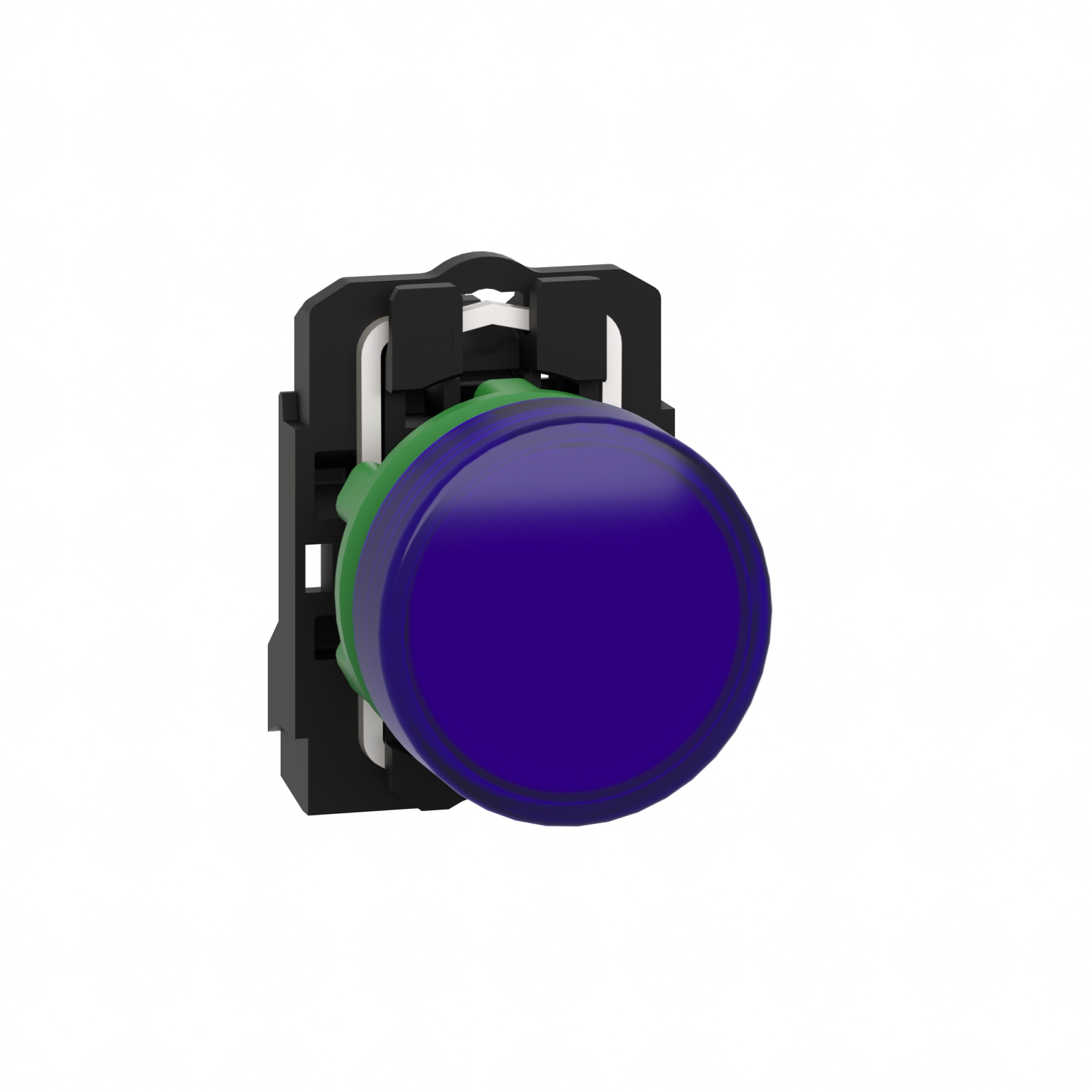

This Harmony XB5, plain lens modular blue pilot light is supplied with 230V to 240V AC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Light source colour | blue |
| Sale per indivisible quantity | 1 |
| Device presentation | complete product |
| Head type | standard |
| Fixing collar material | plastic |
| Cap/operator or lens colour | blue |
| Range of product | Harmony XB5 |
| Bulb base | integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| Bezel material | dark grey plastic |
| Shape of signaling unit head | round |
| Product or component type | pilot light |
| Mounting diameter | 22 mm |
| Light source | universal LED |
| Operator additional information | with plain lens |
| Complementary | |
| Compatibility code | XB5 |
| Supply voltage limits | 195-264 V AC |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Customizable | 1, no |
| Height | 42 mm |
| [Us] rated supply voltage | 230...240 V |
| Depth | 54 mm |
| Width | 30 mm |
| Signalling type | steady |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Service life | 100000 h at rated voltage and 25 °C |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| GCR BRIDGE | XB5AVCUST05 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Current consumption | 14 mA |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.038 kg |
| Terminals description ISO n°1 | (X1-X2)PL |
| Environment | |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| Protective treatment | TH |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Electromagnetic compatibility | electromagnetic emission class B conforming to IEC 55011, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 |
| Standards | JIS C8201-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, UL 508, CSA C22.2 No 14, JIS C8201-5-1 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Electromagnetic emission | class B conforming to IEC 55011 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | CSA, UL listed |
