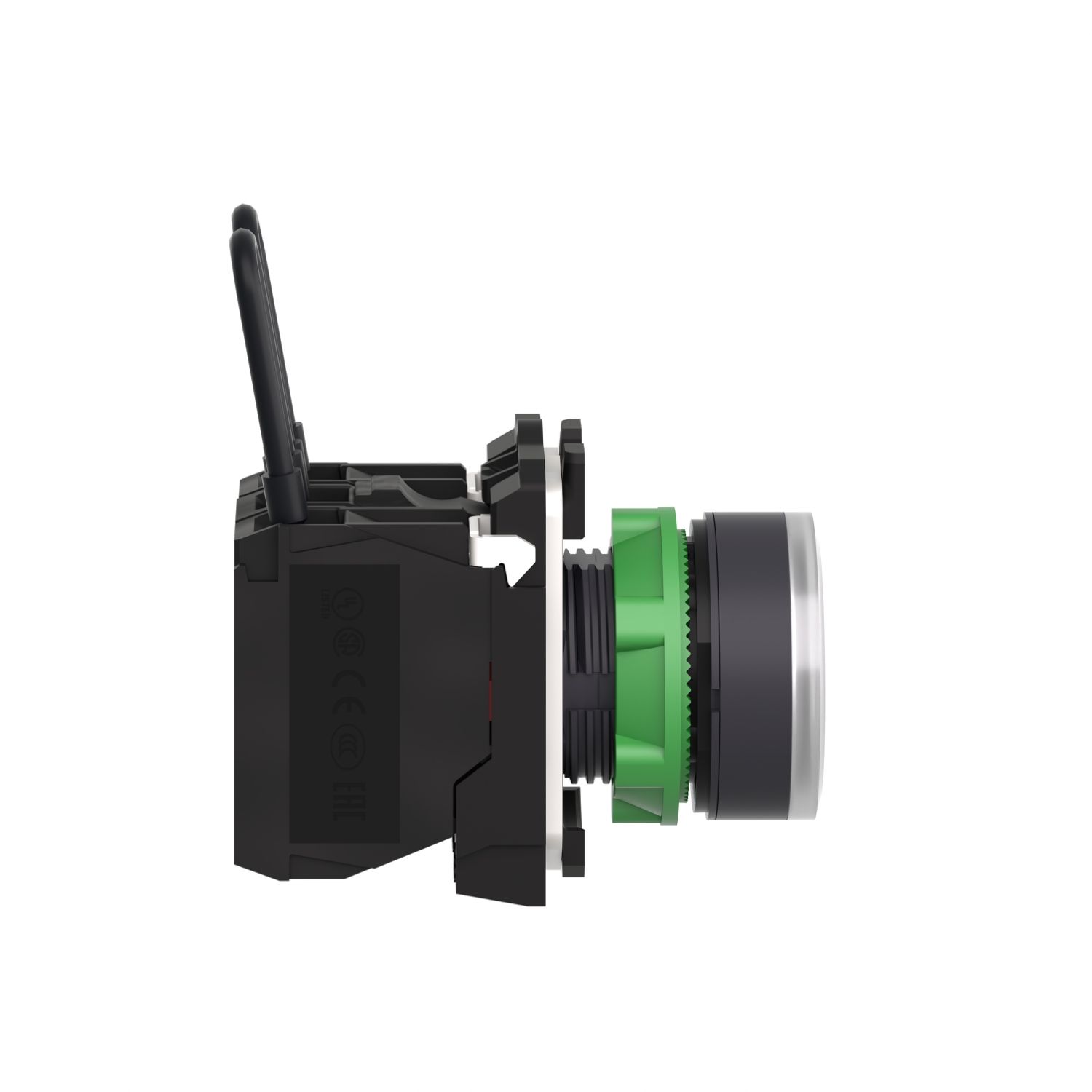

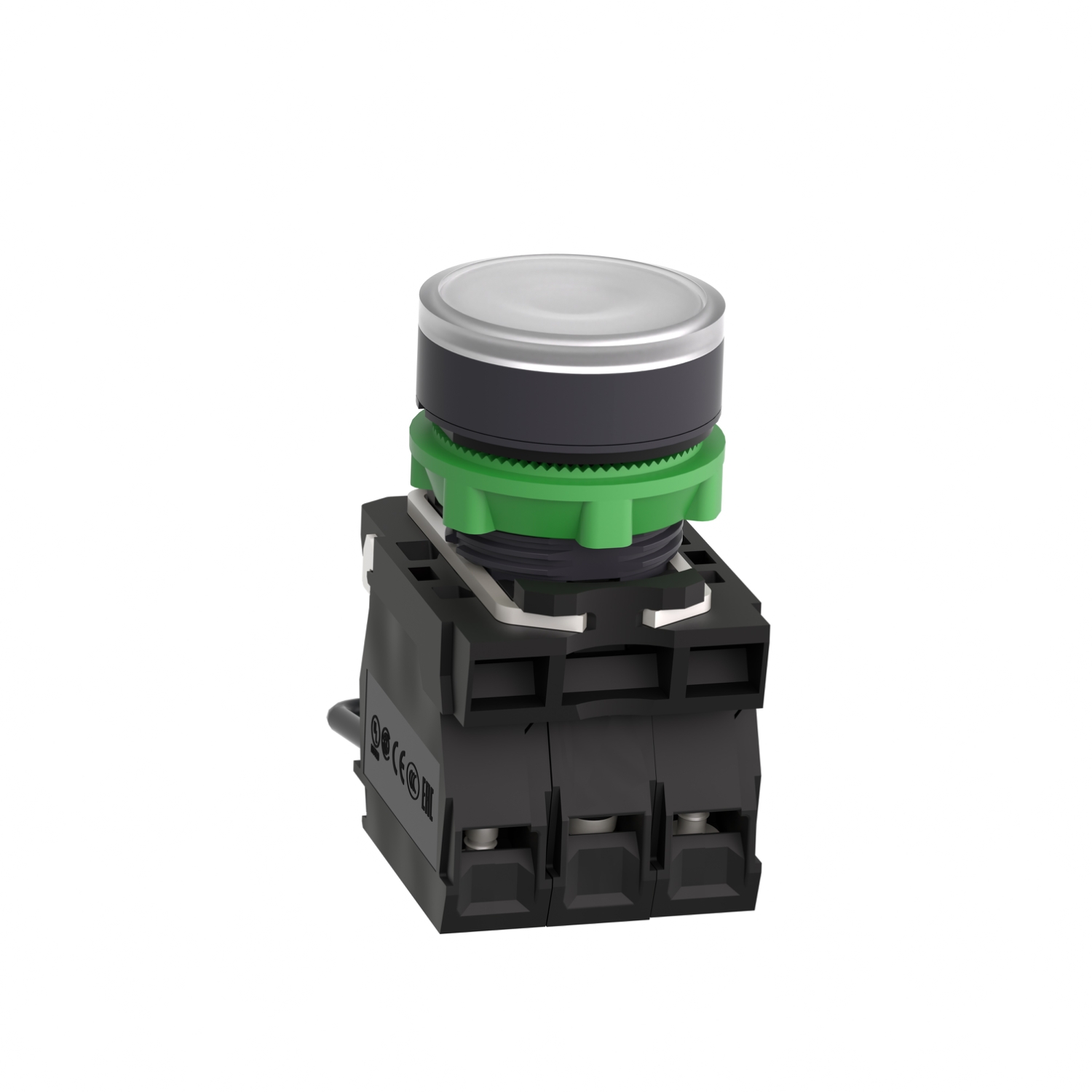

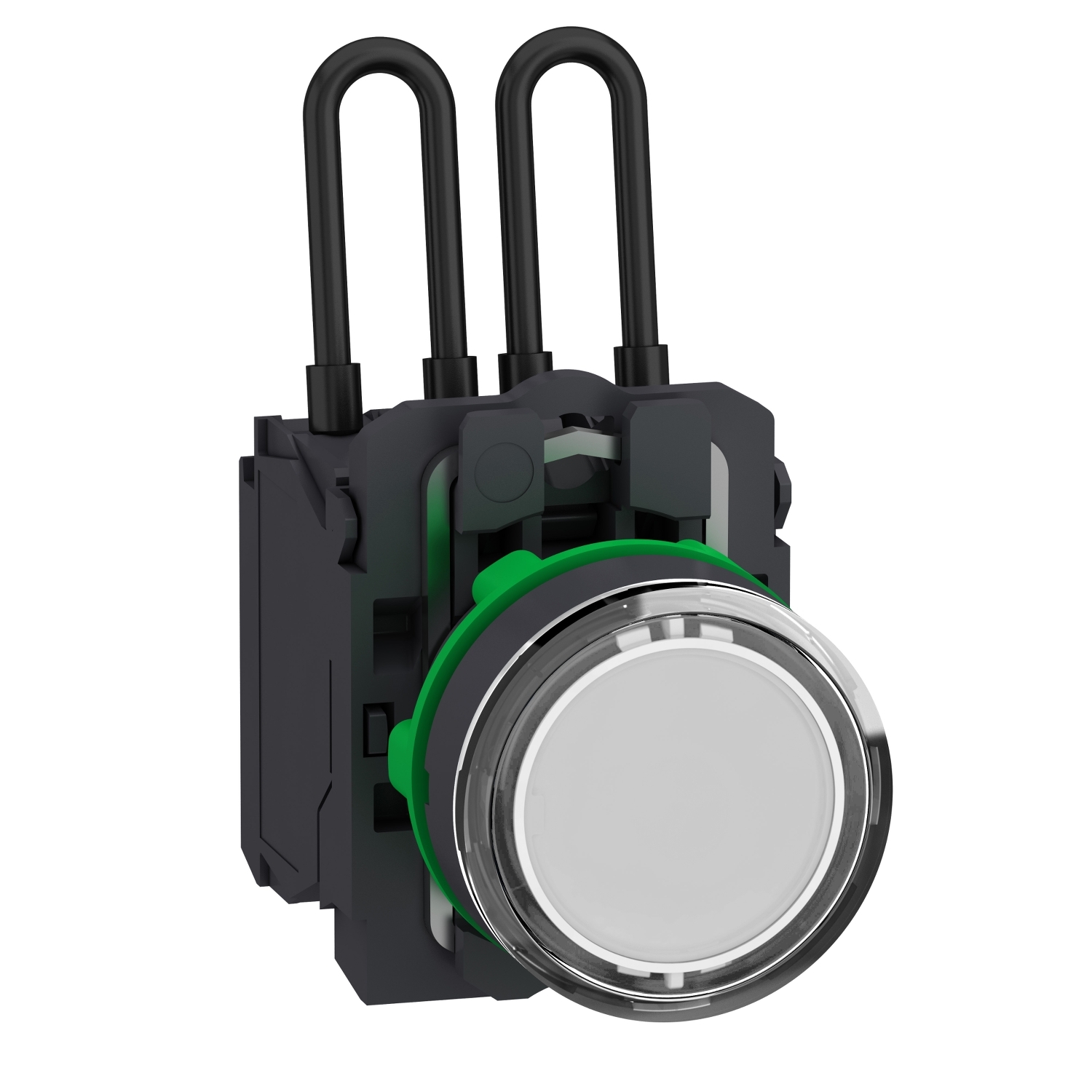

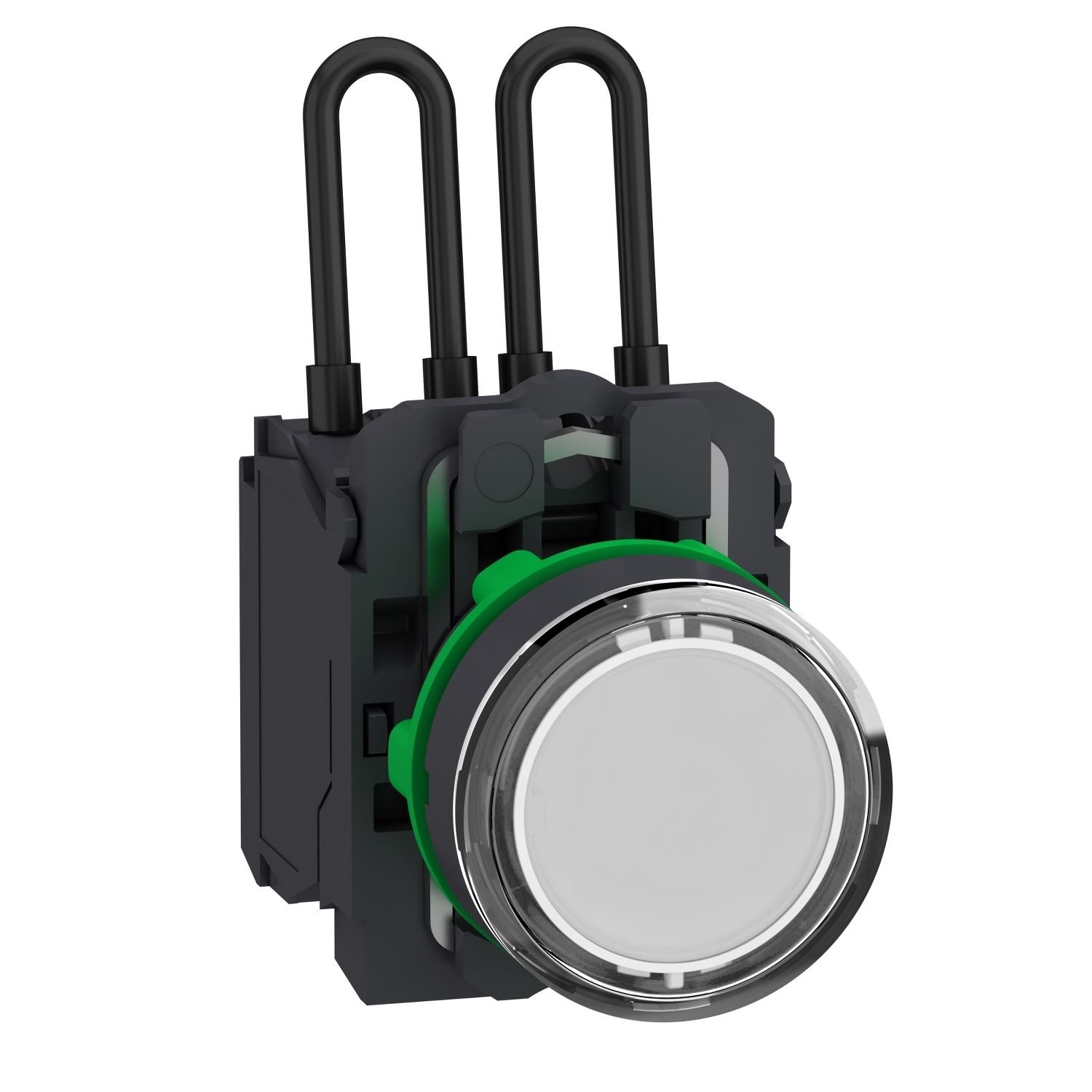

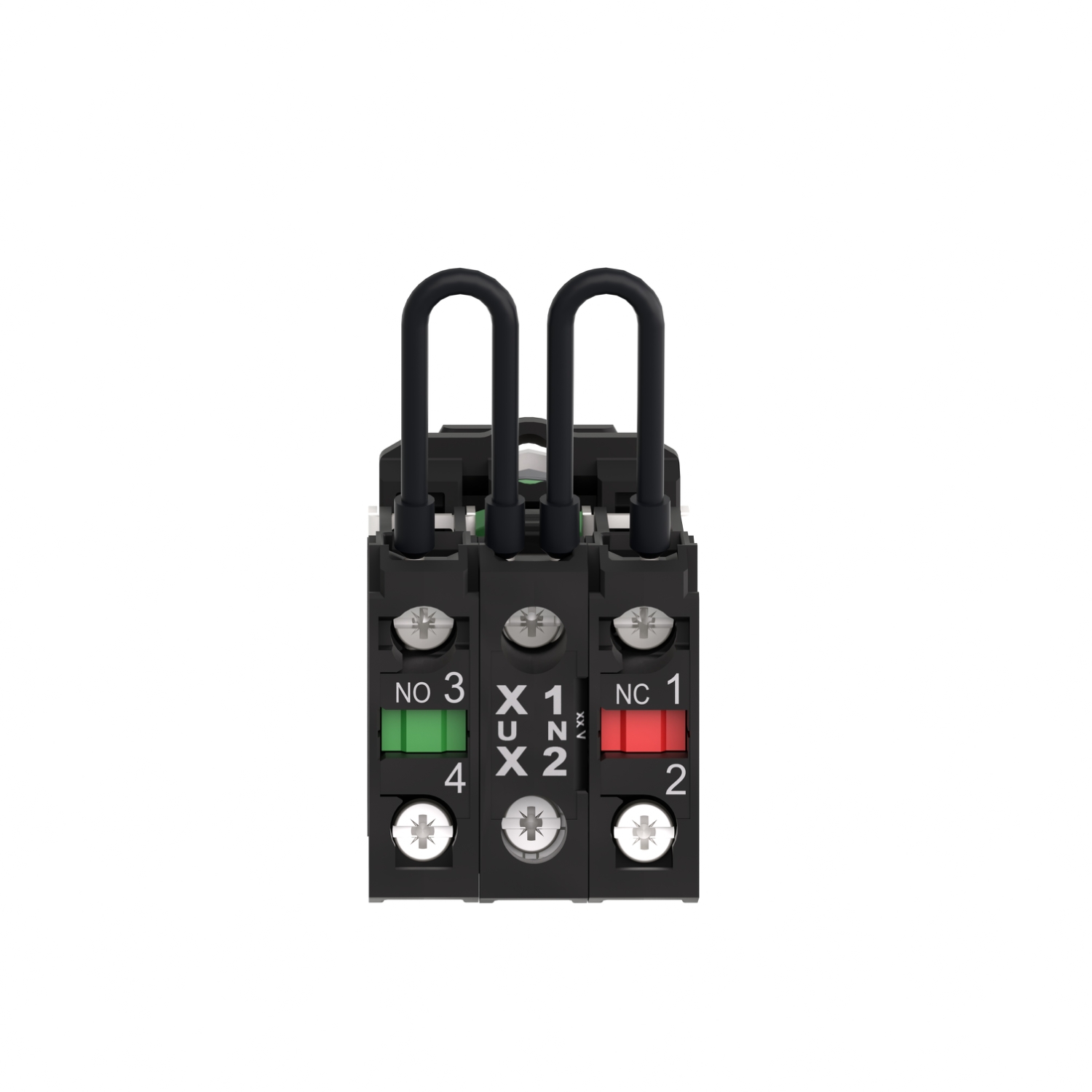

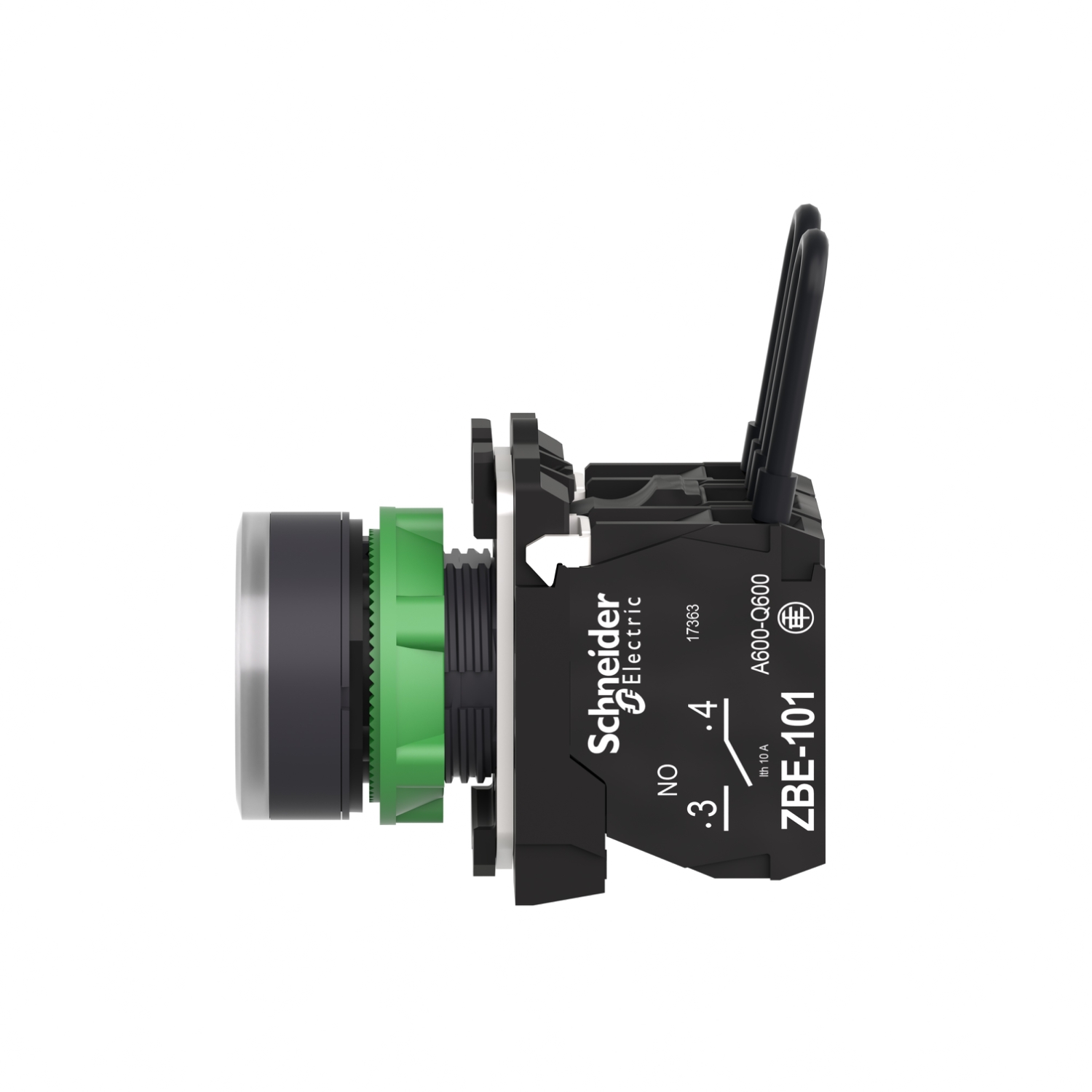

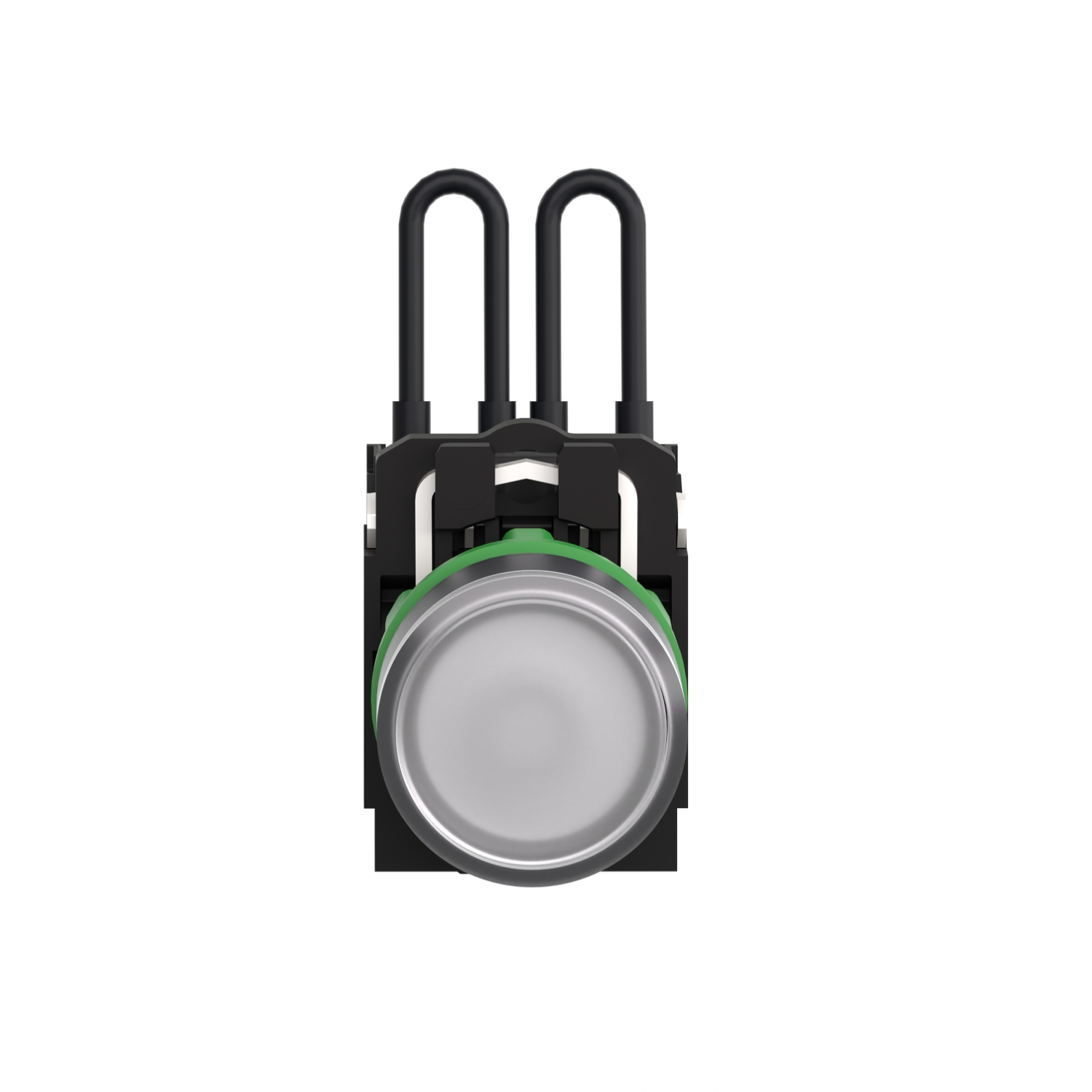

This Harmony XB5, push-to-test pilot light white is supplied with 110V to 120V AC. Under normal conditions, the push-to-test pilot light is providing a best-in-class illumination to service your panel signalisation functions. During maintenance, one push on the head is enough to test the lamp and to confirm its good health. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5 |
| Bezel material | plastic |
| Product or component type | push-to-test pilot light |
| Range of product | Harmony XB5 |
| Complementary | |
| [Us] rated supply voltage | 110...120 V AC/DC at 50/60 Hz, 110...120 V |
| Tightening torque | 0.8-1.2 N.m |
| Depth | 55 mm |
| Width | 30 mm |
| Compatibility code | XB5 |
| Light source colour | white |
| Signalling type | steady |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Surge withstand | 1 kV |
| Sale per indivisible quantity | 1 |
| Service life | 1.5 year(s) |
| Connections - terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Fixing collar material | plastic |
| Current consumption | 14 mA |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.047 kg |
| Cap/operator or lens colour | white |
| Shape of signaling unit head | round |
| Mounting diameter | 22 mm |
| Light source | universal LED |
| Embedding depth | 46 mm |
| Height | 42 mm |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, GB 14048.5, IEC 60947-5-1, UL 508 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | DNV, UL listed, LROS (Lloyds register of shipping), CSA, GL, BV |
