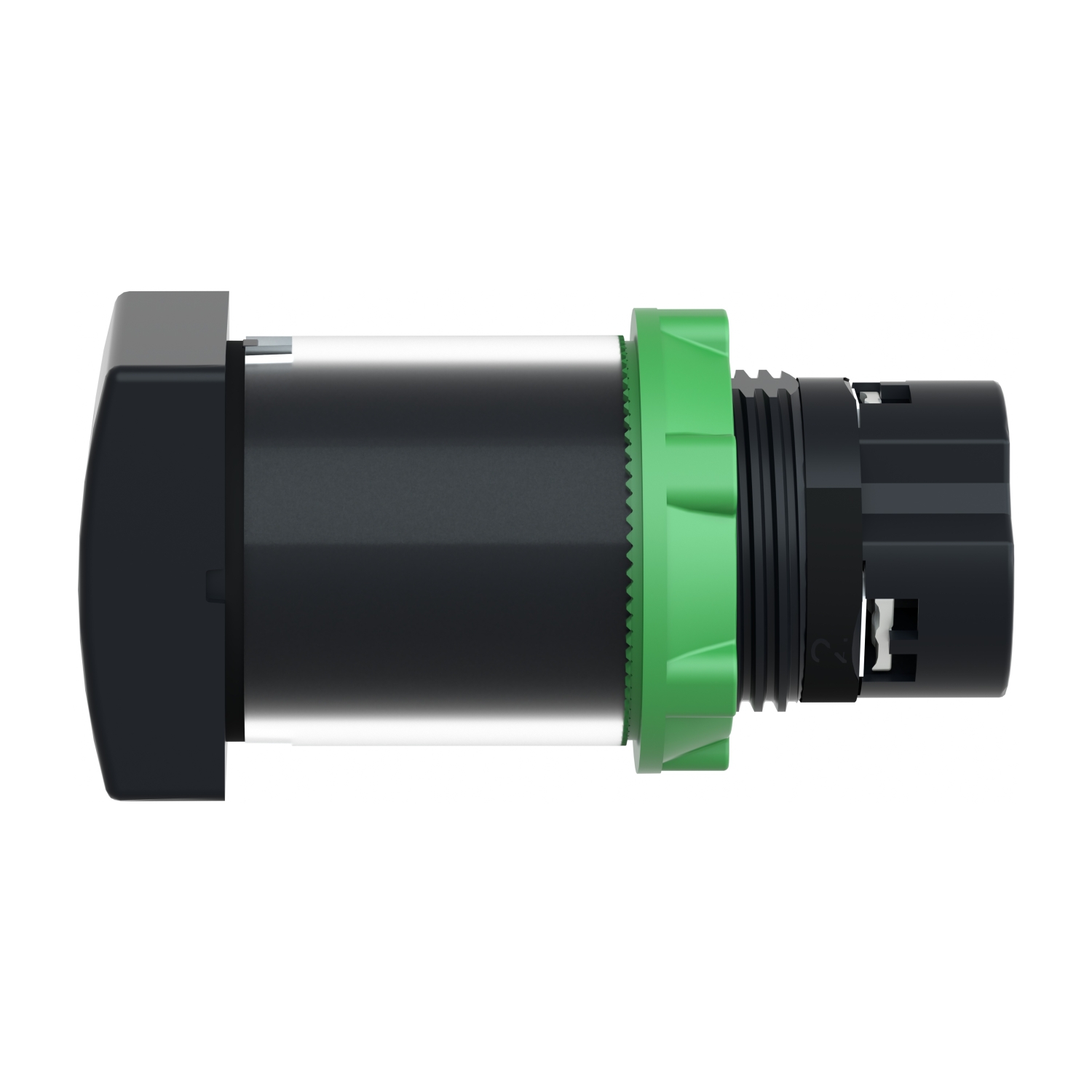

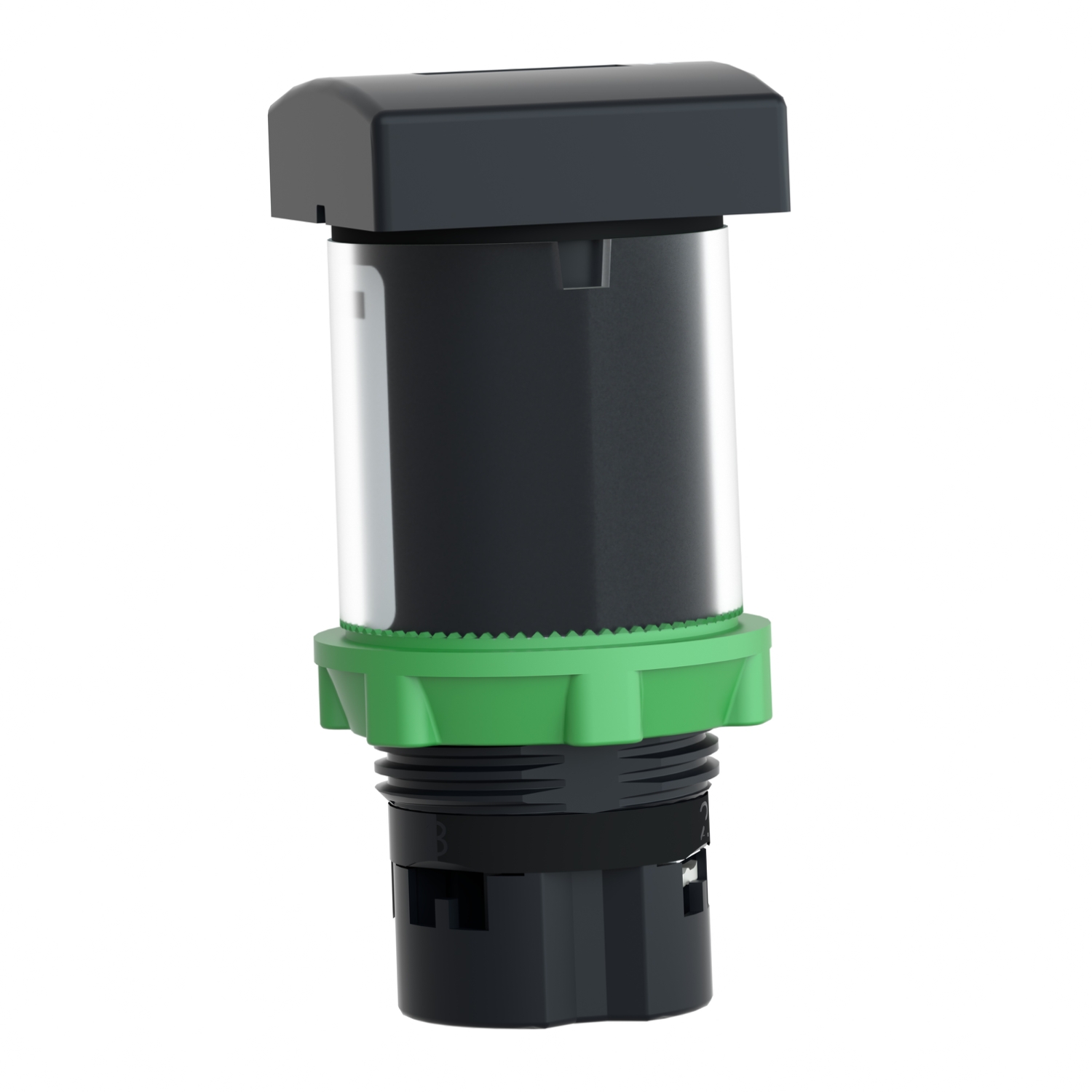

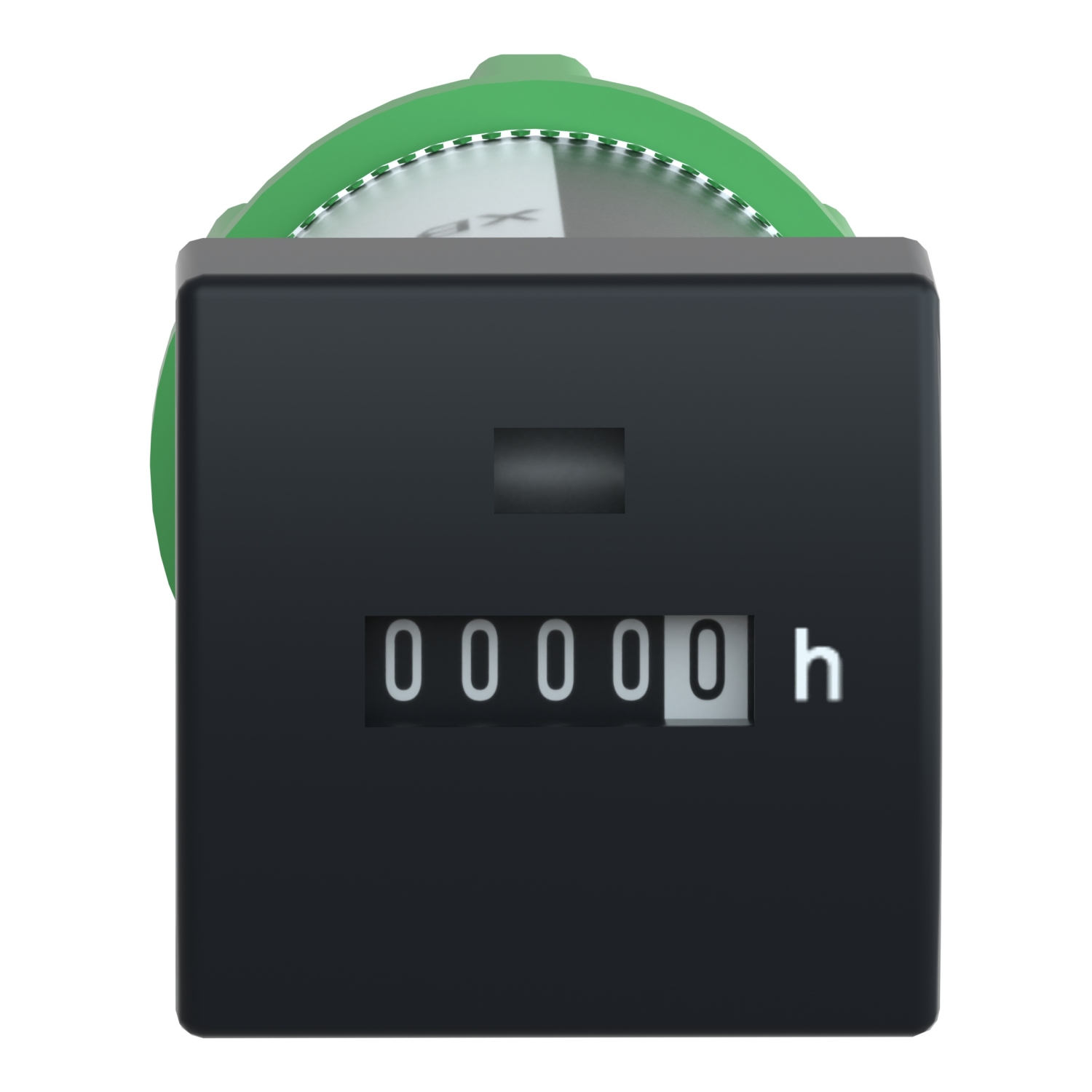

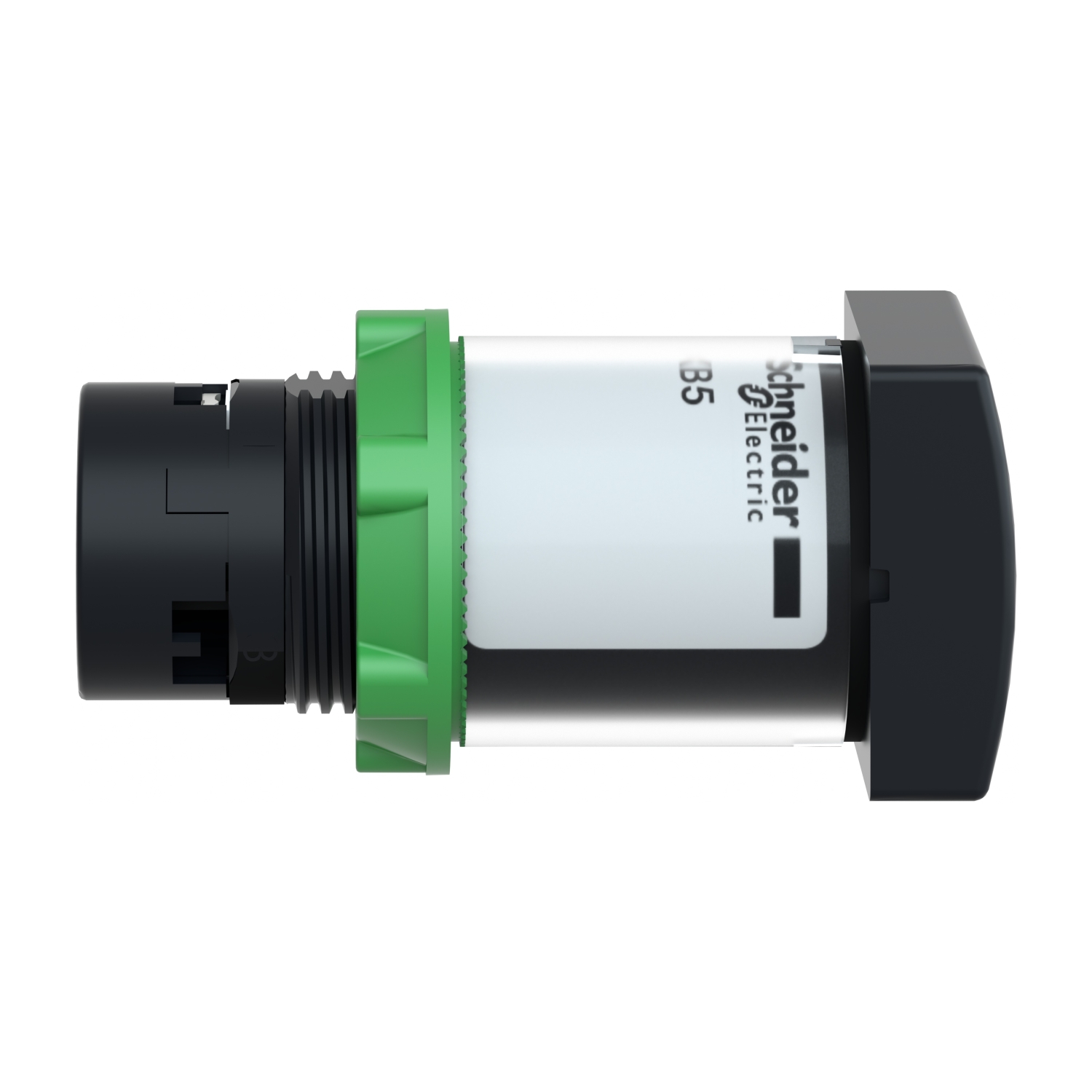

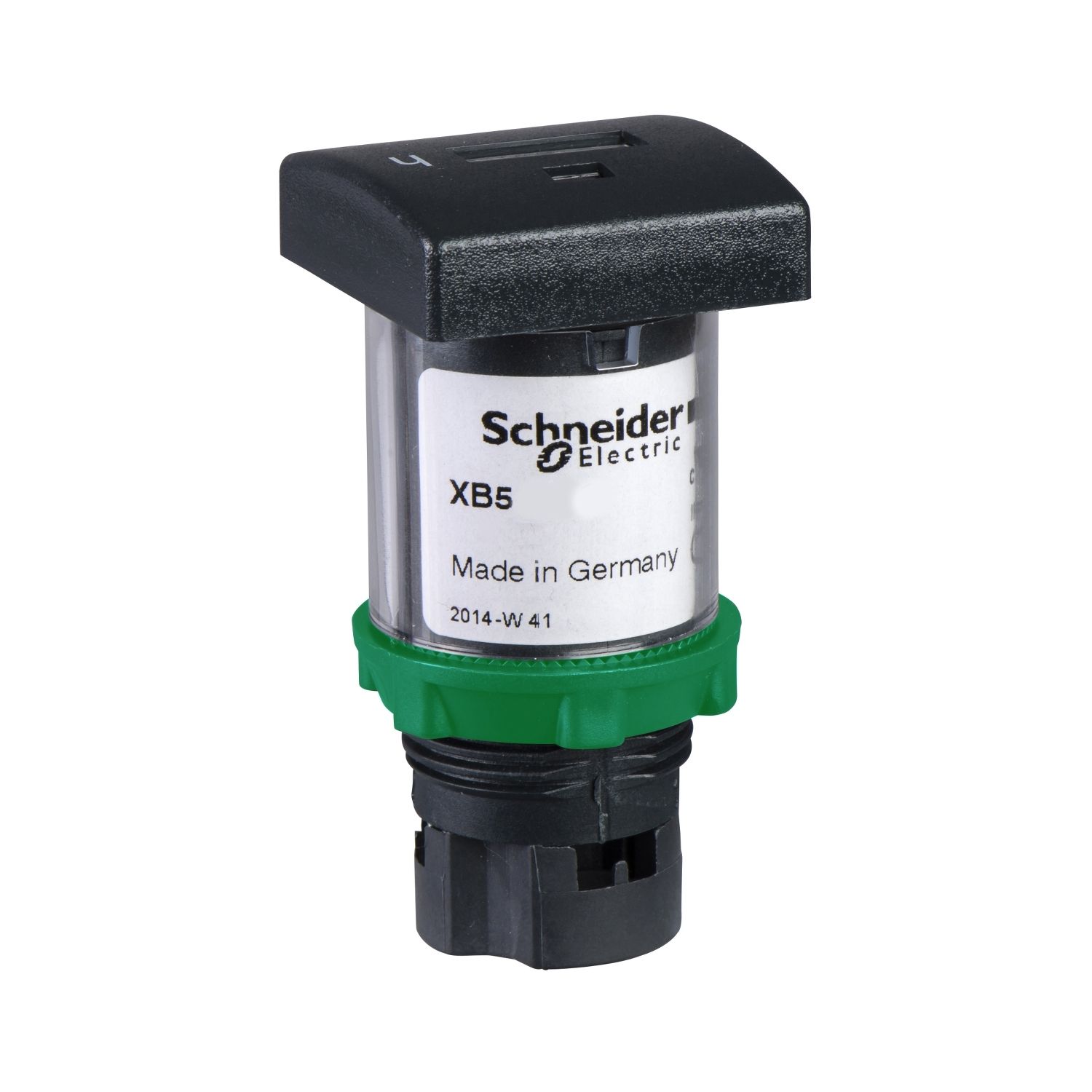

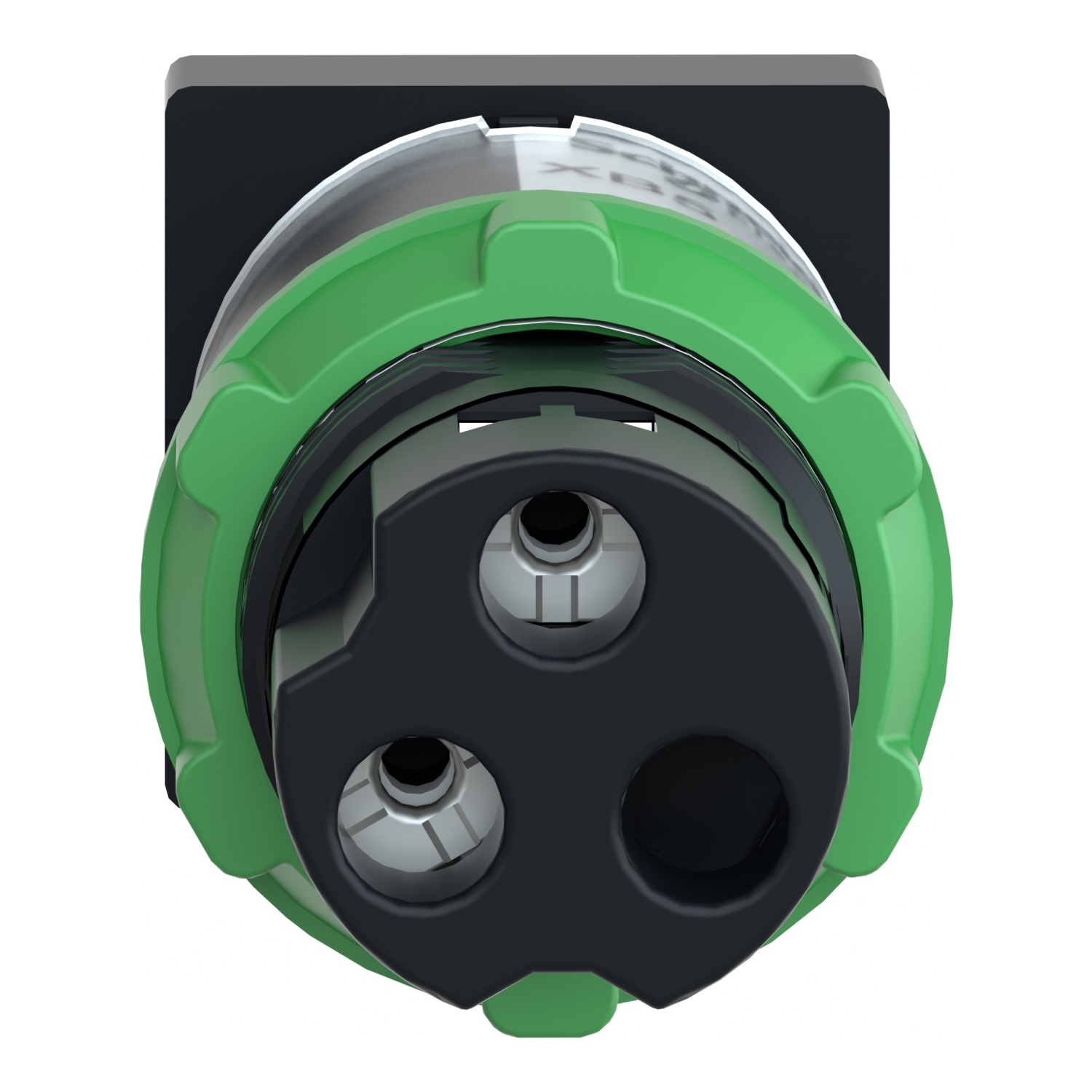

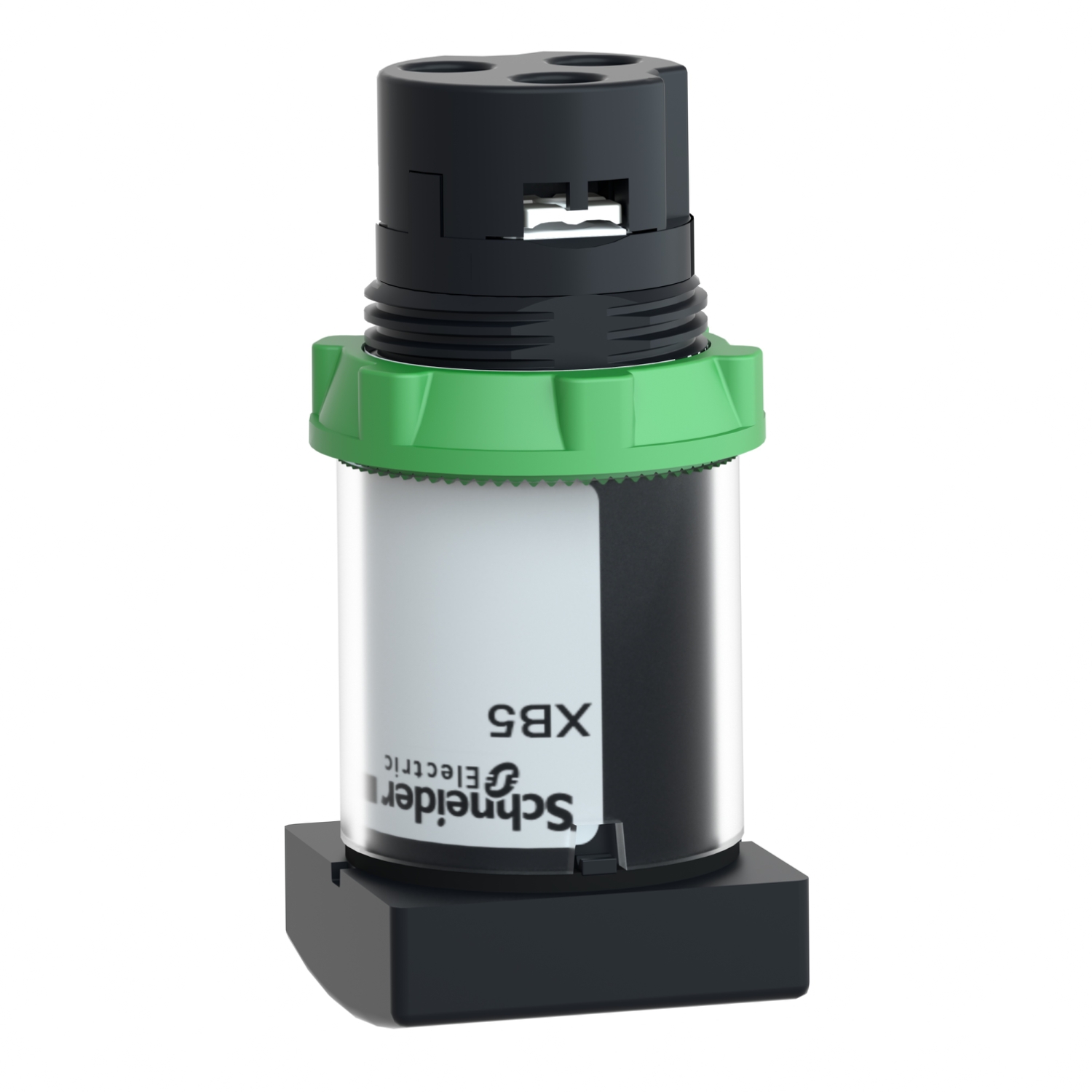

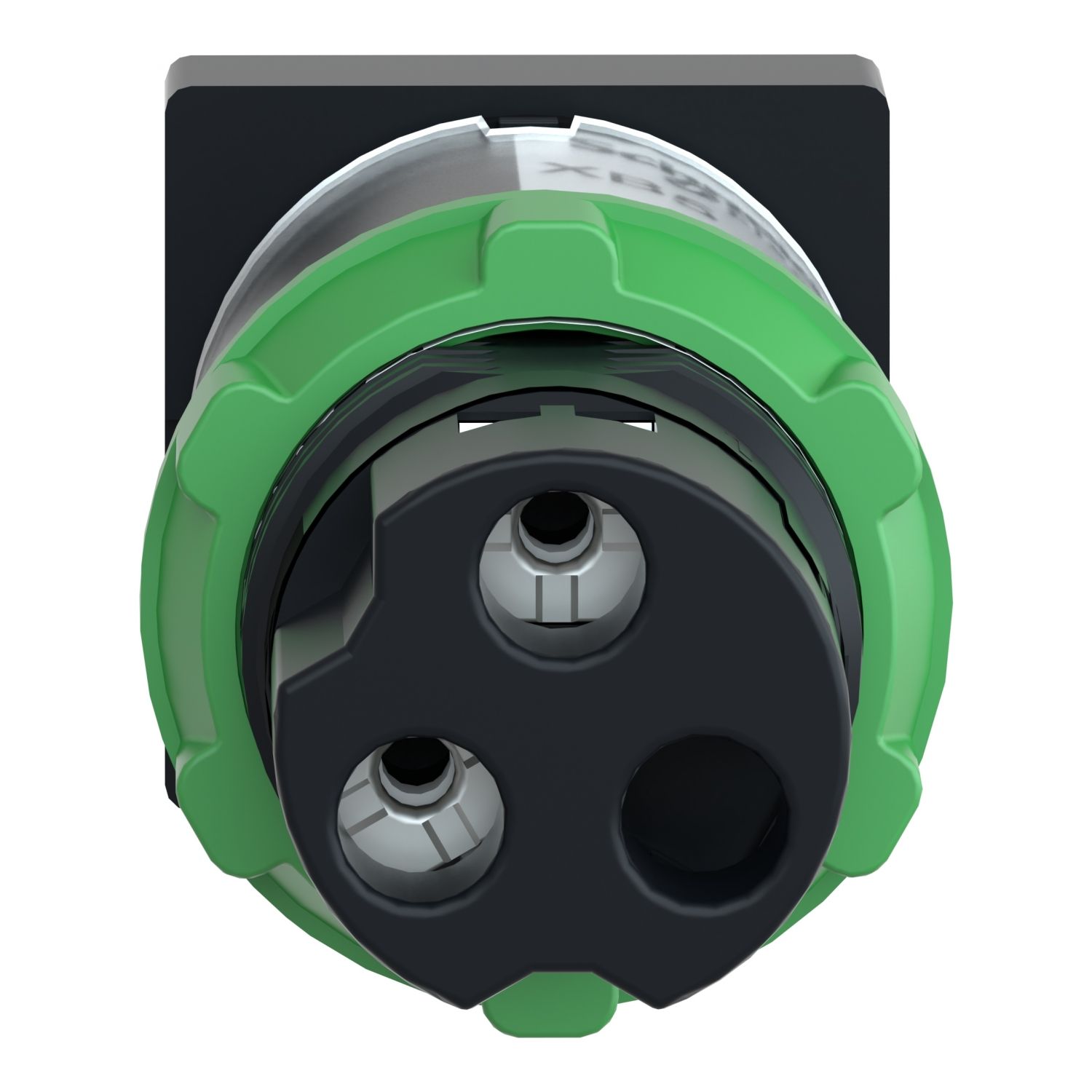

This Harmony XB5, hour counter has 5 display digits and is supplied with 120V AC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bezel material | dark grey plastic |
| Product or component type | hour counter |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Reset | without |
| Complementary | |
| Depth | 60 mm |
| Width | 30 mm |
| Customizable | no, 0 |
| Mounting mode | flush-mounted |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | monolithic product |
| Current consumption | 8 mA |
| Net weight | 0.045 kg |
| Display digits | 5 |
| Mounting support | panel mounting |
| Height | 30 mm |
| [Us] rated supply voltage | 120 V +/- 10 %, 120 V |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 13 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL, CE |
