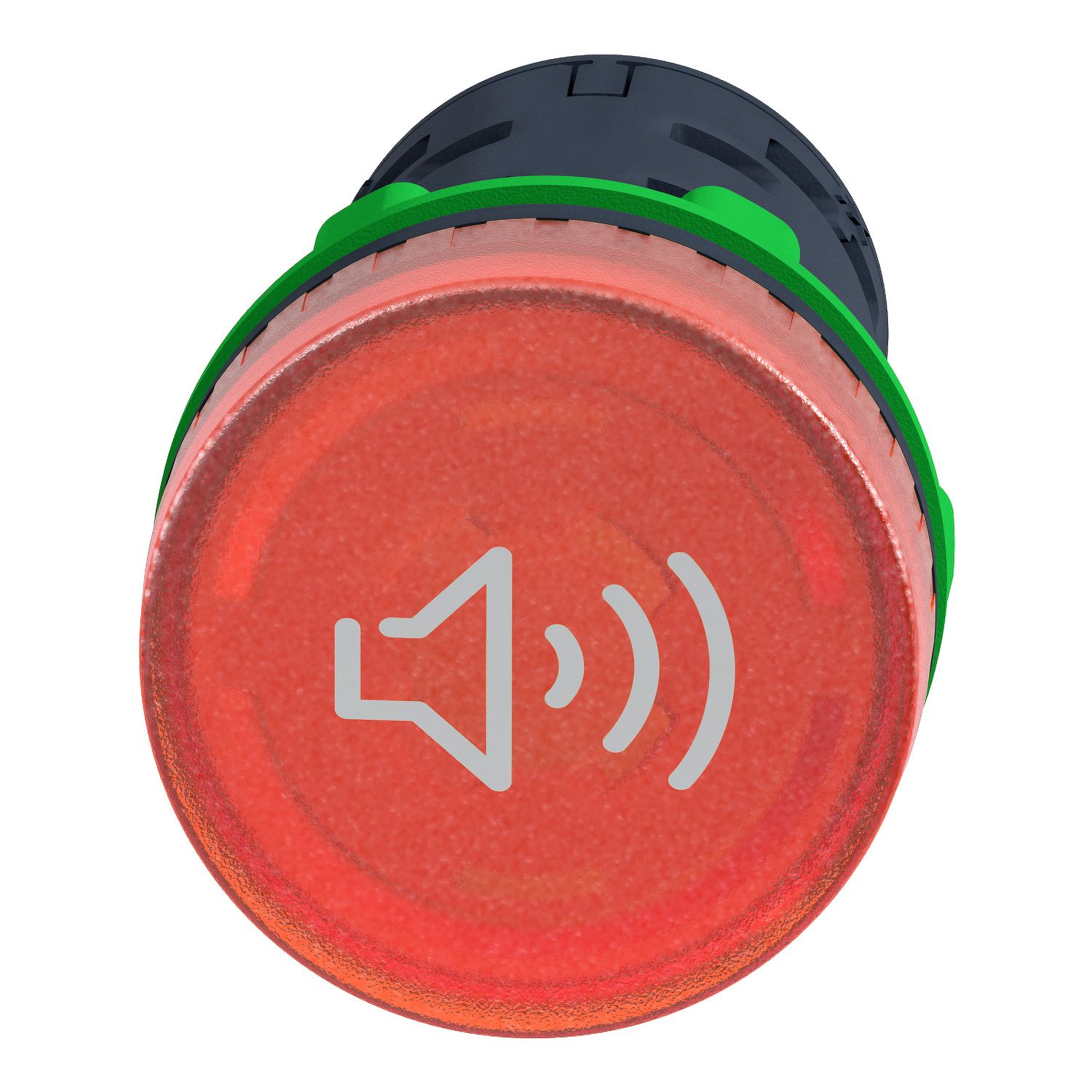

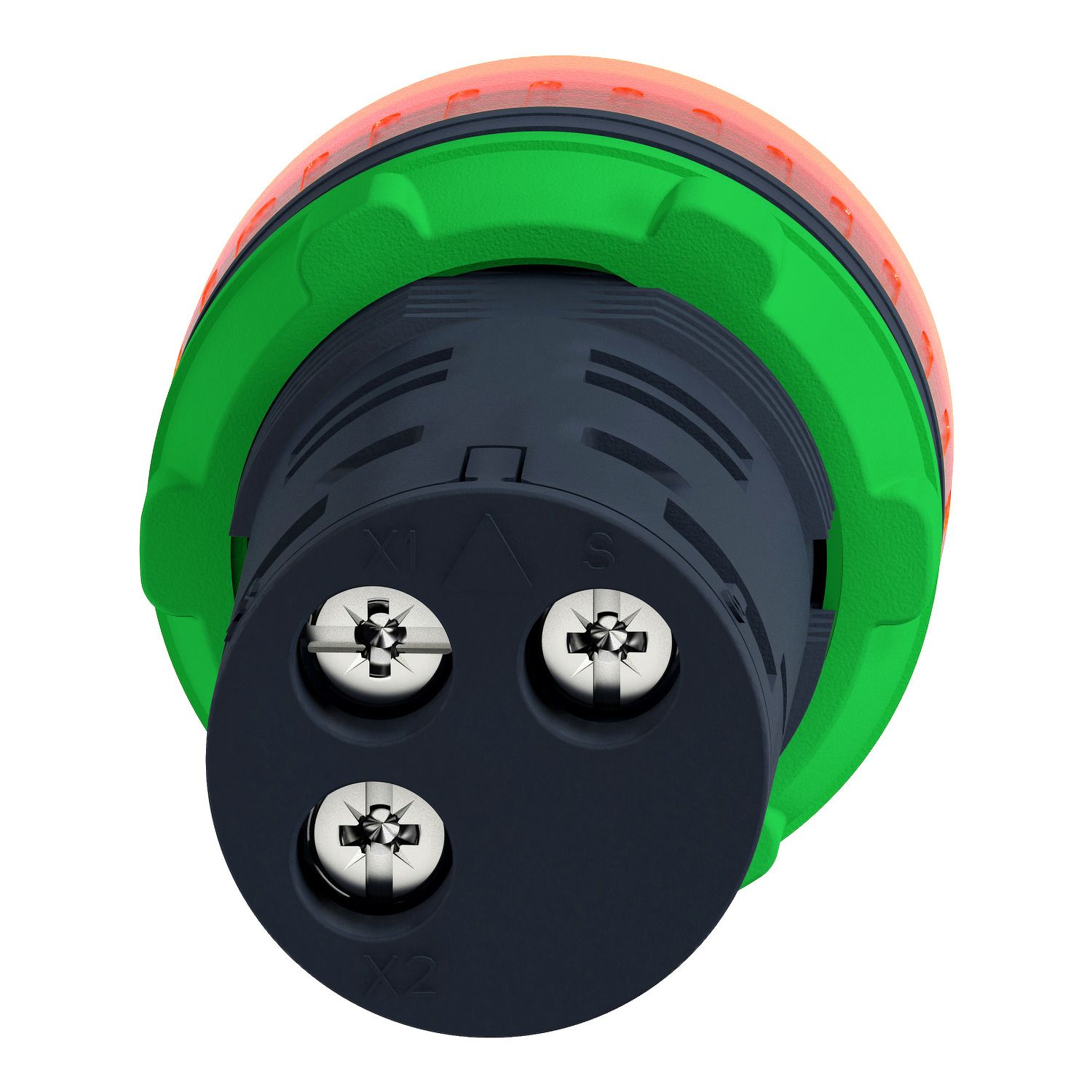

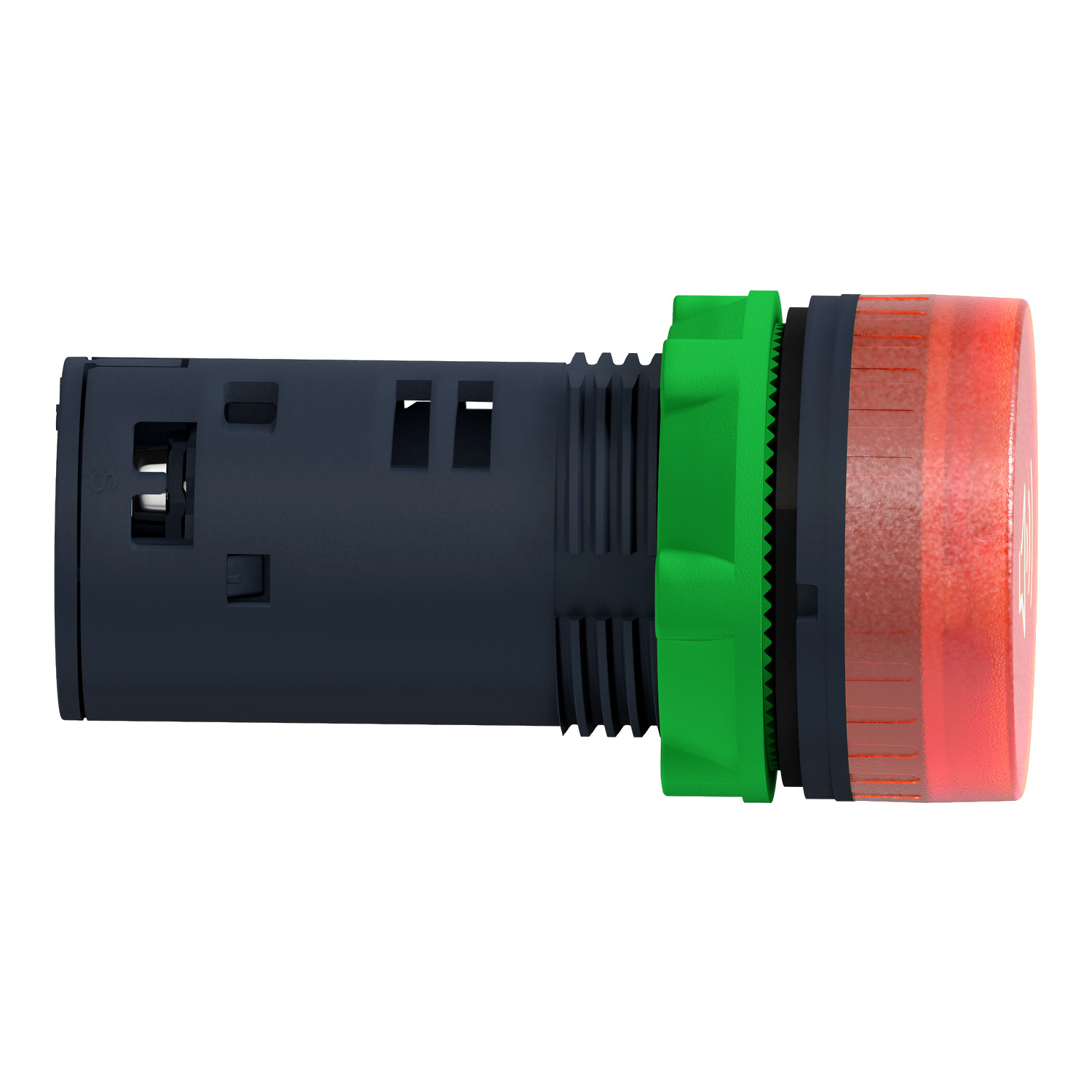

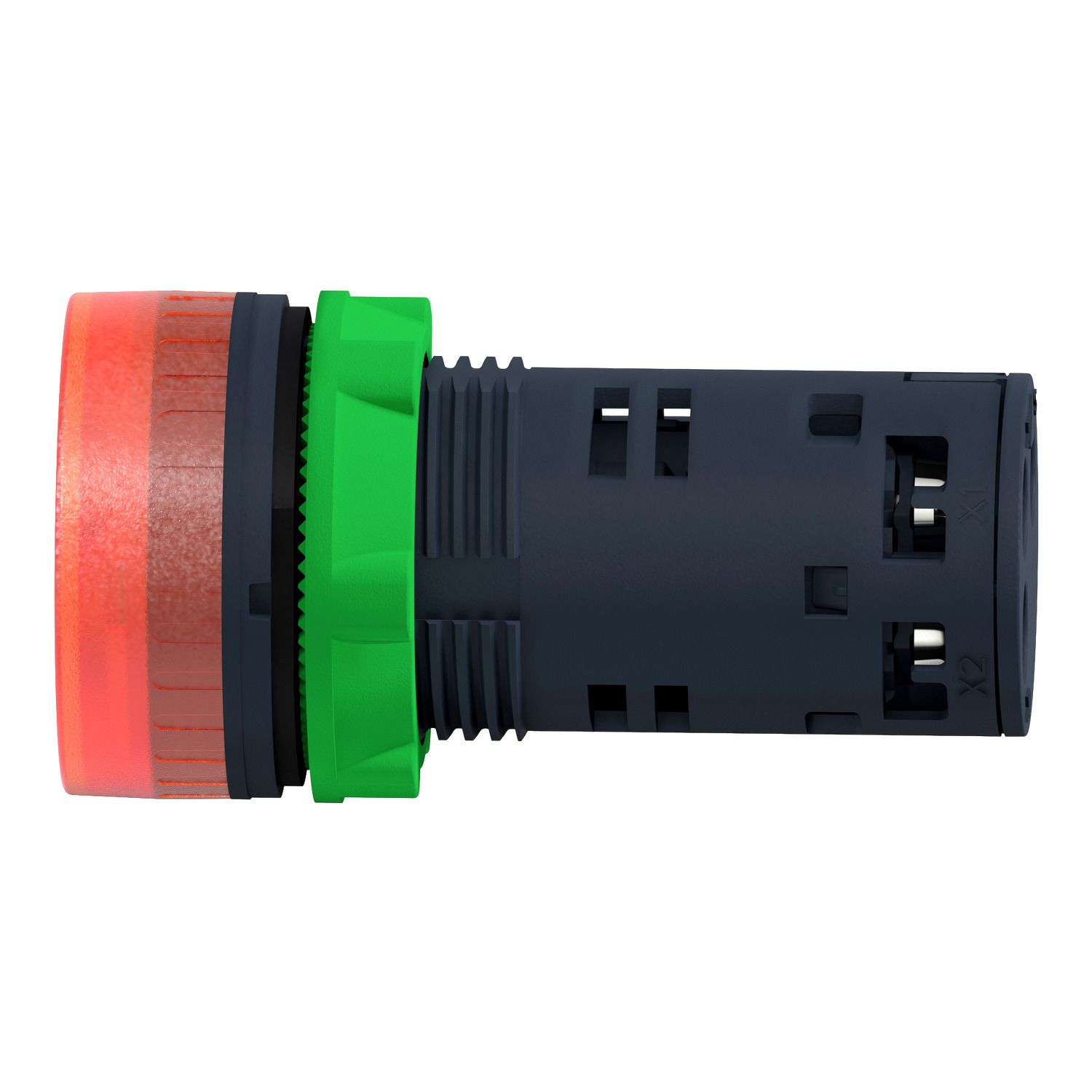

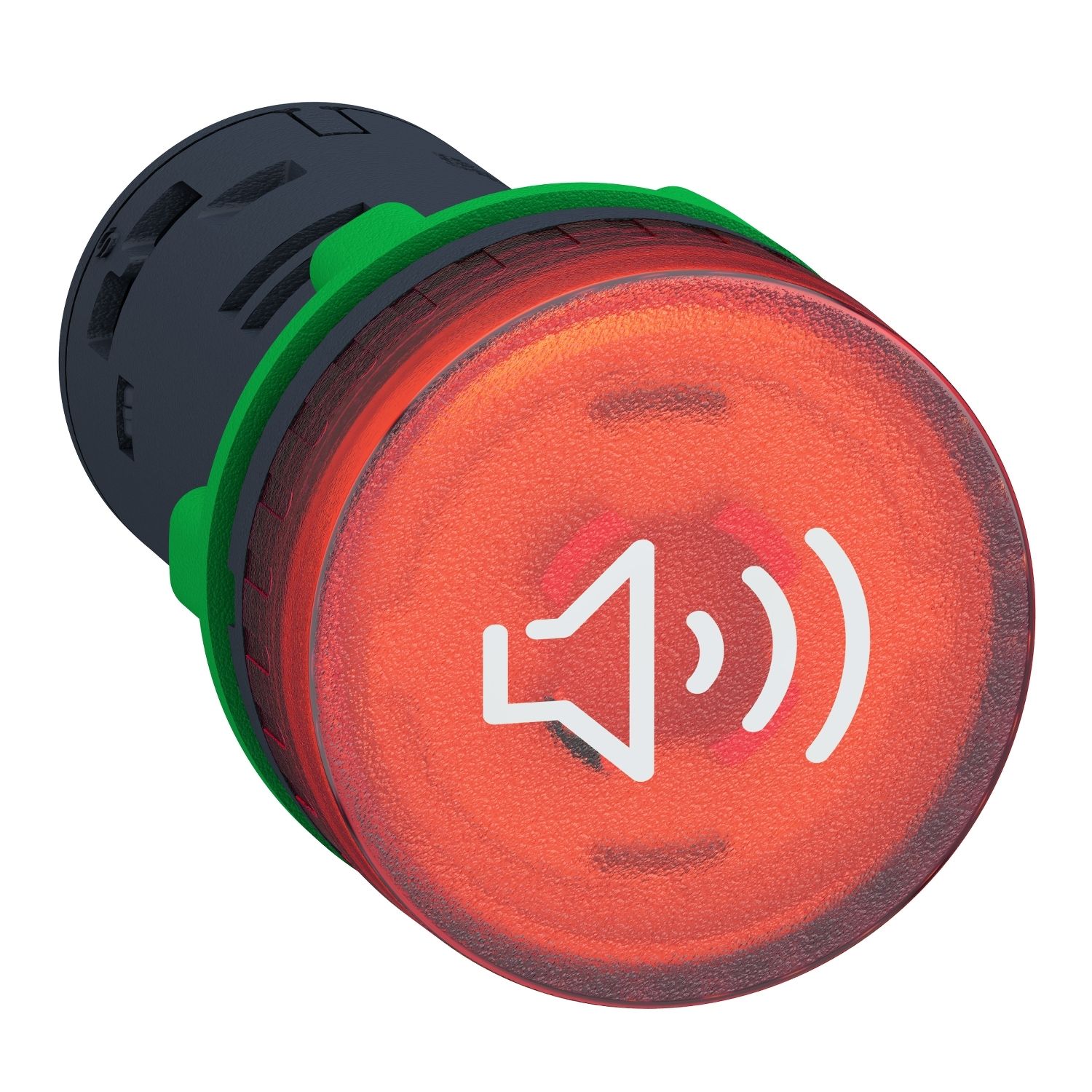

This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bezel material | plastic |
| Cap/operator or lens colour | red |
| Product or component type | annunciator |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Supply frequency | 50/60 Hz |
| Depth | 55 mm |
| Width | 29 mm |
| Supply circuit type | AC/DC |
| Signalling type | continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Current consumption | <= 58 mA |
| Net weight | 0.024 kg |
| Height | 29 mm |
| [Us] rated supply voltage | 24 V +/- 10 %, 24 V |
| Environment | |
| Protective treatment | TH |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 13, NEMA 4X |
| Standards | IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, UL 508, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | BV, CSA, UL listed |
