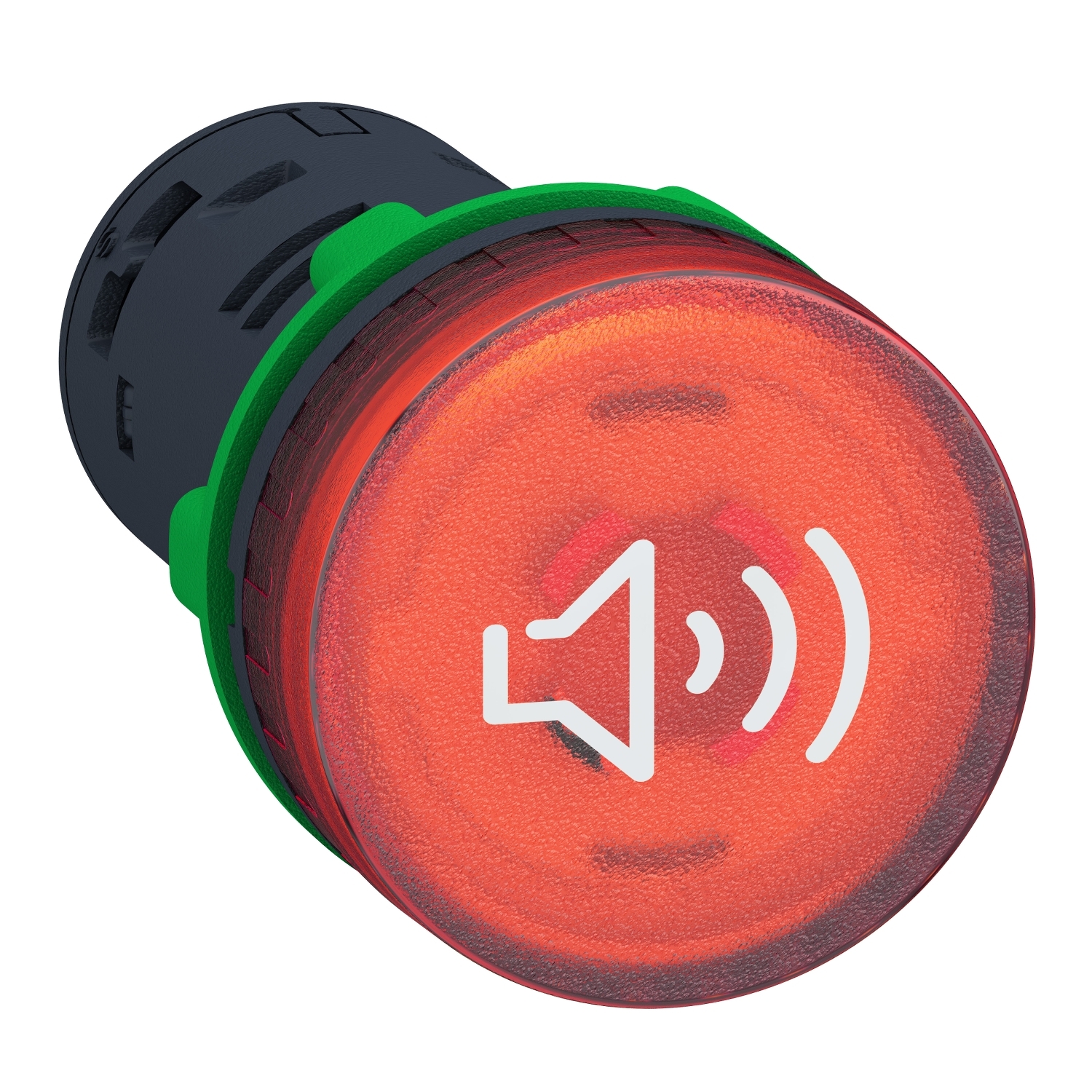

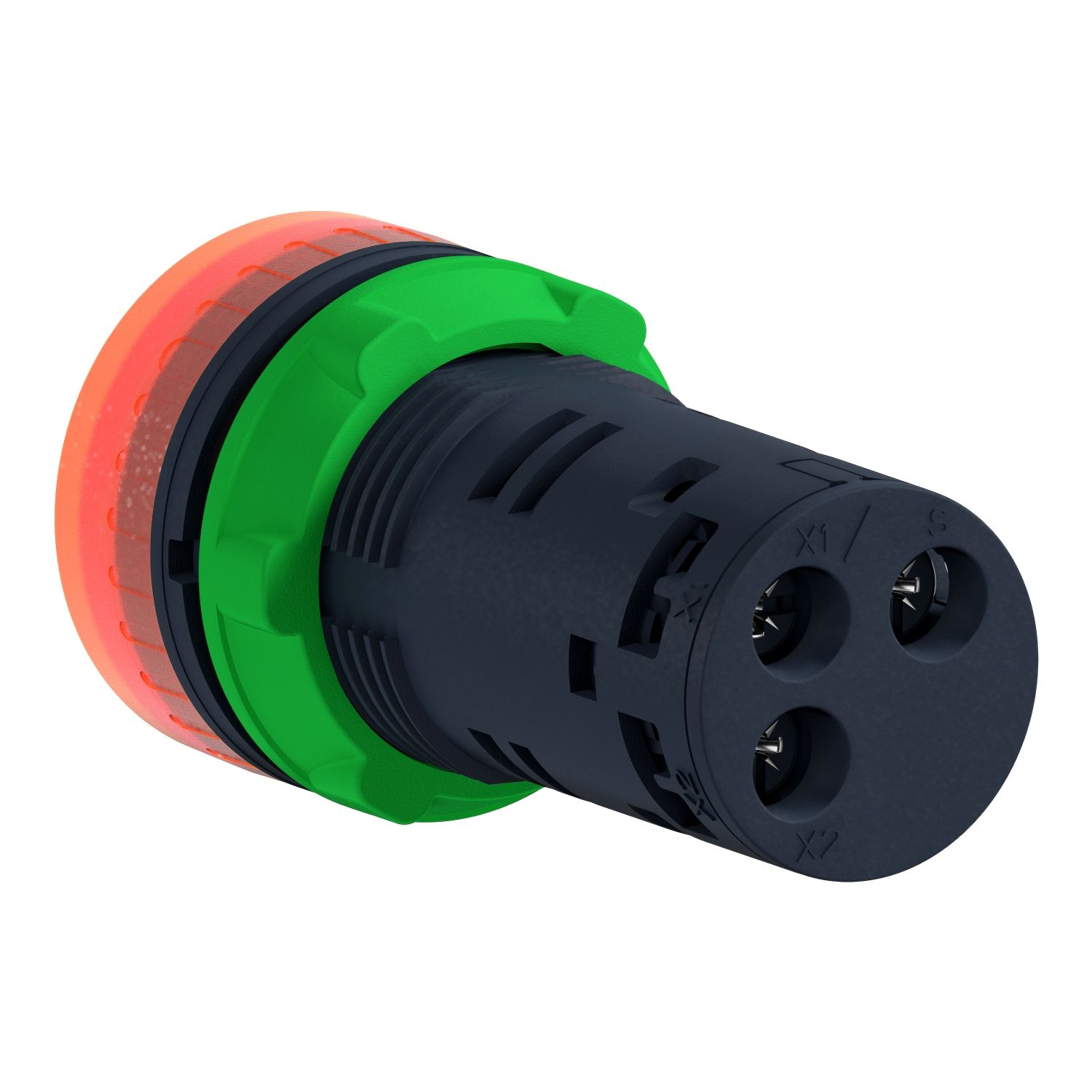

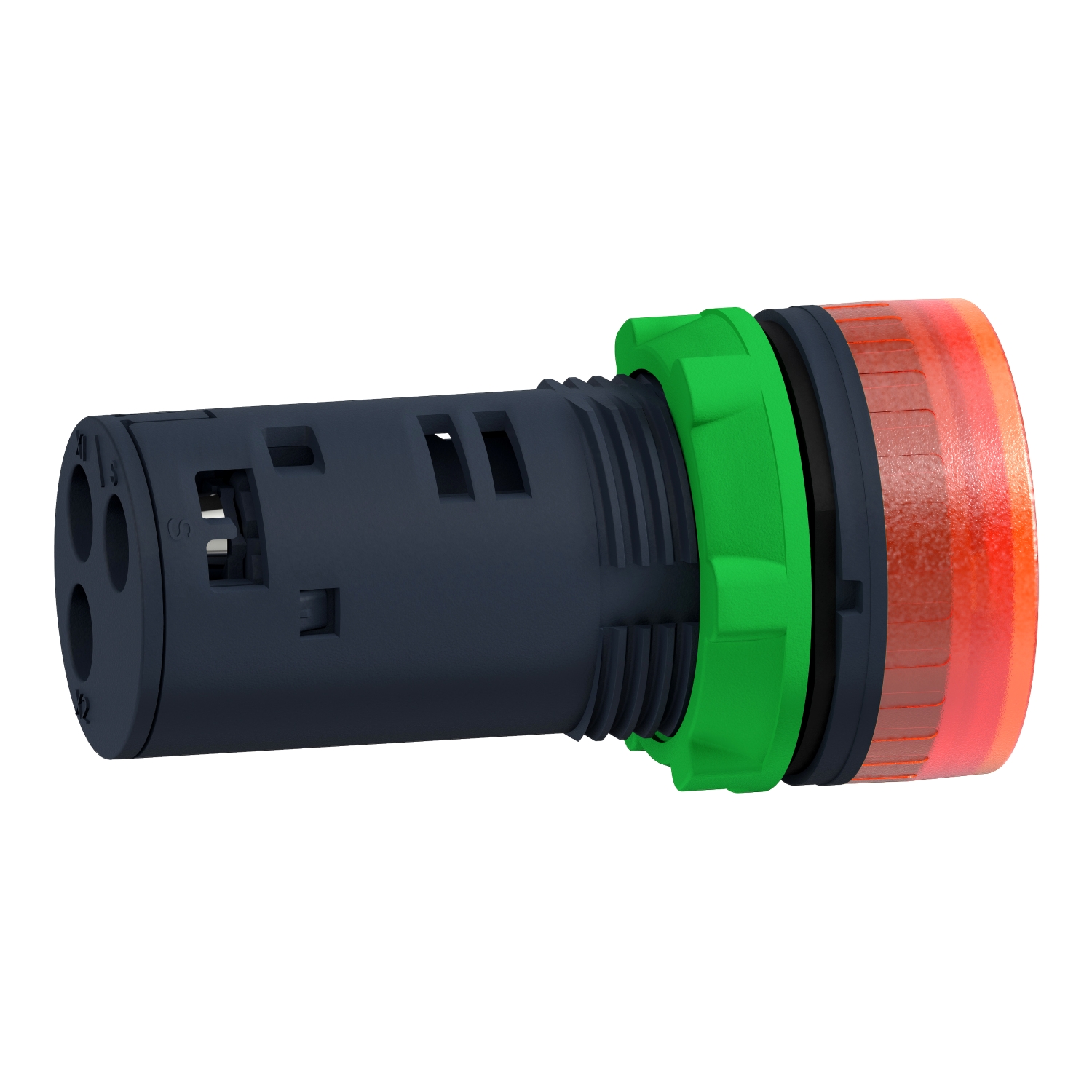

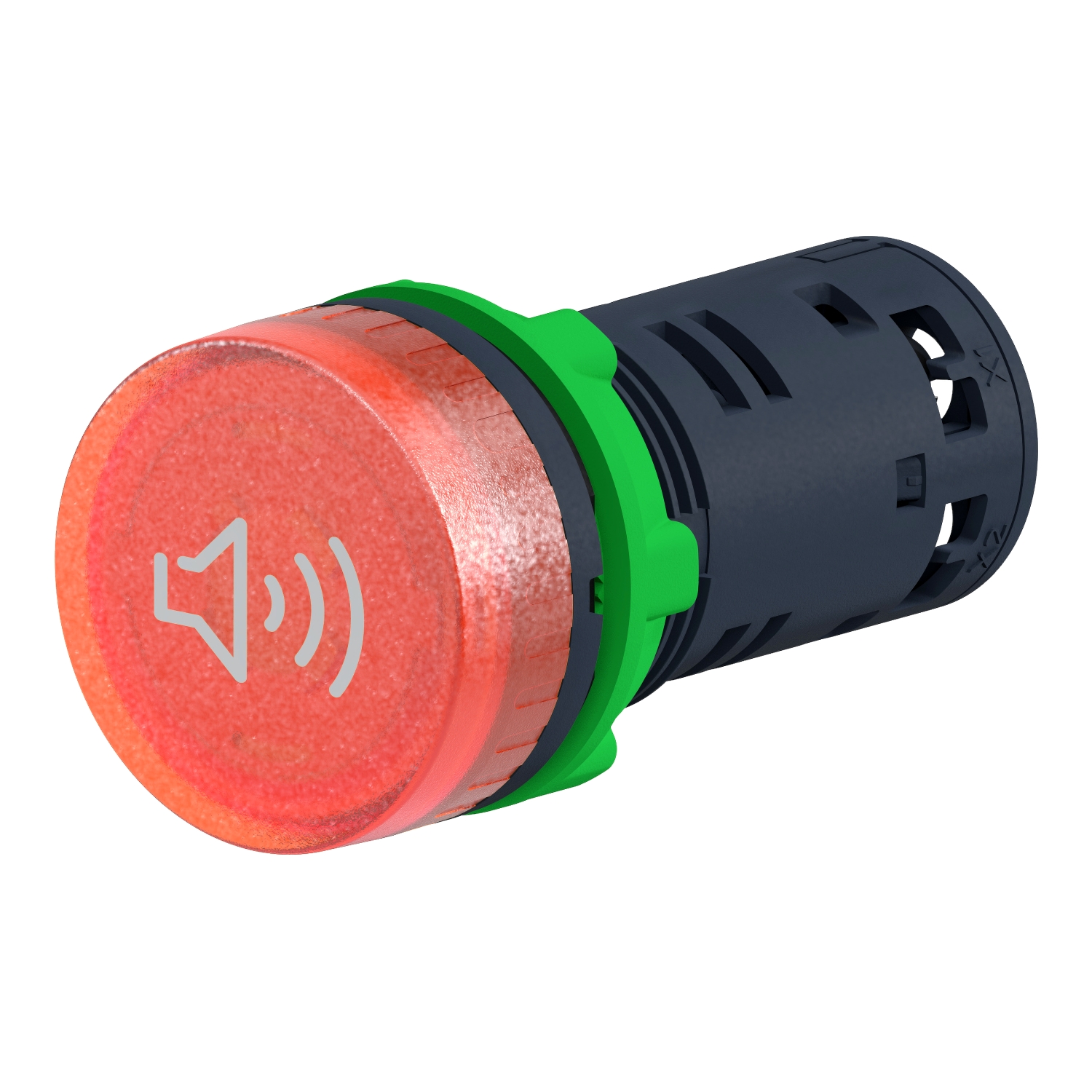

This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Cap/operator or lens colour | red |
| Range of product | Harmony XB5 |
| Bezel material | plastic |
| Product or component type | annunciator |
| Mounting diameter | 22 mm |
| Complementary | |
| Supply frequency | 50/60 Hz |
| Height | 29 mm |
| [Us] rated supply voltage | 230...240 V +/- 10 %, 230...240 V |
| Depth | 55 mm |
| Width | 29 mm |
| Supply circuit type | AC |
| Signalling type | continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Current consumption | <= 35 mA |
| Net weight | 0.024 kg |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 13, NEMA 4X |
| Ambient air temperature for operation | -40-70 °C |
| Overvoltage category | class II conforming to IEC 60536 |
| Standards | IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, UL 508, IEC 60947-1, CSA C22.2 No 14 |
| Product certifications | BV, CSA, UL listed |
