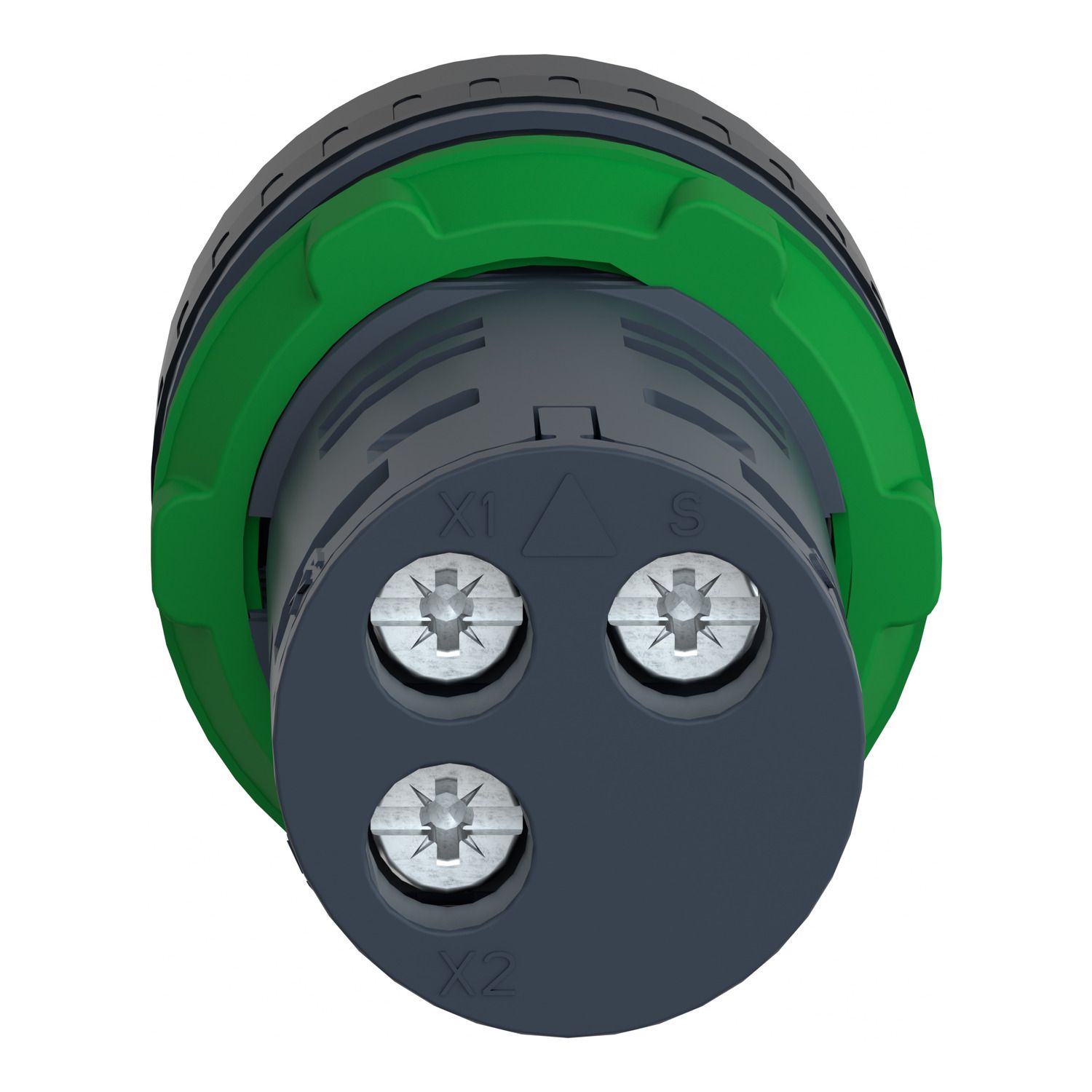

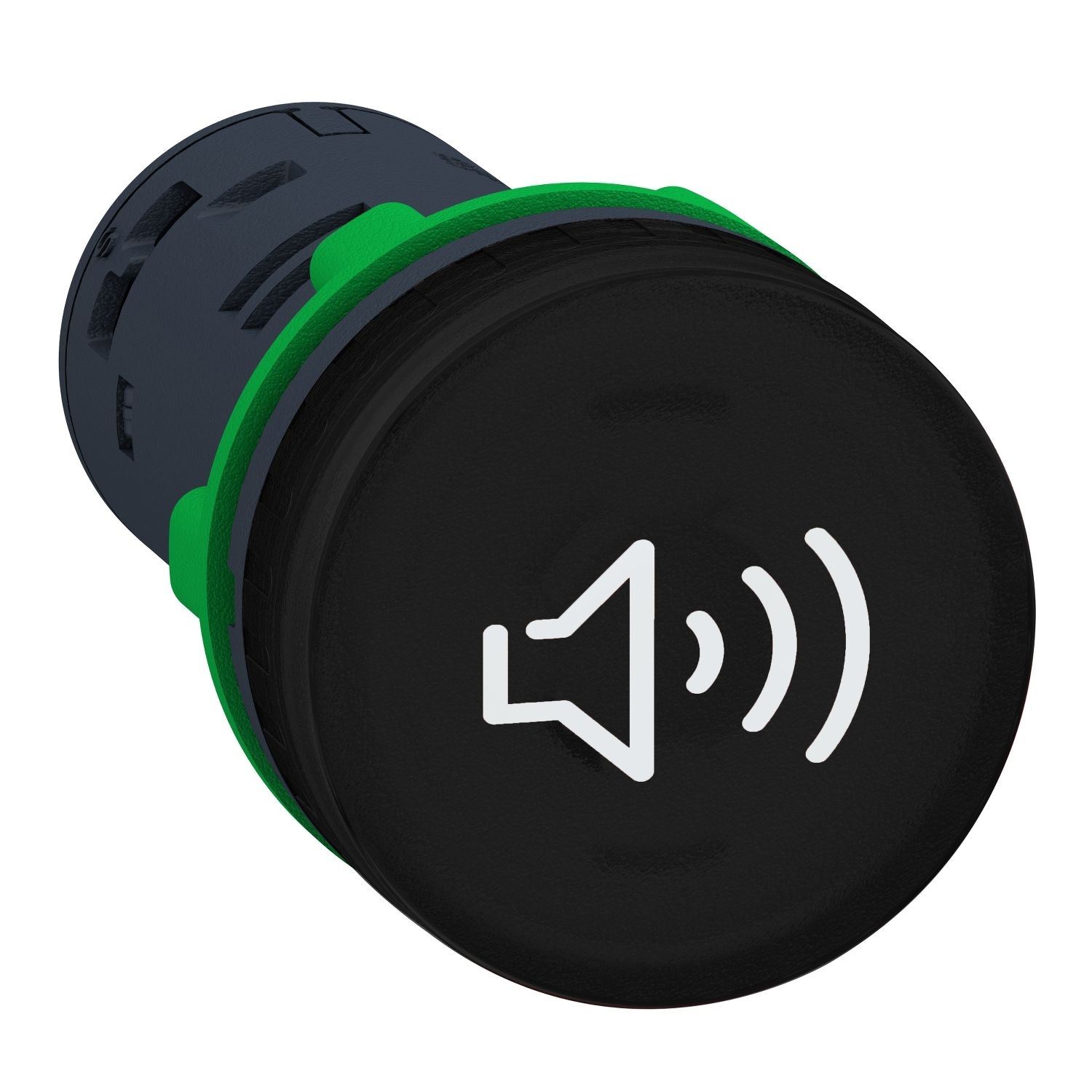

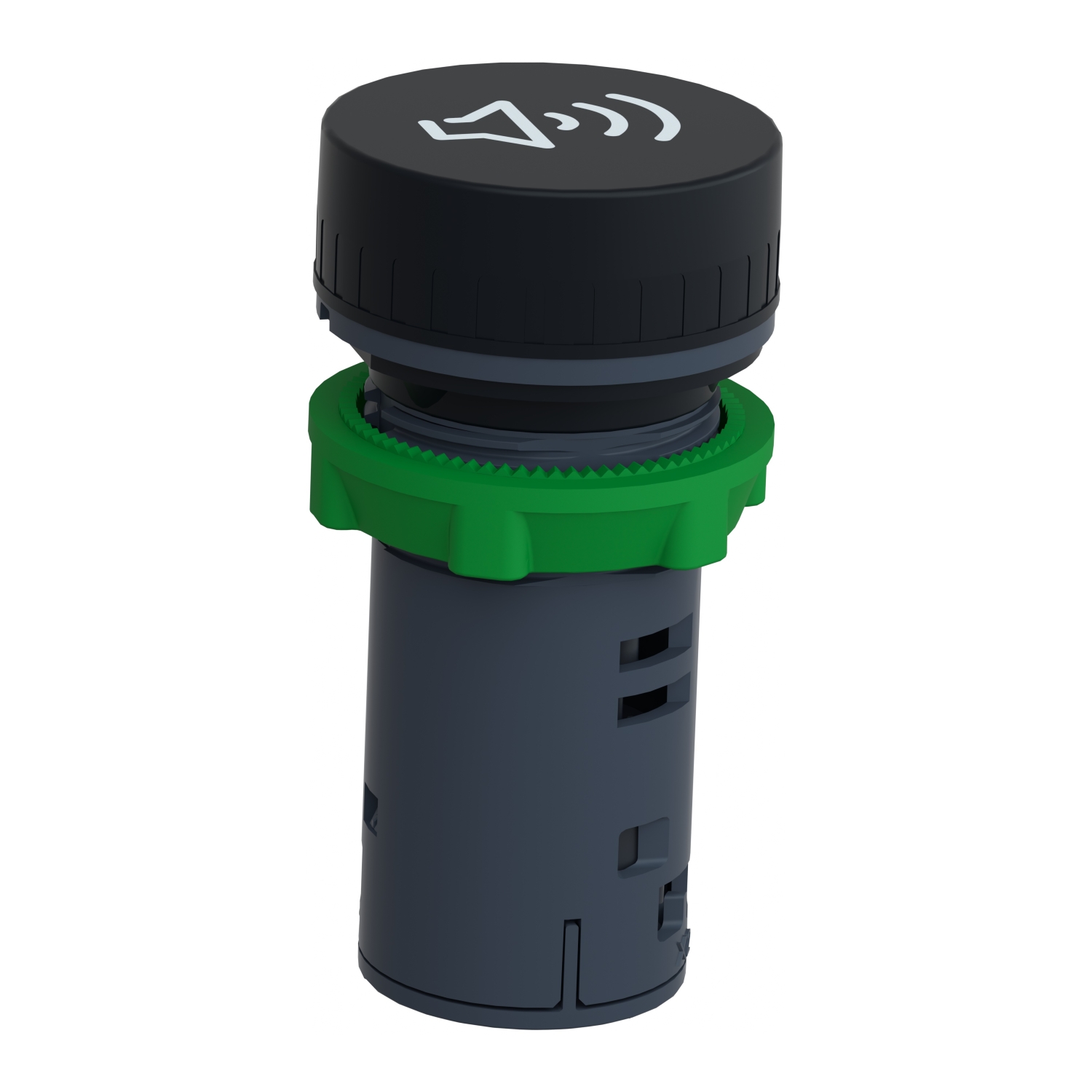

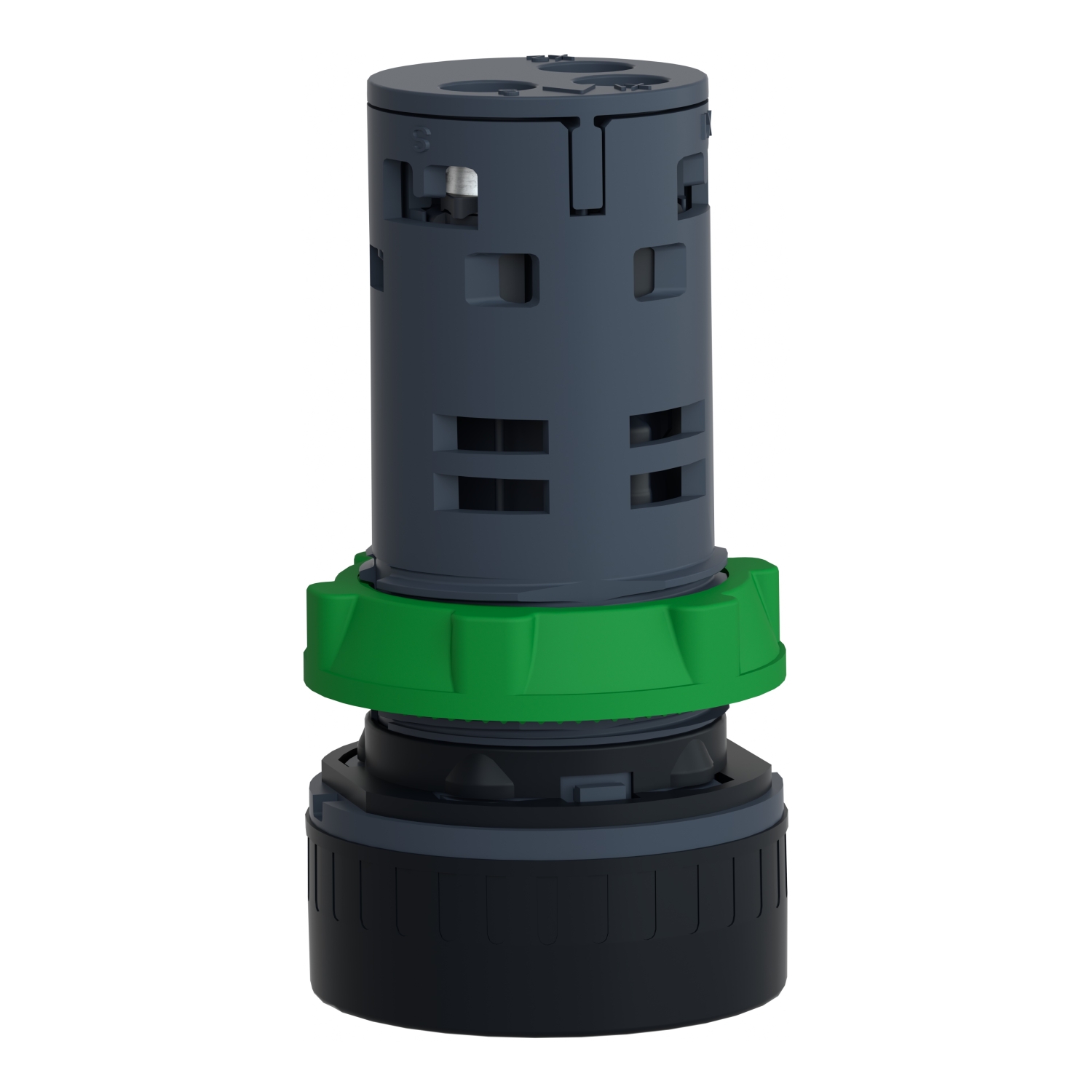

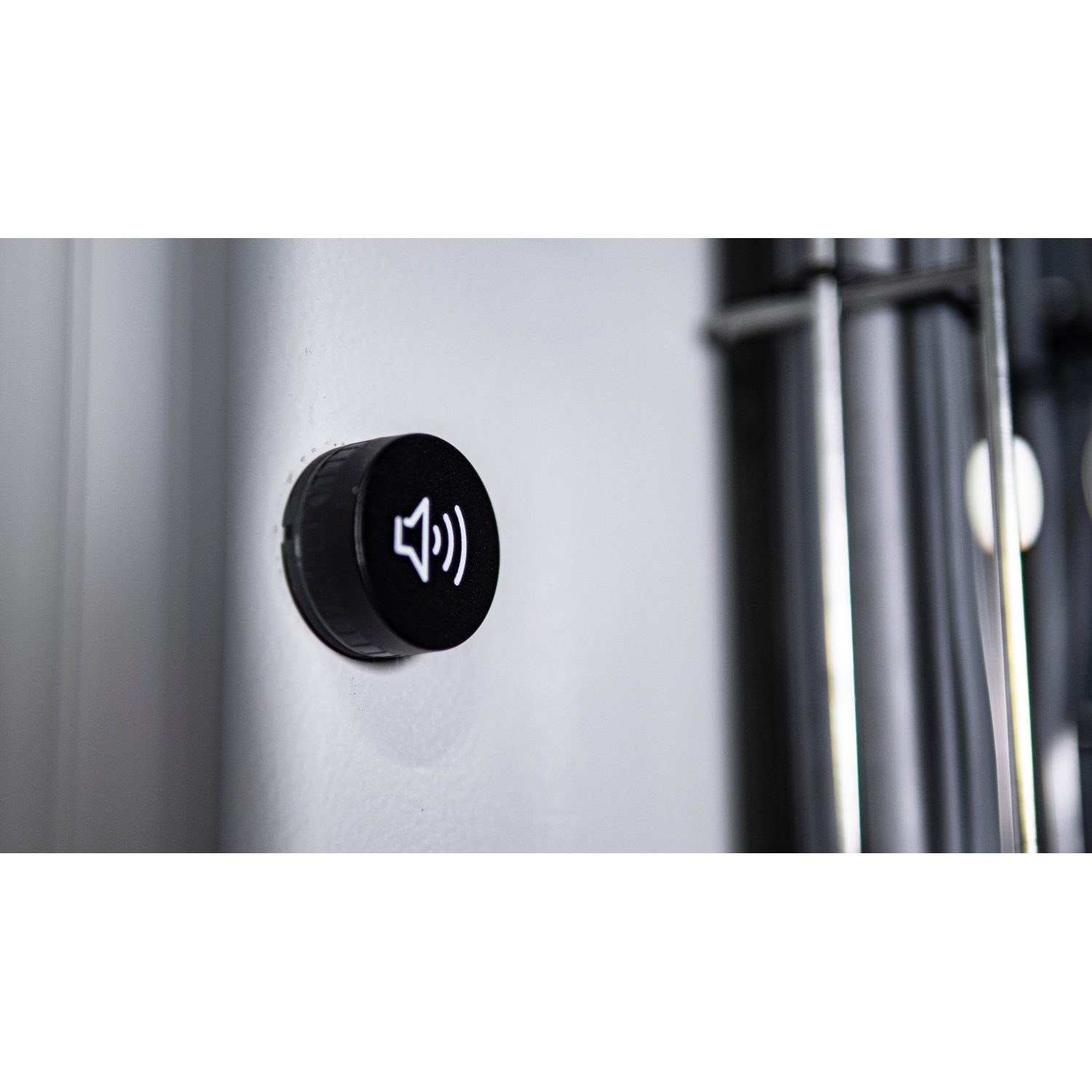

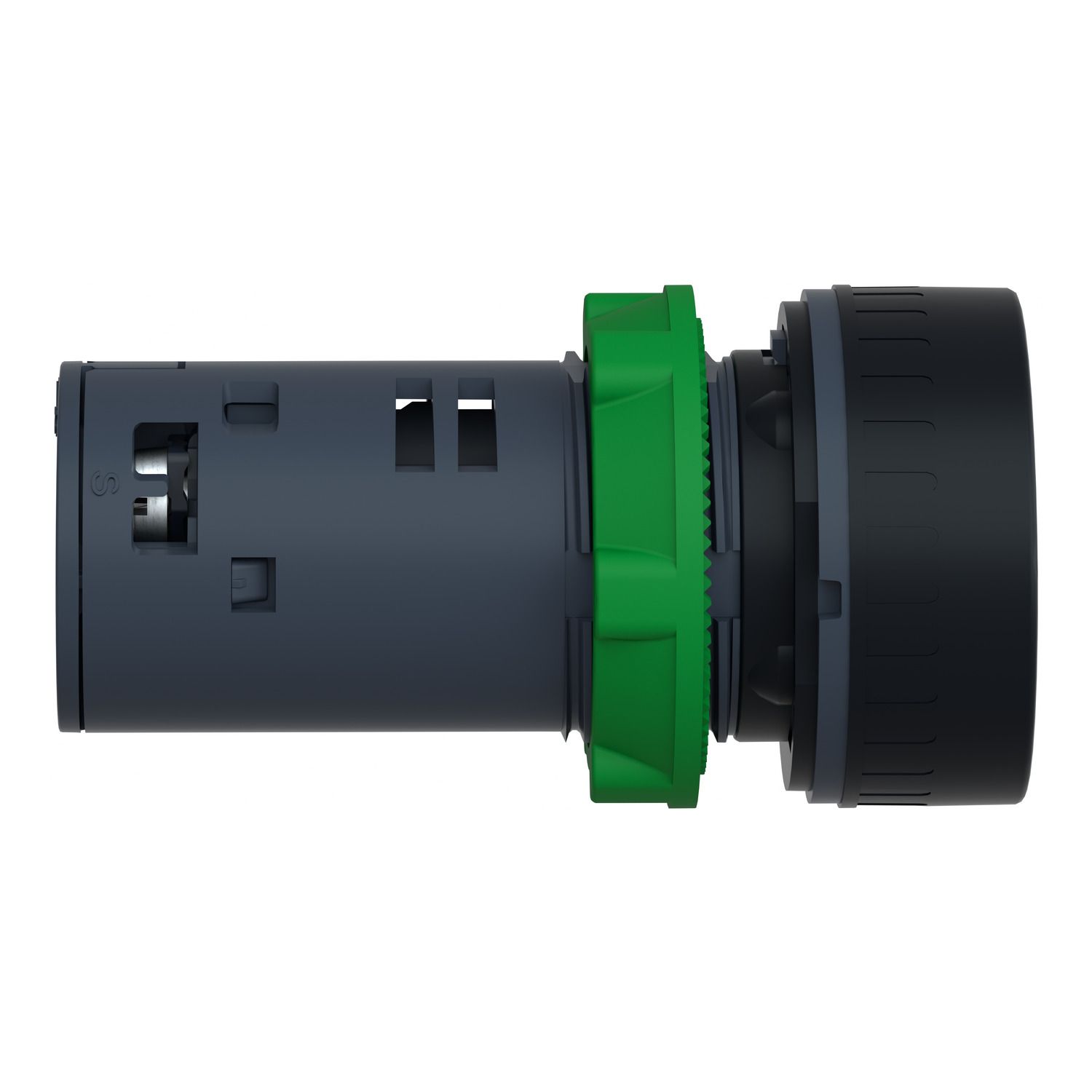

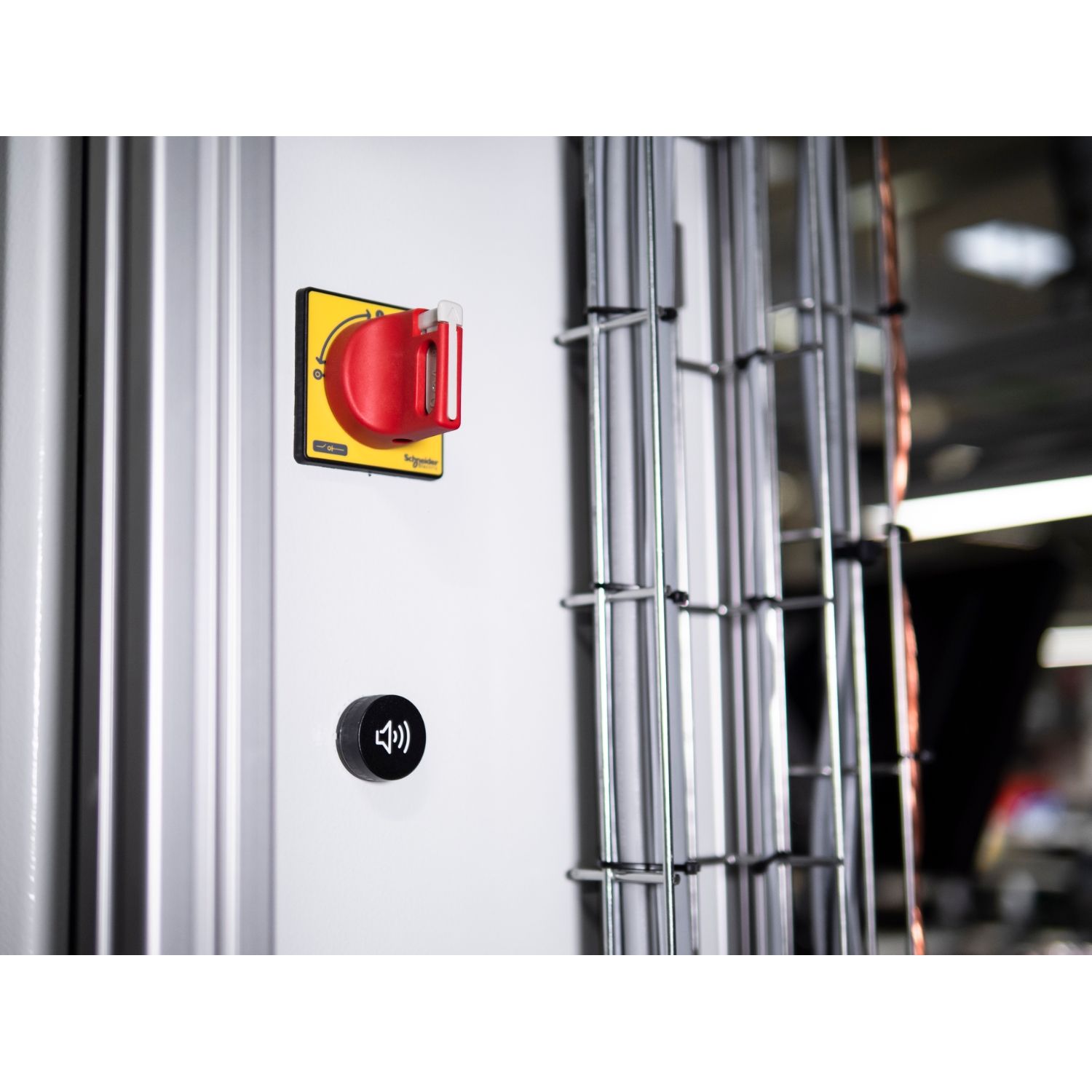

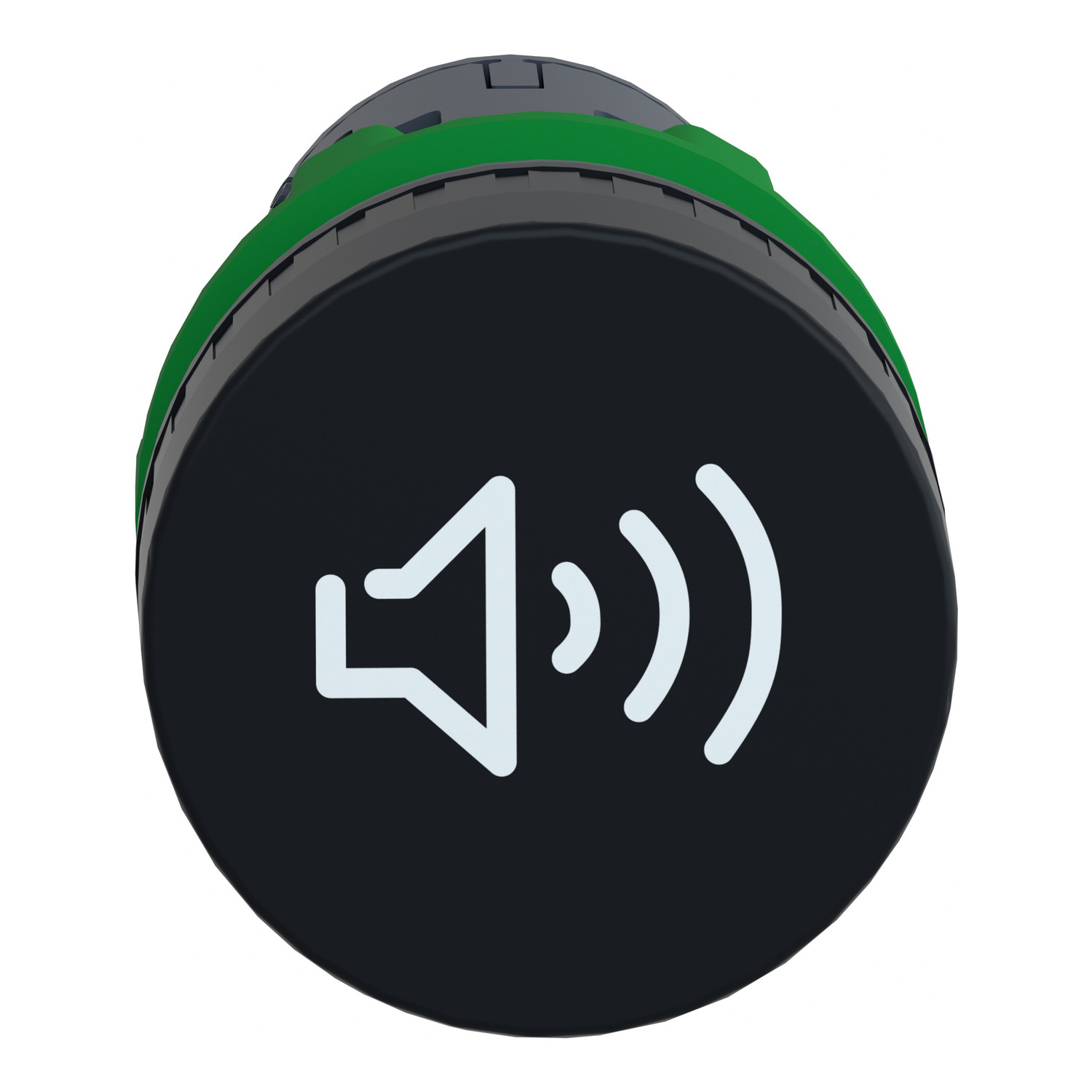

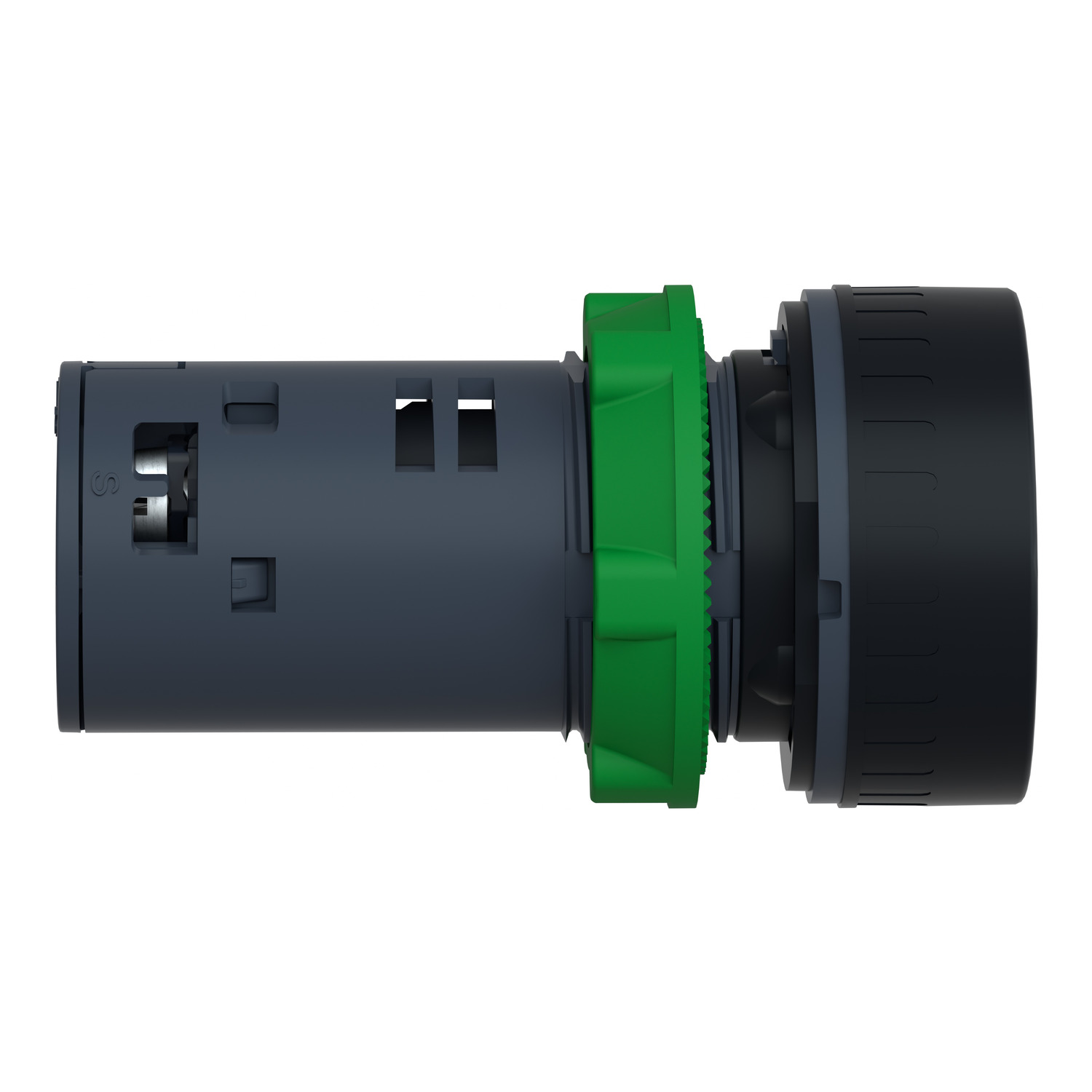

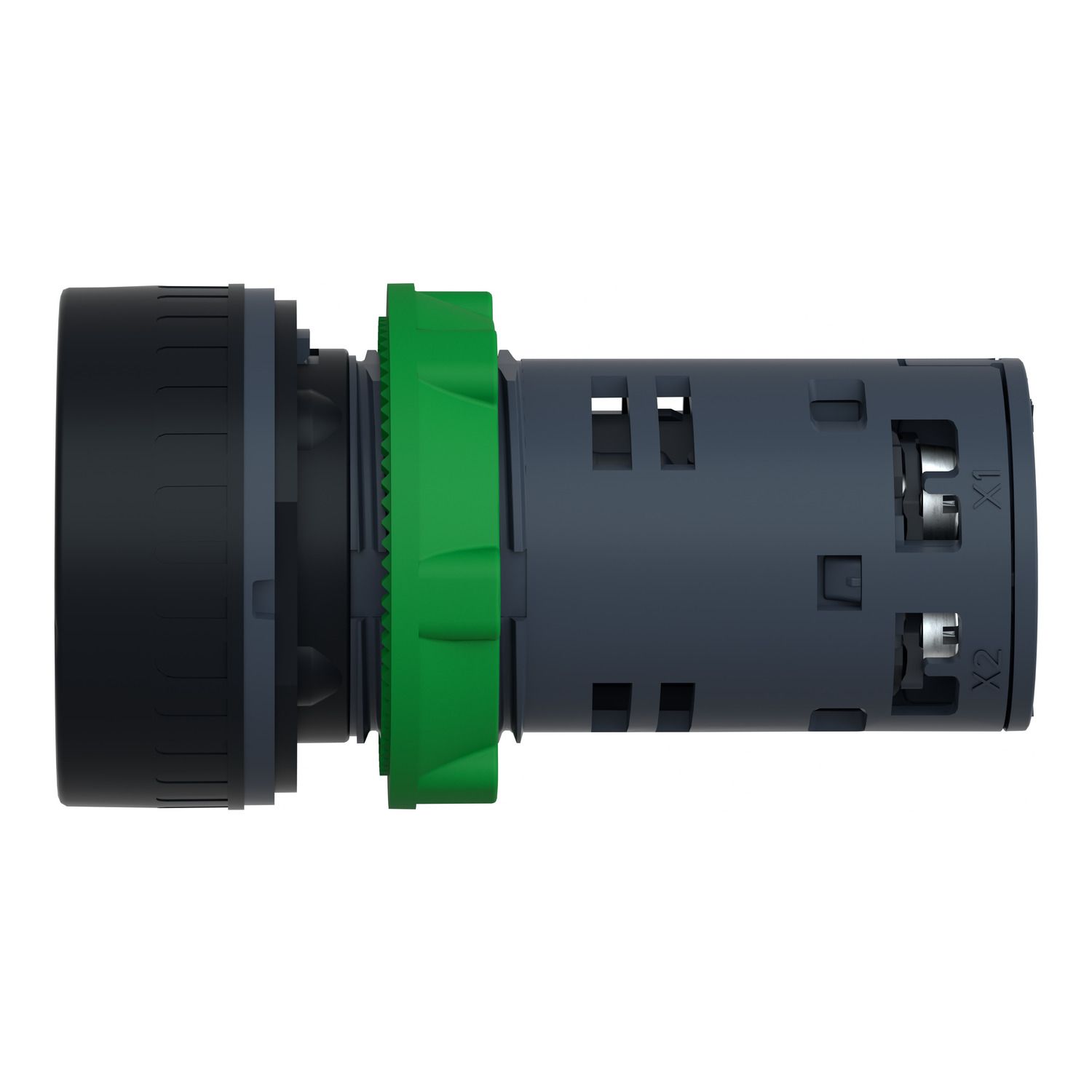

This Harmony XB5, annunciator siren is supplied with 120V AC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bezel material | dark grey plastic |
| Head type | standard |
| Cap/operator or lens colour | black |
| Product or component type | annunciator |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Supply frequency | 50/60 Hz |
| Depth | 55 mm |
| Width | 29 mm |
| Supply circuit type | AC/DC |
| Signalling type | continuous or intermittent tone |
| Noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Current consumption | <= 20 mA |
| Net weight | 0.024 kg |
| Height | 29 mm |
| [Us] rated supply voltage | 120 V +/- 10 %, 120 V |
| Environment | |
| Protective treatment | TH |
| Electrical shock protection class | class II conforming to IEC 60536 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Standards | IEC 50102, IEC 62262, IEC 60529, JIS C8201-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-4, UL 508, IEC 60947-5-1, IEC 60947-1 |
| Ambient air temperature for operation | -40-70 °C |
| Product certifications | BV, CSA, UL listed |
