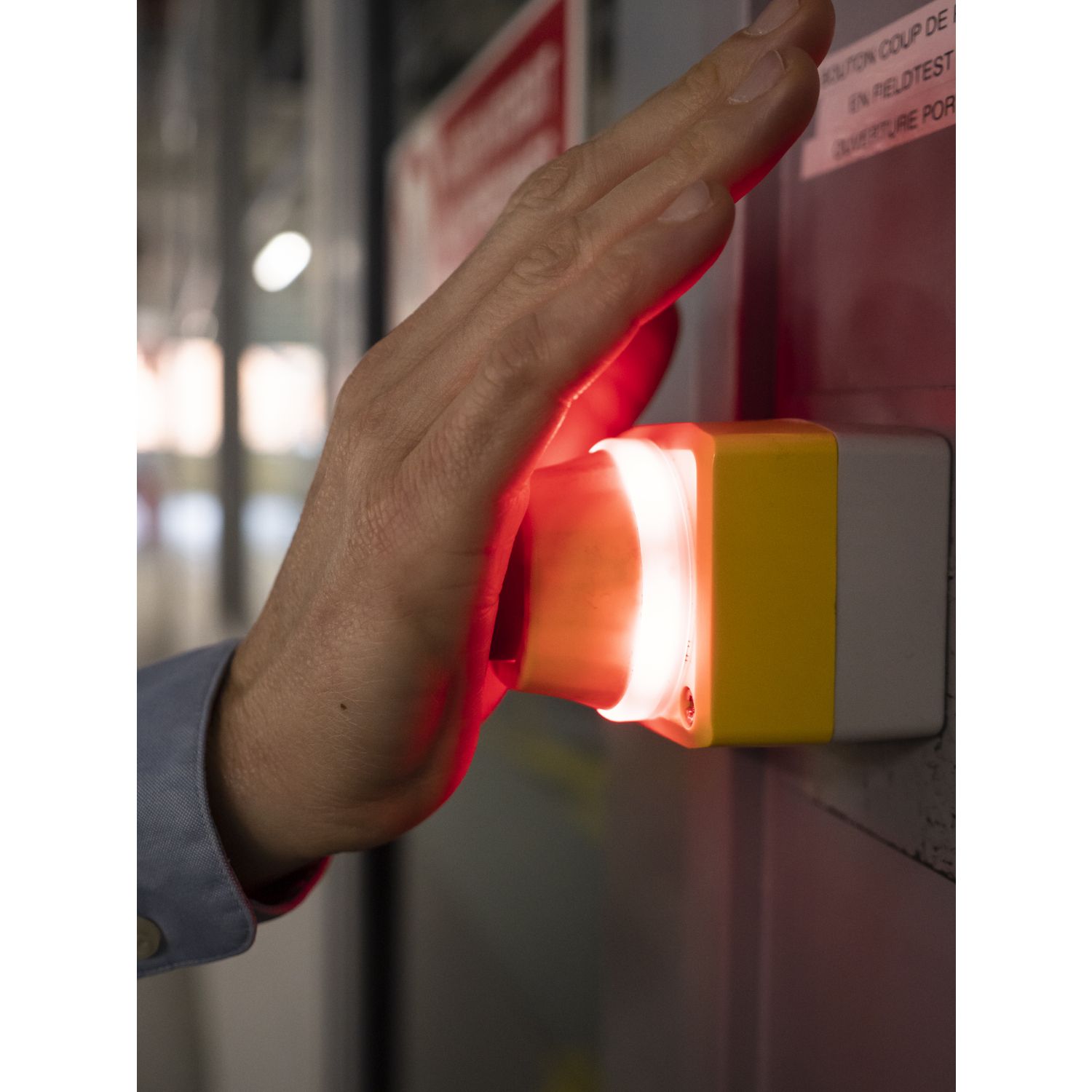

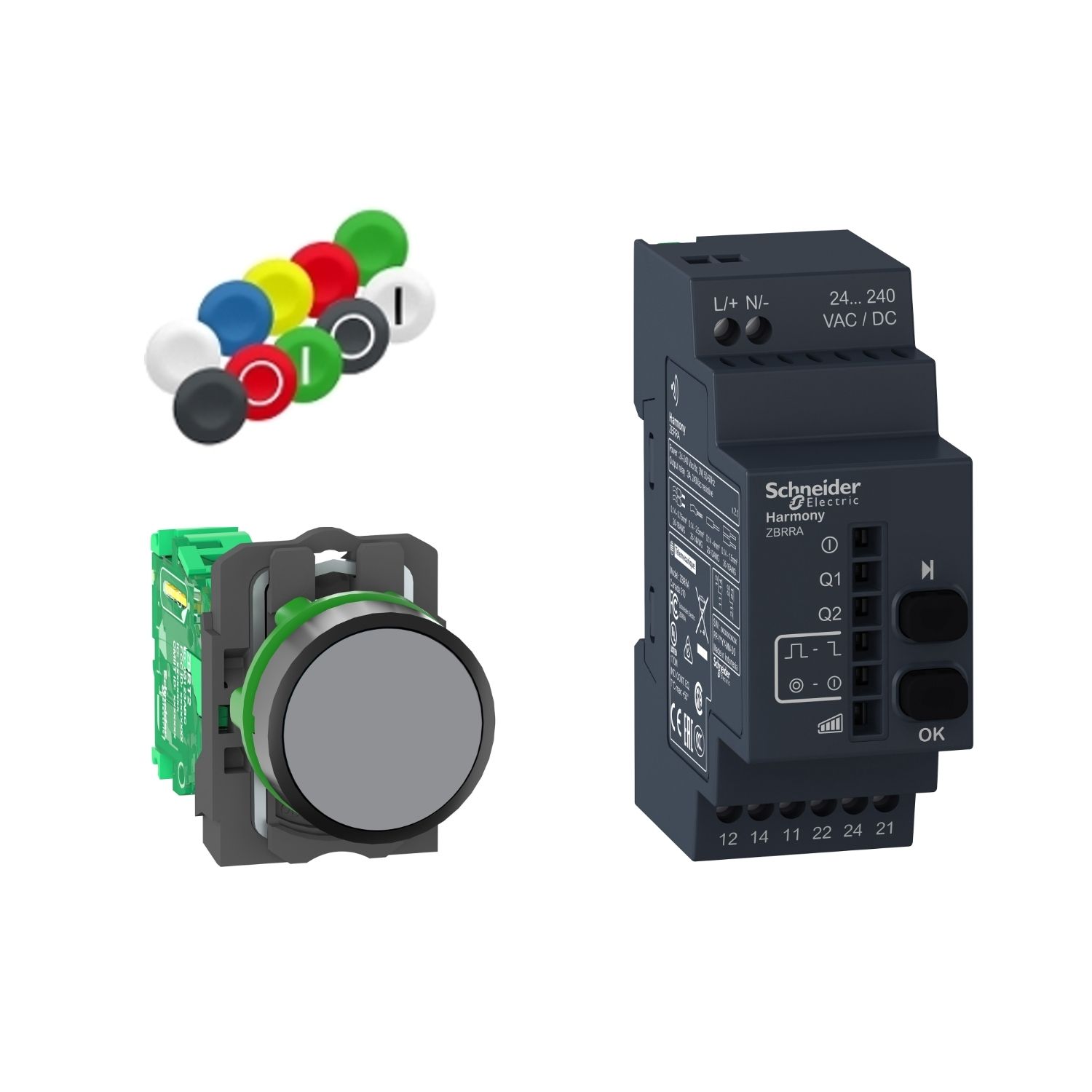

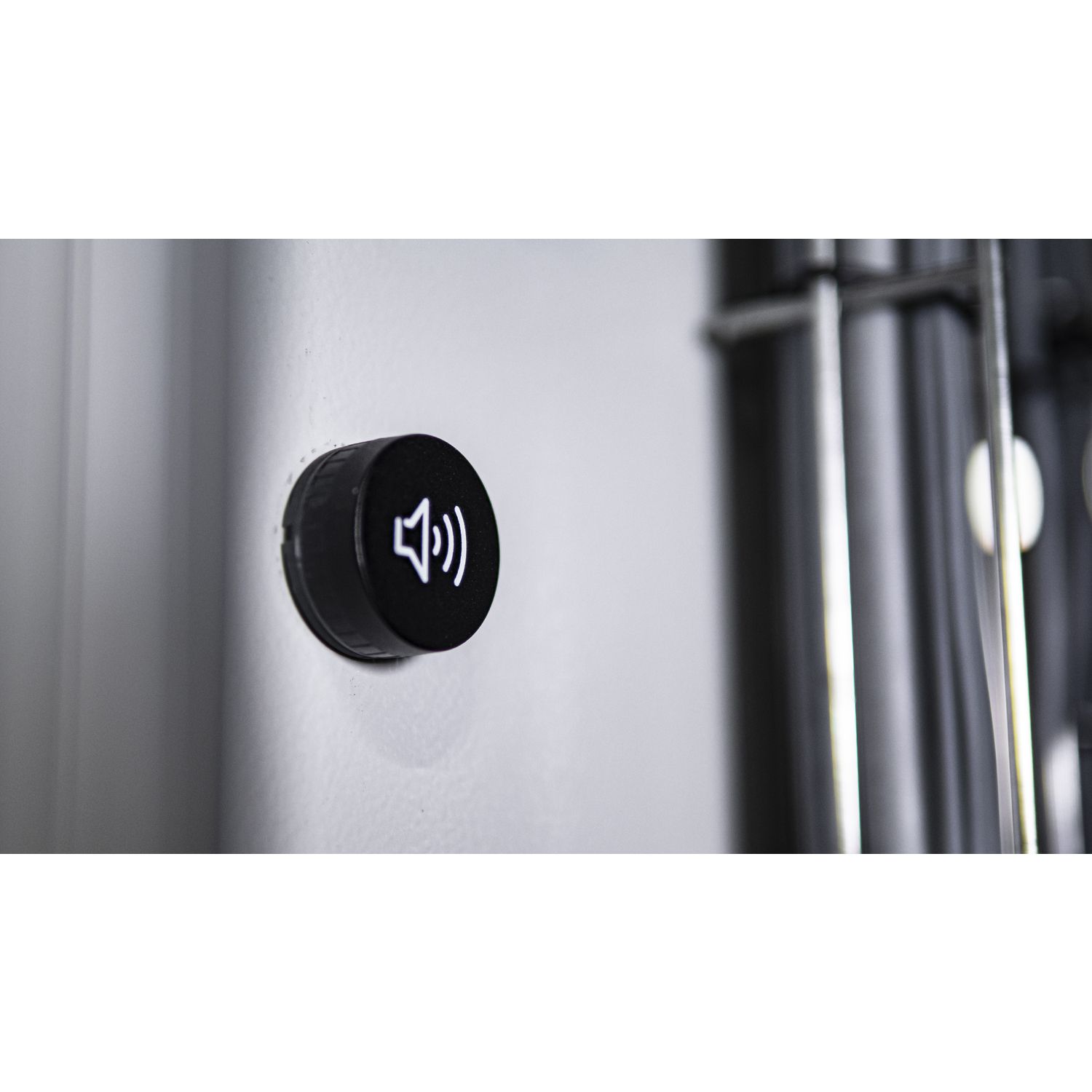

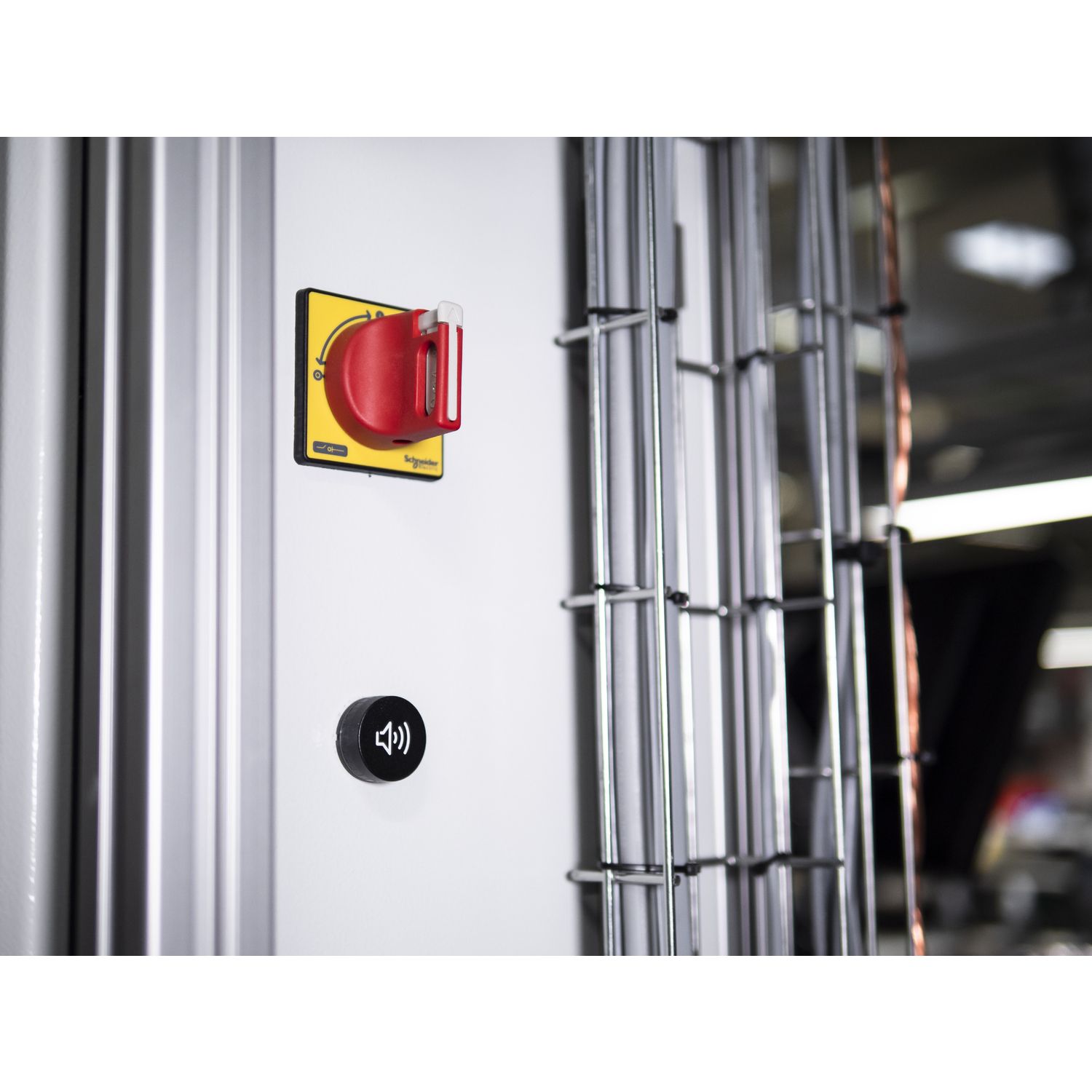

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission frequency | 2405 MHz for receiver, 2405 MHz for transmitter |
| Device short name | XB5R |
| Range of product | Harmony XB5R |
| Antenna type | omnidirectional |
| Level or class | 5M00G7W |
| Head material | plastic |
| Product or component type | wireless and batteryless package |
| Complementary | |
| Bandwidth | 5-5 MHz |
| Compatibility code | XB5R |
| Type of receiver | programmable receiver (2 relays) |
| Number of channels | 1 |
| Customizable | 0, no |
| Antenna gain | 0 dBi |
| Communication port protocol | Zigbee conforming to IEEE 802.15.4 |
| Status LED | 1 LED green and yellow for reception signal, 2 LEDs green for function mode, 2 LEDs green for relay ON, 1 LED green for power ON |
| Control type | wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Max power consumption in W | 1 mW |
| Kit composition | 1 push-button head diameter: 22 mm, 1 diameter: 22 mm, 1 fixing collars, 1 receiver, 1 set of caps, 1 transmitter |
| Modulation Technique | O-QPSK |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Environment | |
| Radio agreement | ANATEL, ICASA, FCC, ARIB T66, RSS, SRRC |
| Marking | CE |
| Standards | IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14 |
| Product certifications | C-Tick, CSA, GOST, CCC, UL |
