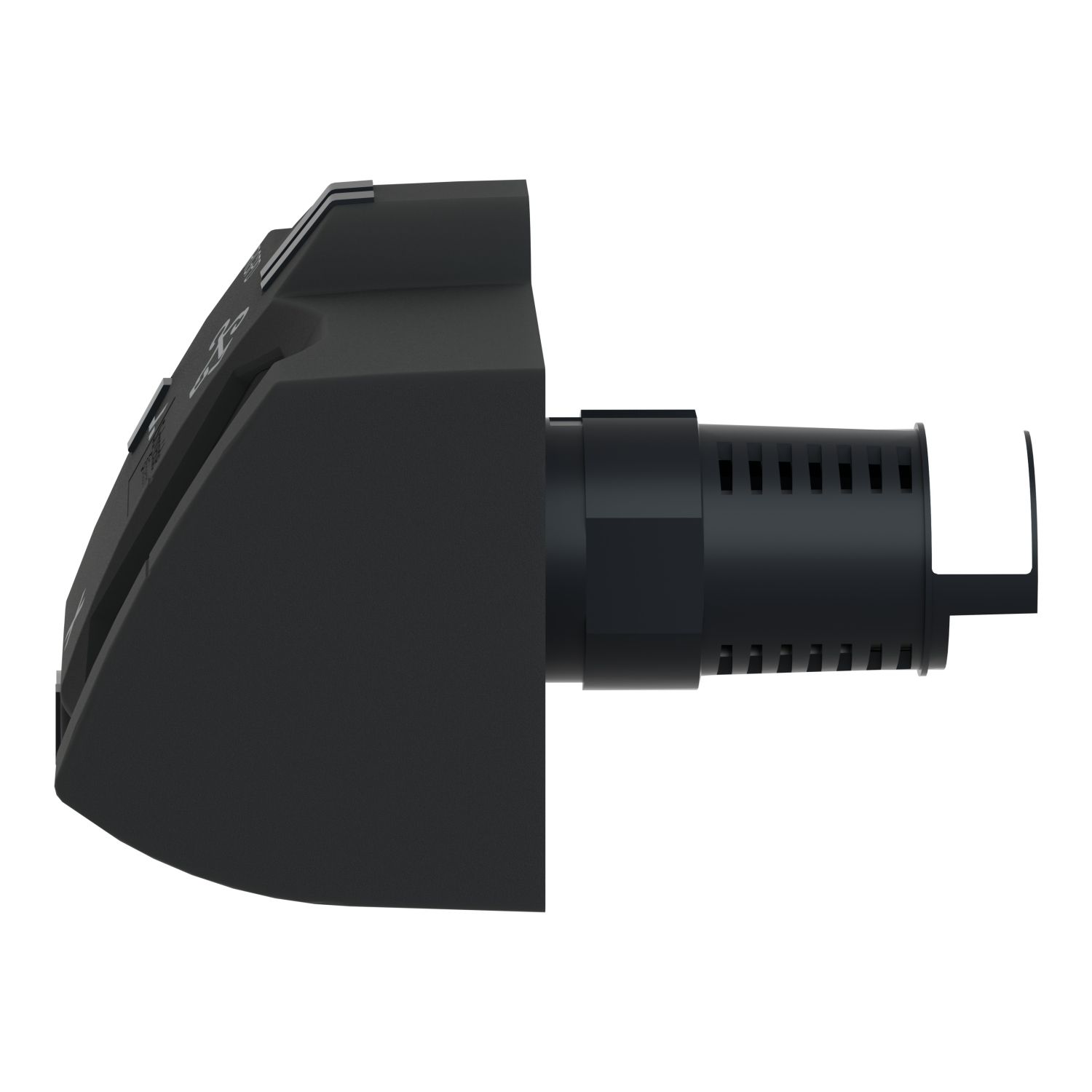

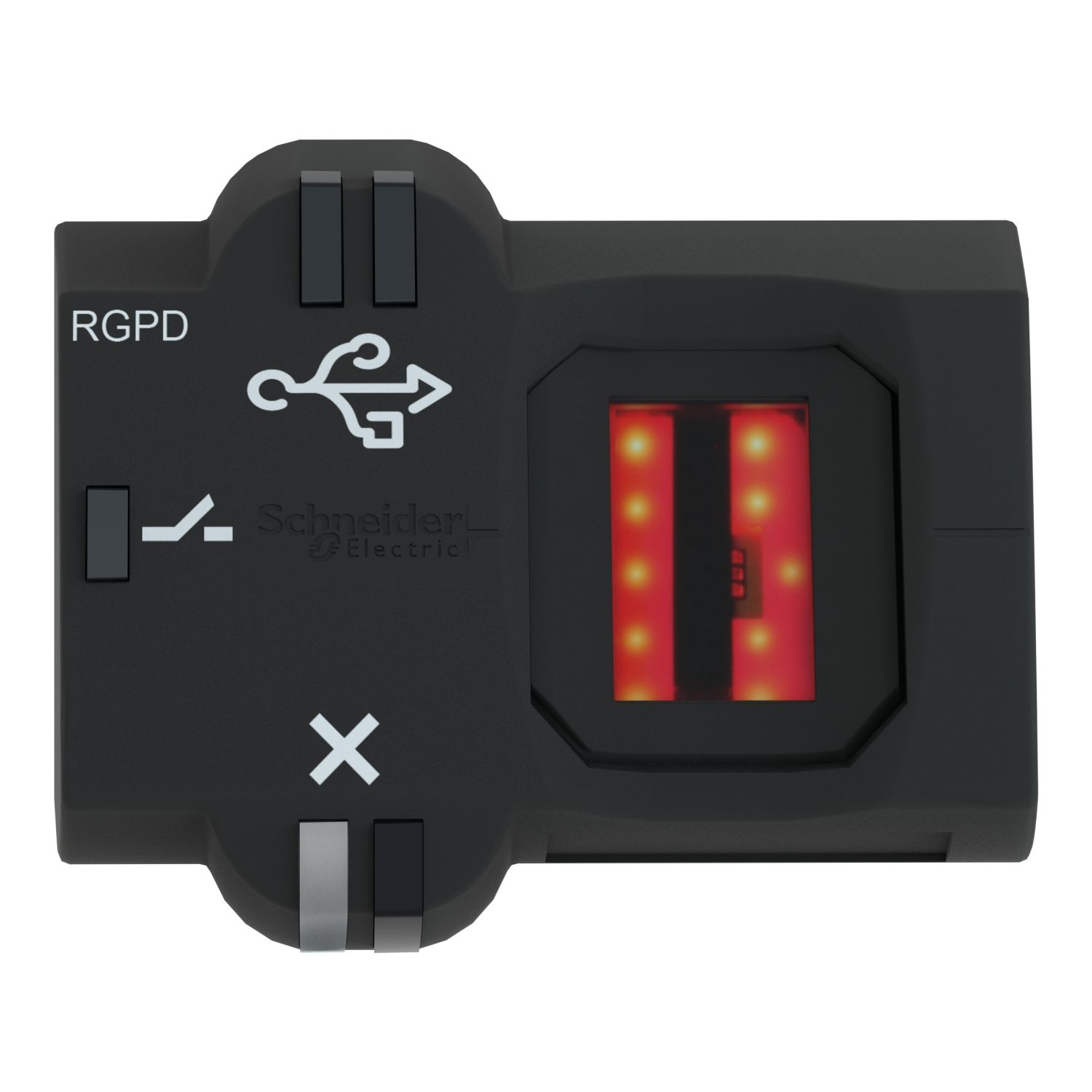

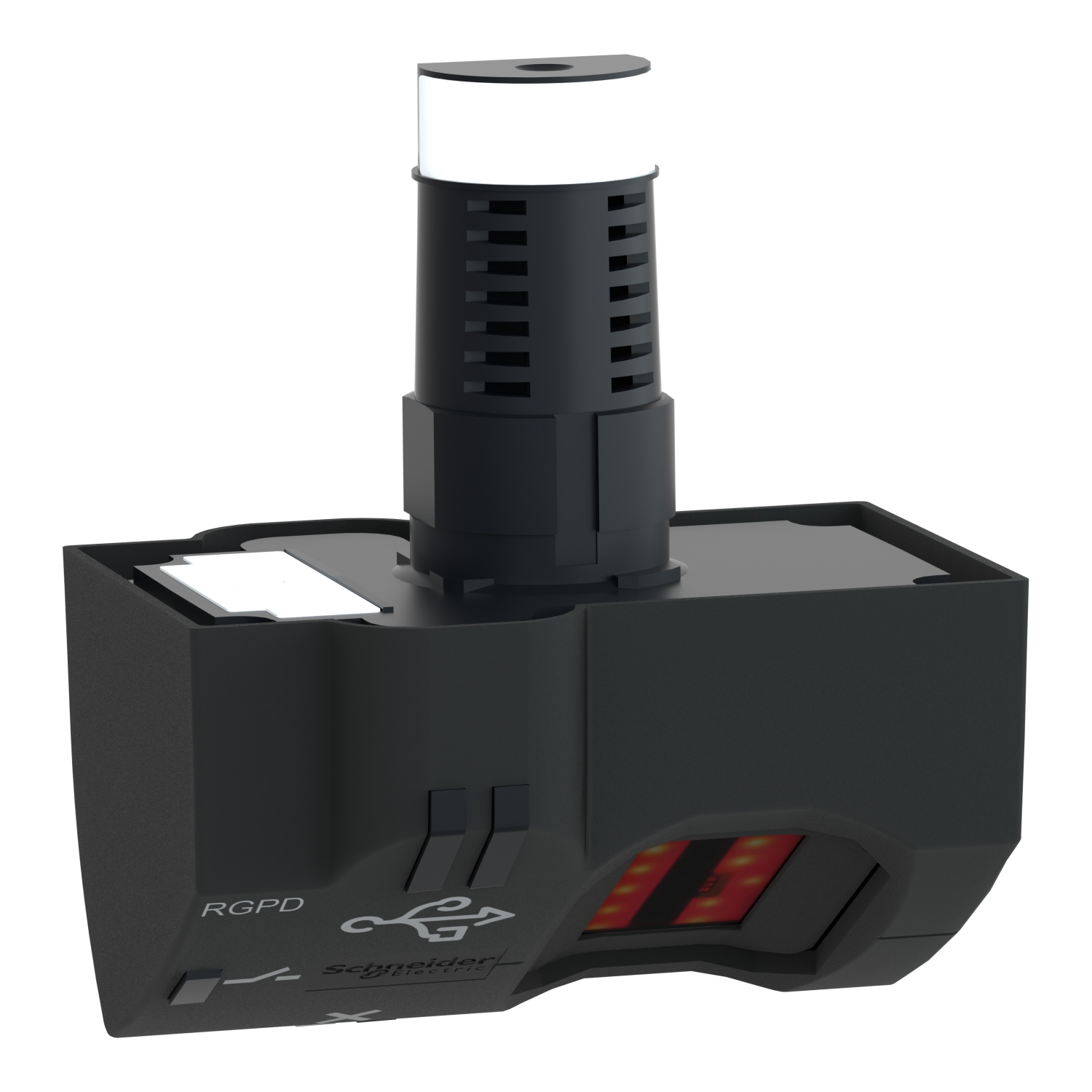

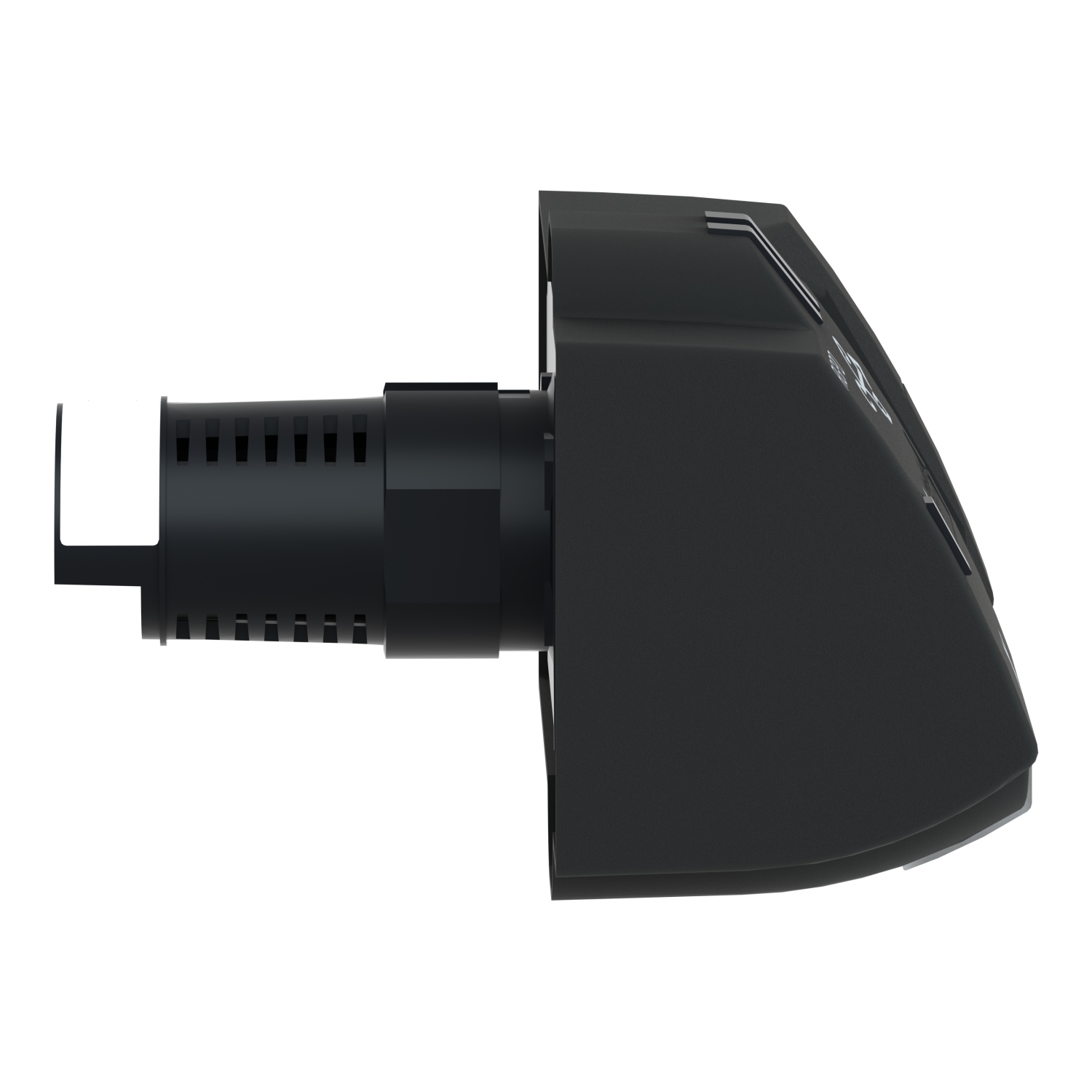

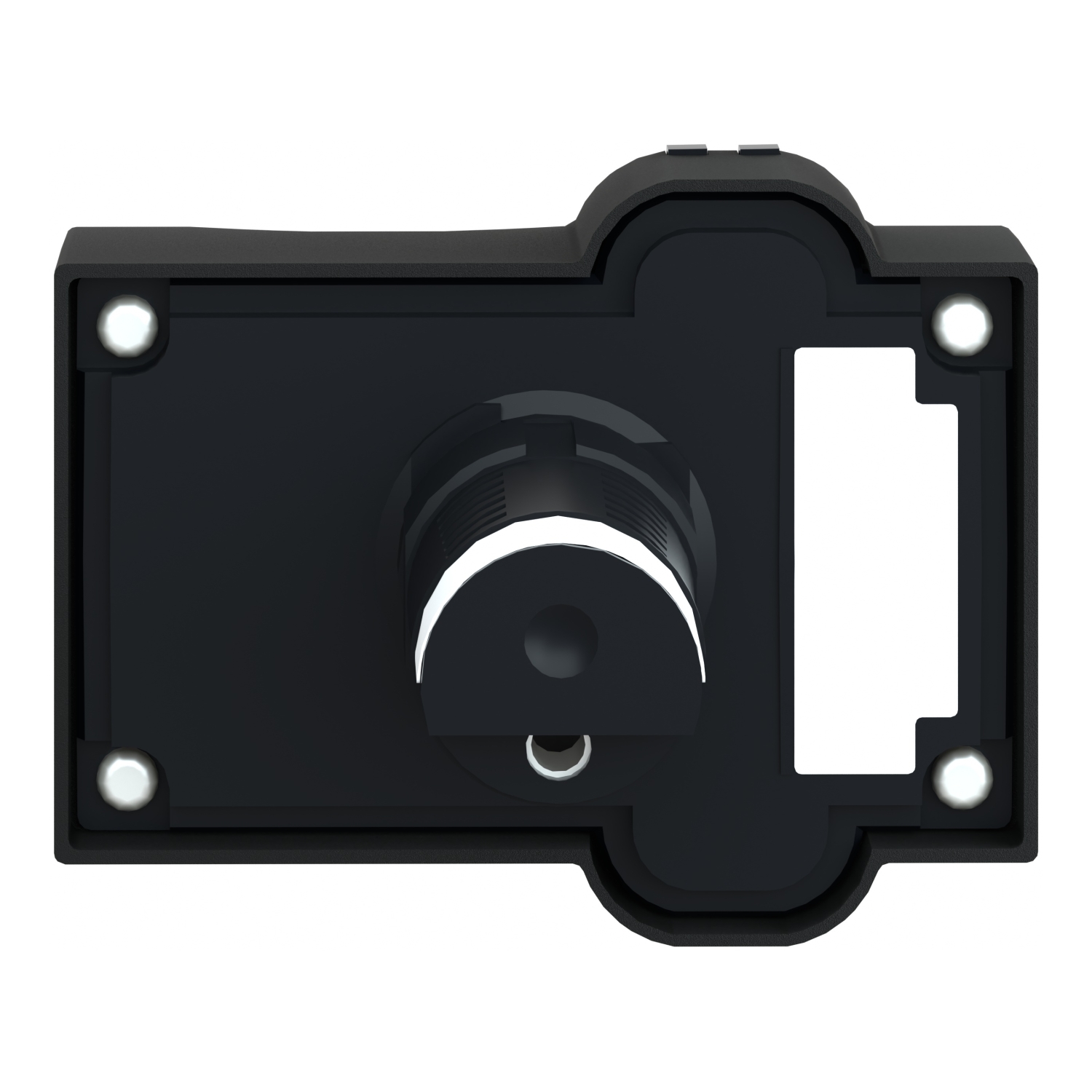

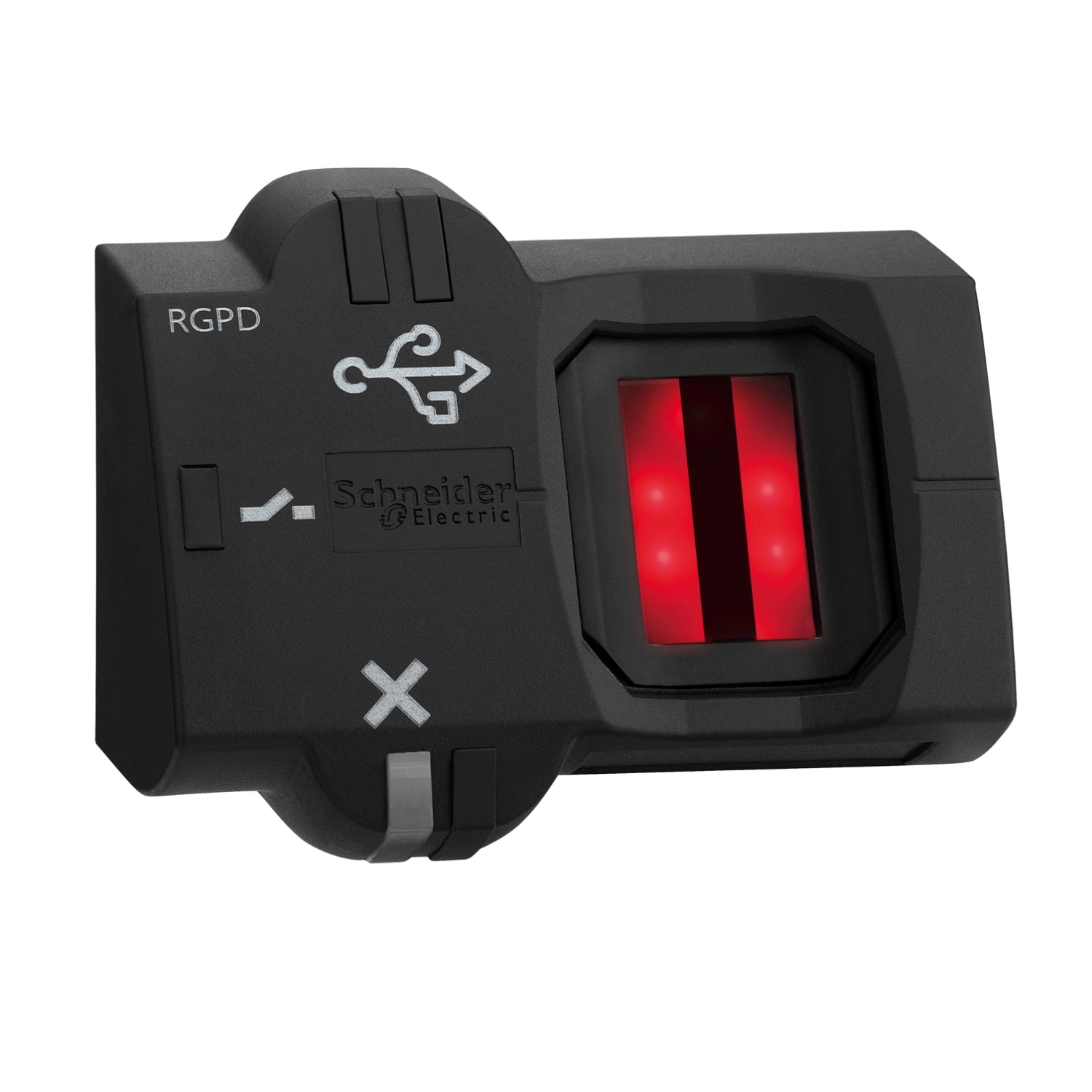

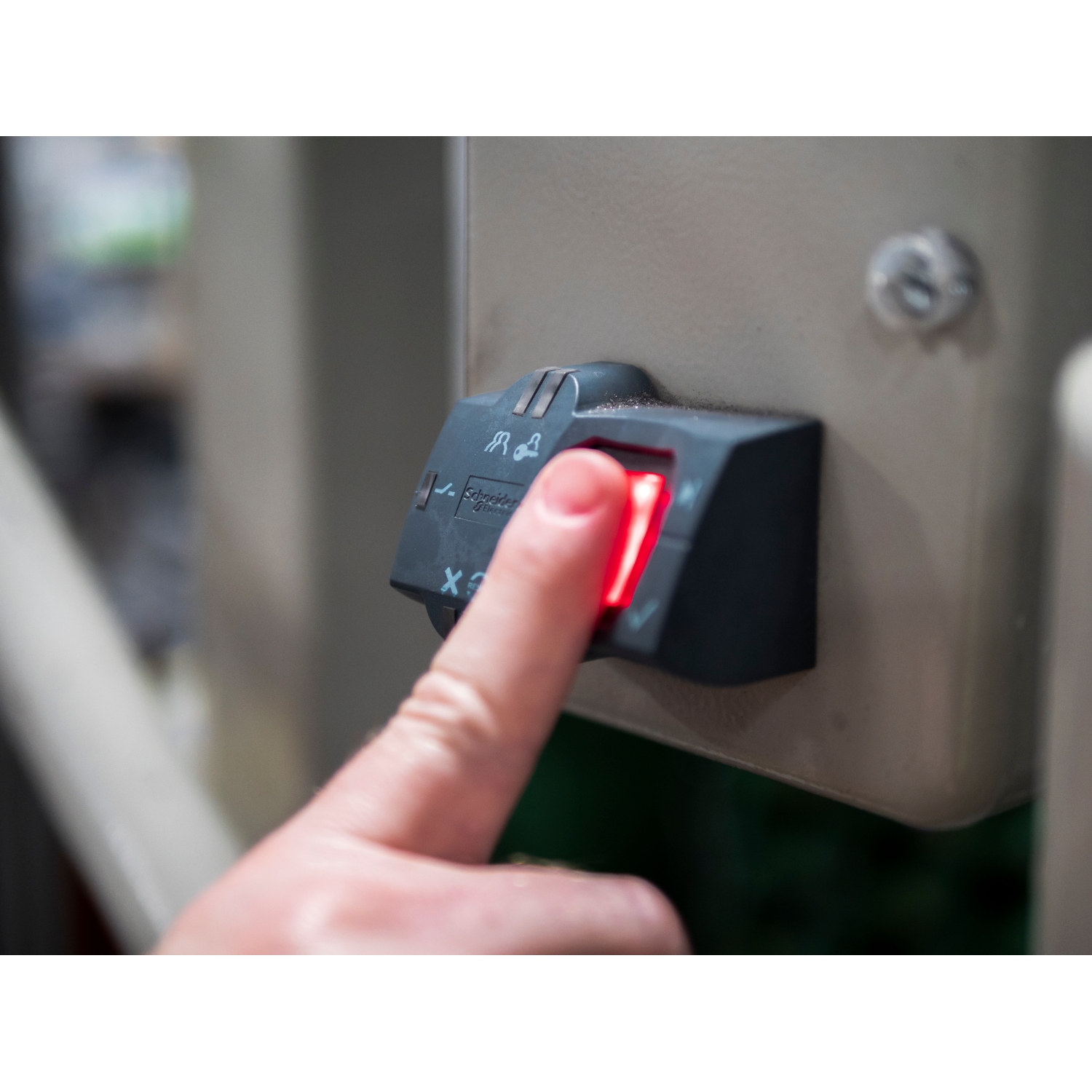

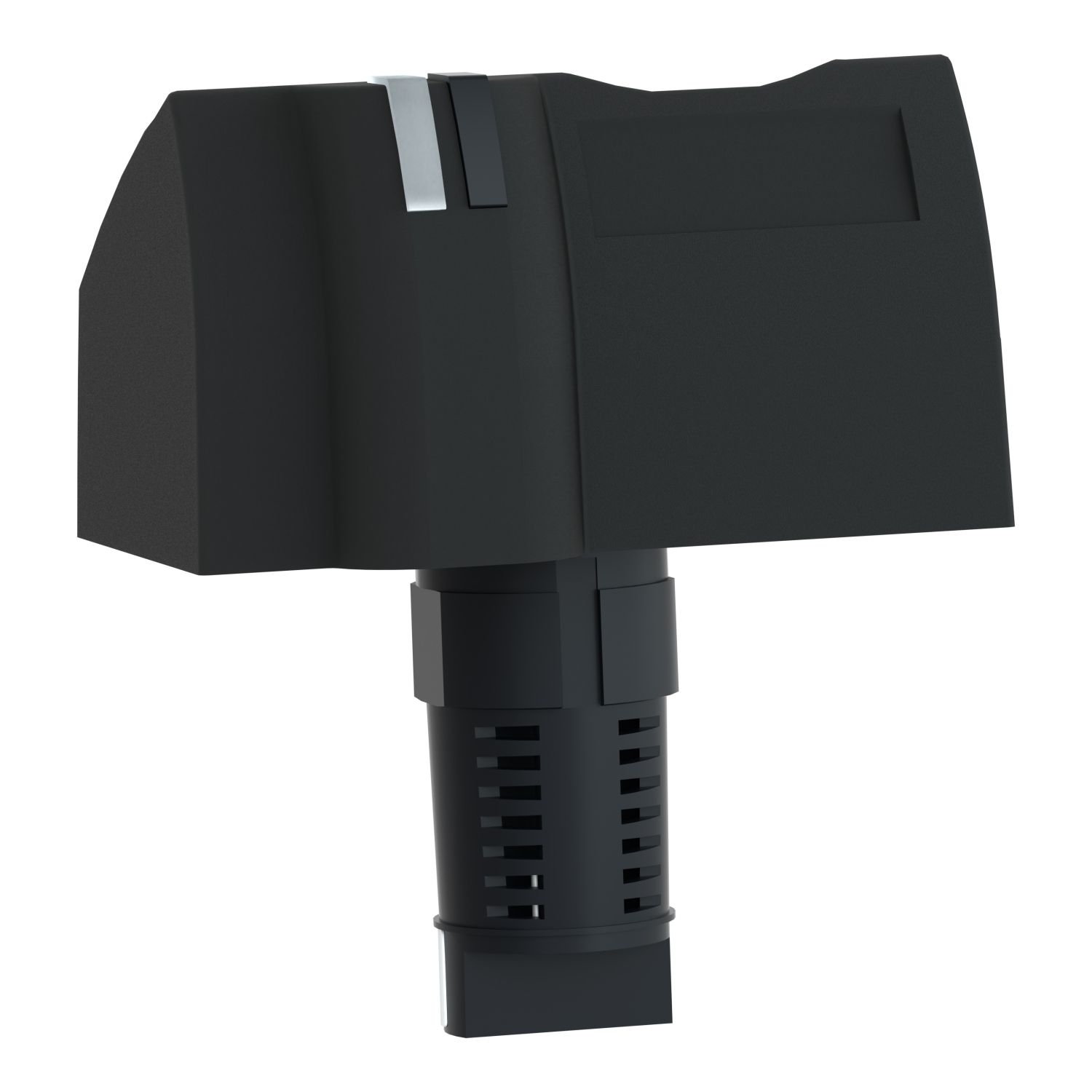

This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB5S |
| Memory usage | 200 users with up to 2 fingerprints per user |
| Output type | PNP |
| Type of operator | stay put |
| Operator position information | 2 positions |
| Product specific application | industrial machines, materials handling |
| Operator profile | fingerprint reader |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Connections - terminals | 1 pre-wired cable, 3 x 0.11 mm² |
| IP degree of protection | IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529 |
| Product or component type | biometric switch RGPD |
| Mounting diameter | 22 mm |
| Complementary | |
| Maximum delay first up | 3 s + 0.5 ms per user registered |
| [Ures] residual voltage | 1 V closed state |
| Function of module | bi-stable |
| Enclosure material | polyamide PA66 |
| Protection type | overload protection, short-circuit, reverse polarity |
| Operating position | horizontal position, flat surface installation, vertical surface installation |
| Customizable | no, 0 |
| Local signalling | 1 LED (red) for error, 1 LED (green) for output state indicator |
| Supply voltage limits | 20-30 V DC |
| Software designation | XB5SSoft |
| Maximum delay recovery | 1.5 s |
| Communication port protocol | USB |
| [Us] rated supply voltage | 24 V DC, 24 V |
| Net weight | 0.202 kg |
| Marking | CE |
| Maximum switching current | 200 mA |
| Connector type | USB type A male with 1 m cable |
| Cable insulation material | PvR |
| Short-circuit protection | 250 mA external fuse type gG |
| Maximum delay response | 1.5 s |
| Electrical connection | free wire ends with 3 wires of 2 m |
| Current consumption | <= 70 mA no-load |
| Environment | |
| NEMA degree of protection | NEMA 12 |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 1 gn (f= 9-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 5-9 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| Standards | IEC 61000-6-2, IEC 61000-6-4 |
| Range of product | Harmony XB5S |
| Ambient air temperature for operation | -5-50 °C |
| Product certifications | UL, CSA |
