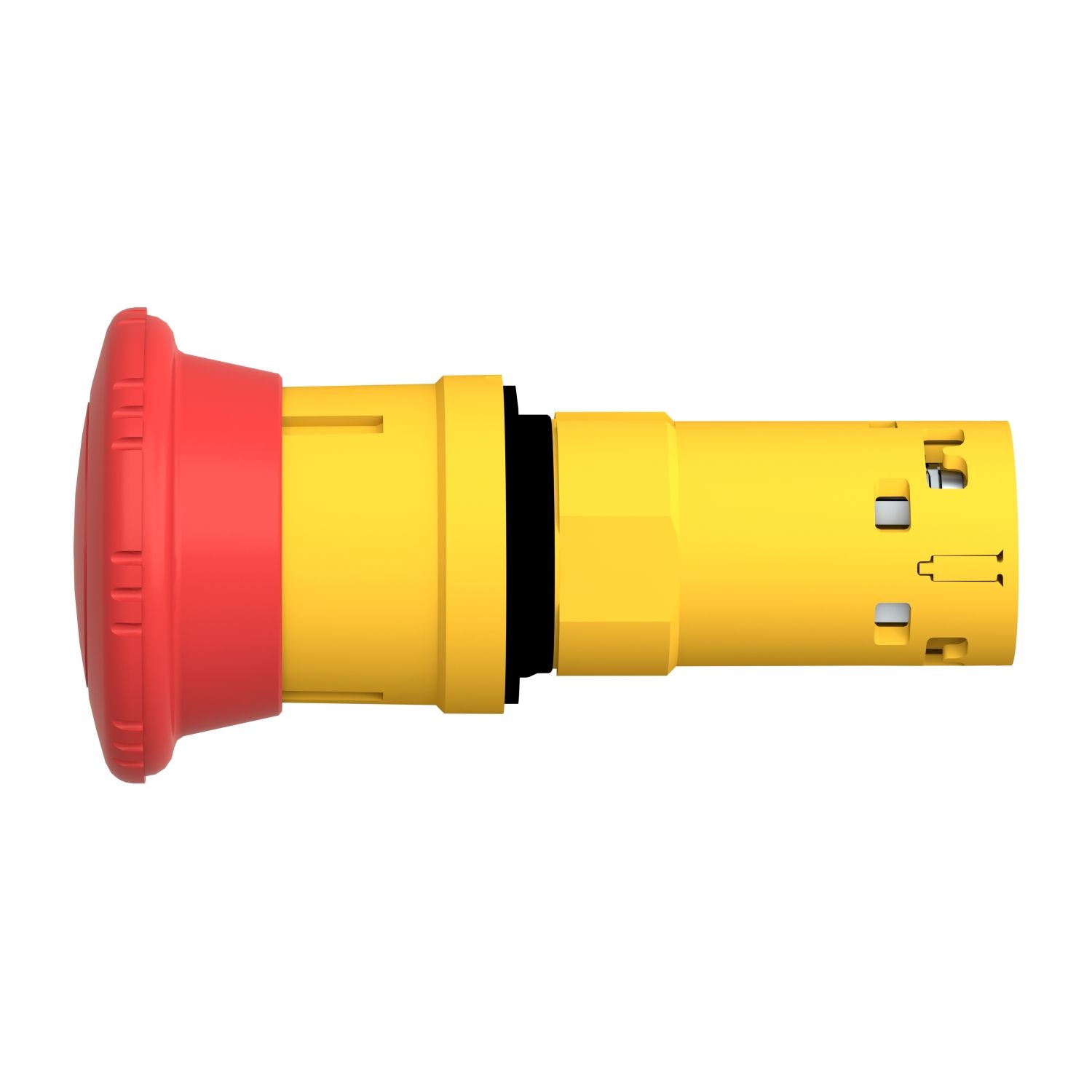

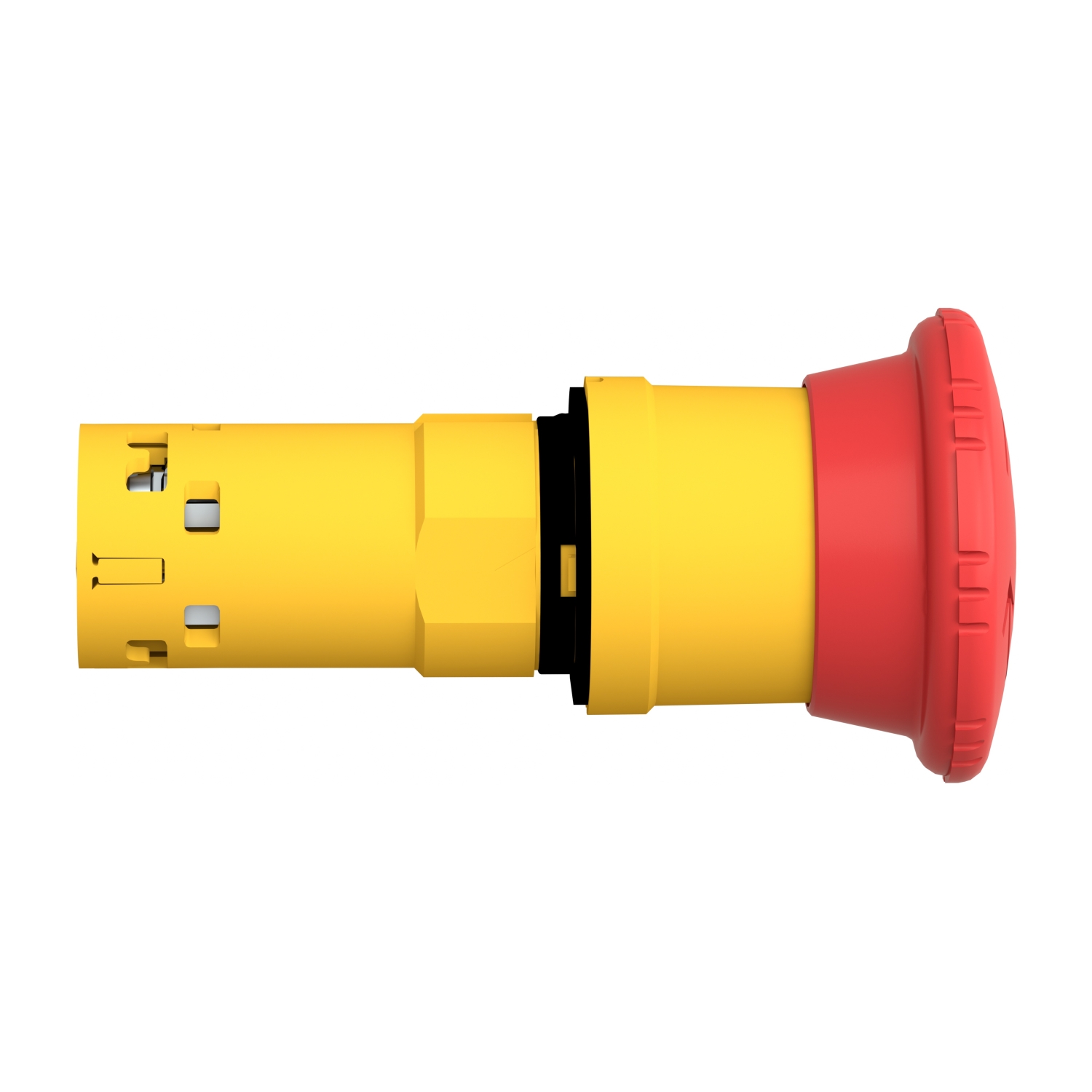

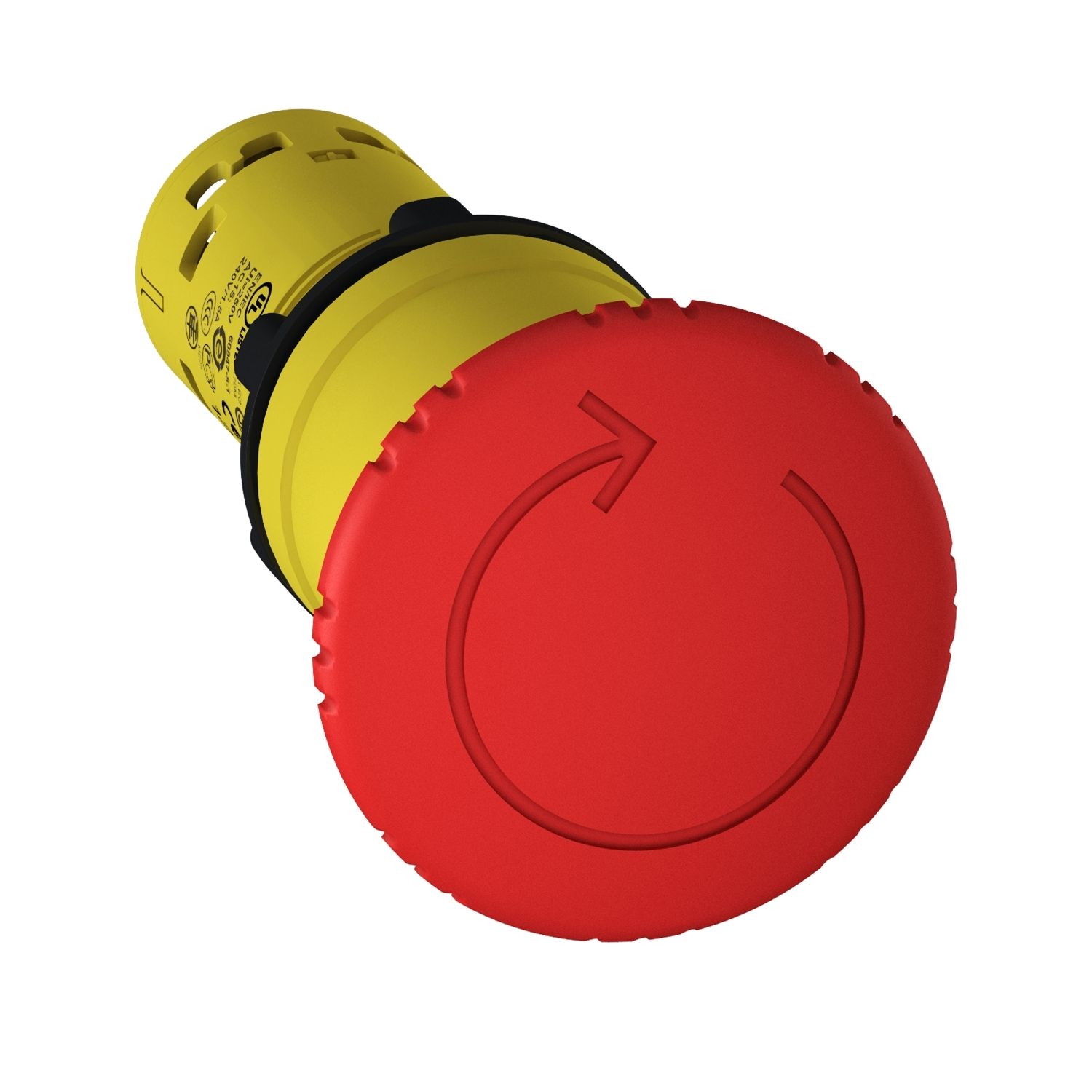

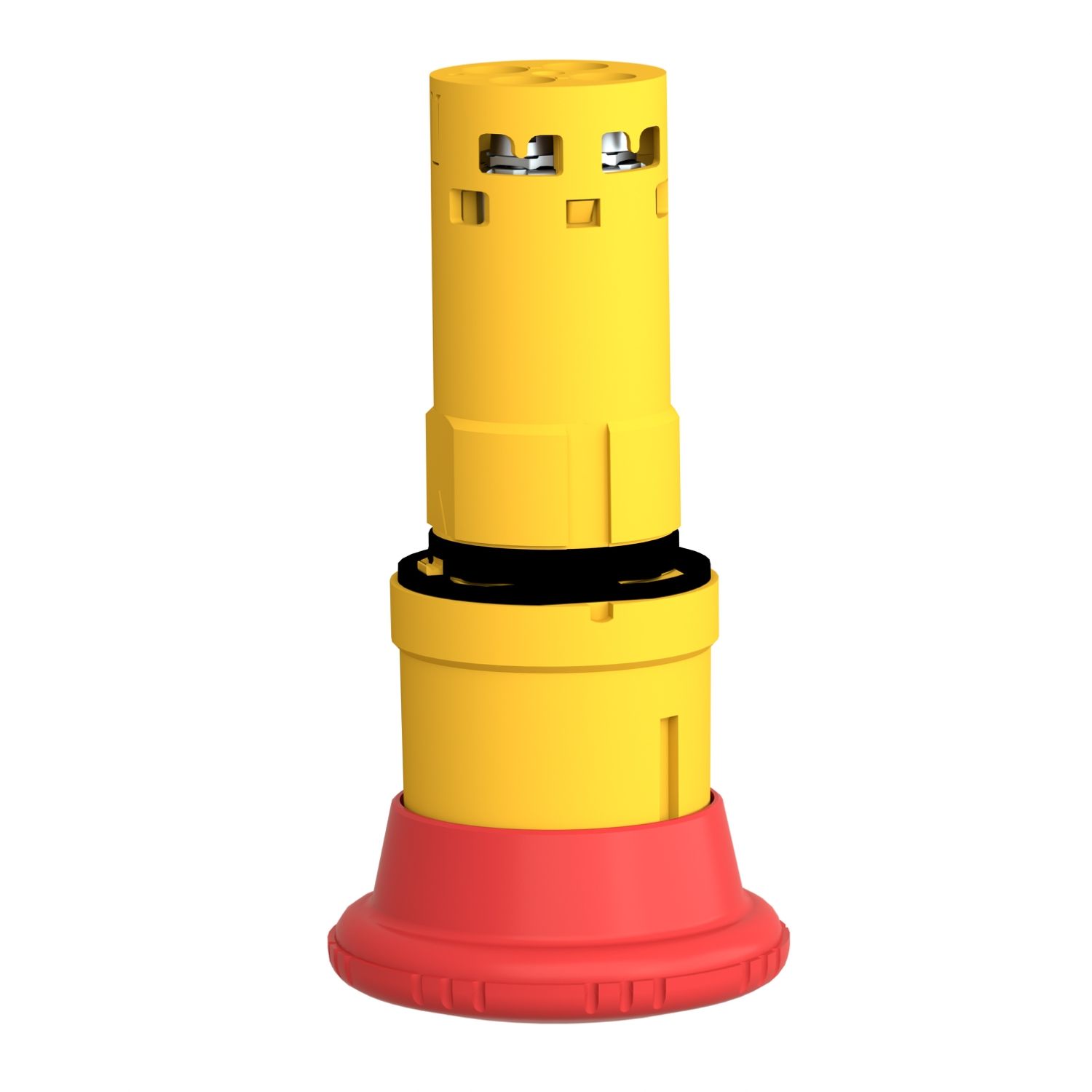

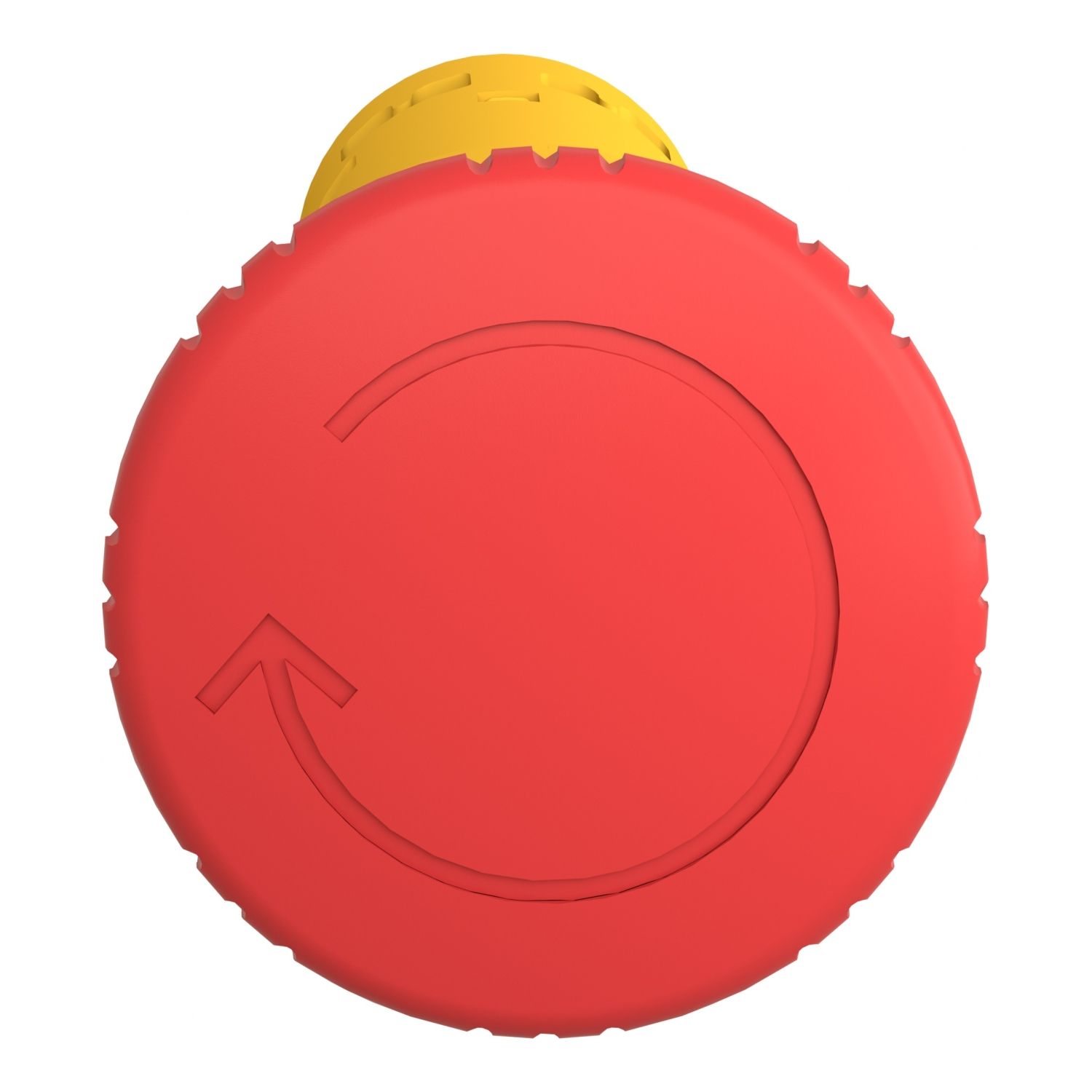

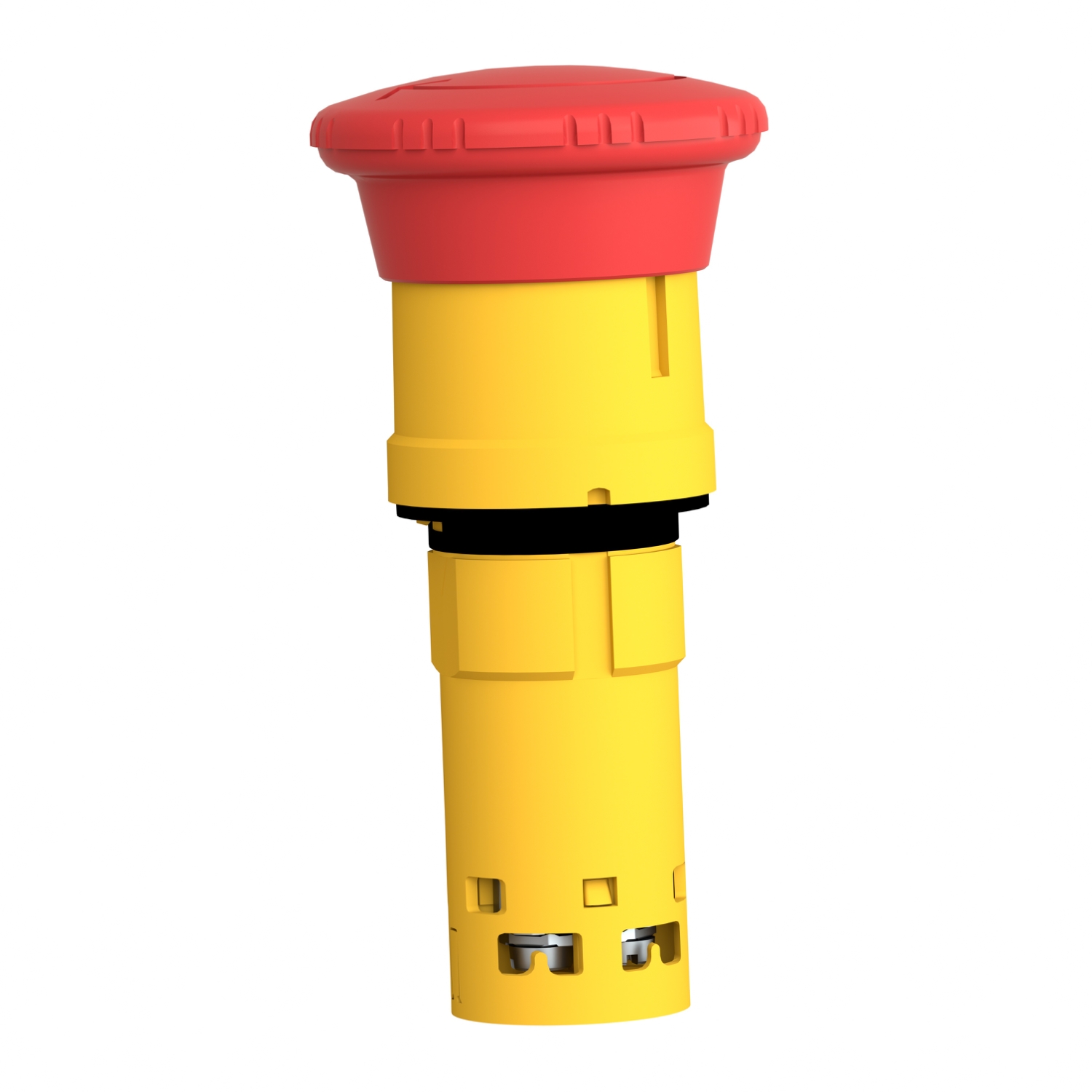

This Harmony XB7, emergency stop / shutdown 40mm mushroom head monolithic red push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XB7 |
| Sale per indivisible quantity | 10 |
| Device presentation | monolithic product |
| Type of operator | latching |
| Range of product | Harmony XB7 |
| Reset | turn to release |
| Operator profile | red mushroom Ø 40 mm, unmarked |
| Contacts type and composition | 2 NC |

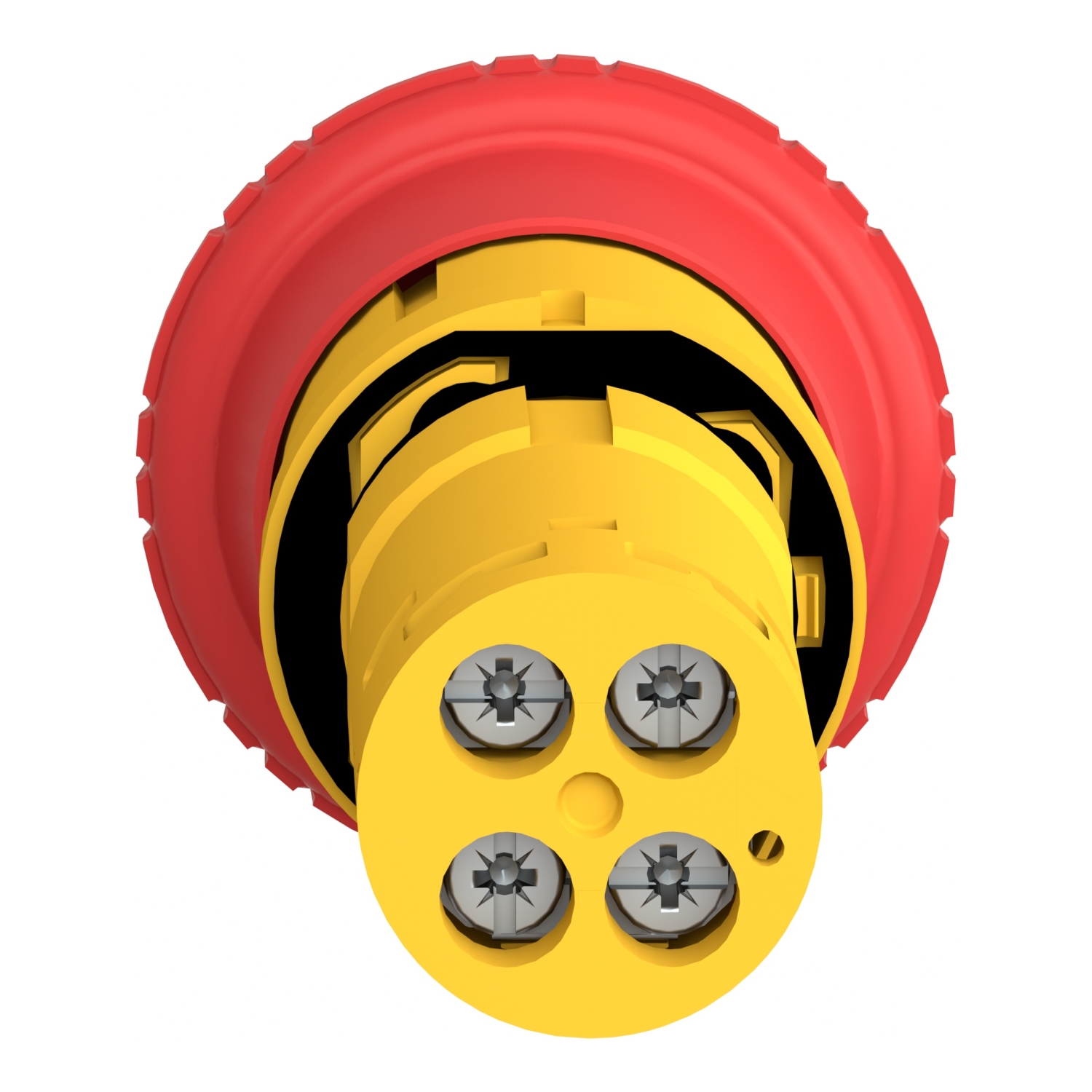

| Connections - terminals | screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Shape of signaling unit head | round |
| Product or component type | emergency stop push-button |
| Mounting diameter | 22 mm |
| Complementary | |
| Device mounting | fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-1 |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with JIS No 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 5 x 10exp(-7) at 17 V and 5 mA conforming to IEC 60947-5-4 |
| Compatibility code | XB7 |
| Mechanical durability | 100000 cycles |
| Contact operation | snap action |
| [Ie] rated operational current | 1.5 A at 120 V, AC-15, C300 conforming to IEC 60947-5-1, 0.75 A at 240 V, AC-15, C300 conforming to IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| CAD overall height | 40 mm |
| Cap/operator or lens colour | red |
| Fixing mode | fixing nut beneath head: 2-2.4 N.m |
| CAD overall depth | 72 mm |
| CAD overall width | 40 mm |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.035 kg |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Fixing center | >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm |
| Short-circuit protection | 4 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Terminals description ISO n°1 | (21-22)NC, (11-12)NC |
| Contacts usage | standard |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 (front face) conforming to IEC 60529, IP20 (rear face) conforming to IEC 60529 |
| Ambient air temperature for operation | -25-70 °C |
| Electrical shock protection class | class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 3 conforming to UL 50, NEMA 12 conforming to UL 50 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | CSA C22.2 No 14, IEC 60364-5-53, IEC 60947-5-5, IEC 60947-1, IEC 60947-5-1, ISO 13850, UL 508, IEC 60204-1 |
| Product certifications | CCC, GOST |
