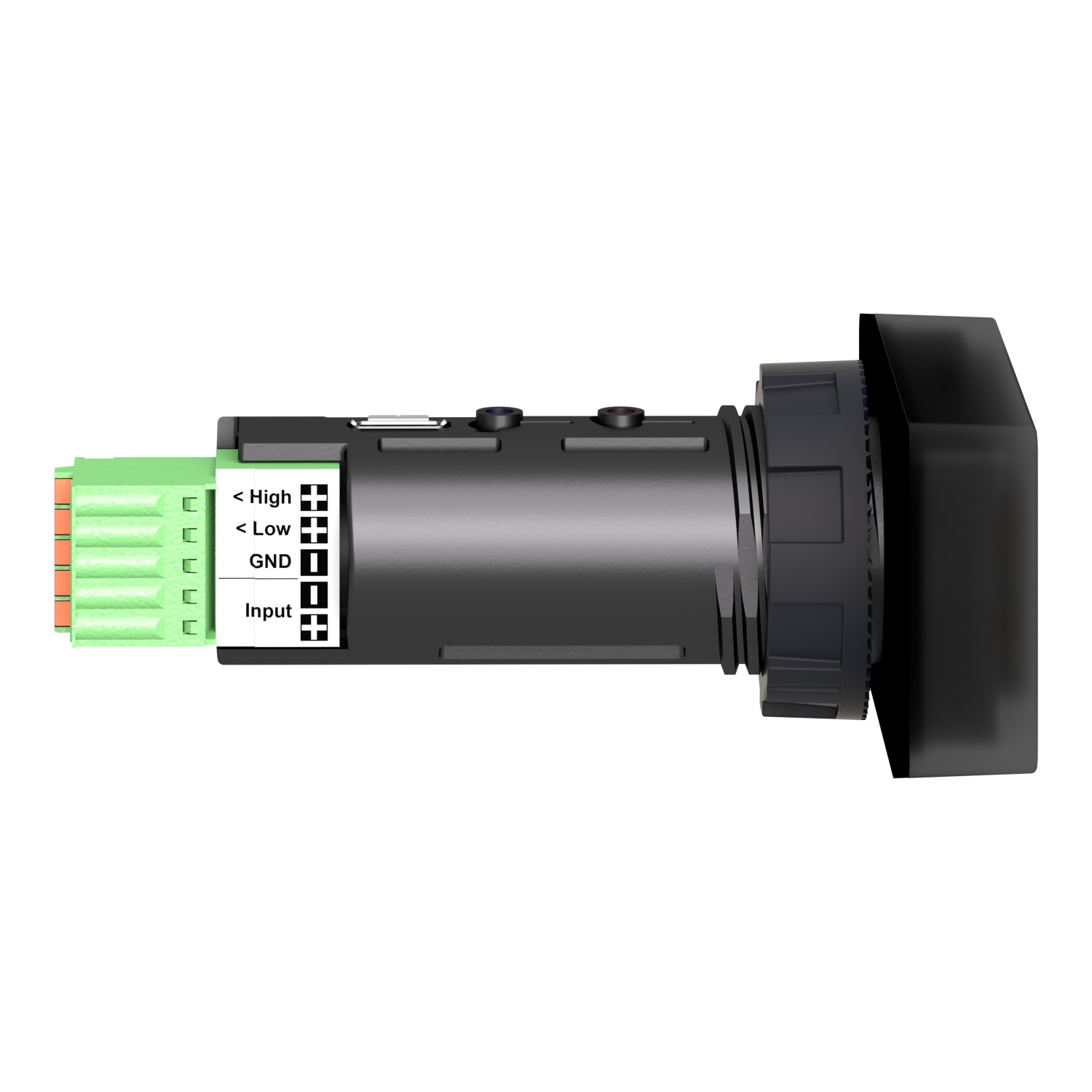

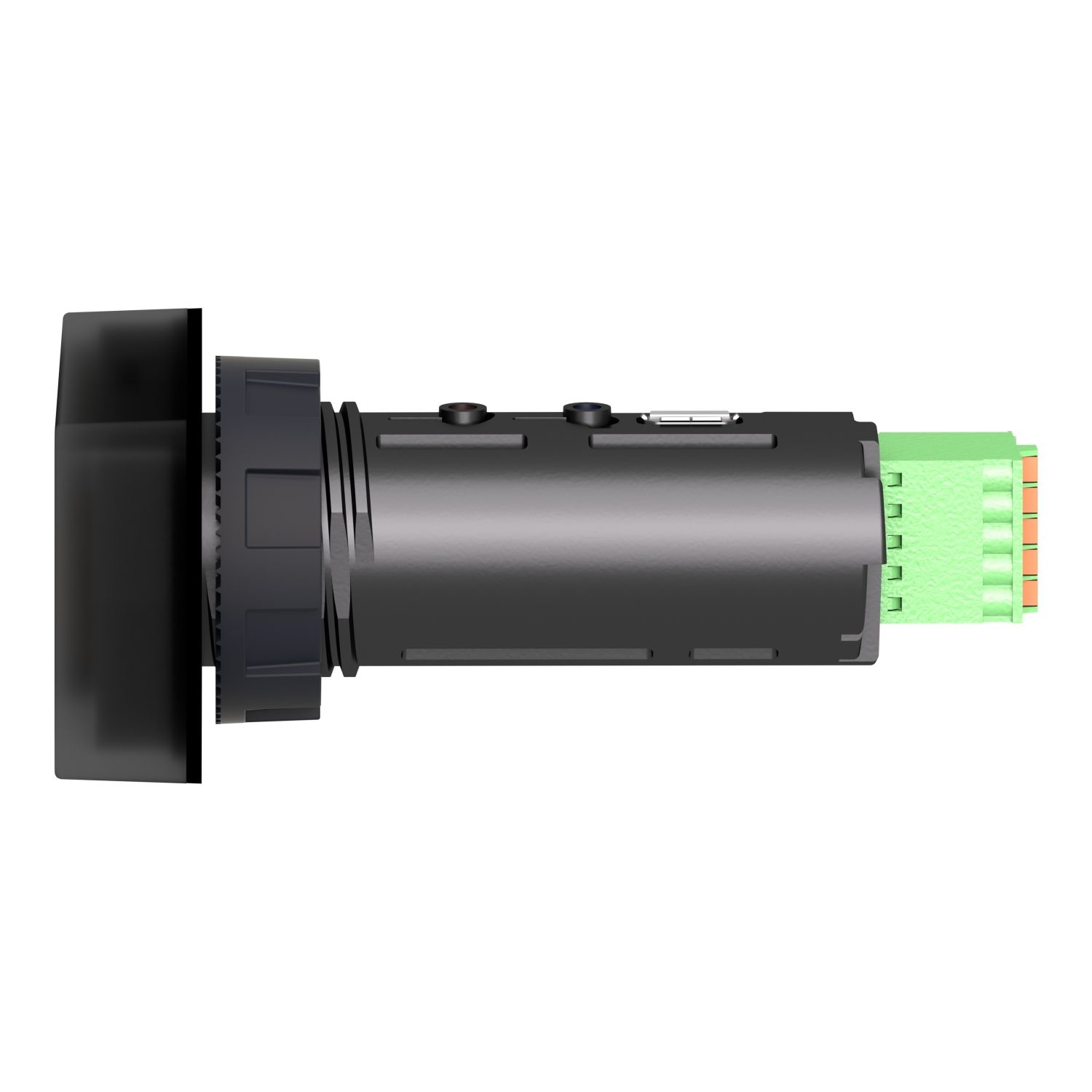

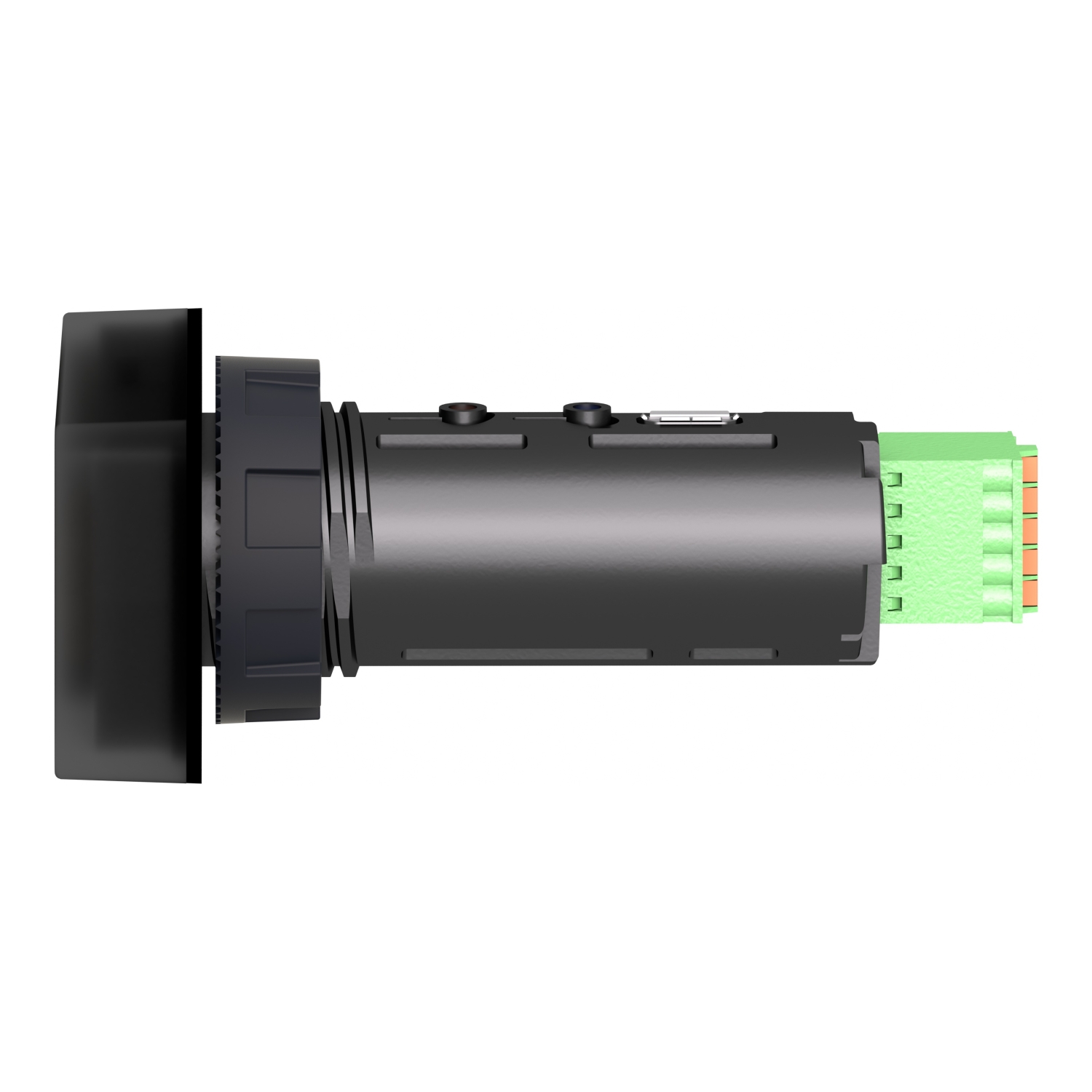

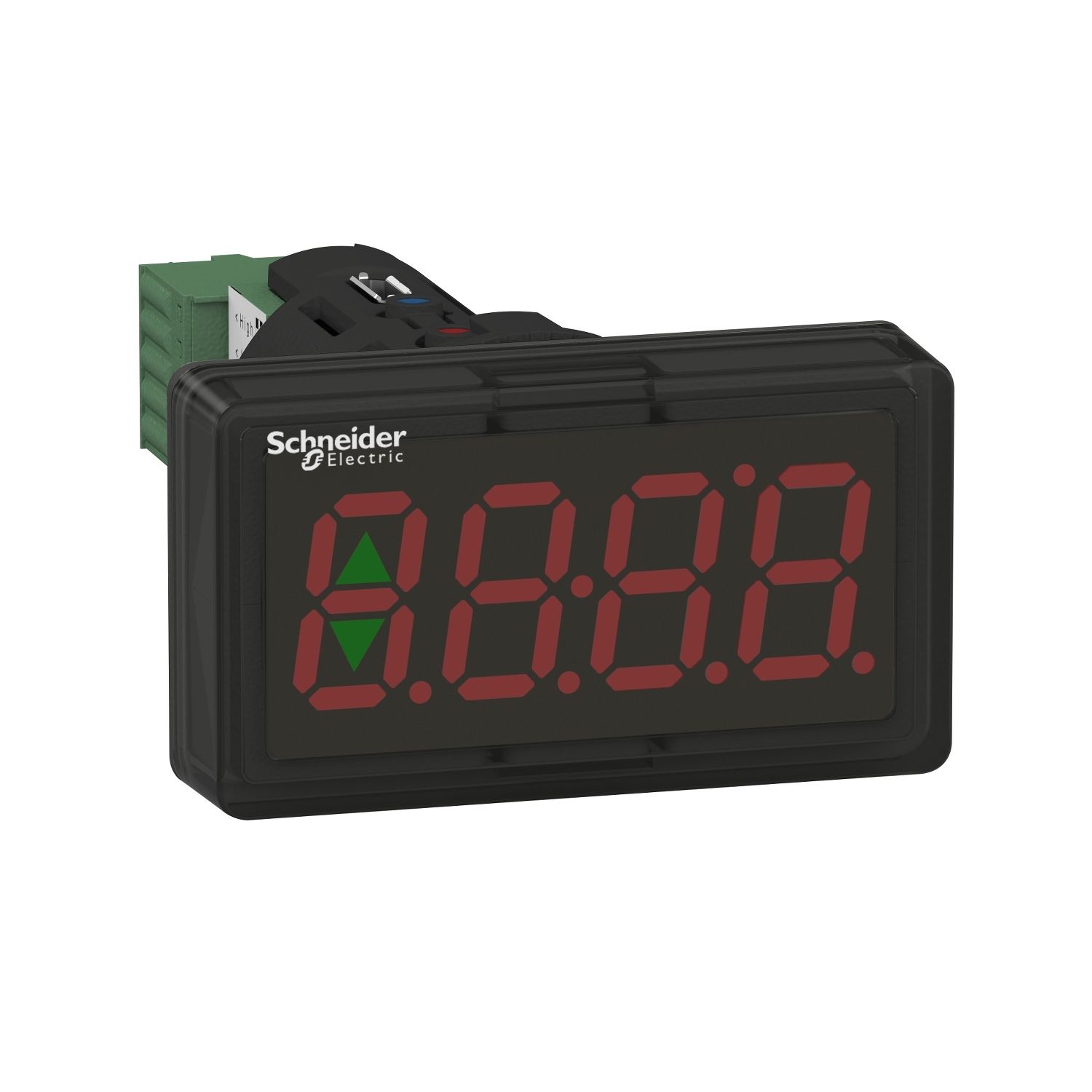

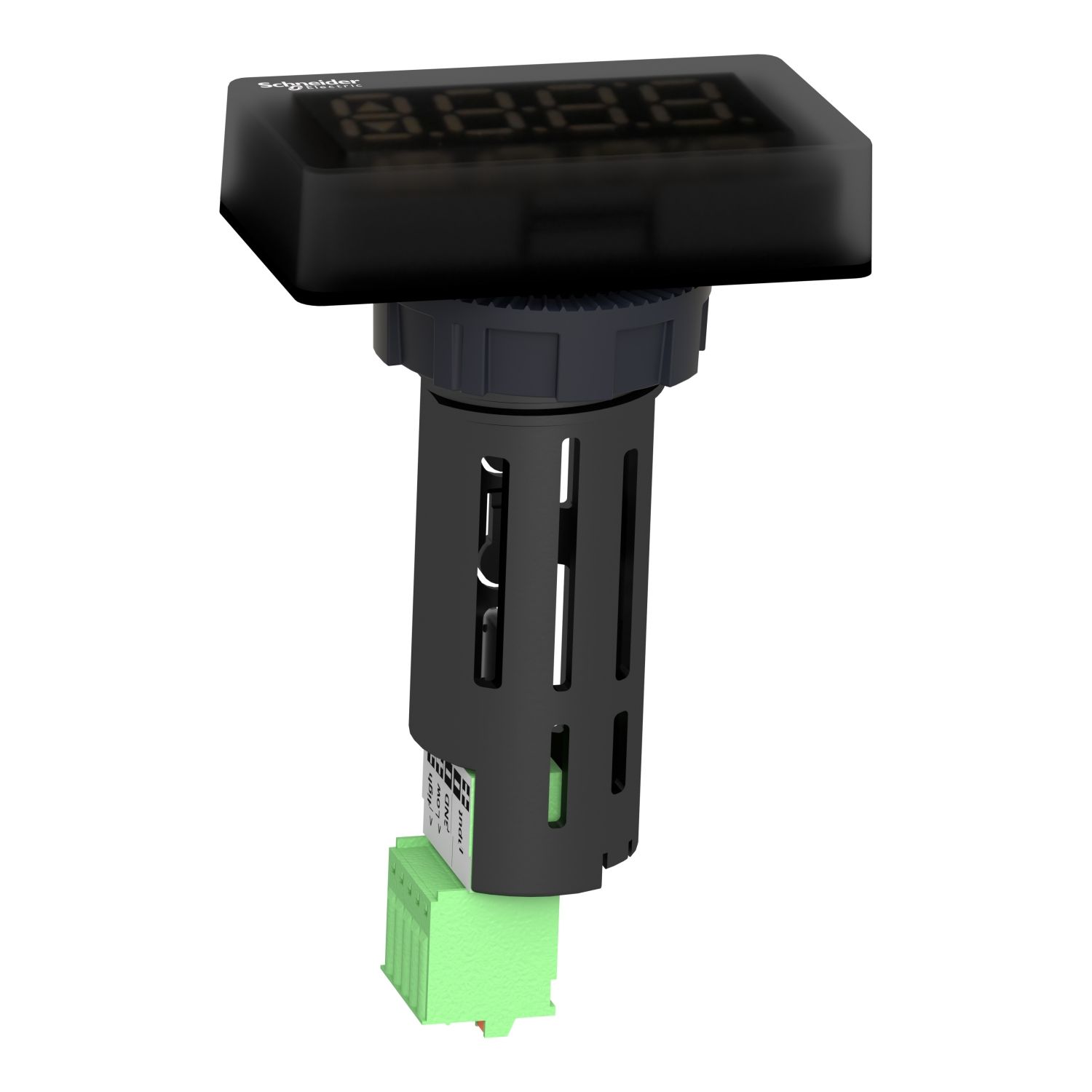

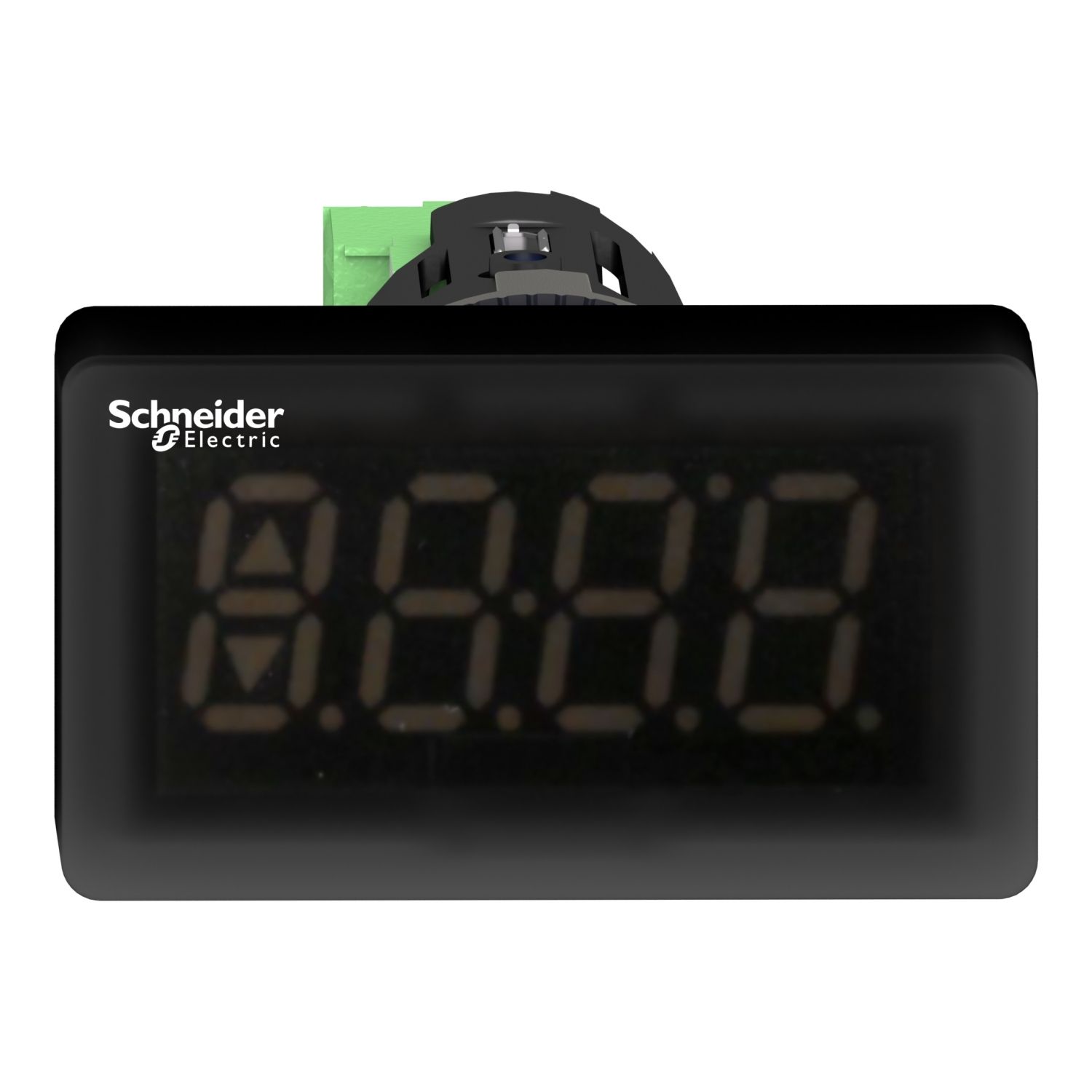

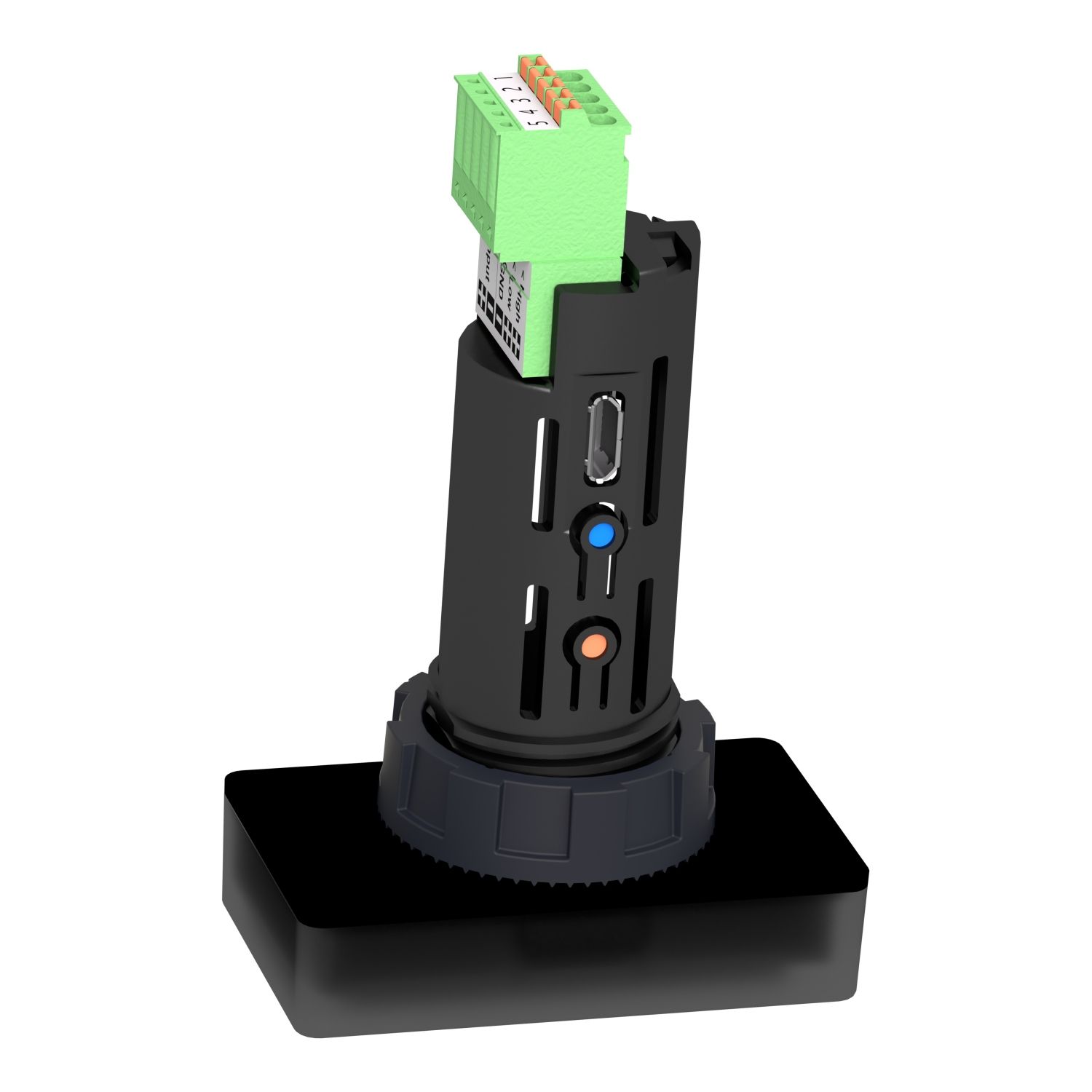

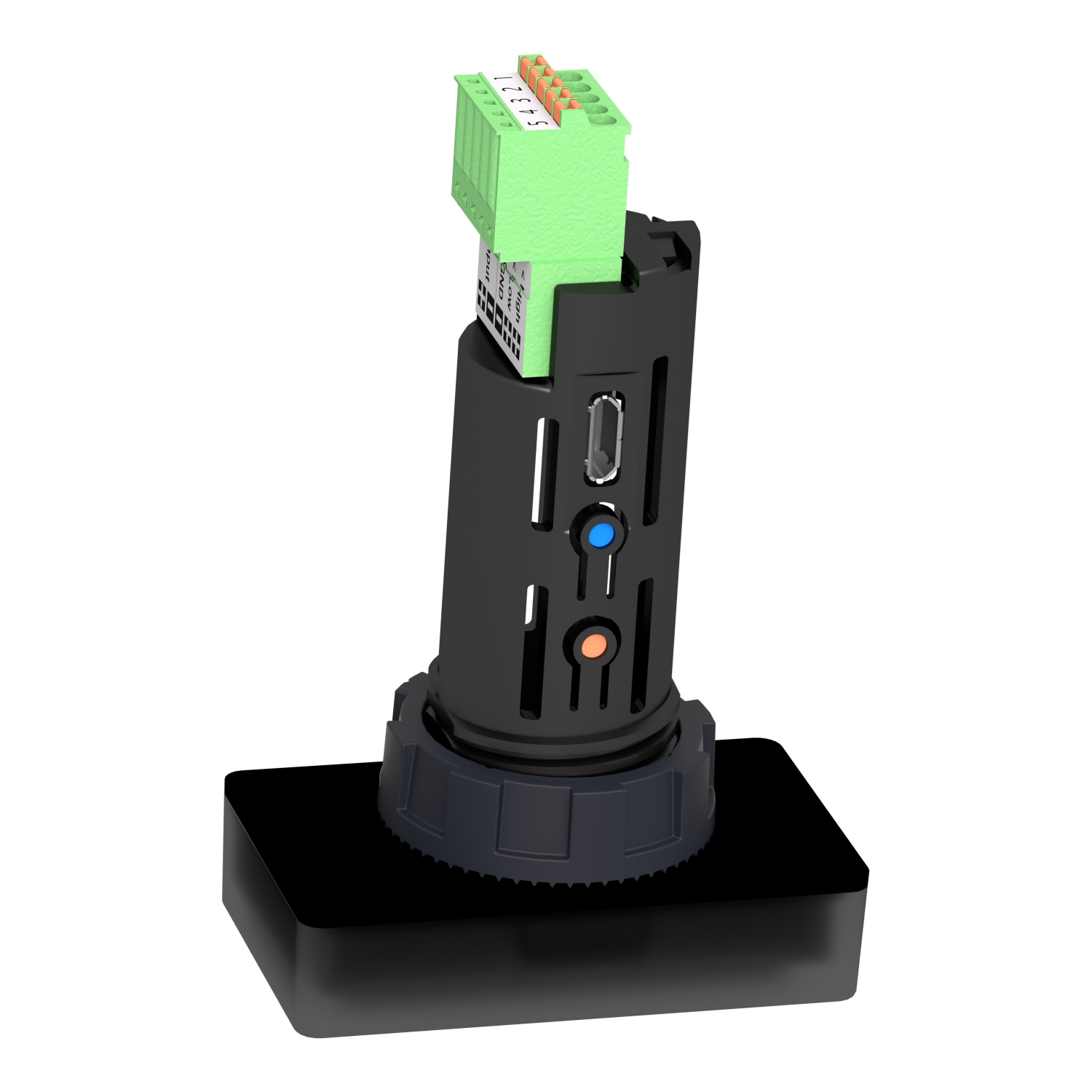

This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Display digits | 4 digit(s) - 14 mm in height |
| Range of product | Harmony XB5 |
| Product or component type | display module |
| Complementary | |
| Display type | 7 segments LED |
| Display colour | red |
| Temperature drift | 50 ppm/°C |
| Discrete output voltage | 30 V DC |
| Accuracy | +/- 0.15 % of the measuring range + 1 digit |
| Analogue input range | 4...20 mA DC |
| Height | 29.5 mm |
| Housing material | plastic |
| Solid state output type | 2 x power MOSFET |

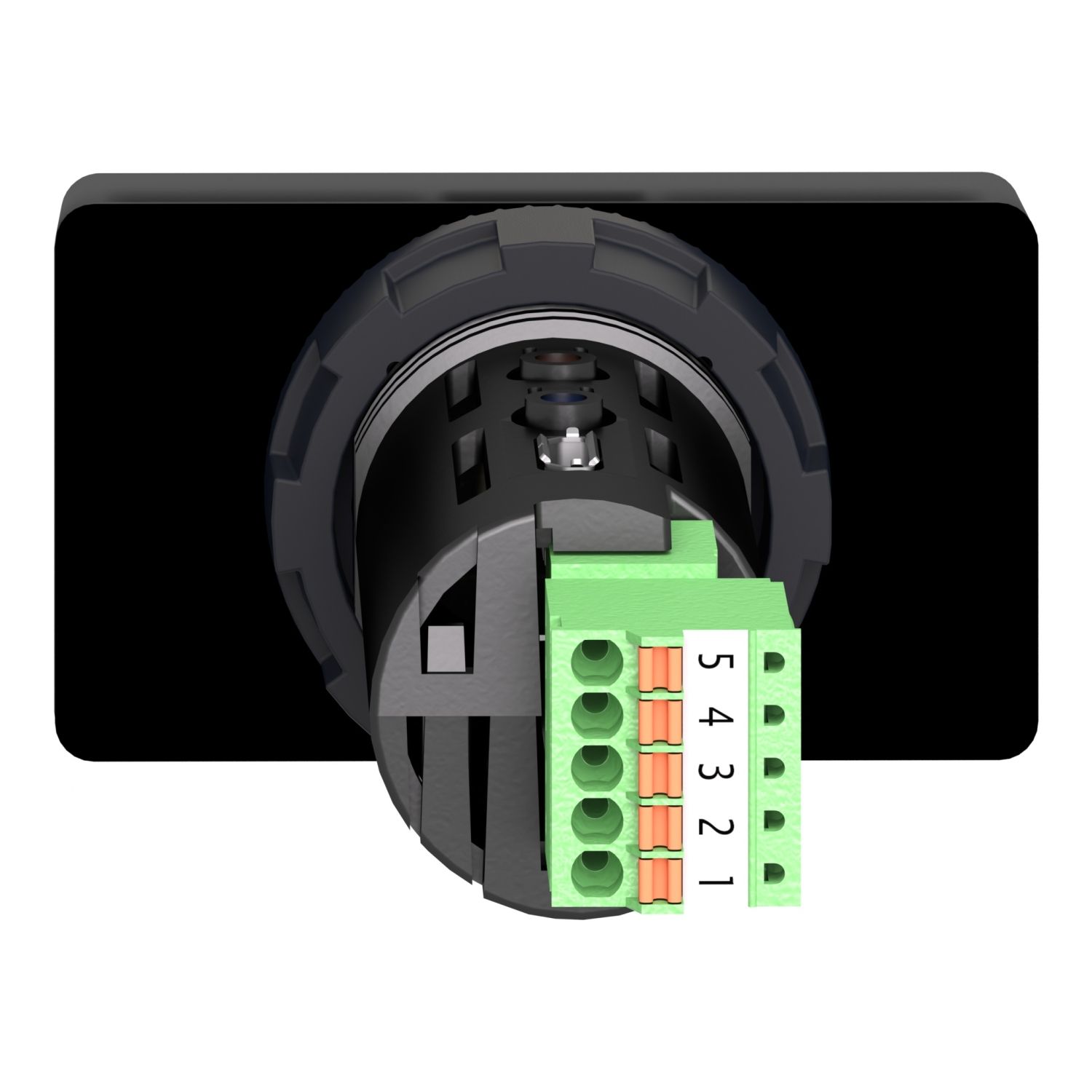

| Connections - terminals | spring terminals,clamping capacity: 1 x 0.2...1 mm² (AWG 24...AWG 17) |
| Net weight | 0.032 kg |
| Tightening torque | 11.5 lb.in +/- 1.8 lb.in, 1.3 N.m +/- 0.2 N.m |
| Flame retardance | UL94-V1 |
| Discrete output current | 0.5 A |
| Counting capacity | -999...9999 |
| Depth | 78.2 mm |
| Width | 51.5 mm |
| Mounting diameter | 22.5 mm |
| Maximum voltage drop | 6 V |
| Brightness | fixed |
| Environment | |
| Ambient air temperature for storage | -20-85 °C |
| IP degree of protection | IP65 (front panel) conforming to IEC 60529 |
| Ambient air temperature for operation | -20-60 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 61326-1 |
