Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XD2 |
| Bezel material | chromium plated metal |

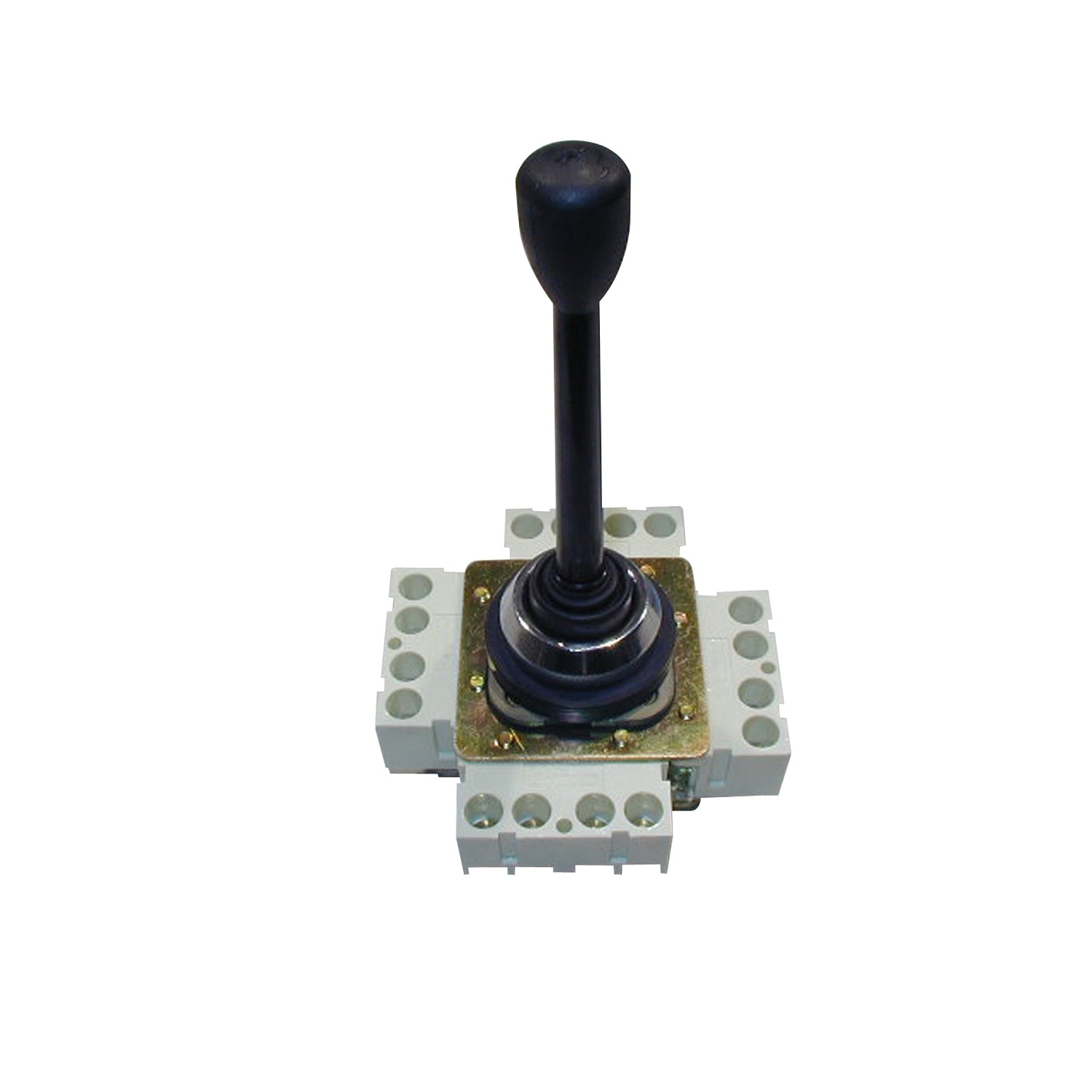

| Product or component type | complete joystick controller |
| Mounting diameter | 30 mm |
| Range of product | Harmony XD2 |
| Complementary | |
| Depth | 91 mm |
| Compatibility code | XD2 |
| Notch per direction | 1/2/2024 12:00:00 AM |
| Mechanical durability | 1000000 cycles |
| Operator position information | all positions |
| Overvoltage category | class I conforming to IEC 61140 |
| Connections - terminals | captive screw clamp terminals, 1 x 2.5 mm² with or without cable end, captive screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Electrical durability | 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Net weight | 0.3 kg |
| Fixing center | 100 x 100 mm |
| Operator direction information | 8 directions |
| Short-circuit protection | 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1<LineBreak/> |
| Contact code designation | A600-Q600 |
| Height | 127 mm |
| Return | without |
| Contacts type and composition | 2 C/O for snap action, 1 C/O for snap action |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | GL, DEMKO, CSA |
