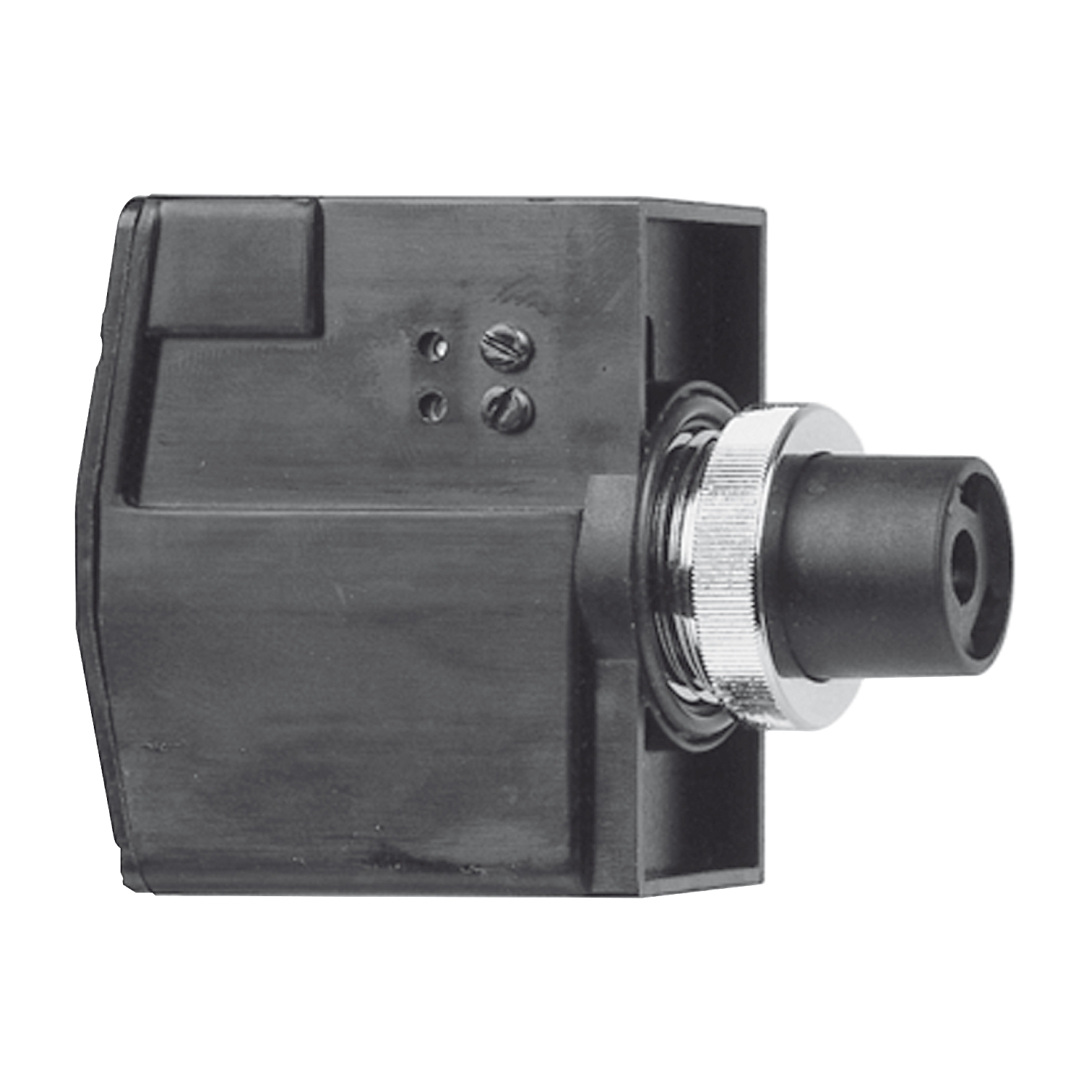

This Harmony XEAC25361 is a non booted push button for control circuit with analog output 0 to 15V DC. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Control station name | XACM, XACB |
| Operating travel | 11 mm |
| Electrical circuit type | control circuit |
| Product or component type | non booted push-button |
| Range of product | Harmony XAC |
| Control circuit type | DC |
| [Us] rated supply voltage | 0...15 V |
| Complementary | |
| Mechanical durability | 1000000 cycles |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | terminal connectors, 2 x 1.5 mm², terminal connectors, 1 x 2.5 mm² |
| Current consumption | < 15 mA |
| Net weight | 0.065 kg |
| Rated power in VA | 30 VA AC-15 for 1000000 cycles at 48 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 230 V 50/60 Hz conforming to IEC 60947-5-1 appendix C, 30 VA AC-15 for 1000000 cycles at 110 V 50/60 Hz conforming to IEC 60947-5-1 appendix C |
| [Ithe] conventional enclosed thermal current | 6 A |
| Operating force | 9 N at end of travel, 4 N at start of travel |
| Contacts type and composition | 1 NO at end of travel, 1 NC + 1 NO at start of travel |
| Rated power in W | DC-13: 48 W 48 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13: 12 W 110 V inductive conforming to IEC 60947-5-1 appendix C 1000000 cycles |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Standards | EN 60947-5-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-70 °C |
