This Harmony XENC1131 is a spring return contact block 2 NO front mounting, 30 or 40mm centres. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units. It is designed for single speed applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACM, XACB |
| Electrical circuit type | control circuit |
| Type of operator | spring return |
| Mechanical interlocking | without mechanical interlock |
| Contact operation | slow-break |
| Contacts type and composition | 2 NO |
| Component name | XENC |
| Contact block application | single speed |
| Product or component type | contact block |
| Contact block type | single |
| Range of product | Harmony XAC |
| Mounting of block | front mounting |
| Complementary | |
| Rated operational power in W | 60 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 45 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 42 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Contact code designation | Q300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Mechanical durability | 1000000 cycles |
| Rated operational power in VA | 525 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 127 V 50/60 Hz, load factor = 0.5 (inductive load), 455 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 230 V 50/60 Hz, load factor = 0.5 (inductive load), 385 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 48 V 50/60 Hz, load factor = 0.5 (inductive load), 140 VA AC-15 for 1000000 cycles, operating rate <60 cyc/mn at 24 V 50/60 Hz, load factor = 0.5 (inductive load) |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 1 x 2.5 mm² with or without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.02 kg |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| Maximum resistance across terminals | 25 MOhm |
| Terminals description ISO n°1 | (13-14)NO, (23-24)NO |
| Terminal identifier | (11-12)NC, (13-14)NO |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
Only registered users can write reviews
Related products

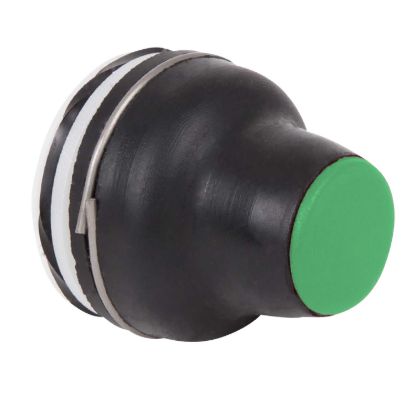

booted head for pushbutton XAC-B - green - 4 mm, -25..+70°C
