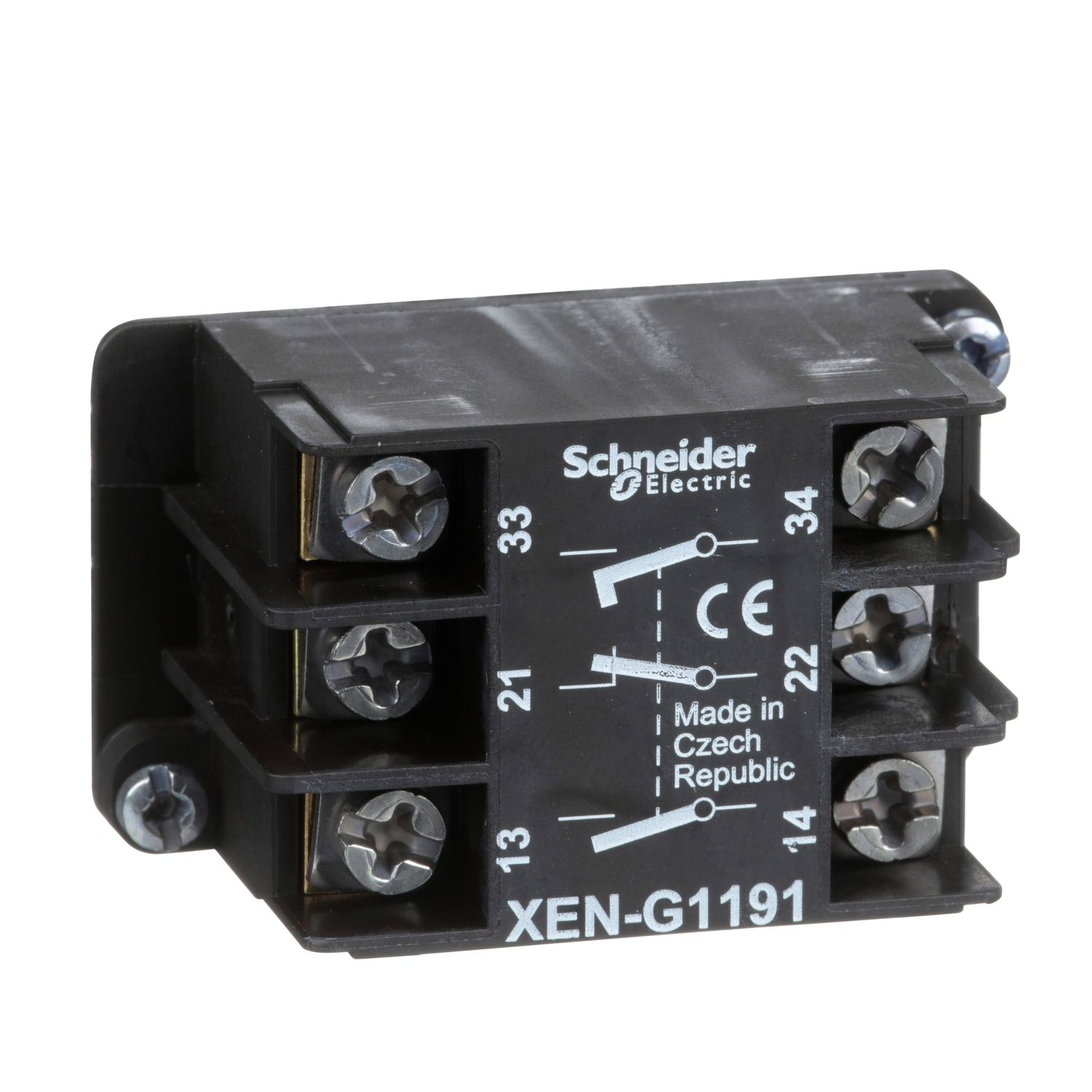

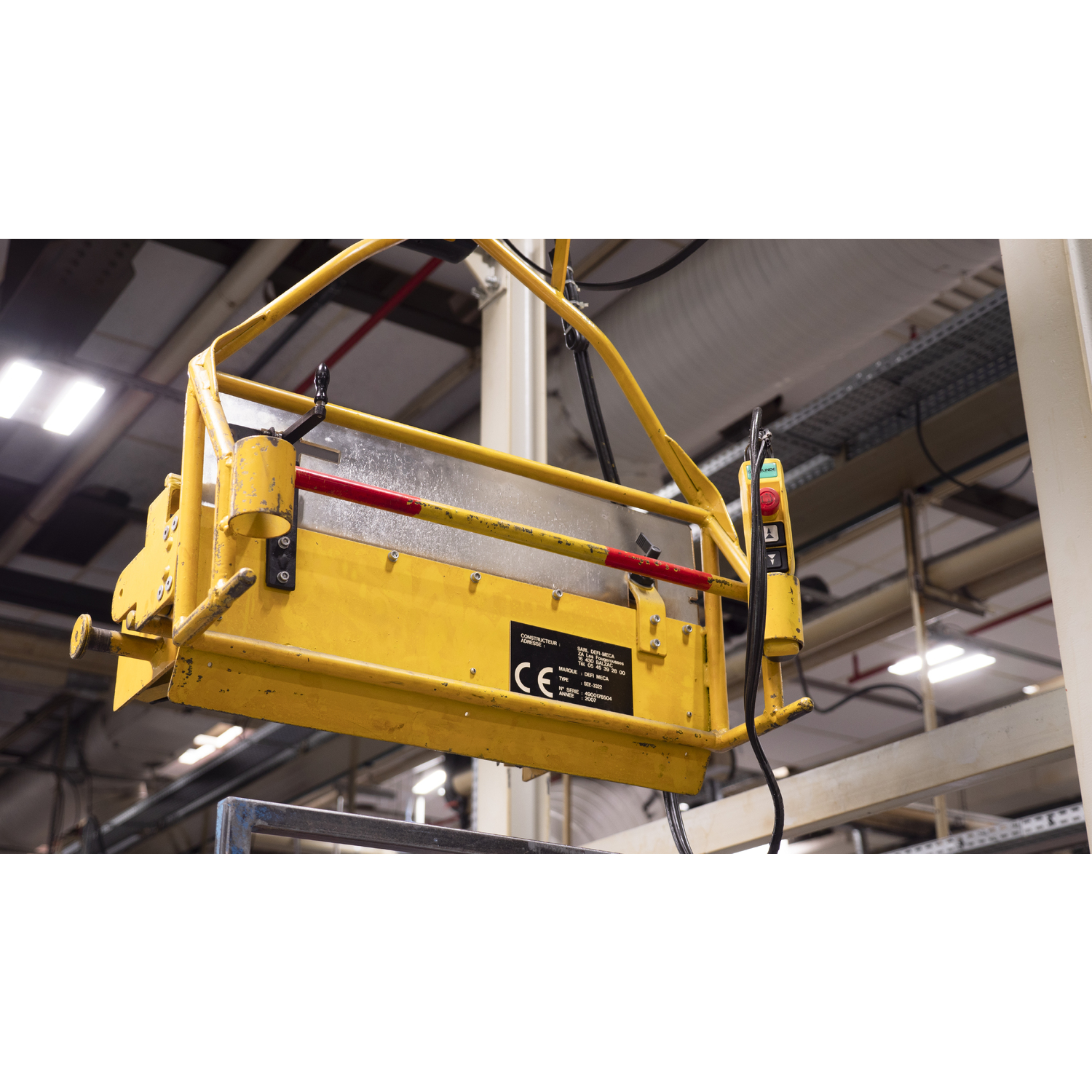

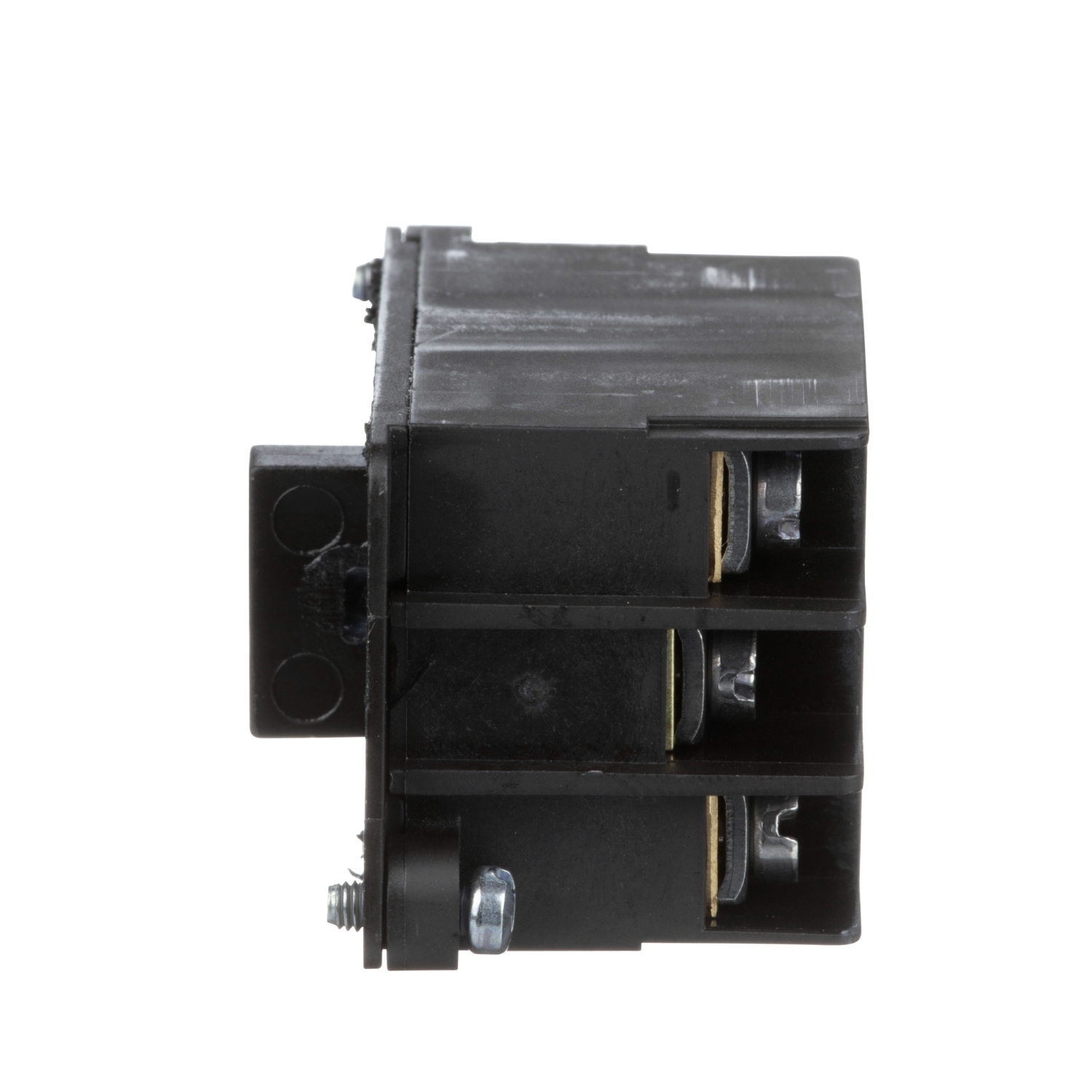

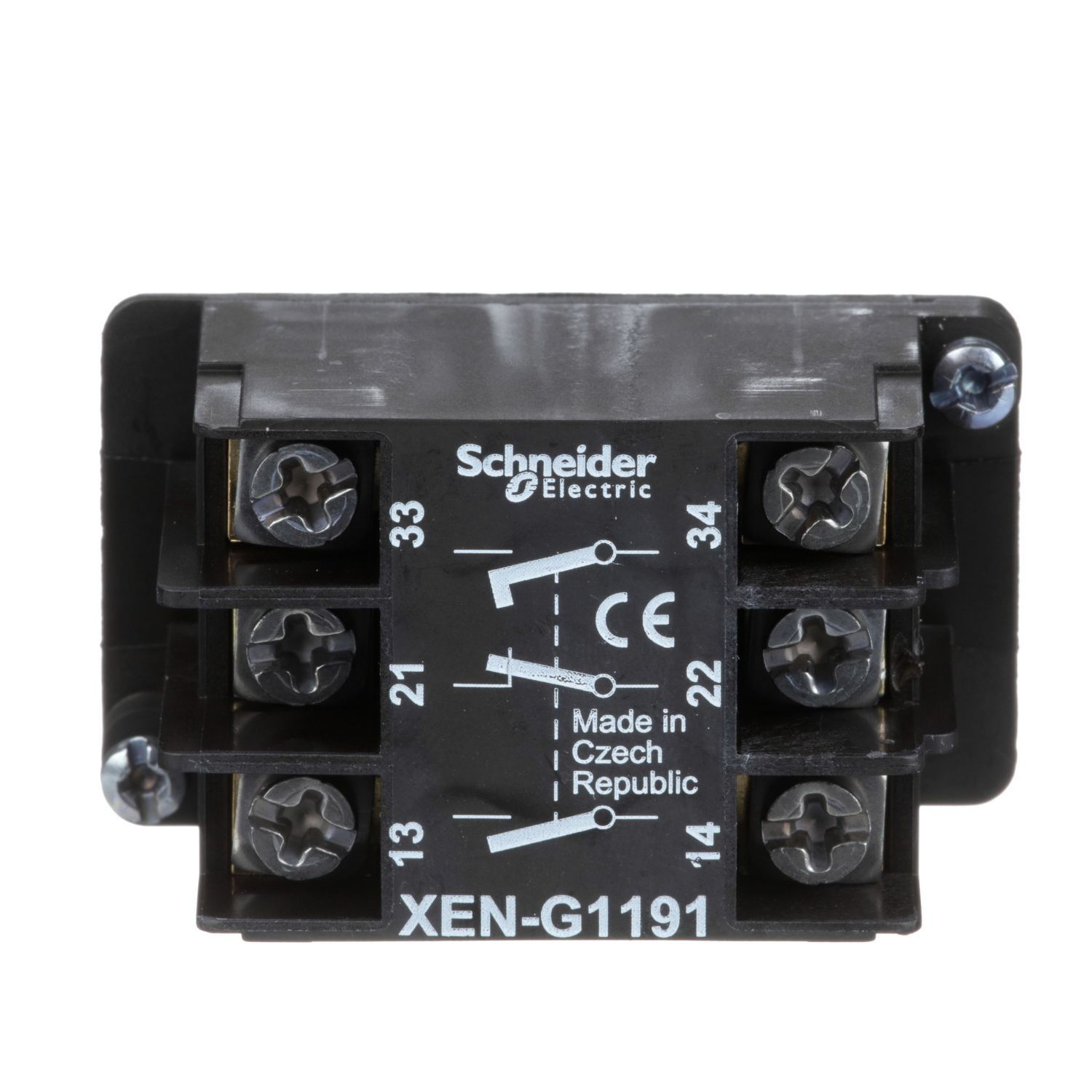

This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA9...head, XACA |
| Electrical circuit type | control circuit |
| Contact operation | staggered, slow-break |
| Contact block application | 2-speed |
| Contact block type | single |
| Range of product | Harmony XAC |
| Type of operator | spring return |
| Contacts type and composition | 1 NC + 2 NO |
| Component name | XENG |
| Product or component type | contact block |
| Mounting of block | front mounting |
| Complementary | |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Operating force | 18 N |
| Mechanical durability | 1000000 cycles |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Connections - terminals | screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.04 kg |
| [Ithe] conventional enclosed thermal current | 10 A |
| Terminals description ISO n°1 | (13-14)NO, (33-34)NO_CL, (21-22)NC |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| Overvoltage category | class II conforming to IEC 61140 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508 |
