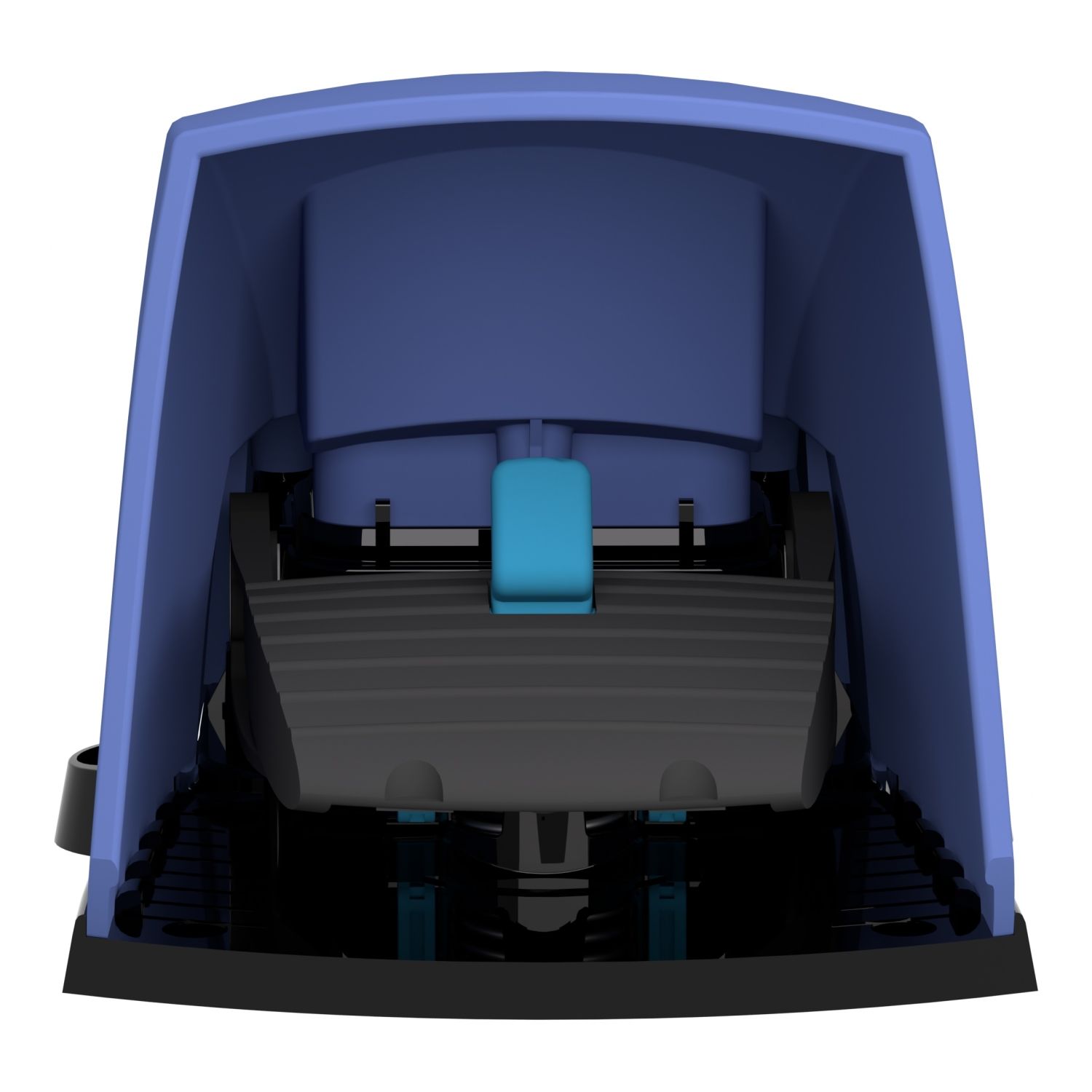

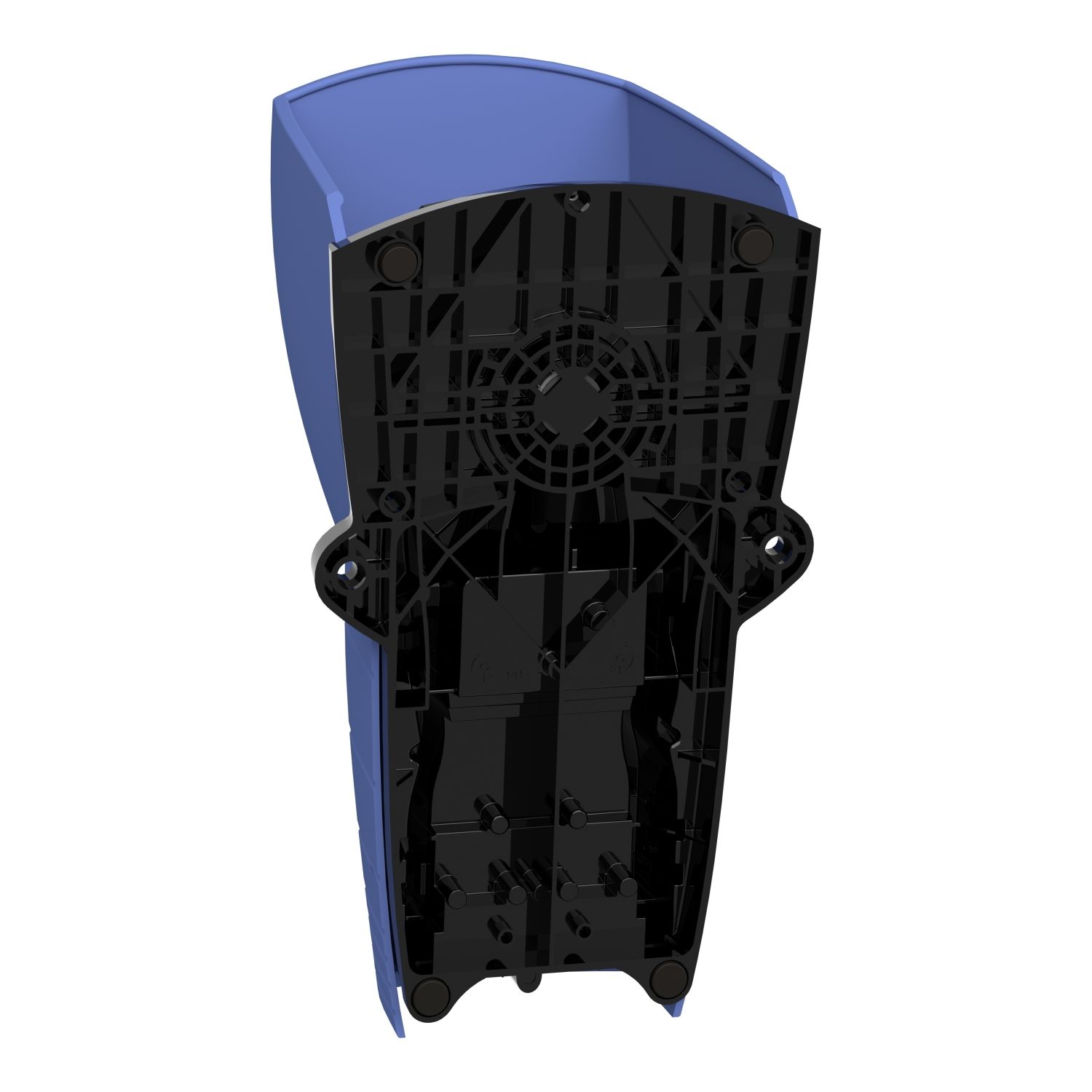

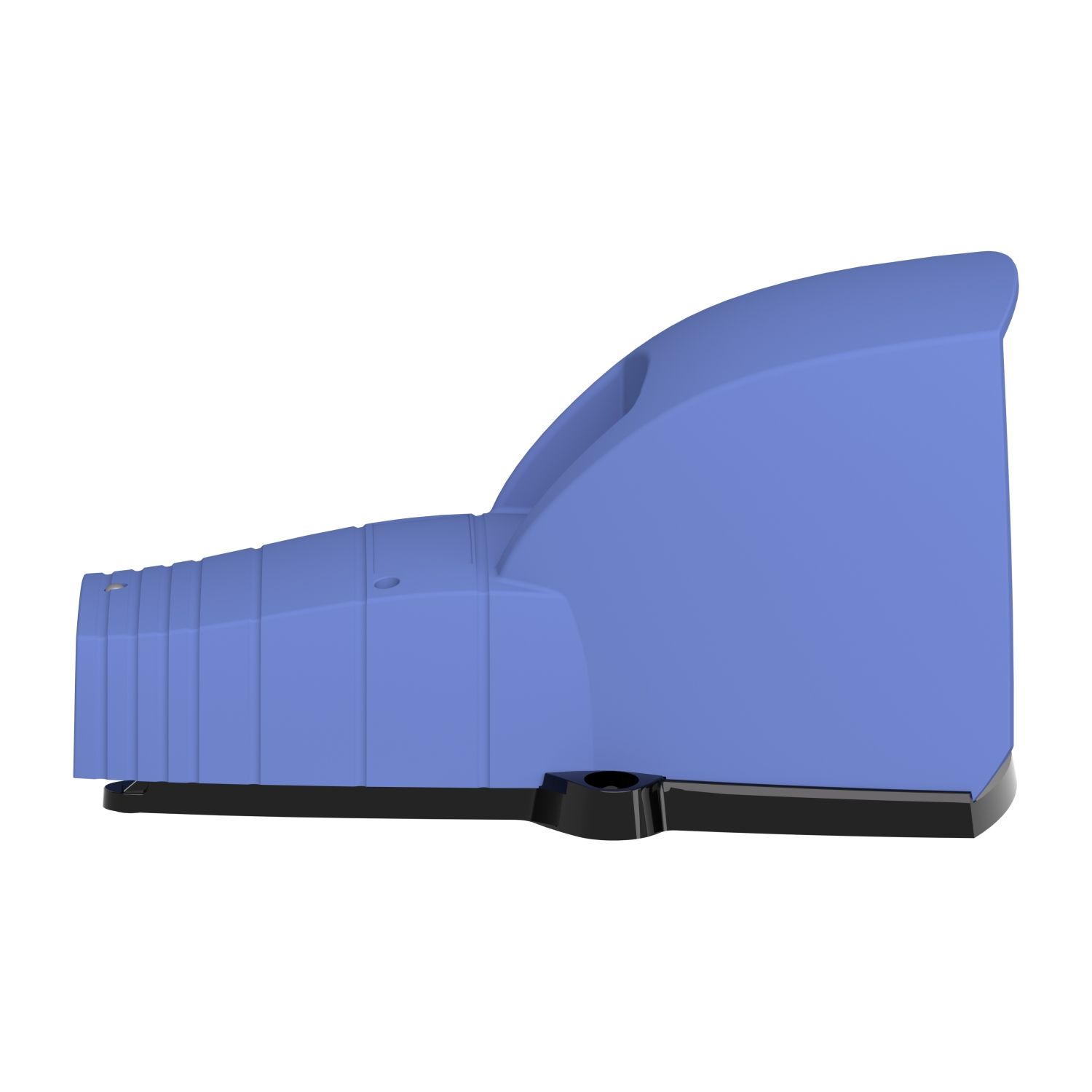

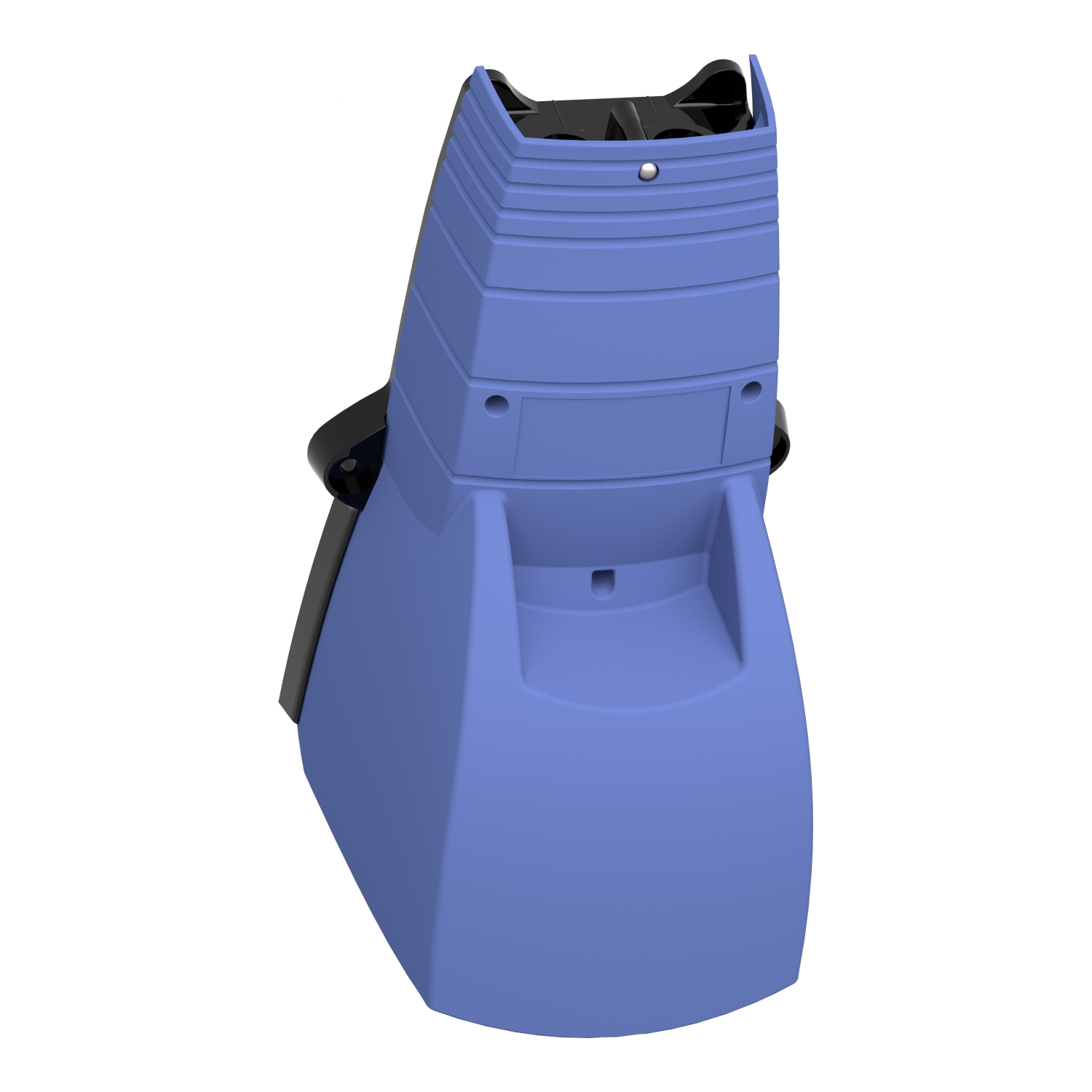

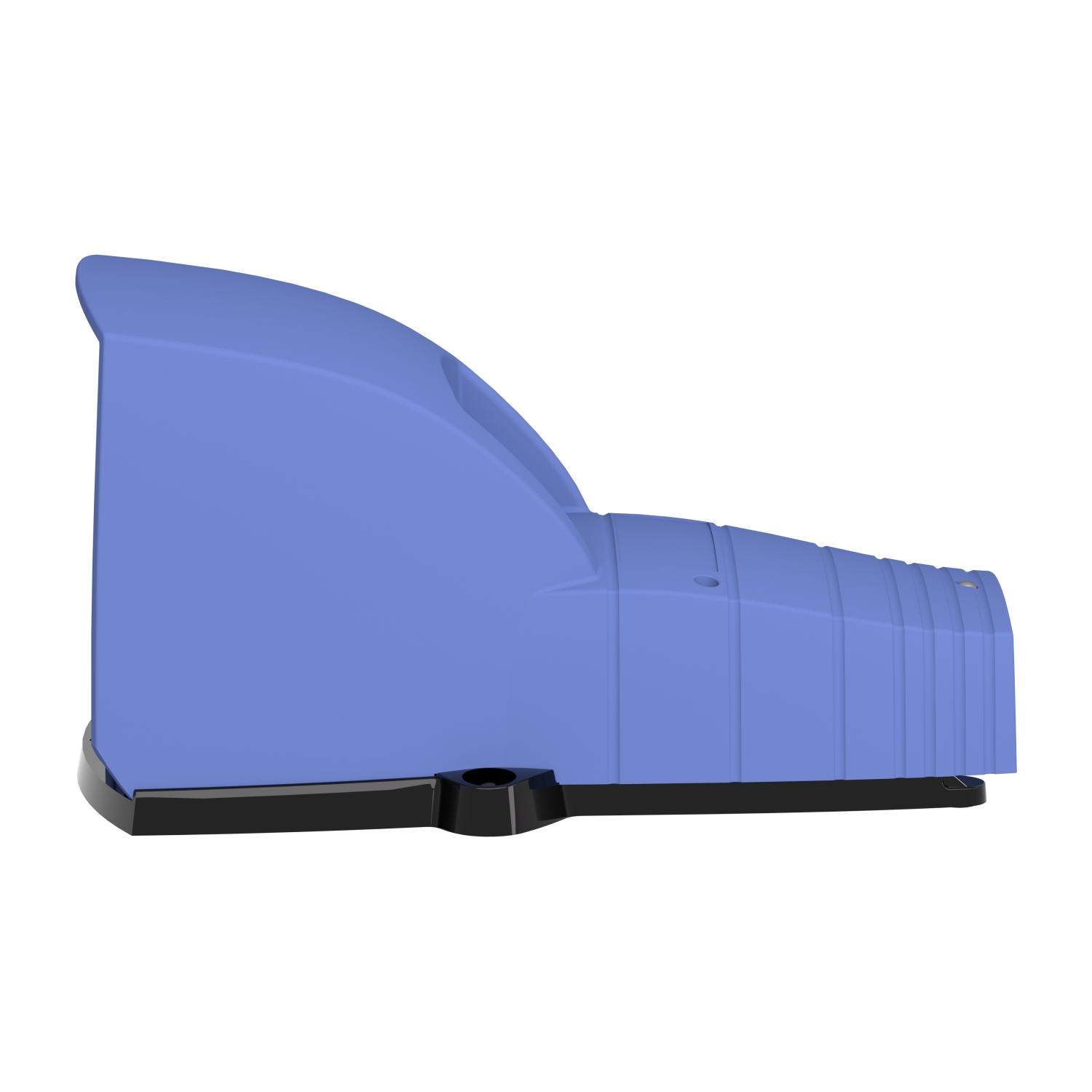

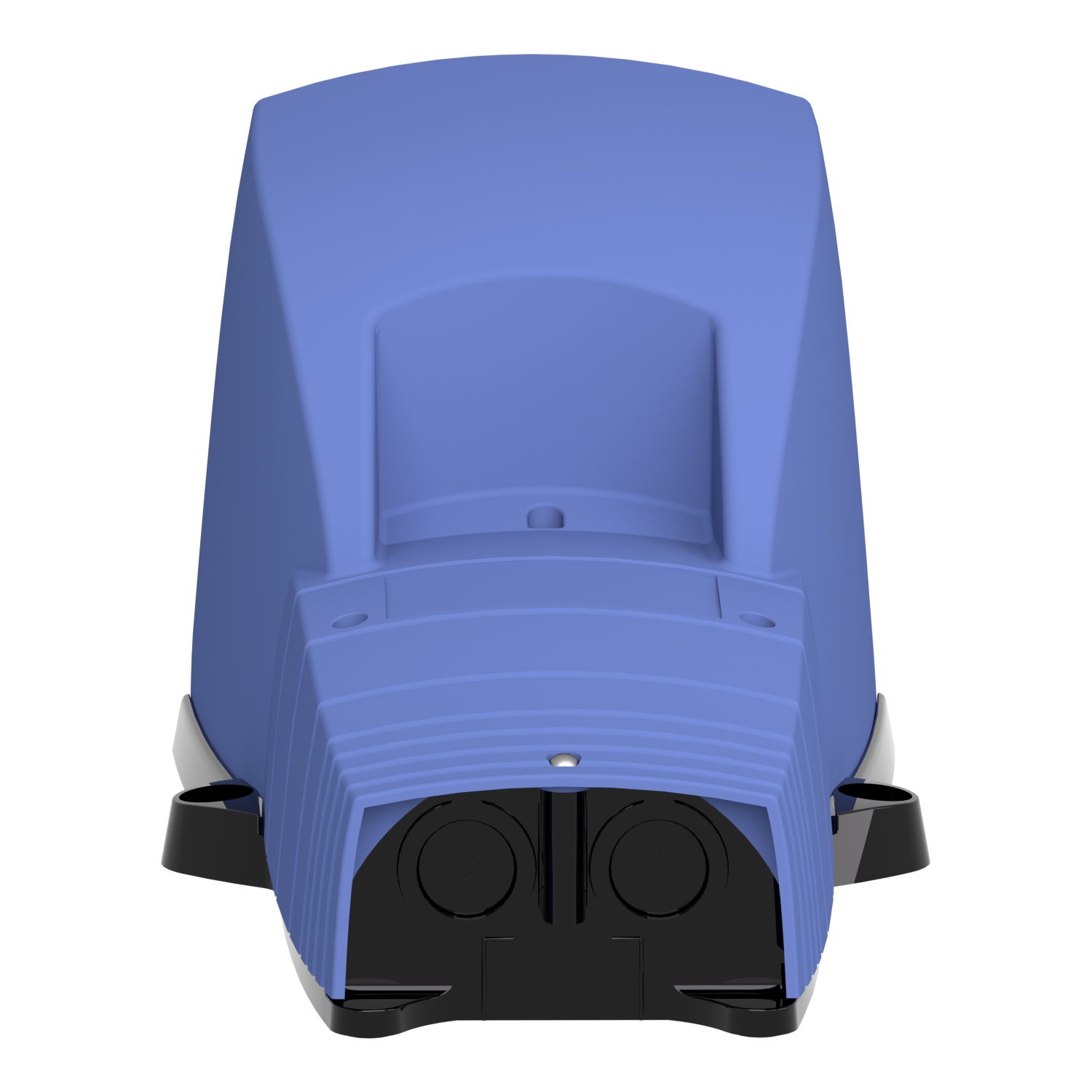

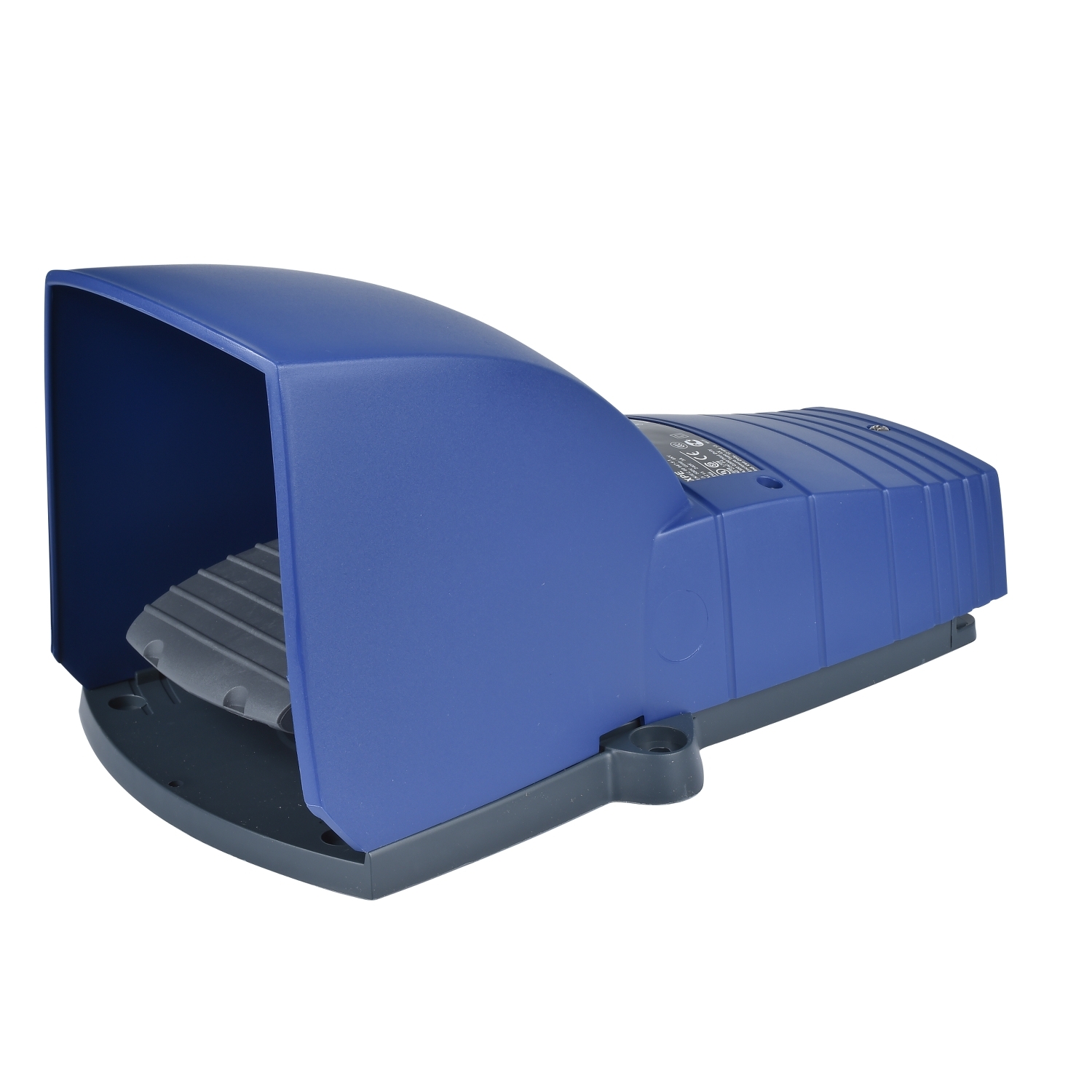

This Harmony XPEB510 is a single foot switch. Its degree of protection is IP66. It has a cover, plastic material blue color, 1 NC + 1 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XPEB |
| Foot switch type | single foot switch |
| Provided equipment | cover |
| Contact operation | 1 step |
| Colour | blue |
| Contacts type and composition | 1 NC + 1 NO |
| Trigger mechanism | with trigger mechanism |
| Material | plastic |
| Product or component type | foot switch |
| Range of product | Harmony XPE |
| Complementary | |
| Maximum resistance across terminals | 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3 |
| Rated operational power in W | 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Compatibility code | XPEB |
| Mechanical durability | 10000000 cycles |
| [Ui] rated insulation voltage | 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Connections - terminals | screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end |
| [Ie] rated operational current | 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Net weight | 0.7 kg |
| Positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Environment | |
| Protective treatment | TH |
| Overvoltage category | class II conforming to NF C 20-030, class II conforming to EN/IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn conforming to IEC 60068-2-27 |
| Standards | NF E 09-031 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | UL, CSA |
