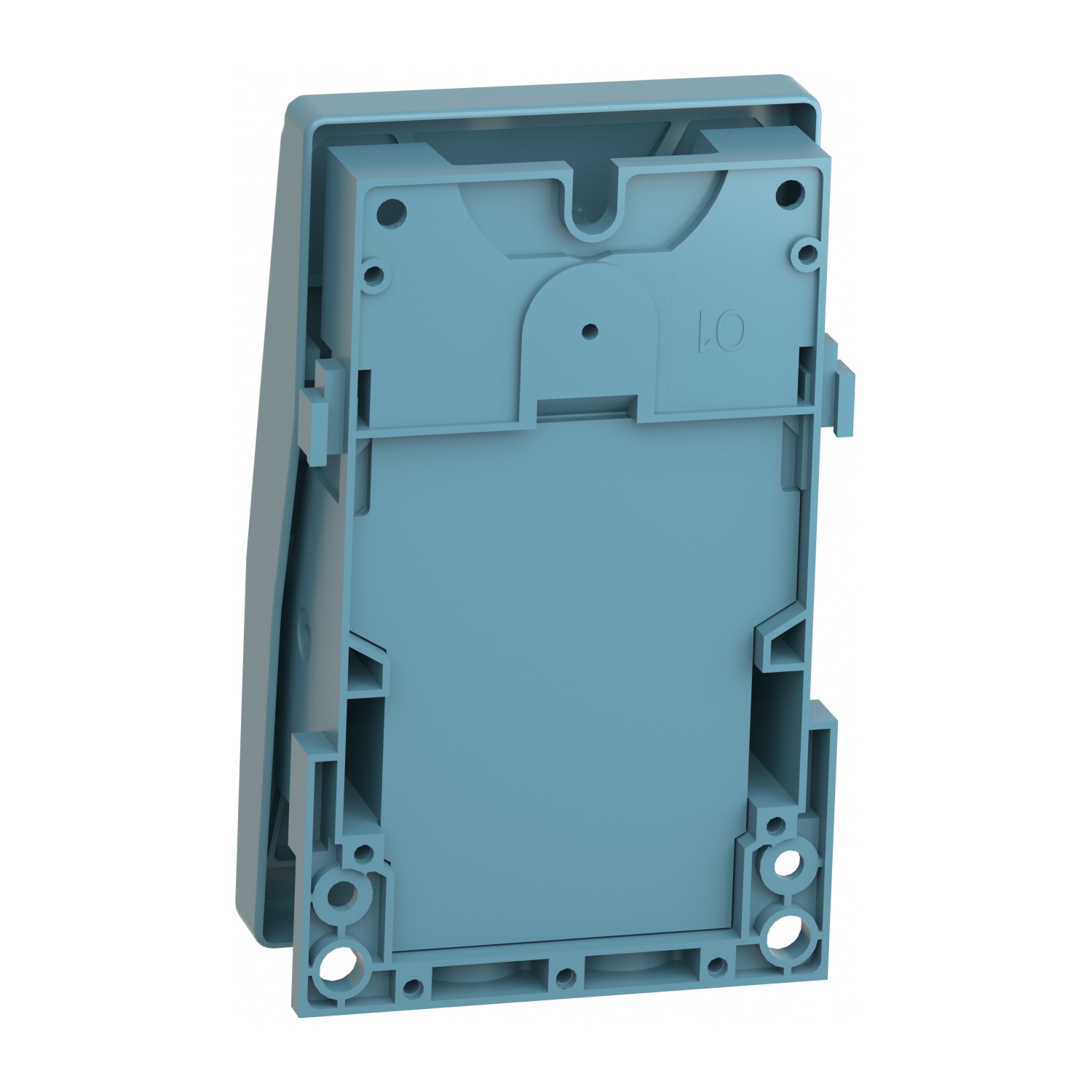

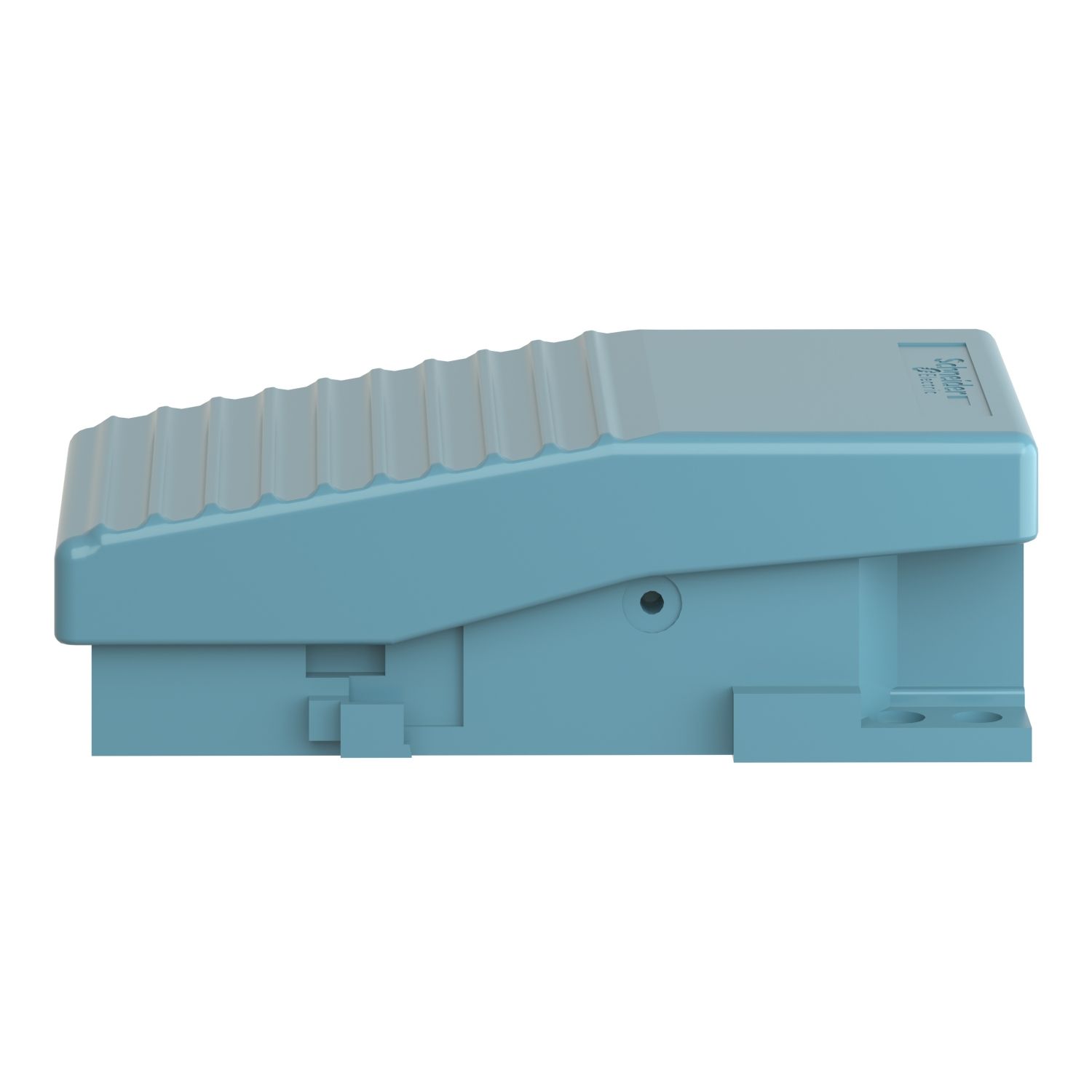

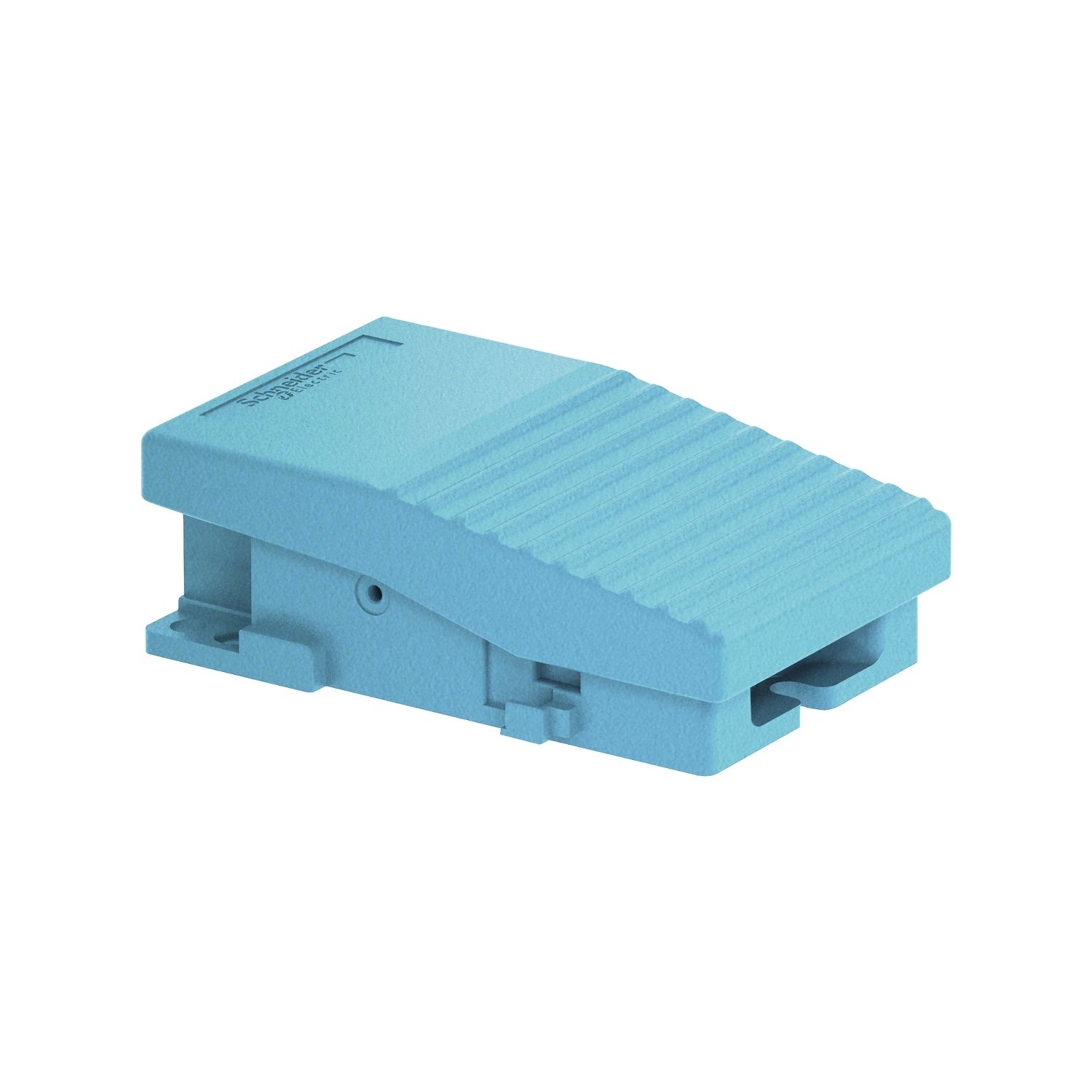

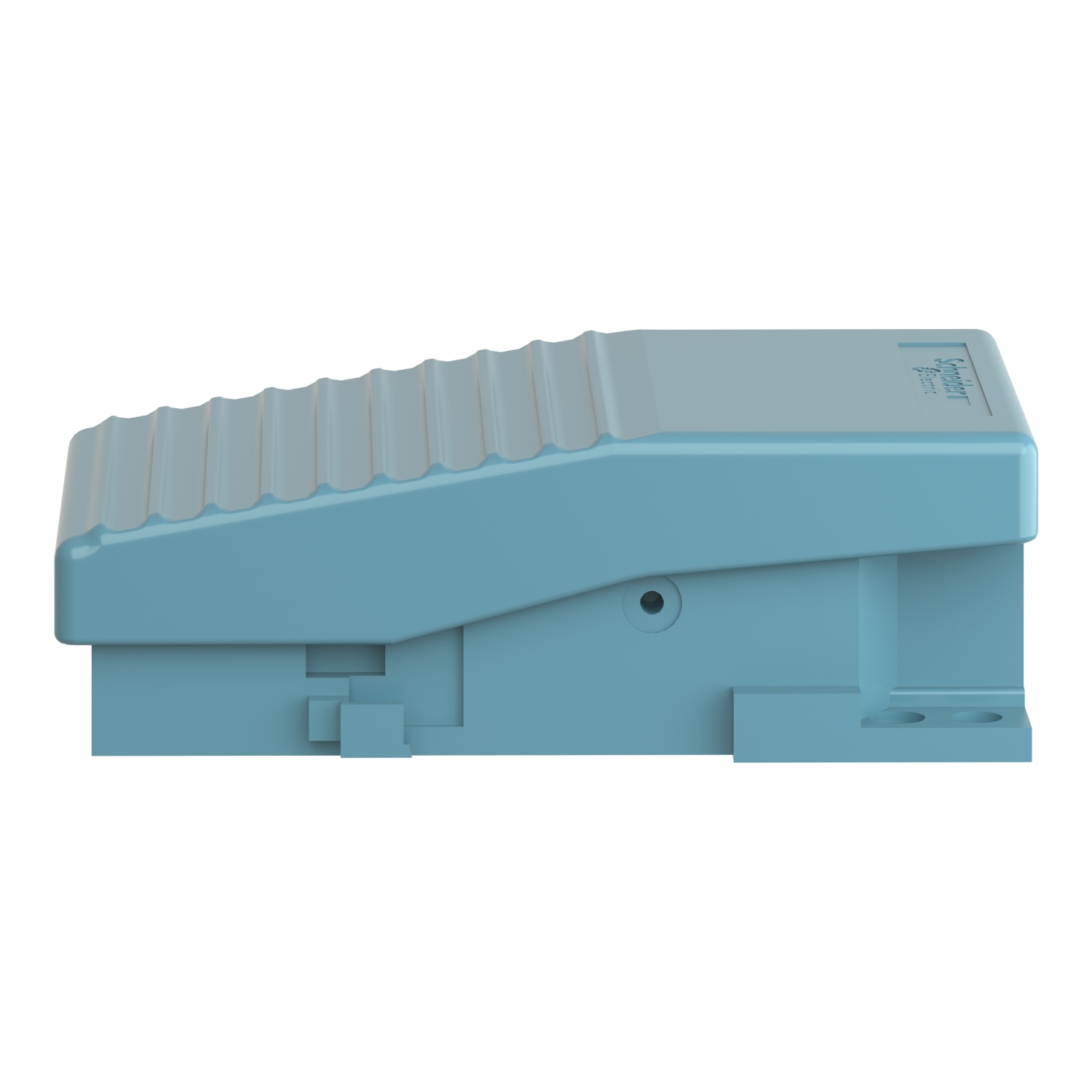

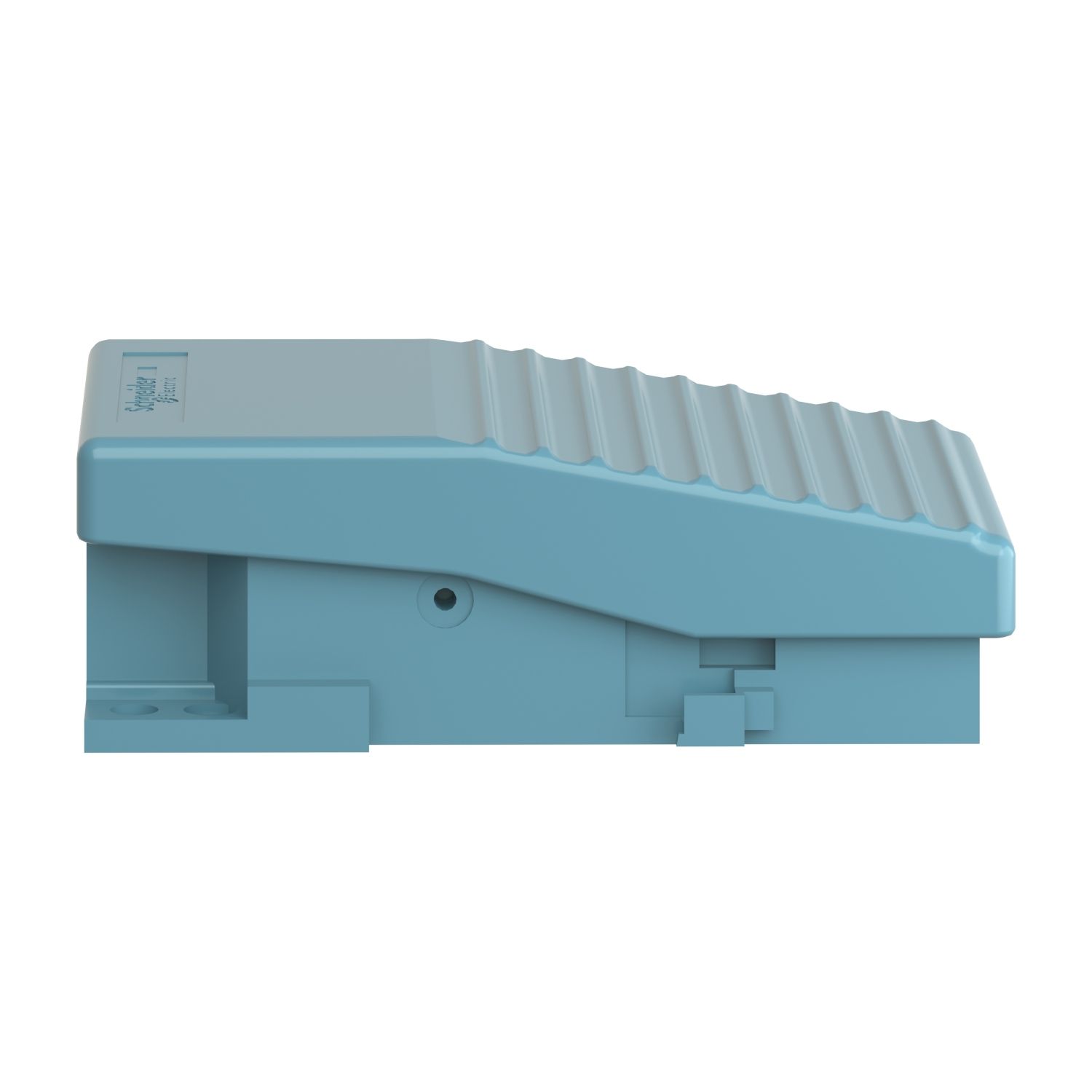

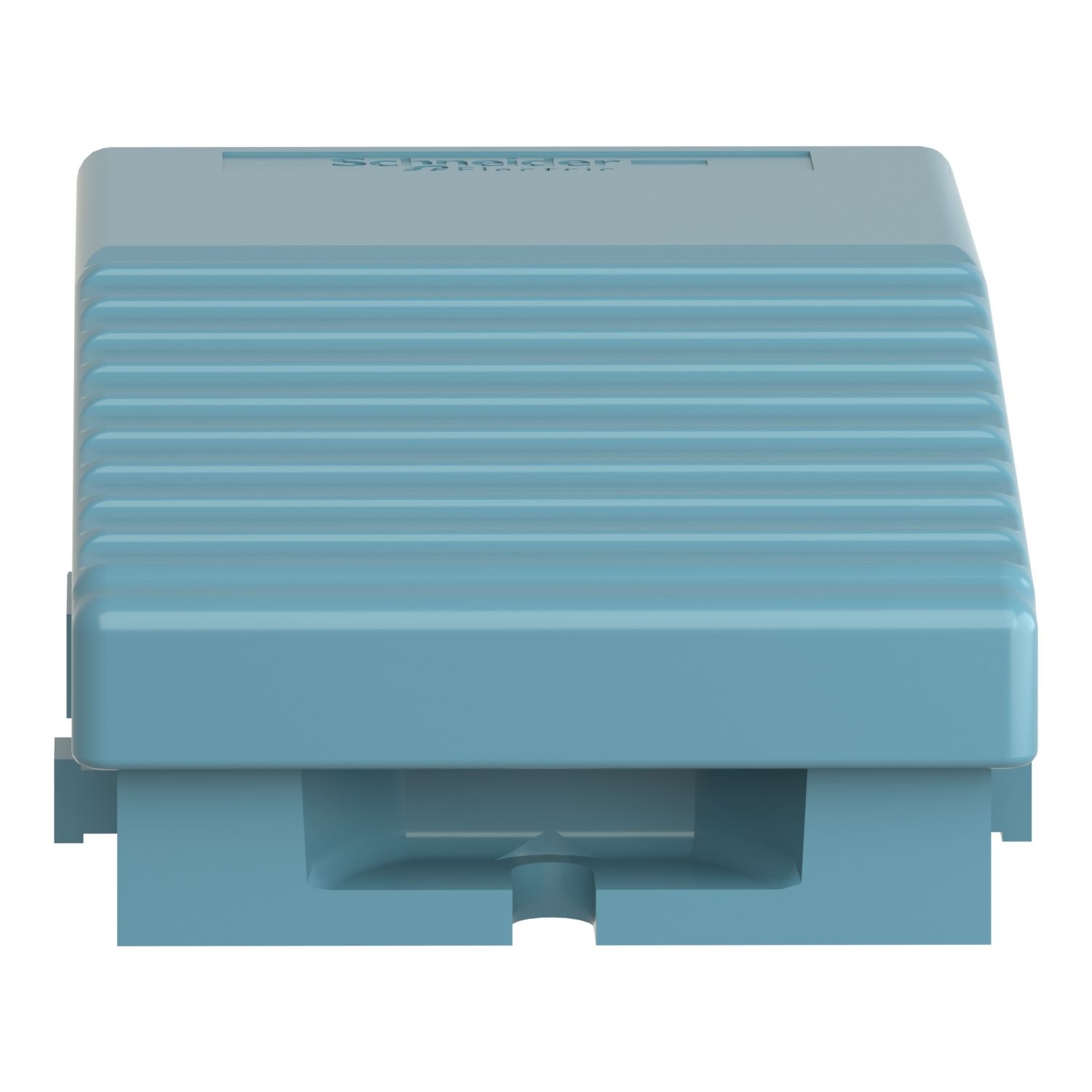

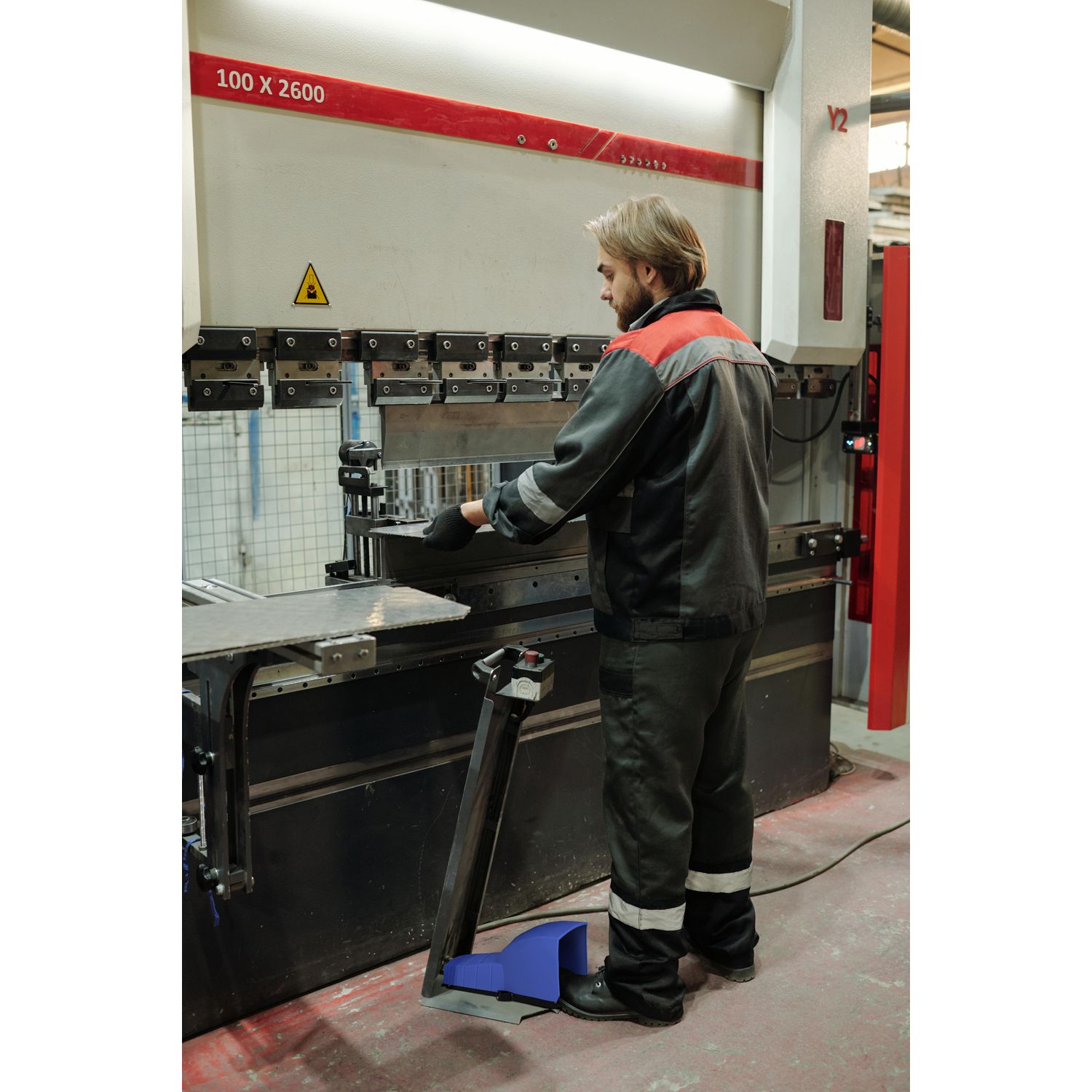

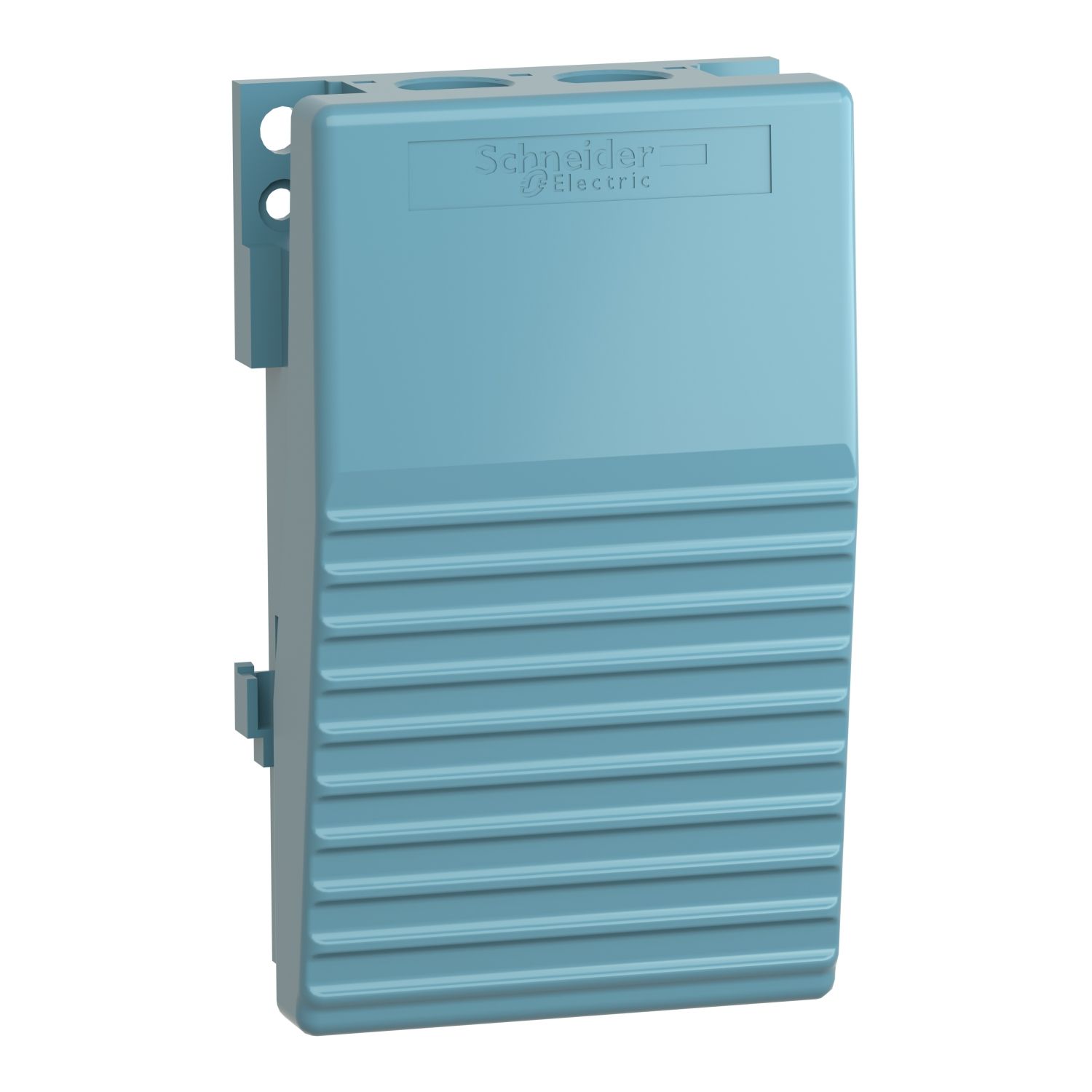

This Harmony XPE consists of a single step blue metal safety footswitch. It has 1 x NC + 1 x NO contacts. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XPEM |
| Foot switch type | single foot switch |
| Contact operation | 1 step |
| Colour | blue |
| Range of product | Harmony XPE |
| Contacts type and composition | 1 NC + 1 NO |
| Trigger mechanism | without trigger mechanism |
| Material | metal |
| Product or component type | foot switch |
| Complementary | |
| Compatibility code | XPEM |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A, 3 A, 240 V, AC-15, A300 |
| Maximum resistance across terminals | 25 MOhm conforming to NF C 93-050 method A, 25 MOhm conforming to IEC 60255-7 category 3 |
| Rated operational power in W | 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |

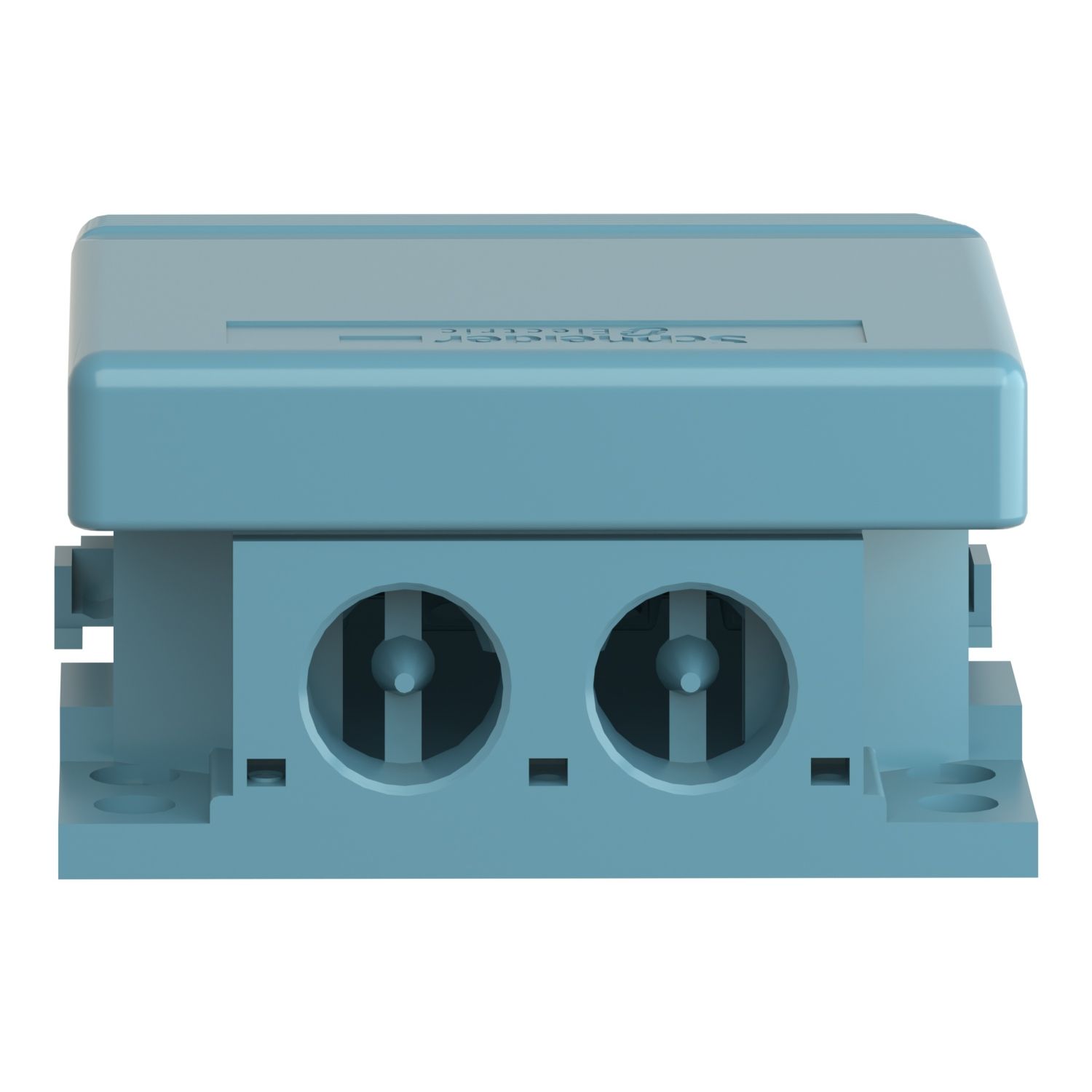

| Cable entry | 2 entries tapped for Pg 16 cable gland |
| [Ui] rated insulation voltage | 300 V conforming to CSA C22.2 No 14, 300 V conforming to UL 508, 500 V (pollution degree 3) conforming to VDE 0110 group C, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Connections - terminals | screw clamp terminal, <= 2 x 1.5 mm² with or without cable end, screw clamp terminal, <= 1 x 2.5 mm² with or without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Net weight | 1.2 kg |
| Positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to VDE 0660-200, 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Shock resistance | 20 gn conforming to IEC 60068-2-27, 150 gn conforming to NF E 09-031 |
| Ambient air temperature for operation | -25-70 °C |
| Overvoltage category | class I conforming to NF C 20-030, class I conforming to EN/IEC 61140 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | EN/IEC 60947-5-1, VDE 0660-200 |
| Product certifications | CSA, FIMKO |
