Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | monitoring safety dialogue, monitoring safety actuators |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Safety module application | extension of I/O capacity |
| Safety module name | XPSMF2 |
| Structure type | 10BASE-T/100BASE-TX |
| Supply | SELV or PELV conforming to EN/IEC 60950 |

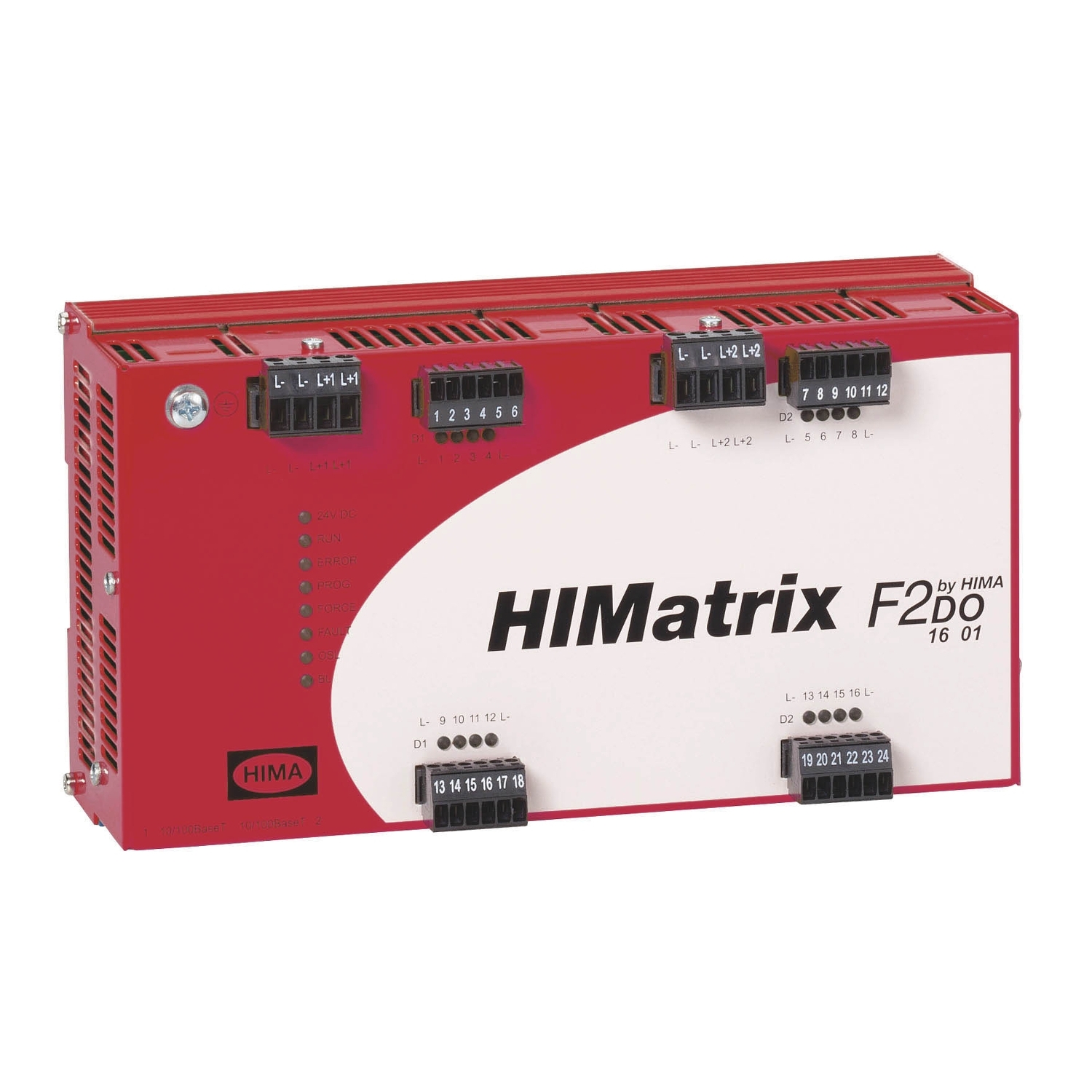

| Product or component type | Preventa safety remote output discrete module |
| Discrete output number | 16 , not isolated |
| Range of product | Preventa Safety automation |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Inductive load | 500 mH |
| Discrete output current | <= 2 mA, <= 16 A at 60 °C (per channel), <= 1 A at 40 °C (per module) |
| Depth | 86.5 mm |
| Maximum tungsten load | <25 W / 2 A, <10 W / 1 A |
| Width | 207 mm |
| Response time | depending on size of application |
| Maximum leakage current | 1 mA, at 2 V at state 0 |
| Communication port protocol | safe Ethernet with 2 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better |
| Net weight | 0.85 kg |
| Associated fuse rating | 10 A, slow-blow |
| Current consumption | 0.2 A at 24 V DC on power supply |
| Exchange mode | half duplex, full duplex, autonegotiation |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 109 mm |
| Number of terminal blocks | 4 for discrete output, 1 for power supply, 1 for output circuit |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0-60 °C |
