Products specifications

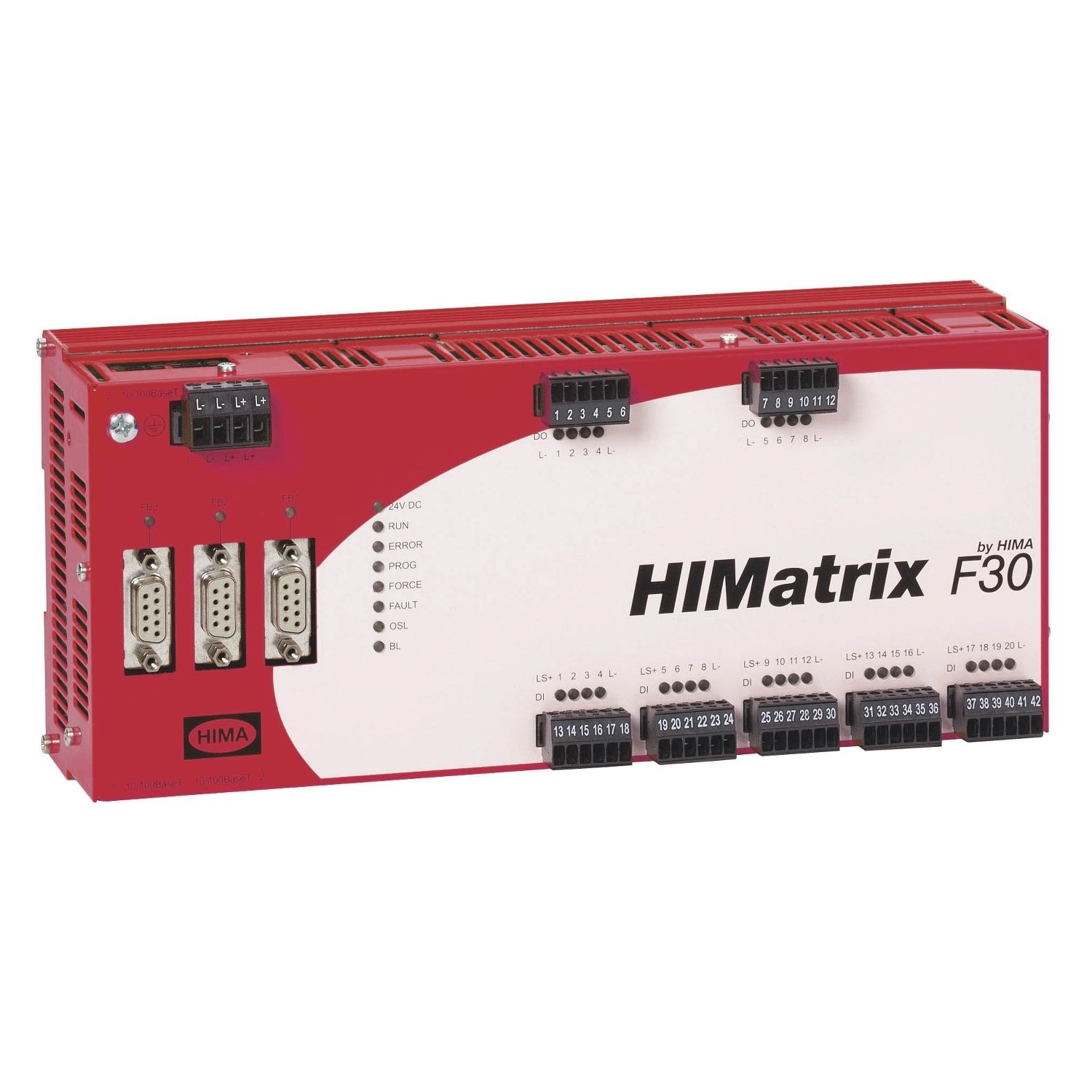

| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety use category | SIL 3 conforming to IEC 61508, category 4 conforming to EN 954-1/ISO 13849-1 |
| Safety module application | for numerous machine safety functions and for the protection of personnel |
| Safety module name | XPSMF30 |
| Structure type | 10BASE-T/100BASE-TX, safe Ethernet, 10BASE-T/100BASE-TX, Modbus TCP/IP |
| Product or component type | Preventa safety PLC compact |
| Range of product | Preventa Safety automation |
| Complementary | |
| Clock | with, supplied by backup capacitor for 1 week following loss of supply |
| Function of module | monitoring safety dialogue for discrete output, monitoring safety dialogue for discrete input, monitoring safety detection for discrete input, monitoring safety actuators for discrete output |
| Memory description | user logic 250 kB data, user logic 250 kB application |
| Tightening torque | 0.22-0.25 N.m |
| Discrete input number | 20 not isolated discrete input(s) |
| Minimum load | 2 mA per discrete output |
| Discrete output current | <= 7 mA (all channels), 0.5 A at 60 °C (channels 1 to 3 and 5 to 7), 2 A at 50 °C (channels 4 and 8), 1 A at 60 °C (channels 4 and 8) |
| Depth | 66.5 mm |
| Width | 253 mm |
| Protection type | internal fuse |
| Input protection type | protected against short-circuit, protected against short-circuit to earth |
| Response time | depending on size of application |
| Input overvoltage protection | 500-500 V for discrete input conforming to IEC 61000-4-5 |
| Operating distance | <= 100 m (between station) discrete output, <= 100 m (between station) discrete input |
| Method of access | slave Modbus TCP/IP |
| Current state 0 guaranteed | 1.25...1.5 mA (discrete input) |
| Discrete output number | 8 |
| Voltage state 1 guaranteed | >= 15 V for discrete input |
| Connections - terminals | power supply: captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 16) flexible without cable end, power supply: captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 16) flexible with cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, power supply: captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) solid without cable end, power supply: captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, power supply: captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 22...AWG 16) flexible with cable end, power supply: captive screw clamp terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 18) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, power supply: captive screw clamp terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 12) solid without cable end, power supply: captive screw clamp terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 12) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, discrete input/output circuit: captive screw clamp terminals, 2 x 0.5 mm² (AWG 20) flexible with cable end |
| Switching voltage | 7.5 V |
| Concept | Transparent Ready, Modbus TCP/IP |
| Wire stripping length | 9 mm |
| Maximum leakage current | 1 mA, at 2 V at state 0 for discrete output |
| Communication port protocol | safe Ethernet with 4 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better, Modbus TCP/IP with 4 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better |
| Discrete output voltage | 24 V DC |
| Voltage state 0 guaranteed | <= 5 V for discrete input |
| Net weight | 1.2 kg |
| Output voltage tolerance | +/- 2 % |
| Current state 1 guaranteed | >= 2 mA (discrete input) |
| Discrete input current | 100 mA |
| Overload protection | shutdown of outputs concerned with cyclic reconnection |
| Current consumption | 8 A at 24 V DC on power supply |
| Exchange mode | half duplex, full duplex, autonegotiation safe Ethernet, half duplex, full duplex, autonegotiation Modbus TCP/IP |
| Web services | Standard 502, Modbus TCP/IP, Modbus TCP/IP server, Modbus TCP/IP, Modbus TCP/IP messaging (reading/writing of data words), Modbus TCP/IP, Modbus identification request, Modbus TCP/IP |
| Mounting support | 35 mm symmetrical DIN rail |
| Discrete input voltage | 20 V |
| Web server | class A10, Modbus TCP/IP |
| Height | 113 mm |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| No load current | 0.5 A |
| Number of terminal blocks | 5 for discrete input, 2 for discrete output, 1 for power supply |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to EN/IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (enclosure) |
| Shock resistance | 15 gn for 11 ms conforming to EN 61131-2 |
| Vibration resistance | 1 gn conforming to EN 61131-2 (f = 10-150 Hz) |
| Ambient air temperature for operation | 0-60 °C conforming to EN 61131-2 |
| Pollution degree | 2 |
| Immunity to microbreaks | 10 ms |
| Standards | IEC 61131, EN 50156 pending, DIN V 0801, DIN V 19250 |
| Resistance to electromagnetic fields | 10 V/m 26-1000 MHz conforming to EN/IEC 61000-4-3 |
