Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Safety module application | f use with numerous machine safety functions and for the protection of personel |

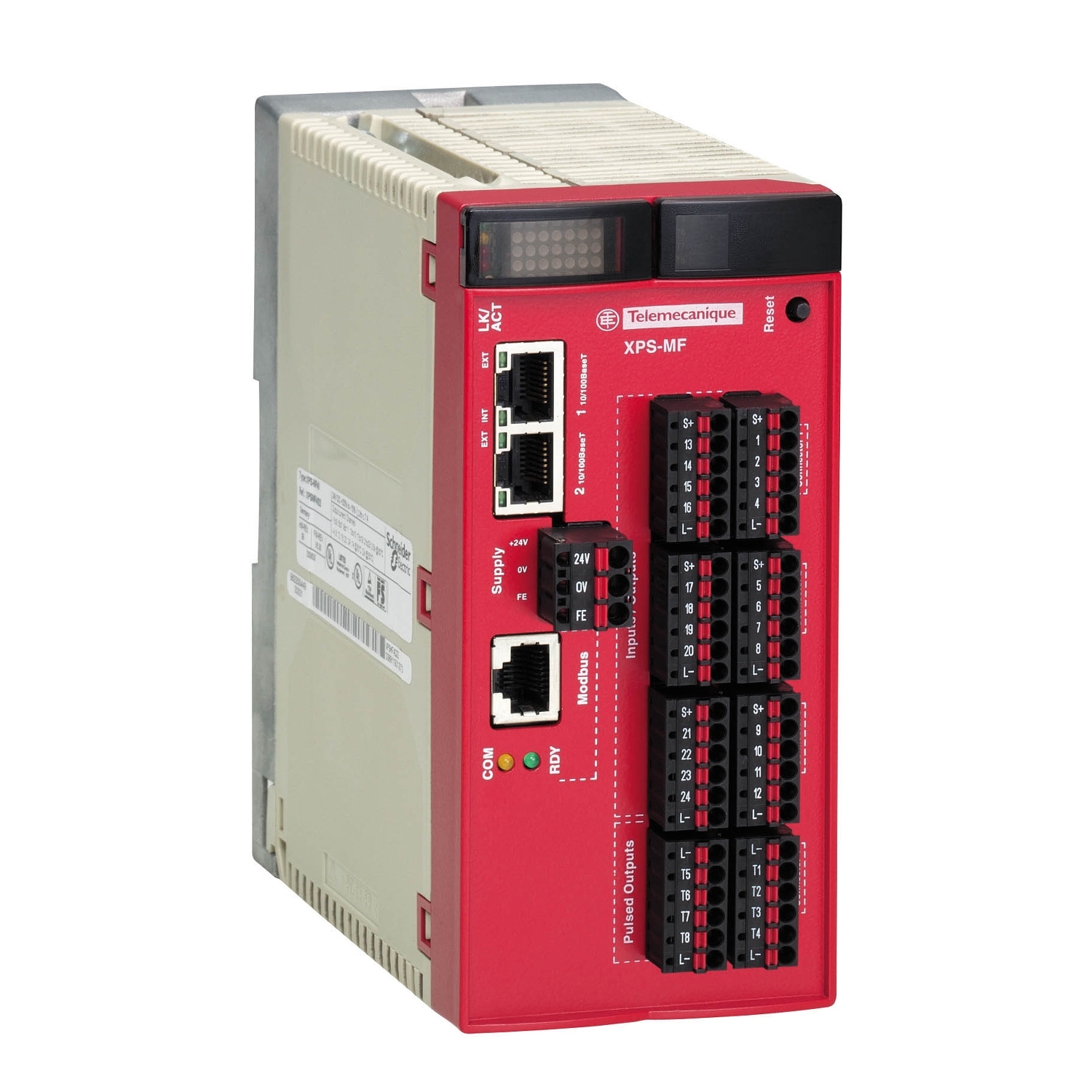

| Safety module name | XPSMF40 |
| Structure type | 10BASE-T/100BASE-TX, safe Ethernet |
| Product or component type | Preventa safety PLC compact |
| Range of product | Preventa Safety automation |
| Complementary | |
| Clock | with, supplied by backup capacitor for 1 week following loss of supply |
| Function of module | monitoring short-circuit and line break for line control outputs, monitoring safety dialogue for discrete output, monitoring safety dialogue for discrete input, monitoring safety detection for discrete input, monitoring safety actuators for discrete output |
| Memory description | user logic 250 kB data, user logic 250 kB application |
| Maximum discrete input number | 24 not isolated discrete input(s) |
| Minimum load | 2 mA per discrete output |
| Depth | 153 mm |
| Tightening torque | power supply: 0.5-0.5 N.m - on captive screw clamp terminals, line control outputs: 0.22-0.25 N.m - on captive screw clamp terminals, discrete input/output circuit: 0.22-0.25 N.m - on captive screw clamp terminals |
| Width | 74 mm |
| Protection type | 10 A internal fuse |
| Number of addresses | 122-122 for Modbus RTU |
| Response time | depending on size of application |
| Input overvoltage protection | -10-35 V for discrete input |
| Operating distance | <= 300 m between station for discrete output, <= 300 m between station for discrete input |
| Discrete I/O number | 24 configurable |
| Method of access | slave V0 Modbus serial |
| Maximum input resistance | 7 kOhm |
| Current state 0 guaranteed | <= 1.5 mA (discrete input) |
| Voltage state 1 guaranteed | 24...30 V for discrete input |
| Connections - terminals | discrete input/output circuit: captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² (AWG 23...AWG 20) flexible with cable end, power supply: captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) solid without cable end, power supply: captive screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible without cable end, line control outputs: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end, line control outputs: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 25...AWG 15) solid without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.14...1 x 1.5 mm² (AWG 25...AWG 15) solid without cable end, power supply: captive spring terminals, 1 x 0.25...1 x 2.5 mm² (AWG 23...AWG 12) flexible without cable end, power supply: captive spring terminals, 1 x 0.25...1 x 2.5 mm² (AWG 23...AWG 12) flexible with cable end, line control outputs: captive spring terminals, 1 x 0.25...1 x 0.34 mm² (AWG 22) flexible without cable end, discrete input/output circuit: captive spring terminals, 1 x 0.25...1 x 0.34 mm² (AWG 22) flexible without cable end, power supply: captive spring terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) solid without cable end, line control outputs: captive spring terminals, 1 x 0.5 mm² (AWG 20) flexible with cable end, power supply: captive spring terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible without cable end, line control outputs: captive spring terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 17) flexible without cable end, discrete input/output circuit: captive spring terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 17) flexible without cable end, line control outputs: captive spring terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) solid without cable end, discrete input/output circuit: captive spring terminals, 1 x 0.14...1 x 1.5 mm² (AWG 26...AWG 16) solid without cable end, power supply: captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² (AWG 23...AWG 14) flexible without cable end, power supply: captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² (AWG 23...AWG 14) flexible with cable end, line control outputs: captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² (AWG 23...AWG 15) flexible without cable end, discrete input/output circuit: captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² (AWG 23...AWG 15) flexible without cable end, line control outputs: captive screw clamp terminals, 1 x 0.25...1 x 0.5 mm² (AWG 23...AWG 20) flexible with cable end, discrete input/output circuit: captive spring terminals, 1 x 0.5 mm² (AWG 20) flexible with cable end |
| Nominal output current | 60 mA for line control outputs |
| Maximum leakage current | 1 mA 2 V at state 0 discrete output |
| Communication port protocol | Modbus RTU with 1 RJ45 port(s), RS485, medium: shielded dual twisted pair cable, safe Ethernet with 2 RJ45 port(s), transmission rate: 100 Mbps, 10 Mbps, medium: dual twisted pair cable, category 5D or better |
| Discrete output voltage | 24 V DC |
| Wire stripping length | 9 mm for power supply captive spring terminals, 9 mm for line control outputs captive spring terminals, 9 mm for line control outputs captive screw clamp terminals, 9 mm for discrete input/output circuit captive spring terminals, 9 mm for discrete input/output circuit captive screw clamp terminals, 10 mm for power supply captive screw clamp terminals |
| Voltage state 0 guaranteed | <= 24 V for discrete input |
| Discrete output current | <= 7 A (all channels), 0.5 A at 60 °C (channels 1 to 3, 5 to 7, 9 to 11,13 to 15, 17 to 19, 21 to 23), 2 A at 50 °C (channels 4, 8, 12, 16, 20 and 24), 1 A at 60 °C (channels 4, 8, 12, 16, 20 and 24) |
| Net weight | 1 kg |
| Supply | SELV or PELV conforming to EN/IEC 60950 |
| Output voltage tolerance | +/- 2 % |
| Current state 1 guaranteed | 3.5...4.5 mA (discrete input) |
| Discrete input current | 100 mA |
| Overload protection | shutdown of outputs concerned with cyclic reconnection |
| Current consumption | 8 A at 24 V DC on power supply |
| Exchange mode | half duplex, full duplex, autonegotiation safe Ethernet |
| Mounting support | 35 mm symmetrical DIN rail |
| Discrete input voltage | 20 V |
| Maximum discrete output number | 24 for not isolated |
| Group of channels | 2 groups of 4 line control outputs |
| Height | 151.5 mm |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Output voltage | 20 V line control outputs |
| No load current | 0.5 A |
| Number of terminal blocks | 8 for line control outputs, 6 for discrete input/output circuit, 2 for line control outputs, 1 for power supply |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (enclosure) |
| Shock resistance | 15 gn for 11 ms conforming to EN 61131-2 |
| Vibration resistance | 1 gn conforming to EN 61131-2 (f = 9-150 Hz) |
| Ambient air temperature for operation | 0-60 °C conforming to EN 61131-2 |
| Pollution degree | 2 |
| Immunity to microbreaks | 10 ms |
| Standards | DIN VDE 0116 : 1989, EN 230 : 1990, EN 298 : 2003, EN 61000-6-4 : 2001, IEC 61511 part 1-3 : 2004, NFPA 85 : 2001, EN 61000-6-2 : 2001, EN 54-2 : 1997, NFPA 72 : 2002, EN 50156-1 : 2004, EN/IEC 61131-2 : 2003, EN 12067-2 : 2004 |
| Resistance to electromagnetic fields | 10 V/m (80-2000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
