Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | single-pole measuring of 0 to 20 mA currents, single-pole measuring of - 10 V to 10 V voltages, closed circuit scanning of input channels, 2-pole measuring of - 10 to 10 V voltages |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Connections - terminals | removable screw terminal block, 2 x 0.5 mm² (AWG 20) flexible with cable end, removable screw terminal block, 2 x 0.25...2 x 0.34 mm² (AWG 22) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.75 mm² (AWG 28...AWG 18) flexible without cable end, removable screw terminal block, 2 x 0.14...2 x 0.5 mm² (AWG 28...AWG 20) solid without cable end, removable screw terminal block, 1 x 0.25...1 x 1.5 mm² (AWG 22...AWG 16) flexible without cable end, removable screw terminal block, 1 x 0.25...1 x 0.5 mm² (AWG 22...AWG 20) flexible with cable end, removable screw terminal block, 1 x 0.14...2 x 1.5 mm² (AWG 28...AWG 16) solid without cable end, removable screw terminal block, 1 x 0.14...1 x 1.5 mm² (AWG 28...AWG 16) flexible without cable end |
| Analogue input number | 8 unipolar isolated, 4 bipolar isolated |
| Safety module name | XPS MF60 |

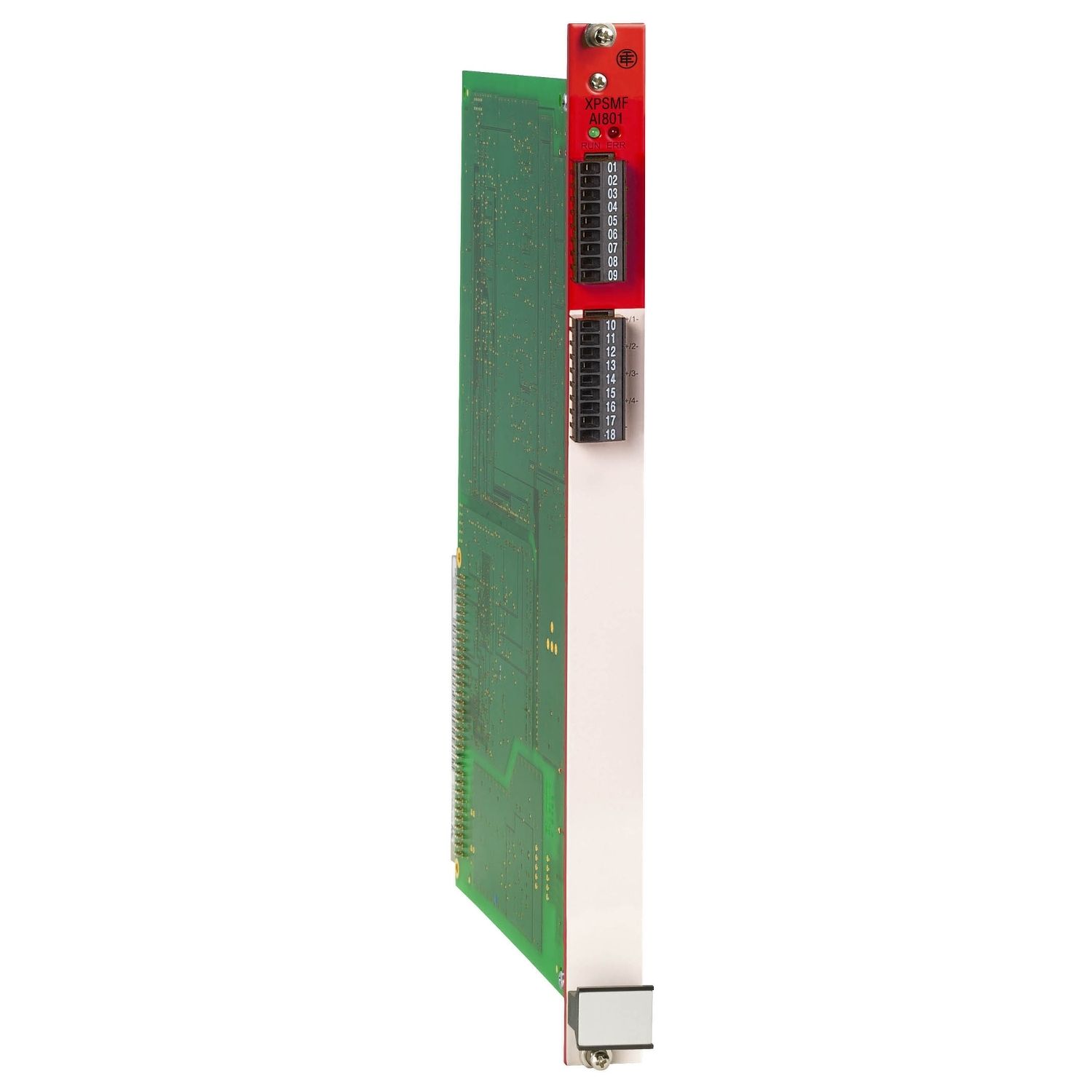

| Product or component type | analogue input card |
| Standards | EN 50156 pending, DIN V 19250, IEC 61131, DIN V 0801 |
| Range of product | Preventa Safety automation |
| Group of channels | 1 group of 8 or 2 groups of 4 inputs |
| [Us] rated supply voltage | 24 V DC - 15...20 % |
| Complementary | |
| Input current limits | 0-20.5 mA with shunt |
| Input overvoltage protection | -15-15 V |
| Analogue input resolution | 9 bits effective, 12 bits maximum |
| Internal resistance | 1 MOhm |
| Net weight | 0.24 kg |
| Processing time | 45 µs |
| Input voltage limits | +/- 10.25 V, +/- 10.7 V maximum |
| Safety accuracy | <= +/-1 % for analogue input circuit |
| Marking | CE |
| Acquisition period | once per CPU cycle |
| Current consumption | 380 mA at 24 V DC power supply, 150 mA at 3.3 V DC rack |
| Transient deviation | <= +/-1 % |
| External resistance | 500 Ohm, 250 Ohm |
| Analogue input range | - 10...10 V, 0...20 mA with shunt |
| Number of terminal blocks | 2 |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN/IEC 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (with covering plate on unused in rack I/O card slots) |
| Shock resistance | 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2 |
| Vibration resistance | 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C conforming to EN/IEC 61131-2 |
| Pollution degree | 2 |
| Resistance to electromagnetic fields | 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
| Product certifications | C-Tick, TÜV, UL, CSA |
