Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Safety use category | SIL 3 conforming to EN/IEC 61508, performance level e conforming to EN/ISO 13849-1, category 4 maximum conforming to EN 954-1 |
| Safety module name | XPS MF60 |
| Associated module | XPSMFPS01 (24 V power supply module), XPSMFDO801 (I/O card), XPSMFDIO241601 (I/O card), XPSMFDI3201 (I/O card), XPSMFDI2401 (I/O card), XPSMFCPU22 (CPU), XPSMFCIO2401 (I/O card), XPSMFAO801 (I/O card), XPSMFAI801 (I/O card) |

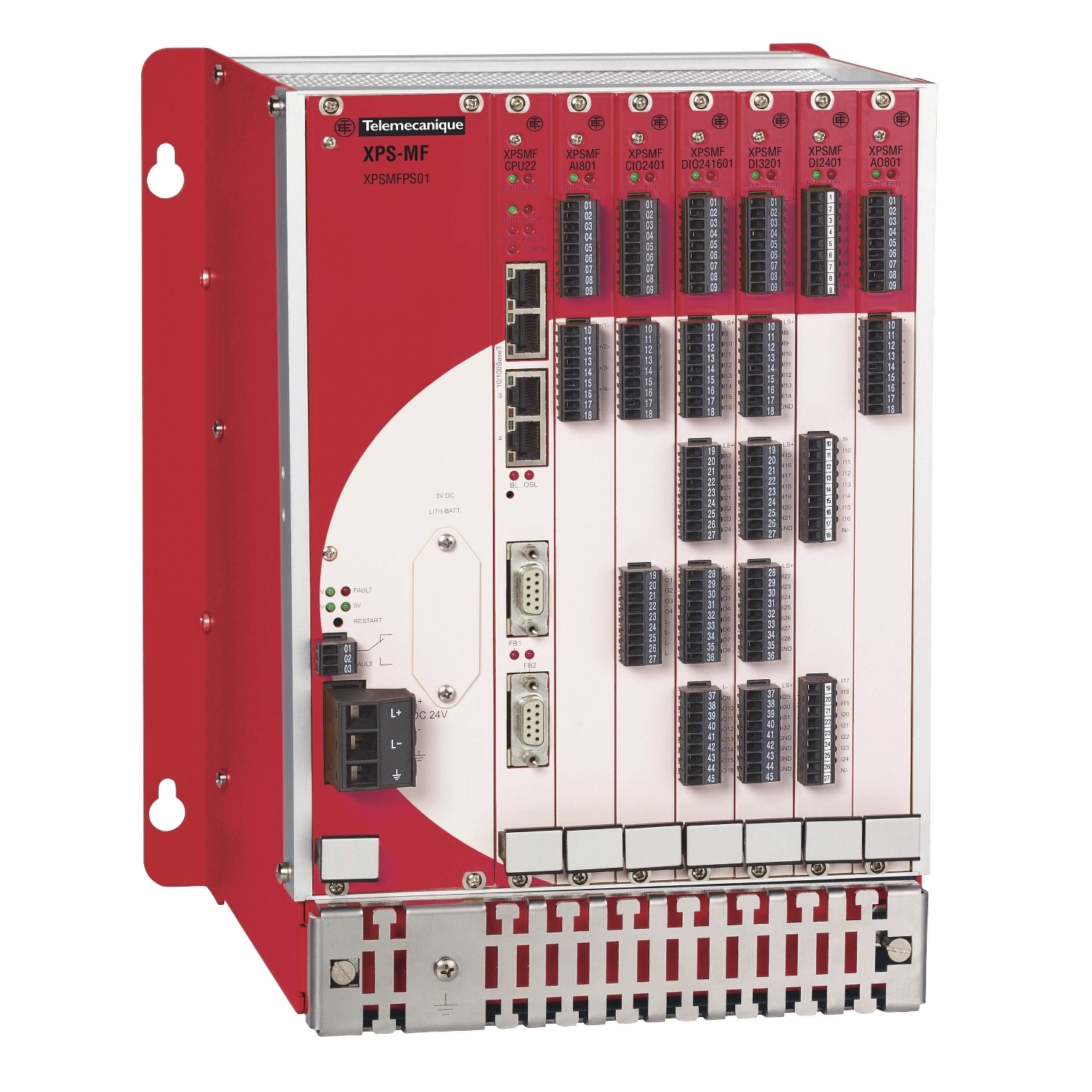

| Product or component type | Preventa safety PLC housing |
| Standards | DIN V 19250, DIN V 0801, IEC 61131, EN 50156 pending |
| Range of product | Preventa Safety automation |
| Complementary | |
| Depth | 239 mm |
| Width | 257 mm |
| Type of cooling | 2 fans |
| Material | metal alloy |
| Mounting support | vertical support |
| Device mounting | 4 x Ø 14 mm elongated holes |
| Height | 310 mm |
| Environment | |
| Operating altitude | < 2000 m |
| Electrical shock protection class | class II conforming to IEC 61131-2 |
| Resistance to electrostatic discharge | 8 kV on air conforming to EN/IEC 61000-4-2, 4 kV contact conforming to EN/IEC 61000-4-2 |
| Relative humidity | 95-95 % supply not connected |
| Ambient air temperature for storage | -40-85 °C conforming to EN/IEC 61131-2 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| IP degree of protection | IP20 (with covering plate on unused in rack I/O card slots) |
| Shock resistance | 15 gn for 11 ms (2 cycles per axis) conforming to EN 61131-2 |
| Vibration resistance | 1 gn (f = 10-150 Hz) - 10 cycles per axis - conforming to EN 61131-2 |
| Ambient air temperature for operation | 0-60 °C |
| Pollution degree | 2 |
| Resistance to electromagnetic fields | 10 V/m (26-1000 MHz), amplitude modulation 80 % conforming to EN/IEC 61000-4-3 |
