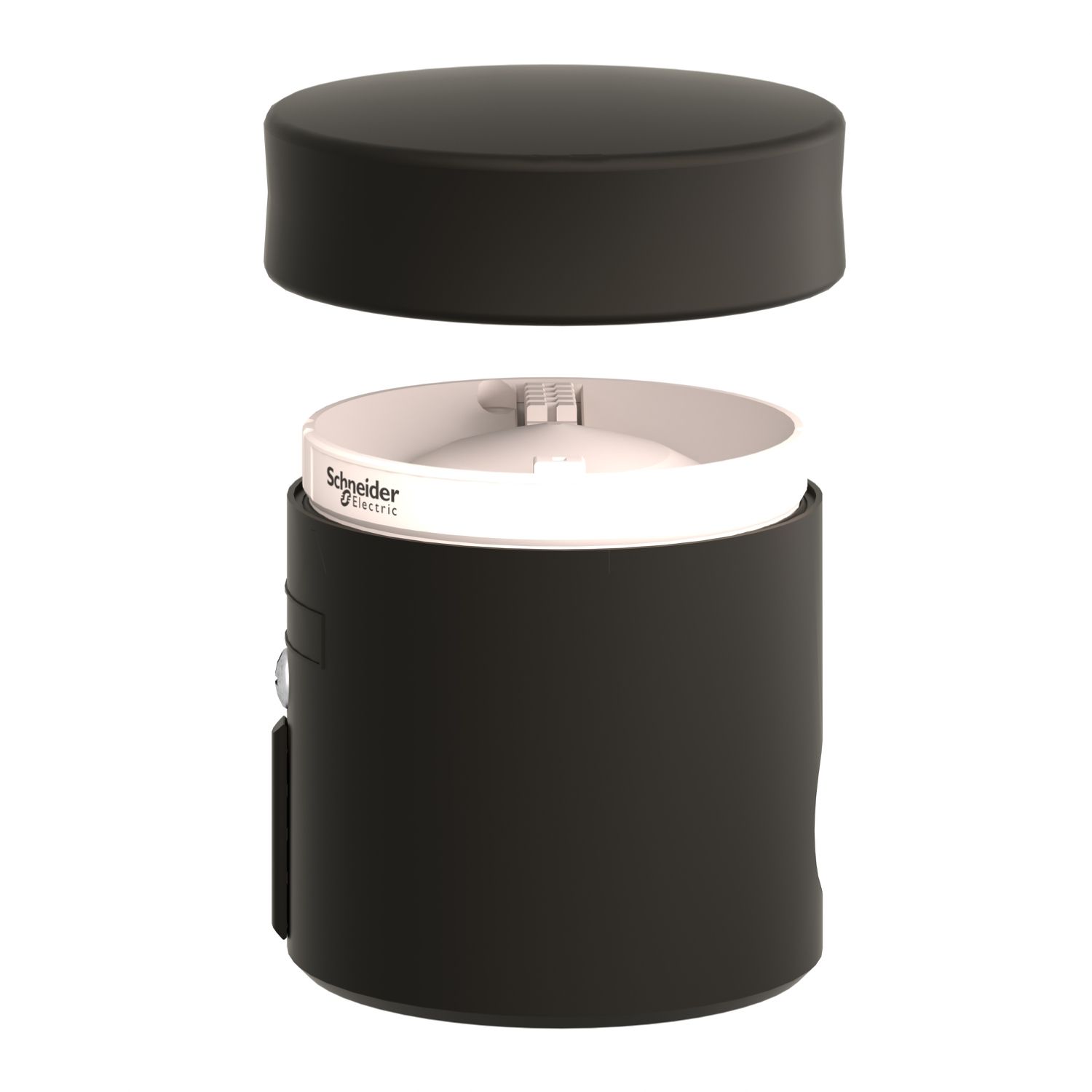

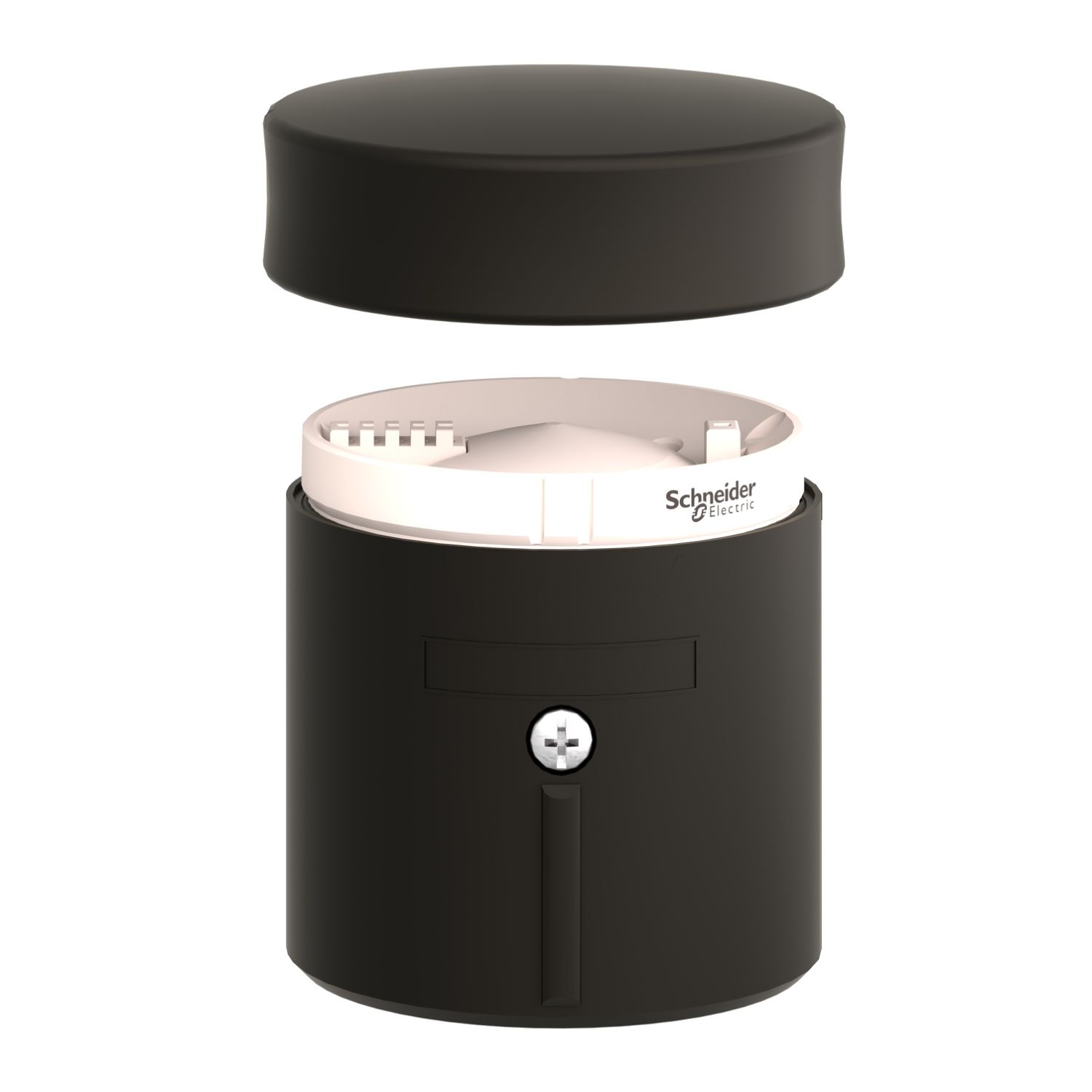

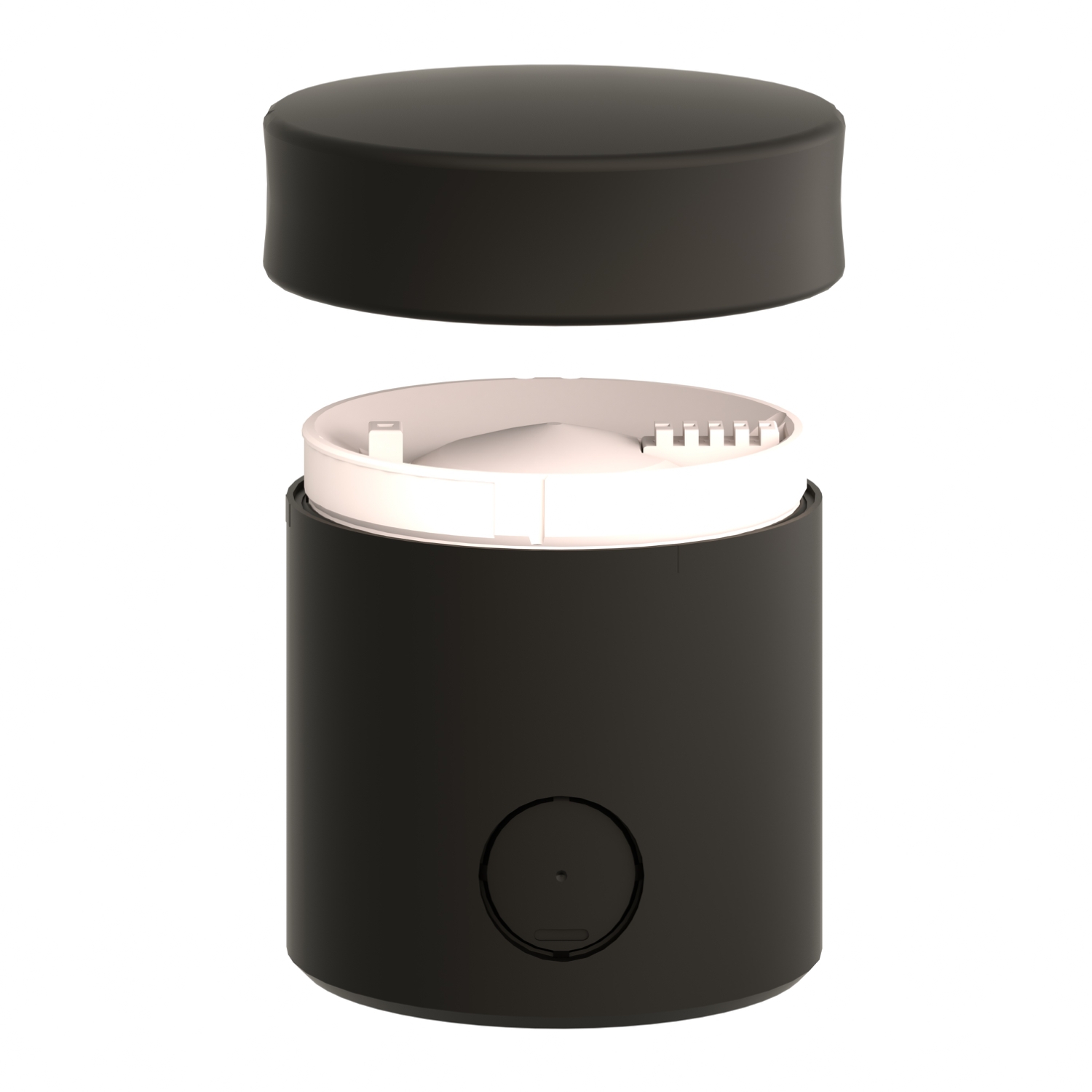

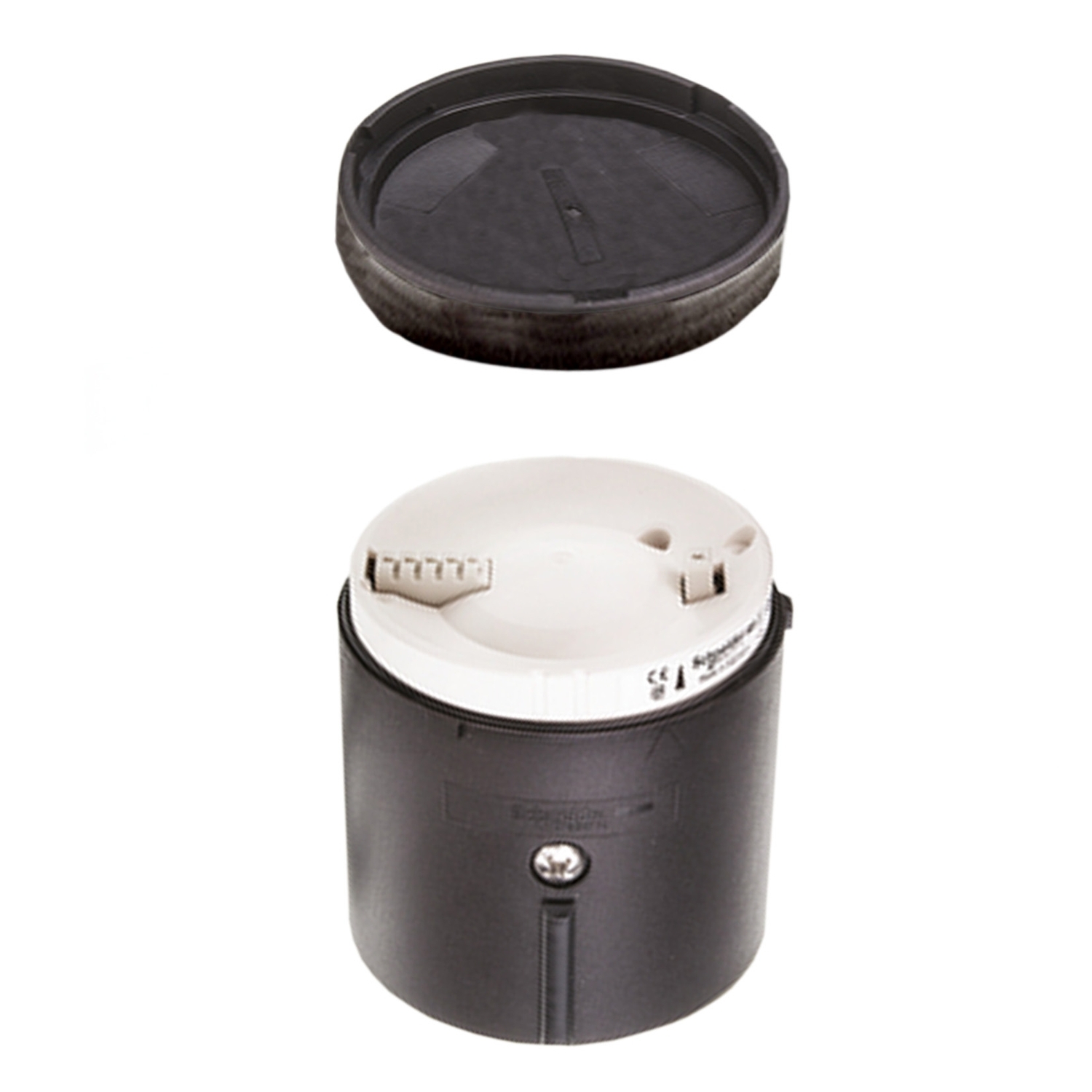

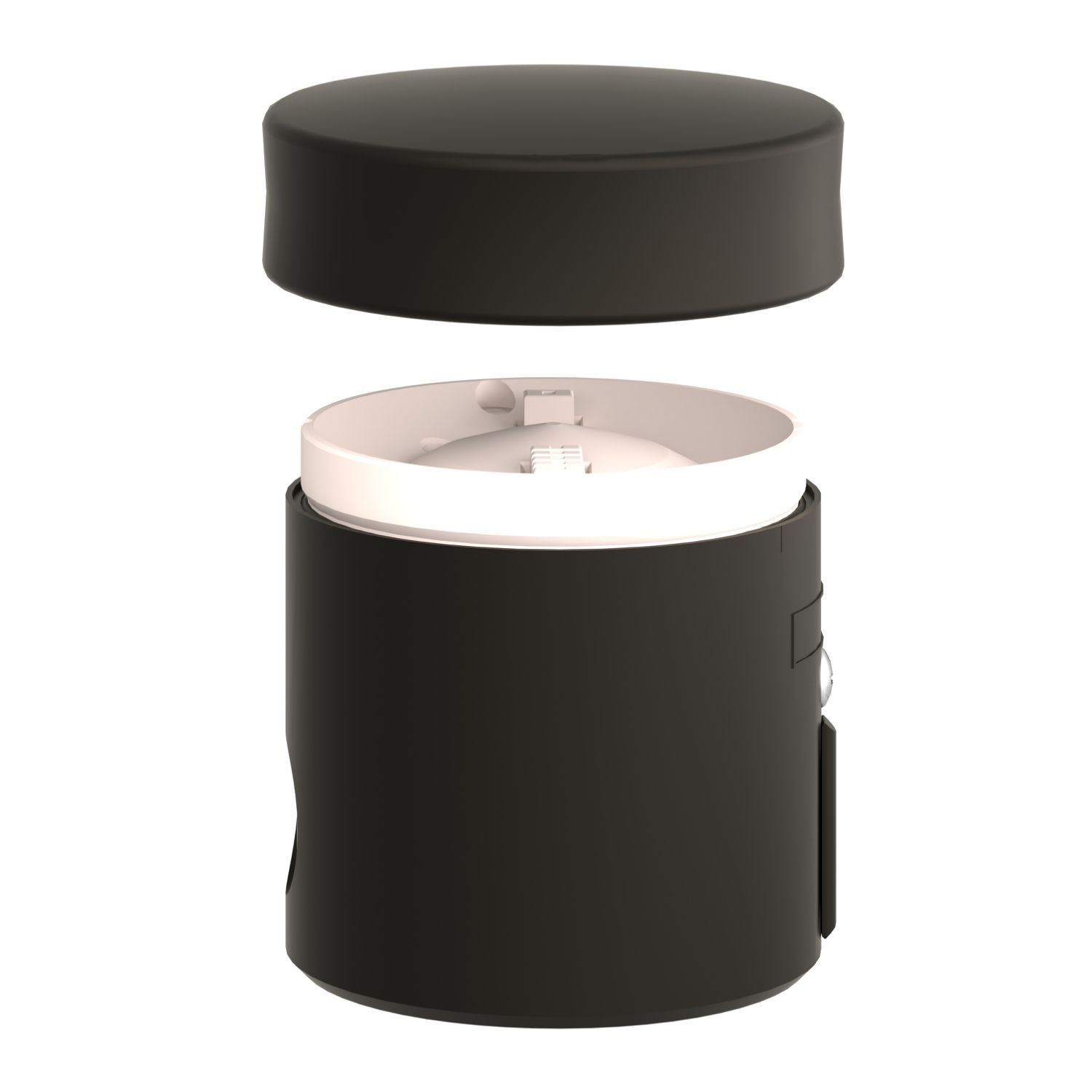

This base unit is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It is made of glass reinforced polyamide material and it allows the cable to entry from the side. It complies with EN/IEC 60947-5-1, EN/IEC 60068-2-27, UL 508, CSA, AS-Interface No 25701 standards with NEMA 4X protection.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Component name | XVBC |
| Product or component type | base unit with cover |
| Range of product | Harmony XVB Universal |
| Complementary | |
| [Us] rated supply voltage | AS-Interface line: 24...31.6 V, external: 19.2...30 V |
| Range compatibility | AS-Interface cabling system |
| Cable entry | side entry |
| Material | polycarbonate: cover unit, glass reinforced polyamide: base unit |
| Assembly style | customer assembly, up to 5 units |
| Electrical connection | 1 connector M12 for AS-Interface line |
| Actuator sensor interface profile [AS-i] | S.7.F |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.19 kg |
| Mounting diameter | 70 mm |
| Terminals description ISO n°1 | (COM-2)PW, (GND)GROUND, (COM-3)PW, (COM-4)PW, (COM-1)PW, (COM-5)PW |
| Current consumption | 30 mA no load, 30 mA under load external, 250 mA under load via AS-Interface line |
| Environment | |
| Protective treatment | TC |
| NEMA degree of protection | NEMA 4X conforming to UL 508 (indoor) |
| Overvoltage category | class I conforming to IEC 60536 |
| Ambient air temperature for storage | -20-70 °C |
| Vibration resistance | 5 gn conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Shock resistance | 25 gn conforming to IEC 60068-2-27 |
| Standards | EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -10-50 °C |
| Product certifications | CSA, AS-Interface No 25701 |
