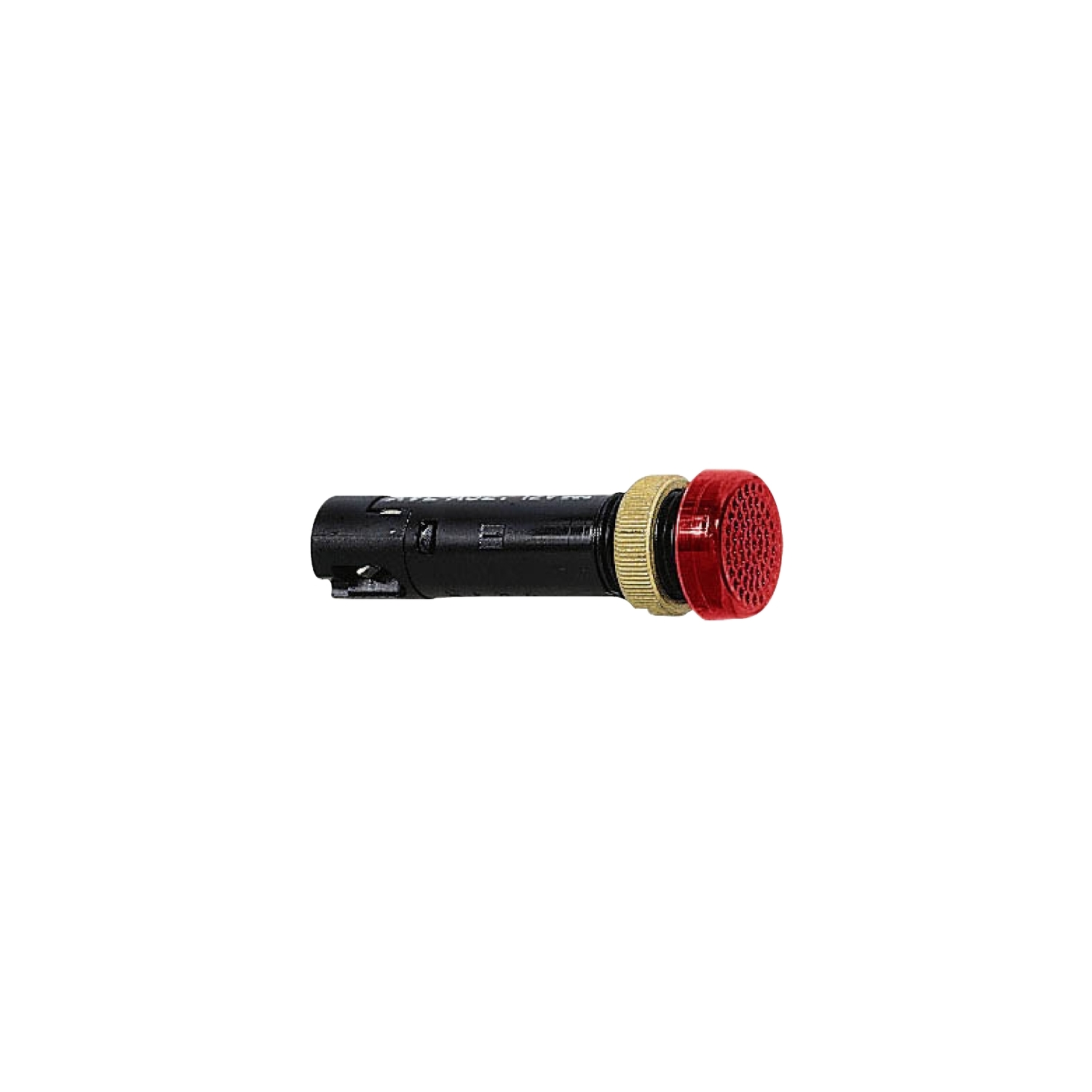

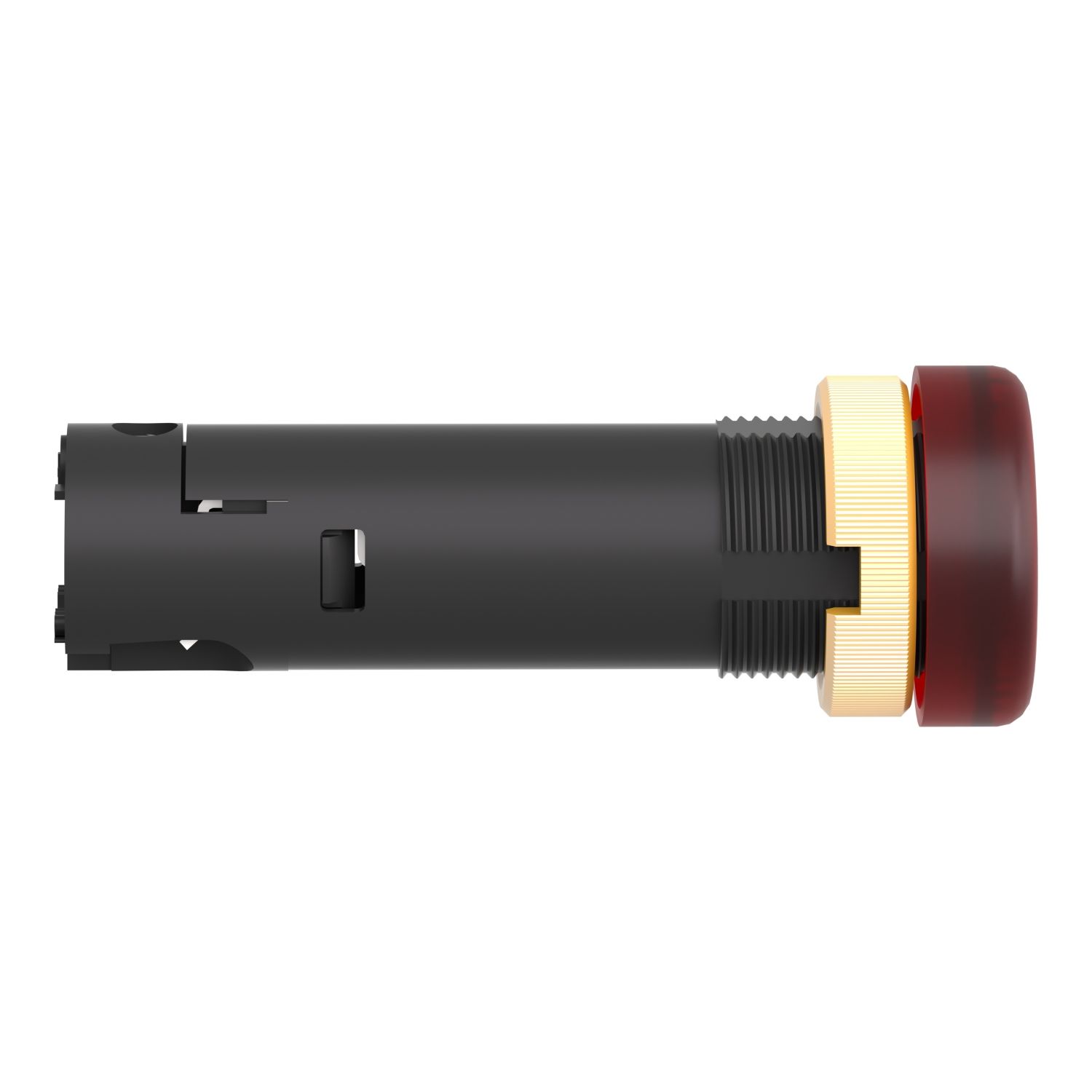

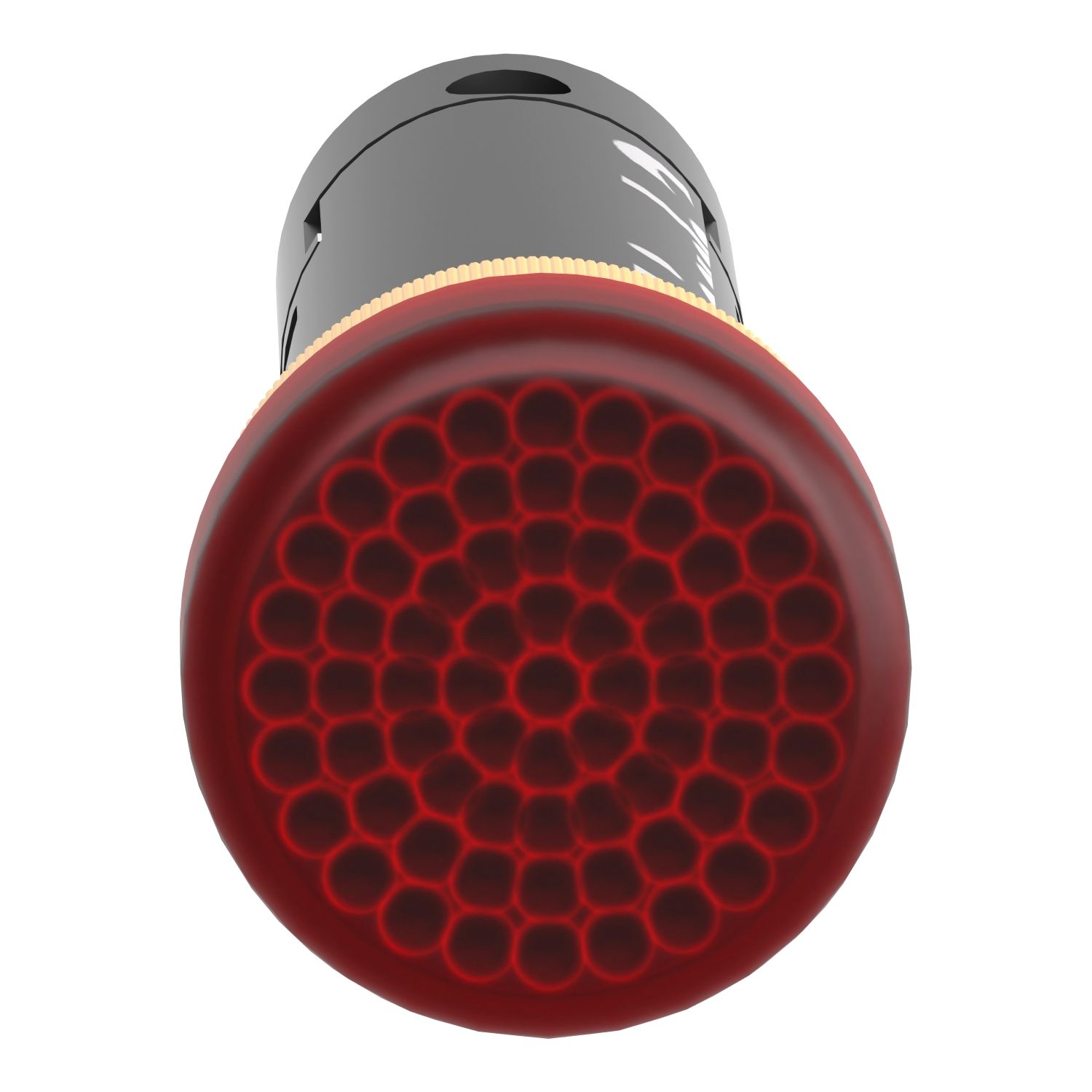

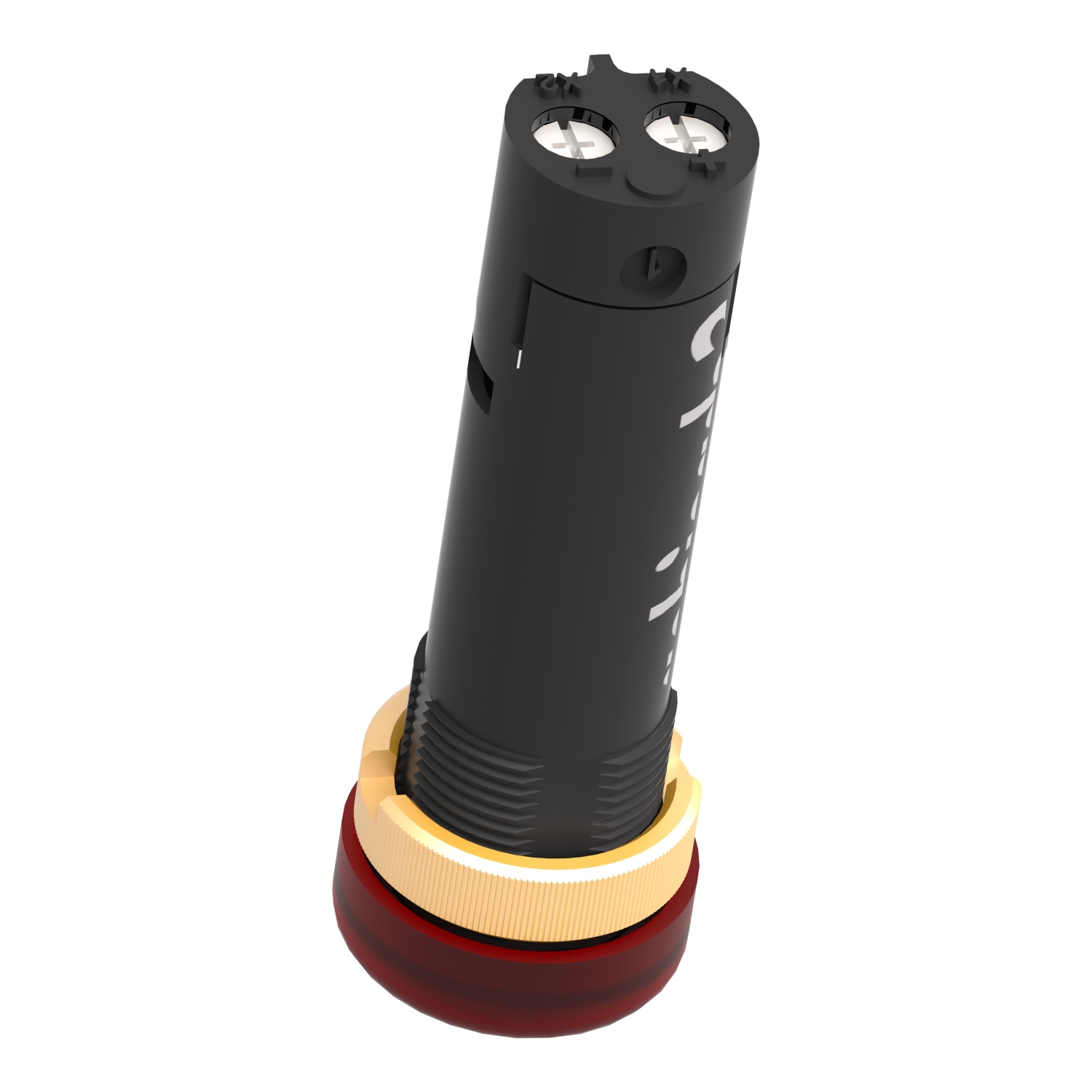

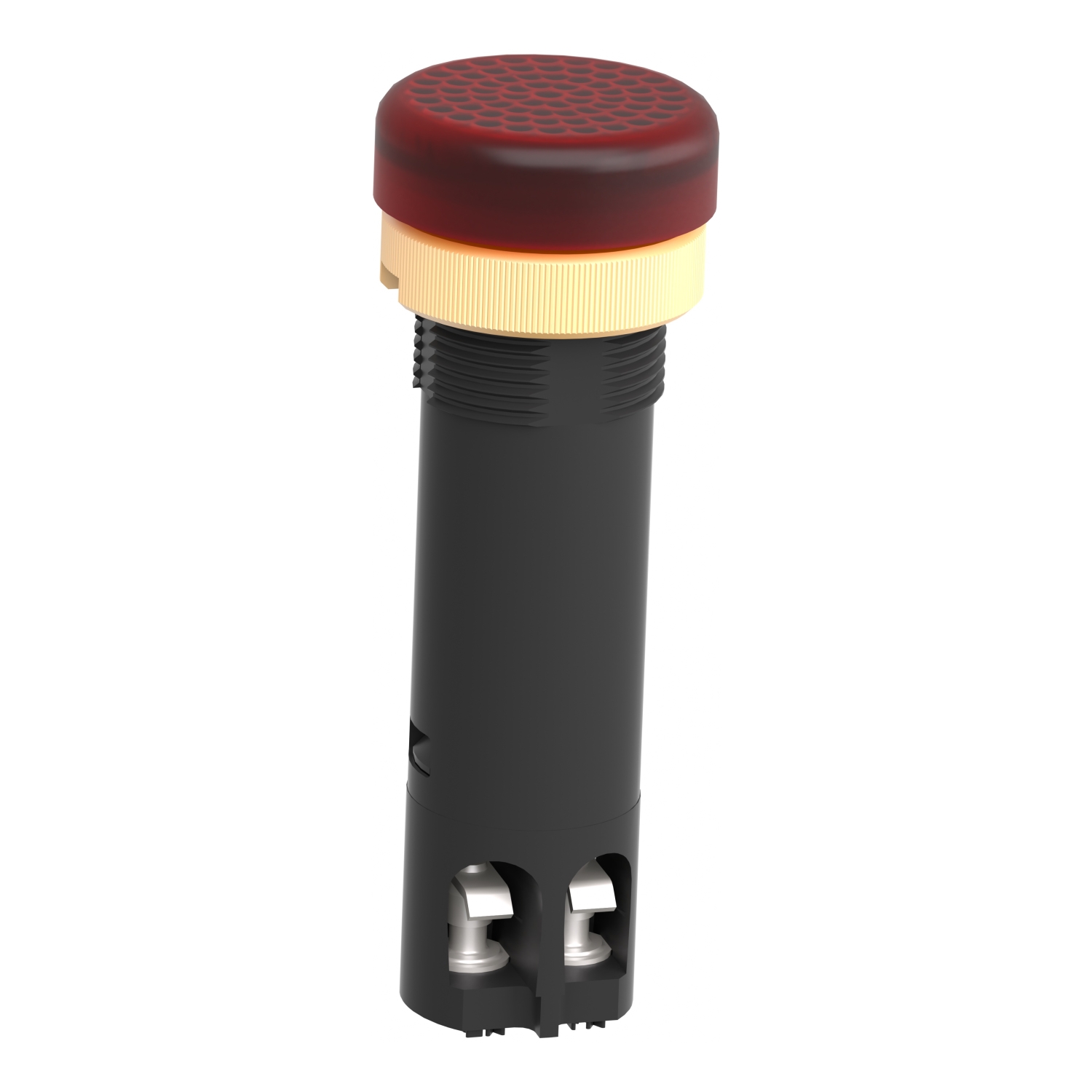

This Harmony XVLA334 is a red pilot light diameter 12mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 24V, lugs connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Light block colour | red |
| Protection type | integral ballast resistor, built-in by diode |
| [Us] rated supply voltage | 24 V |
| IP degree of protection | IP40 conforming to NF C 20-010, IP40 conforming to IEC 60529, IP65 (with seal XVLZ912) conforming to NF C 20-010, IP65 (with seal XVLZ912) conforming to IEC 60529 |
| Range of product | Harmony XVL |
| Component name | XVL |
| Product or component type | LED pilot light with integral lens cap |
| Mounting diameter | 12 mm |
| Light source | covered LED |
| Complementary | |
| Nominal voltage limit | 0.8...1.1 Un |
| Connections - terminals | threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm² |
| Bulb lifespan | 100000 h |
| Height | 16 mm |
| Depth | 51 mm |
| Width | 16 mm |
| Supply circuit type | DC |
| [Ui] rated insulation voltage | 50 V conforming to IEC 60947-1 |
| Current consumption | 18 mA |
| Net weight | 0.007 kg |

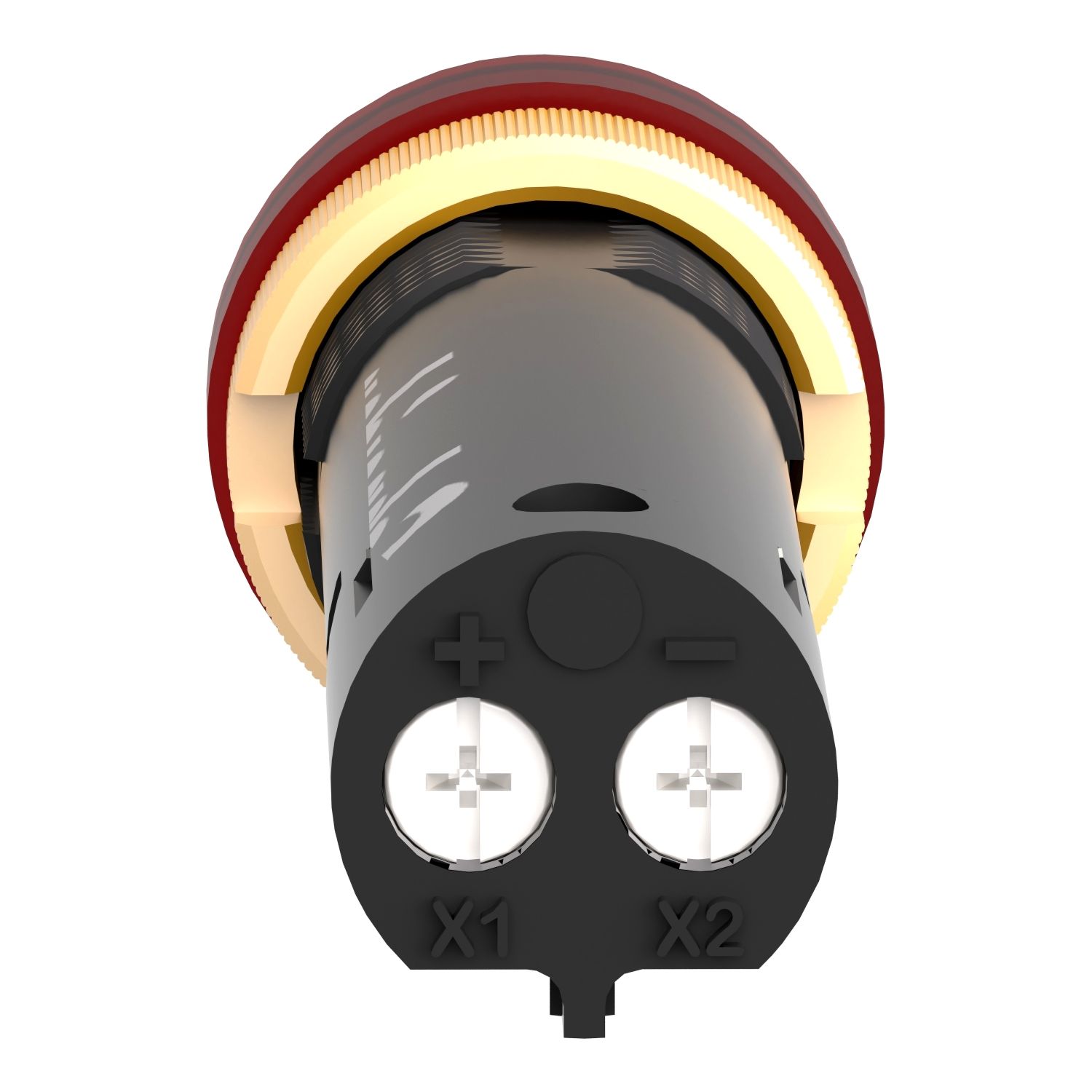

| Terminals description ISO n°1 | (X1-X2)PL |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -25-70 °C |
| Overvoltage category | class 3 conforming to NF C 20-030, class 3 conforming to IEC 60536 |
| Product certifications | CSA, UL |
Only registered users can write reviews
Related products

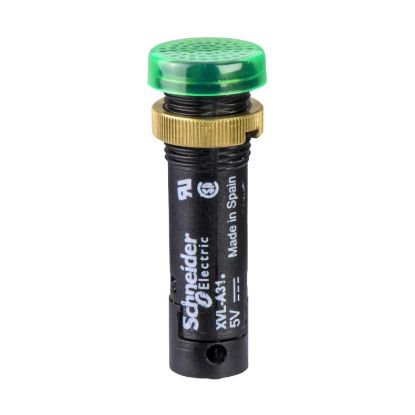

Pilot light, Harmony XVL, plastic, green, 12mm, covered LED, 24V DC
XVLA333
Pilot light, Harmony XVL, plastic, green, 12mm, covered LED, 24V DC
$64.46 inc GST
$39.22 inc GST

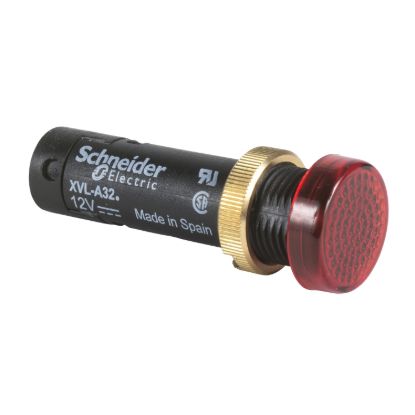

Pilot light, Harmony XVL, plastic, red, 12mm, covered LED, 12V DC
