Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V AC/DC |
| Device short name | XVR |
| Sound signalling | buzzer |
| Noise level | 50-90 dB (continuous or intermittent tone) at 1 m |
| IP degree of protection | IP23 conforming to IEC 60529 |

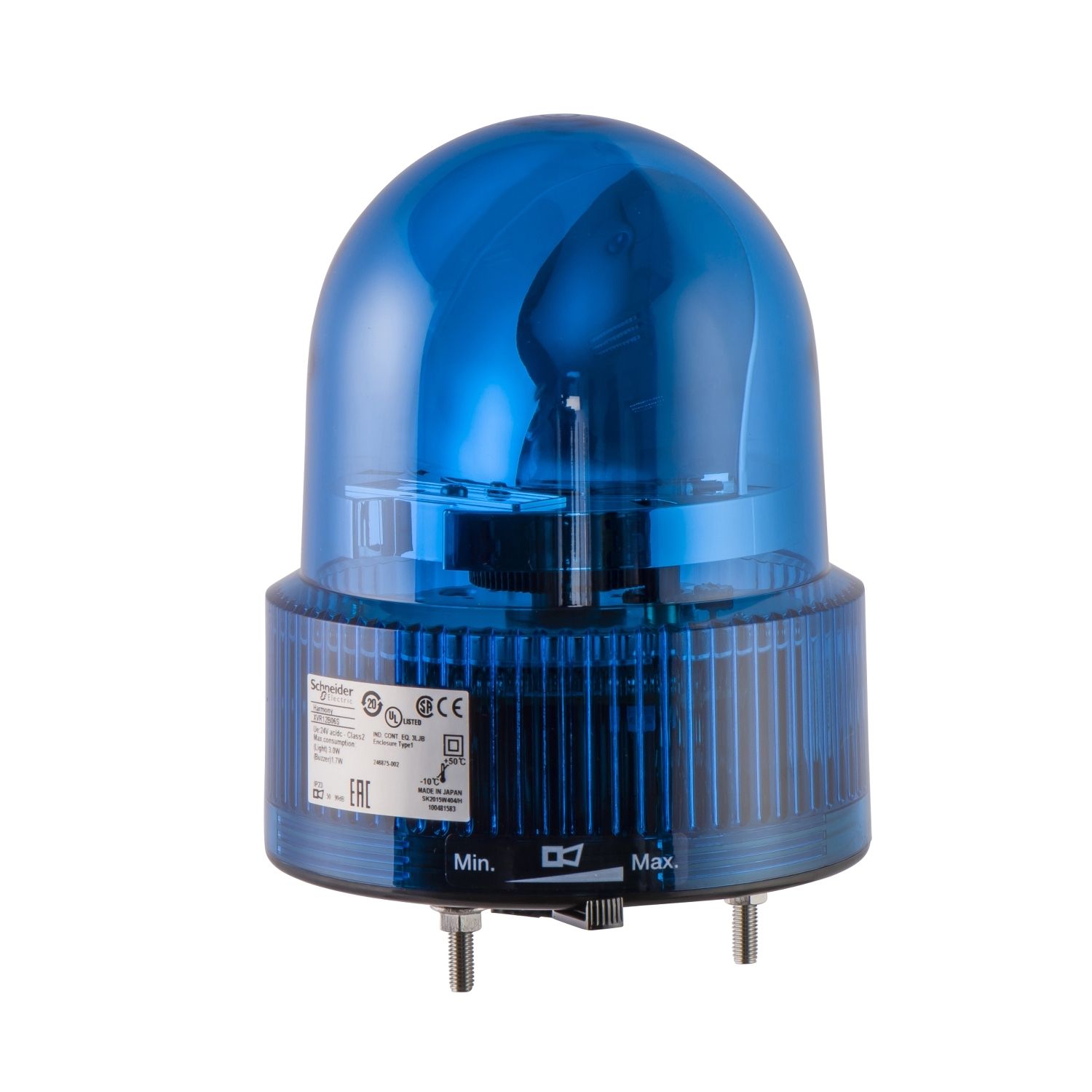

| Product or component type | prewired rotating mirror beacon |
| Light source | high luminosity LED, blue |
| Mounting diameter | 120 mm |
| Range of product | Harmony XVR |
| Complementary | |
| CAD overall depth | 120 mm |
| CAD overall width | 120 mm |
| Compatibility code | XVR |
| Material | AS: globe, ABS (acrylonitrile butadiene-styrene): body part |
| Product mounting | by 3 M5 screws |
| Supply voltage limits | 21.6-26.4 V AC, 19-30 V DC |
| AWG gauge | AWG 18 |
| Current consumption | 196 mA |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Net weight | 0.5 kg |
| Marking | CE |
| Cable length | 400 mm |
| Flashing frequency | 2.3 Hz |
| Clamping connection capacity | 0.83 mm² |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -35-70 °C |
| Standards | IEC 61000-6-2, IEC 61000-6-4 |
| Ambient air temperature for operation | -10-50 °C |
