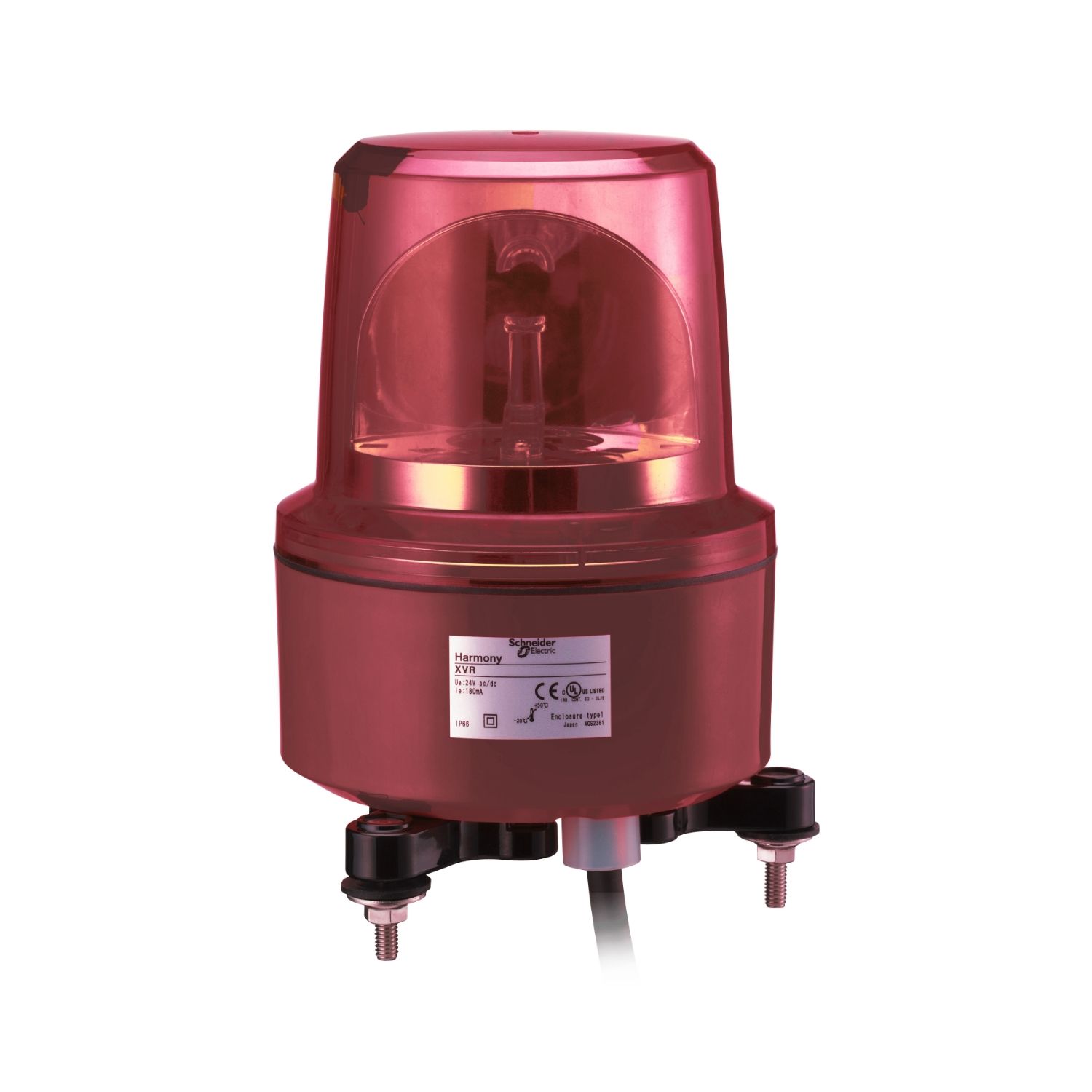

This Rotating beacon is designed as lighting accessory for tower light Its red high luminosity LED light pattern, allowing it to clearly display the status of your machines in applications such as forklift, bulldozer and automated guided vehicle (AGV) It is vibration, impact, high pressure washer and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V AC/DC |
| Device short name | XVR |
| Sound signalling | without |
| IP degree of protection | IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Product or component type | prewired rotating mirror beacon |
| Light source | high luminosity LED, red |
| Mounting diameter | 130 mm |
| Range of product | Harmony XVR |
| Complementary | |
| CAD overall depth | 130 mm |
| CAD overall width | 130 mm |
| Compatibility code | XVR |
| Material | PC: globe, ABS (acrylonitrile butadiene-styrene): body part |
| Product mounting | by 3 M6 screws |
| AWG gauge | AWG 18 |
| Current consumption | 125 mA |
| [Uimp] rated impulse withstand voltage | 0.8 kV |
| Net weight | 0.82 kg |
| Marking | CE |
| Cable length | 400 mm |
| Flashing frequency | 2.7 Hz |
| Clamping connection capacity | 1.25 mm² |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -35-70 °C |
| Standards | EN/IEC 61000-6-4, EN/IEC 61000-6-2 |
| Ambient air temperature for operation | -30-50 °C |
