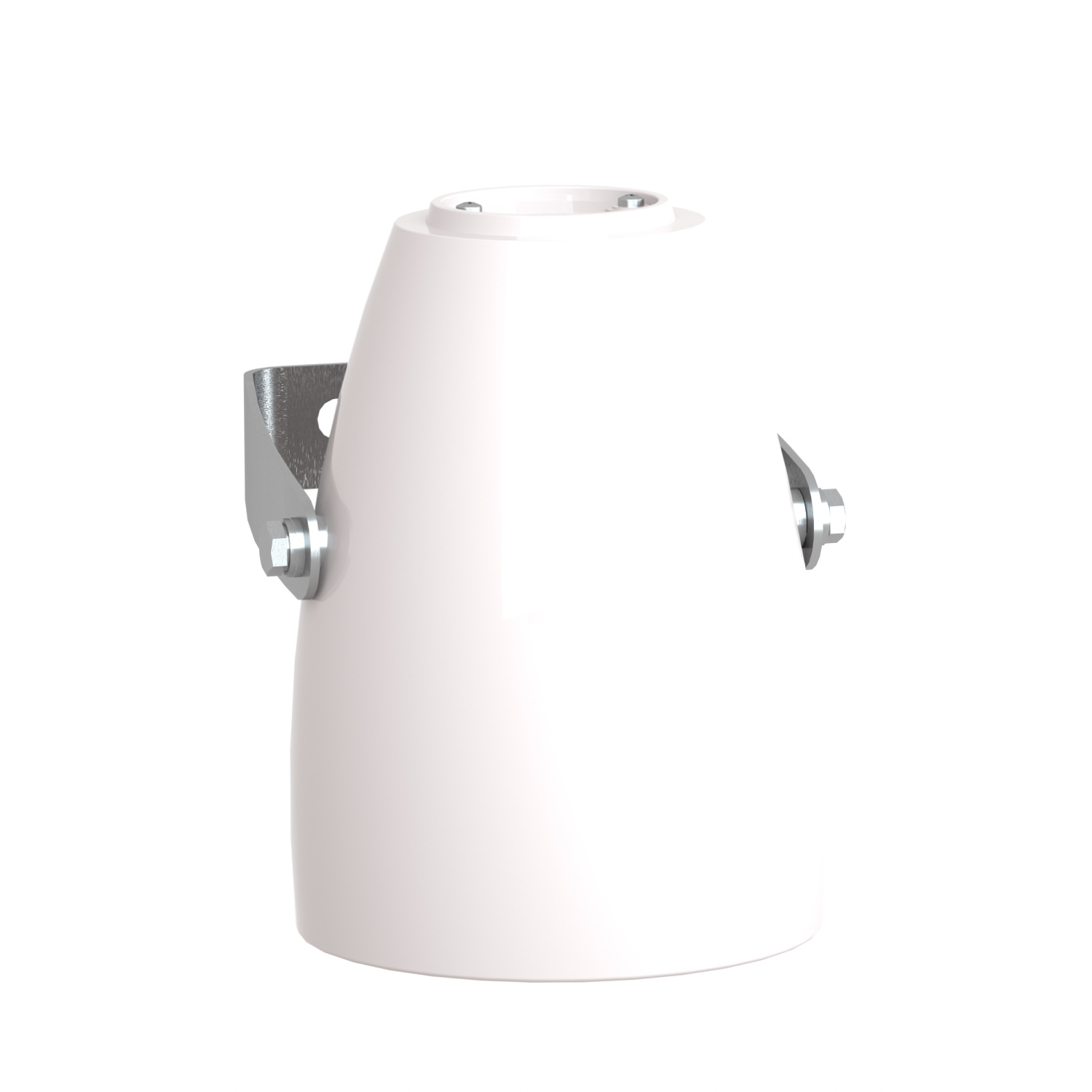

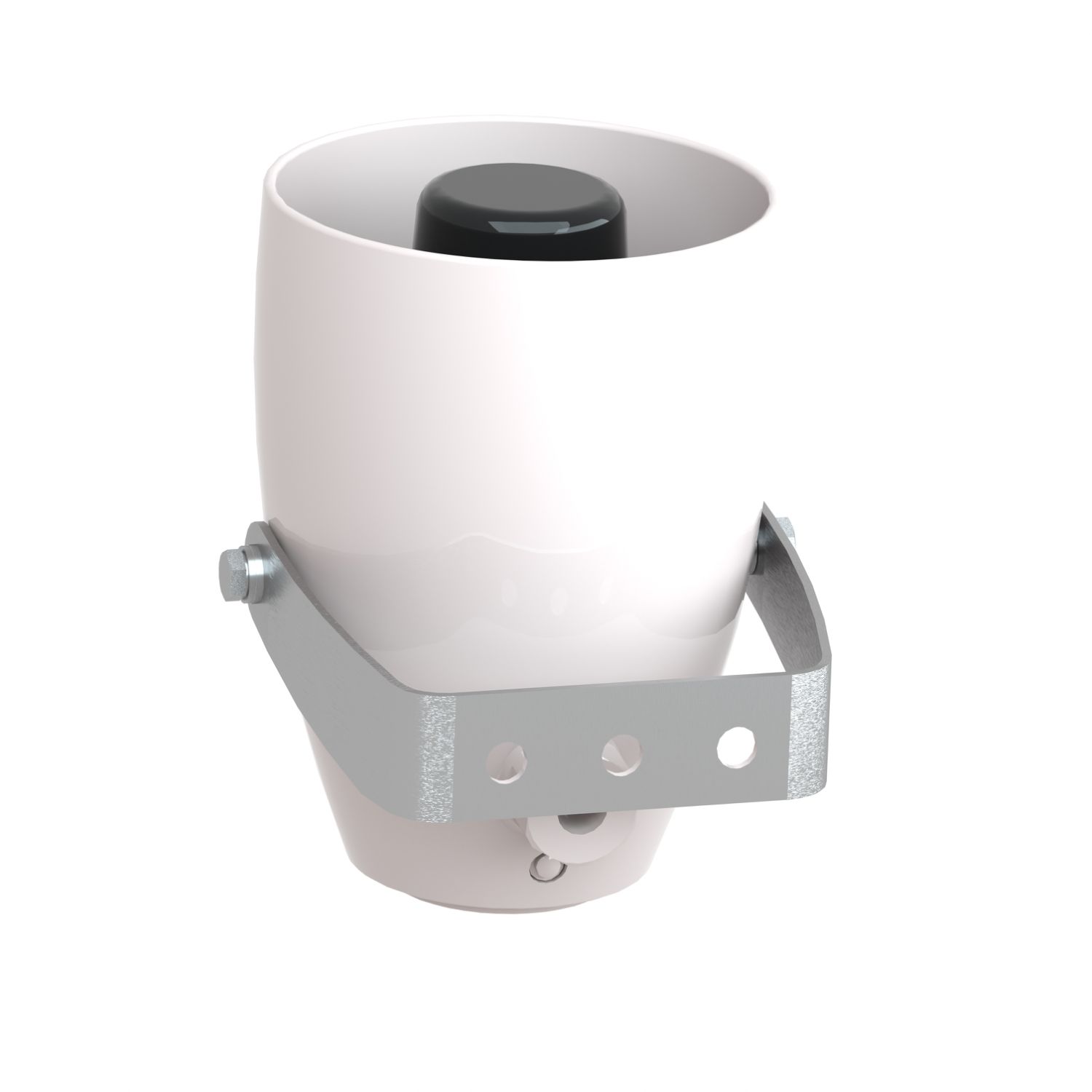

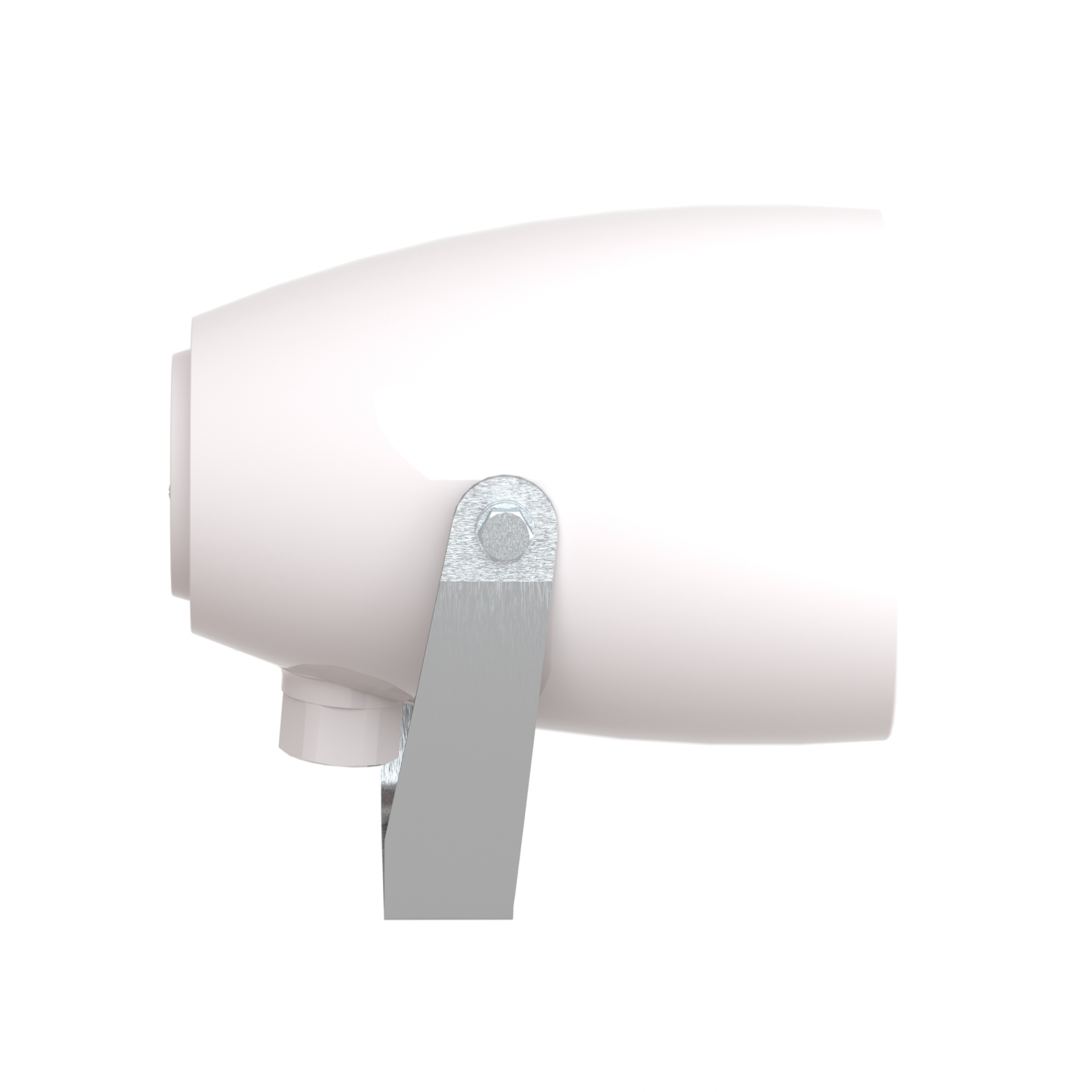

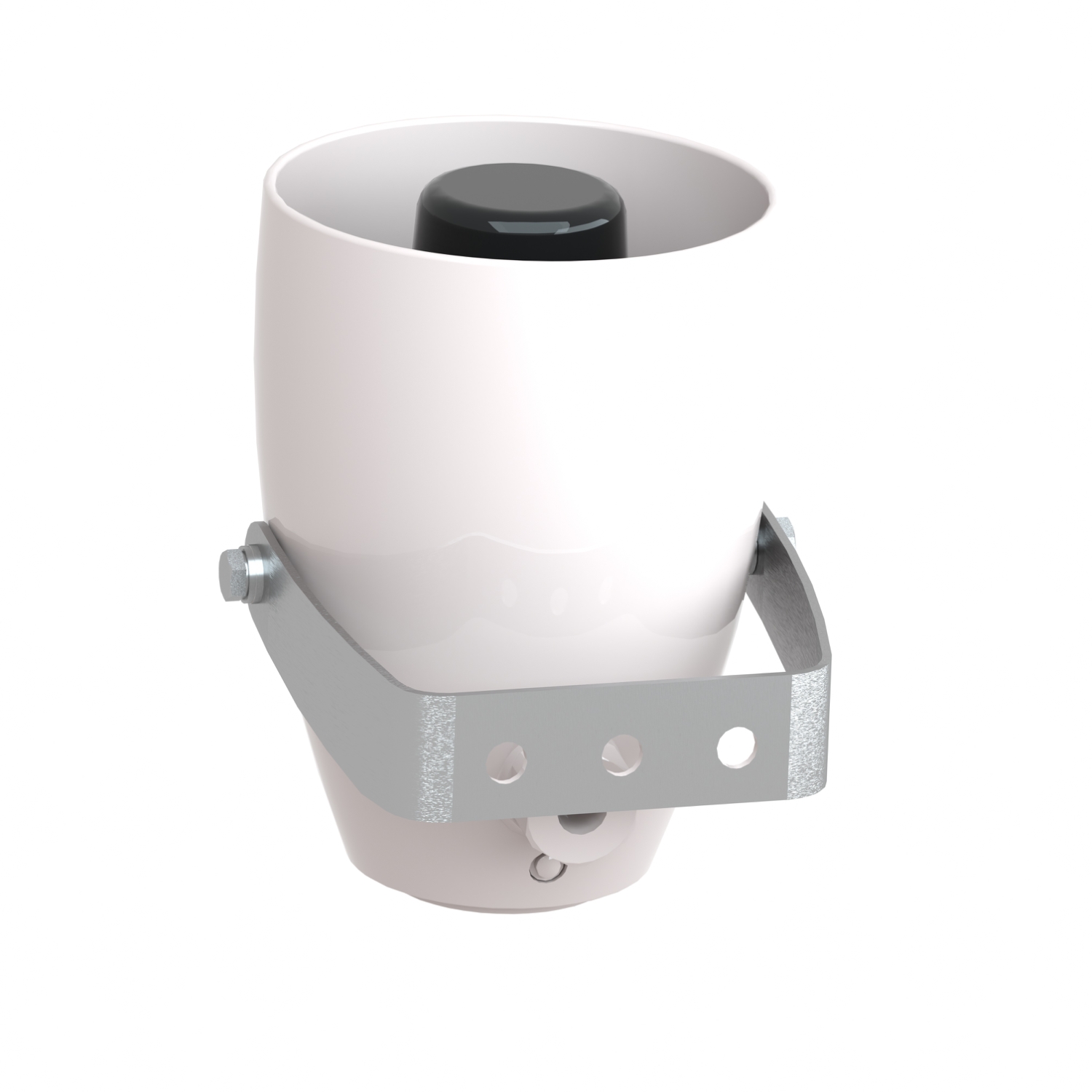

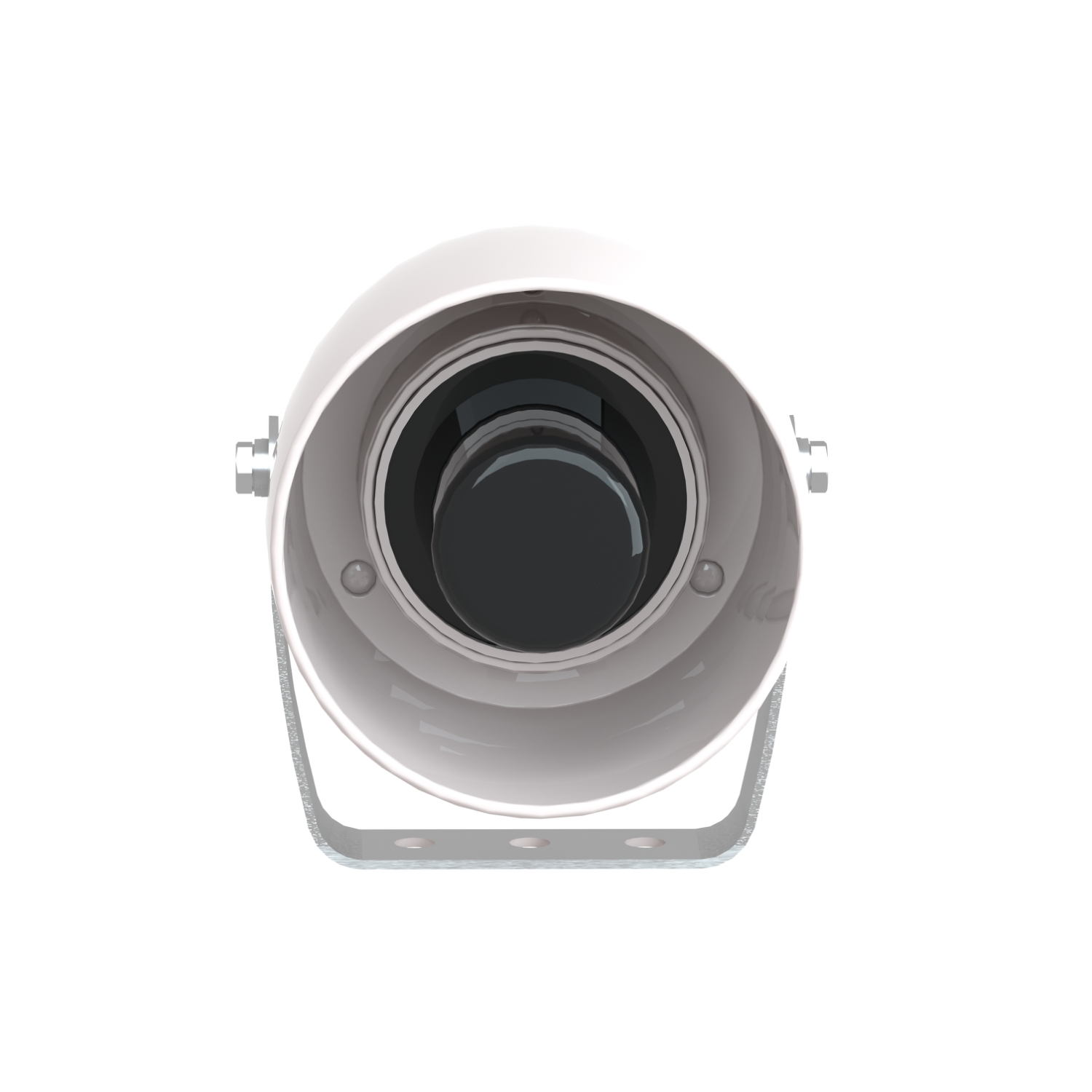

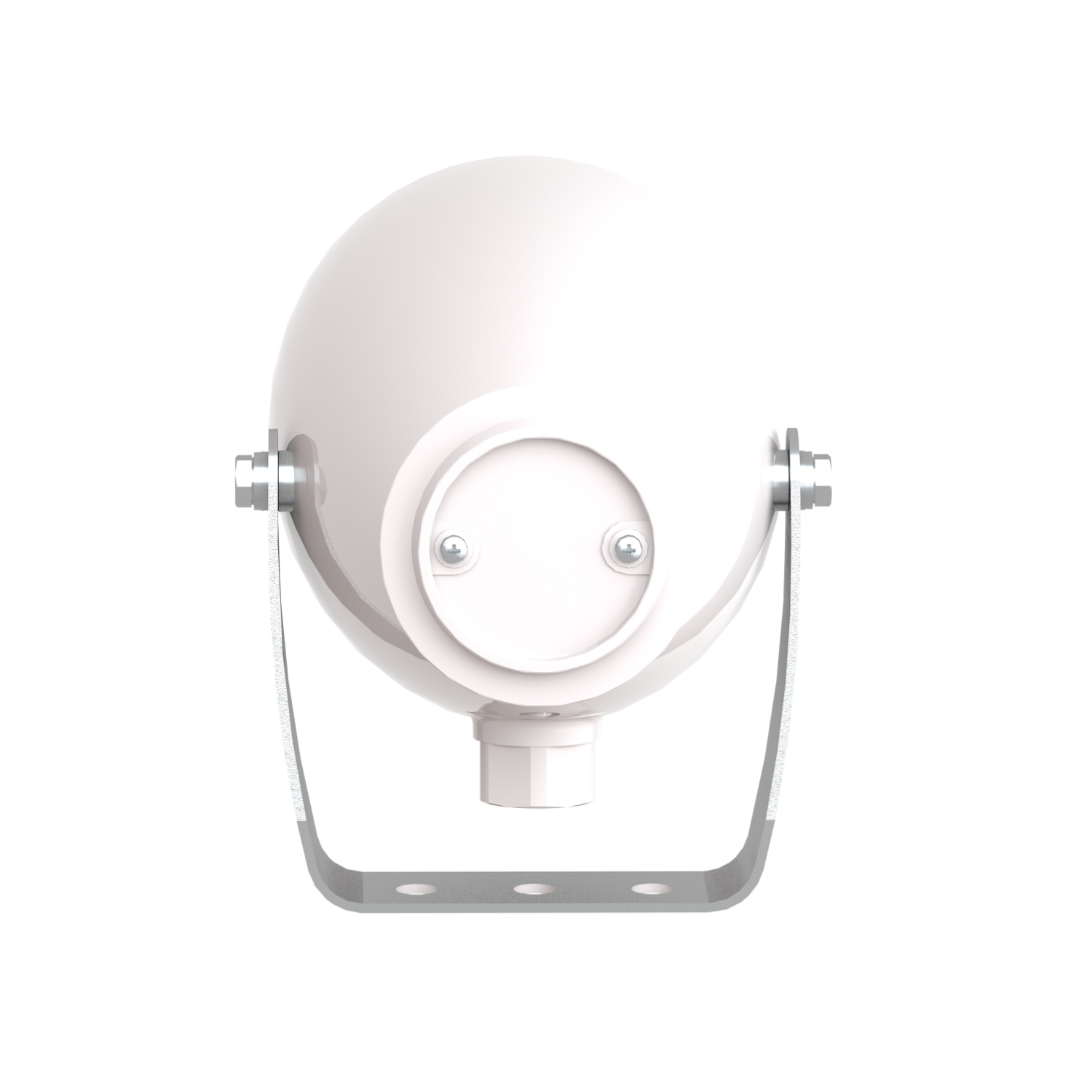

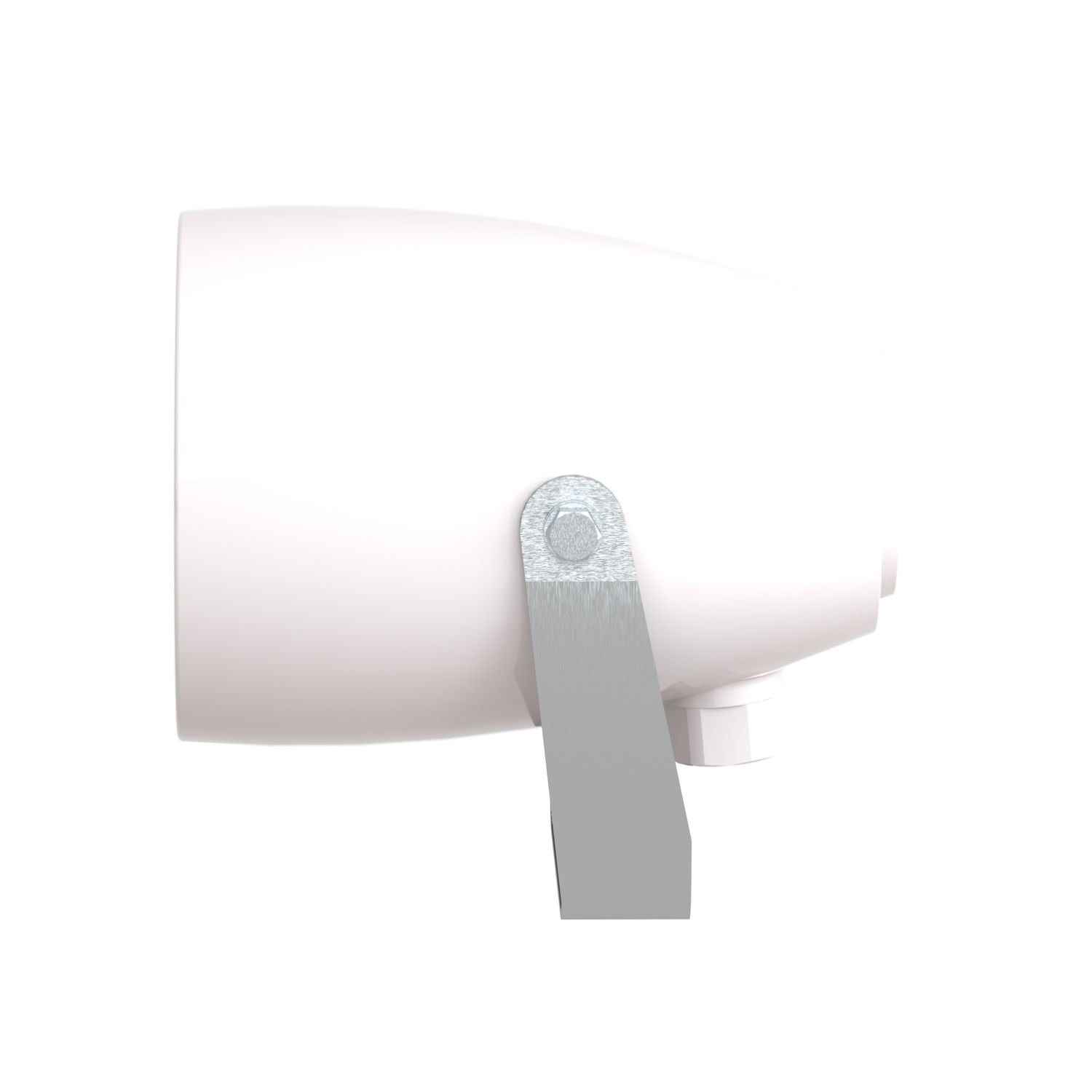

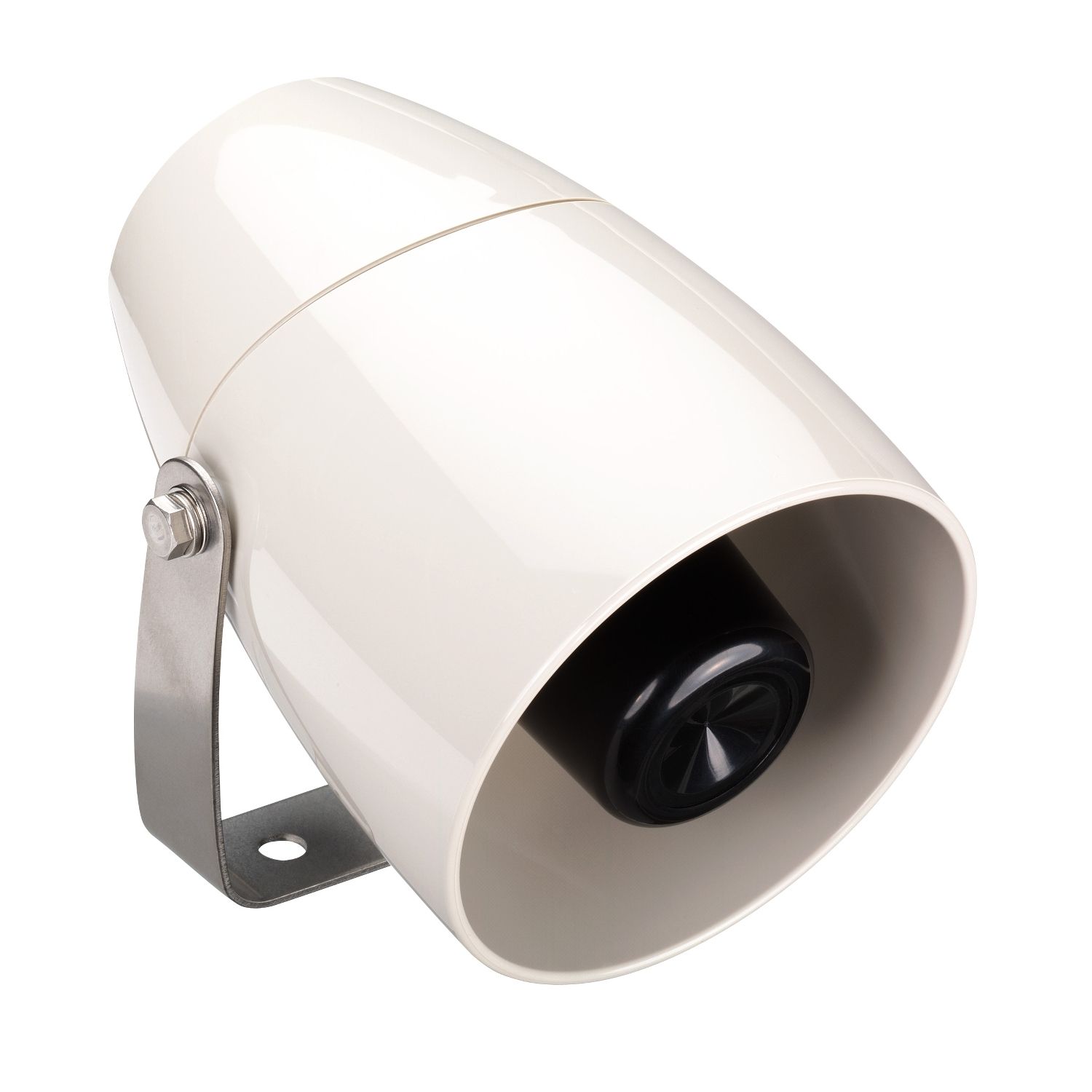

This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone of 106dB at 1 m and 2 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVS |
| Noise level | 106-106 dB (continuous or intermittent tone) at 1 m |
| Colour | white |
| Range of product | Harmony XVS |
| [Us] rated supply voltage | 230 V AC |
| Signalling type | 2 tones siren |
| Product or component type | siren |
| Complementary | |
| Compatibility code | XVS |
| Electrical connection | cable: 6.5-8.5 mm |
| Marking | CE |
| Clamping connection capacity | <= 1 x 1.5 mm² |
| Height | 114 mm |
| Depth | 153.2 mm |
| Width | 114 mm |
| Material | PC: body |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Net weight | 1 kg |
| Current consumption | 40 mA at 230 V |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP53 |
| Ambient air temperature for operation | -30-50 °C |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Standards | IEC 60947-5-1, IEC 60947-1 |
