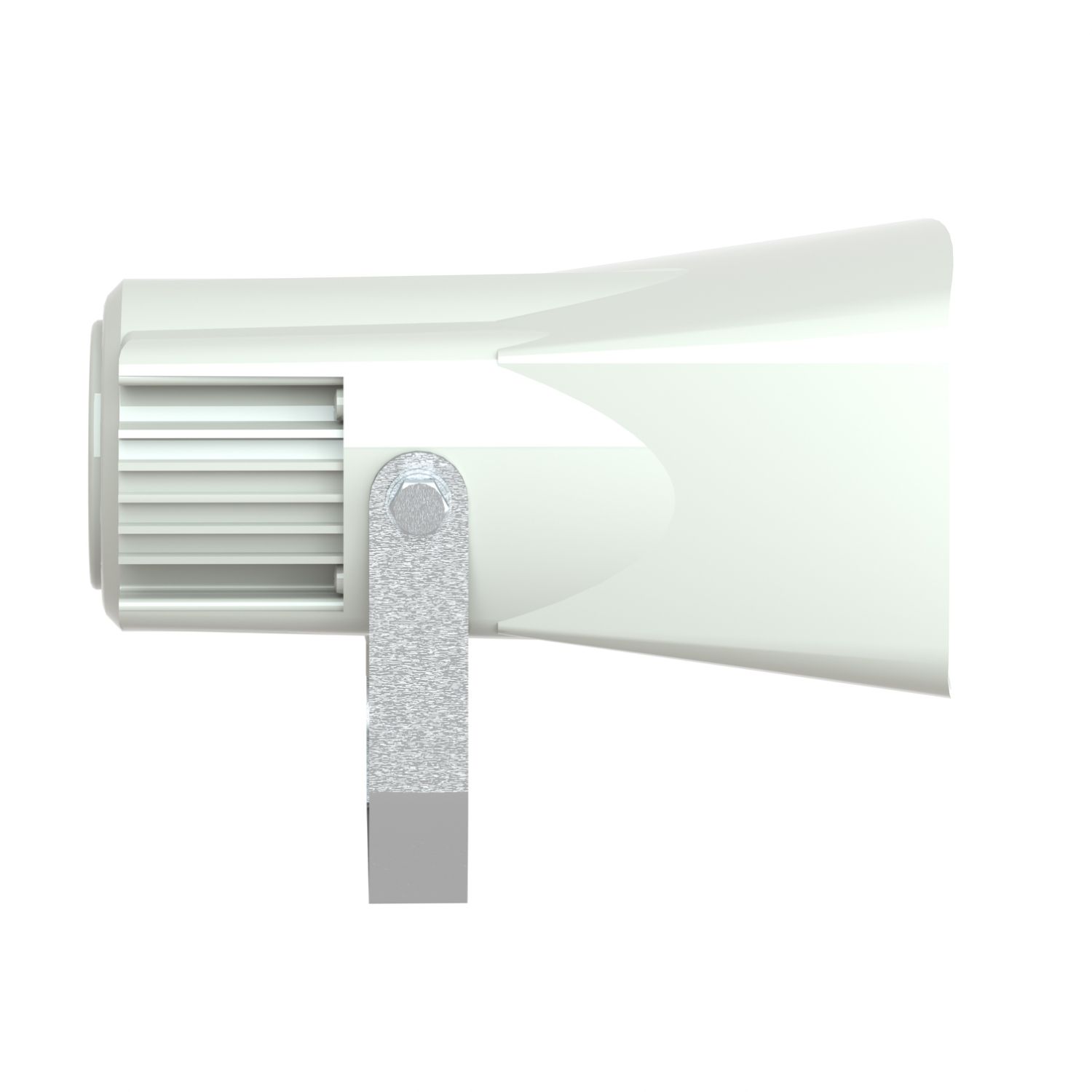

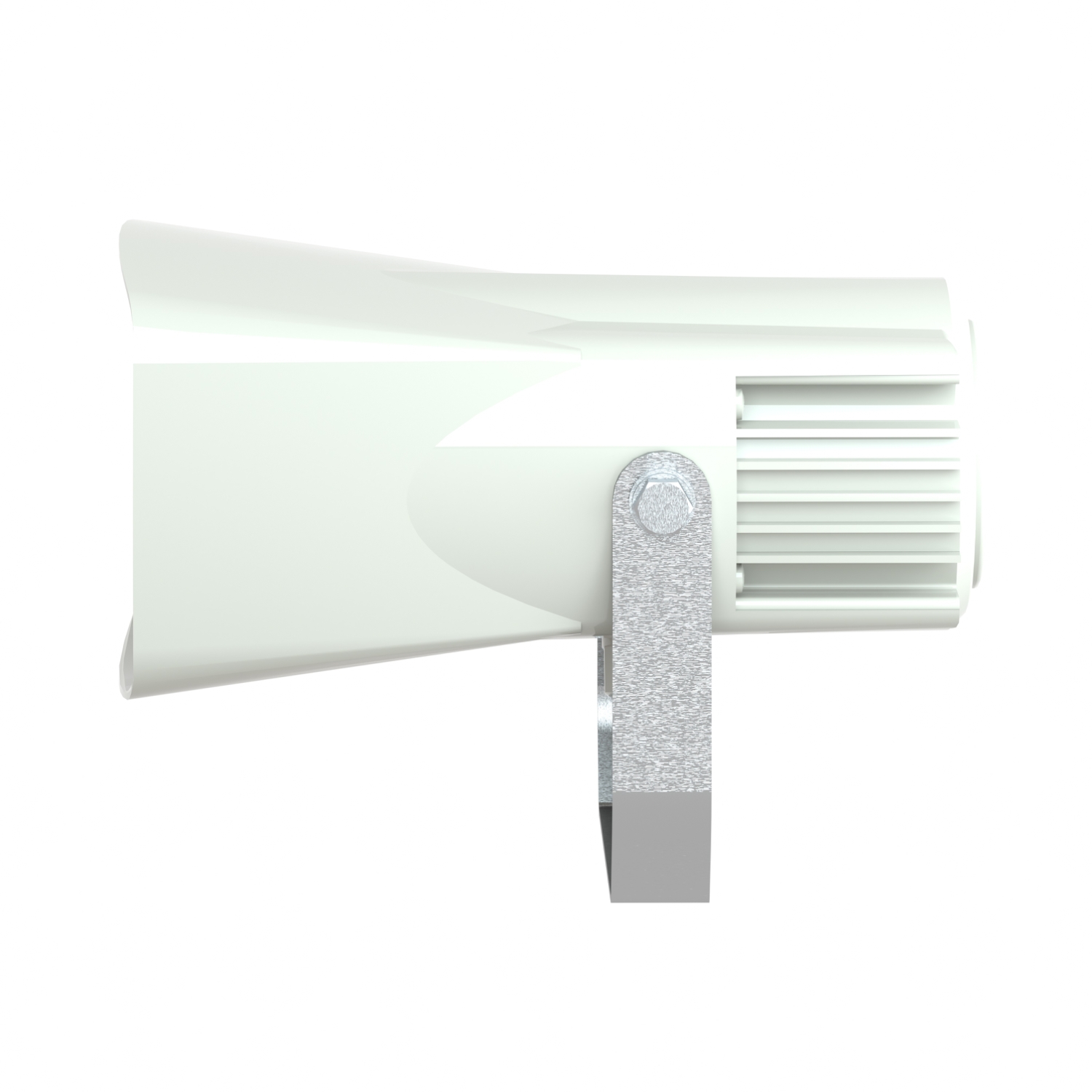

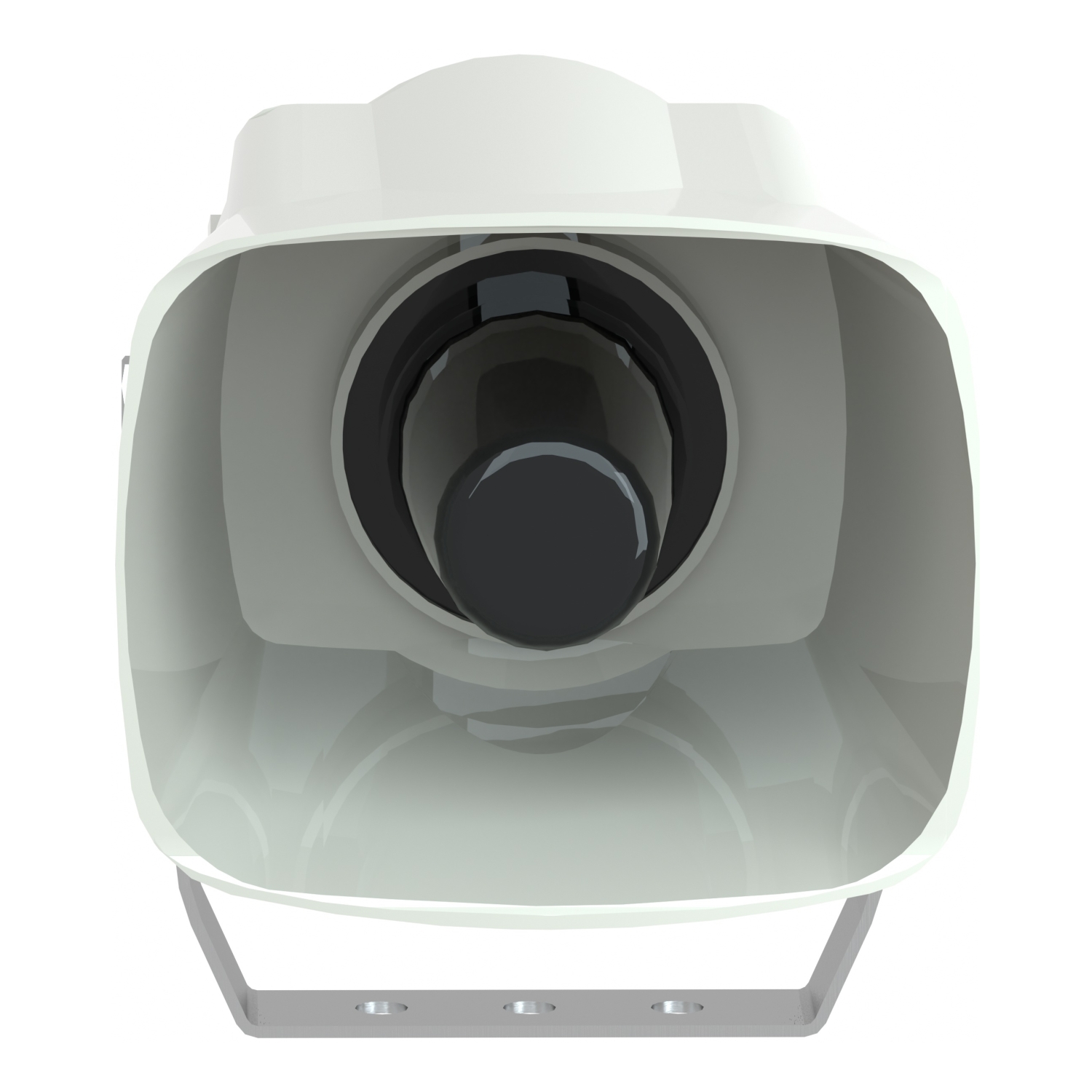

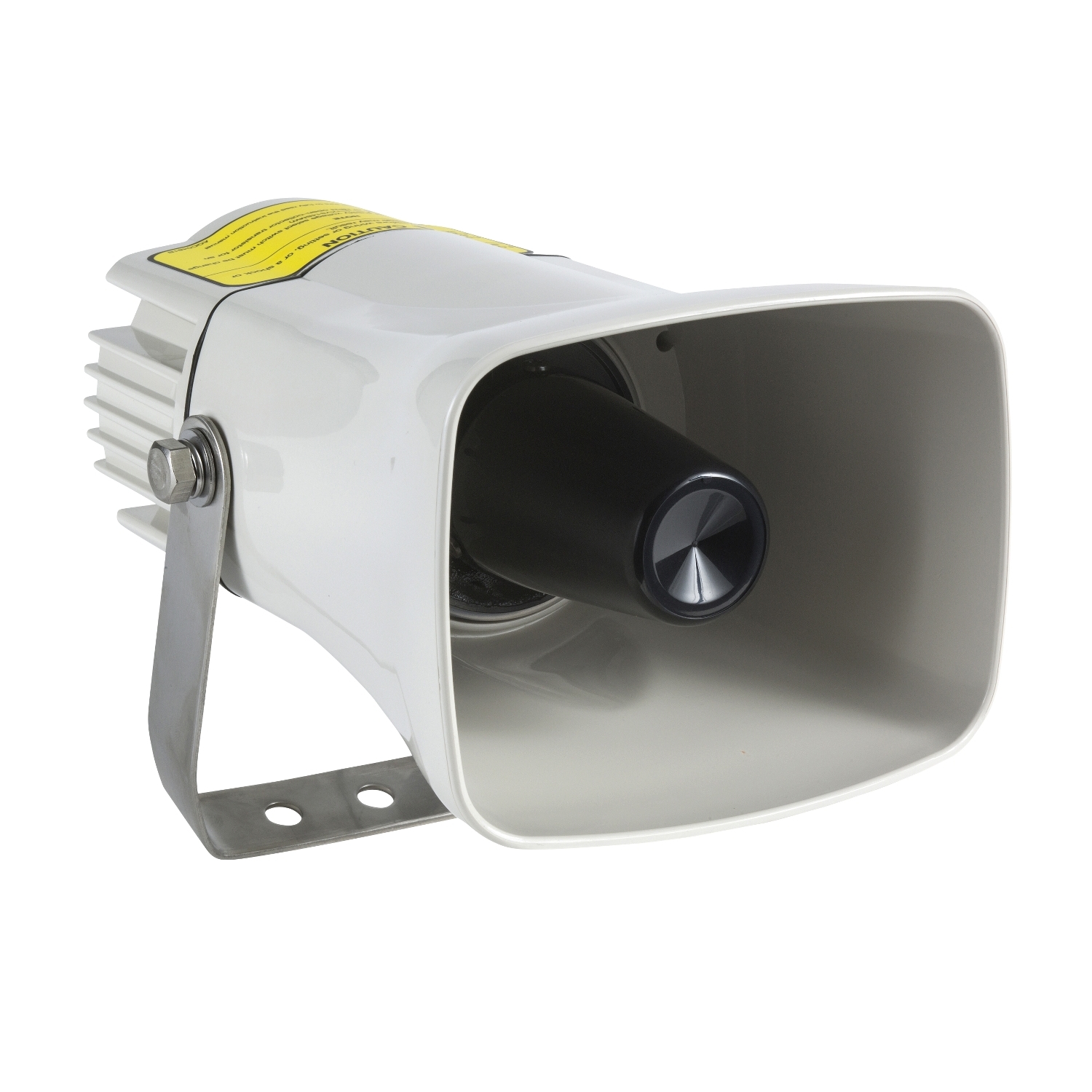

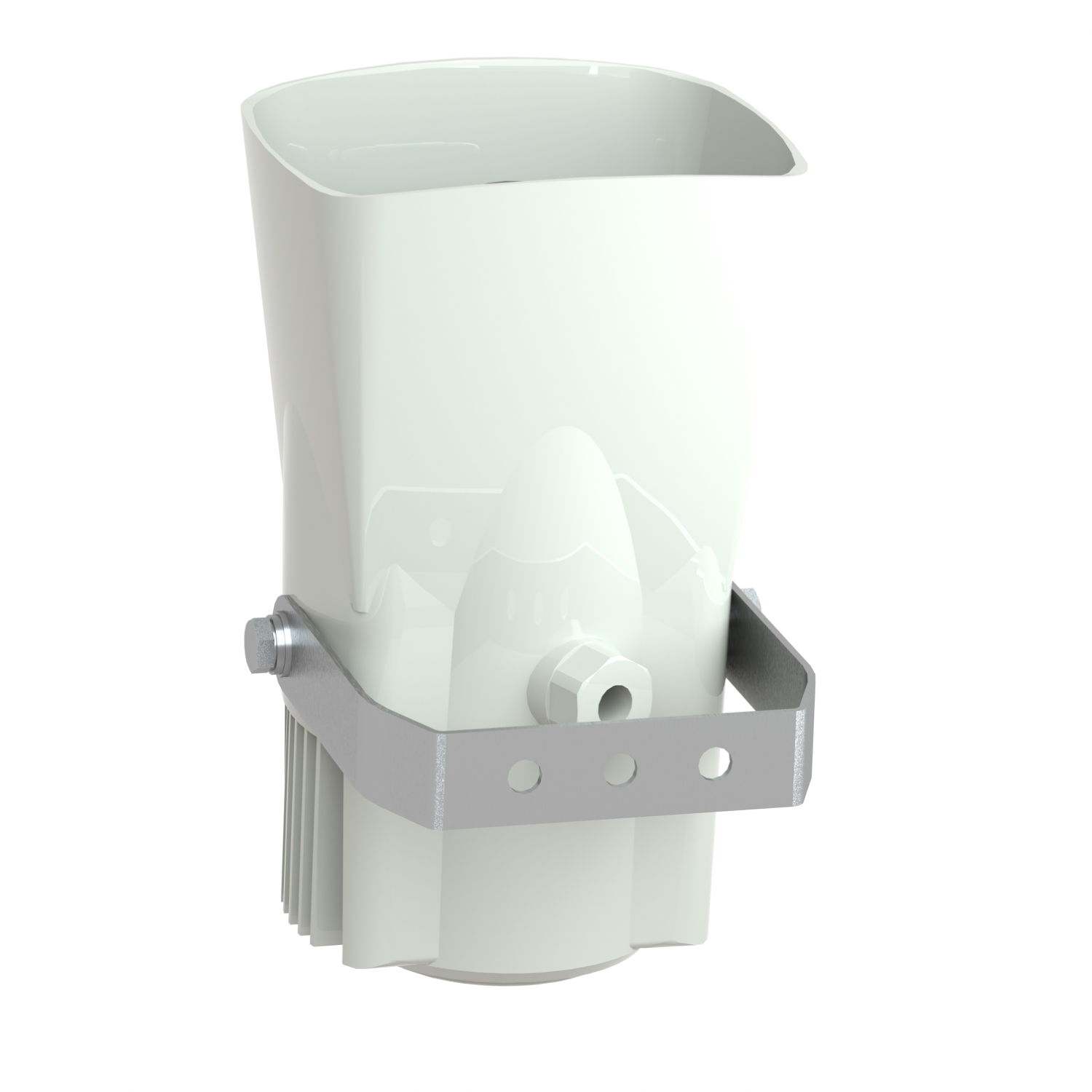

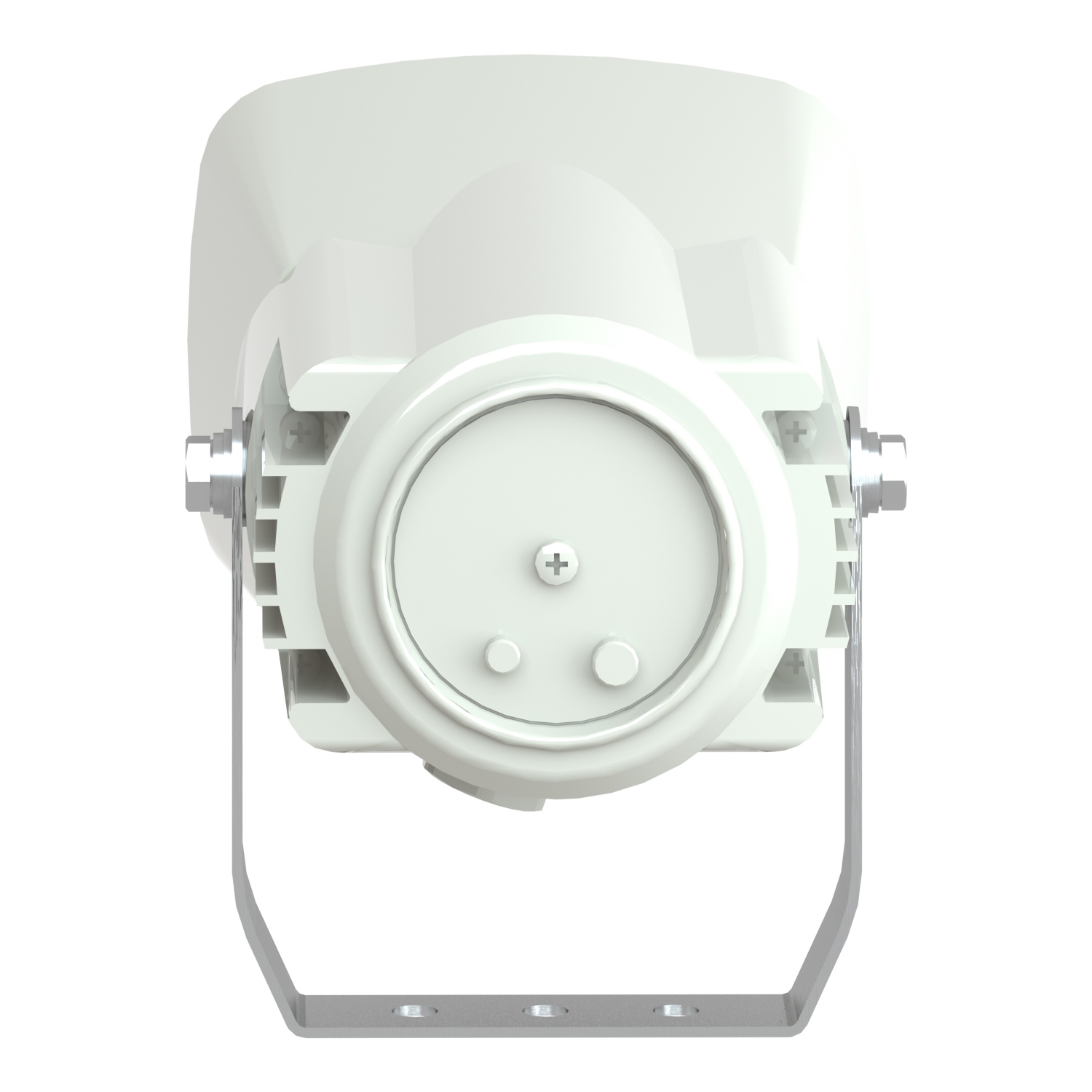

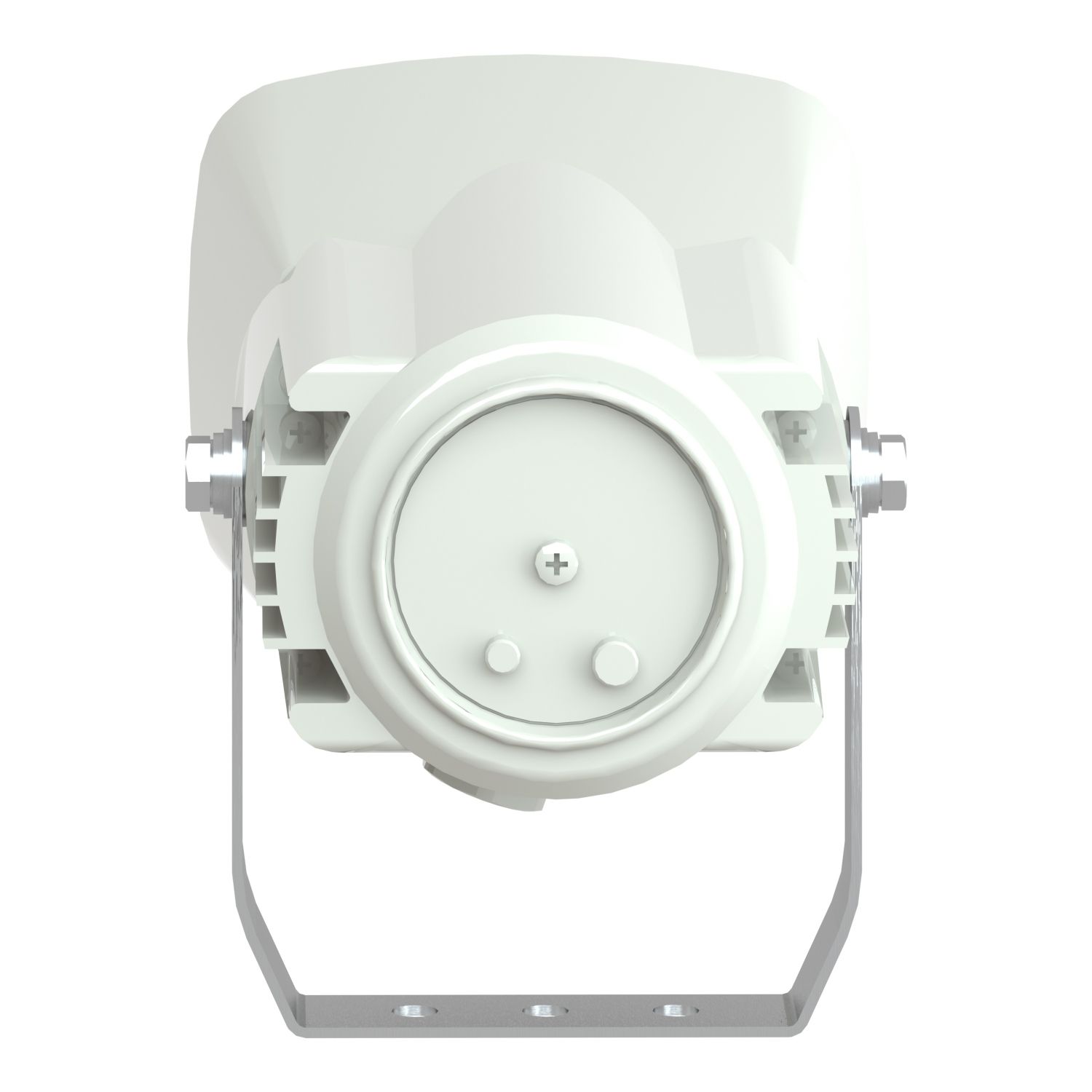

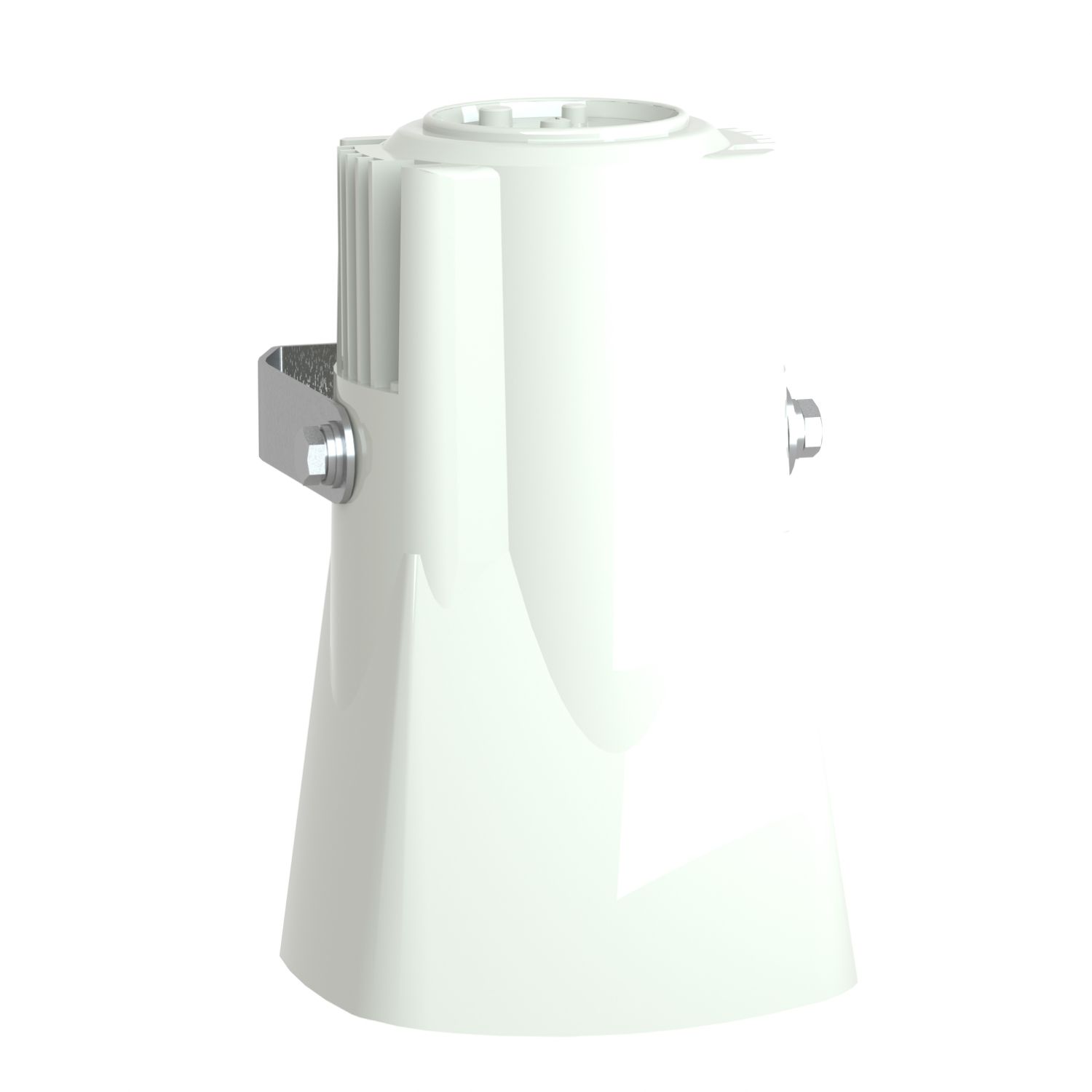

This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 240V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone that can be adjusted from 0 to 105dB at 1m and 43 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XVS |
| Range of product | Harmony XVS |
| Product or component type | multisound siren |
| Complementary | |
| Compatibility code | XVS |
| Electrical connection | cable: 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 (power circuit), cable: 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 (signalling circuit) |
| Colour | white |
| Marking | CE |
| Height | 114 mm |
| Depth | 223 mm |
| Width | 140 mm |
| Material | PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): back, PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): front, PC (polycarbonate): back cover |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Net weight | 1.2 kg |
| Current consumption | 50 mA at 240 V |
| Fixing mode | 3 holes Ø 9 mm |
| Mounting support | bracket |
| Environment | |
| Protective treatment | TC |
| [Us] rated supply voltage | 240 V AC |
| Noise level | 0-105 dB (continuous or intermittent tone) at 1 m |
| Ambient air temperature for storage | -35-70 °C |
| IP degree of protection | IP53 conforming to IEC 60529 |
| Ambient air temperature for operation | -10-50 °C |
| Overvoltage category | class II conforming to IEC 61140 |
| Signalling type | 43 tones siren |
| Standards | IEC 61000-6-2, EN 60947-01, IEC 60947-5-1, IEC 61000-6-3 |
| Product certifications | UL |
