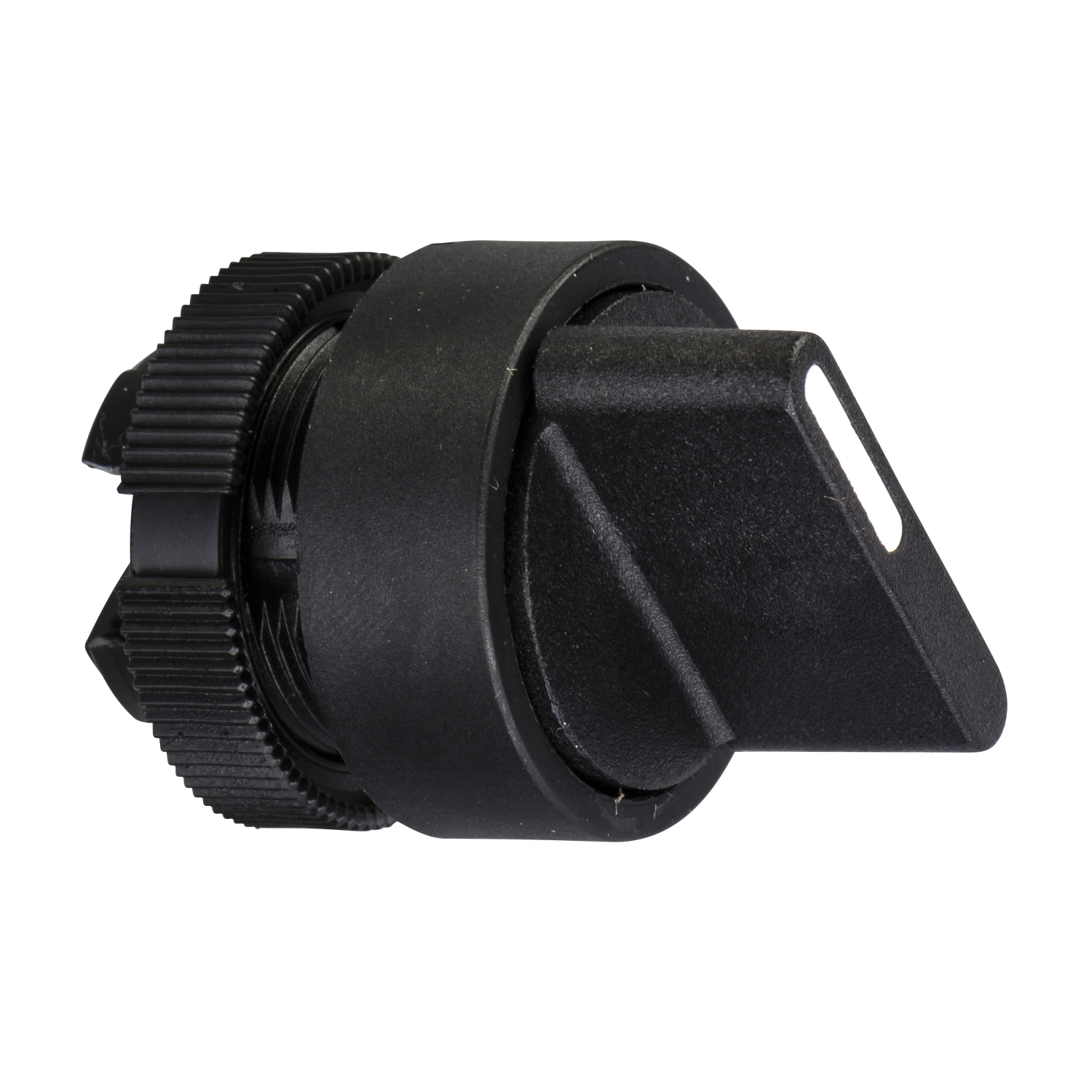

This Harmony ZA2BD5 is a selector switch head, 3 positions diameter 22mm, black. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XACA |
| Component name | ZA2 |
| Product or component type | selector switch |
| Range of product | Harmony XAC |
| Complementary | |
| Sale per indivisible quantity | 1 |
| Net weight | 0.018 kg |
| Cap/operator or lens colour | black |
| Marking | unmarked |
| Environment | |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
