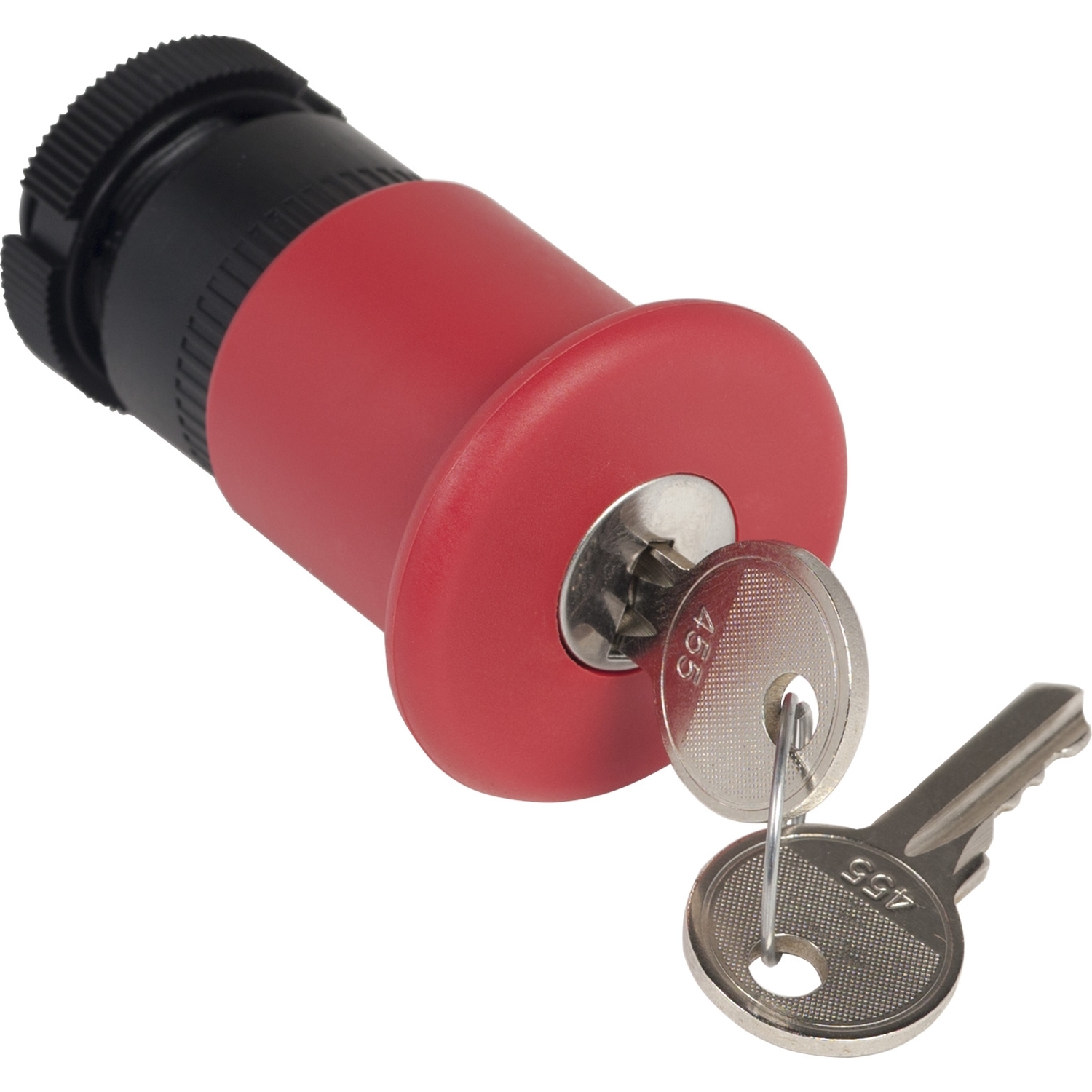

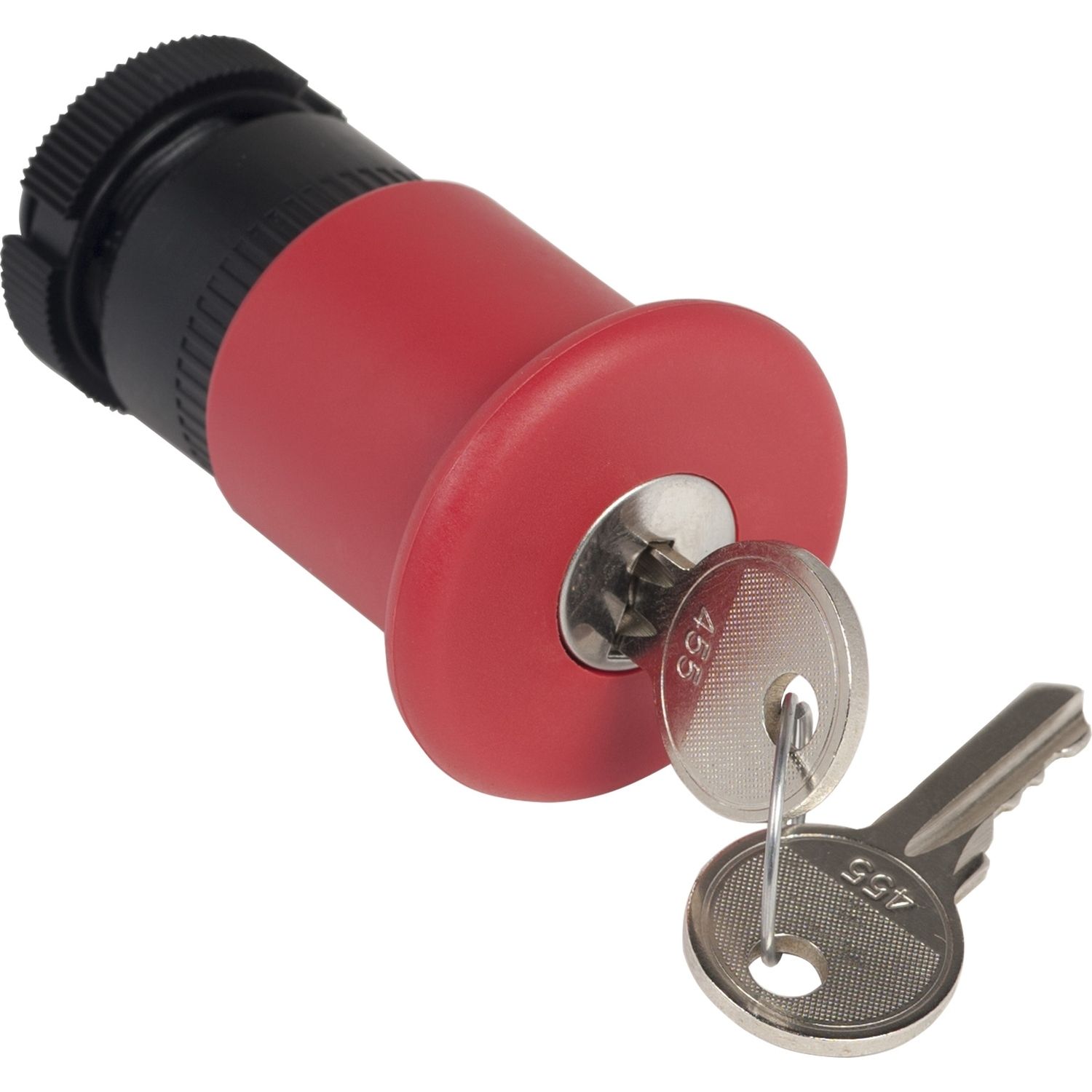

This Harmony ZA2BS944 is a red diameter 40mm Emergency stop, switching off head trigger and latching key release. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Sale per indivisible quantity | 1 |
| Product or component type | head for emergency switching off push-button |
| Range of product | Harmony XAC |
| Complementary | |
| Product compatibility | XACA.. |
| Operator profile | red mushroom Ø 40 mm |
| Overvoltage category | class II conforming to IEC 61140 |
| Mounting location | front of enclosure |
| Net weight | 0.065 kg |
| Marking | unmarked |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | IEC 62262, IEC 60204-32, IEC 60947-5-1, IEC 60947-5-5, CSA C22.2 No 14, UL 508 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 |
