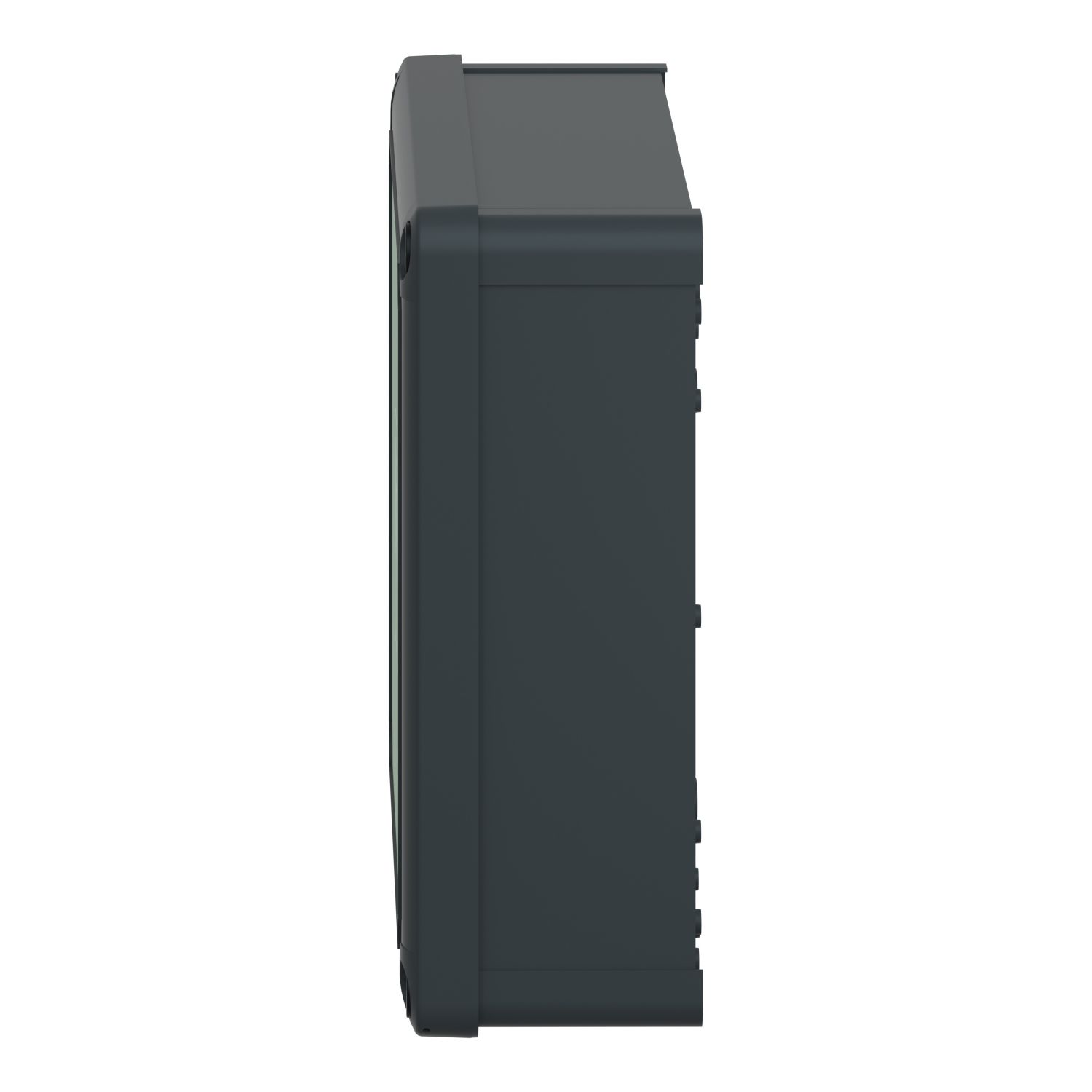

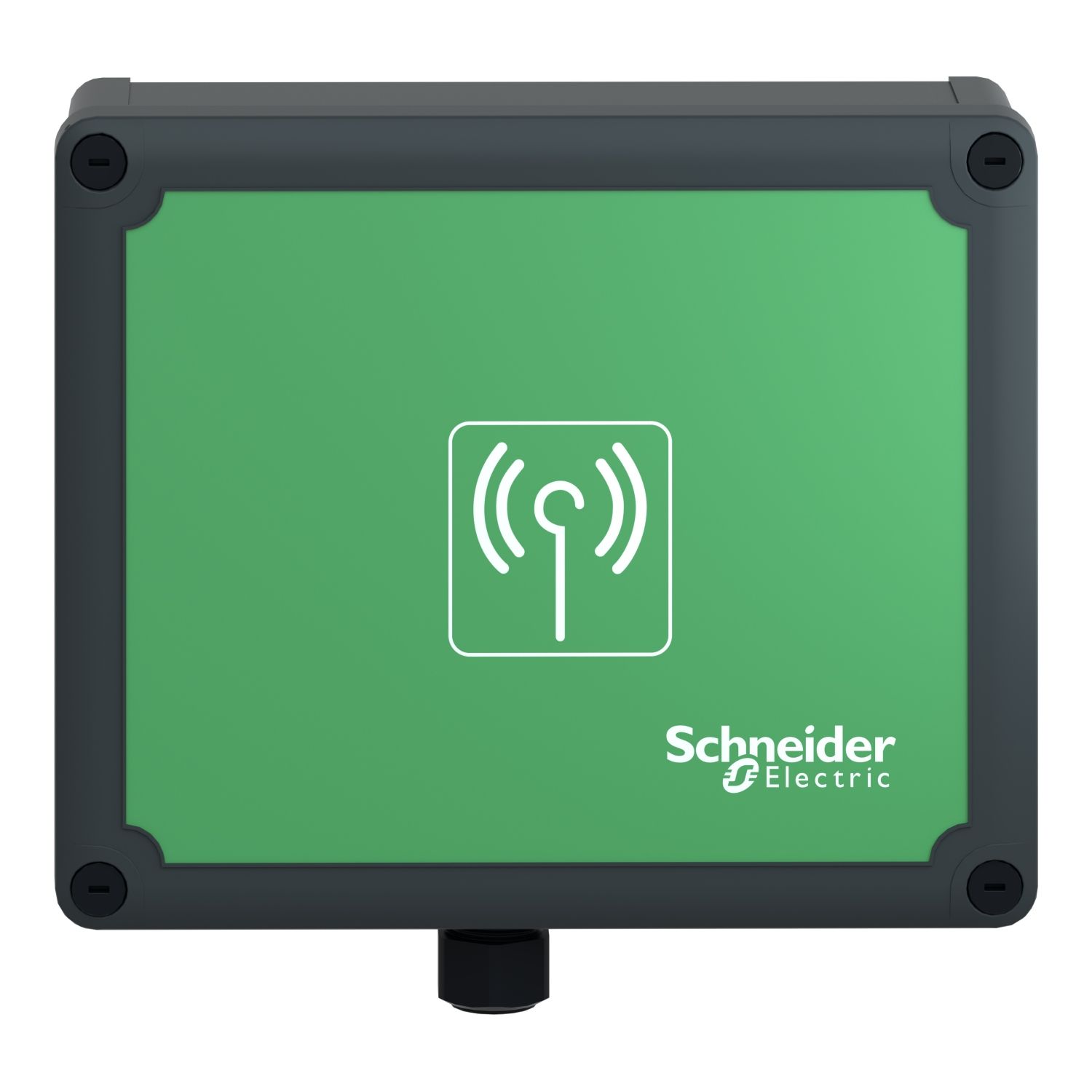

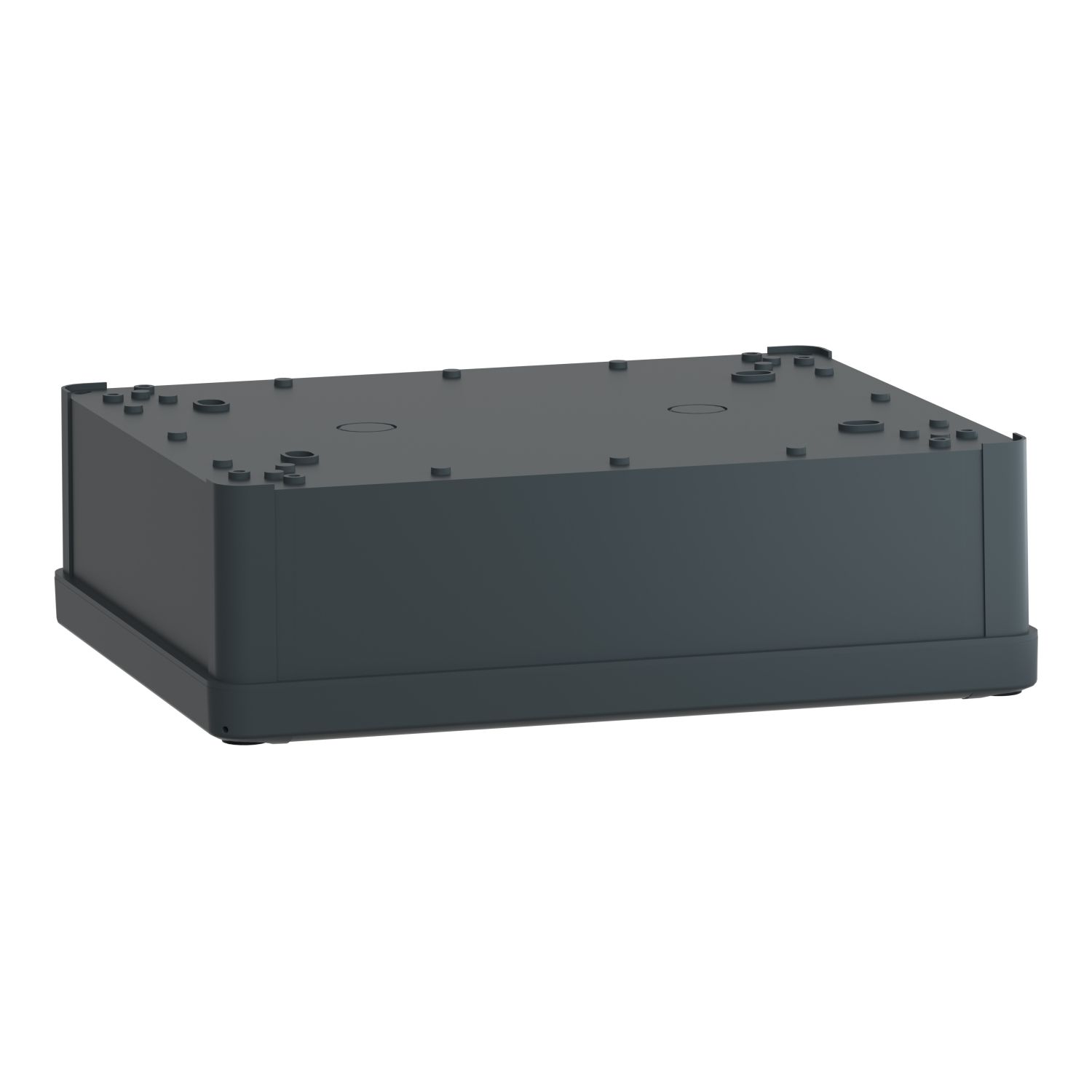

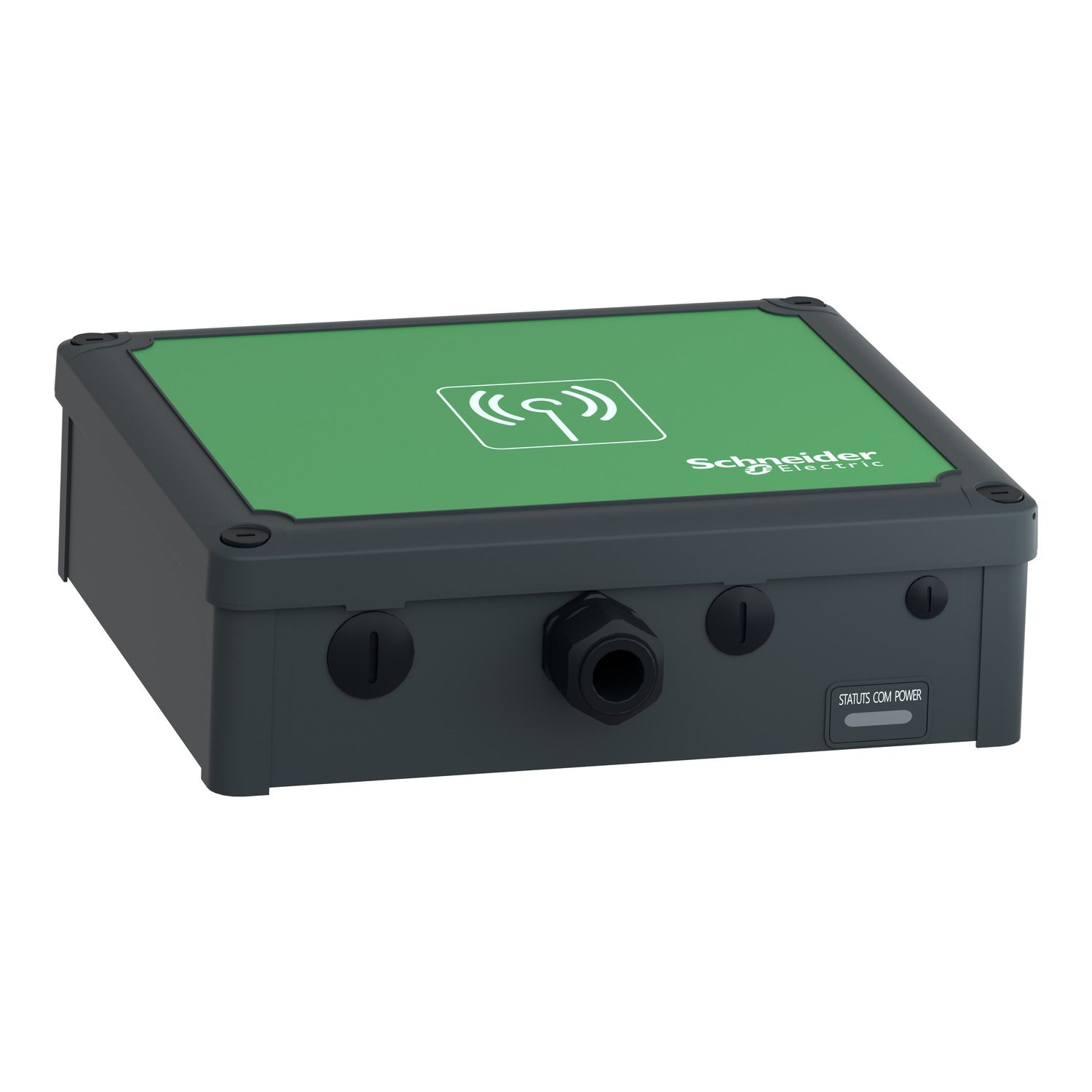

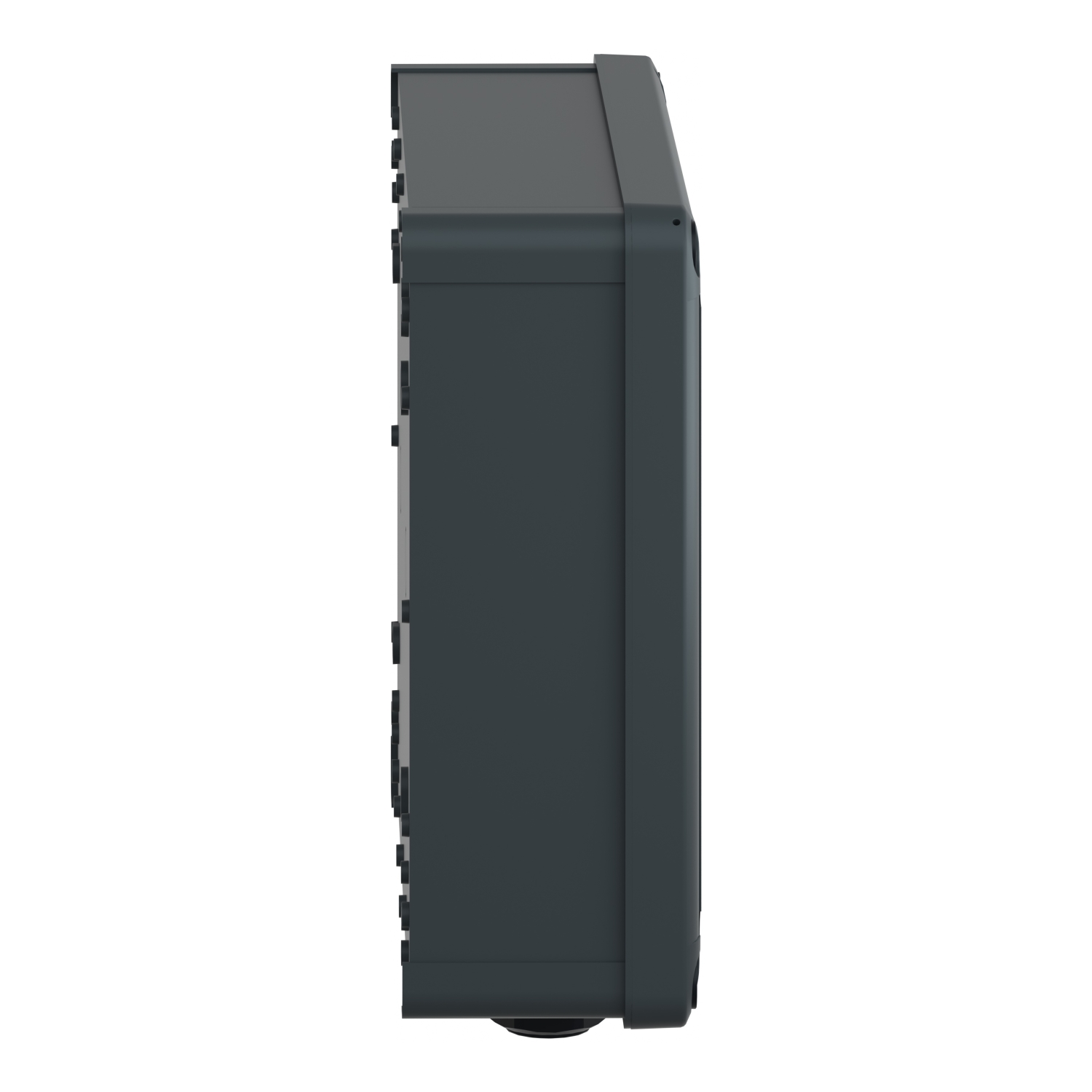

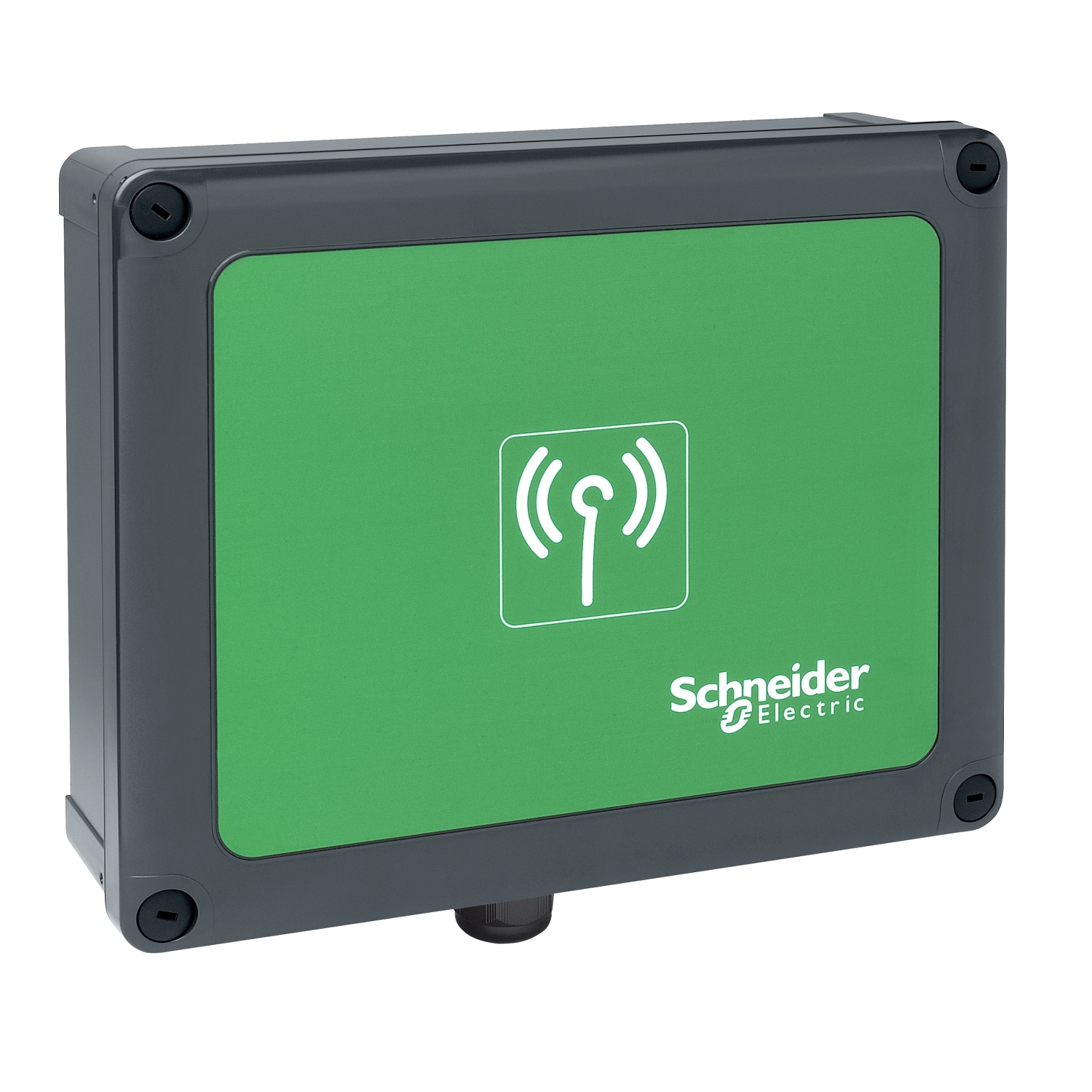

This Harmony eXLhoist / XAR black base station (receiver) has 18 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8D. It has 16 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZARB |
| Product specific application | hoisting applications, material handling |
| Product or component type | base station |
| Range of product | Harmony eXLhoist |
| Complementary | |
| Electrical durability | 100000 cycles |
| Safety outputs | 2 NC relay outputs |
| Depth | 100 mm |
| Width | 280 mm |
| Number of relays | 18 |
| Provided equipment | internal antenna |
| Cable entry | cable gland |
| Maximum switching voltage | 240 V AC/DC (+ 20 %) |
| Mechanical durability | 1000000 cycles |
| Number of channels | 40 |
| Service life | 10 year(s) |
| Maximum sensing distance | 100 m in free field |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Nominal output current | 0.54 A at 48 V AC conforming to IEC 60947-5-1 |
| Communication network type | wireless: bluetooth low energy |
| Net weight | 1.45 kg |
| Material | PC (polycarbonate) |
| Number of alarms | 6 programmable alarms |
| Relay type | auxiliary relay outputs with 2 NC + 2 NO contact , auxiliary relay outputs with 7 NO contact , motion relay outputs with 9 NO contact |
| Vibration resistance | 0.075 mm (f = 10-55 Hz) |
| Shock resistance | 15 gn 11 ms |
| Transmission frequency | 2.4 GHz |

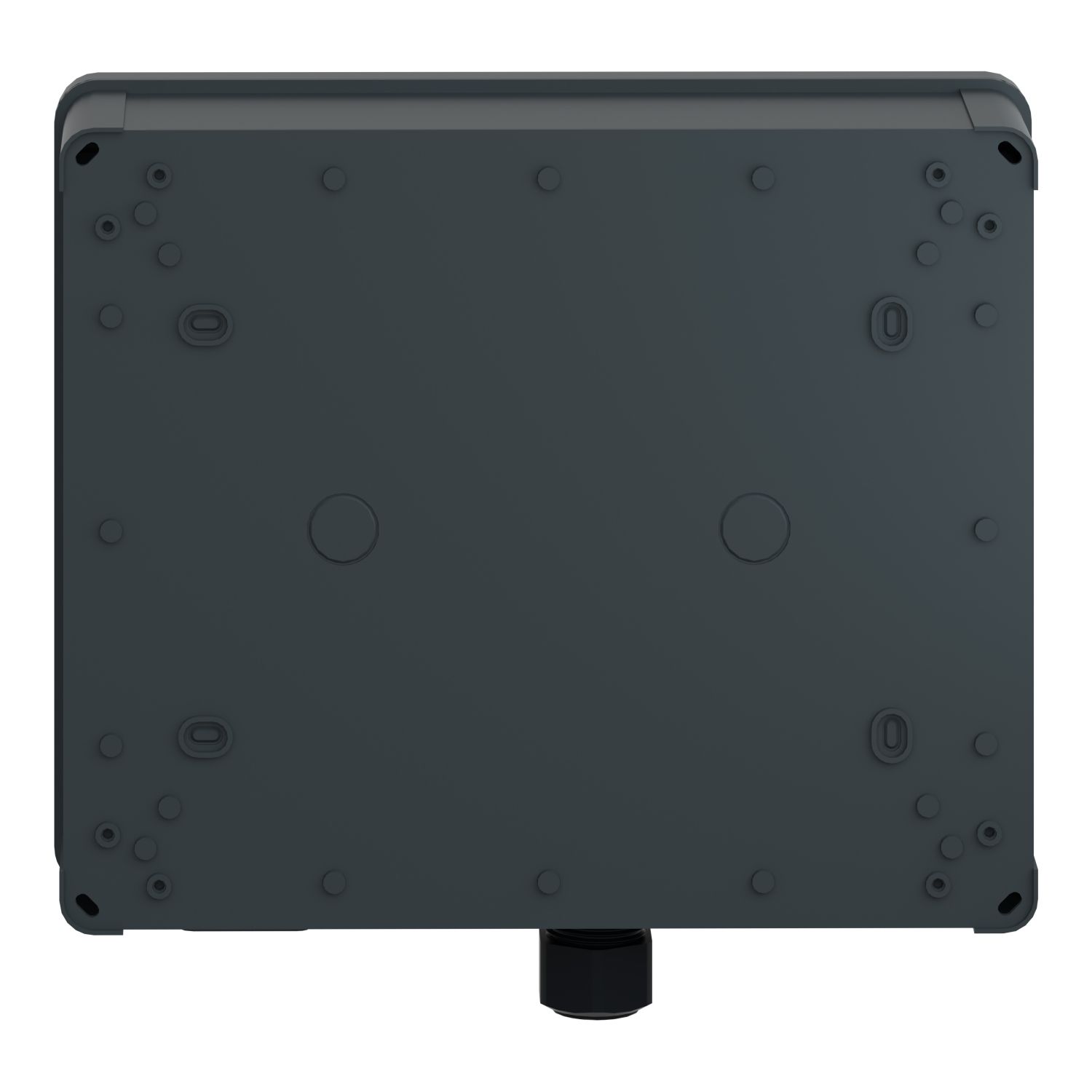

| Fixing mode | 4 holes |
| Number of inputs | 12 |
| Switching capacity in VA | 26 VA AC, 5 VA DC |
| Maximum switching current | 6.8 mA |
| Height | 305 mm |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| NEMA degree of protection | NEMA 4 |
| Pollution degree | 3 |
| Relative humidity | 0-97 % |
| IP degree of protection | IP65 |
| Radio agreement | ARIB, RSS, ICASA, ANATEL, FCC, SRRC |
| Electromagnetic compatibility | resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 |
| Standards | IEC 61000-6-2 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | EAC, C-Tick, KC, UL, CE, CSA |
