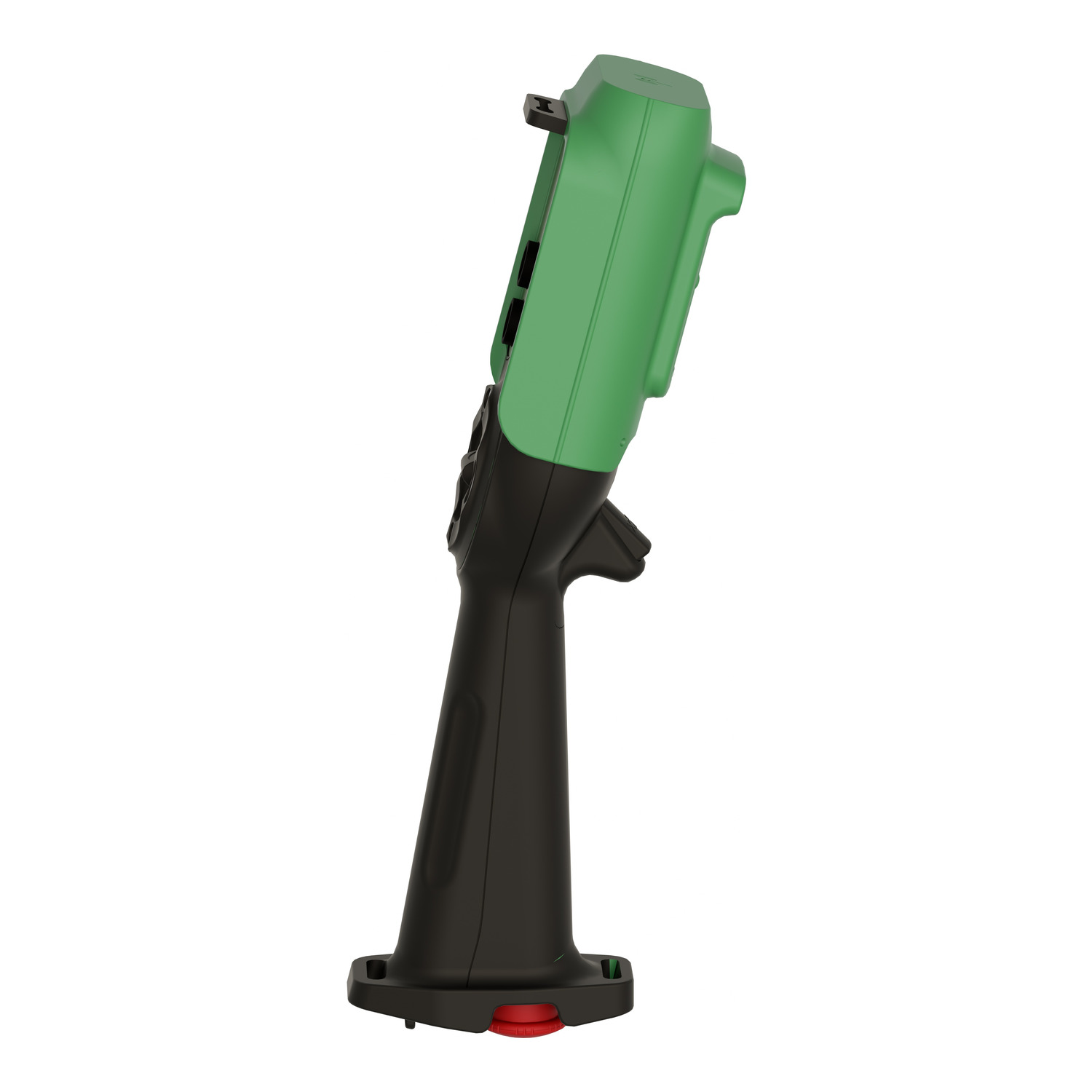

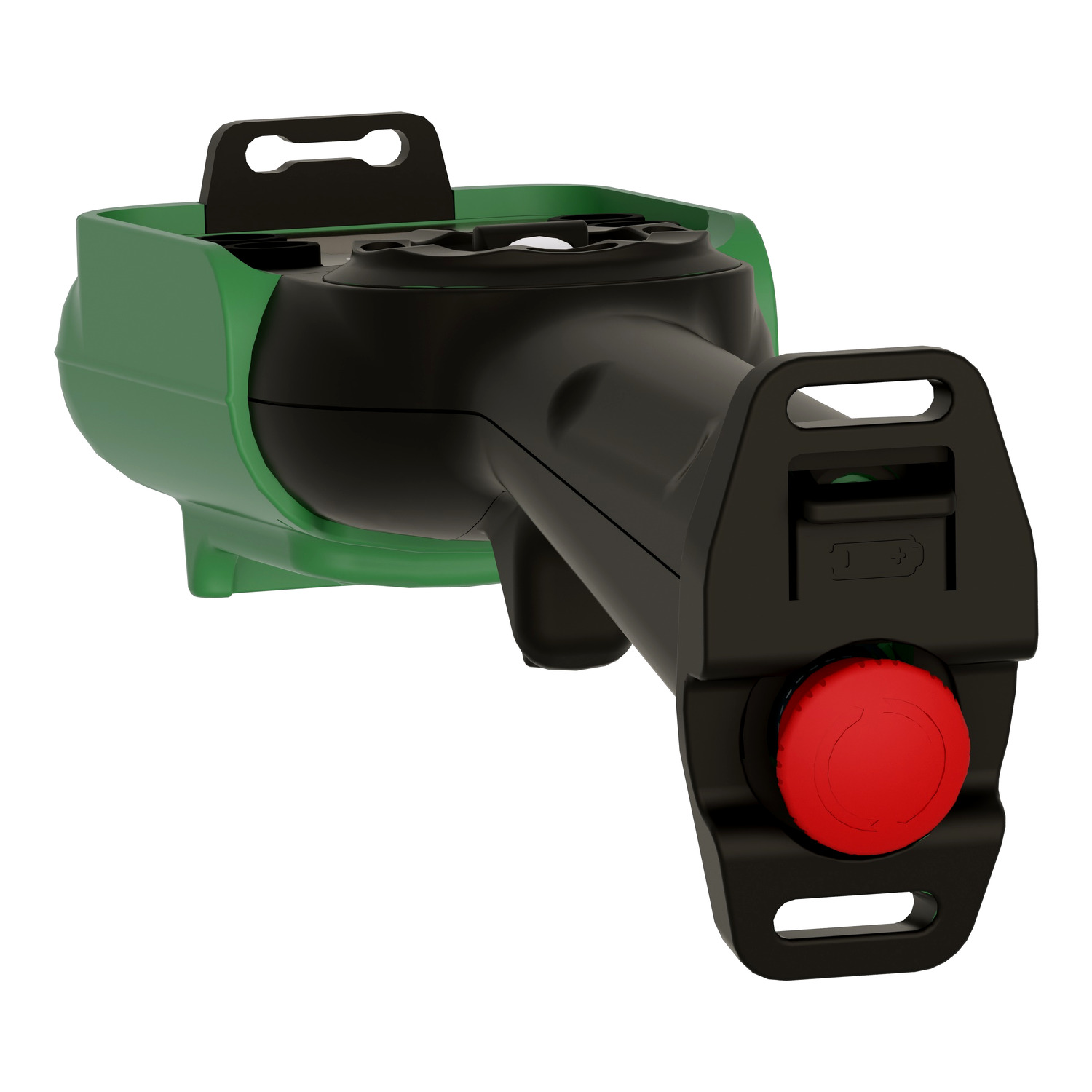

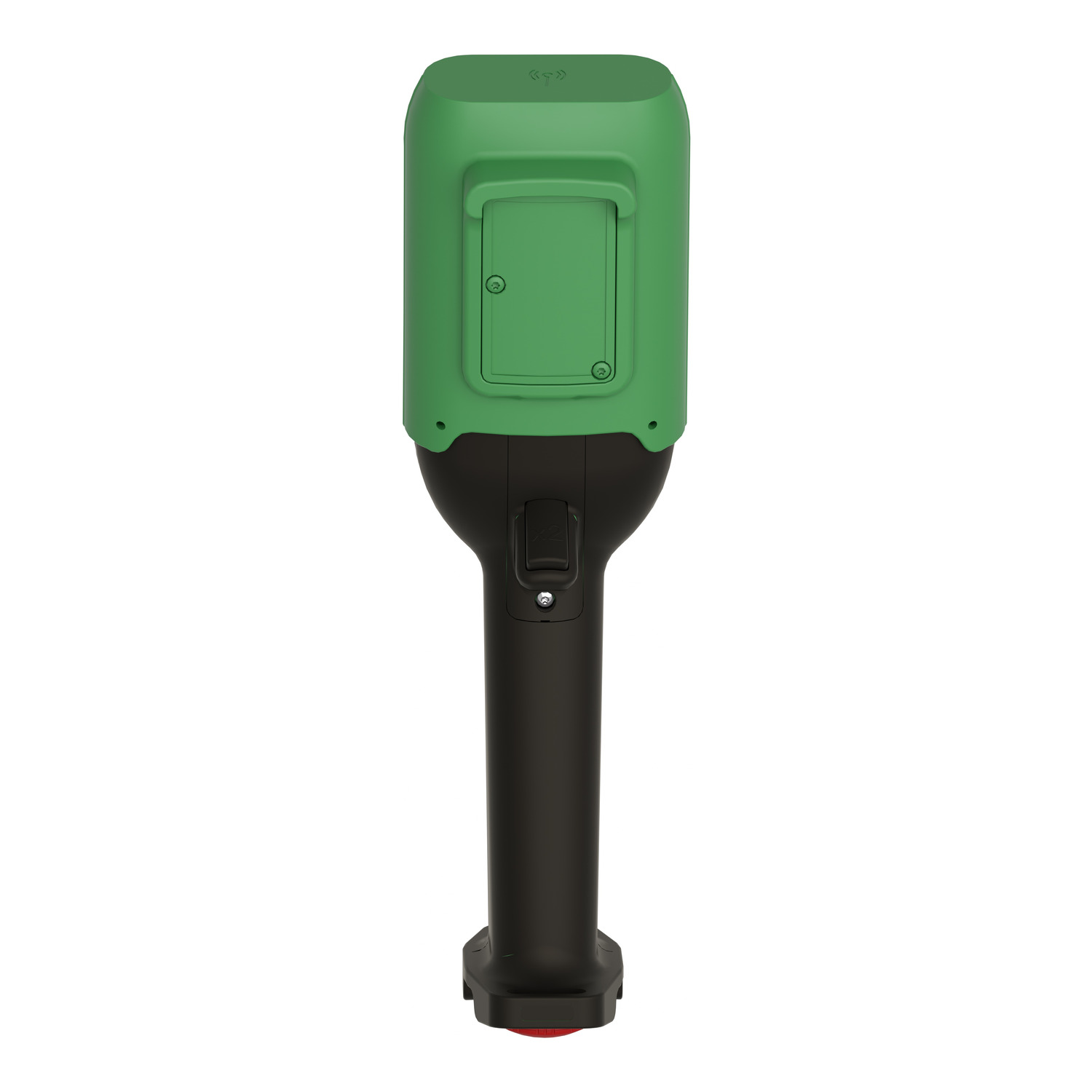

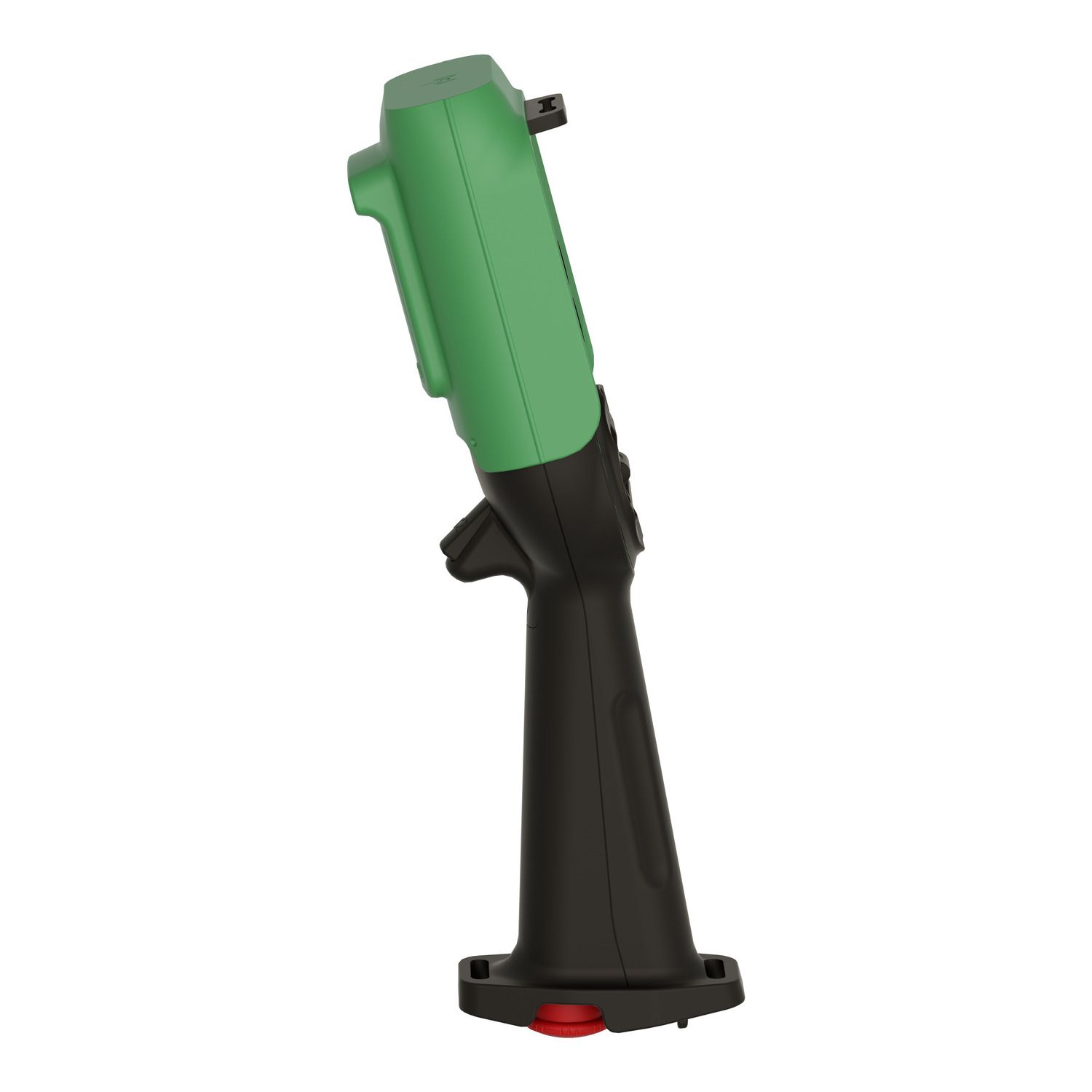

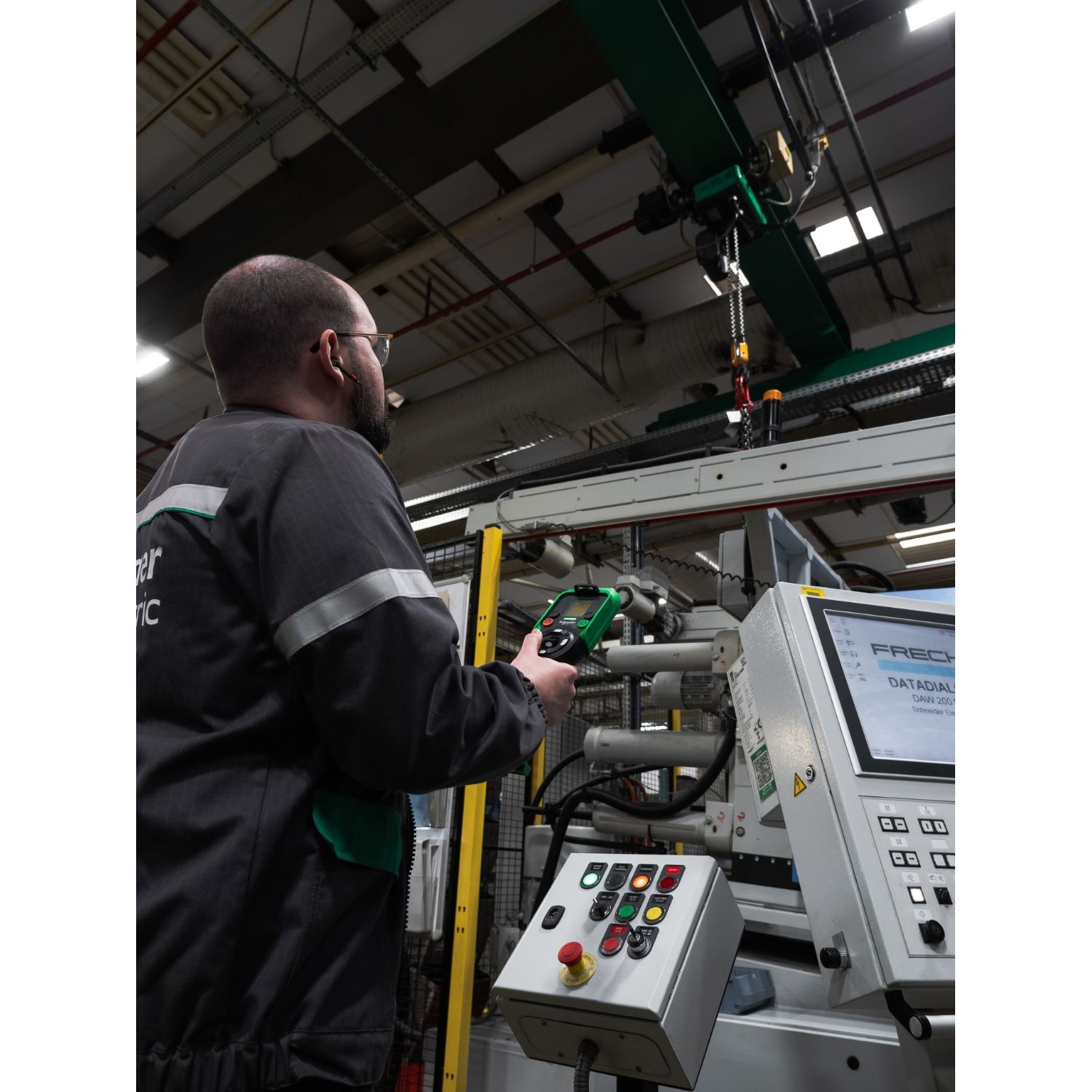

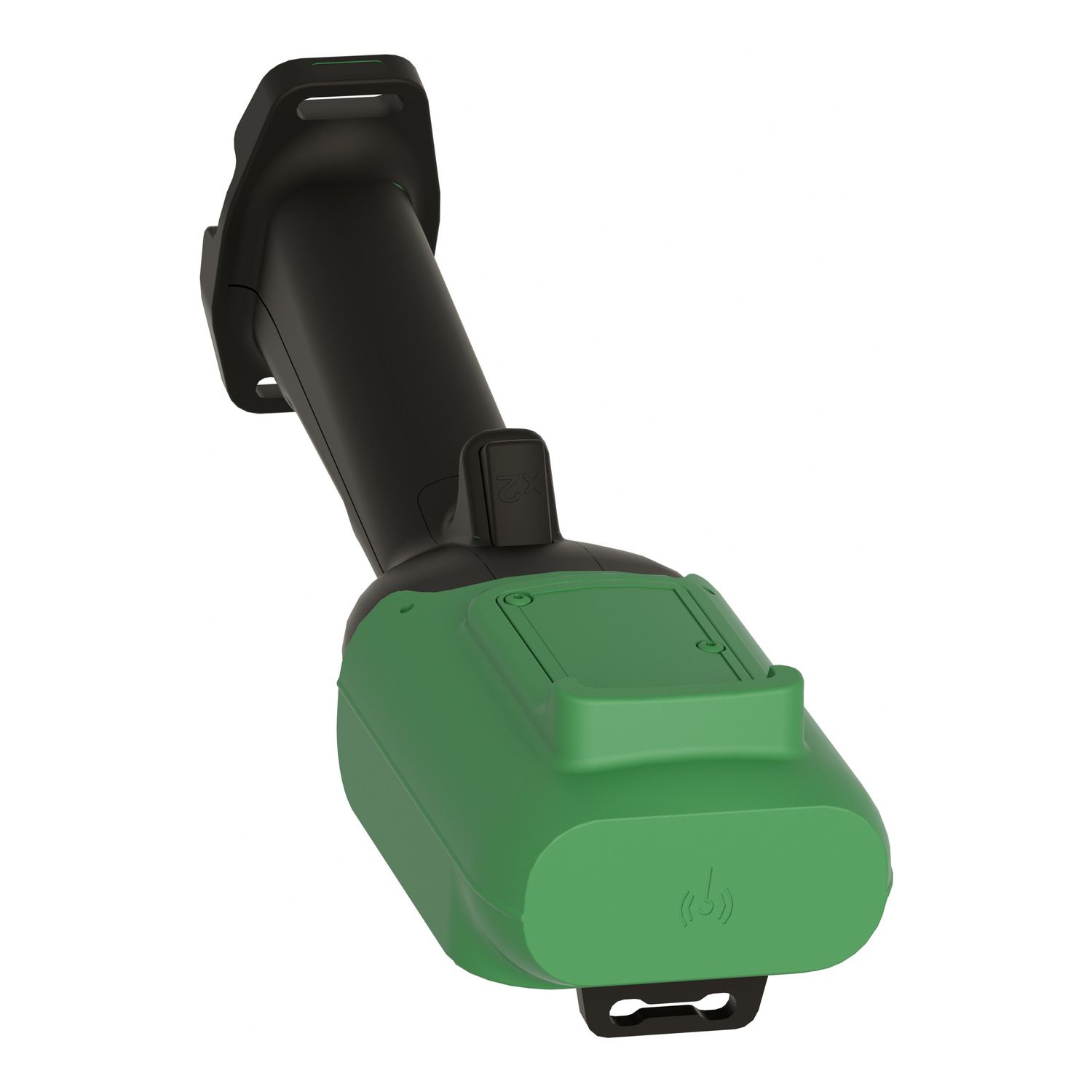

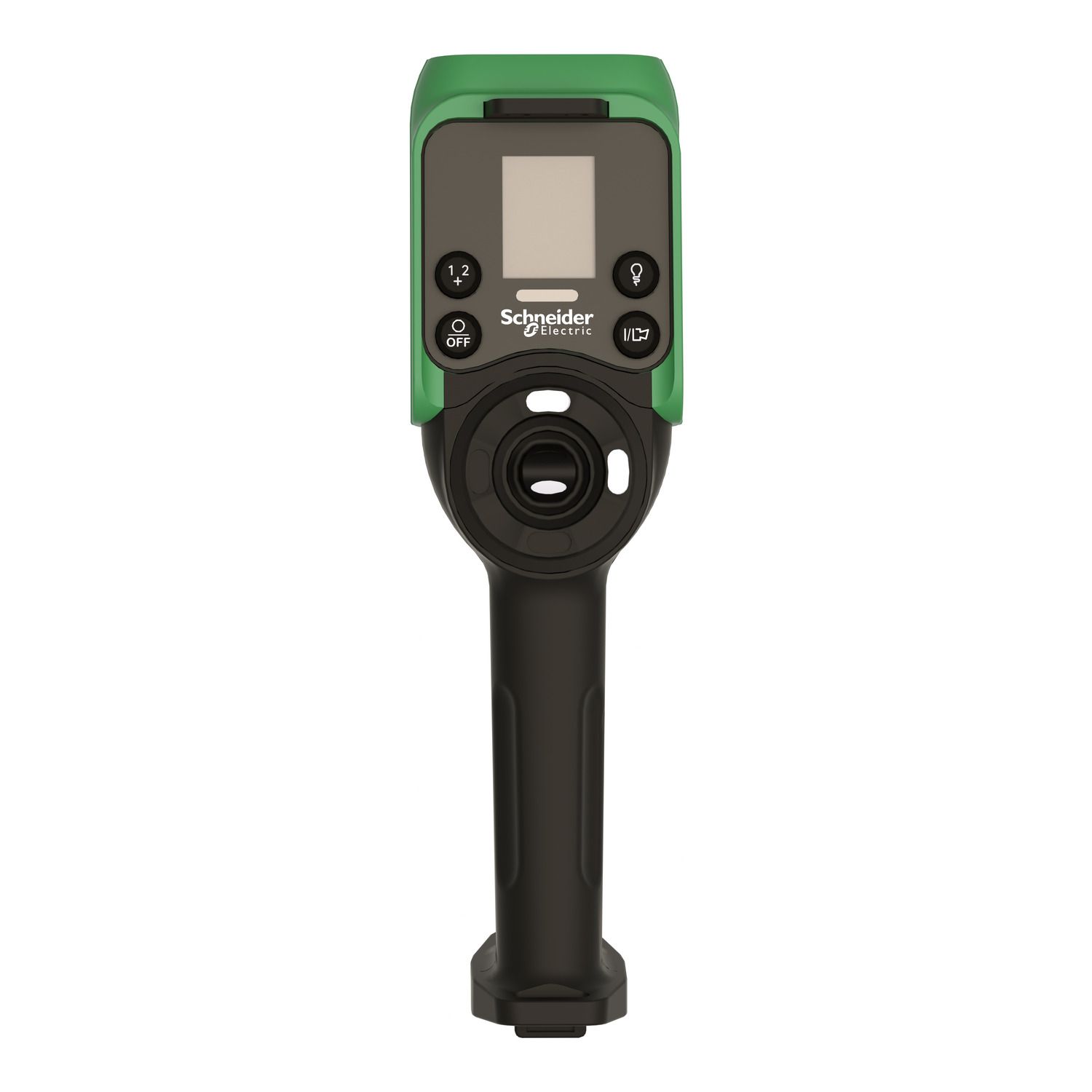

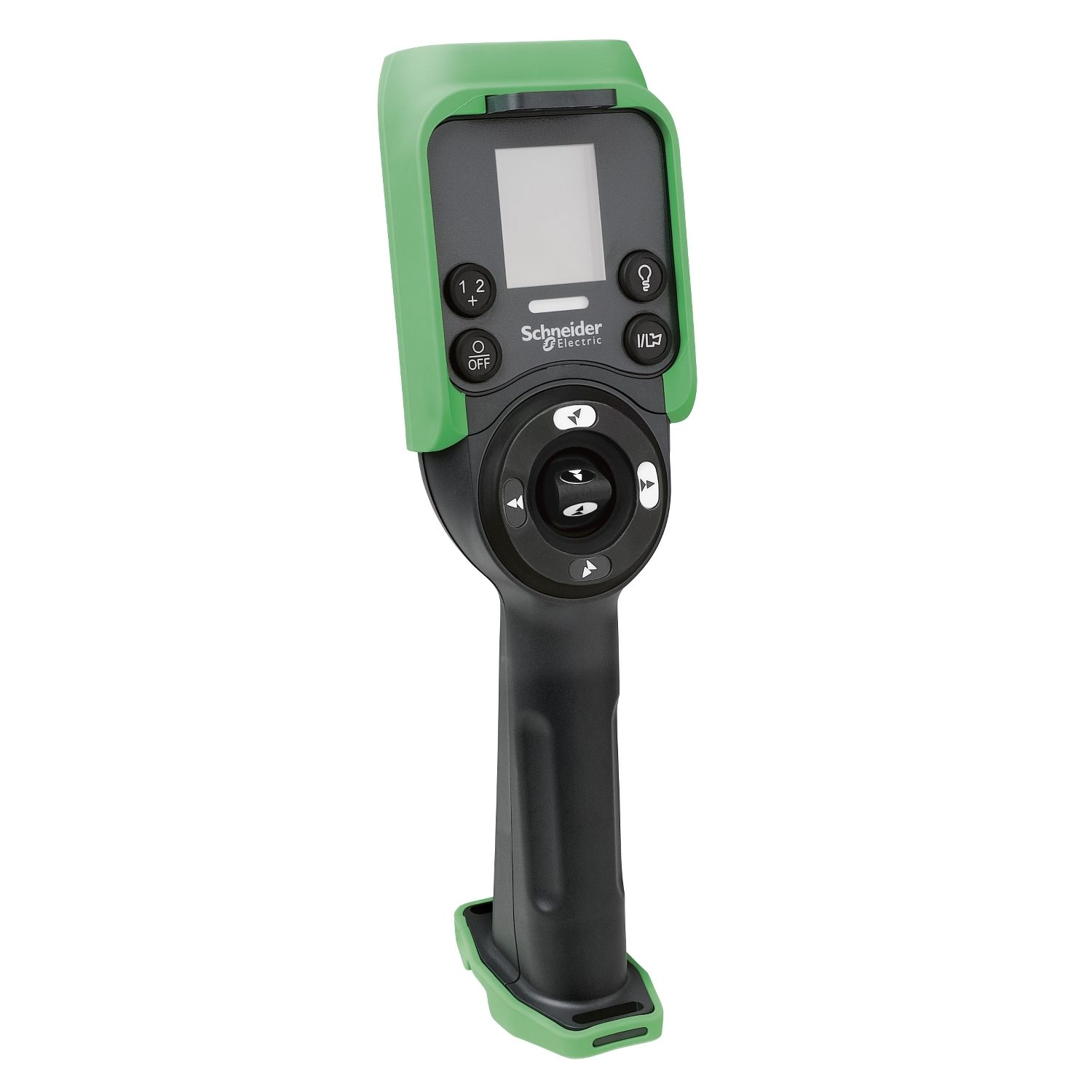

This Harmony eXLhoist / XAR black remote control (transmitter) has 2 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 2 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZART |
| Range of product | Harmony eXLhoist |
| Control button type | 2 configurable auxiliary push-button, 6 configurable motion push-button |
| Product or component type | hand-held remote control |
| Complementary | |
| Display type | LCD display 34 x 42 mm |
| Mechanical durability | 5000000 cycles |
| Service life | 5 year(s) |
| Maximum sensing distance | 100 m in free field |
| Function available | vibrator function, accelerometer function |
| Communication network type | wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Height | 340 mm |
| Mechanical robustness | free fall resistance 4.5 m conforming to IEC 60068-2-27 |
| Depth | 90 mm |
| Width | 100 mm |
| Material | protective cover: EPDM rubber, cover: PP (polypropylene), enclosure: PBT (polybutylene terephthalate), enclosure: PC (polycarbonate) |
| Charging time | 900 s |
| Net weight | 0.65 kg |
| Response time | < 300 ms at full duplex |
| Operating distance | 50 m |
| Autonomy | 30 h |
| Environment | |
| Relative humidity | 0-95 % at -20-60 °C operating |
| Ambient air temperature for storage | -20-45 °C |
| IP degree of protection | IP65 |
| Radio agreement | RSS, ARIB, FCC, SRRC, ICASA, ANATEL |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20-60 °C |
| Operating altitude | 0...2000 m |
| NEMA degree of protection | NEMA 4 |
| Vibration resistance | 0.075 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Storage altitude | 0-3000 m |
| Product certifications | KC, CSA, C-Tick, EAC, JIS, UL, CE |
Only registered users can write reviews
Related products

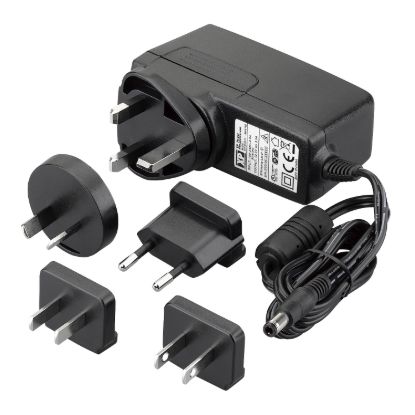

Charger for remote device, Harmony eXLhoist, standard
