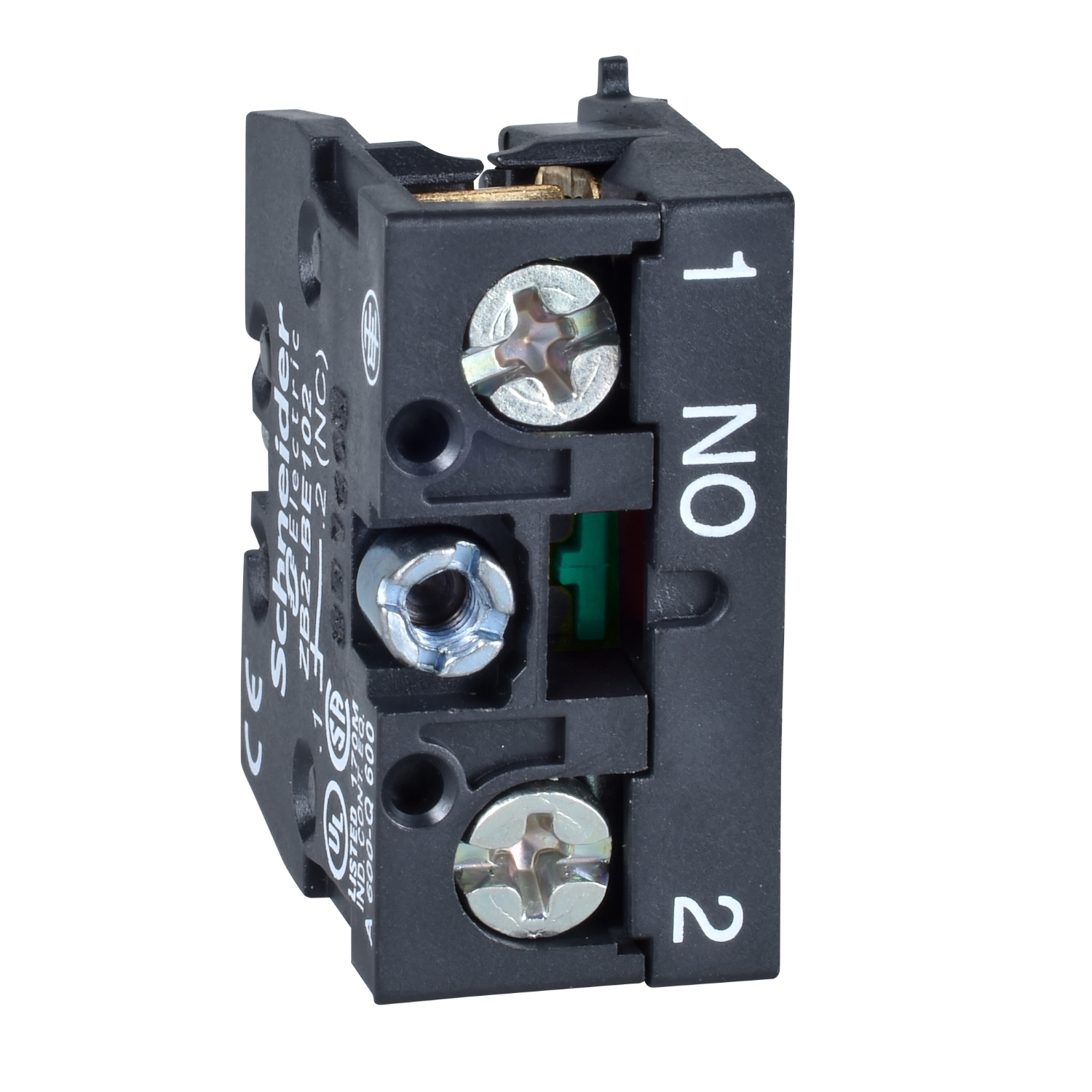

Contact block, Harmony XAC, single contact, spring return, 2- speeds, front mounting, screw clamp terminal, 1NO
Manufacturer: Schneider Electric
SKU: ZB2BE201
GTIN: 3389110612547
Old price: $63.14 inc GST
$38.41 inc GST
Supported cards
Supported cards
"This product is part of the Harmony XAC range, an offer of pendant control stations for Ø 22 mm plastic signaling units." "This contact block operates with a spring return mechanism for control circuits." "It has 1 NO contact with staggered, slow break operation." "It is a contact block with a rated voltage of 600V and conventional enclosed thermal current of 10A." "It is furnished with screw clamp terminals for electrical connection." "It offers mechanical durability of about 1 million cycles." "It is suitable for hoist and traveling cranes for control of single speed motor. It is ideal for industry and service sector applications." "This product meets EN/IEC 60204-32, UL 508, EN/IEC 60947-5-1 and CSA C22.2 No 14 standards." "It is compatible with the pendant control stations XACA." "It supports front mounting method." "It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards." "Pendant control stations for Ø 22mm plastic signaling units."

Products specifications

Attribute name Attribute value
Main
Product compatibility XACA
Electrical circuit type control circuit
Contact operation slow-break, staggered
Contact block application up / down operator
Contact block type single
Range of product Harmony XAC
Type of operator spring return
Contacts type and composition 1 NO
Component name ZB2
Product or component type contact block
Mounting of block front mounting
Complementary
Contact code designation Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A
Mechanical durability 1000000 cycles
Short-circuit protection 10 A fuse protection by cartridge fuse type gG (gl)
Maximum resistance across terminals 25 MOhm
Operating force 13-15 N
Rated operational power in W 65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1, 48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1, 40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Connections - terminals screw clamps terminals, 2 x 1.5 mm² with or without cable end, screw clamps terminals, 1 x 2.5 mm² with or without cable end
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.015 kg
[Ithe] conventional enclosed thermal current 10 A
Terminals description ISO n°1 (13-14)NO_CL
Environment
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Electrical shock protection class class II conforming to IEC 61140
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Standards CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60204-32
