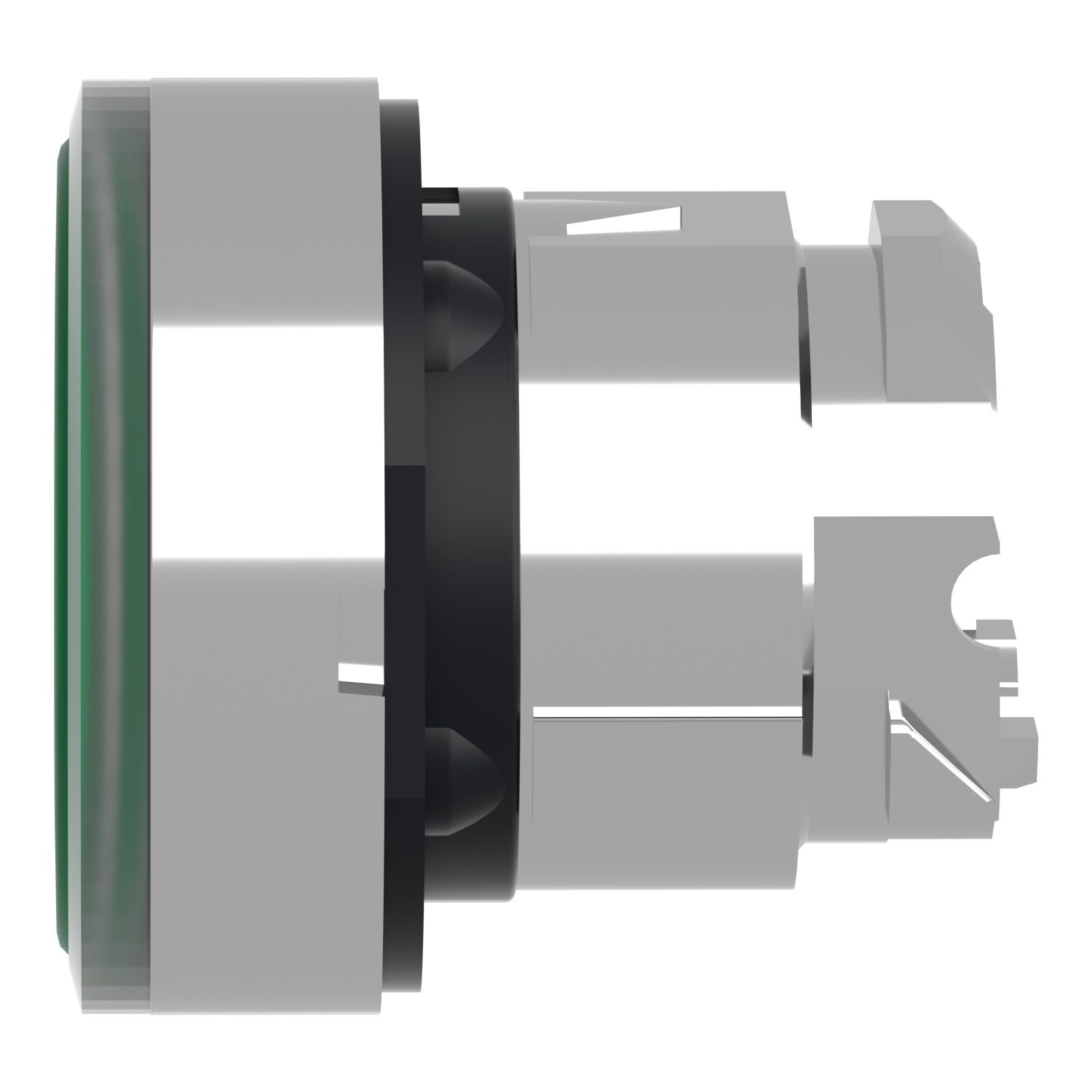

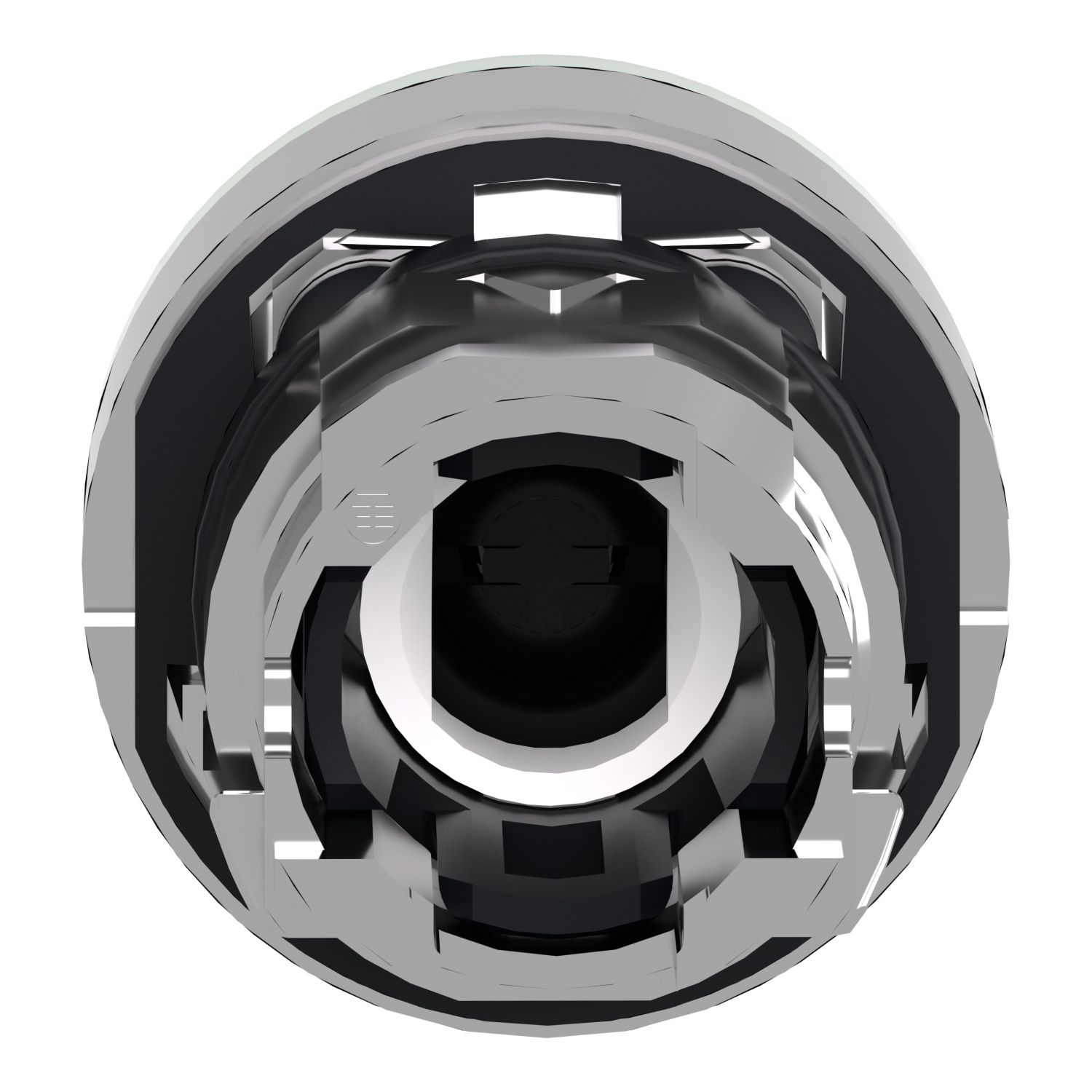

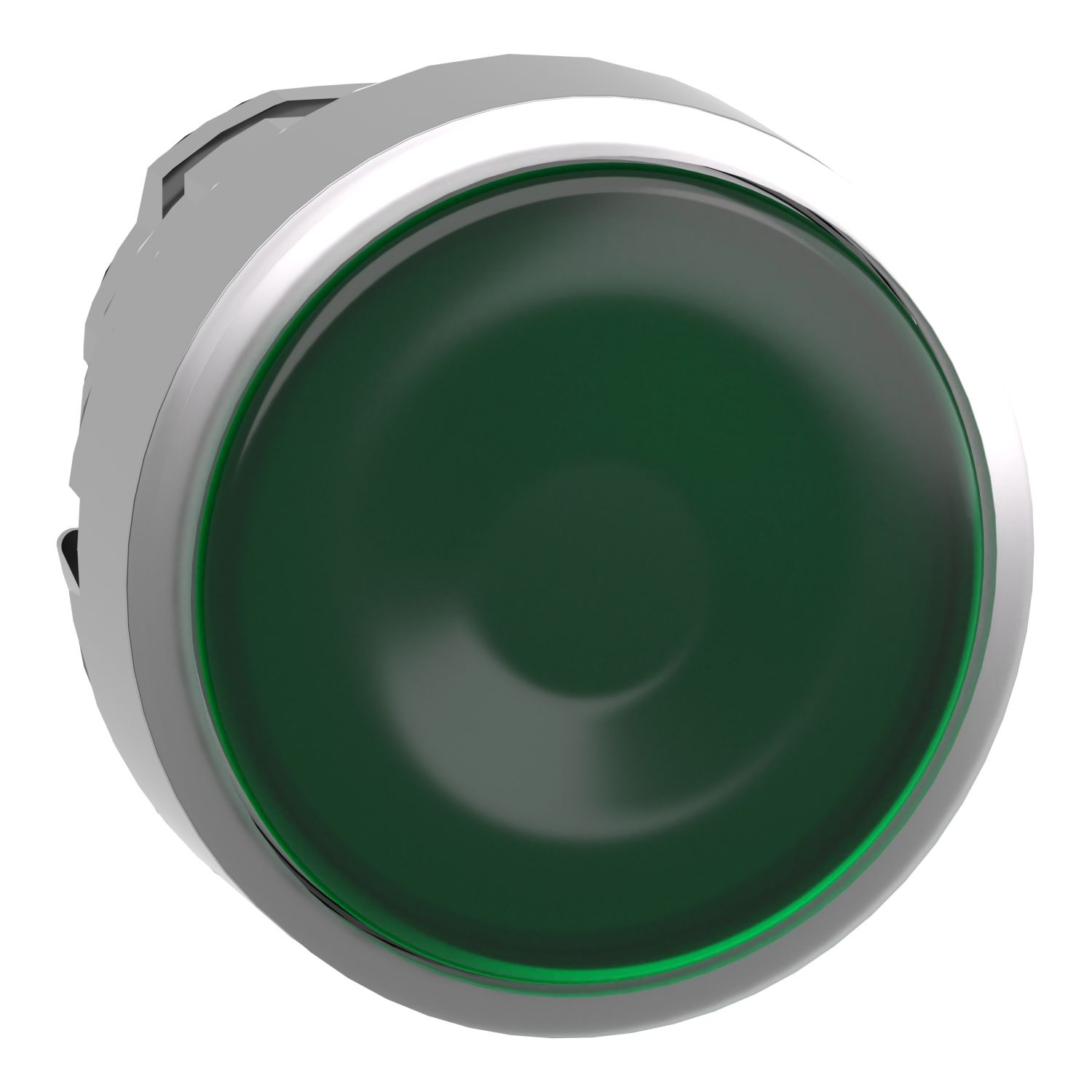

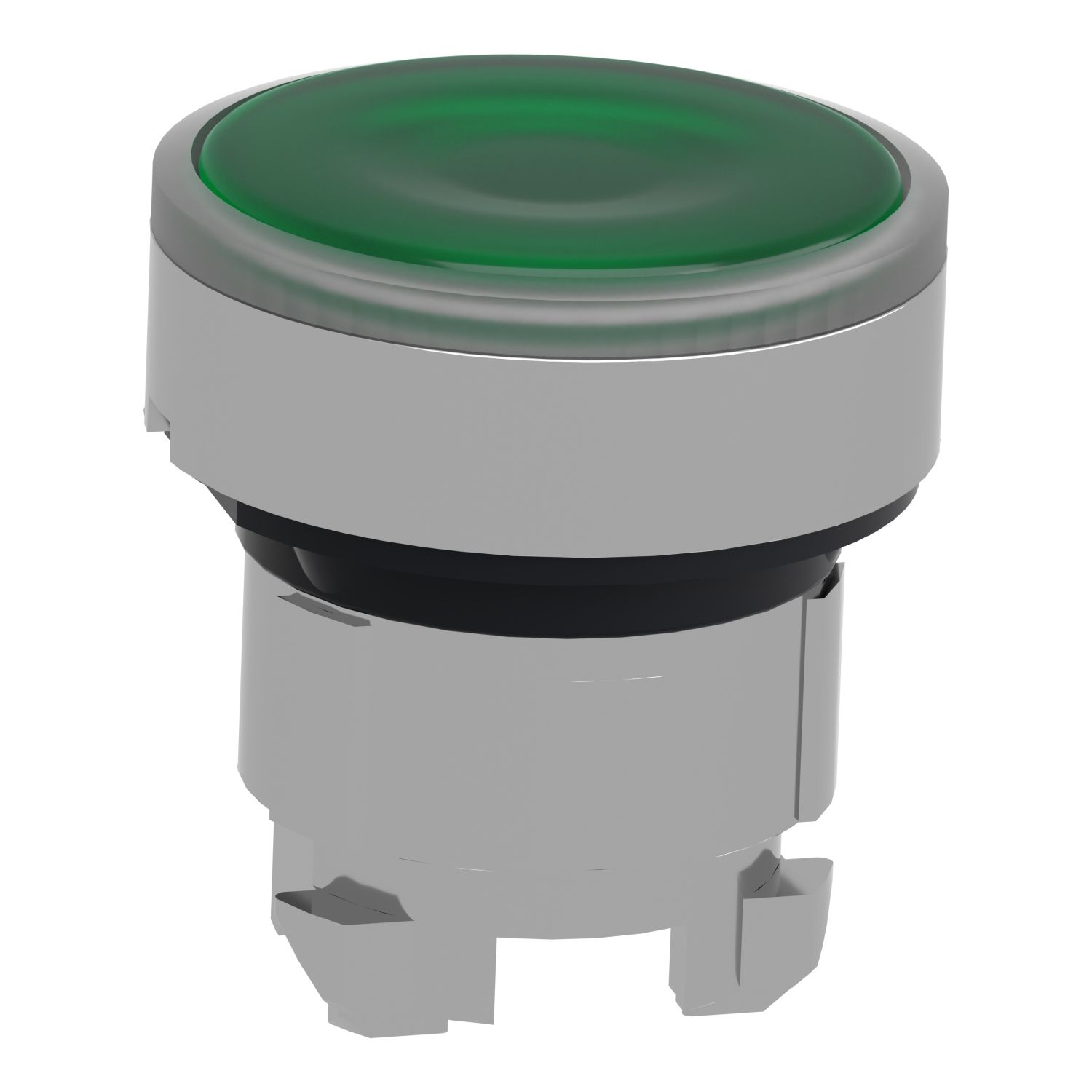

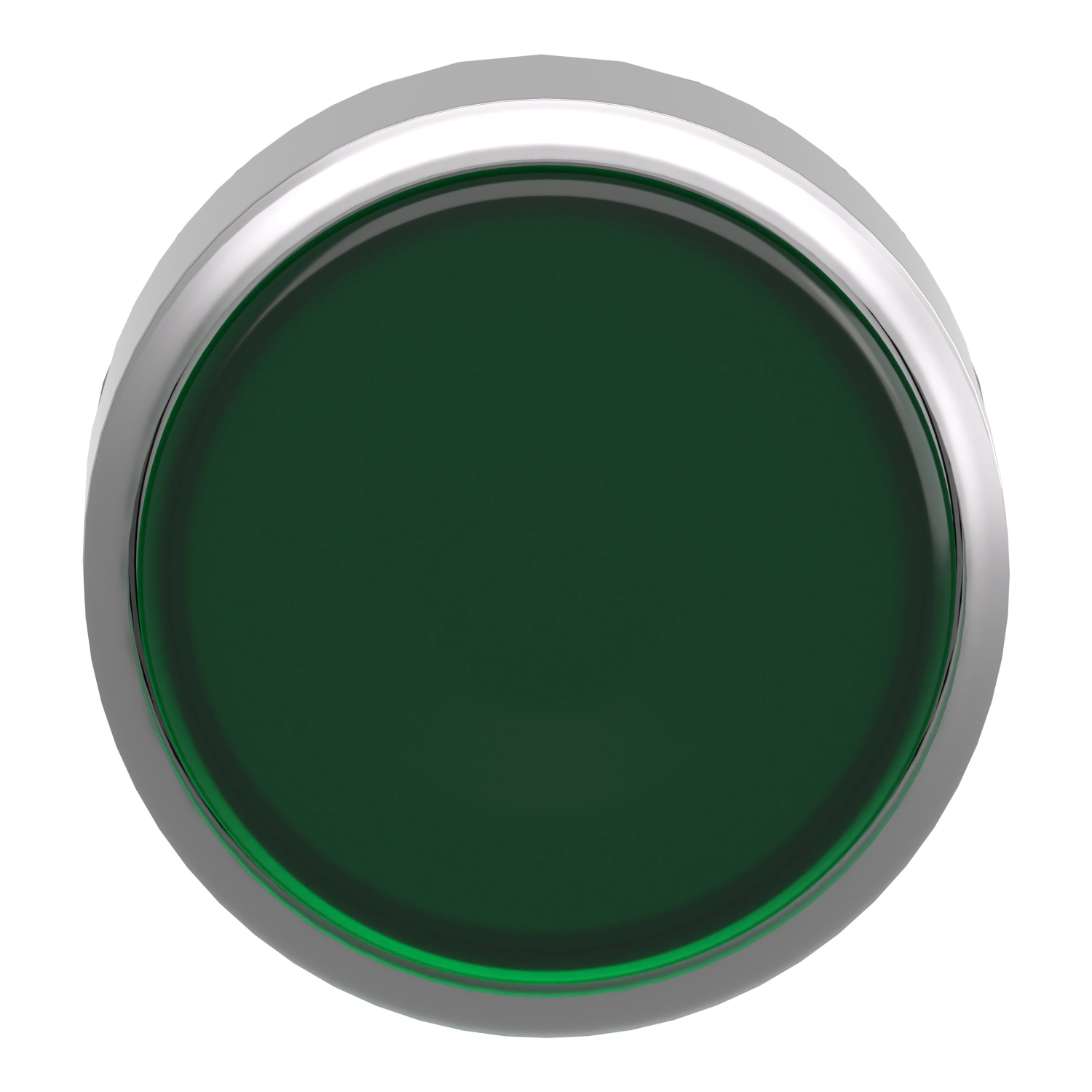

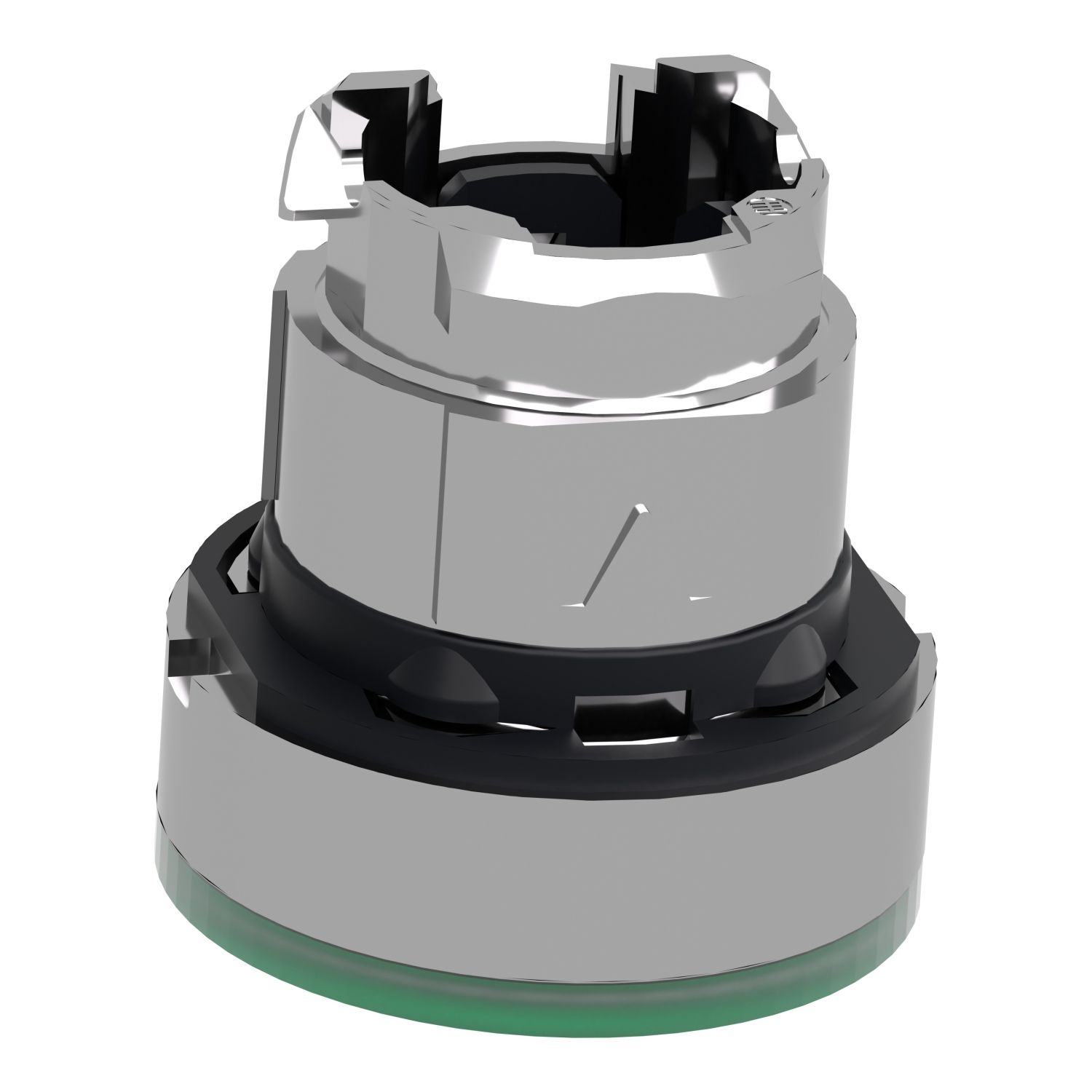

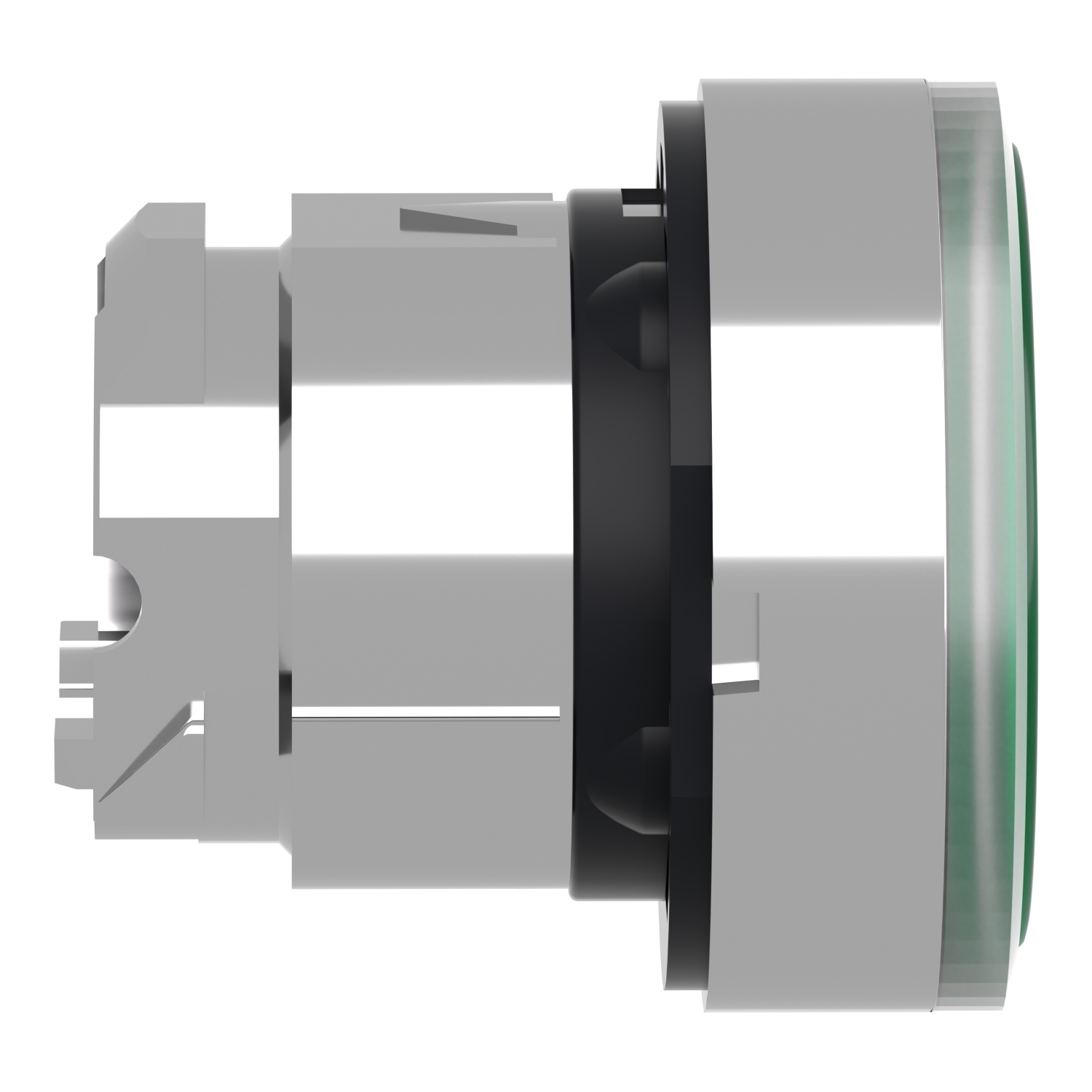

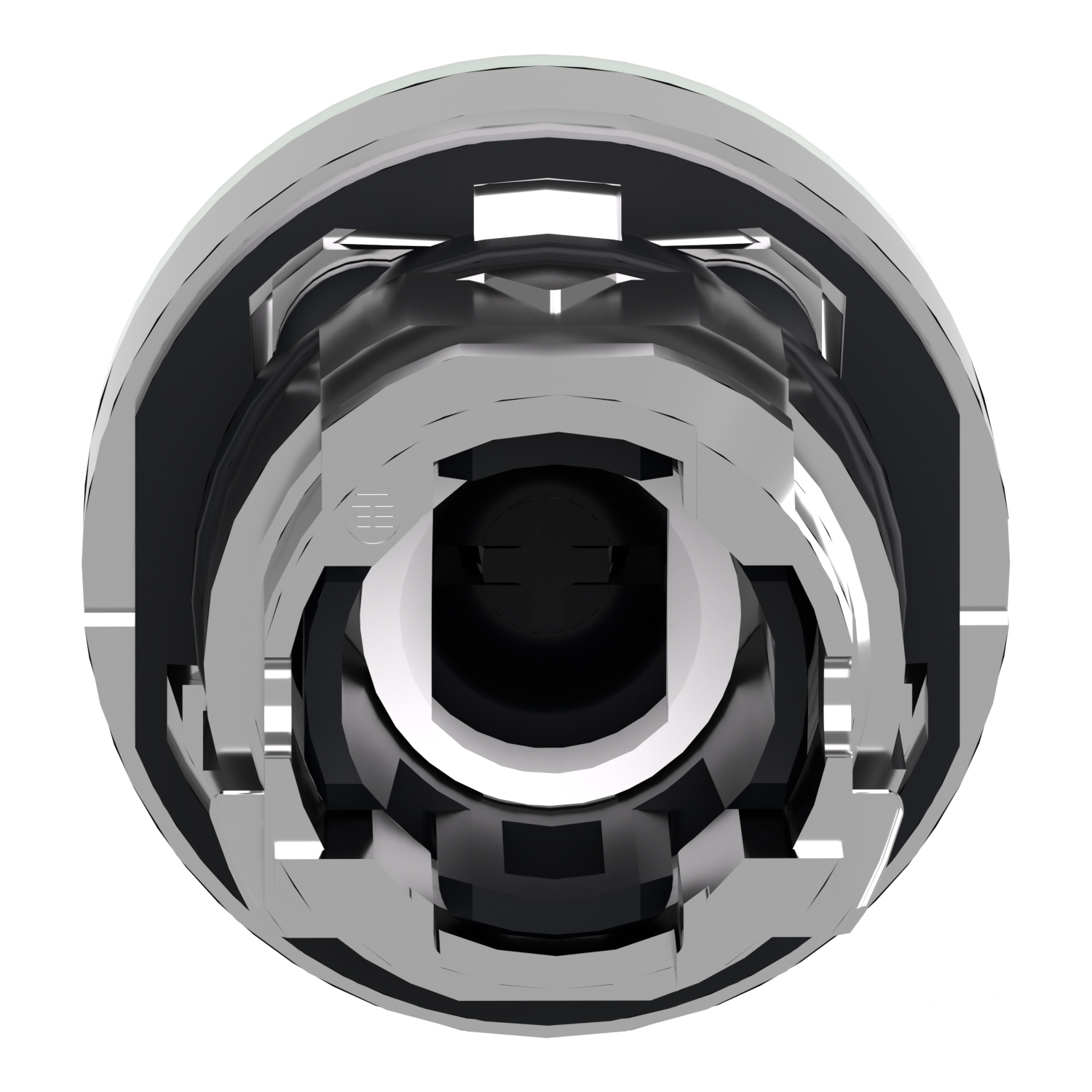

This Harmony XB4, plain lens flush green button head with transparent cap is used for insertion of legend, operates with a spring return / impulse mechanism. This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB4 |
| Product compatibility | universal LED |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | spring return |
| Range of product | Harmony XB4 |
| Operator profile | green flush, unmarked |
| Bezel material | chromium plated metal |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated push-button |
| Mounting diameter | 22 mm |
| Operator additional information | for insertion of legend |
| Complementary | |
| Group of product | flush push with inser of legend |
| Compatibility code | ZB4 |
| Mechanical durability | 10000000 cycles |
| Device presentation | basic element |
| CAD overall height | 29 mm |
| Customizable | 0, no |
| Electrical composition code | C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED |
| Main group | illum push-button |
| CAD overall depth | 30 mm |
| CAD overall width | 29 mm |
| Marking | unmarked |
| Cap/operator or lens colour | green |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.028 kg |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK06 conforming to IEC 62262 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class I conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-5, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4 |
| Product certifications | BV, CSA, GL, LROS (Lloyds register of shipping), UL listed, DNV |
