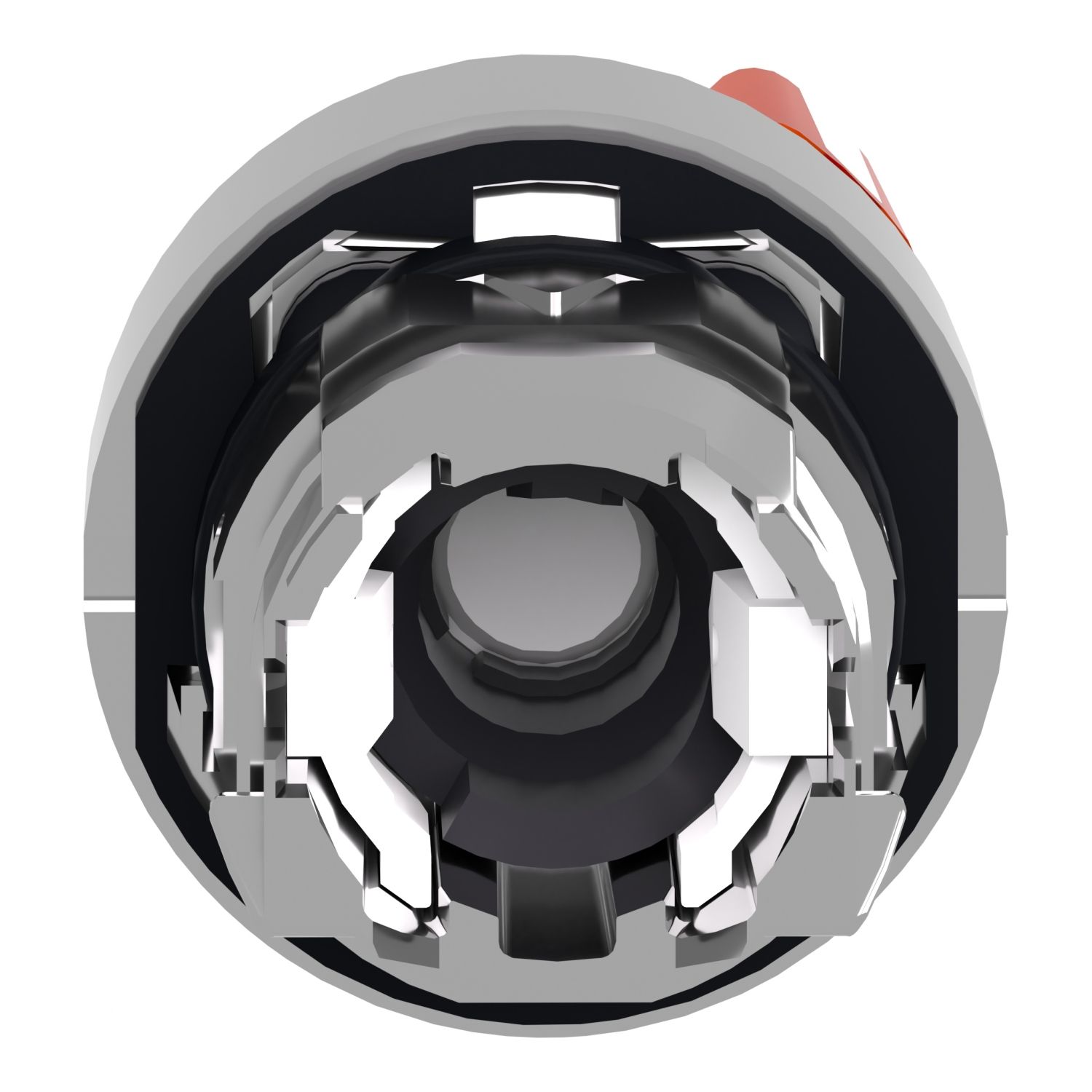

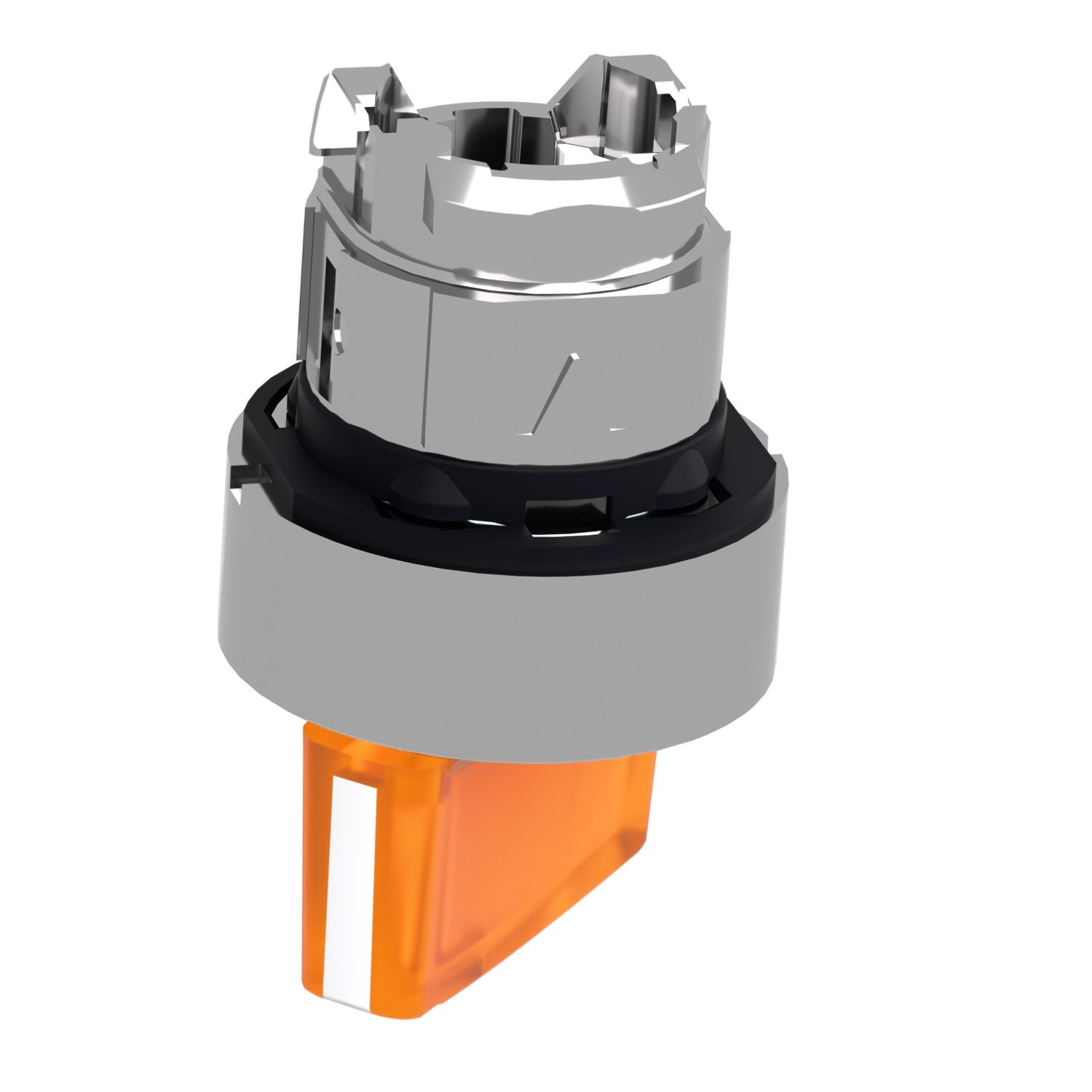

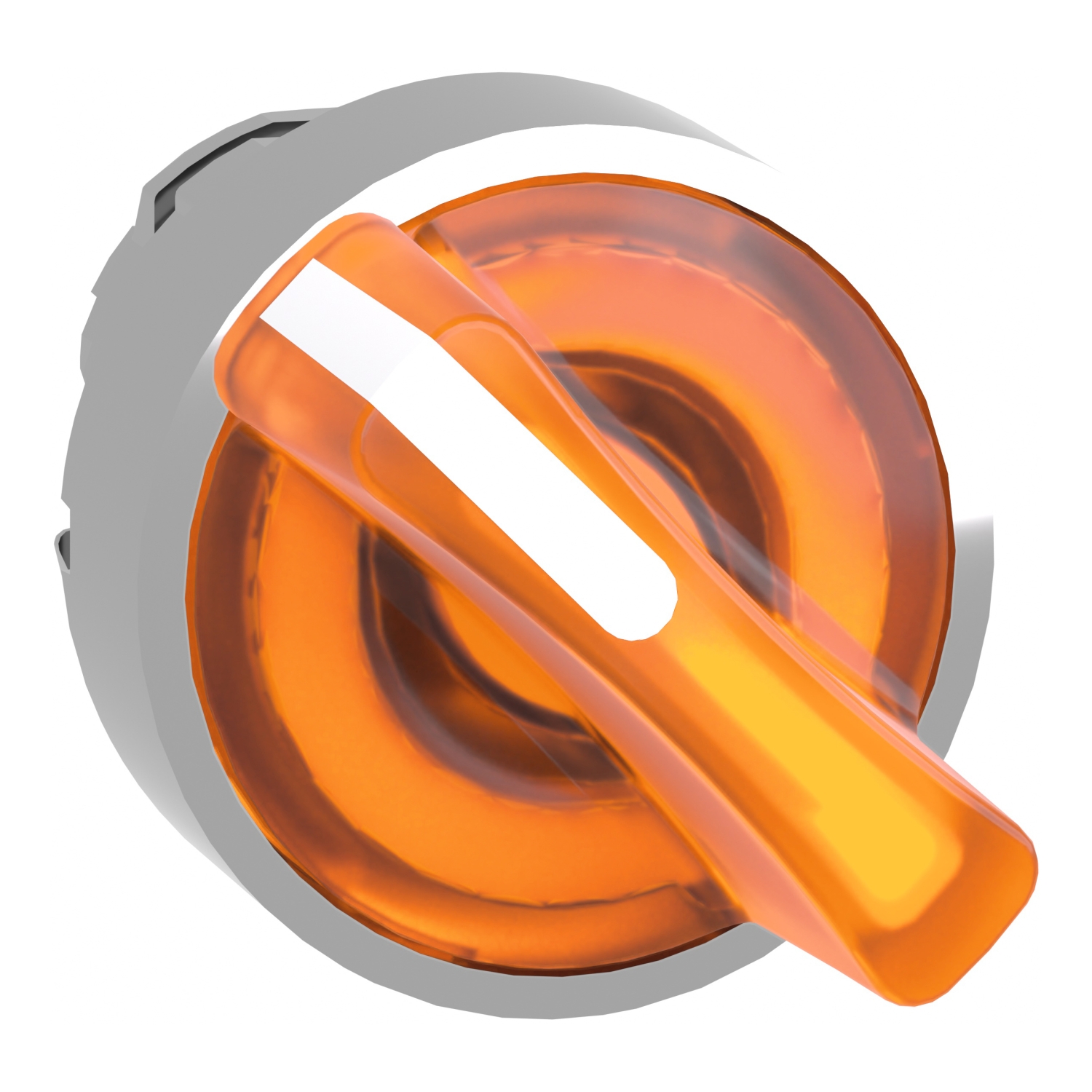

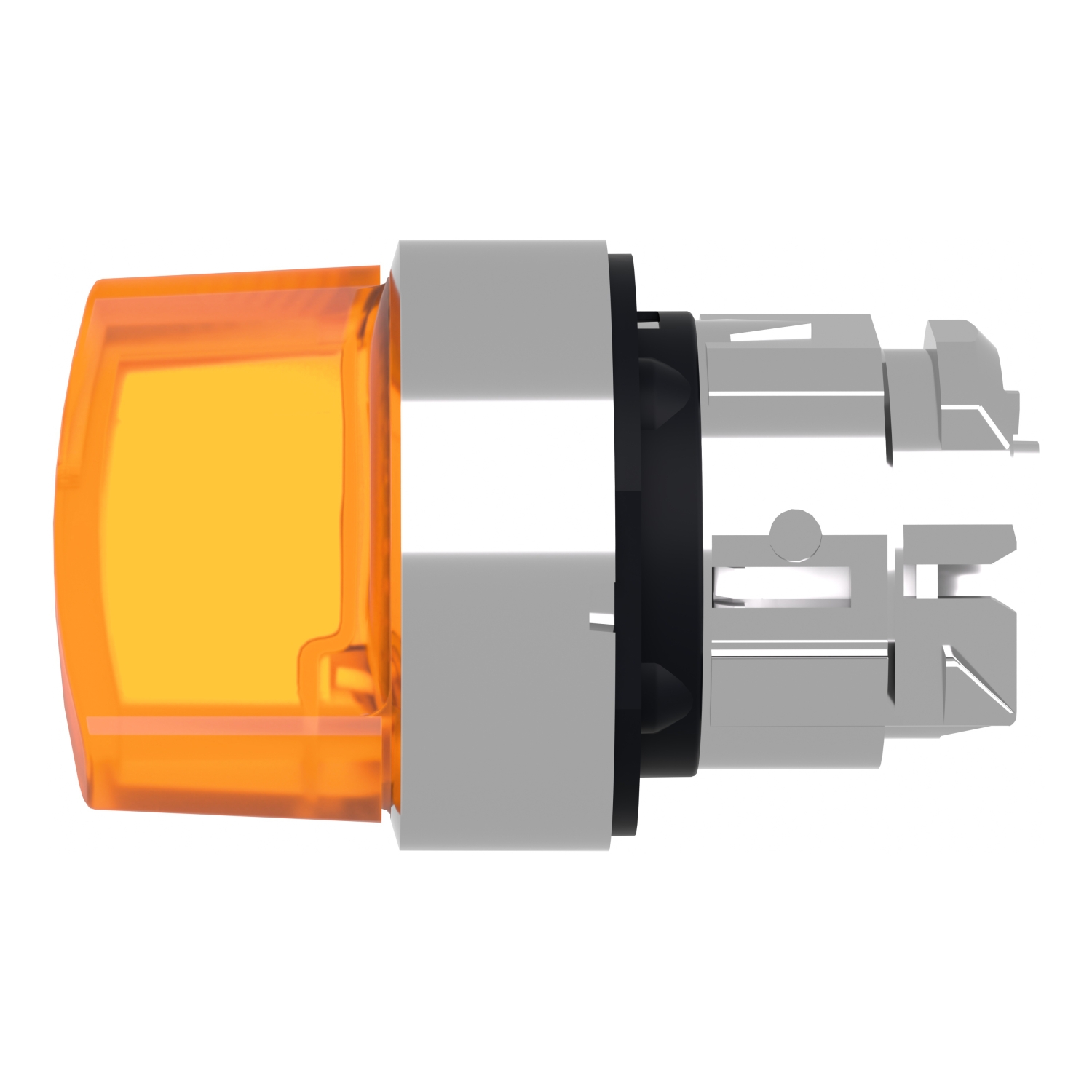

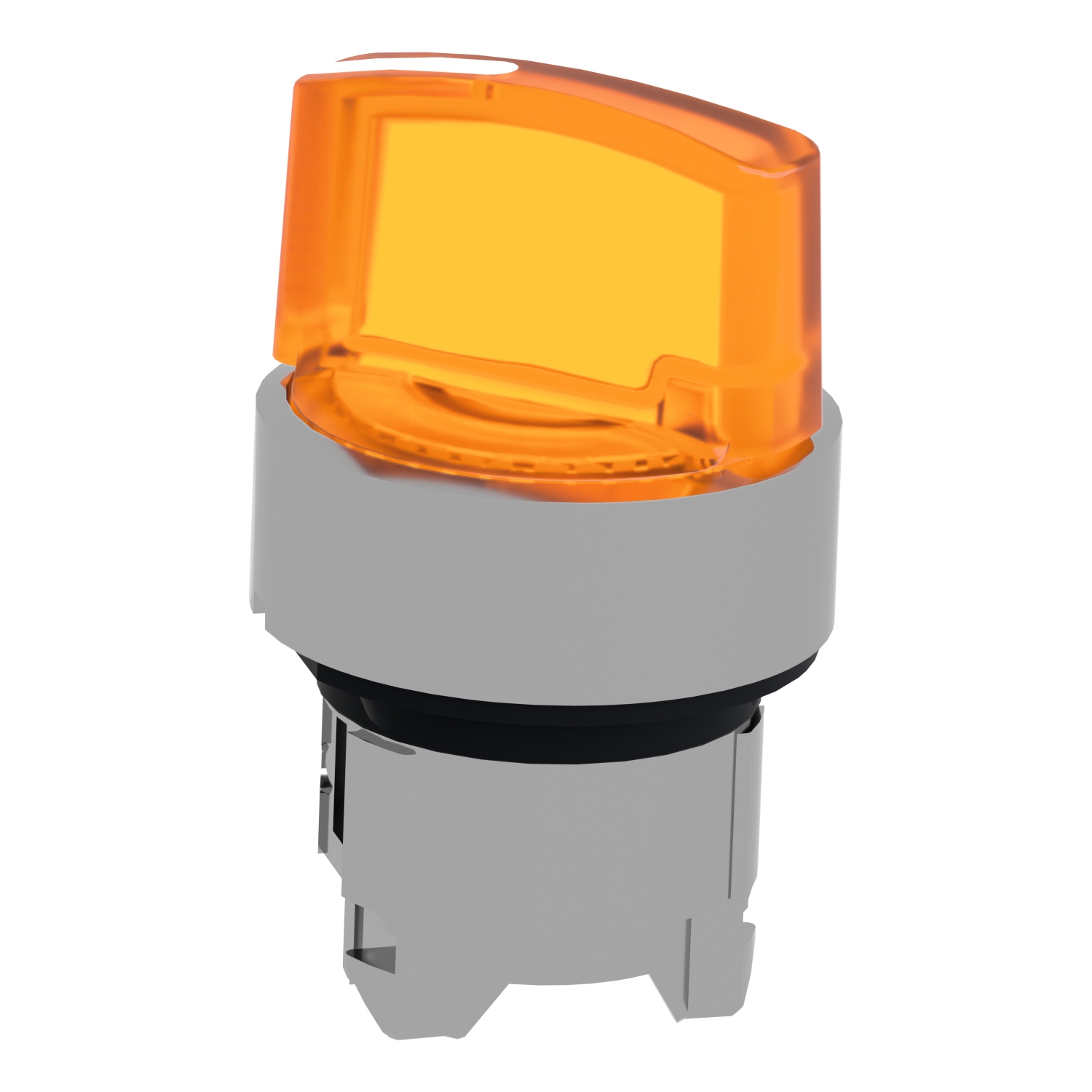

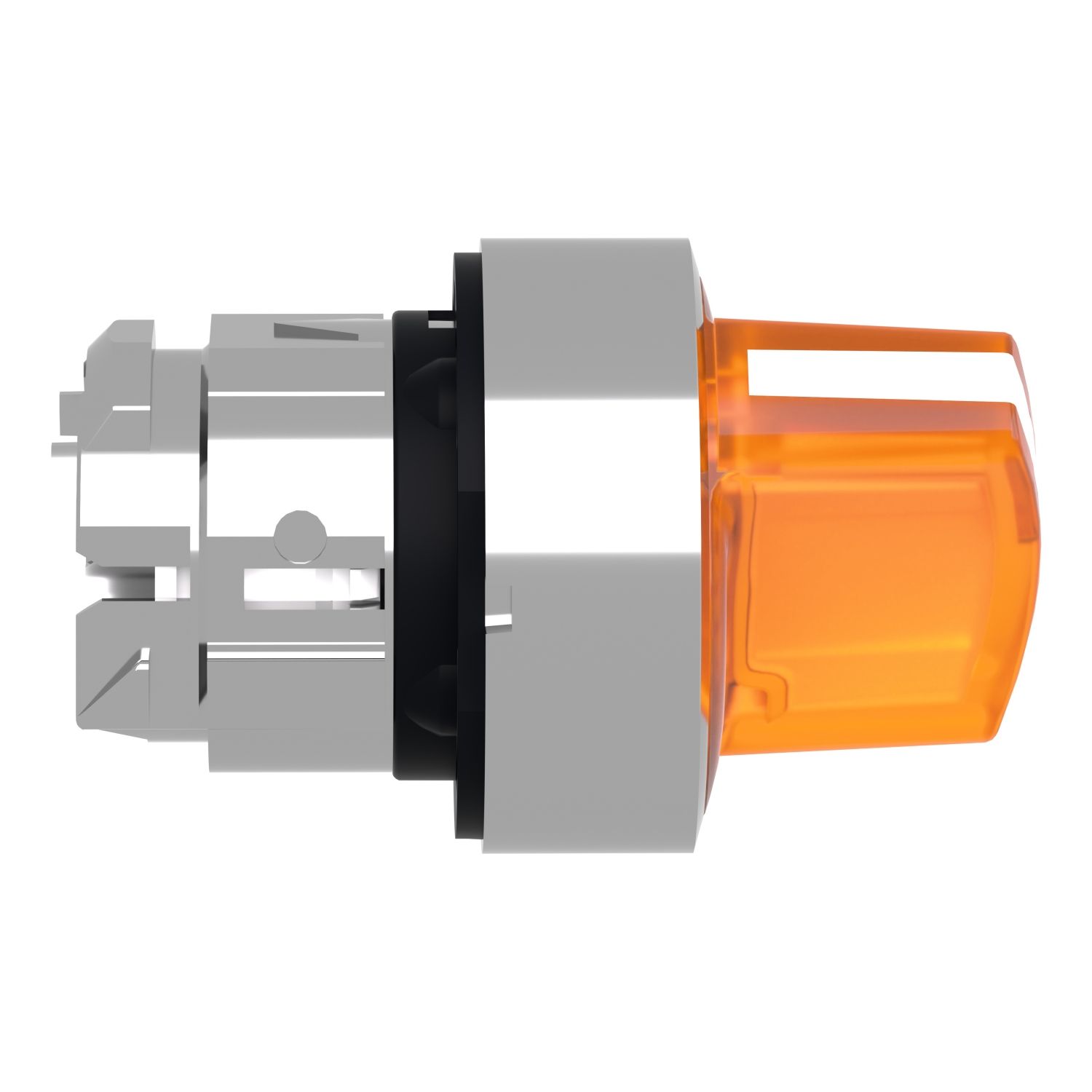

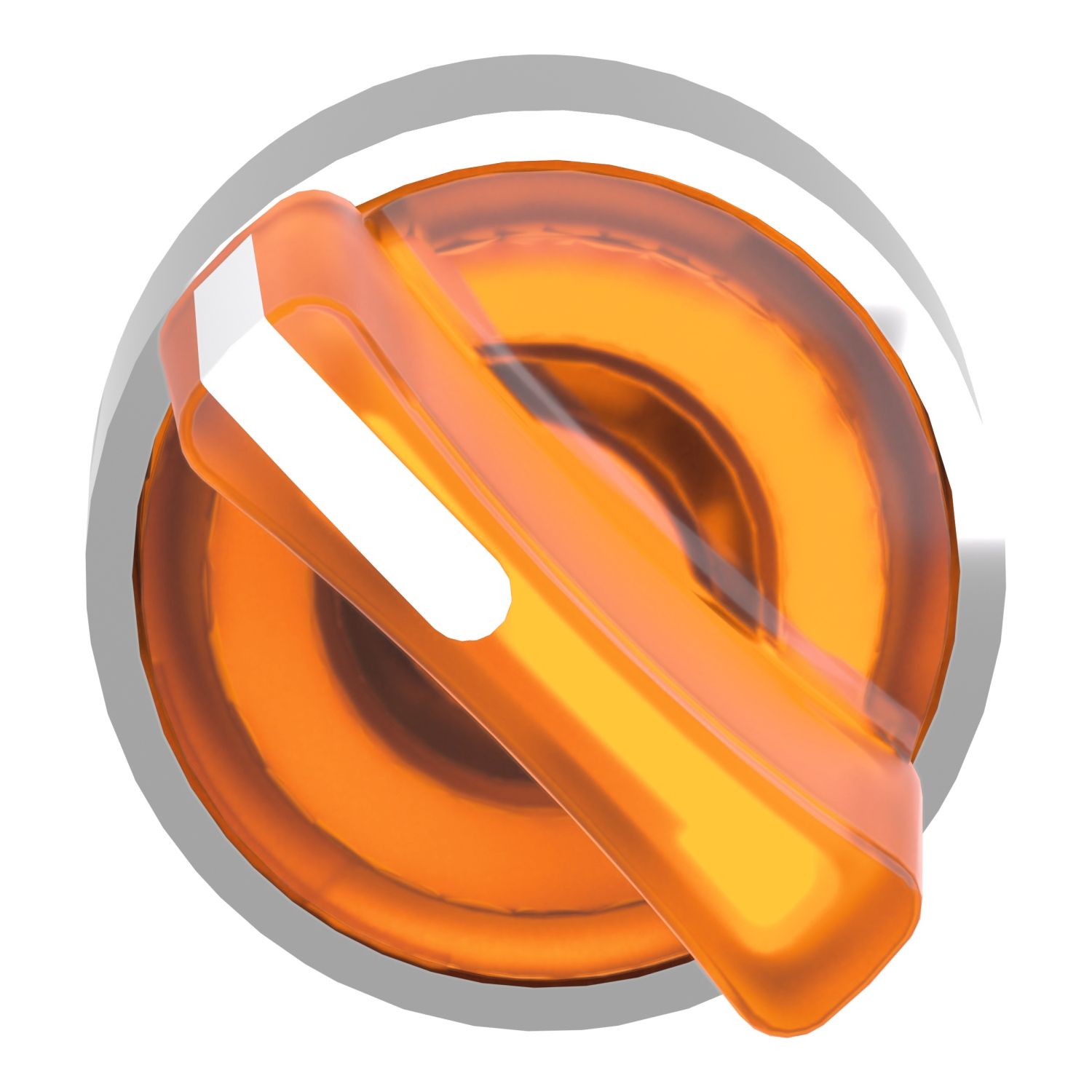

This Harmony XB4, illuminated orange selector switch head for integral LED with standard handle has 2 positions, operates with stay-put mechanism. This illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB4 |
| Product compatibility | universal LED |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | stay put |
| Range of product | Harmony XB4 |
| Operator position information | 2 positions 90° |
| Operator profile | orange standard handle |
| Bezel material | chromium plated metal |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated selector switch |
| Mounting diameter | 22 mm |
| Complementary | |
| Group of product | illum. integral LED |
| Compatibility code | ZB4 |
| Mechanical durability | 1000000 cycles |
| Device presentation | basic element |
| CAD overall height | 29 mm |
| Customizable | 0, no |
| Electrical composition code | M4 for <4 contacts using single and double blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M3 for <4 contacts using single blocks in front mounting with integral LED |
| Main group | illum select switch |
| CAD overall depth | 43 mm |
| CAD overall width | 29 mm |
| Cap/operator or lens colour | orange |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.036 kg |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK04 conforming to IEC 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class I conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14 |
| Product certifications | CSA, BV, LROS (Lloyds register of shipping), DNV, GL, UL listed |
