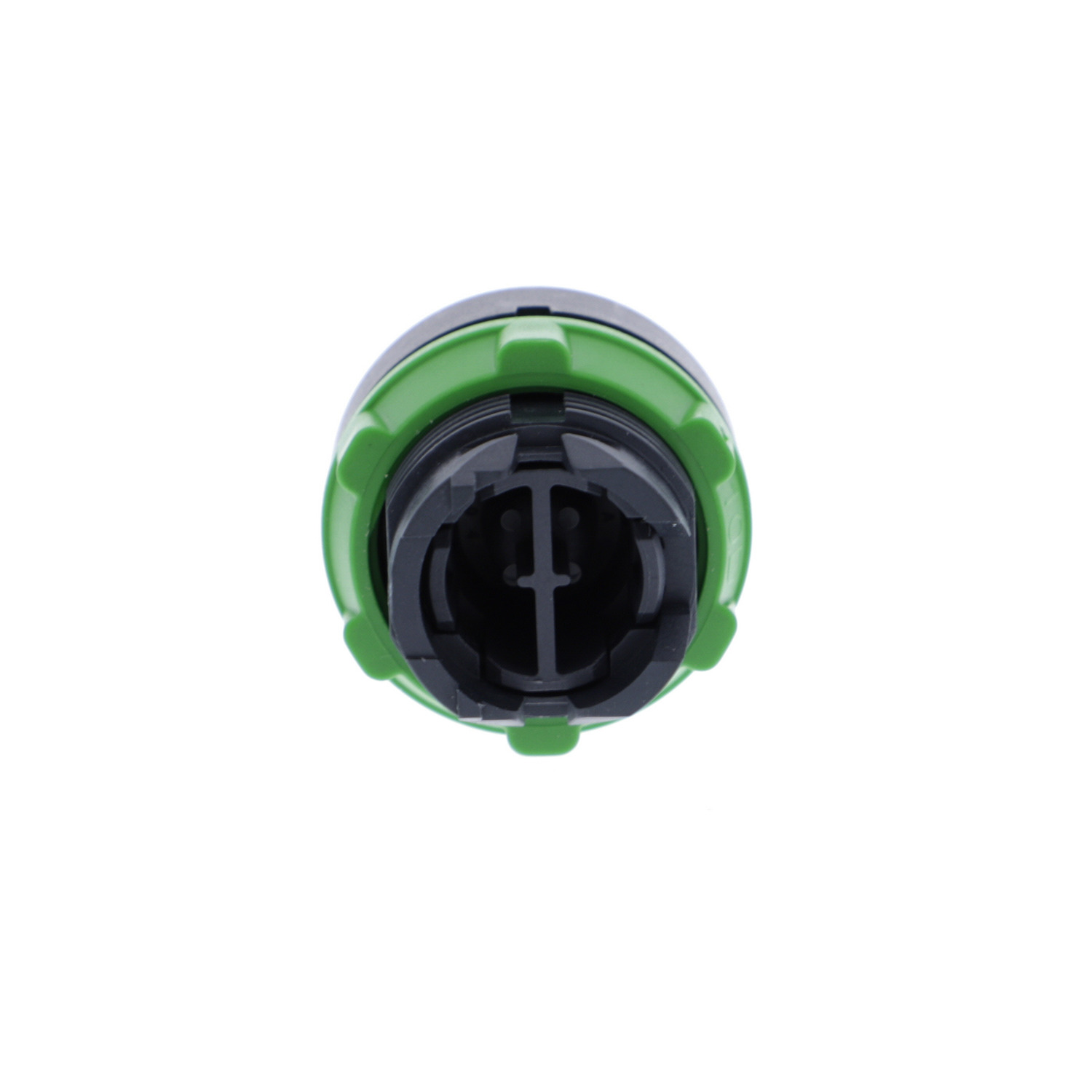

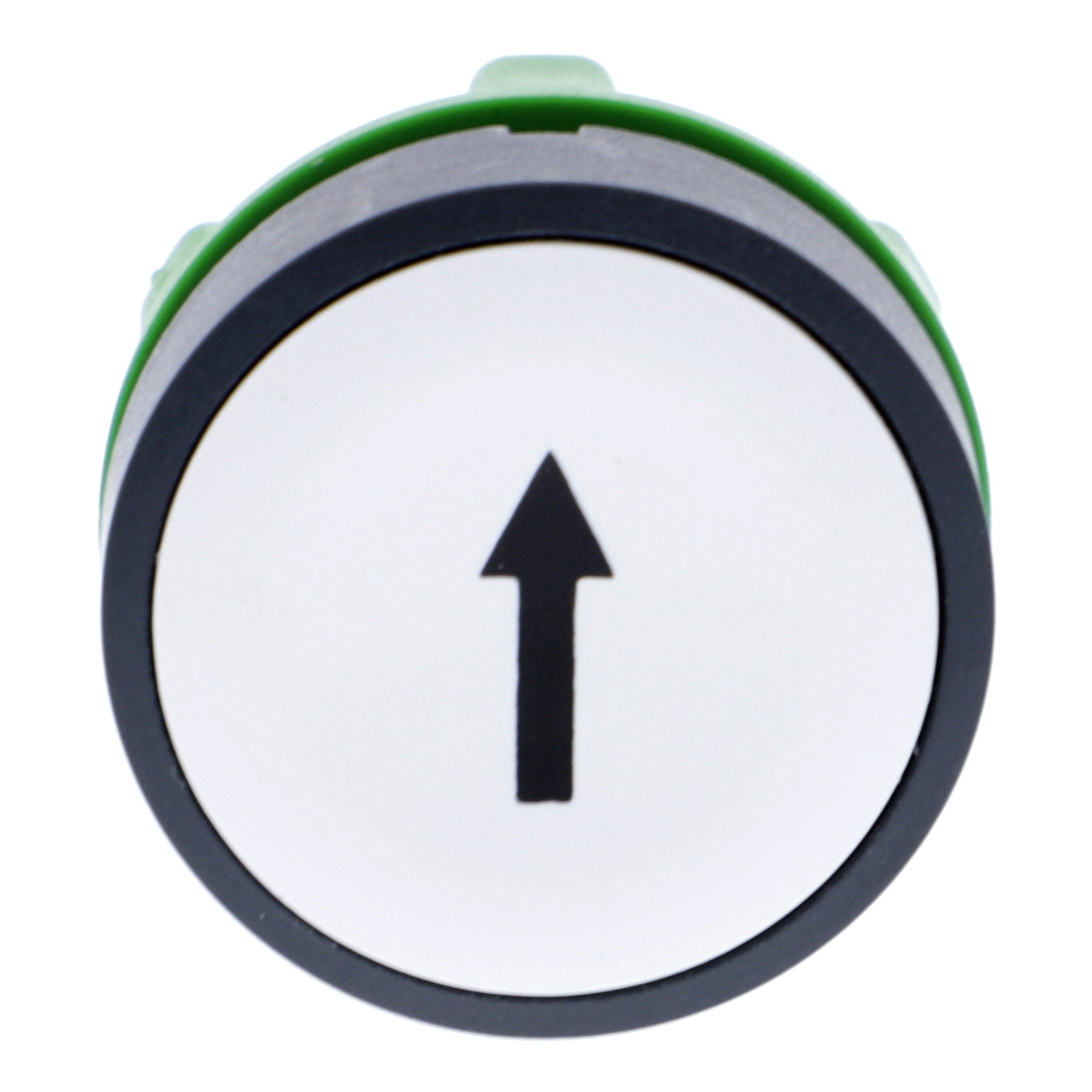

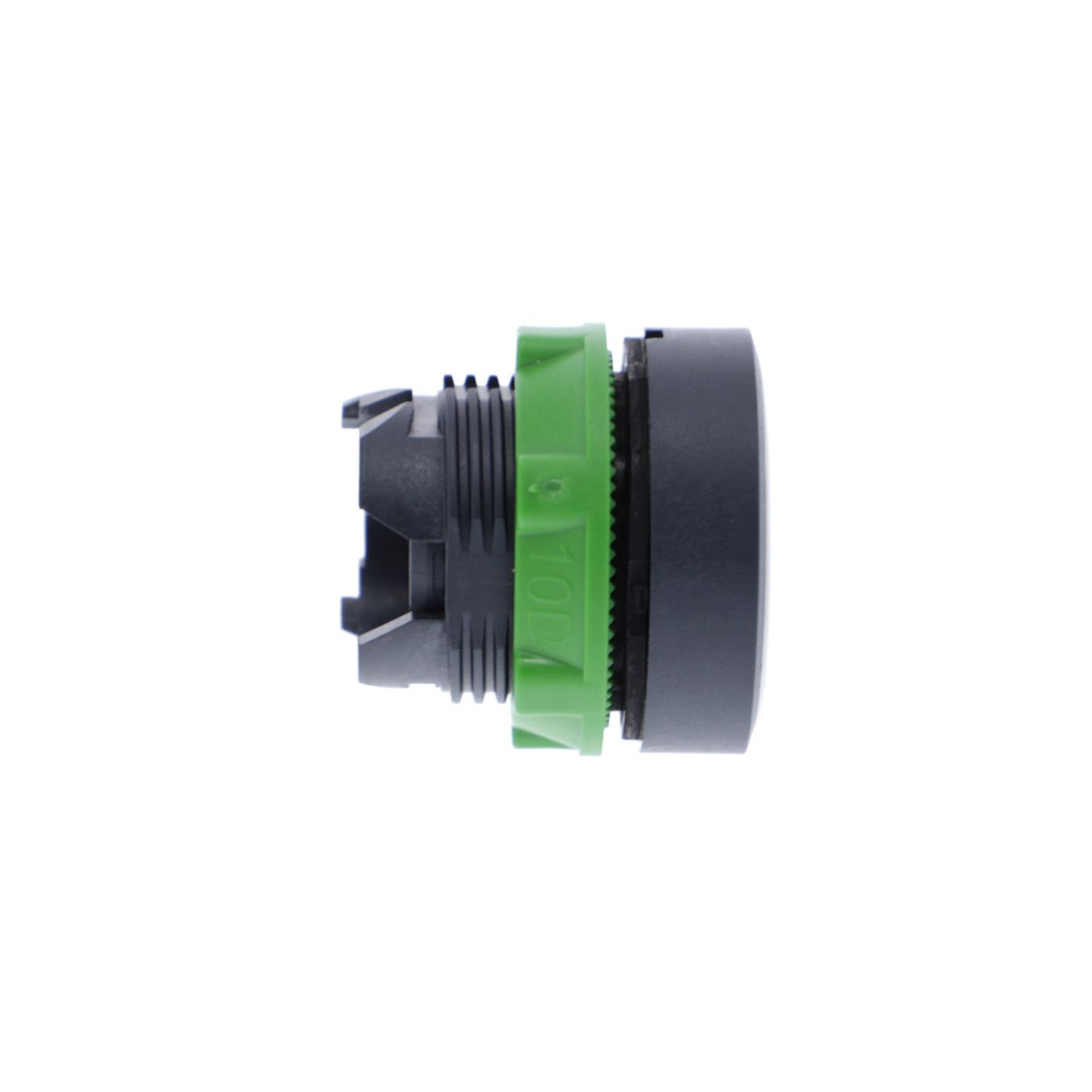

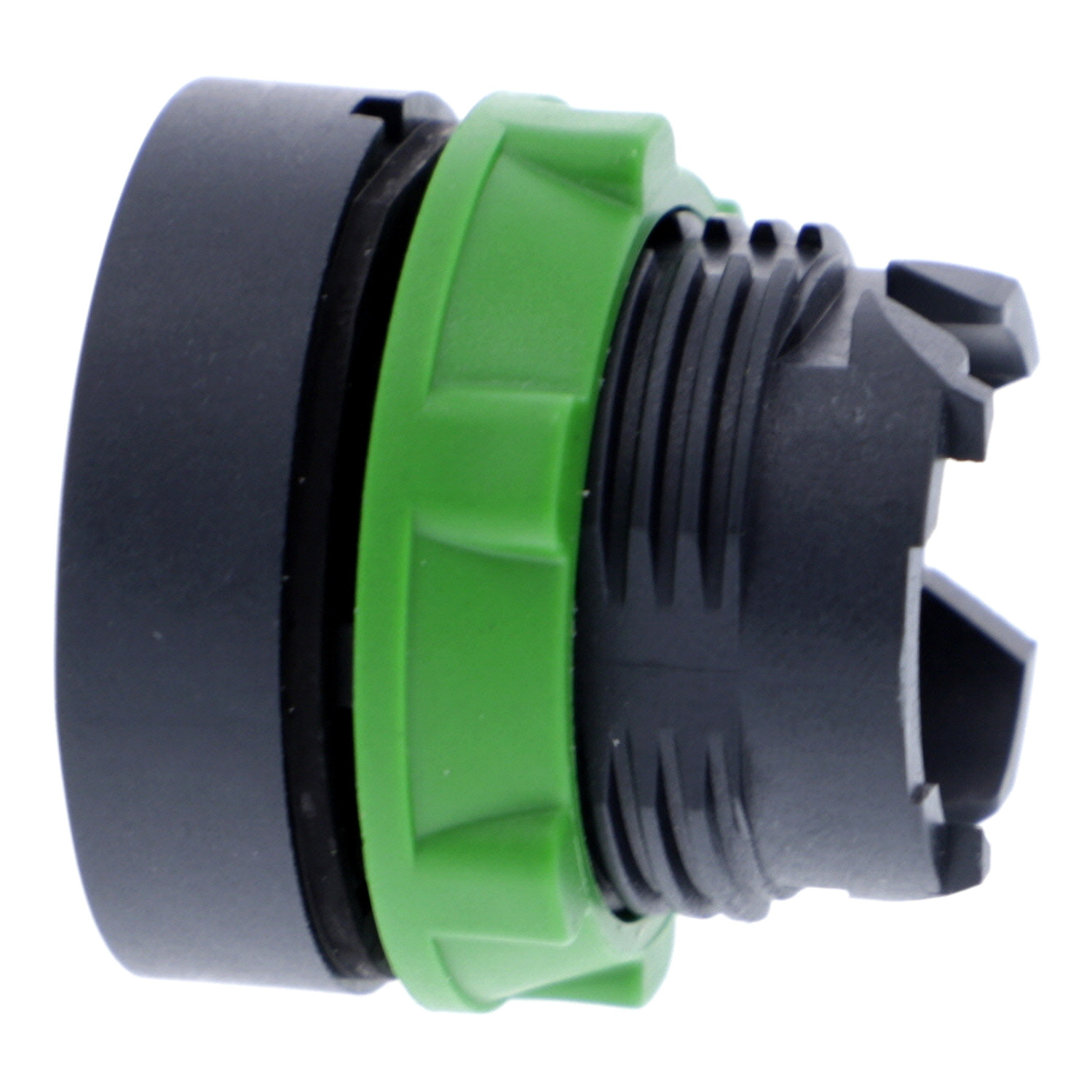

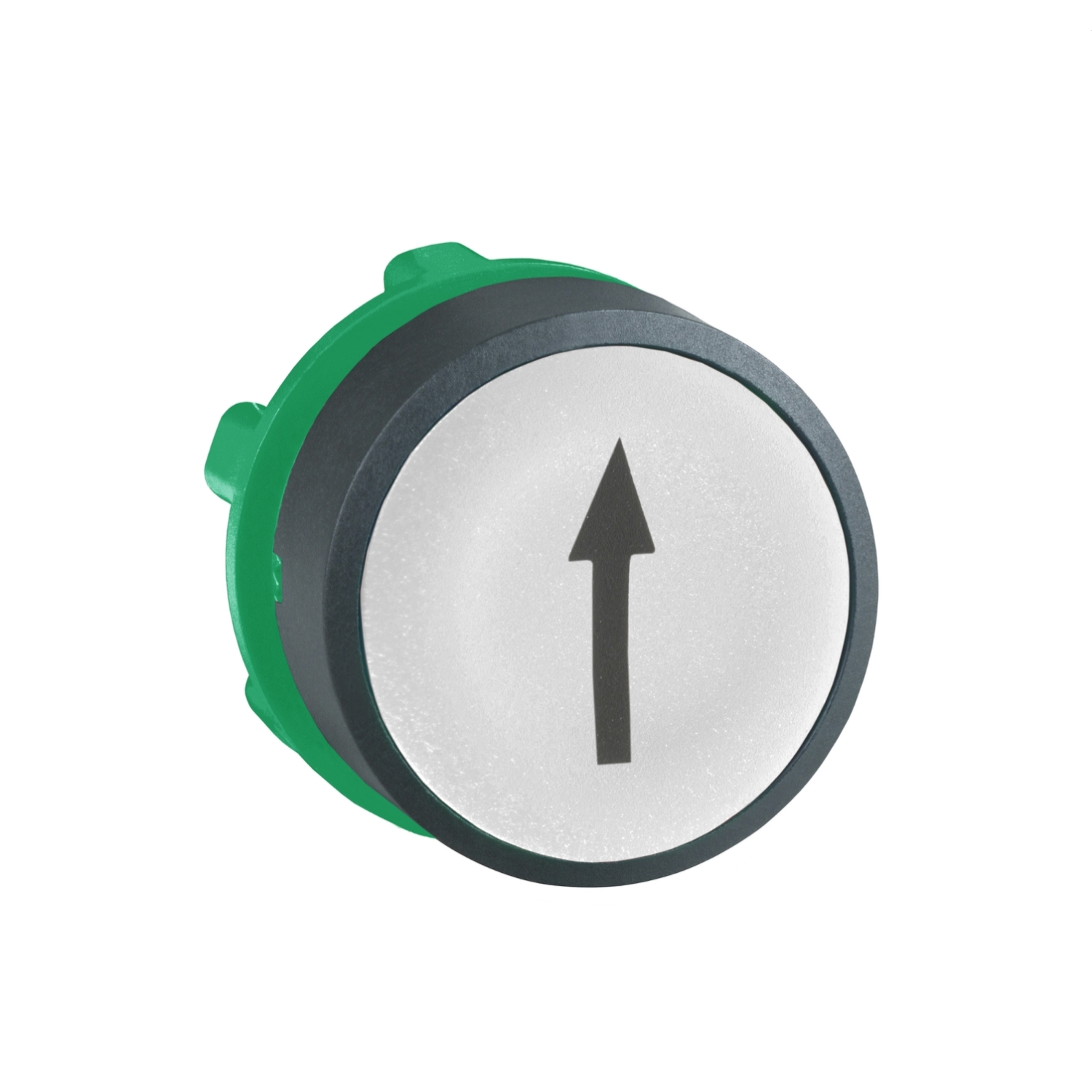

Push button head, Harmony XB5, plastic, flush, white, 22mm, spring return, marked UP ARROW

Manufacturer: Schneider Electric

SKU: ZB5AA334

GTIN: 3389110134582

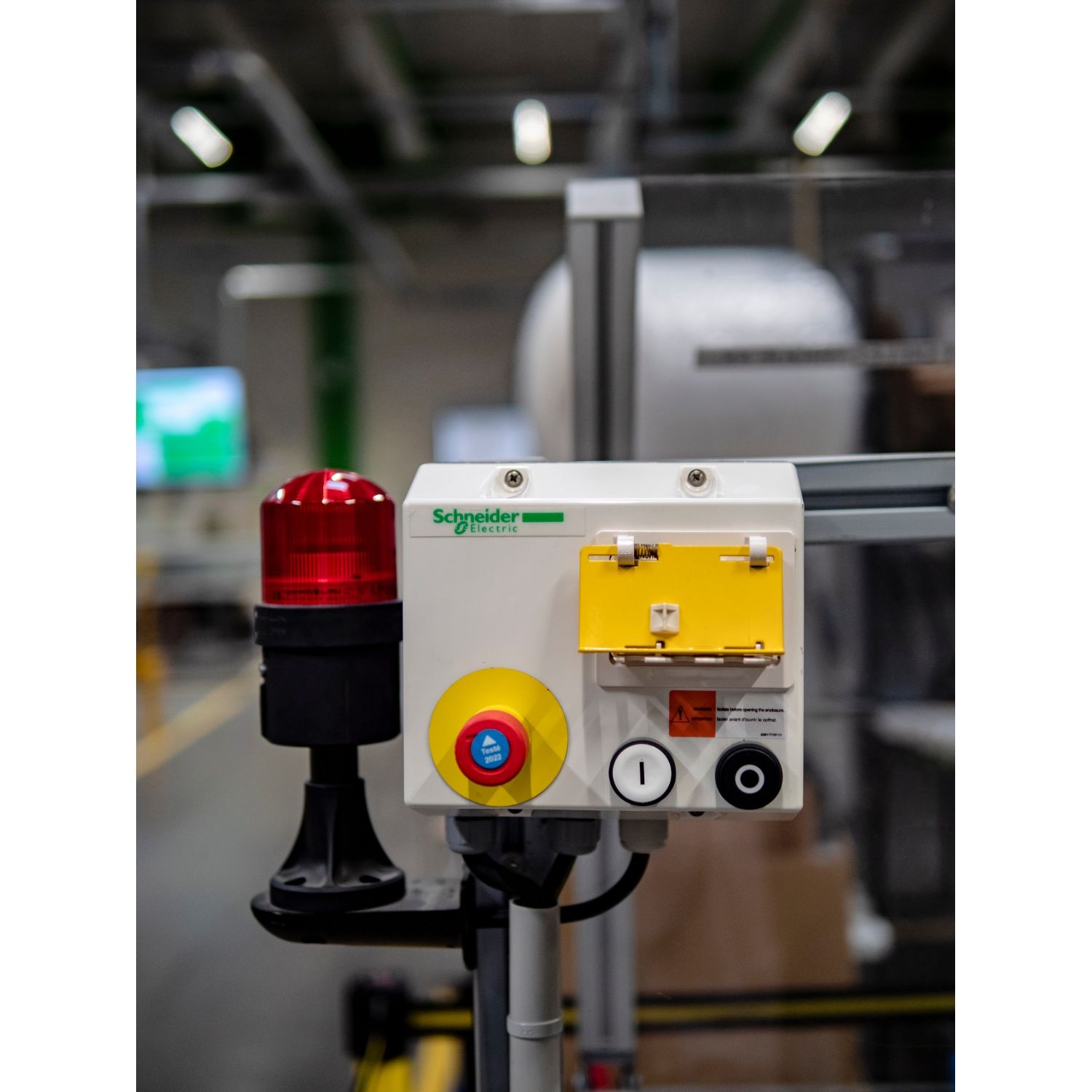

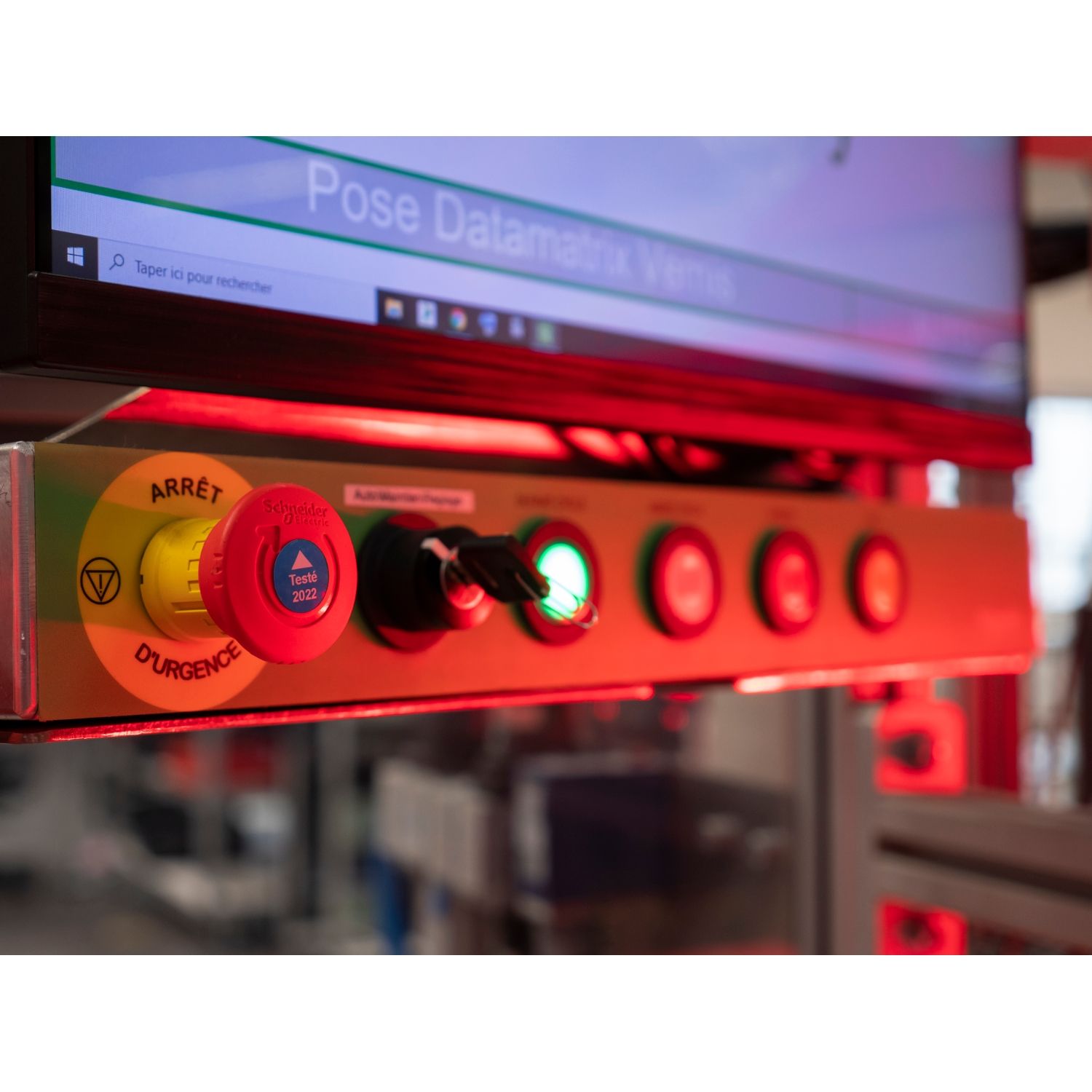

Image of product in real life situation

Catalog

Instruction sheet

Environmental Disclosure

CAD

Circularity Profile

Declaration of conformity

Old price: $26.51 inc GST

Price: $16.13 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This Harmony XB5, flush white button head operates with a spring return mechanism. It is marked with a "Up arrow" symbol. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name	Attribute value
Main
Device short name	ZB5
Sale per indivisible quantity	1
Head type	standard
Type of operator	spring return
Range of product	Harmony XALF, Harmony XB5
Operator profile	white flush, up arrow (black)
Bezel material	dark grey plastic
Shape of signaling unit head	round
Product or component type	head for non-illuminated push-button
Mounting diameter	22 mm
Complementary
Group of product	flush push with marking
Station name	XALK 2...5 cut-outs, XALD 1...5 cut-outs
Compatibility code	ZB5
Mechanical durability	10000000 cycles
Device presentation	basic element
CAD overall height	29 mm
Customizable	0, no
Colour of marking	black
Electrical composition code	SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group	push-button
CAD overall depth	28 mm
CAD overall width	29 mm
Marking	up arrow
Cap/operator or lens colour	white
Net weight	0.018 kg
Environment
Protective treatment	TH
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP69K, IP69, IP67, IP66 conforming to IEC 60529
Standards	JIS C8201-1, UL 508, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1
Ambient air temperature for operation	-40-70 °C
IK degree of protection	IK03 conforming to IEC 50102
NEMA degree of protection	NEMA 4X, NEMA 13
Overvoltage category	class II conforming to IEC 60536
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certifications	UL listed, GL, DNV, CSA, LROS (Lloyds register of shipping), BV
