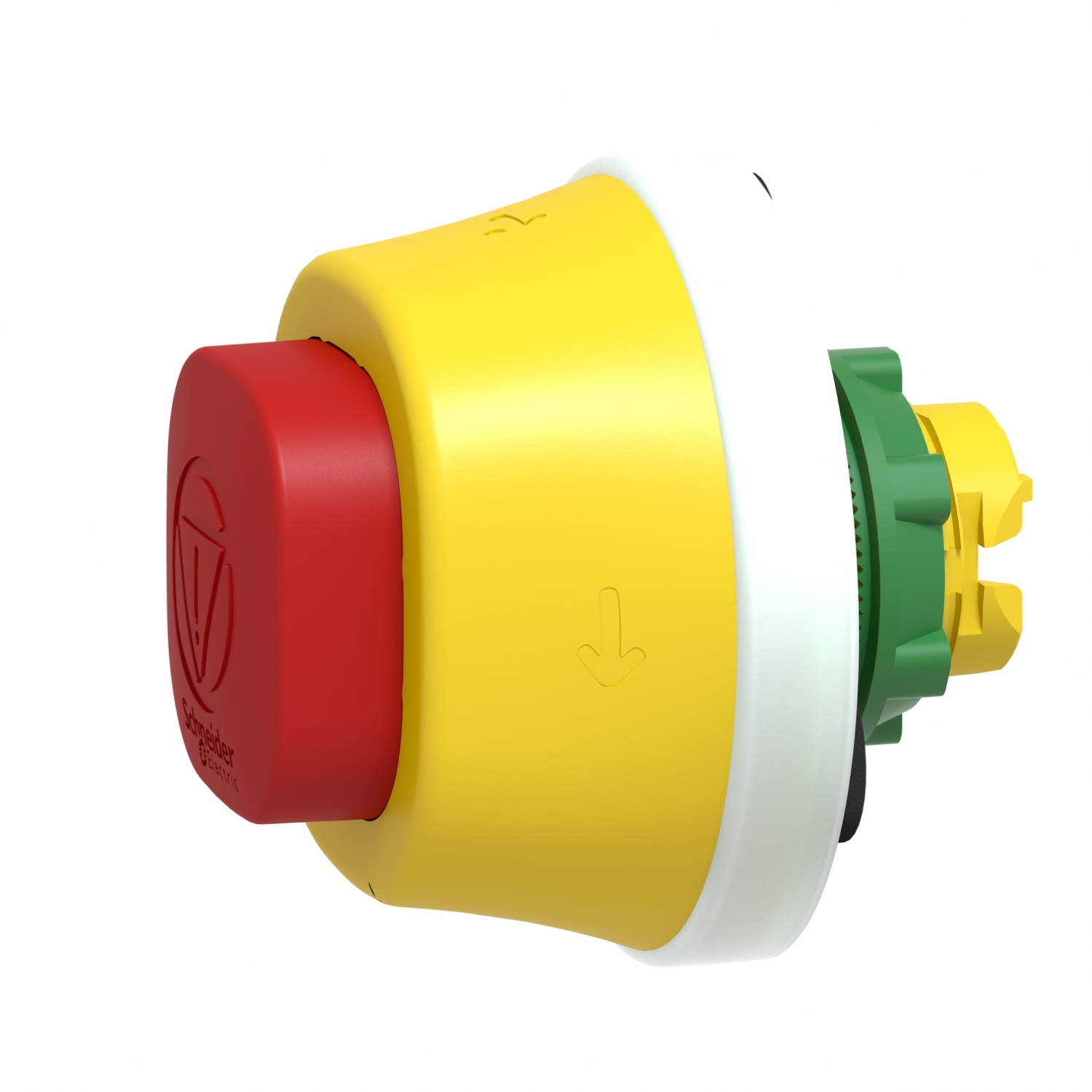

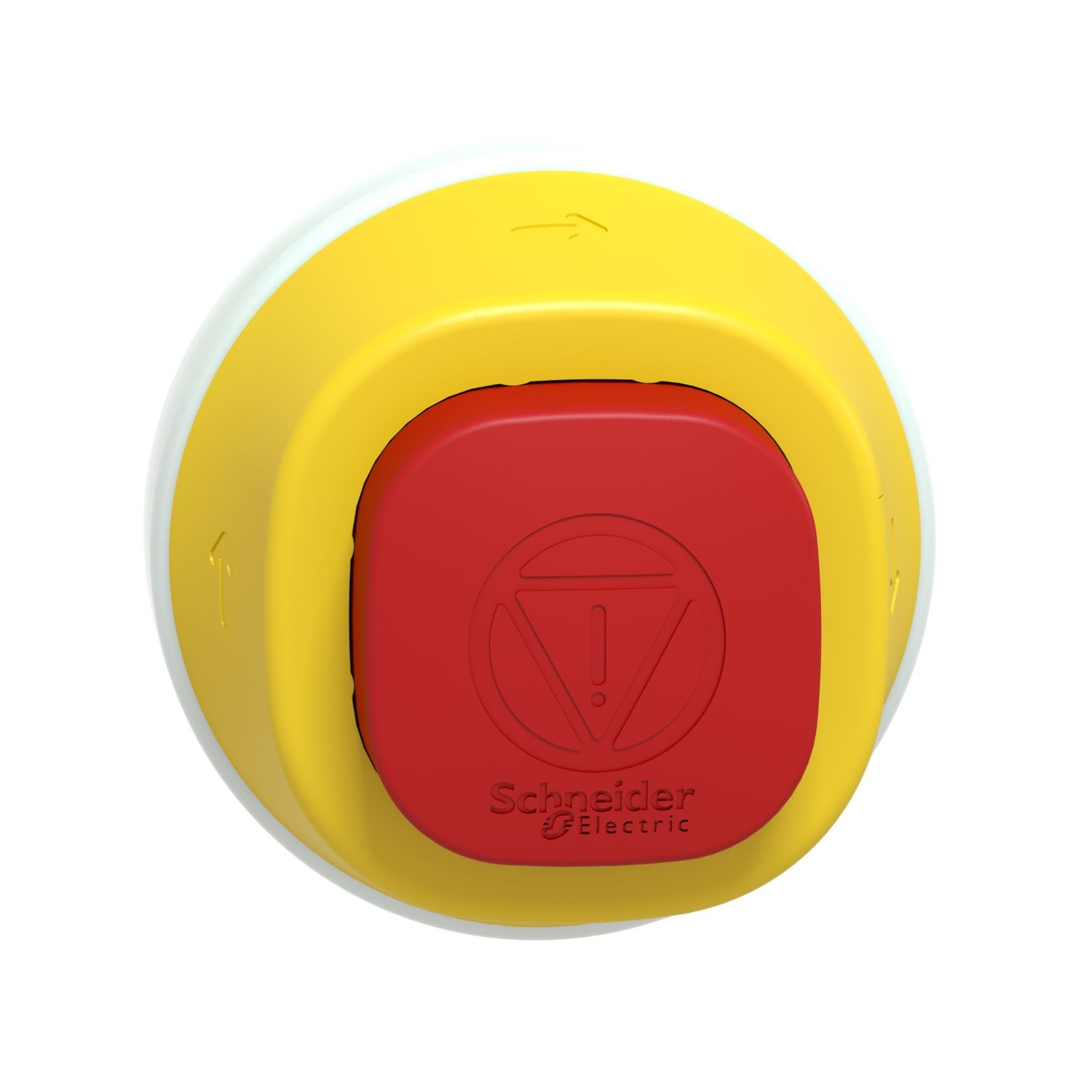

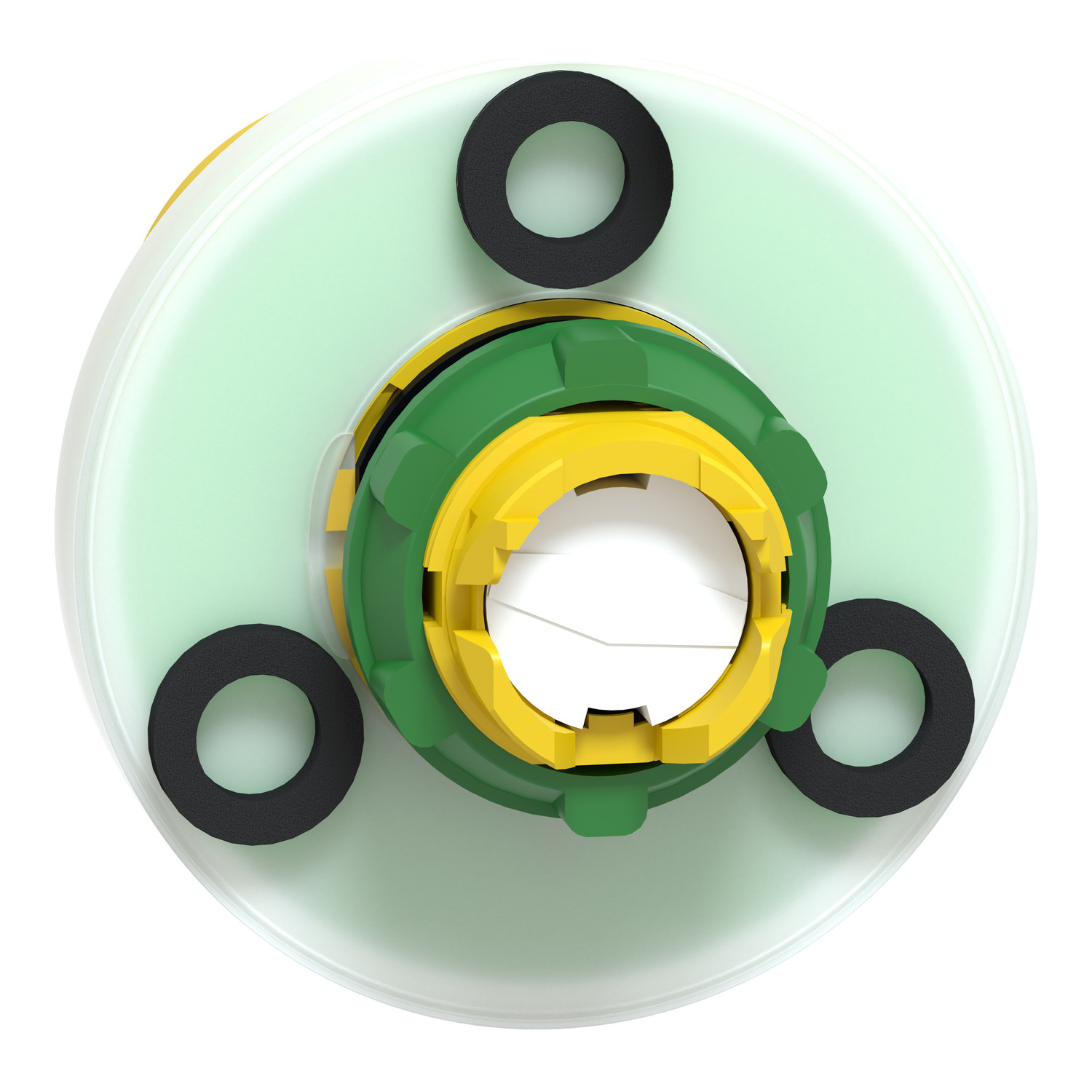

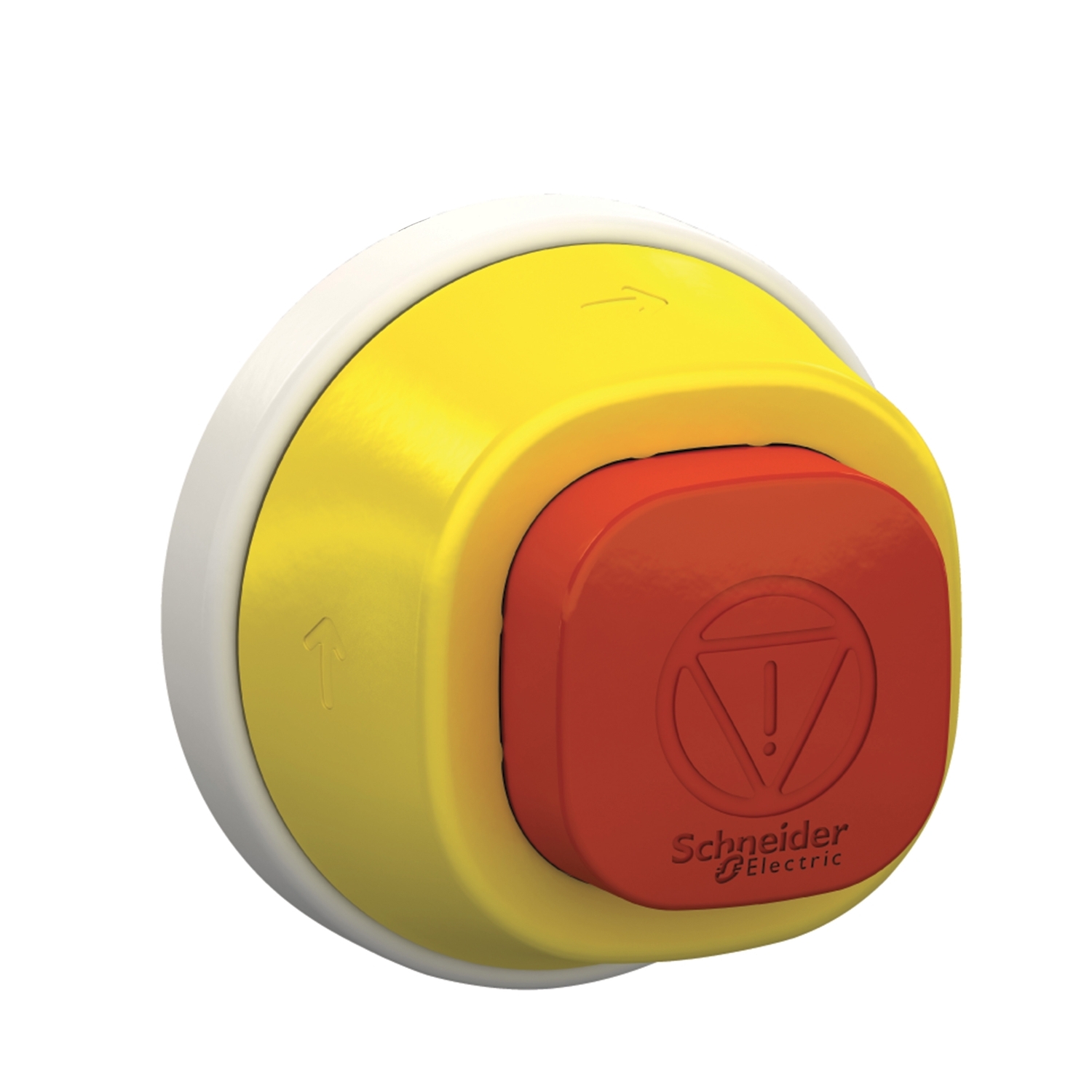

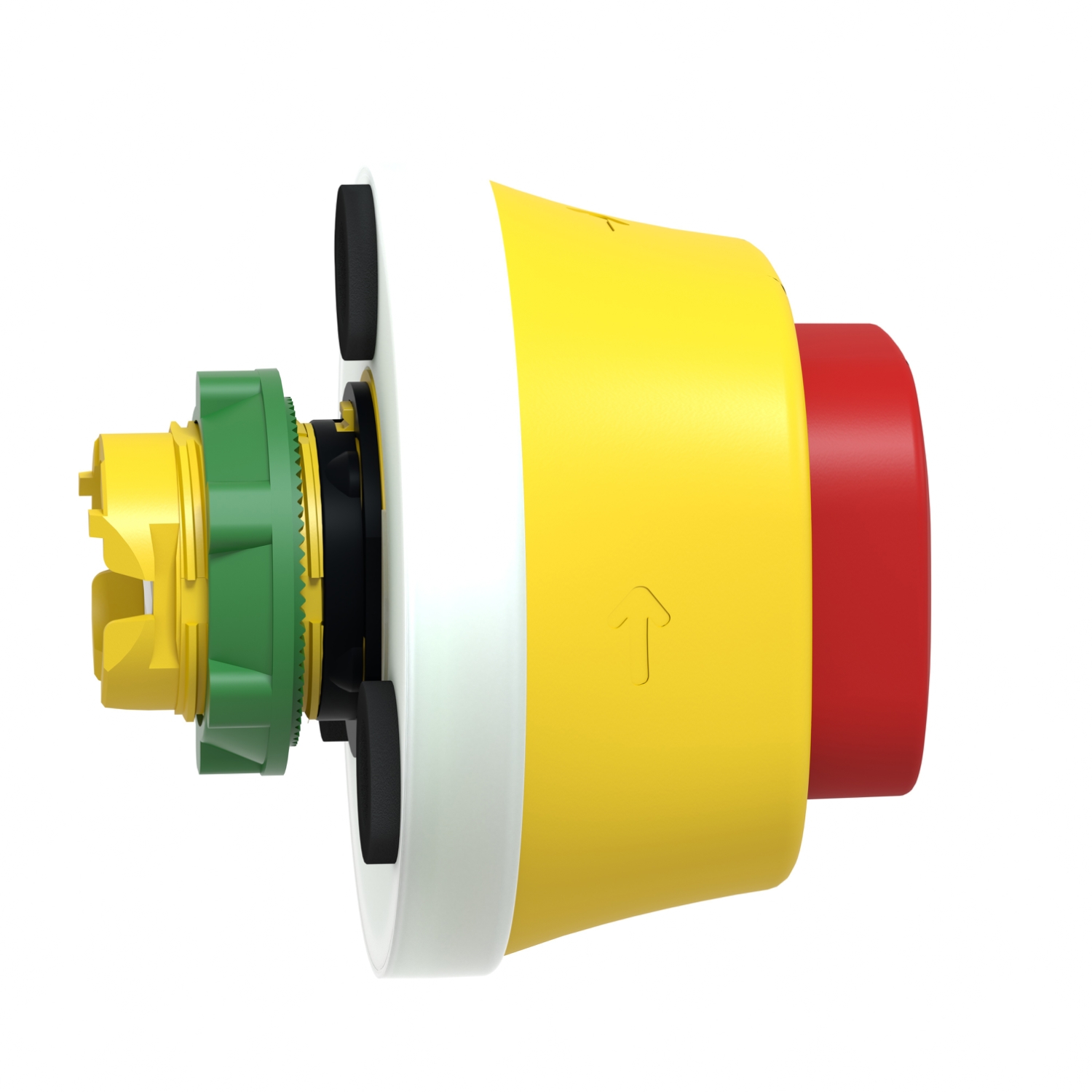

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Operator profile | red square 32 mm |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Device presentation | basic element |
| Head type | standard |
| Shape of signaling unit head | round |
| Product or component type | head for emergency stop push-button |
| Type of operator | trigger action and mechanical latching |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Reset | turn to release |
| Product destination | emergency stop push-button |
| Complementary | |
| Group of product | emergency stop turn to release |
| CAD overall depth | 40 mm |
| CAD overall width | 60 mm |
| Station name | XALKW01 |
| Customizable | no, 0 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Resistance to electrostatic discharge | 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2 |
| Mechanical durability | 300000 cycles |
| Cap/operator or lens colour | red |
| Electrical insulation class | class II conforming to IEC 61140 |
| CAD overall height | 60 mm |
| Net weight | 0.063 kg |
| Electrical composition code | C10 for <4 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting |
| Main group | E-stop |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | ISO 22196:2011, ISO 21702, UL 60947-5-5, UL 60947-5-1, UL 508, IEC 60947-5-4, IEC 60947-5-1 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | CCC, EAC, CSA, UL listed |
Only registered users can write reviews
Related products

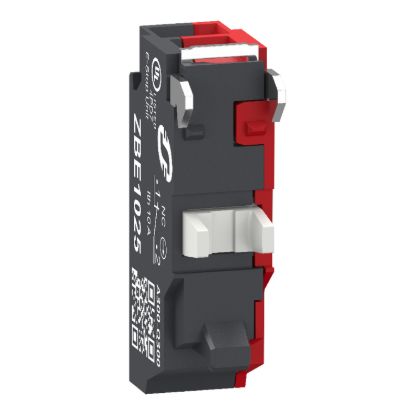

Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC
ZBE1025
Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC
$18.26 inc GST
$11.11 inc GST

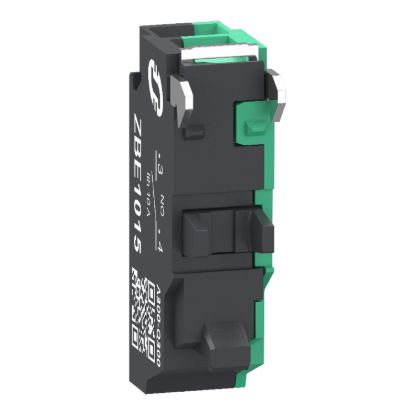

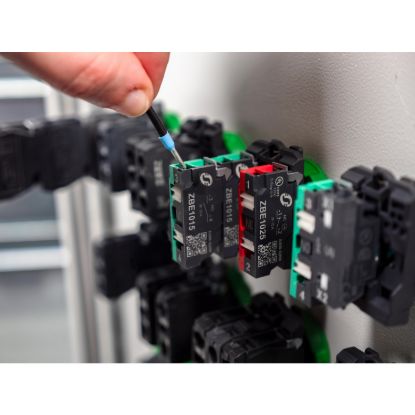

Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NO
