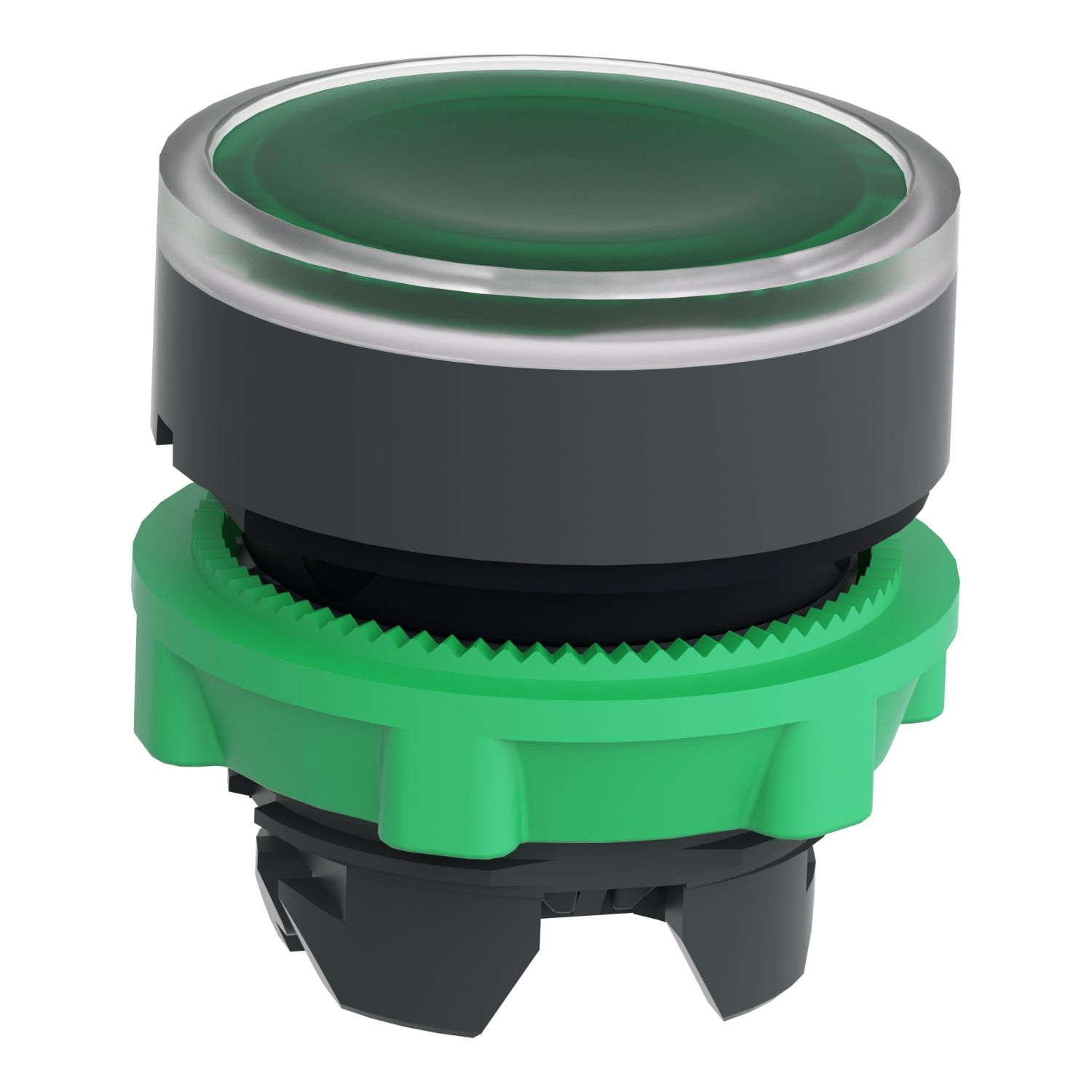

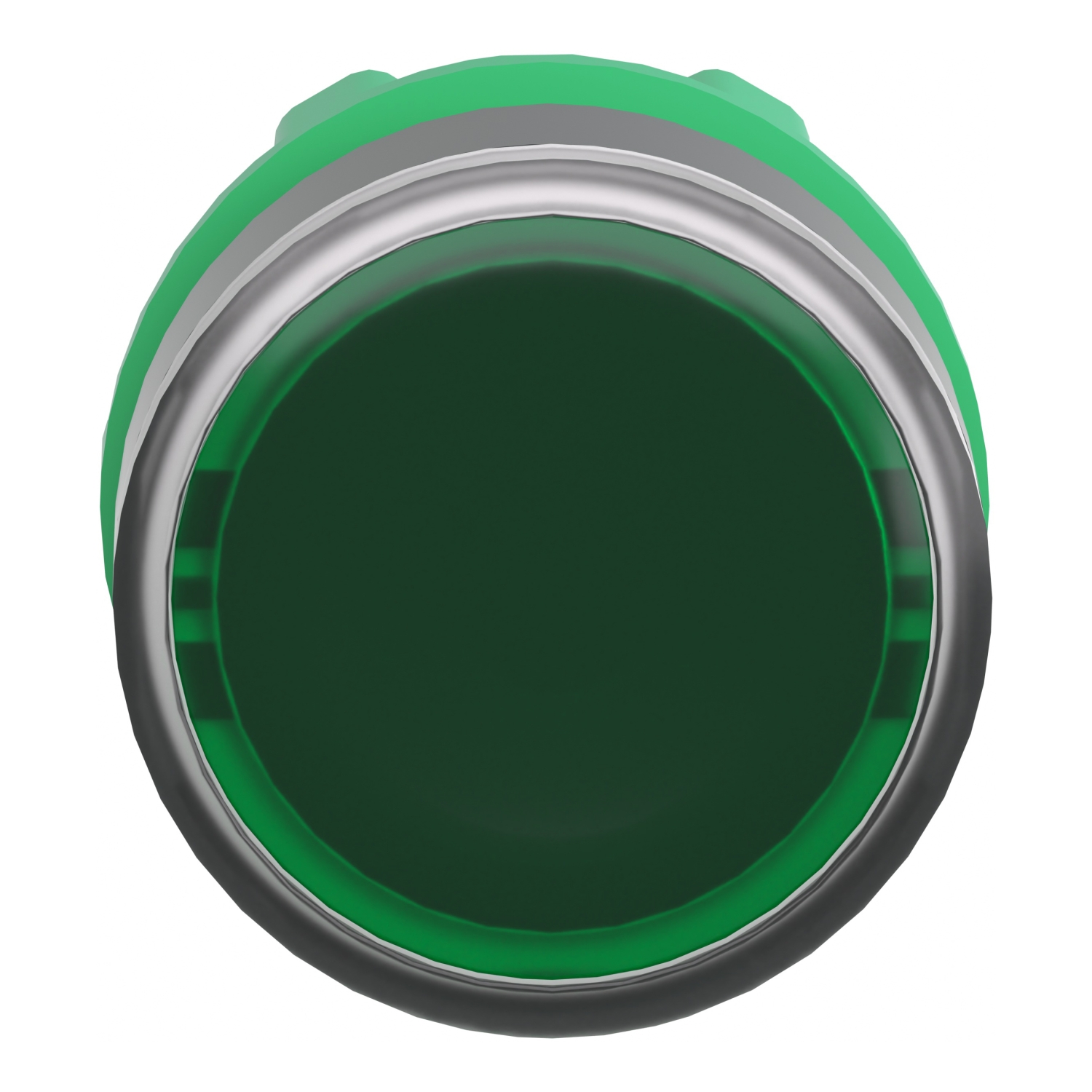

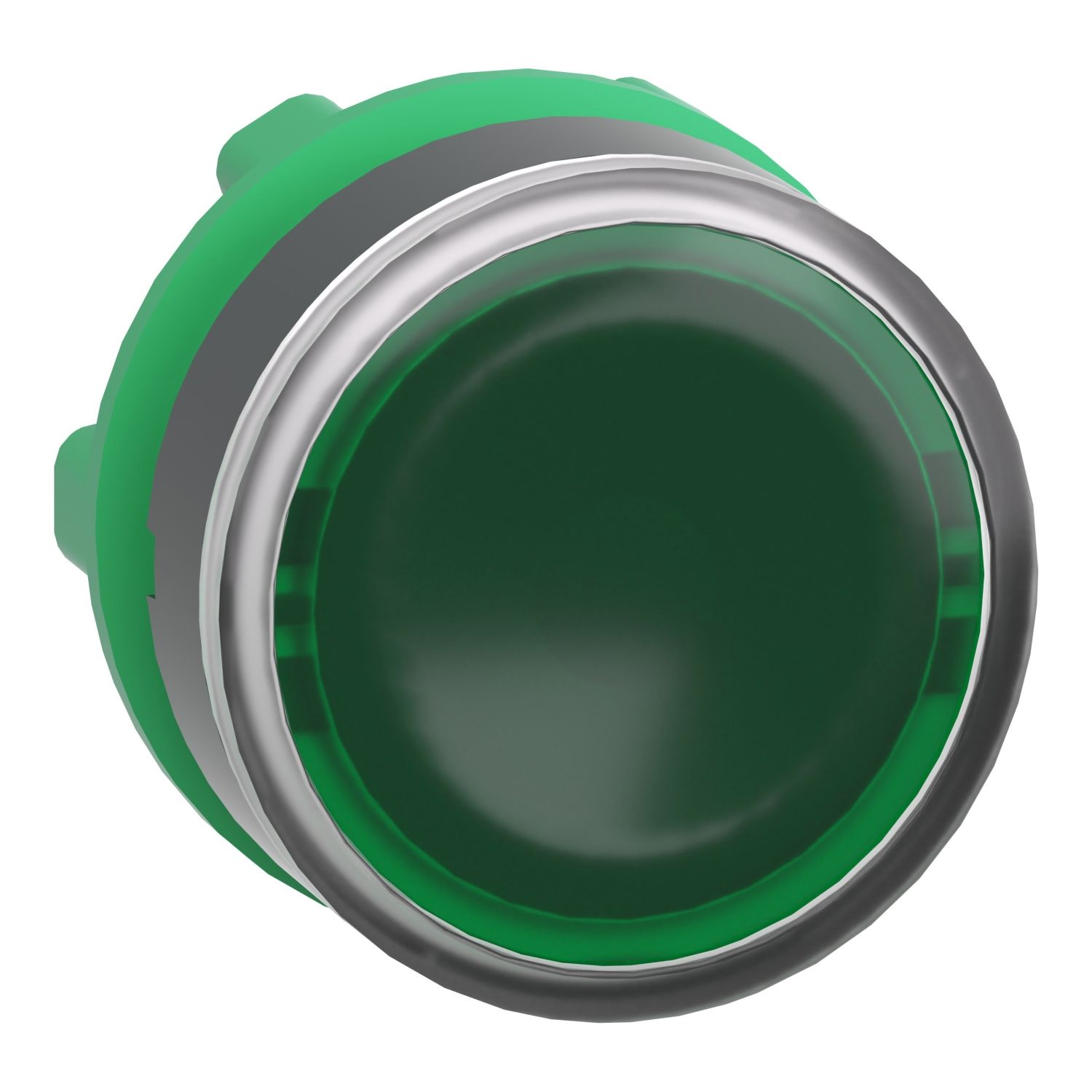

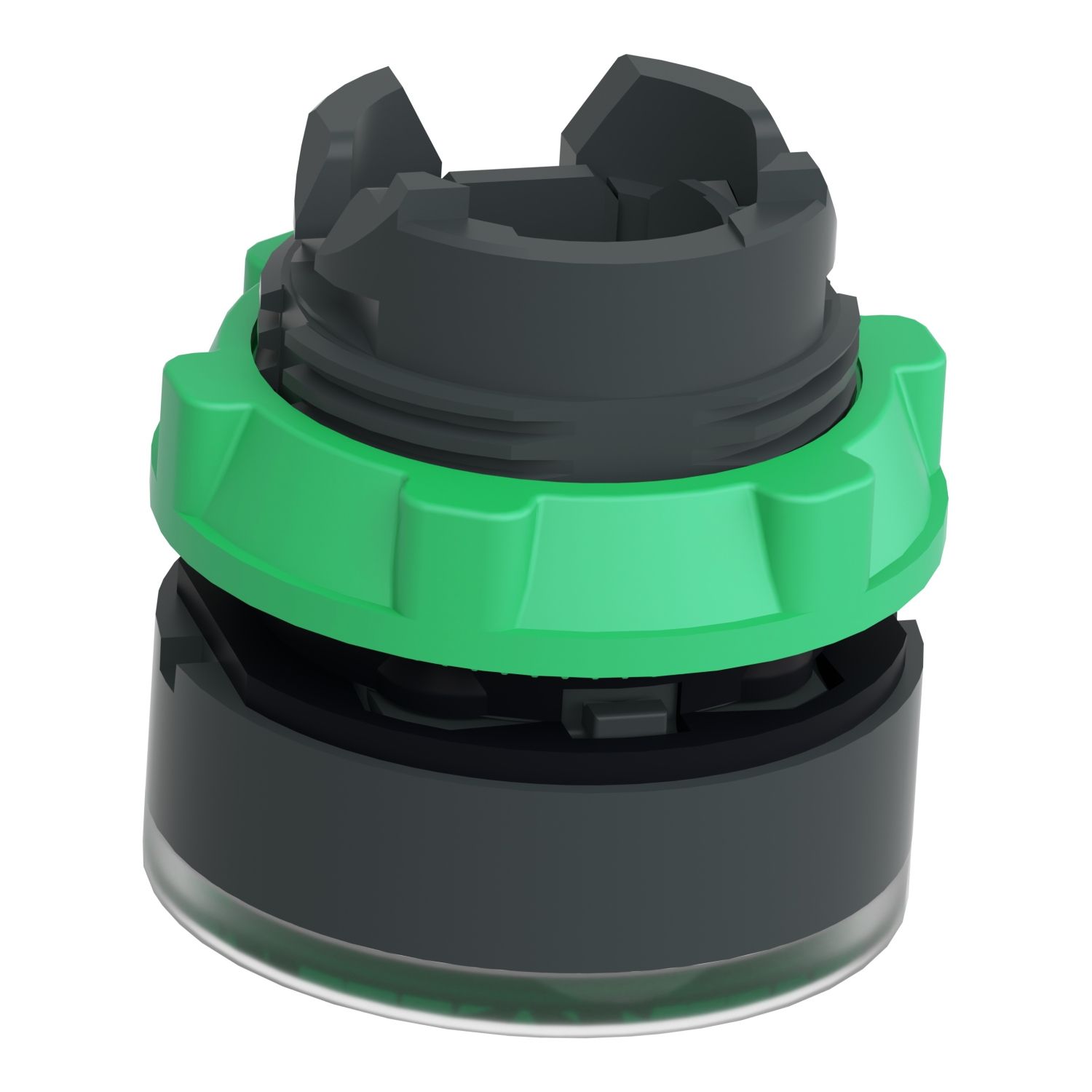

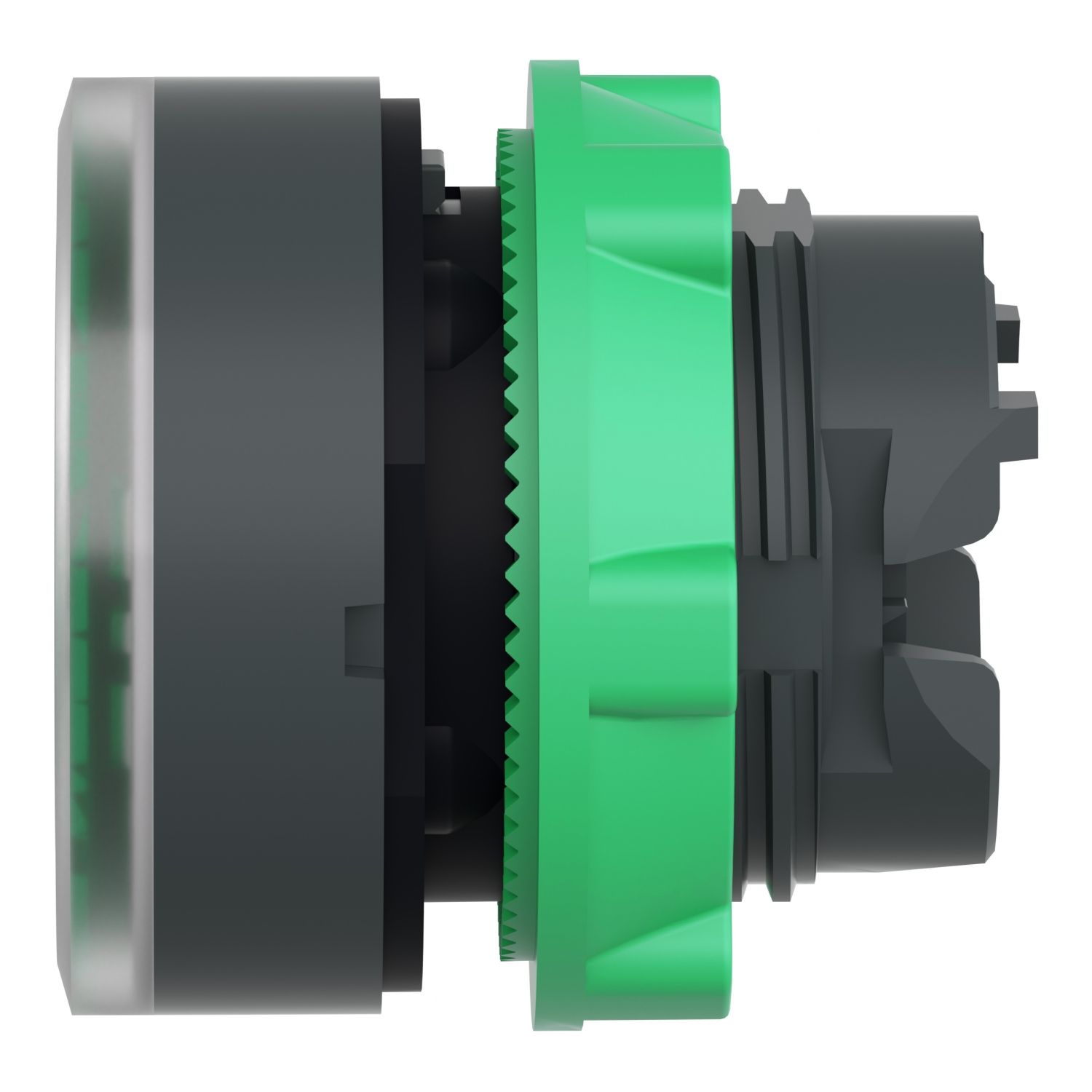

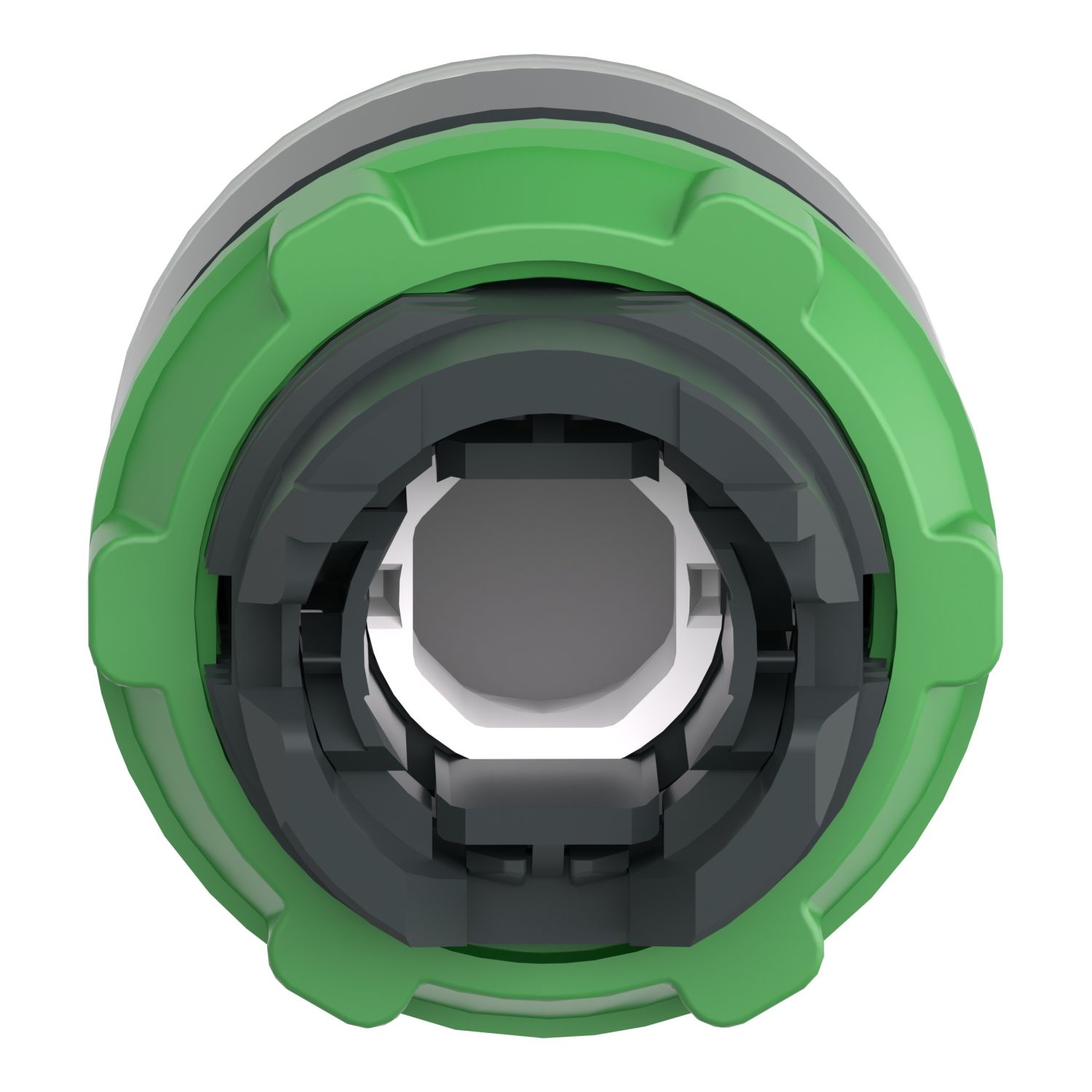

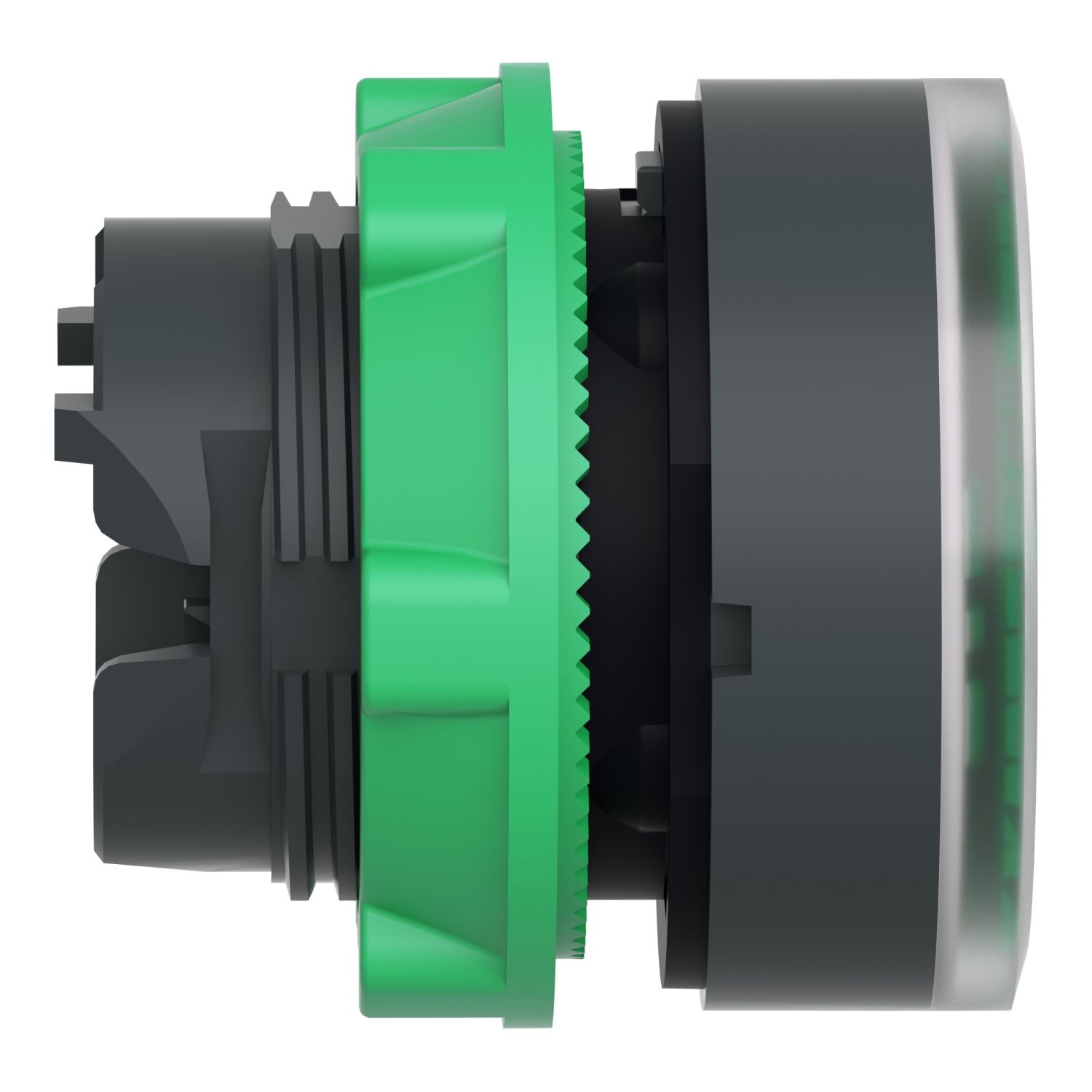

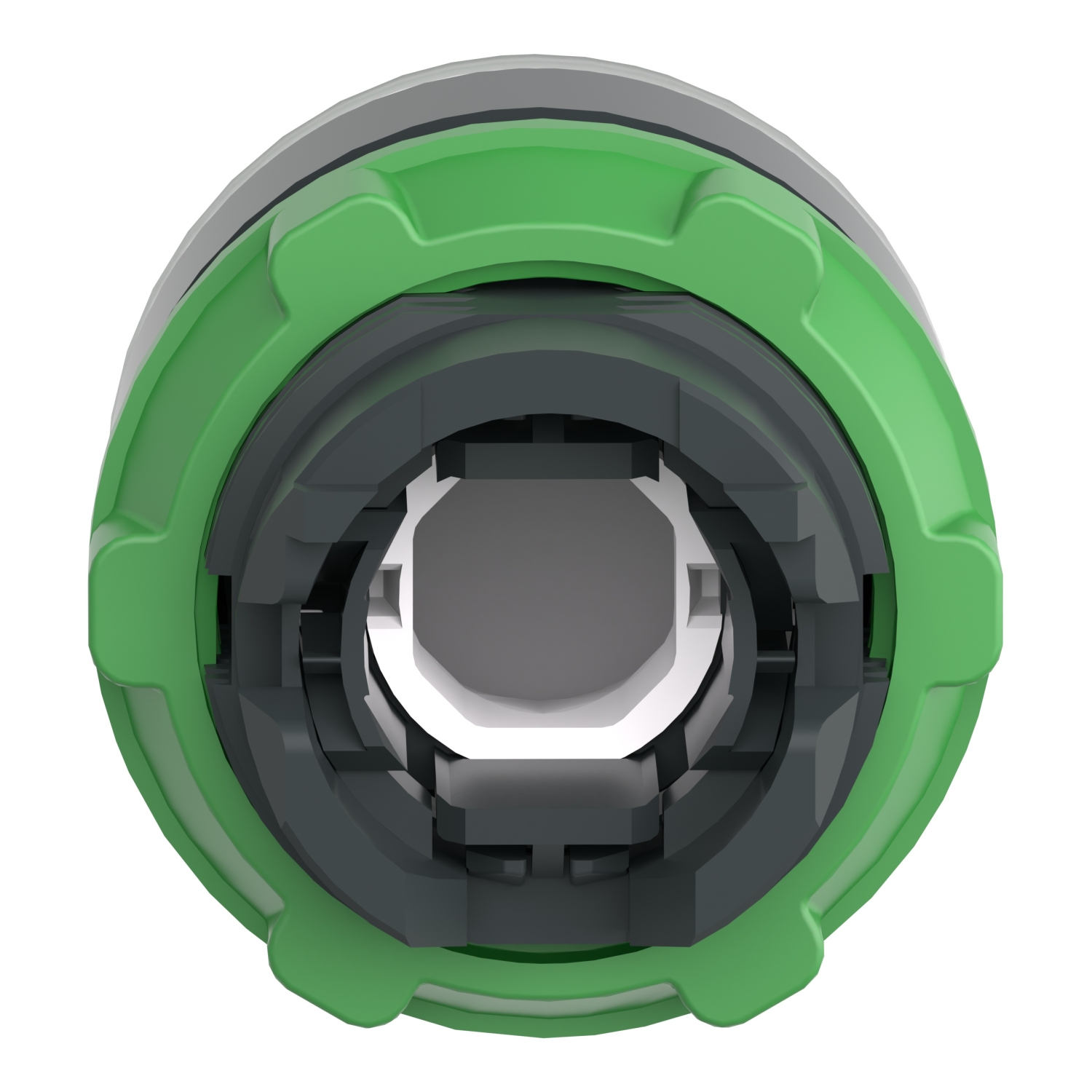

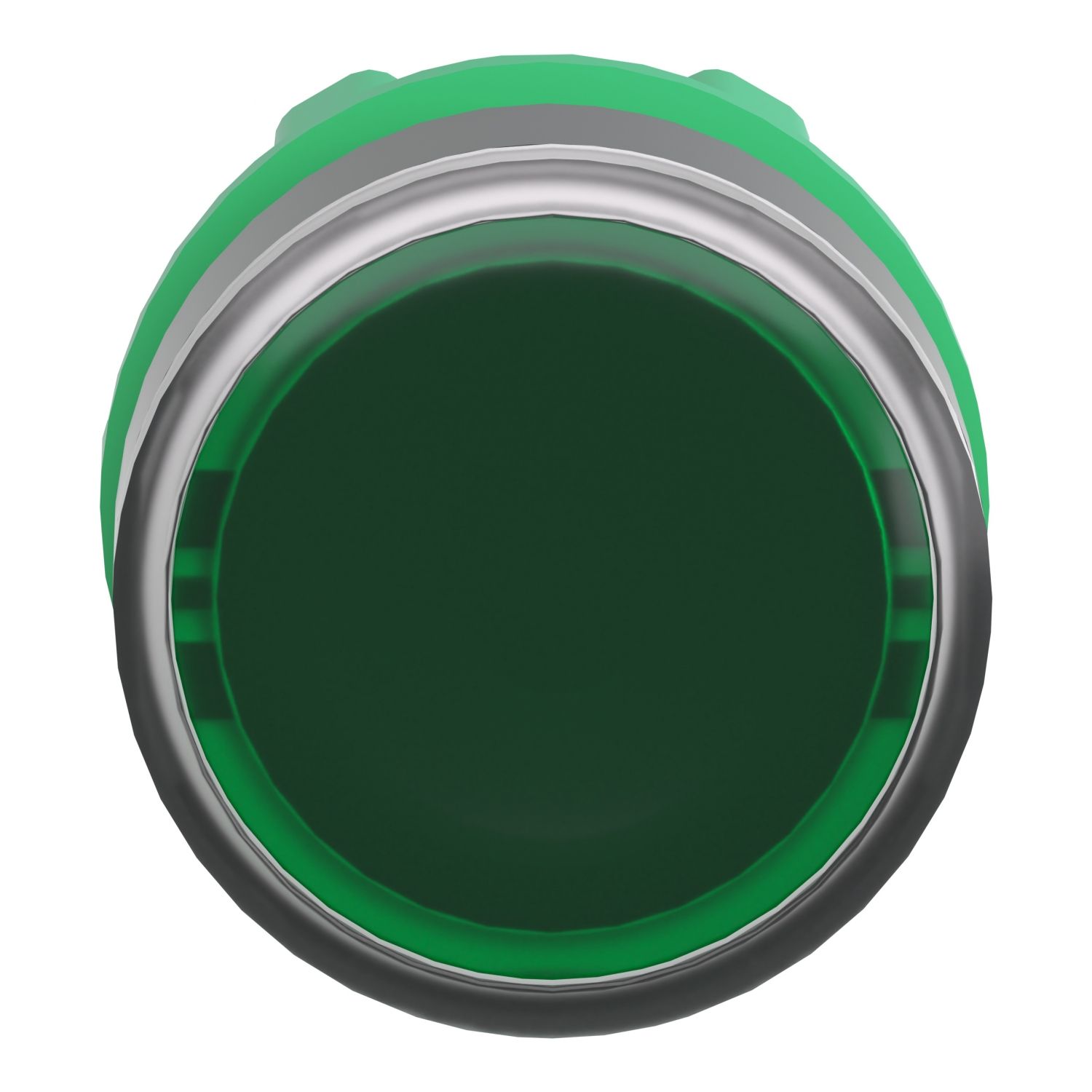

This Harmony XB5, plain lens illuminated green flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | universal LED |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Type of operator | spring return |
| Range of product | Harmony XB5 |
| Operator profile | green flush, unmarked |
| Bezel material | dark grey plastic |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated push-button |
| Mounting diameter | 22 mm |
| Operator additional information | with plain lens |
| Complementary | |
| Group of product | flush push integral LED |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Device presentation | basic sub-assemblies |
| CAD overall height | 29 mm |
| Customizable | 1, no |
| Electrical composition code | MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED |
| Main group | illum push-button |
| CAD overall depth | 30 mm |
| CAD overall width | 29 mm |
| Marking | unmarked |
| Cap/operator or lens colour | green |
| GCR BRIDGE | ZB5AWCUST05 |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.017 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Standards | JIS C8201-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, GB 14048.5, JIS C8201-5-1, EN/IEC 60947-5-4 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK05 conforming to EN 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Product certifications | UL listed, CSA, BV, LROS (Lloyds register of shipping), DNV, GL |
