| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | BA 9s |
| Operator profile | clear flush, unmarked |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Shape of signaling unit head | round |

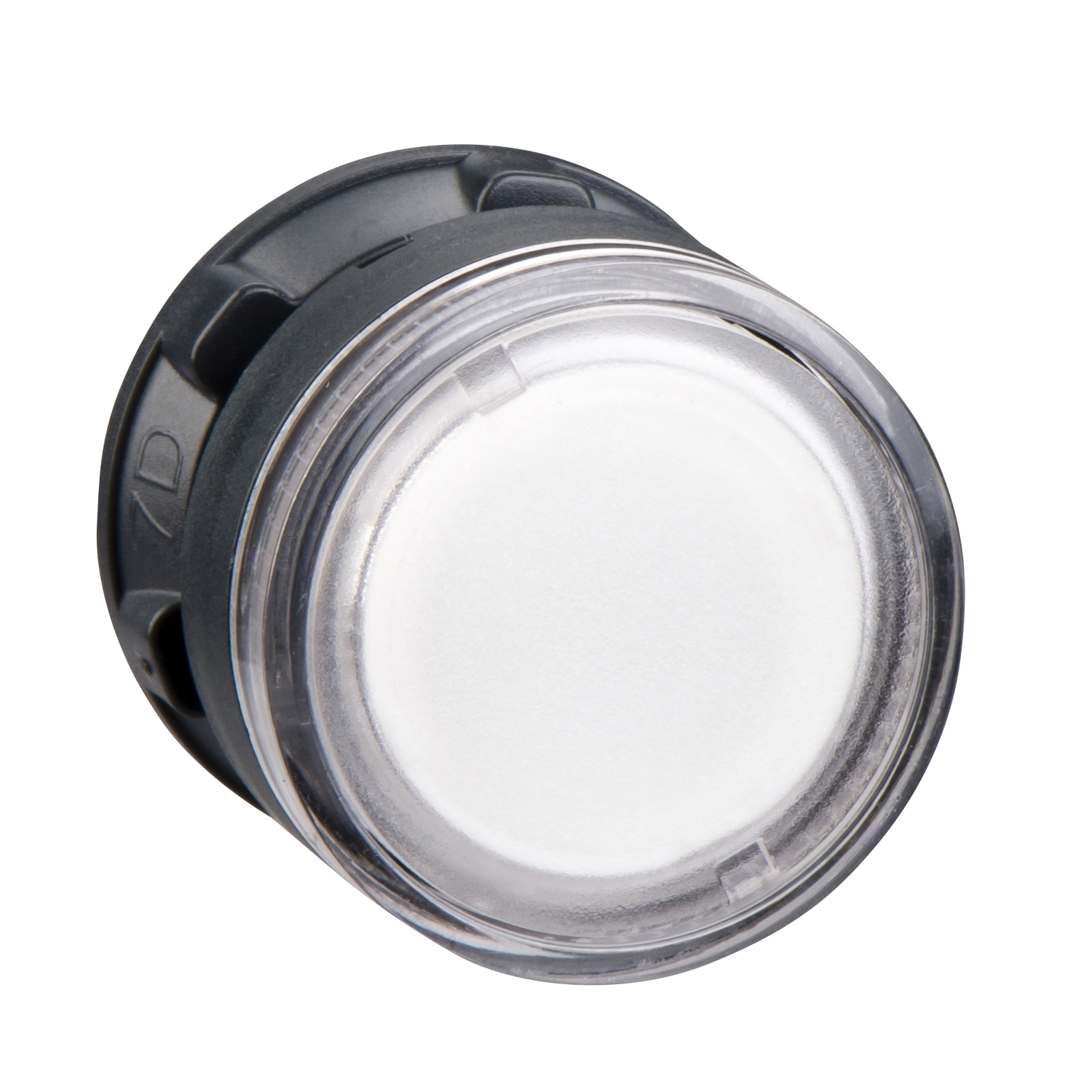

| Product or component type | head for illuminated push-button |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Operator additional information | with plain lens |
| Complementary | |
| Group of product | flush push BA9s |
| CAD overall depth | 32 mm |
| CAD overall width | 29 mm |
| Station name | XALK 2...5 cut-outs, XALD 1...5 cut-outs |
| Customizable | no, 0 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Cap/operator or lens colour | clear |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Device presentation | basic sub-assemblies |
| CAD overall height | 29 mm |
| Net weight | 0.018 kg |
| Electrical composition code | MF2 for <2 contacts using single blocks in front mounting with BA 9s, M9 for <2 contacts using single blocks in front mounting with BA 9s and transformer, M8 for <6 contacts using single and double blocks in front mounting with BA 9s, M7 for <6 contacts using single blocks in front mounting with BA 9s |
| Main group | illum push-button |
| Environment | |
| Protective treatment | TC |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, UL 508, GB 14048.5, IEC 60947-5-1, JIS C8201-5-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-1 |
| Ambient air temperature for operation | -40-55 °C |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Product certifications | CSA, DNV, UL listed, LROS (Lloyds register of shipping), BV, GL |
