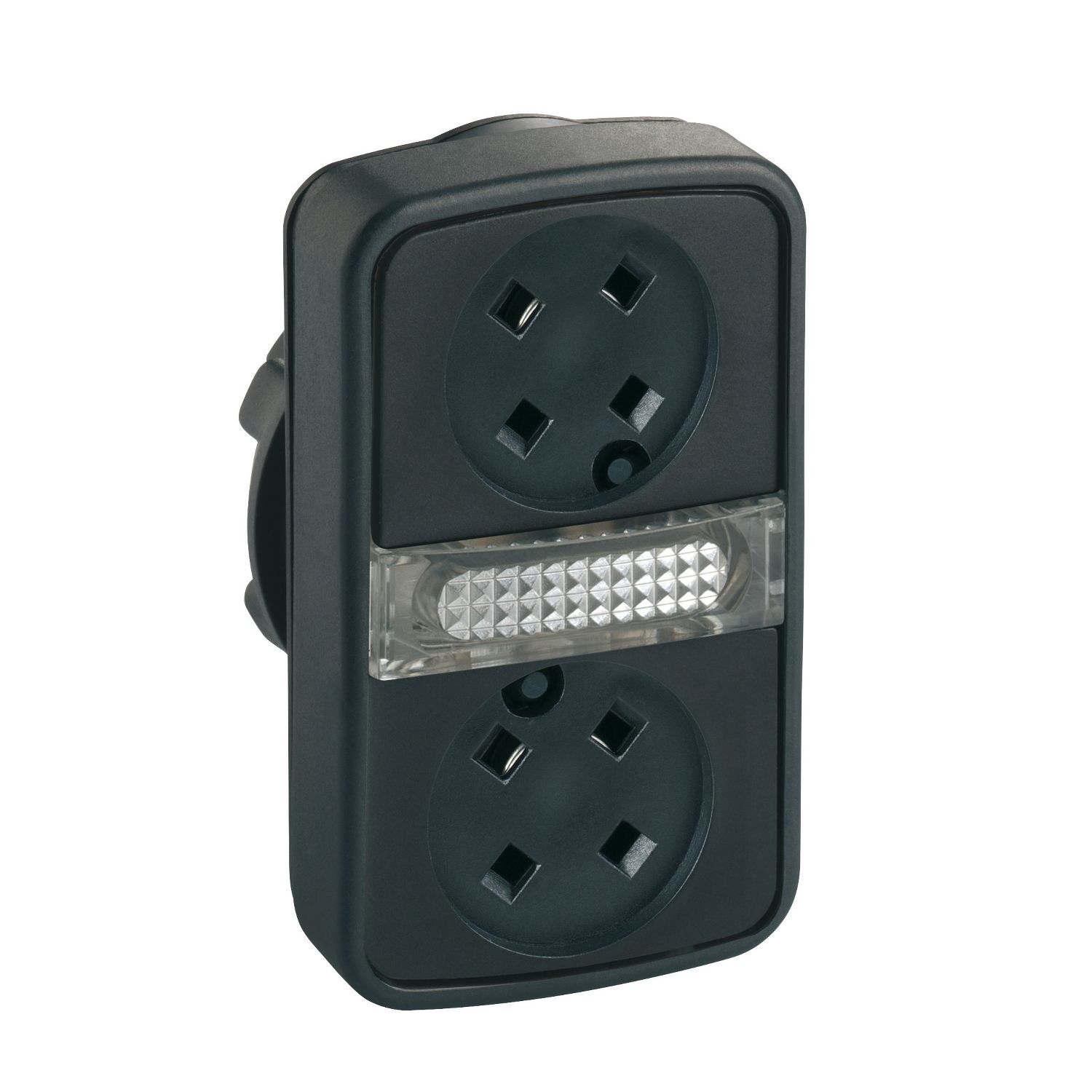

This double head has 1 central white pilot light and is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | integral LED |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | standard |
| Operator profile | 2 flush push-buttons - 1 central pilot light |
| Shape of signaling unit head | rectangular |
| Product or component type | head for illuminated double-headed push-button |
| Operators description | black pushes without cap |
| Type of operator | spring return |
| Mounting diameter | 22 mm |
| Range of product | Harmony XB5 |
| Complementary | |
| Group of product | without cap illuminated |
| CAD overall depth | 30 mm |
| CAD overall width | 30 mm |
| Station name | XALD 1 cut-out |
| Customizable | no, 0 |
| Compatibility code | ZB5 |
| Mechanical durability | 1000000 cycles |
| Operator profile | without cap |
| Device presentation | basic sub-assemblies |
| CAD overall height | 50 mm |
| Net weight | 0.023 kg |
| Electrical composition code | MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED |
| Main group | illum double head |
| Environment | |
| Electrical shock protection class | class II conforming to IEC 60536 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | IP69K, IP69, IP67, IP66 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | GL, DNV, LROS (Lloyds register of shipping), CSA, UL listed, BV |
