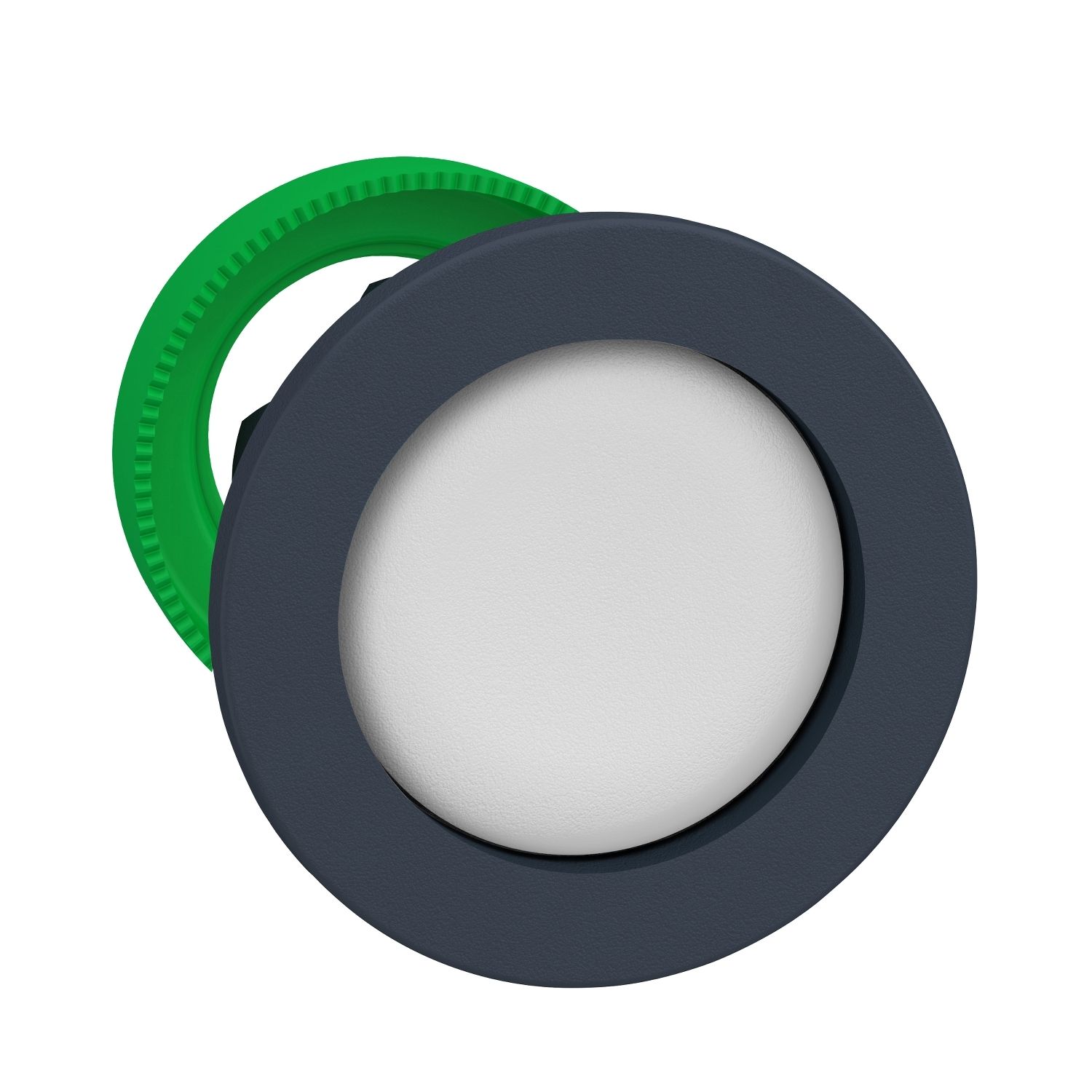

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | ZB5AZ, ZBZF33, ZBZF32, ZBYF... |
| Operator profile | white recessed, unmarked |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | built-in-flush |
| Shape of signaling unit head | round |
| Product or component type | head for non-illuminated push-button |
| Type of operator | spring return |
| Mounting diameter | 30.5 mm |
| Range of product | Harmony XB5 |
| Operator additional information | high guard |
| Complementary | |
| Group of product | recessed push |
| CAD overall depth | 30 mm |
| CAD overall width | 37 mm |
| Customizable | no, 0 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Cap/operator or lens colour | white |
| CAD overall height | 37 mm |
| Net weight | 0.03 kg |
| Electrical composition code | SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting |
| Main group | push-button |
| Environment | |
| Protective treatment | TH |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| IP degree of protection | Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529 |
| Vibration resistance | 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Product certifications | UL listed, GL, LROS (Lloyds register of shipping), DNV, CSA, BV |
