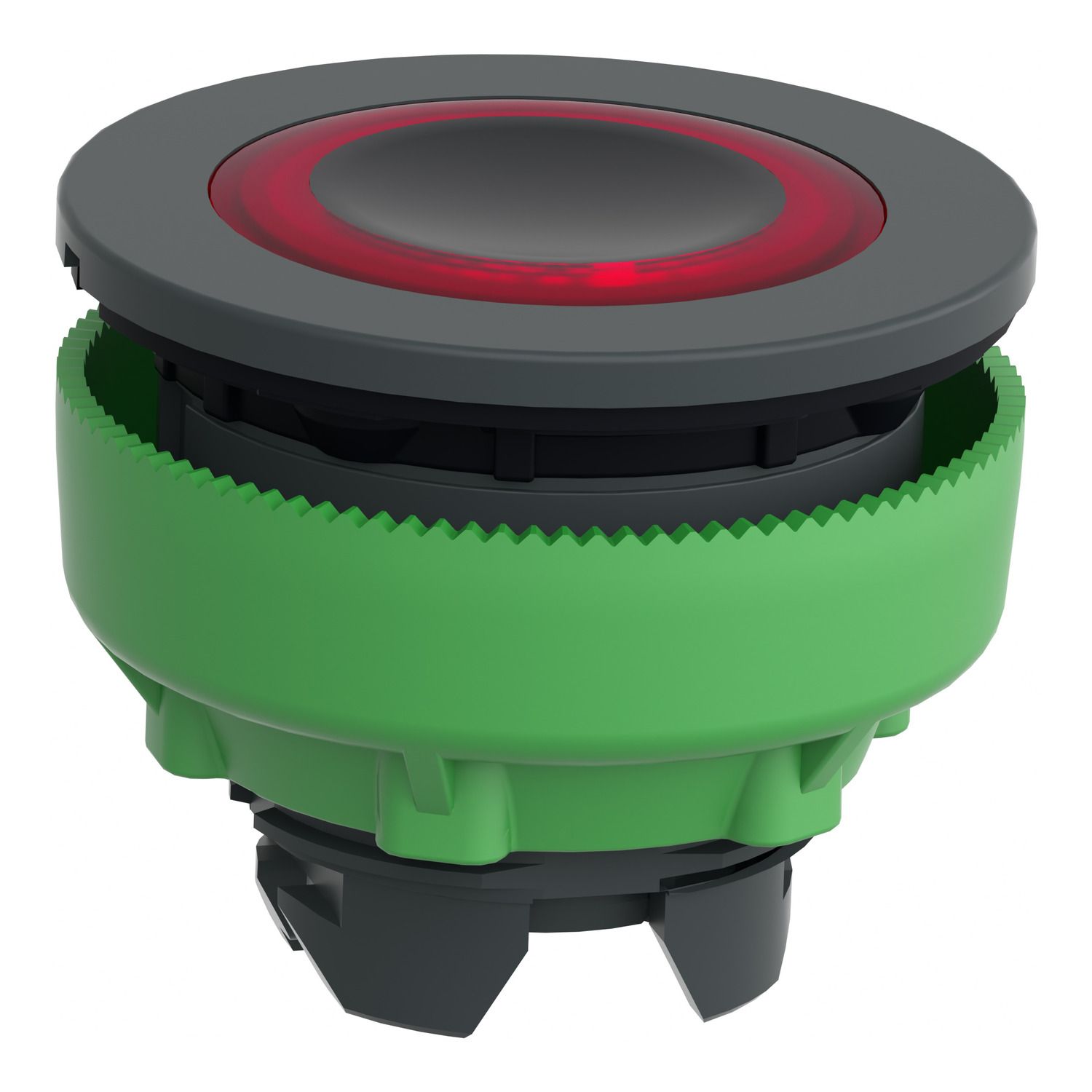

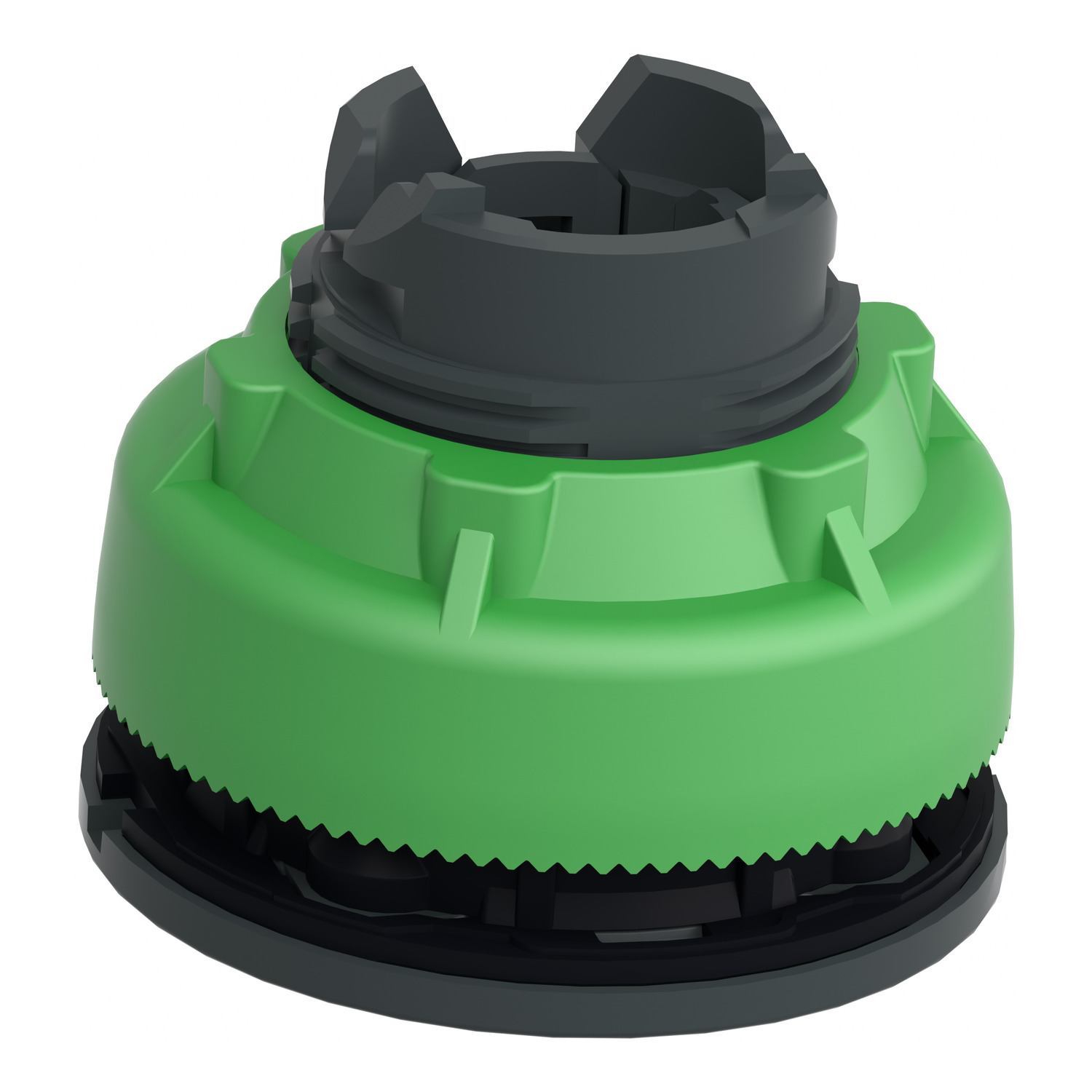

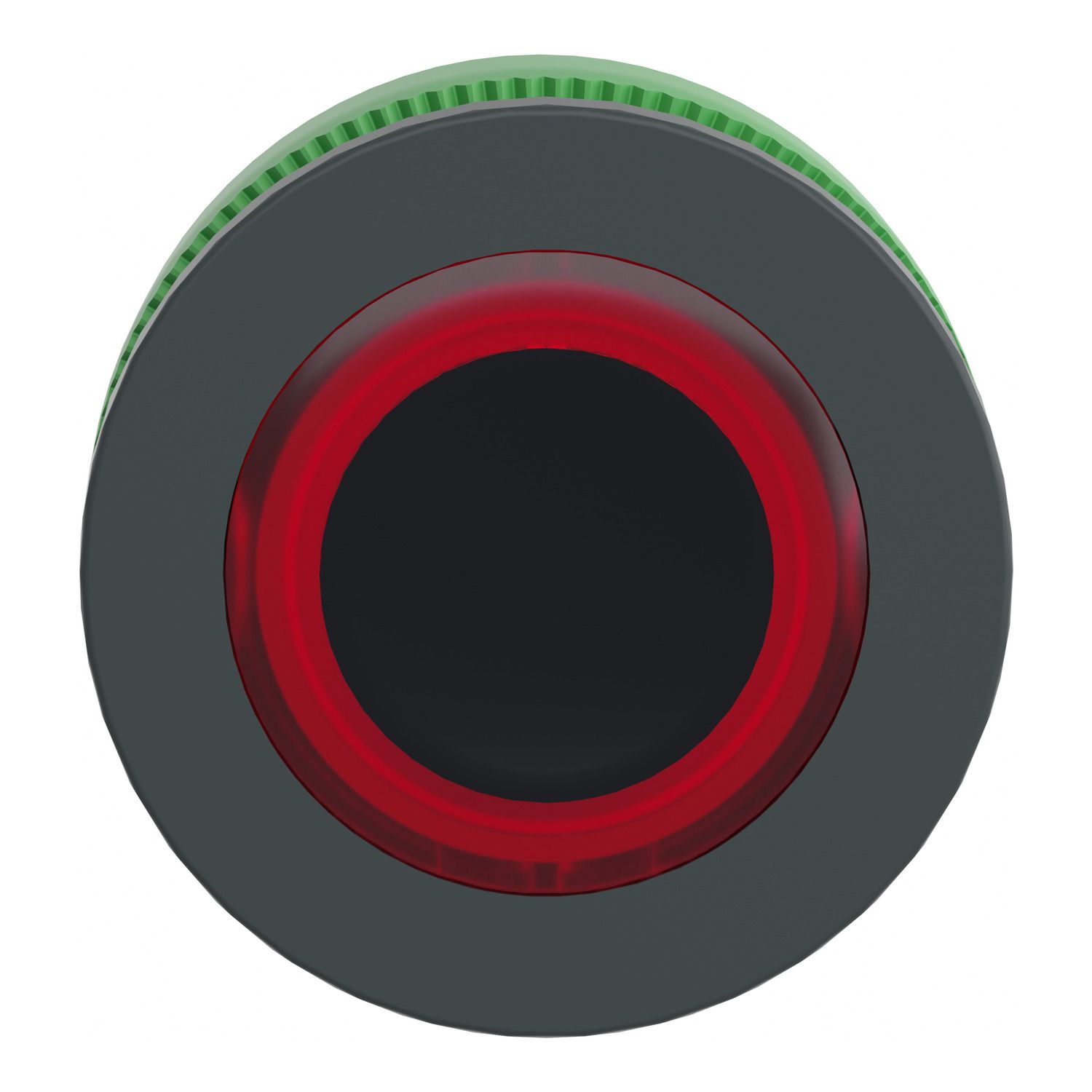

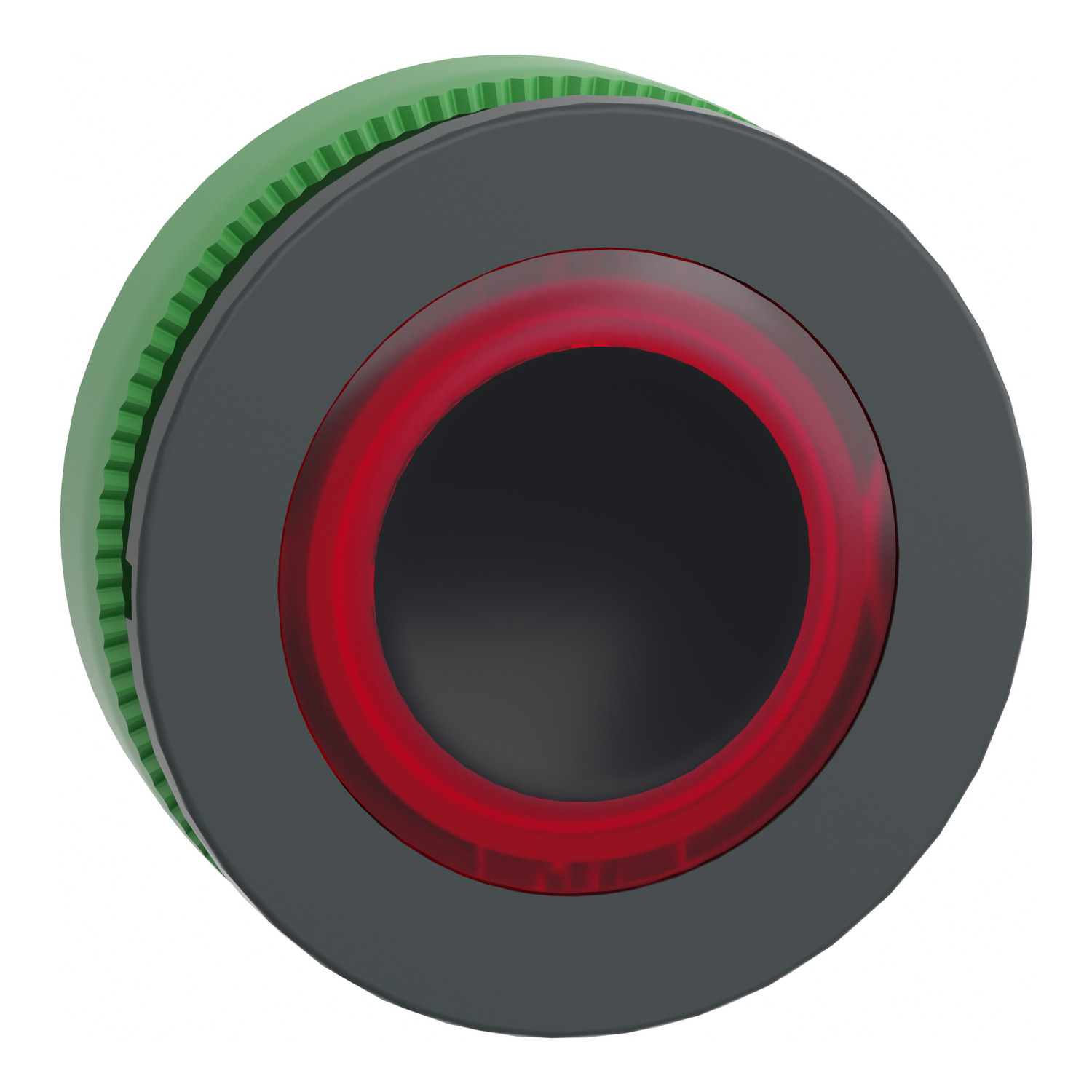

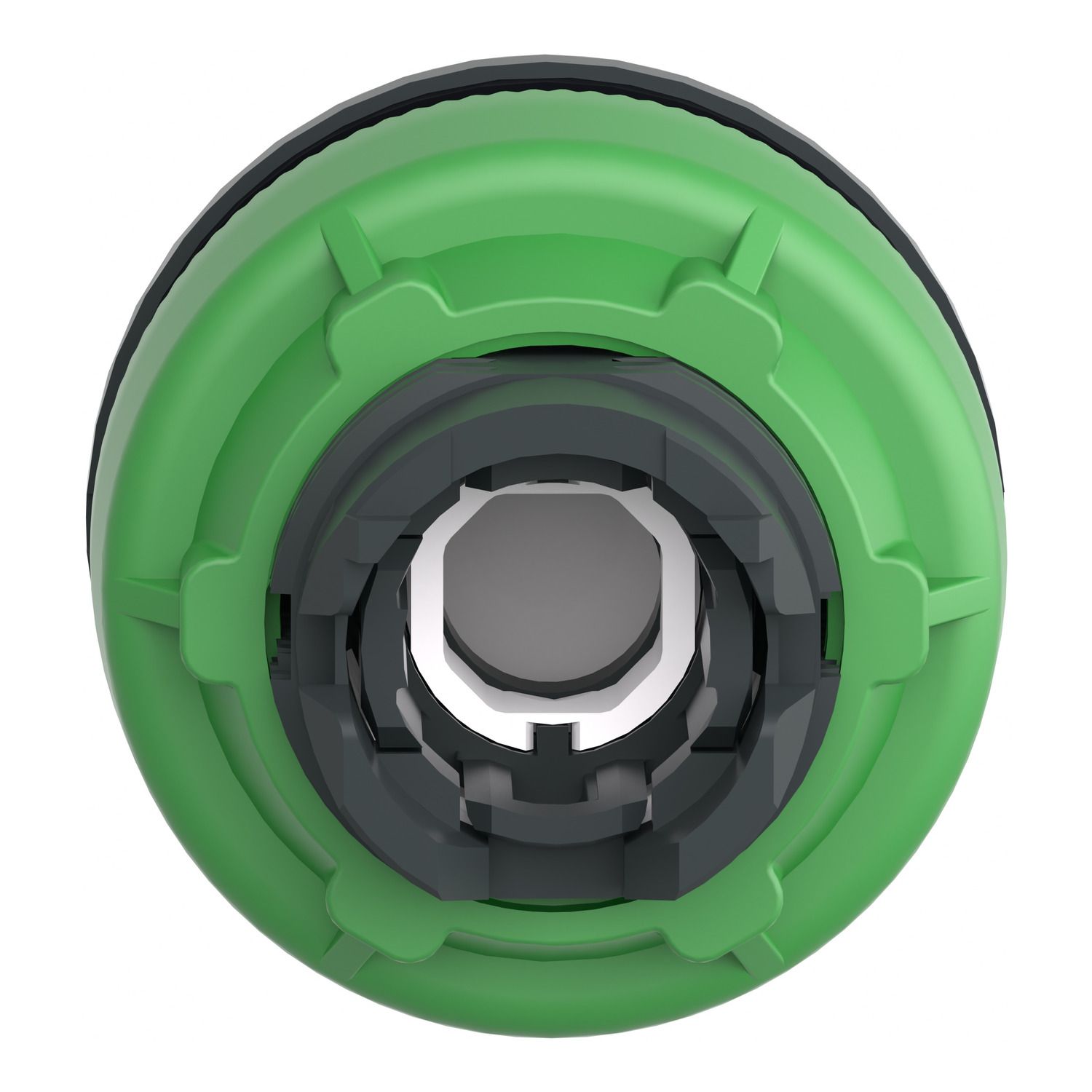

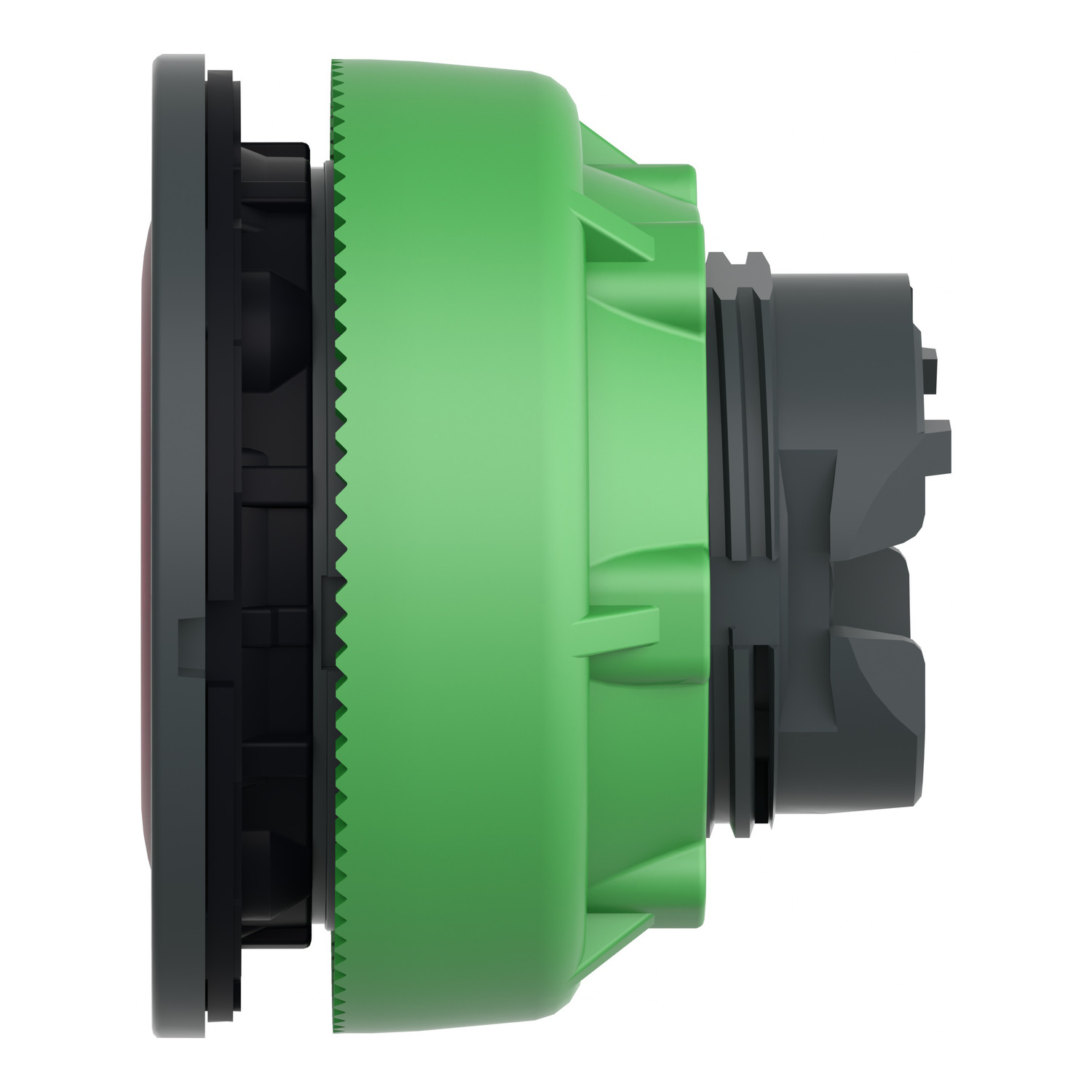

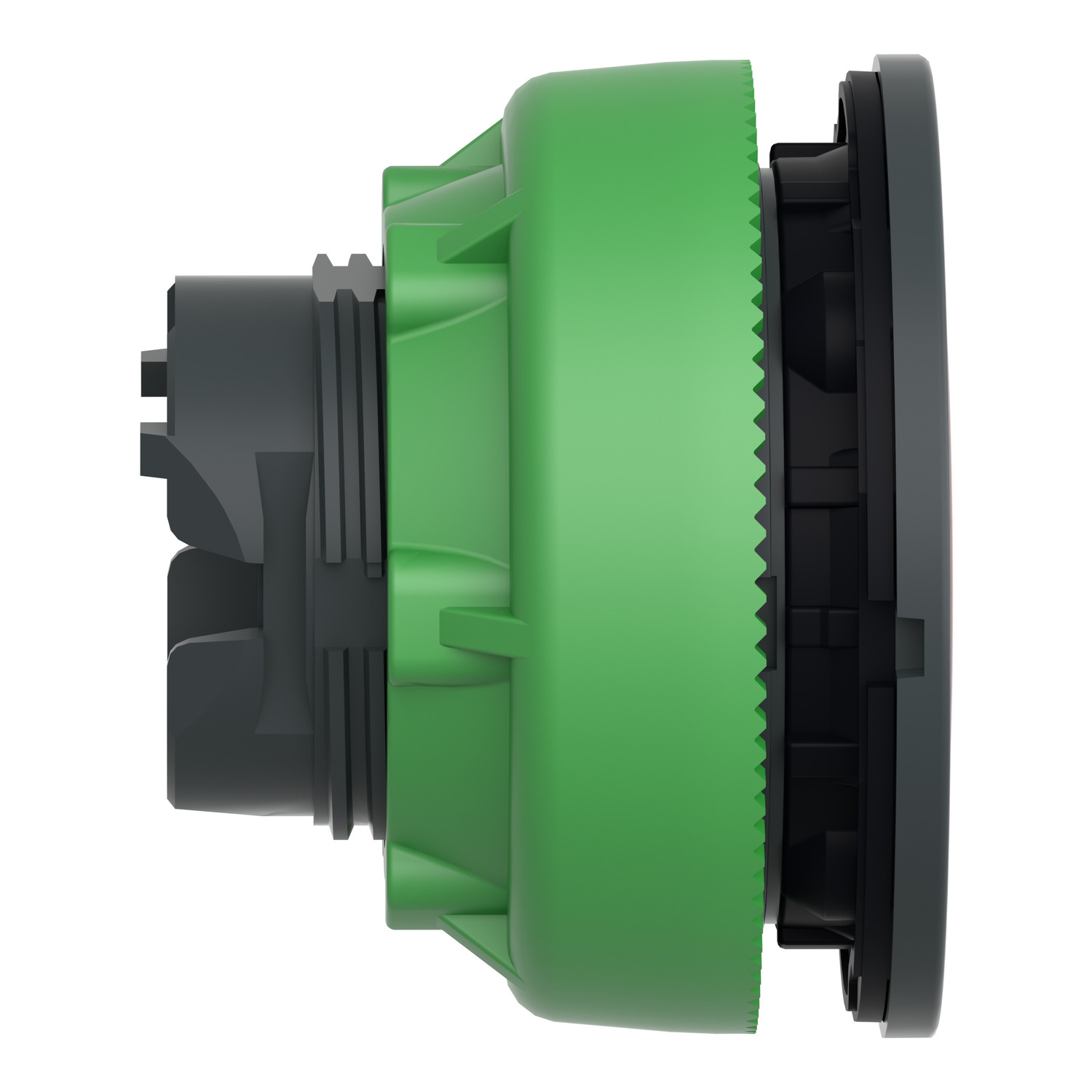

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB5 |
| Product compatibility | universal LED |
| Operator profile | red flush, unmarked |
| Bezel material | dark grey plastic |
| Sale per indivisible quantity | 1 |
| Head type | built-in-flush |
| Shape of signaling unit head | round |
| Product or component type | head for illuminated push-button |
| Type of operator | spring return |
| Mounting diameter | 30.5 mm |
| Range of product | Harmony XB5 |
| Operator additional information | with illuminated ring |
| Complementary | |
| Group of product | flush push with ring illum LED |
| CAD overall depth | 30 mm |
| CAD overall width | 37 mm |
| Customizable | no, 0 |
| Marking | unmarked |
| Compatibility code | ZB5 |
| Mechanical durability | 10000000 cycles |
| Cap/operator or lens colour | red |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| CAD overall height | 37 mm |
| Net weight | 0.017 kg |
| Electrical composition code | MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED |
| Main group | illum push-button |
| Environment | |
| Protective treatment | TC |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP67, IP66 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-4, GB 14048.5, UL 508 |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to EN 50102 |
| Product certifications | CSA, BV, UL listed, DNV, LROS (Lloyds register of shipping), GL |
