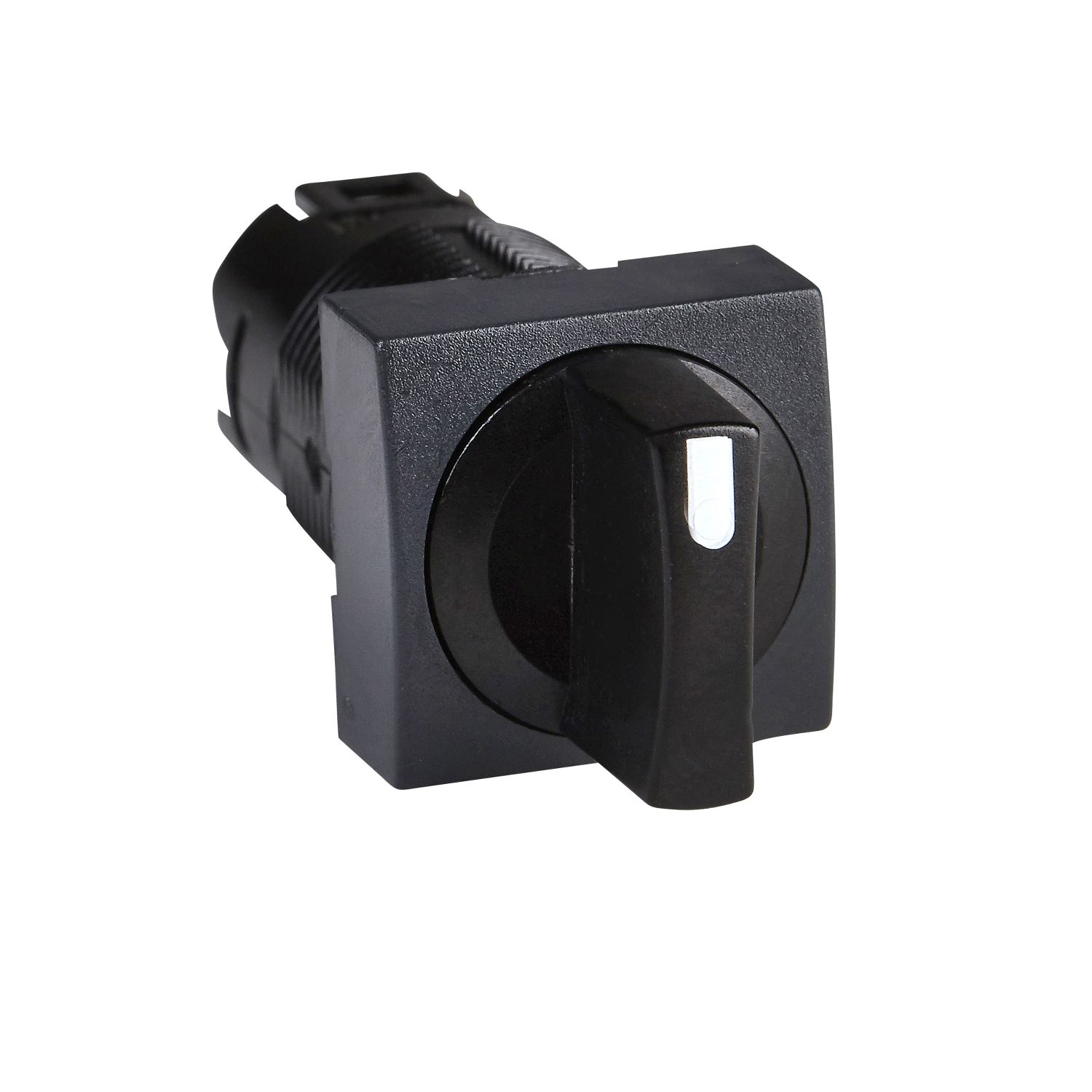

This Harmony ZB6CD28 is a black square selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZB6 |
| Operator position information | 2 positions 90° |
| Operator profile | black standard handle |
| Bezel material | plastic |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | square |
| Product or component type | head for selector switch |
| Type of operator | stay put |
| Mounting diameter | 16 mm |
| Range of product | Harmony XB6 |
| Complementary | |
| CAD overall depth | 43 mm |
| CAD overall width | 18 mm |
| Compatibility code | ZB6 |
| CAD overall height | 18 mm |
| Net weight | 0.018 kg |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II conforming to IEC 61140 |
| NEMA degree of protection | NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, JIS C 852, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-5-1, UL 508, IEC 60947-1 |
| Ambient air temperature for operation | -25-70 °C |
| Product certifications | CSA, GOST, CCC, UL |
