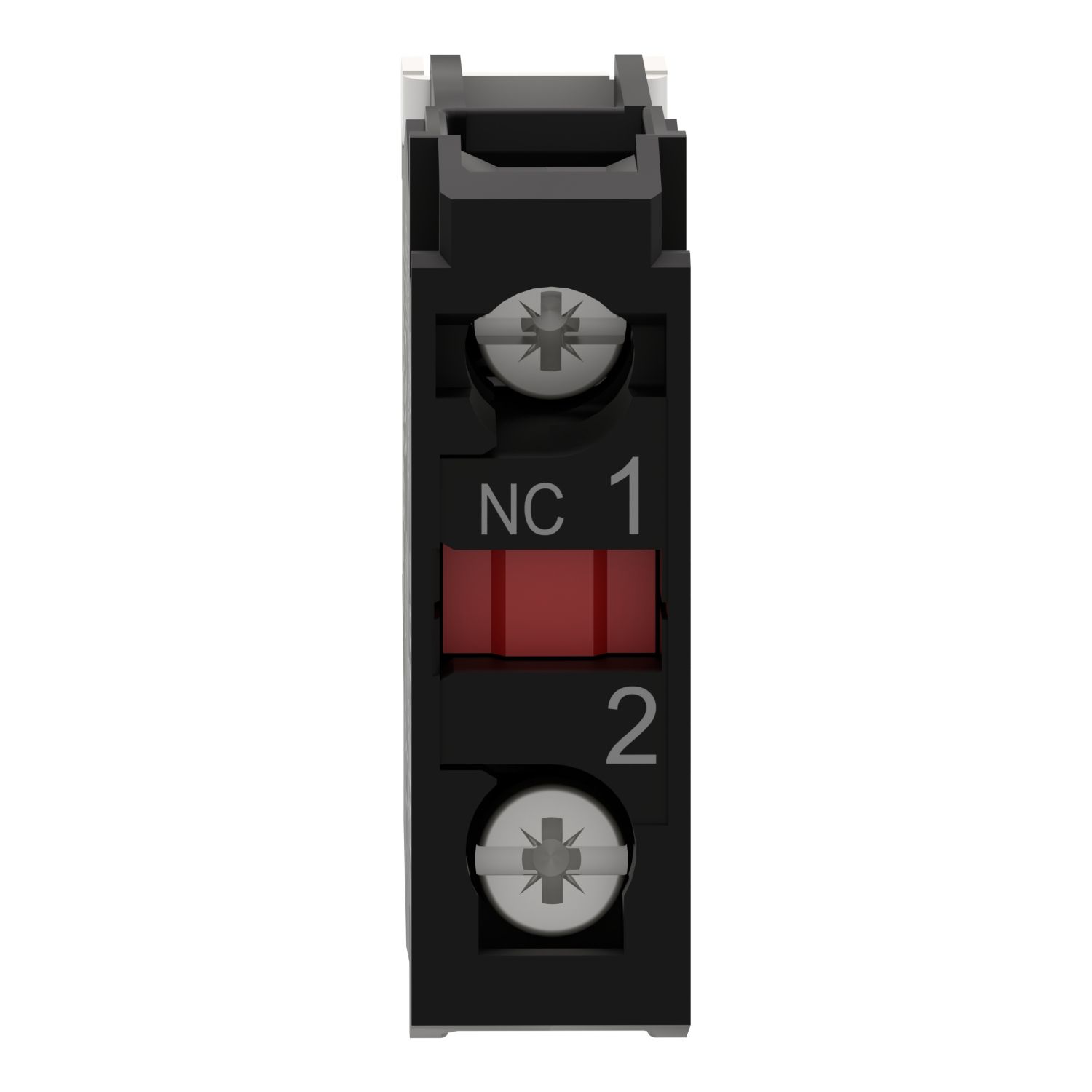

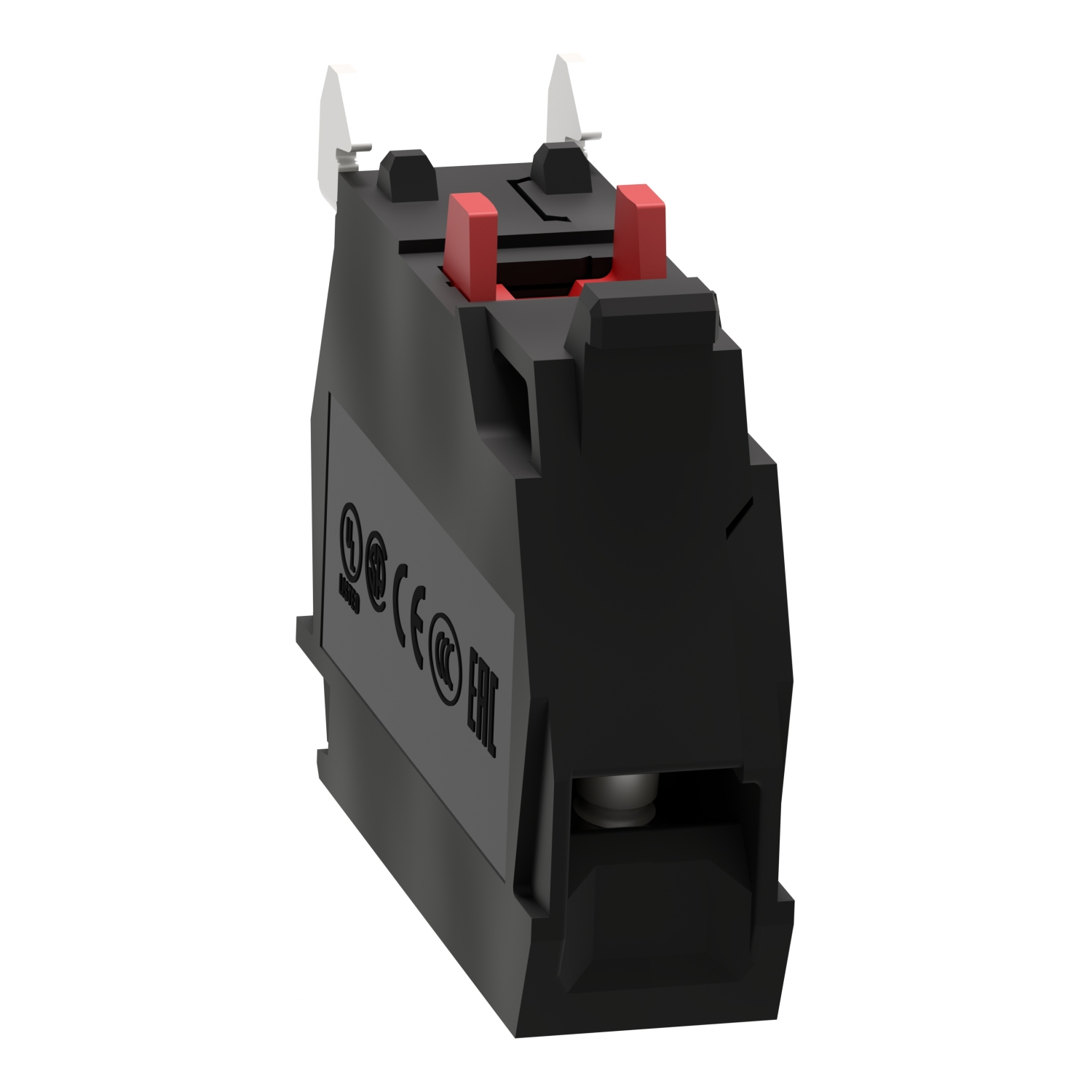

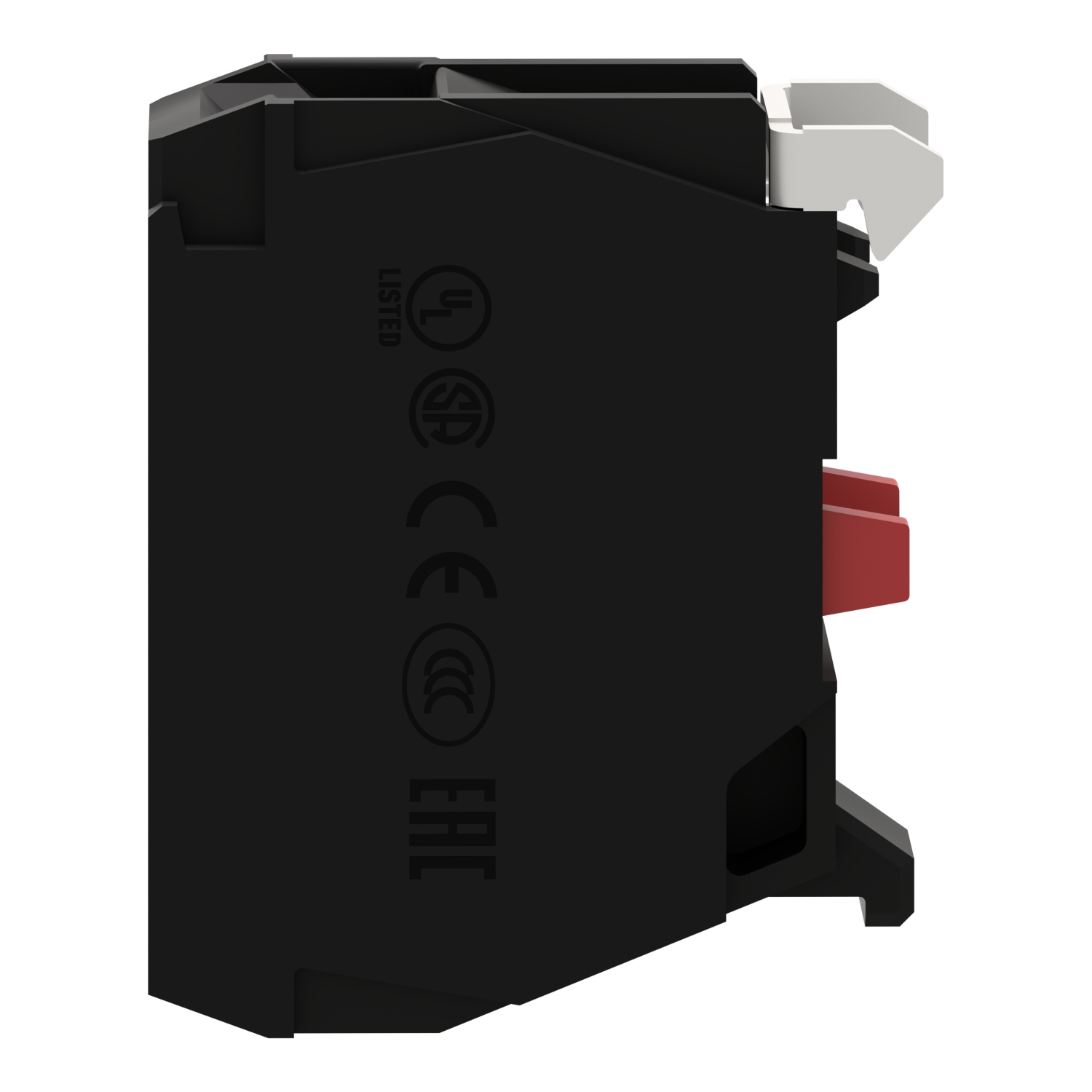

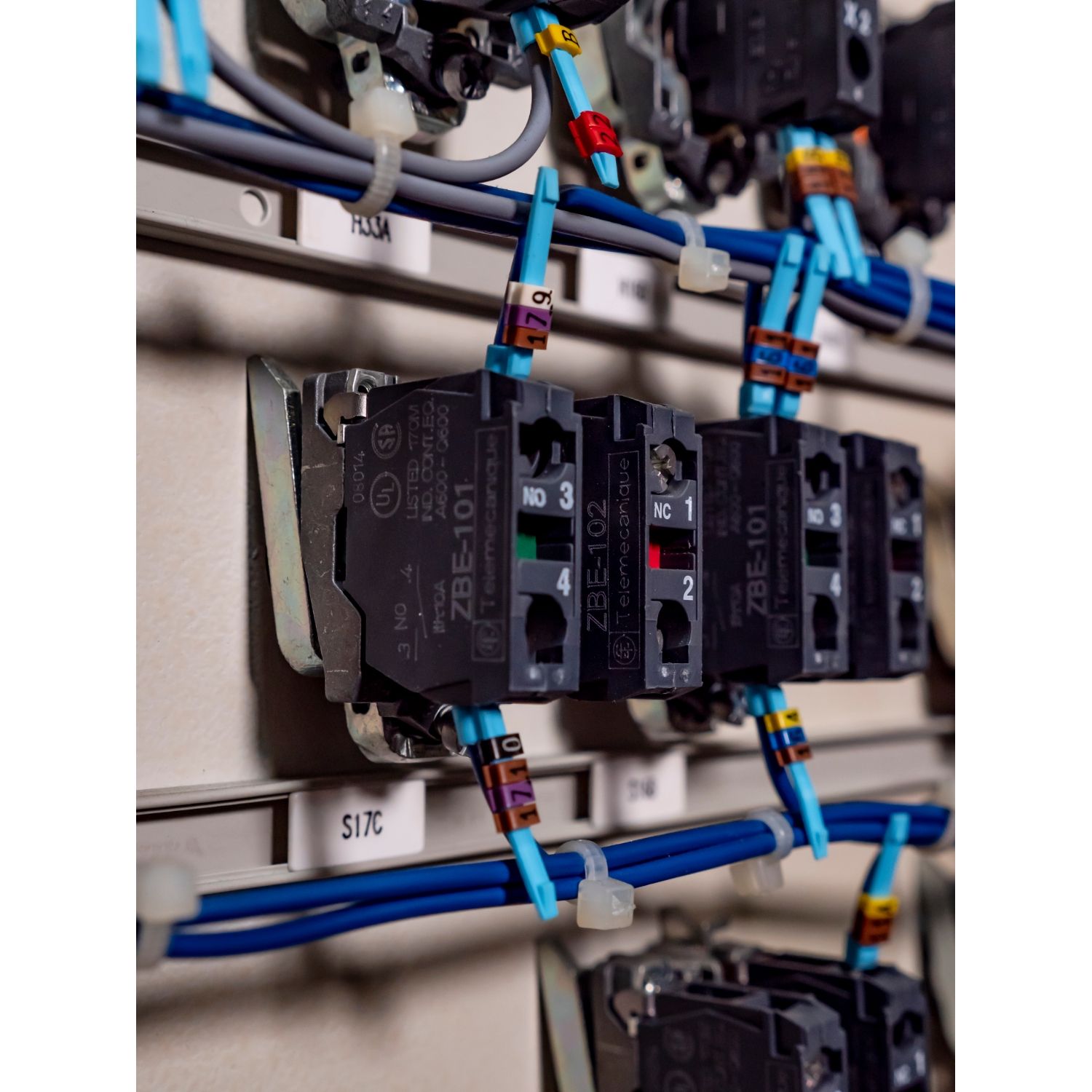

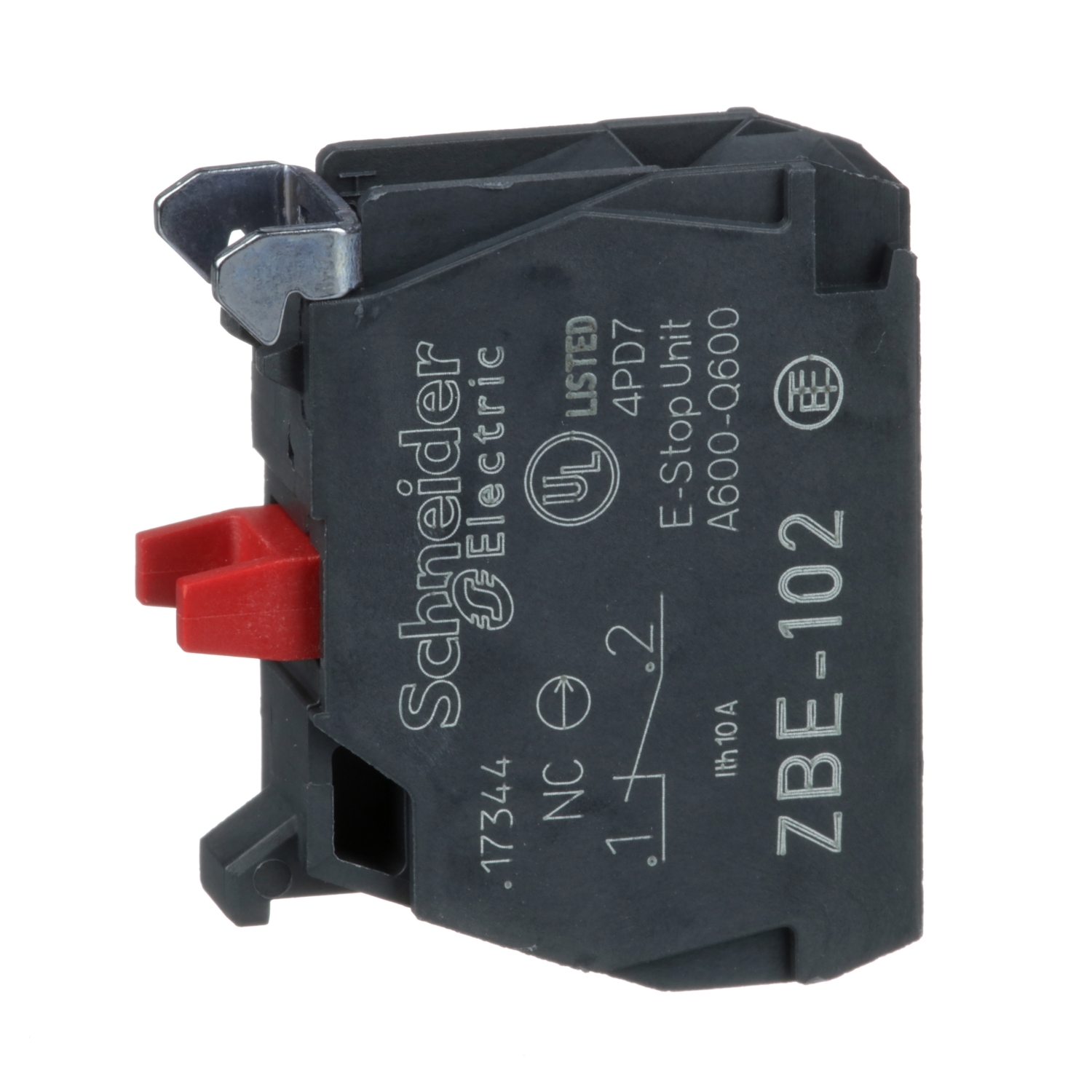

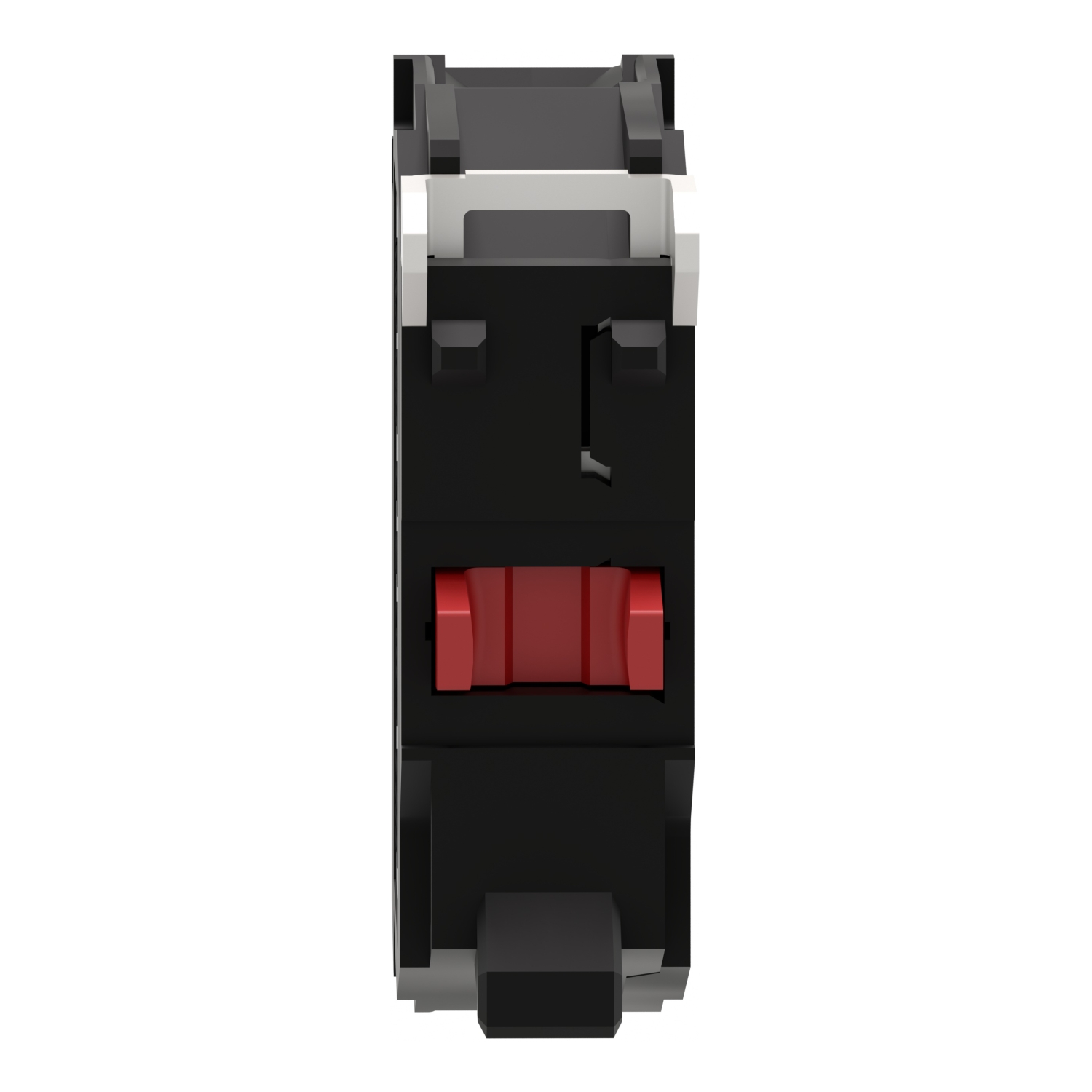

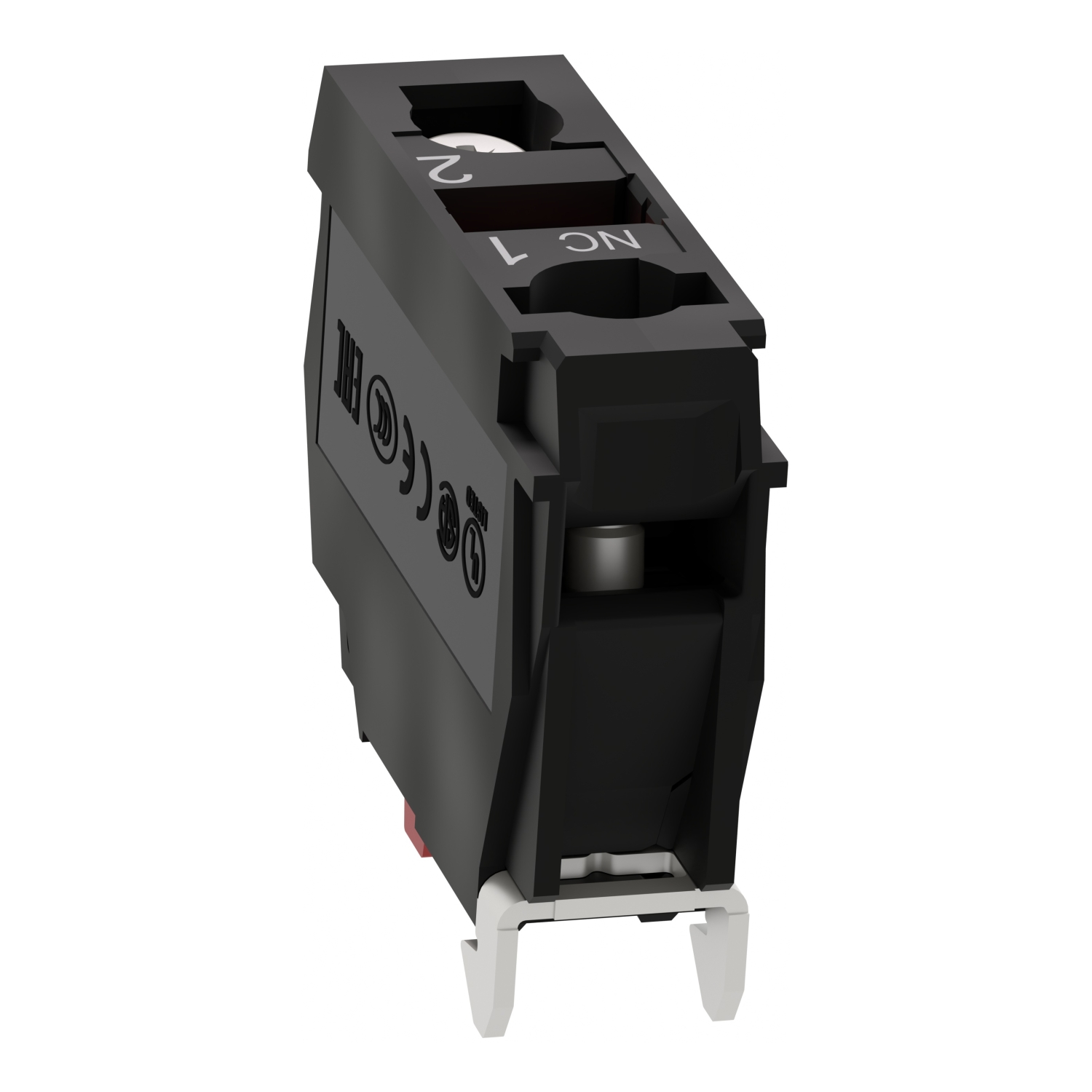

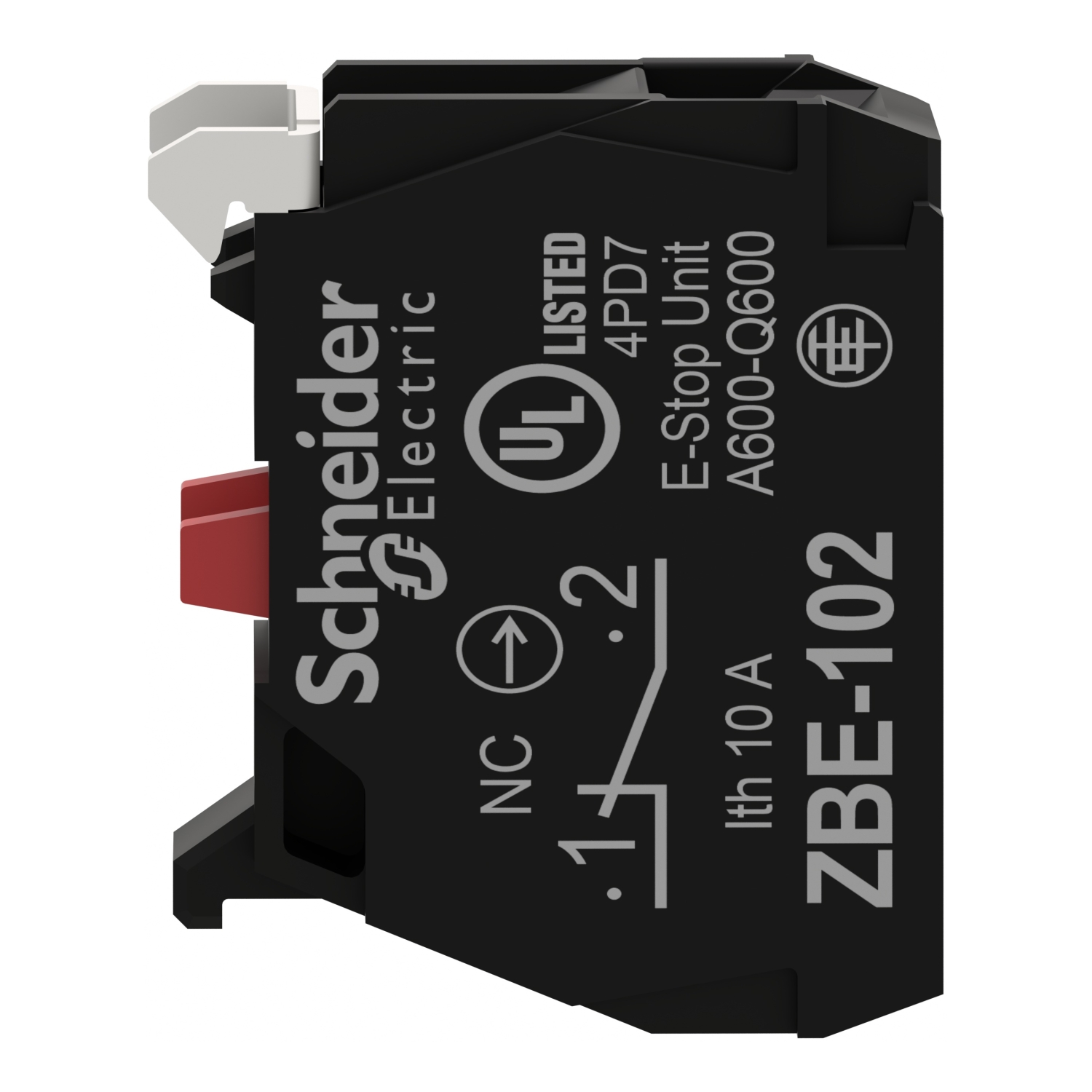

This Harmony ZB, XB5 single contact block contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBE |
| Contact operation | slow-break |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact block type | single |
| Range of product | Harmony XB5, Harmony XB4 |
| Connections - terminals | screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 |
| Product or component type | contact block |
| Contacts usage | standard contacts |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Compatibility code | ZBE |
| Mechanical durability | 10000000 cycles |
| [Ie] rated operational current | 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability | 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Device presentation | basic element |
| Electrical composition code | C13 (quantity <= 1 ), M4 (quantity <= 2 ), C10 (quantity <= 2 ), MF2 (quantity <= 2 ), MF1 (quantity <= 2 ), SF2 (quantity <= 2 ), SF1 (quantity <= 3 ), M9 (quantity <= 2 ), M8 (quantity <= 4 ), M7 (quantity <= 6 ), M6 (quantity <= 2 ), M5 (quantity <= 2 ), M3 (quantity <= 4 ), M2 (quantity <= 4 ), M1 (quantity <= 6 ), C12 (quantity <= 6 ), C9 (quantity <= 3 ), C8 (quantity <= 2 ), C7 (quantity <= 4 ), C6 (quantity <= 3 ), C5 (quantity <= 5 ), C4 (quantity <= 4 ), C3 (quantity <= 6 ), C2 (quantity <= 7 ), C1 (quantity <= 9 ) |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 1.5 mm (NC changing electrical state) |
| Operating force | 2 N NC changing electrical state |
| Contacts type and composition | 1 NC |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-1 |
| Net weight | 0.011 kg |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 |
| Positive opening | with conforming to EN/IEC 60947-5-1 appendix K |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Mounting of block | front mounting |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1 |
| Product certifications | UL, CCC, LROS (Lloyds register of shipping), GL, DNV, BV, GOST, CSA |
