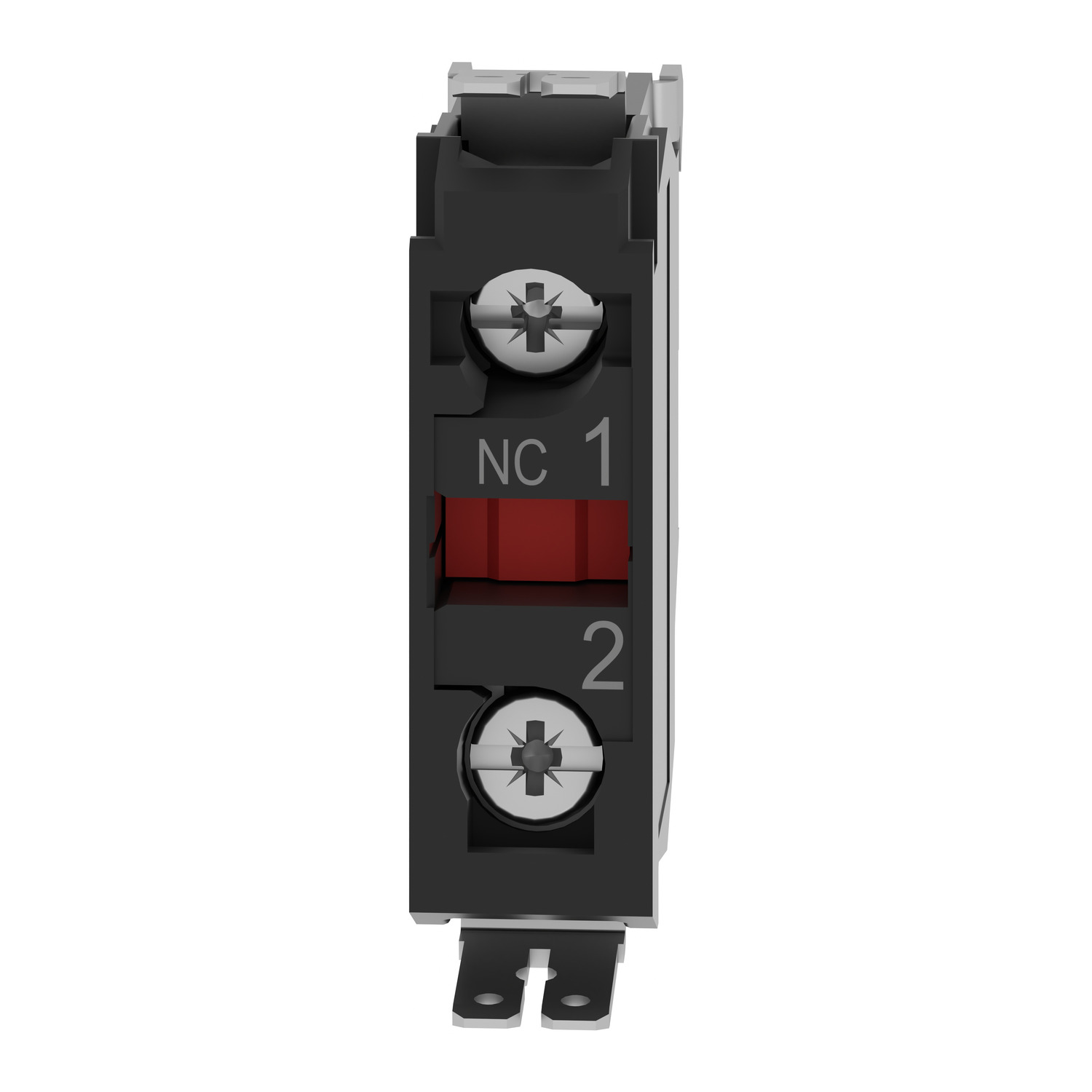

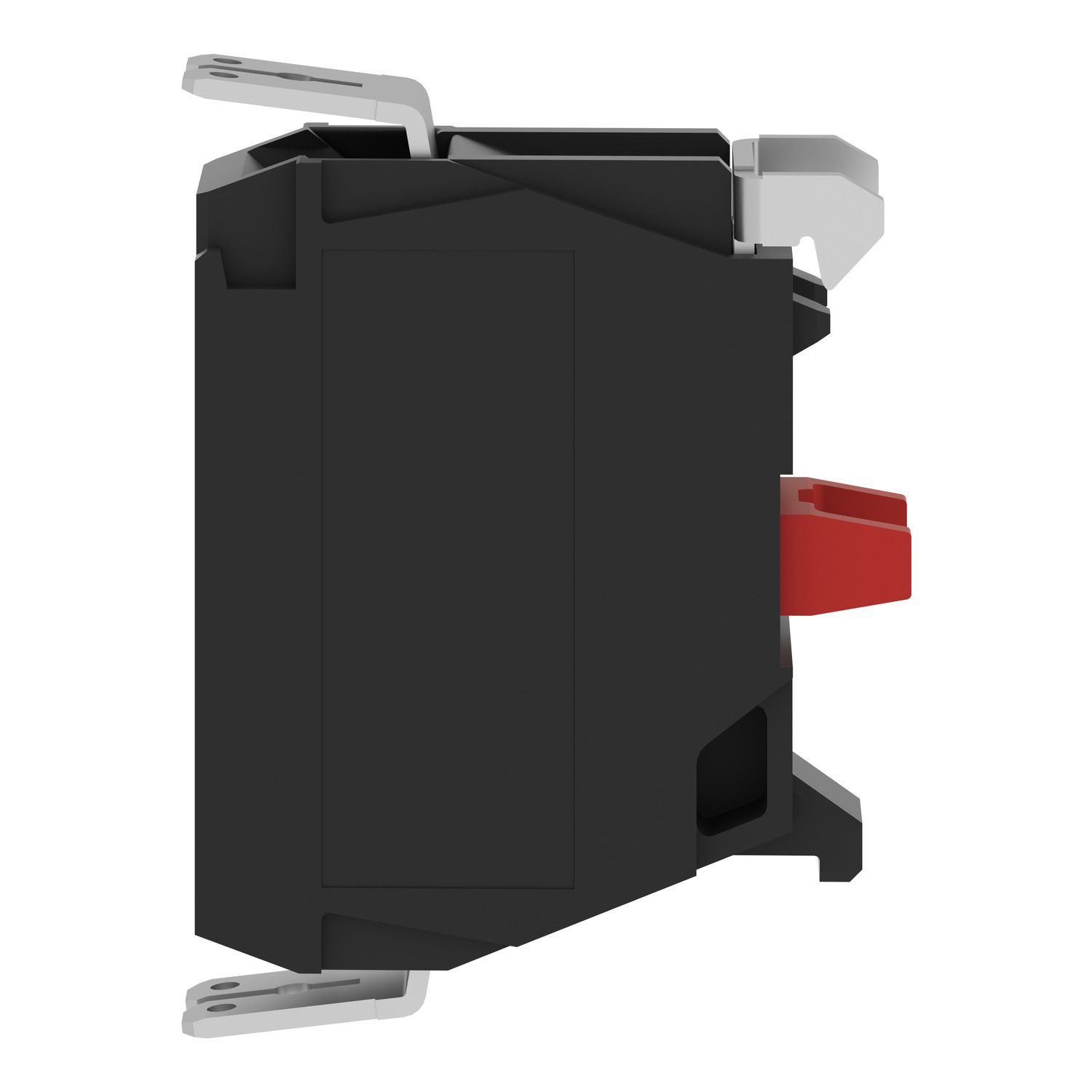

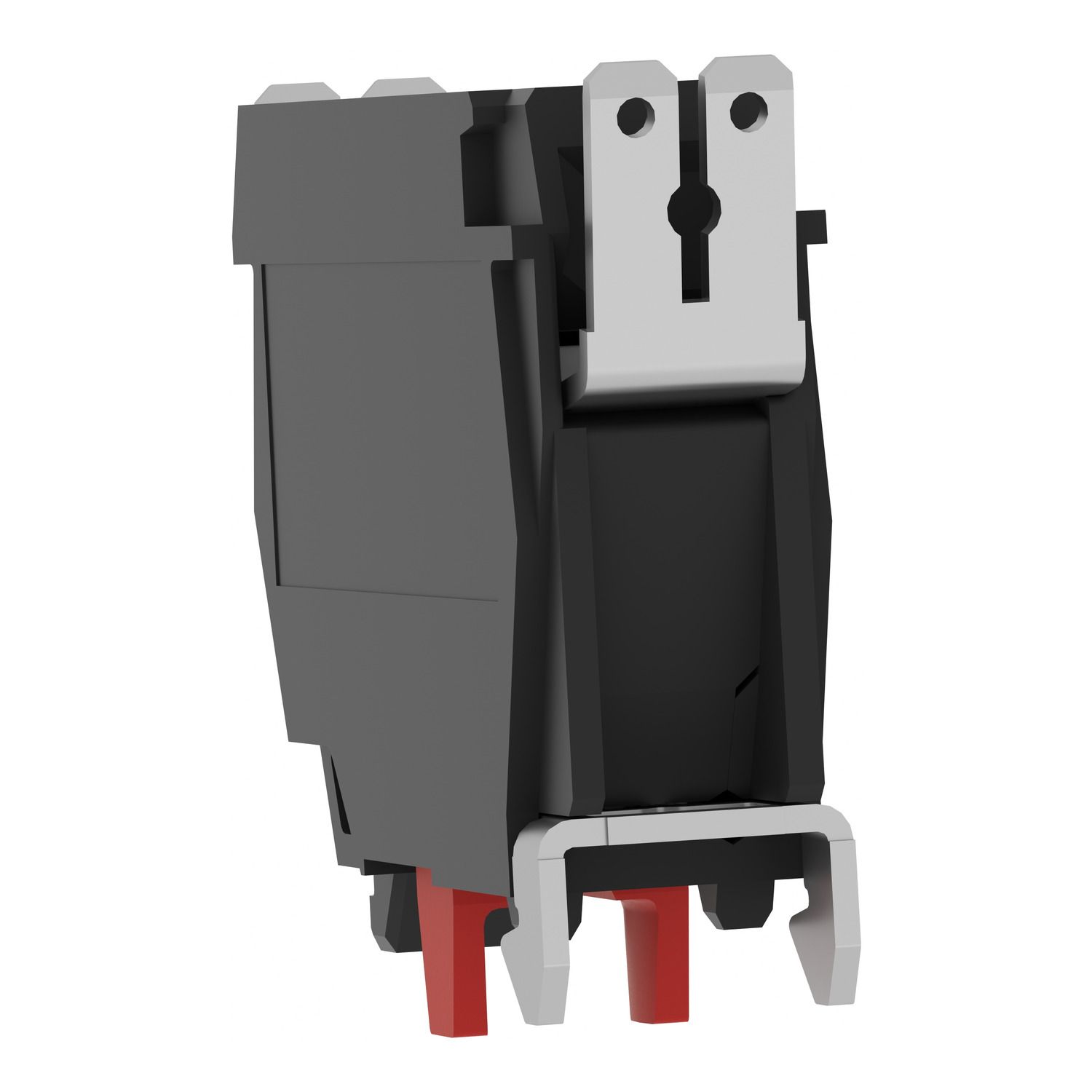

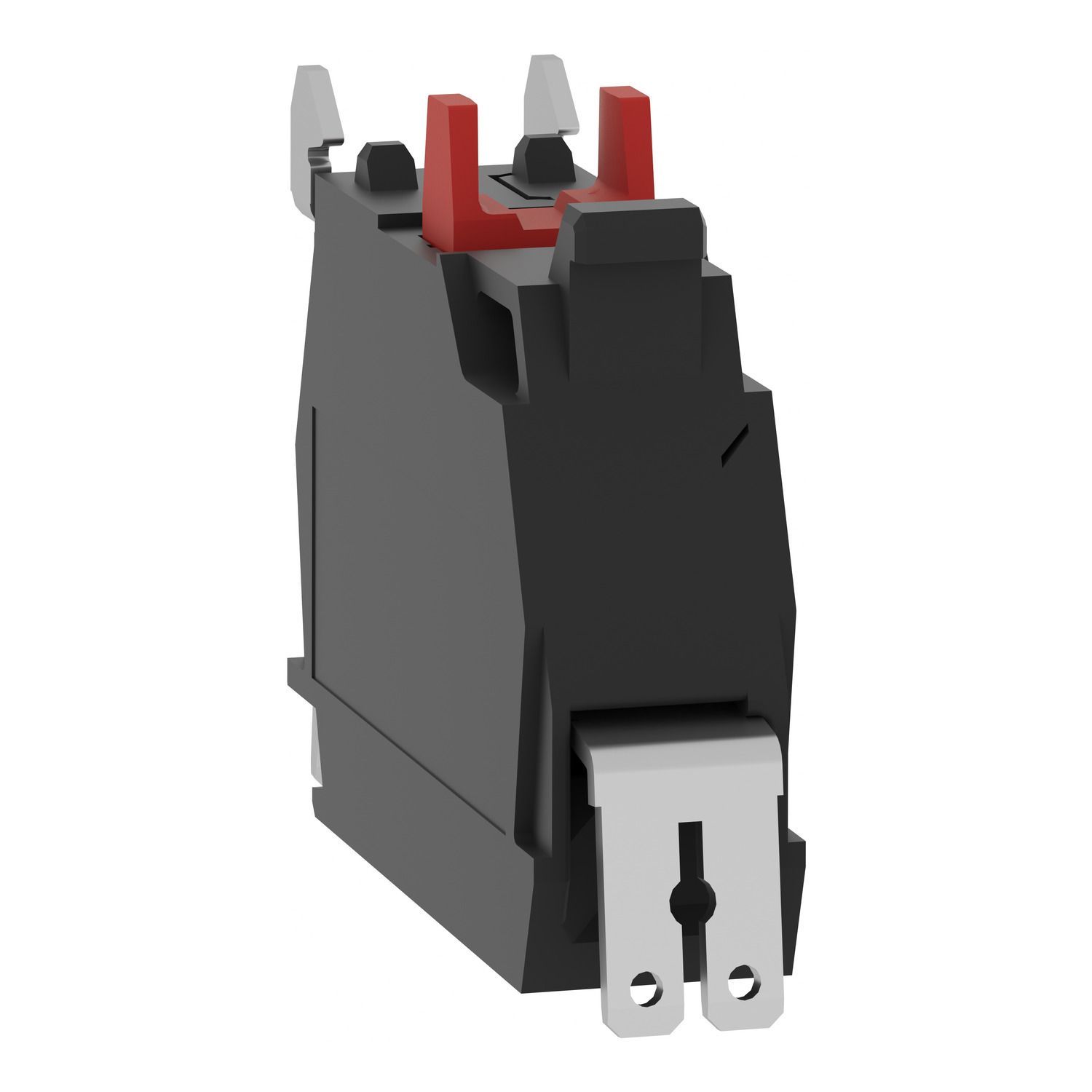

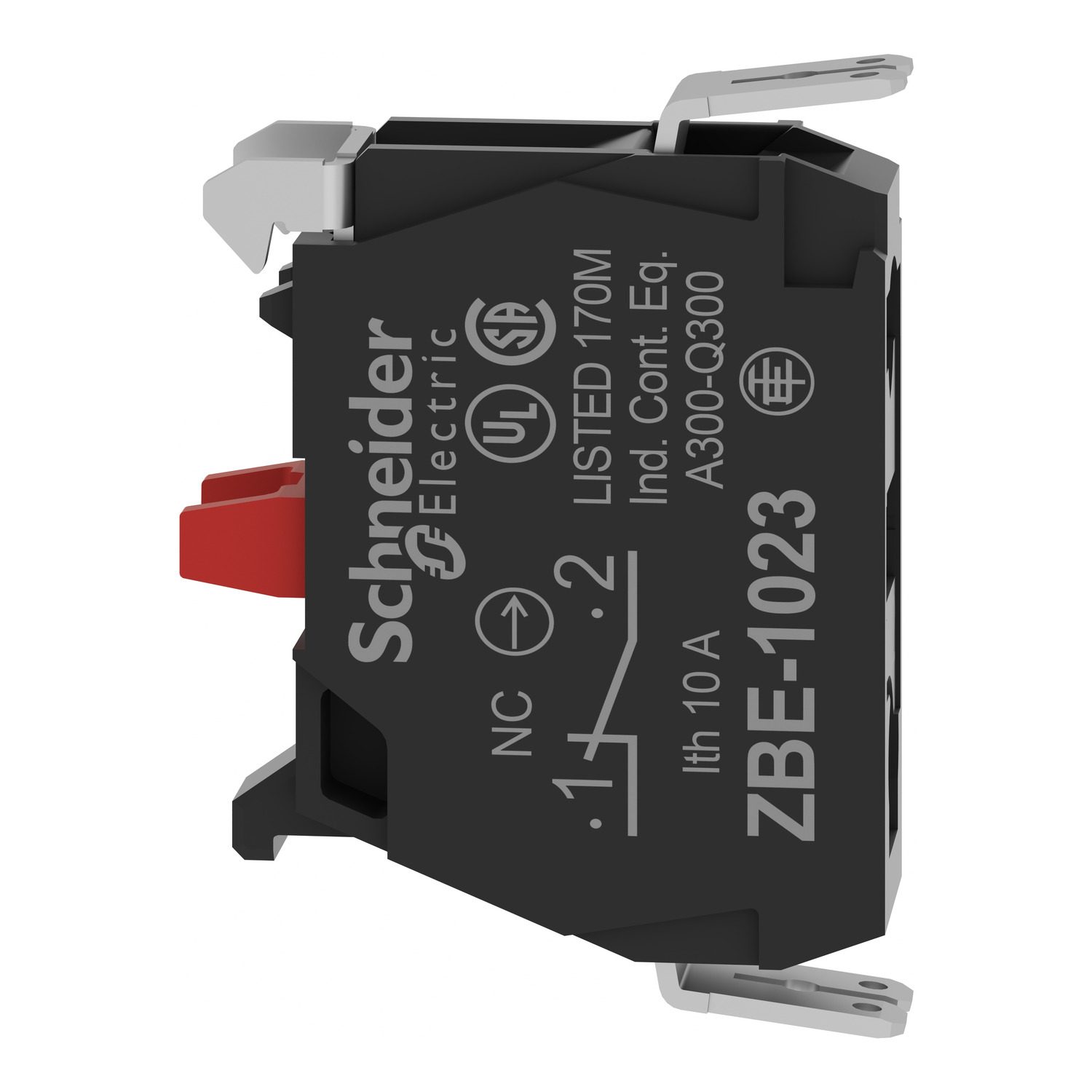

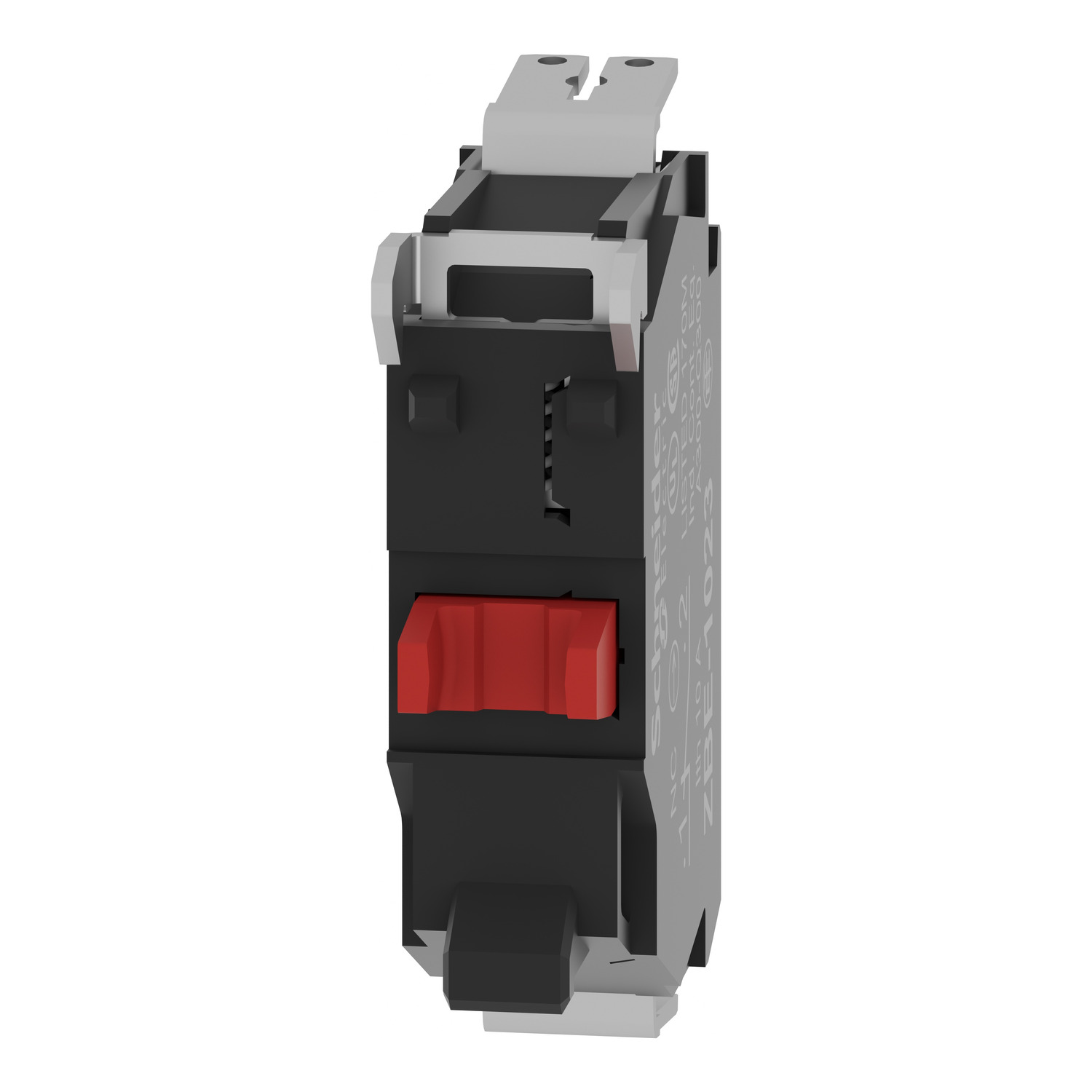

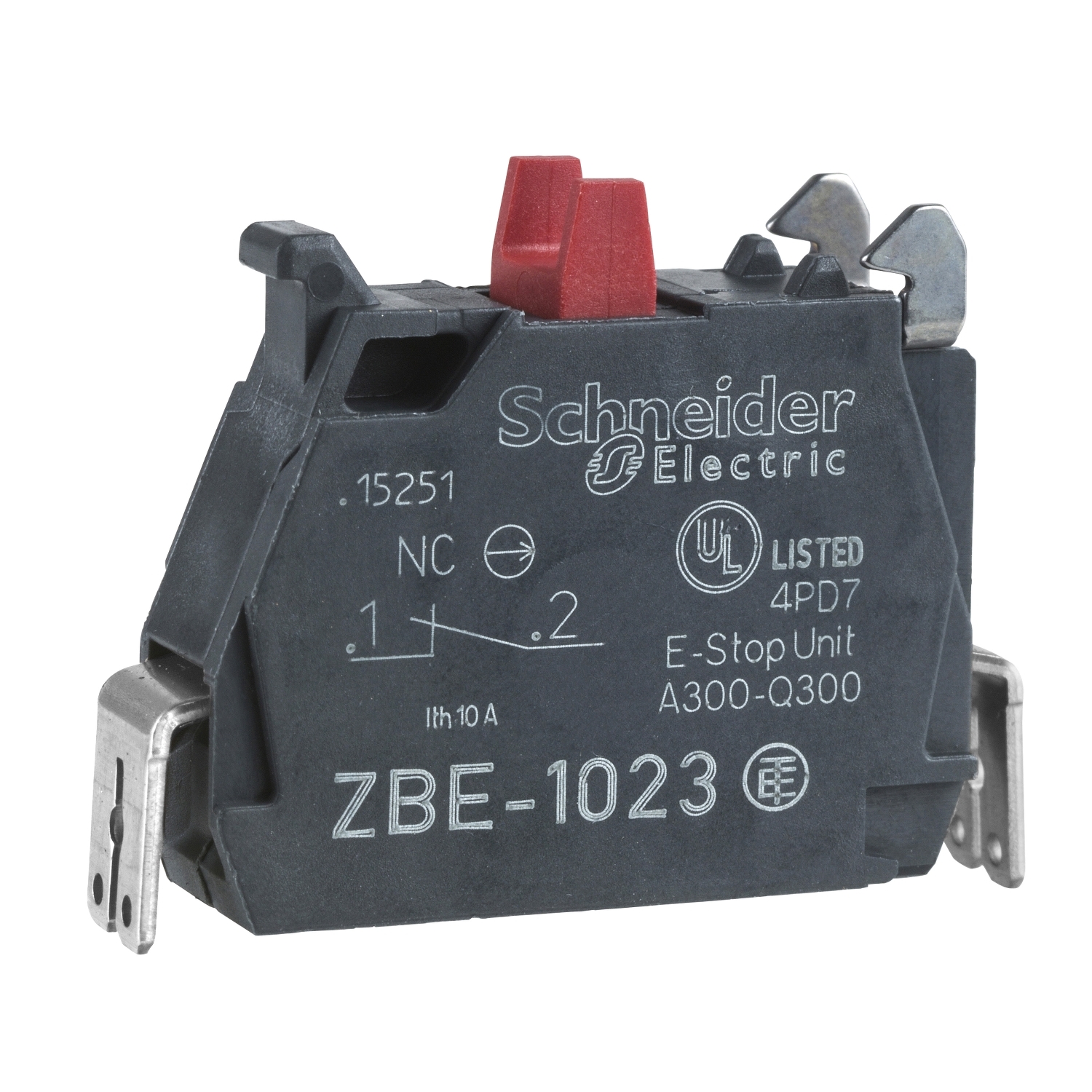

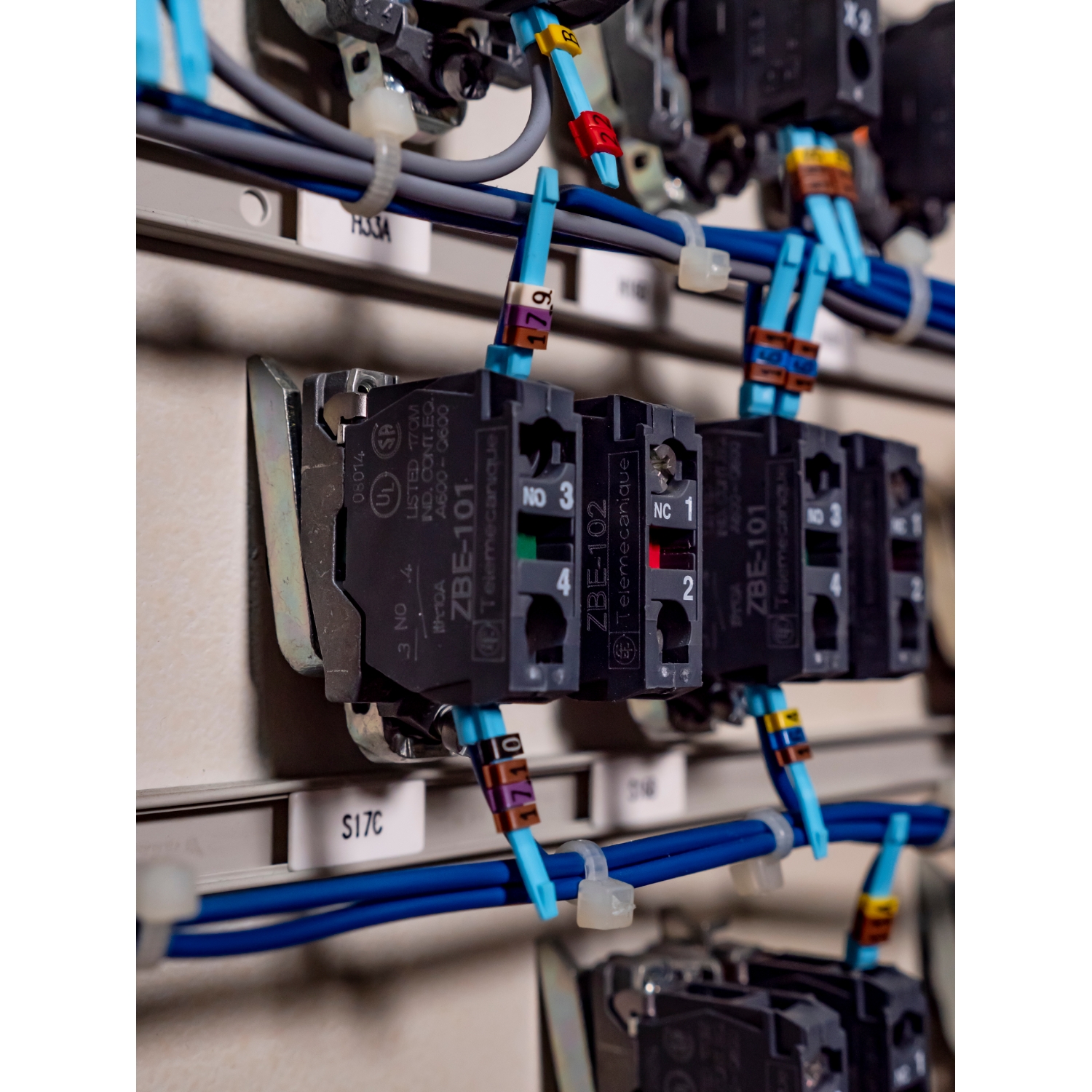

This Harmony ZB, single contact block uses fast-on terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple fast-on connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBE |
| Contact operation | slow-break |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact block type | single |
| Range of product | Harmony XB4, Harmony XB5 |
| Connections - terminals | Faston connector, connection size: 2 x 2.8 mm, Faston connector, connection size: 1 x 6.35 mm |
| Product or component type | contact block |
| Contacts usage | standard contacts |
| Complementary | |
| Compatibility code | ZBE |
| Mechanical durability | 10000000 cycles |
| Electrical composition code | C13 (quantity <= 1 ), M4 (quantity <= 2 ), C10 (quantity <= 2 ), MF2 (quantity <= 2 ), MF1 (quantity <= 2 ), SF2 (quantity <= 2 ), SF1 (quantity <= 3 ), M9 (quantity <= 2 ), M8 (quantity <= 4 ), M7 (quantity <= 6 ), M6 (quantity <= 2 ), M5 (quantity <= 2 ), M3 (quantity <= 4 ), M2 (quantity <= 4 ), M1 (quantity <= 6 ), C12 (quantity <= 6 ), C9 (quantity <= 3 ), C8 (quantity <= 2 ), C7 (quantity <= 4 ), C6 (quantity <= 3 ), C5 (quantity <= 5 ), C4 (quantity <= 4 ), C3 (quantity <= 6 ), C2 (quantity <= 7 ), C1 (quantity <= 9 ) |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 1.5 mm (NC changing electrical state) |
| Operating force | 2 N NC changing electrical state |
| Contacts type and composition | 1 NC |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| Net weight | 0.011 kg |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Mounting of block | front mounting |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| Vibration resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | JIS C8201-1, IEC 60947-5-4, UL 508, IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1 |
| Product certifications | BV, GL, LROS (Lloyds register of shipping), CSA, UL, DNV |
