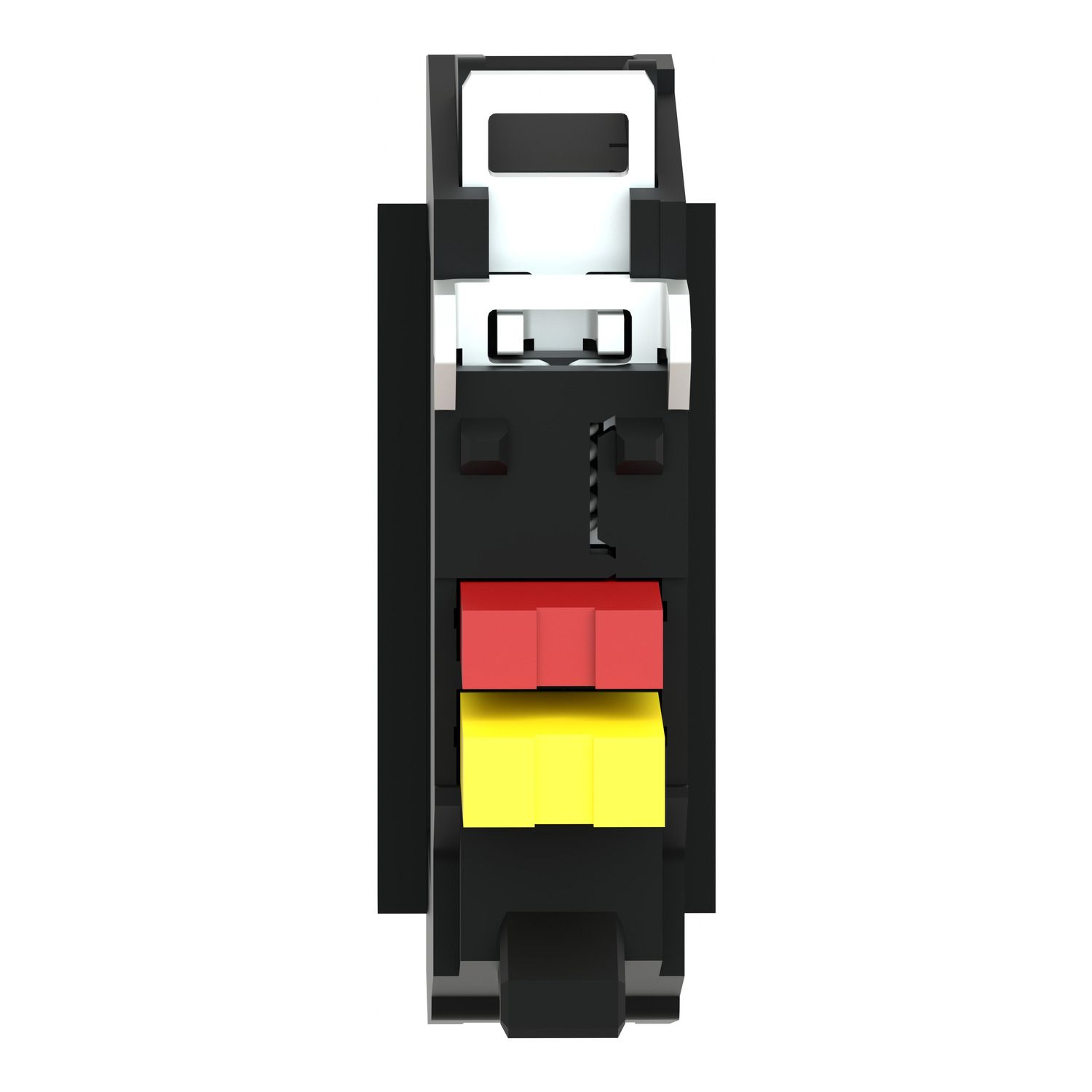

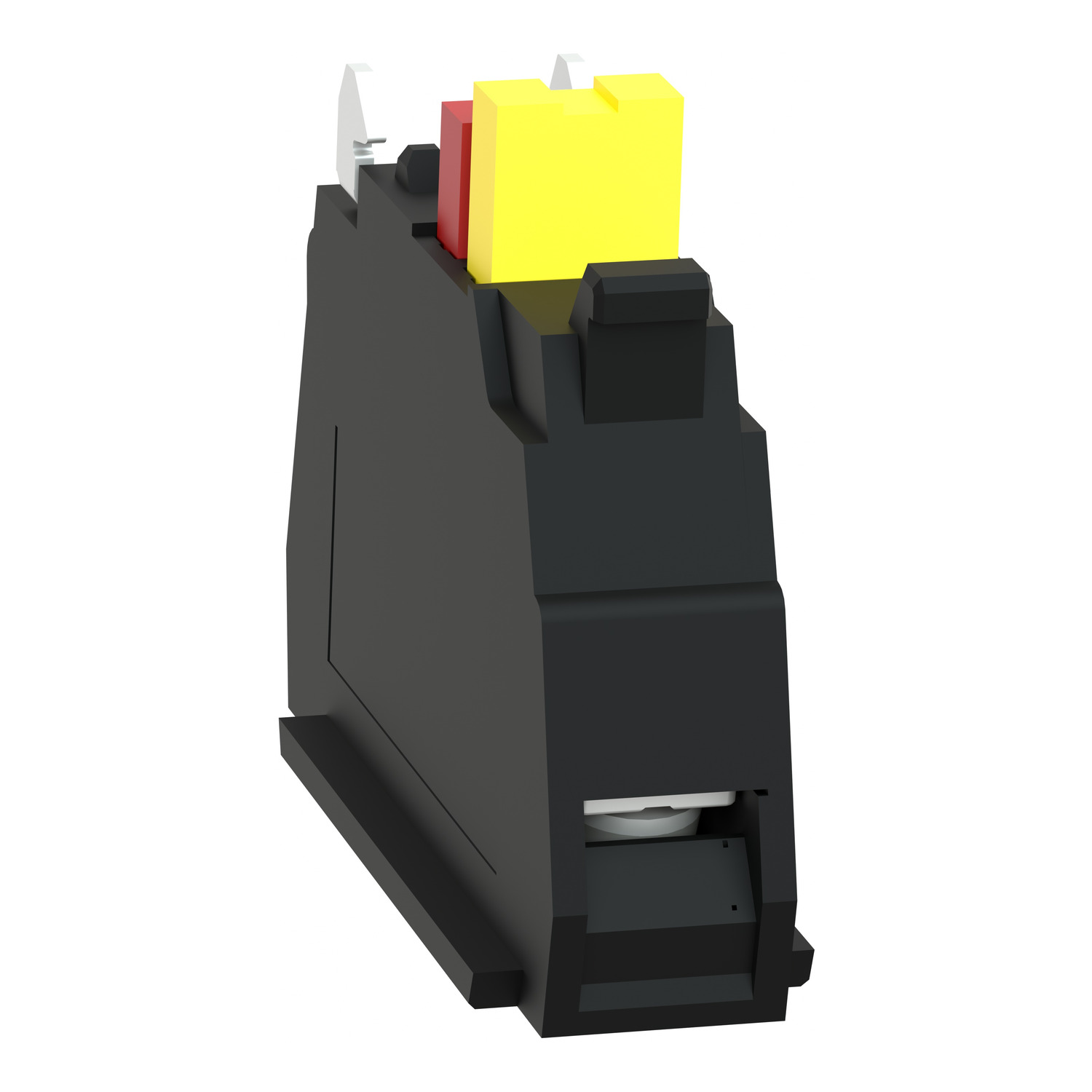

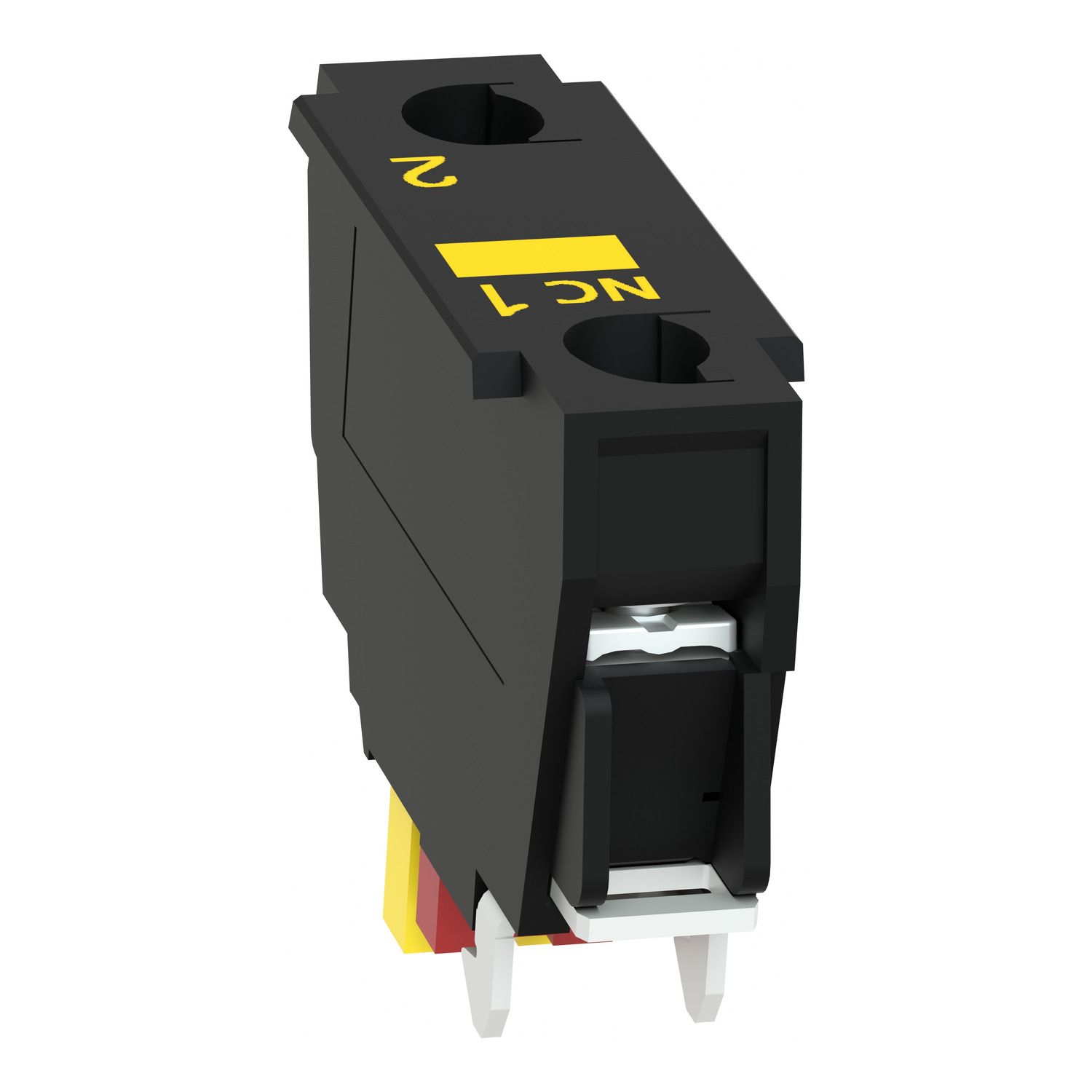

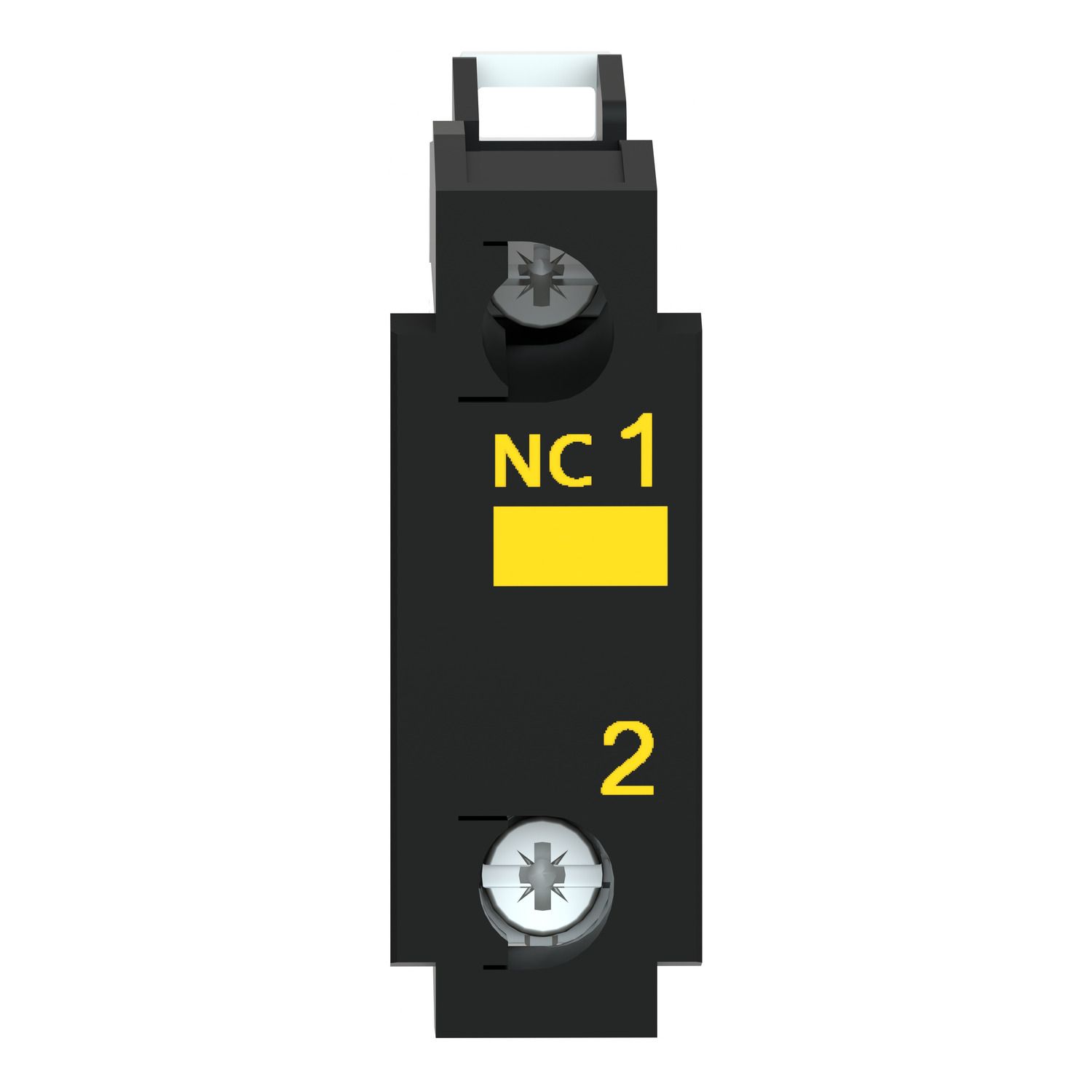

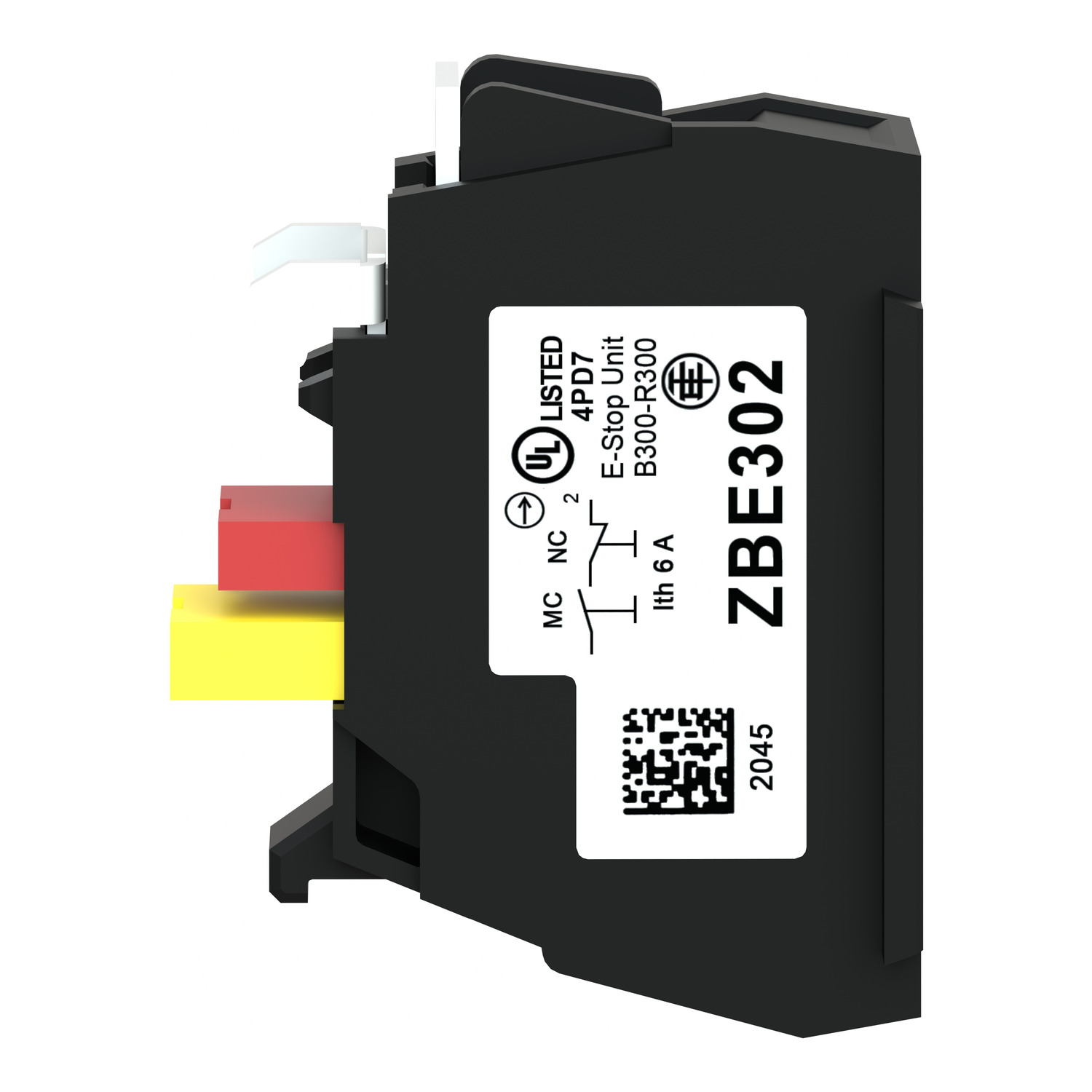

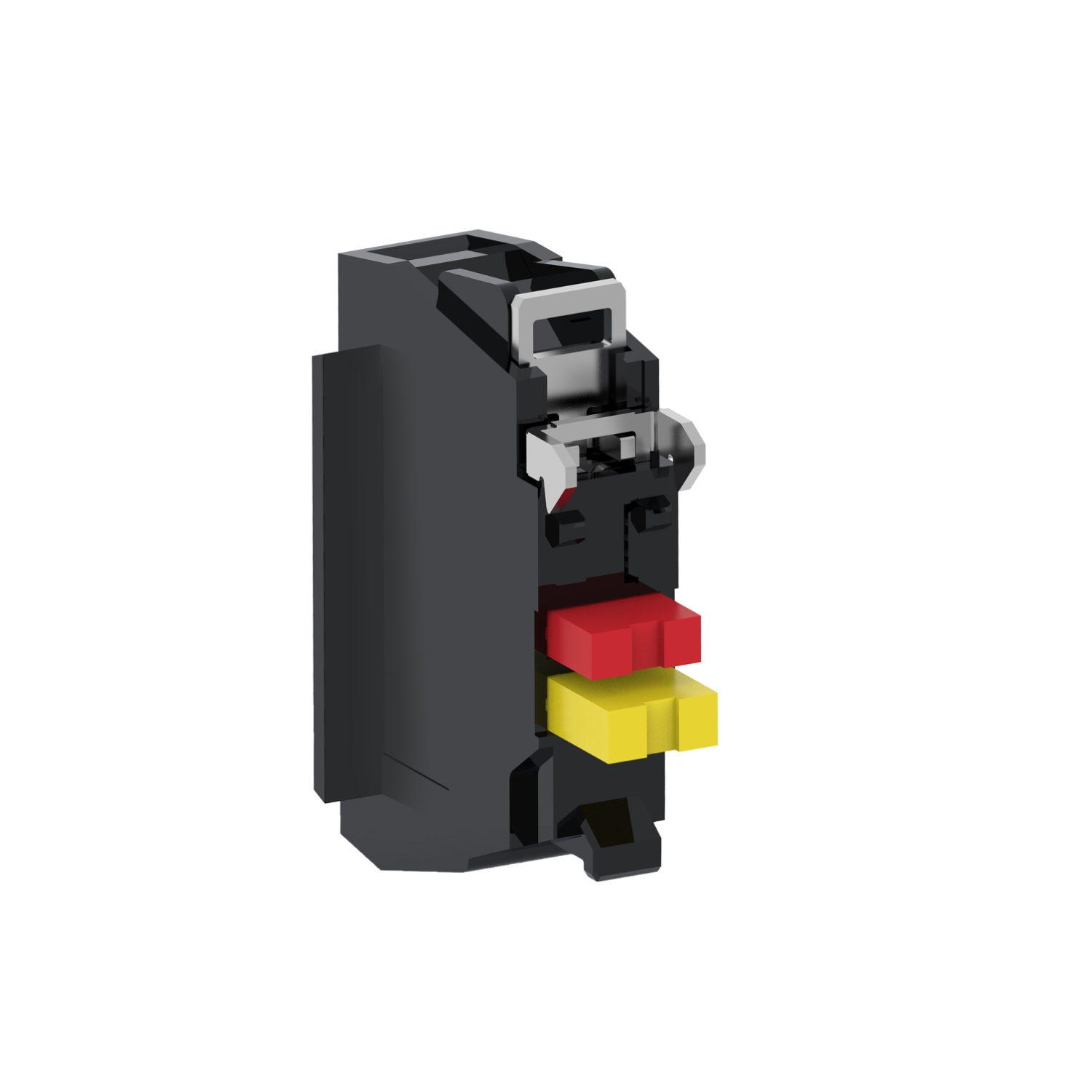

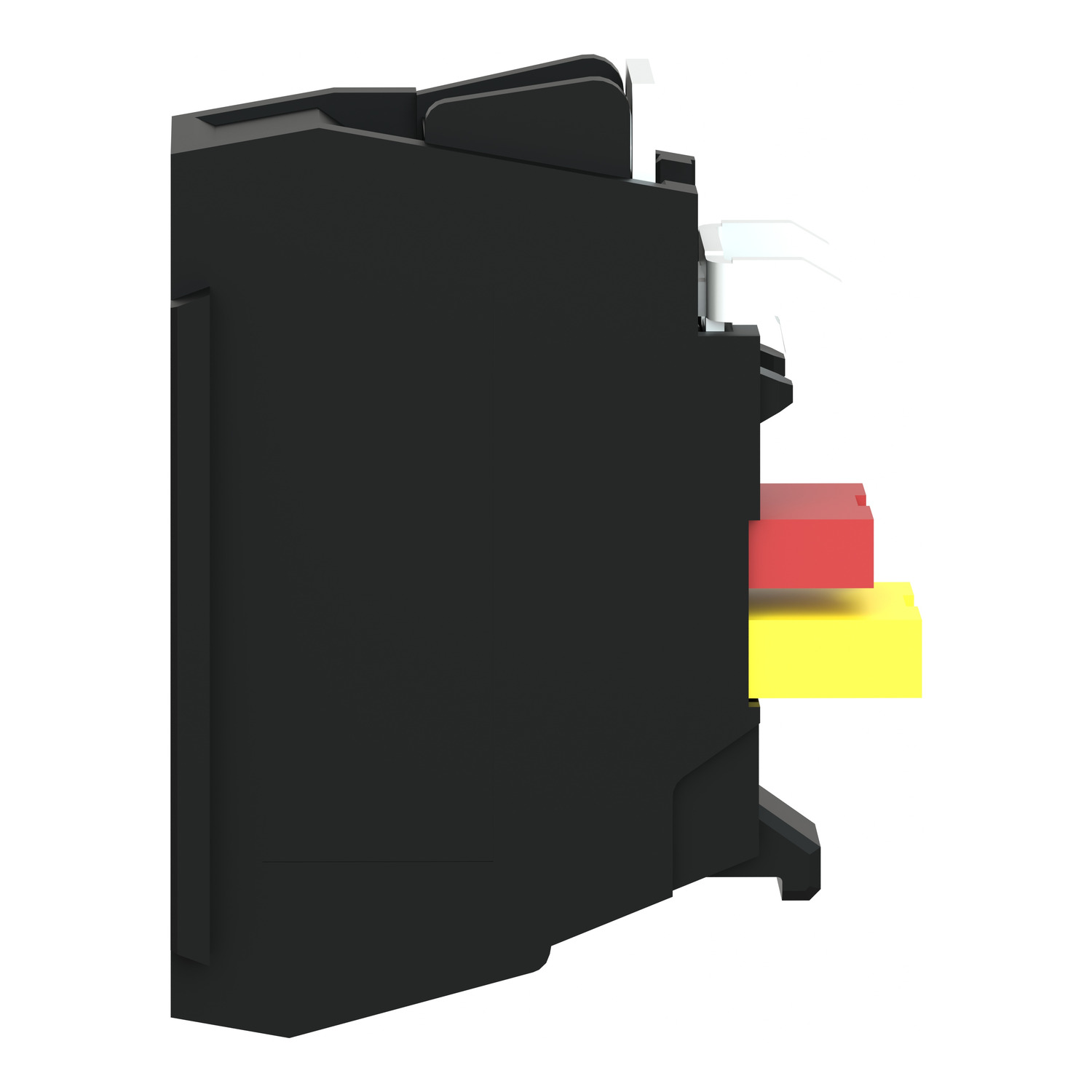

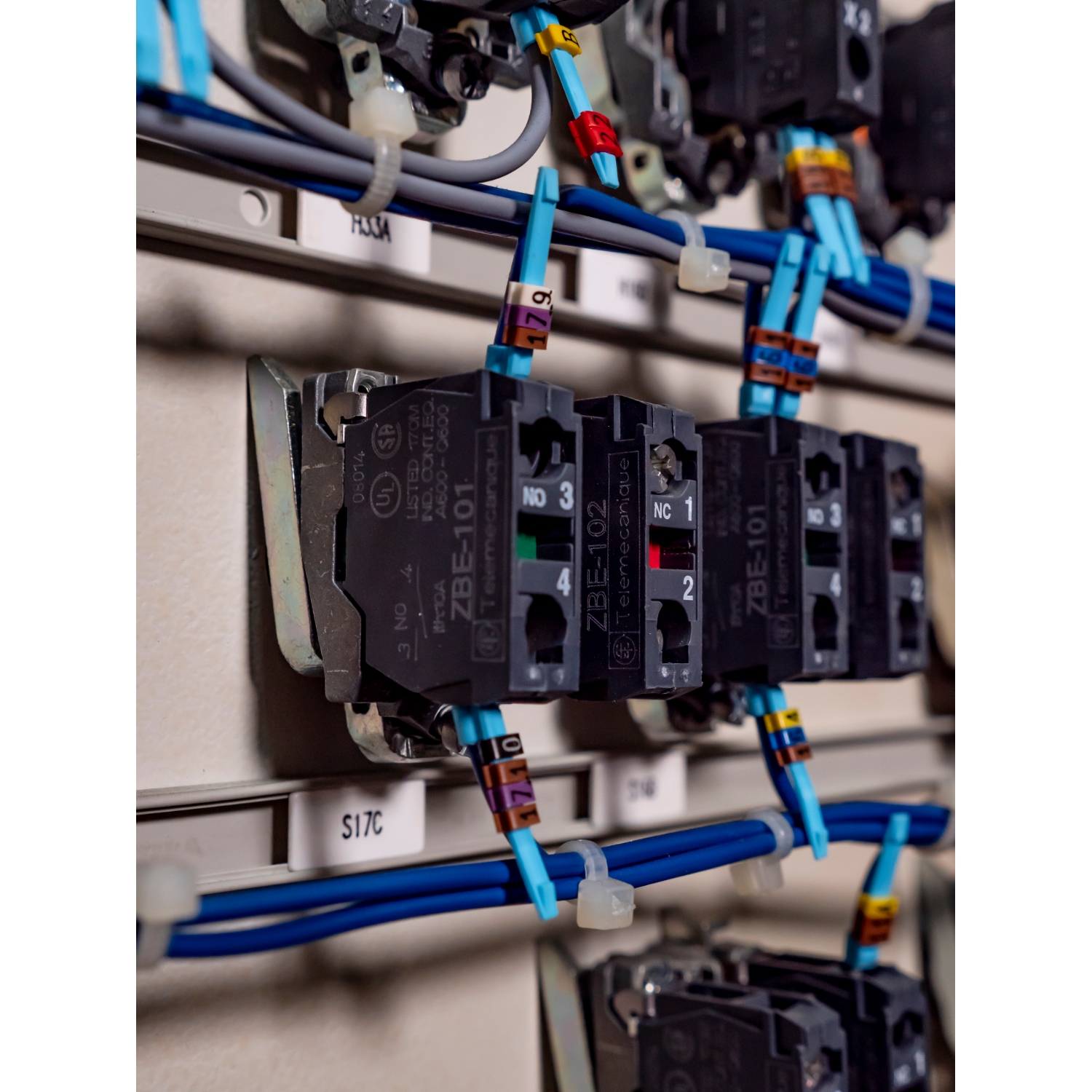

This product is part of the Harmony XB4 and XB5 range, an offer of Ø 22mm pushbuttons, switches and pilot lights. It is a single contact block with silver alloy contact. It is only used in combination with an emergency stop pushbutton and is not compatible with other pushbuttons. It comes with 1 NC monitoring contact with slow break operation. The NC contact is opened when the emergency stop is activated. The monitoring feature triggers emergency stop due to improper installation. It comes with CE, CCC, UKCA, EAC, UL and CSA certification. This monitoring contact is compatible for emergency stops in both the XB4 and XB5 range. It connects to control circuits with simple screw-clamp connections. The Harmony XB4 and XB5 range offers innovative features for simple and efficient use.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | ZBE |
| Contact operation | slow-break |
| Sale per indivisible quantity | 5 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Contact block type | single |
| Range of product | Harmony XB5, Harmony XB4 |
| Connections - terminals | screw clamp terminals, >= 1 x 0.34 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Product or component type | contact block |
| Contacts usage | monitoring contact |
| Complementary | |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Electrical reliability | λ < 10exp(-8) at 17 V and 3.4 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-7) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4 |
| Compatibility code | ZBE |
| Mechanical durability | 300000 cycles |
| [Ie] rated operational current | 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.11 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1 |
| Electrical durability | 300000 cycles, DC-13, 1 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Device presentation | basic element |
| CAD overall height | 41 mm |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.3 mm (total travel), 1.5 mm (NC changing electrical state) |
| Operating force | 5 N NC changing electrical state |
| Contacts type and composition | 1 NC monitoring contact |
| CAD overall depth | 26 mm |
| CAD overall width | 10 mm |
| [Ui] rated insulation voltage | 300 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| Net weight | 0.013 kg |
| [Ith] conventional free air thermal current | 6 A conforming to IEC 60947-5-1 |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Short-circuit protection | 6 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| Mounting of block | front mounting |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| Vibration resistance | 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | GOST IEC 60947-5-1, BS EN 60947-5-1, GB/T 14048.5, JIS C8201-5-1, JIS C8201-1, CSA C22.2 No 60947-5-1, UL 60947-5-1, IEC 60947-5-4, IEC 60947-5-1, IEC 60947-1 |
| Product certifications | UKCA, CB Scheme, UL listed, CCC, LROS (Lloyds register of shipping), CE, DNV, BV, EAC, CSA |
